X40 4-channel amplified controller with DSP

Sale price
•    Configuration: 4-channel amplified controller with DSP
•    Output Power (all channels driven):
•    4 × 1000 W @ 8 Ω
•    4 × 1400 W @ 4 Ω
•    Bandwidth (-5 dB): 10 Hz – 20 kHz
•    DSP & Processing: 96 kHz / 32-bit floating point, FIR + IIR EQ, array morphing, air absorption, limiters, delay (up to 1000 ms)
•    Inputs/Outputs: Milan-AVB, AES/EBU, Analog | 4×4 Routing
•    Latency: 3.84 ms (standard) | 0.76 ms (low-latency)
•    Weight: 14.5 kg / 32 lb
•    Dimensions (H × W × D): 88 × 483 × 427 mm
•    Power Supply: 100–240 V~, 50/60 Hz, PFC

＄900.00

Video

10 Images
Amplification and power supply
Amplification class Class D
Output power, all channels loaded 4 x 1000 W at 4 ohms/ 4 x 1000 W at 8 ohms
Power supply model Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating 100 V - 240 V ±10%, 50-60 Hz
DSP
Digital Signal Processor (DSP) SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing Flexible 4x4 routing matrix
Per output channel UBuilt-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing, Air absorption compensation filters Internal IIR and FIR EQ algorithms L-DRIVE advanced system protection Output delay from 0 to 1000 ms
Technologies
Loudspeaker management L-DRIVE advanced system protection
Latency
Standard latency (analog/digital inputs) 3.84 ms
Inputs
AVB 4 channels from 1 stream (of up to 8 channels)
AES/EBU 4 channels AES/EBU (2 x AES3) with SRC
Analog 4 channels

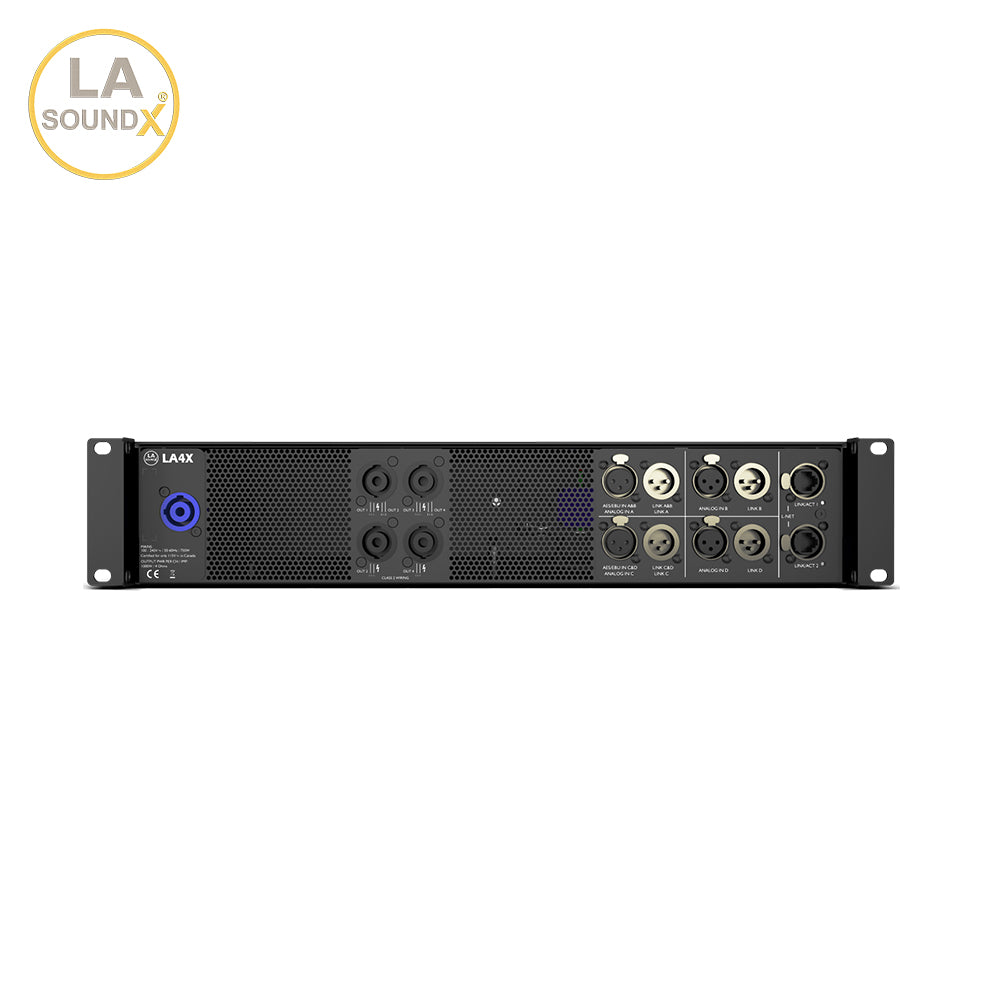

Connections 2 etherCON 1 Gb/s I/O+ control 4 female 3-pin XLR (2 x switching analog/AES3) 4 male 3-pin XLR links
Outputs
Loudspeaker connections 4 x SpeakON
Interface
Display/indicators LCD and LED's
Navigation Rotary encoder, power and mute keys
Control and monitoring
L-Acoustics remote control software LA Network Manager
Third-party management solutions Q-SYS® / Crestron® / Control4® / Savant®/ SNMP / Extron®
Operating conditions
Temperature 0º C / 32º F to +50º C / 122º F
Physical data
Height 2U
TWeight 11.3 kg / 24.9 lb
Protection rating IP30
