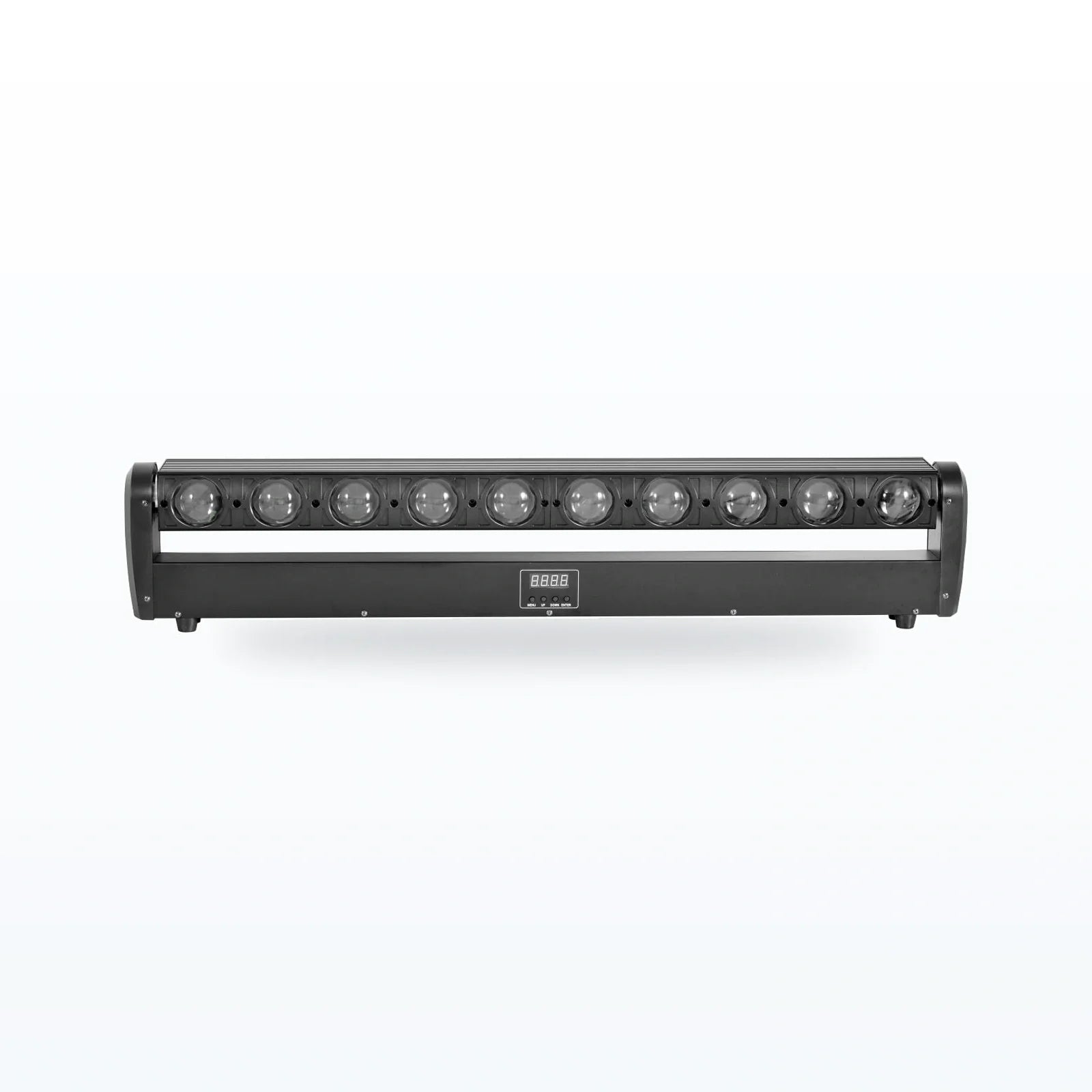

Ten RGBW cells Ten four-in-one LED cells form one continuous horizontal optical line.

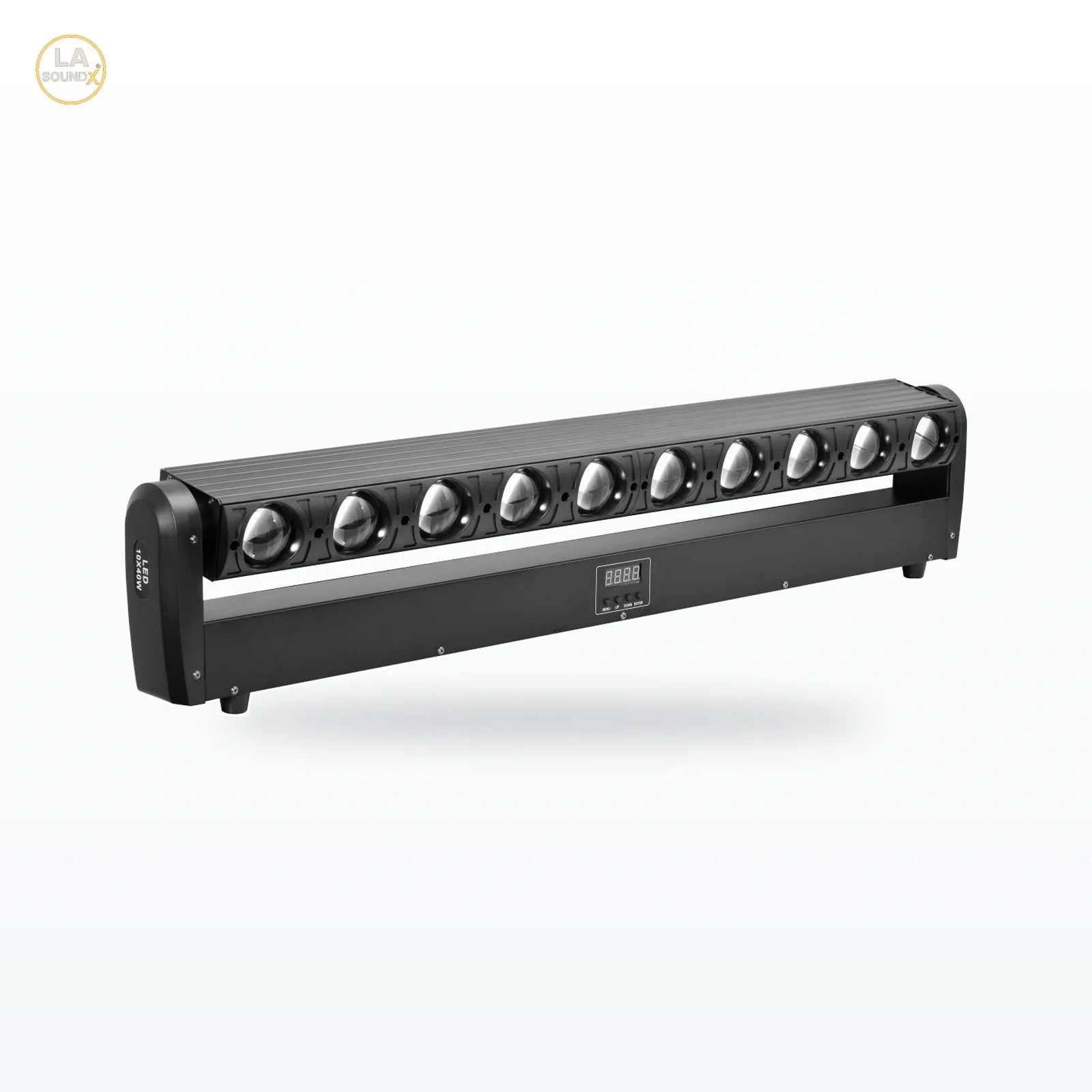

Product: 10-cell RGBW tilt matrix bar
Input voltage: AC100-240V, 50/60Hz
DMX modes: 7CH / 13CH / 43CH
Fixture verification: D4: 7CH and 13CH; R20 and MA XML: 13CH
Dimming / strobe: 32-bit 0-100% linear / 1-30Hz
Movement: Y-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED
Protection: IP20 indoor

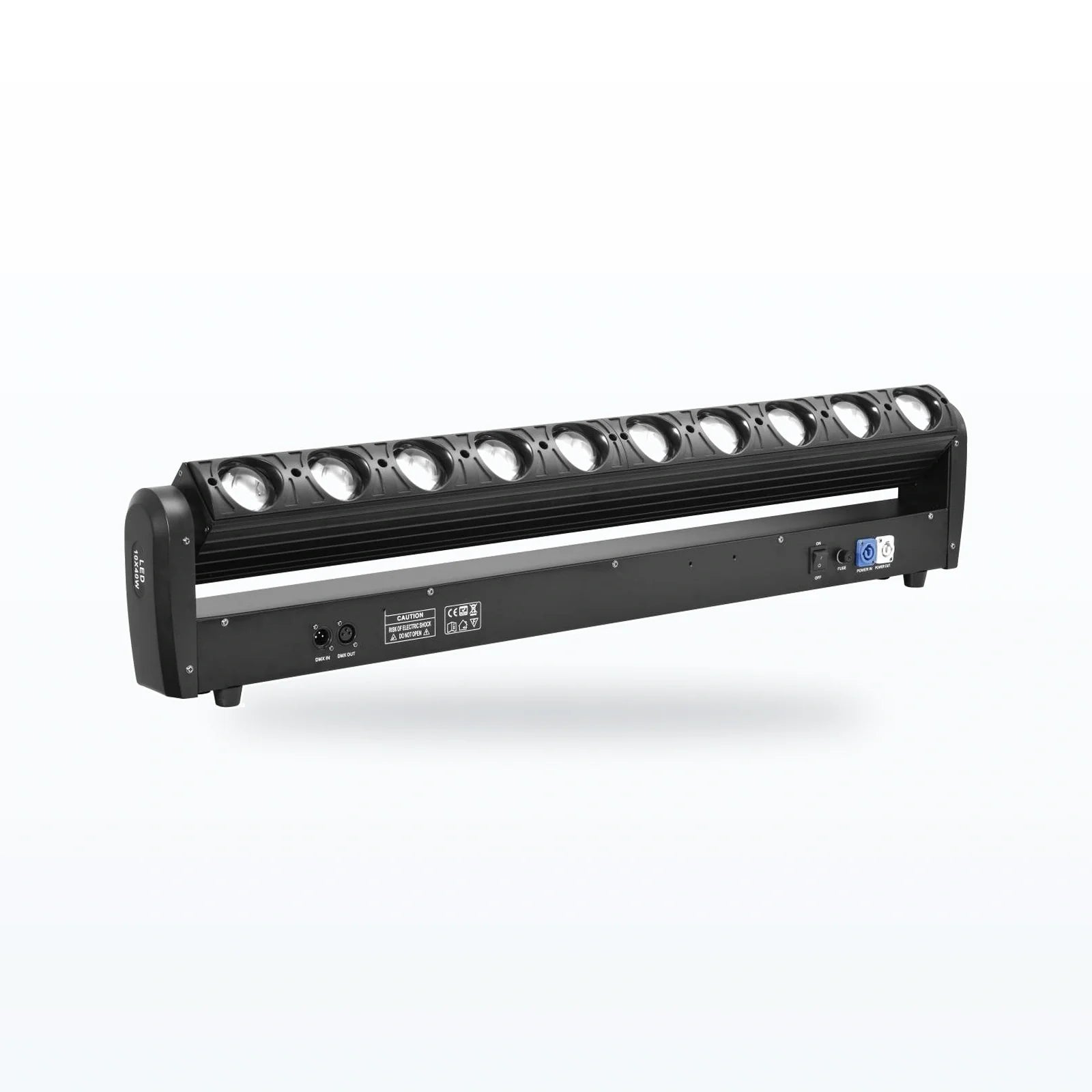

Connection: DMX input/output and power input/output
Product size: TO BE CONFIRMED
Net / gross weight: TO BE CONFIRMED
Housing: Metal, black
Confirmation required: Verify actual LED rating, fixture power, tilt range, dimensions, weight, current and fuse before publication.
01
Ten RGBW cells Ten four-in-one LED cells form one continuous horizontal optical line.
- DMX modes
- 7CH / 13CH / 43CH
- Movement
- Y-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED
- Input voltage
- AC100-240V, 50/60Hz
- Fixture verification
- D4: 7CH and 13CH; R20 and MA XML: 13CH
01
Ten RGBW cells Ten four-in-one LED cells form one continuous horizontal optical line.
Y-axis movement
The complete light bar tilts to redirect the beam line and animated looks.
Individual pixel access
The 43CH table assigns independent RGBW channels to all ten cells.
Technical specification
Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.
- Product
- 10-cell RGBW tilt matrix bar
- Input voltage
- AC100-240V, 50/60Hz
- DMX modes
- 7CH / 13CH / 43CH
- Fixture verification
- D4: 7CH and 13CH; R20 and MA XML: 13CH
- Dimming / strobe
- 32-bit 0-100% linear / 1-30Hz
- Movement
- Y-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED
- Protection
- IP20 indoor
- Connection
- DMX input/output and power input/output
- Product size
- TO BE CONFIRMED
- Net / gross weight
- TO BE CONFIRMED
- Housing
- Metal, black
- Confirmation required
- Verify actual LED rating, fixture power, tilt range, dimensions, weight, current and fuse before publication.
