1296-pixel 16-zone RGB strobe bar

Product: 1296-pixel 16-zone RGB strobe bar
Input voltage: AC100-240V, 50/60Hz
Rated power: 250W
Light source: 1296 x 0.2W 5050 RGB LEDs
Beam angle: TO BE CONFIRMED - generic fixture values excluded
Strobe: frequency
Dimming: 32-bit / 0-100% linear
DMX modes: 3CH / 5CH / 9CH / 48CH / 57CH
Connections: DMX input/output and power input/output; exact connector type TBC
Protection: IP20 / indoor
Operating temperature: -30 to 50 degrees C
Housing: Black metal chassis

01

1296 RGB LEDs The current manual specifies 1296 x 0.2W 5050 RGB LEDs in a 250W platform.

Rated power

250W

Light source

1296 x 0.2W 5050 RGB LEDs

DMX modes

3CH / 5CH / 9CH / 48CH / 57CH

Protection

IP20 / indoor

01

1296 RGB LEDs The current manual specifies 1296 x 0.2W 5050 RGB LEDs in a 250W platform.

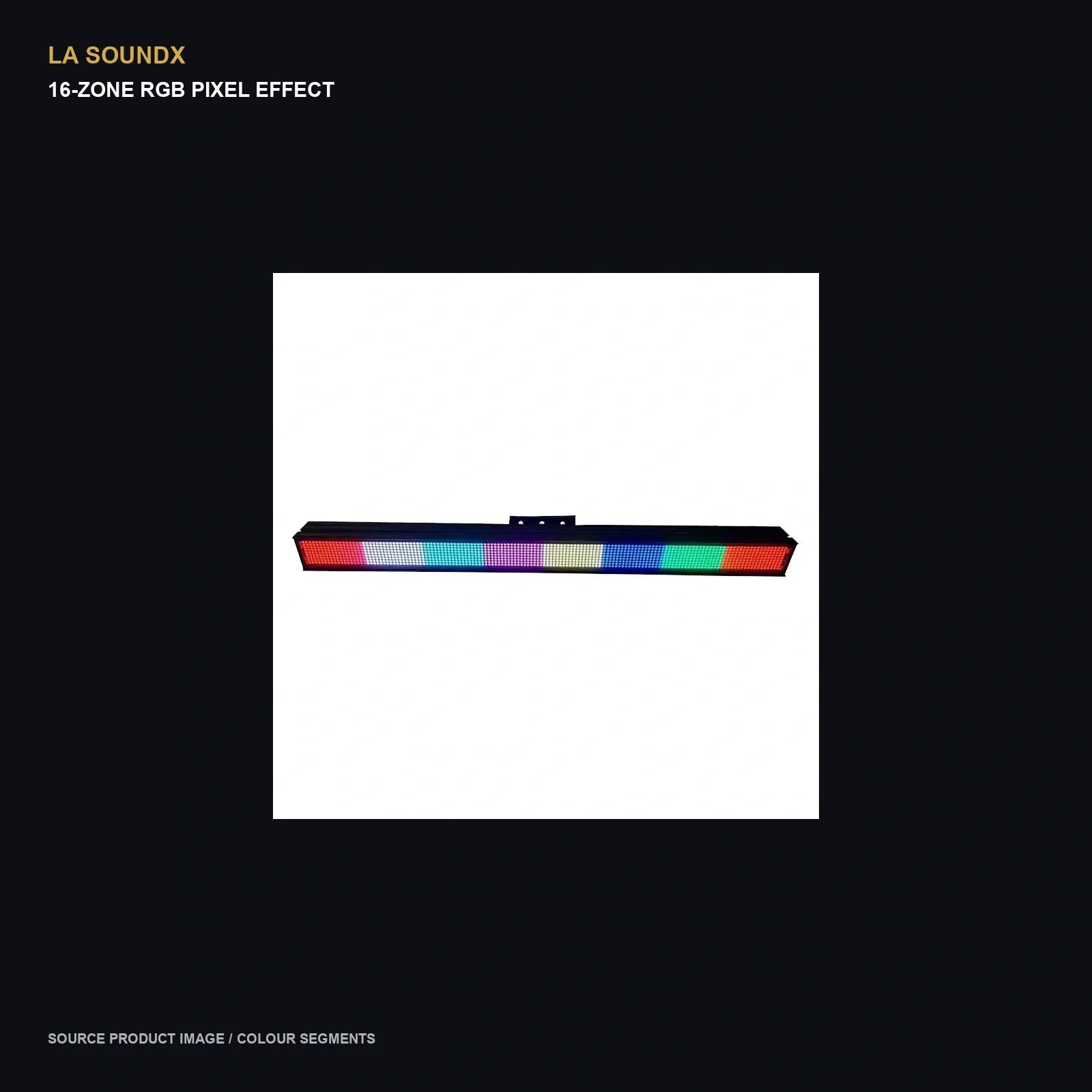

Sixteen independent zones

The bar is divided into sixteen addressable RGB sections for segmented colour and chase programming.

Five DMX personalities

3CH, 5CH, 9CH, 48CH and 57CH modes scale from simple colour mixing to zone-level control.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

1296-pixel 16-zone RGB strobe bar

Input voltage

AC100-240V, 50/60Hz

Rated power

250W

Light source

1296 x 0.2W 5050 RGB LEDs

Beam angle

TO BE CONFIRMED - generic fixture values excluded

Strobe

frequency

Dimming

32-bit / 0-100% linear

DMX modes

3CH / 5CH / 9CH / 48CH / 57CH

Connections

DMX input/output and power input/output; exact connector type TBC

Protection

IP20 / indoor

Operating temperature

-30 to 50 degrees C

Housing

Black metal chassis

Videos / Product video
