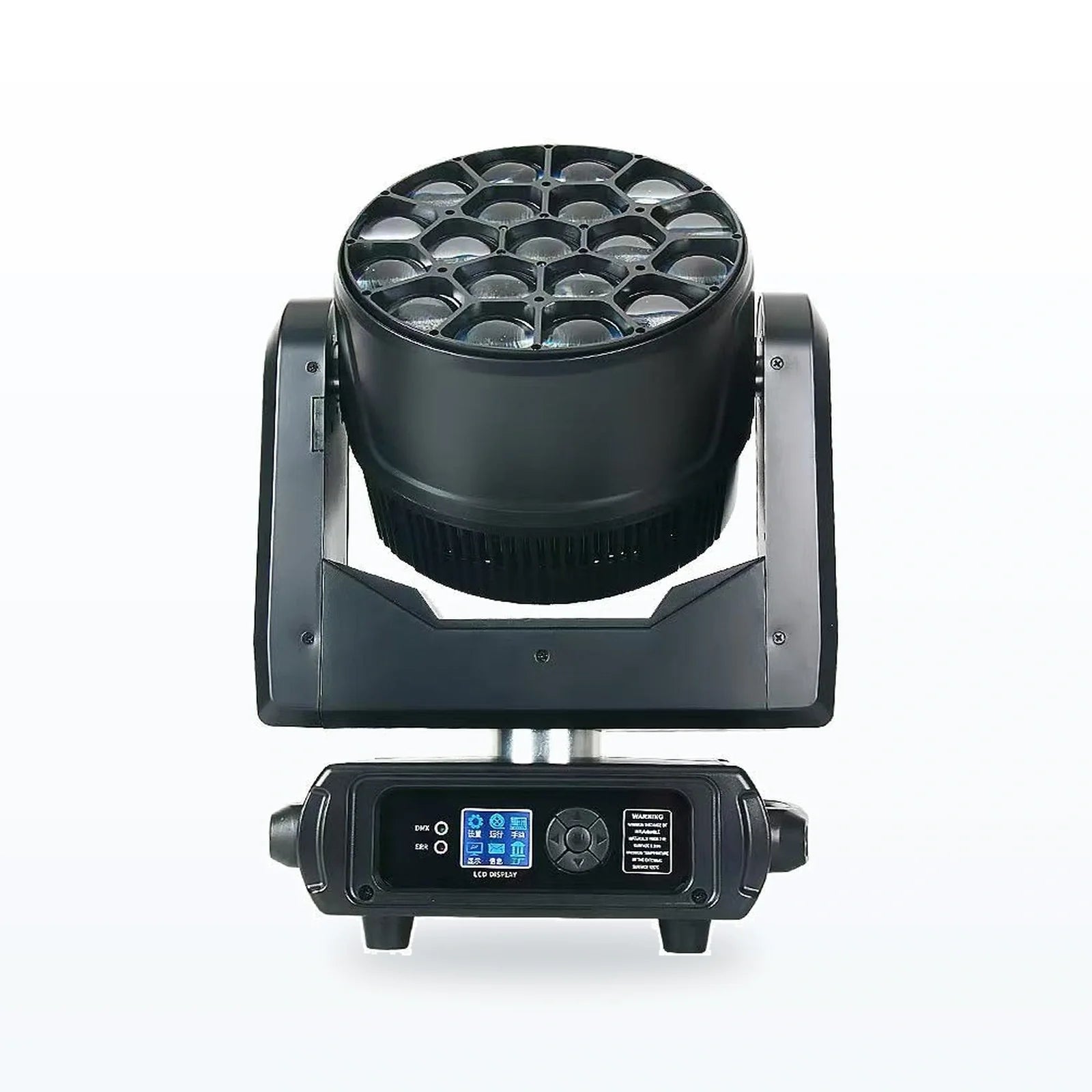

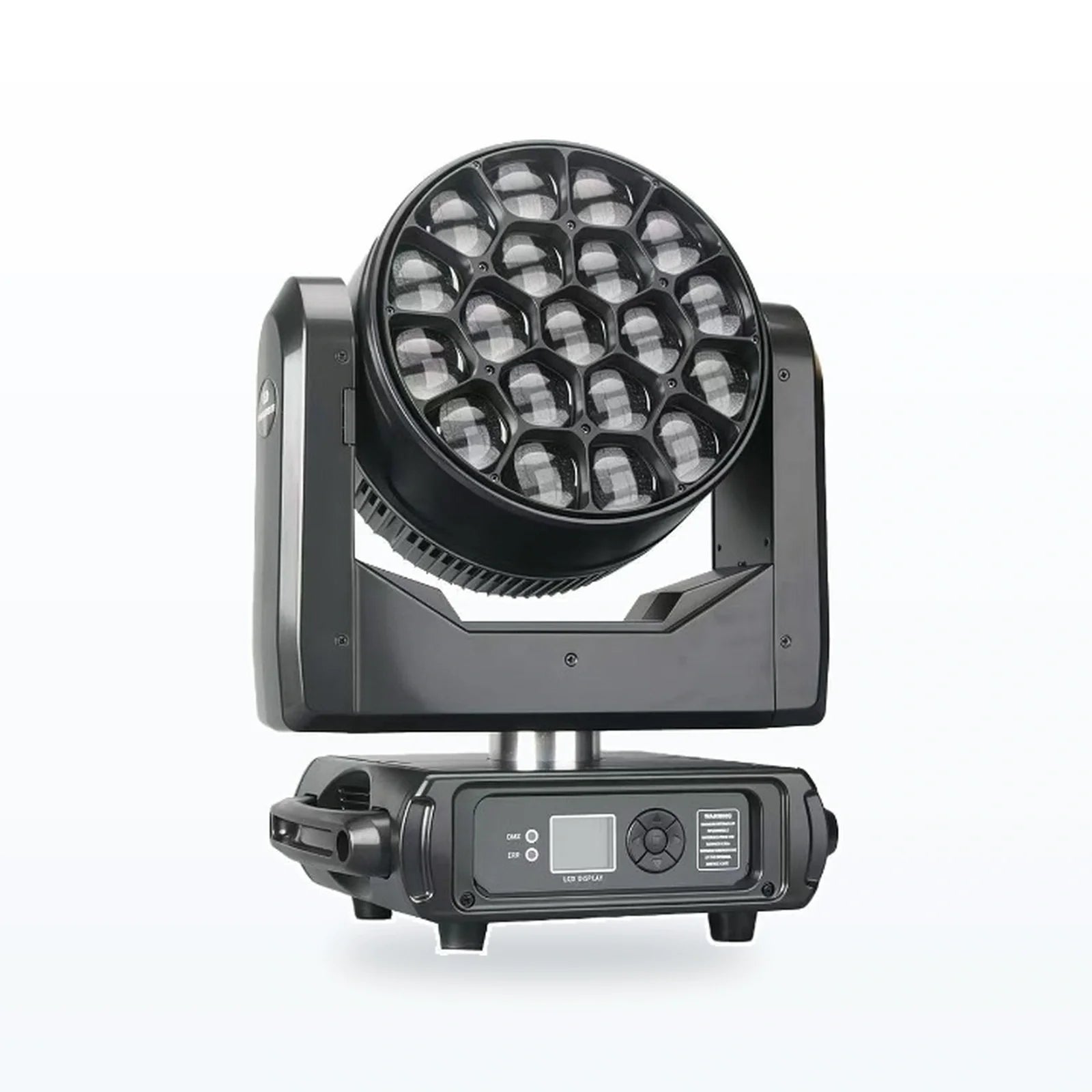

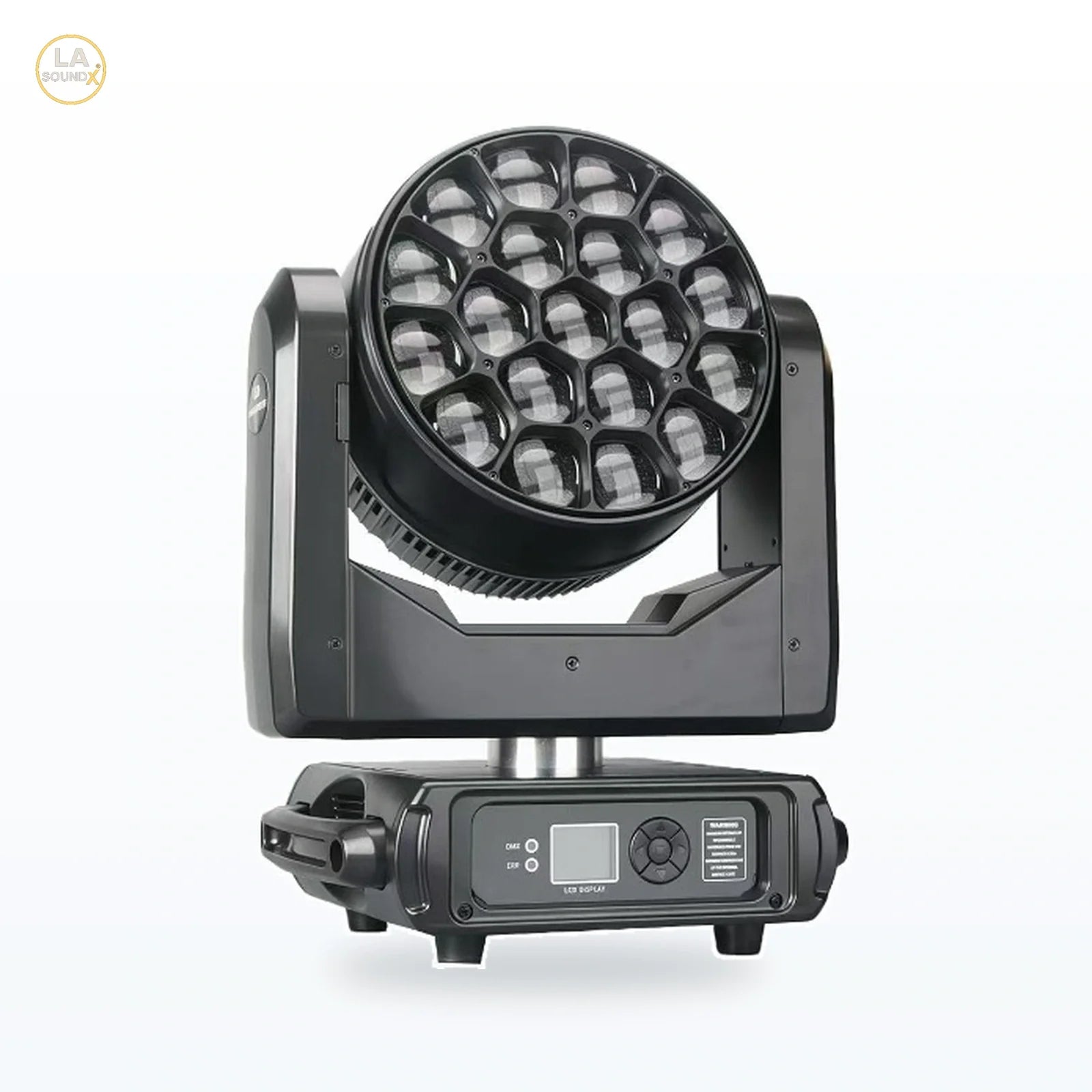

19 x 15W Big Bee-Eye Moving Head

Product: 19 x 15W Big Bee-Eye Moving Head
Input voltage: AC100-240V, 50/60Hz
DMX modes: 22 / 23 / 25 / 36 / 78 / 92 / 97 / 99 / 101CH
Control modes: DMX512 / automatic / master-slave / sound-active / RDM
Dimming / strobe: 32-bit 0-100% linear dimming / 1-30Hz strobe
Movement: R20 fixture files record pan 540 degrees / tilt 290 degrees
Environment: -30 to 50 degrees C / IP20 indoor
Connection: DMX512 input/output and power input/output
Packing size: TO BE CONFIRMED
Housing: Metal, black; verify the actual nameplate and rated input power before connection.

01

19 RGBW cells Nineteen four-in-one 15W cells deliver saturated wash and high-density cell effects.

DMX modes

22 / 23 / 25 / 36 / 78 / 92 / 97 / 99 / 101CH

Movement

R20 fixture files record pan 540 degrees / tilt 290 degrees

Input voltage

AC100-240V, 50/60Hz

Control modes

DMX512 / automatic / master-slave / sound-active / RDM

01

19 RGBW cells Nineteen four-in-one 15W cells deliver saturated wash and high-density cell effects.

Focus and rotation

Motorized focus and lens rotation reshape and animate the bee-eye field.

Pattern layers

Static, dynamic, fade and translation controls create moving textures and layered looks.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

19 x 15W Big Bee-Eye Moving Head

Input voltage

AC100-240V, 50/60Hz

DMX modes

22 / 23 / 25 / 36 / 78 / 92 / 97 / 99 / 101CH

Control modes

DMX512 / automatic / master-slave / sound-active / RDM

Dimming / strobe

32-bit 0-100% linear dimming / 1-30Hz strobe

Movement

R20 fixture files record pan 540 degrees / tilt 290 degrees

Environment

-30 to 50 degrees C / IP20 indoor

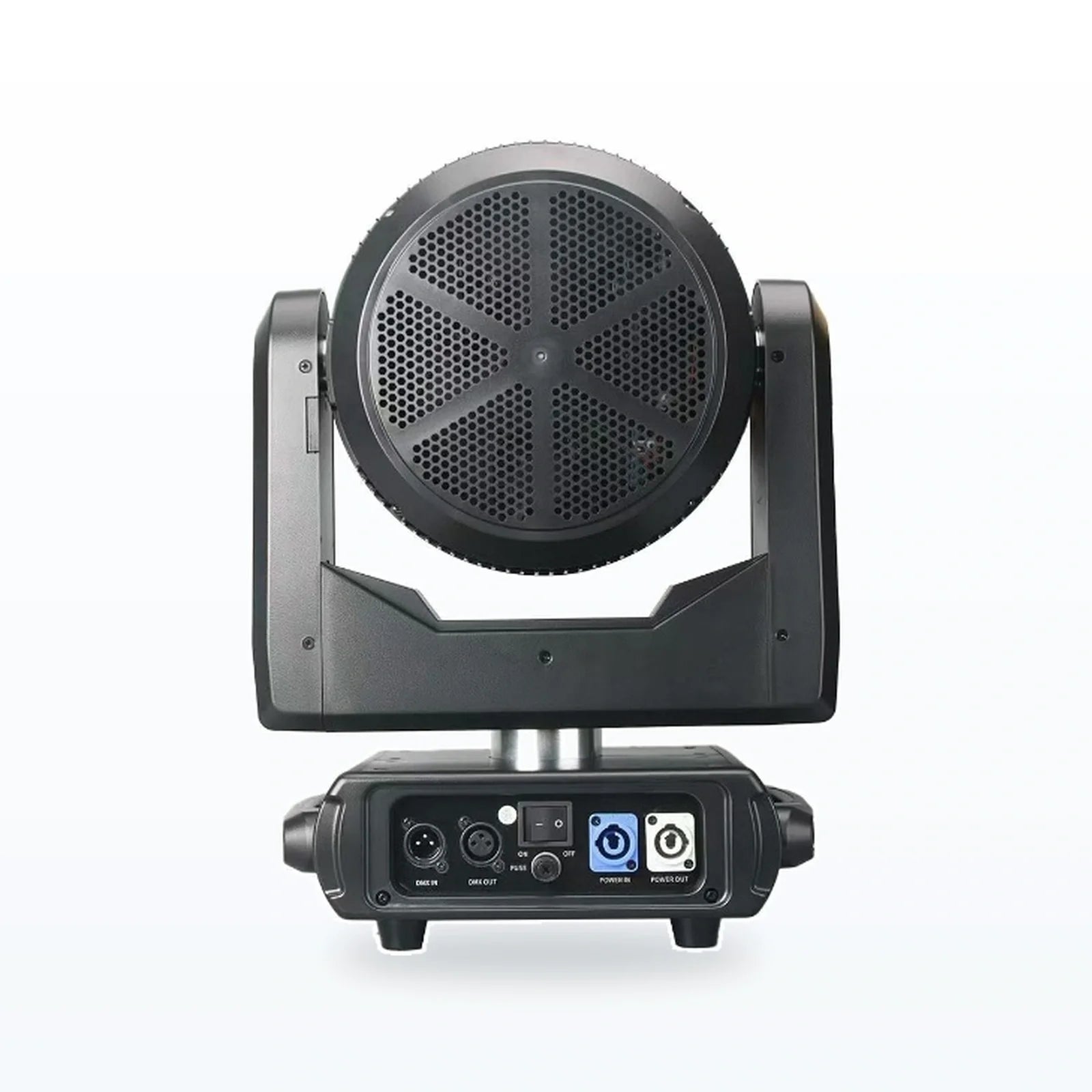

Connection

DMX512 input/output and power input/output

Packing size

TO BE CONFIRMED

Housing

Metal, black; verify the actual nameplate and rated input power before connection.
