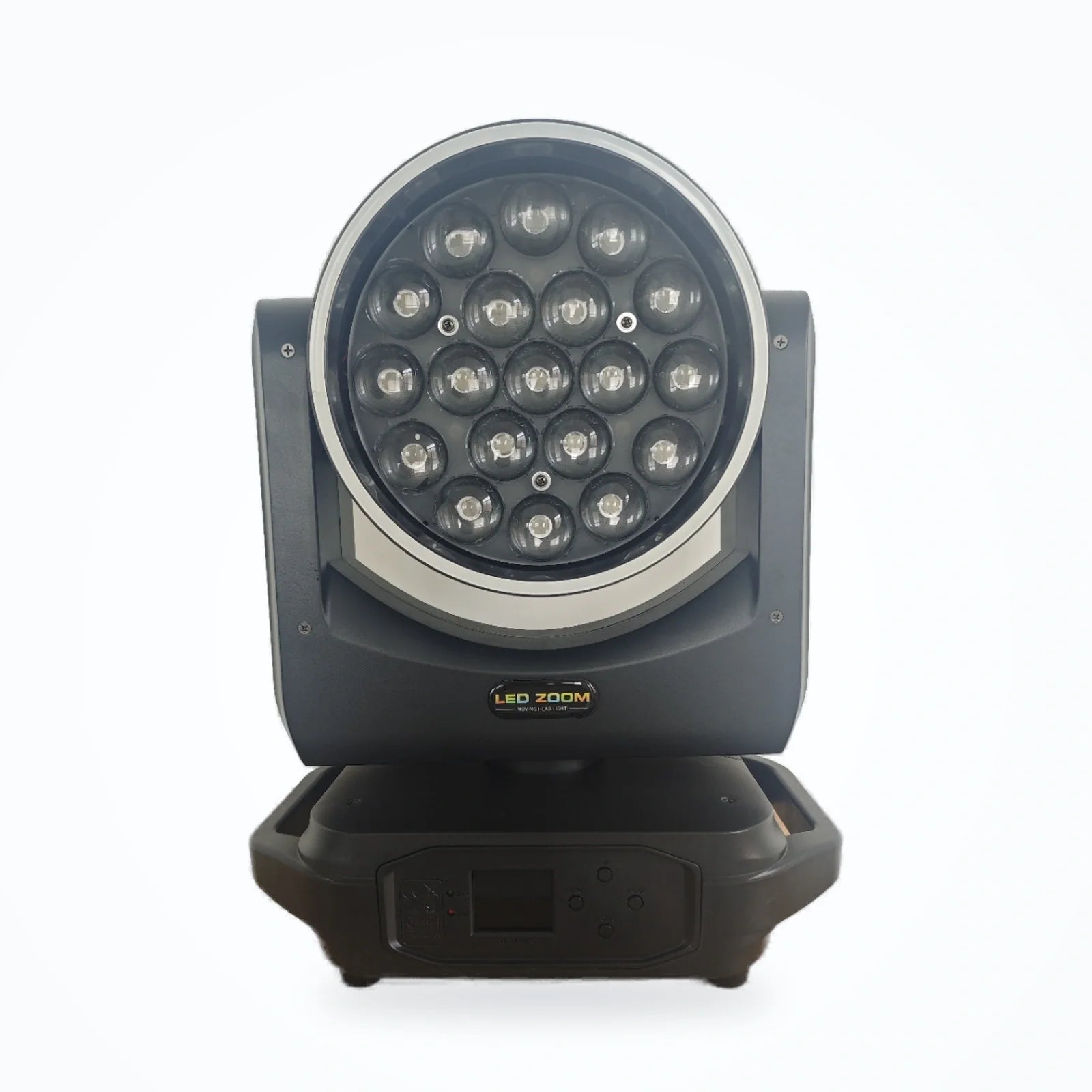

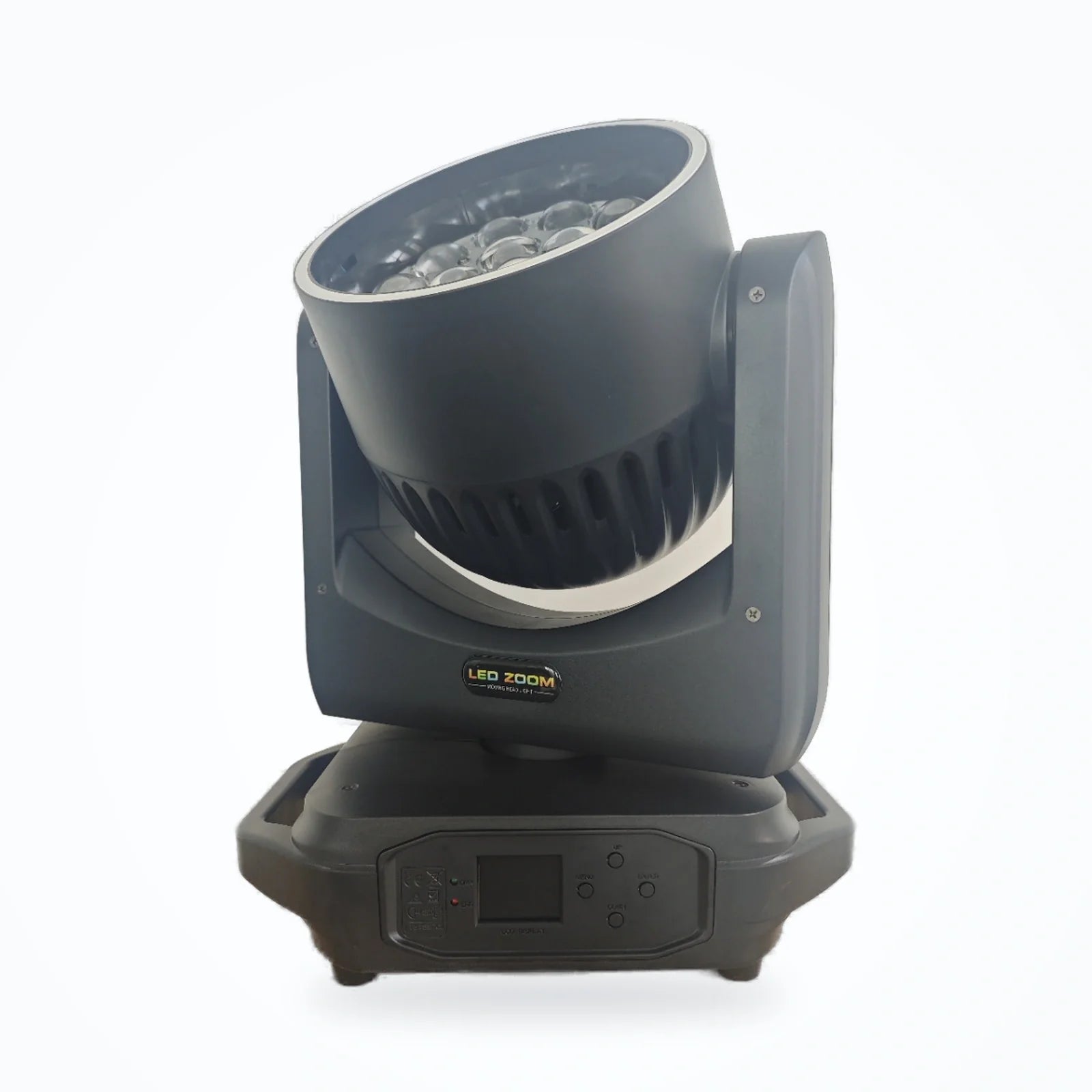

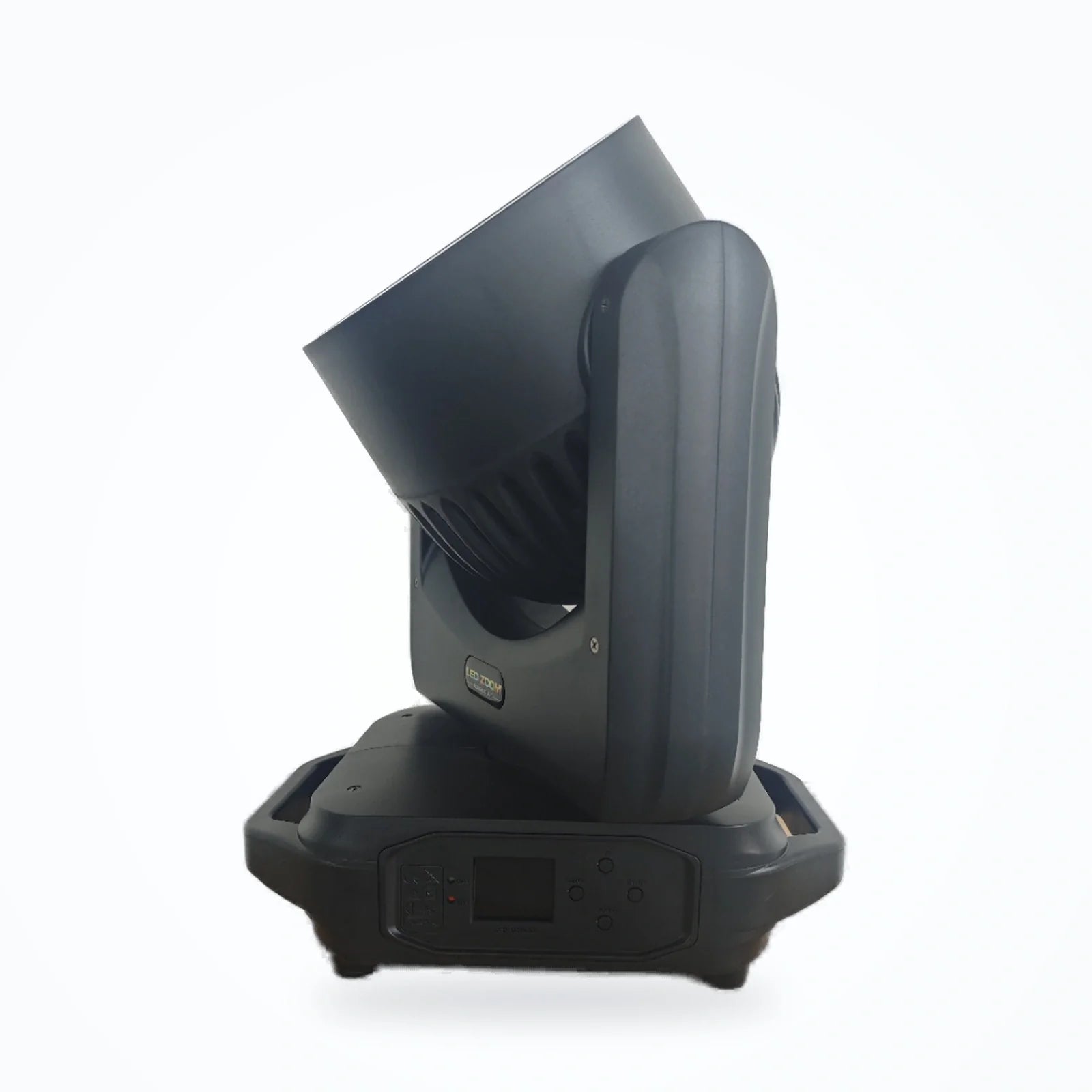

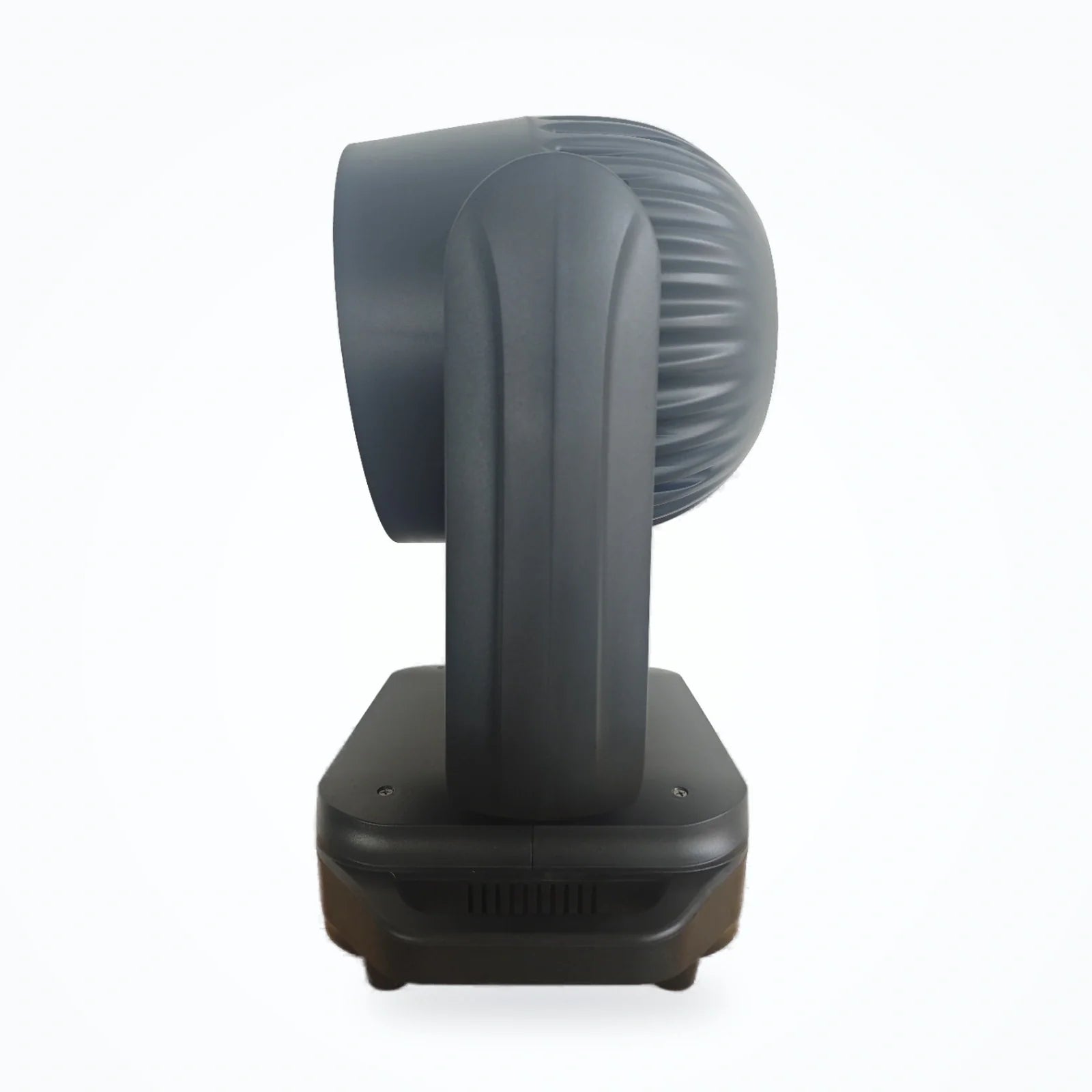

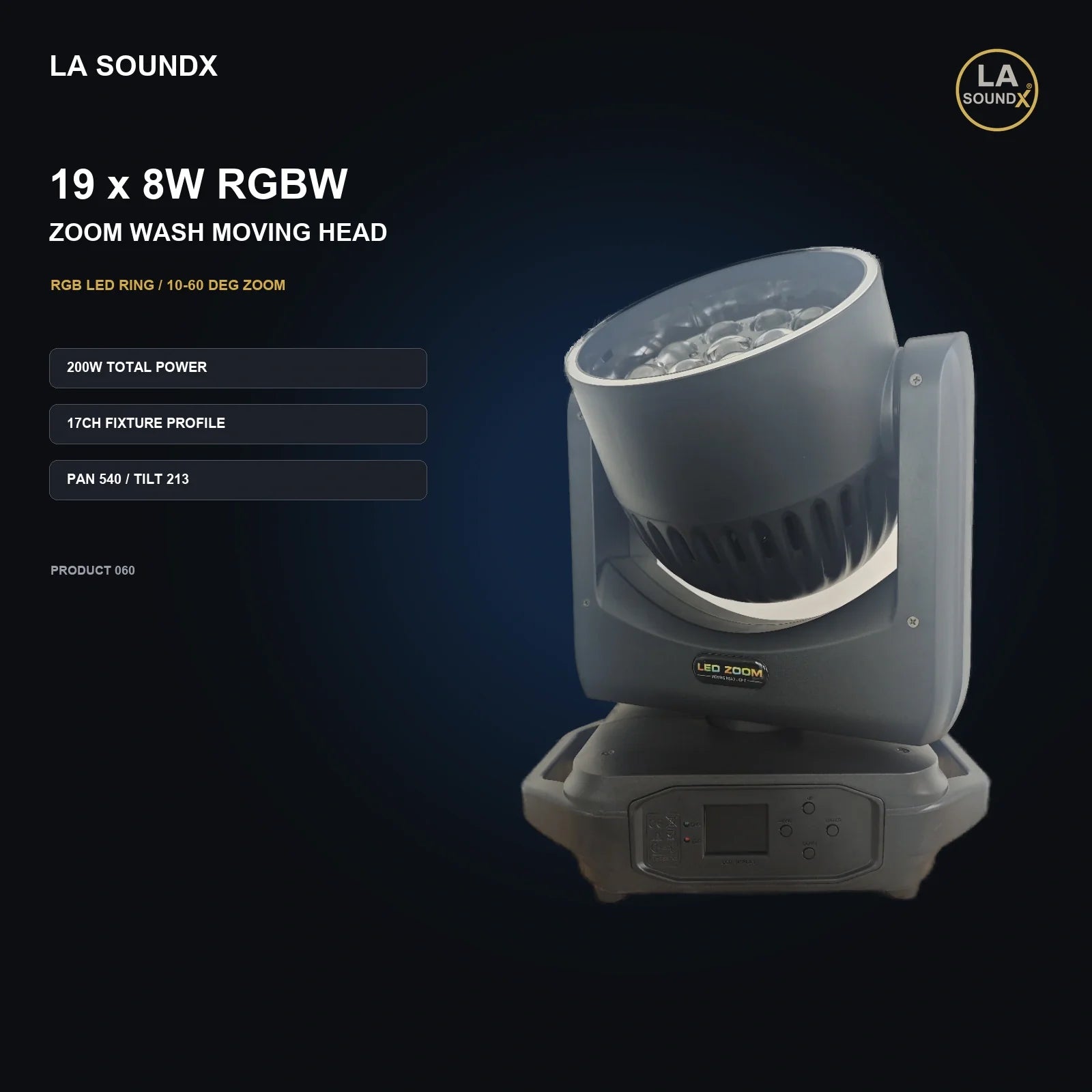

19 x 8W RGBW zoom wash moving head with RGB LED ring

Product: 19 x 8W RGBW zoom wash moving head with RGB LED ring
Input voltage: AC110-240V, 50/60Hz
Rated power: 200W
Main LED source: 19 x 8W RGBW four-in-one LEDs
Movement: Pan 540°/ tilt 213°
Strobe: and dimming 0-25 Hz strobe / 0-100% dimming
DMX modes: 17CH published / 25CH table TO BE CONFIRMED
Connections: 3-pin DMX IN/OUT / powerCON IN/OUT / fuse holder / switch
Protection: IP20 / indoor
Net / gross weight: 5.88 kg / 7.23 kg
Packing size: 48 x 29.5 x 40 cm
Product size: / cooling / thermal limit TO BE CONFIRMED

19 x 8W RGBW

Nineteen four-in-one emitters provide direct red, green, blue and white color mixing.

Rated power

200W

Main LED source

19 x 8W RGBW four-in-one LEDs

DMX modes

17CH published / 25CH table TO BE CONFIRMED

Movement

Pan 540°/ tilt 213°

19 x 8W RGBW

Nineteen four-in-one emitters provide direct red, green, blue and white color mixing.

60 x 3535 RGB ring

The independent front ring adds contour, chase and rotation-style visual accents.

10-60° motorized zoom

Variable coverage moves from a tighter shaft to a broad wash without changing the fixture.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

19 x 8W RGBW zoom wash moving head with RGB LED ring

Input voltage

AC110-240V, 50/60Hz

Rated power

200W

Main LED source

19 x 8W RGBW four-in-one LEDs

Movement

Pan 540°/ tilt 213°

Strobe

and dimming 0-25 Hz strobe / 0-100% dimming

DMX modes

17CH published / 25CH table TO BE CONFIRMED

Connections

3-pin DMX IN/OUT / powerCON IN/OUT / fuse holder / switch

Protection

IP20 / indoor

Net / gross weight

5.88 kg / 7.23 kg

Packing size

48 x 29.5 x 40 cm

Product size

/ cooling / thermal limit TO BE CONFIRMED

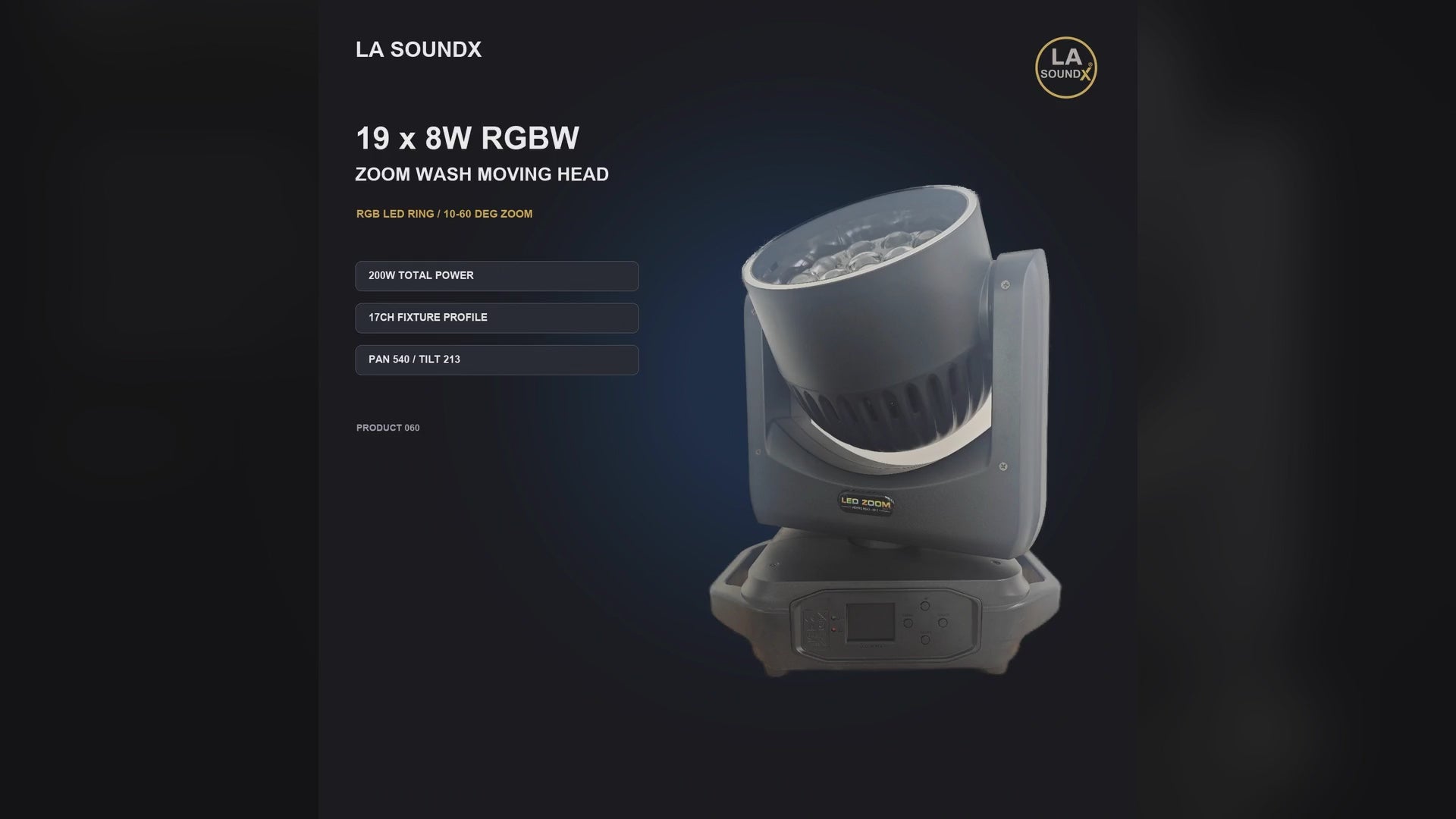

Videos / Product video
