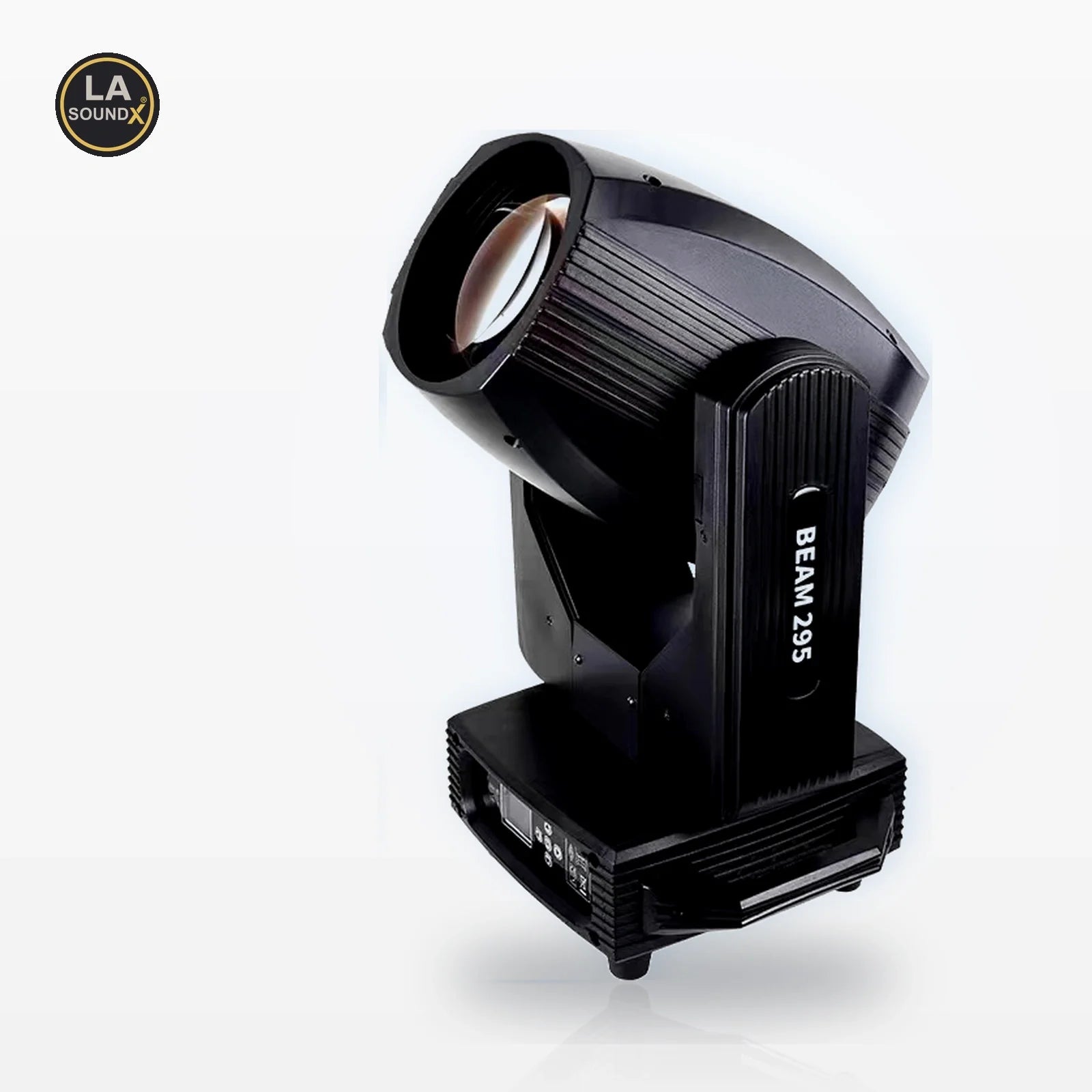

LA SOUNDX 295W Beam Moving Head product image 01

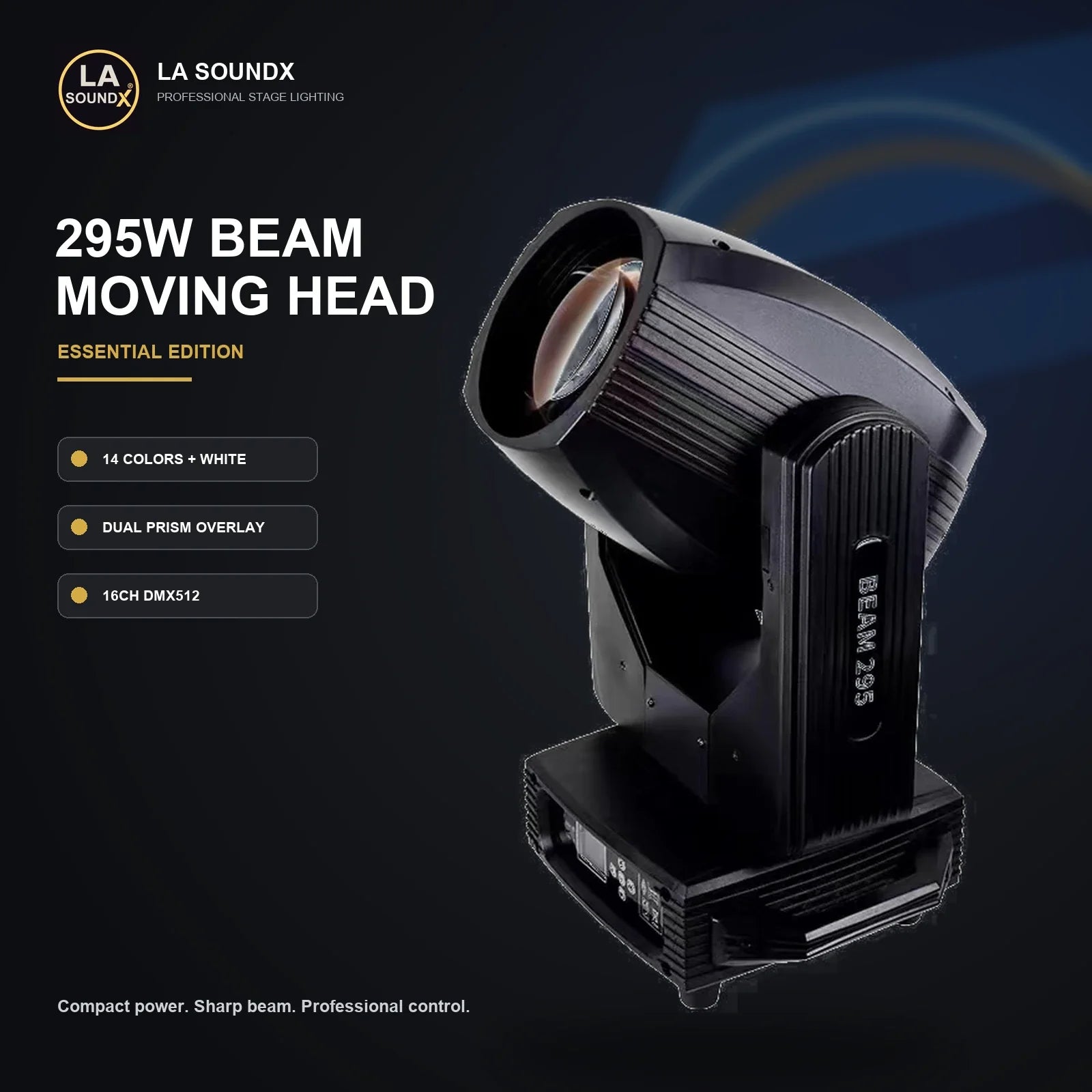

LA SOUNDX 295W Beam Moving Head product image 02

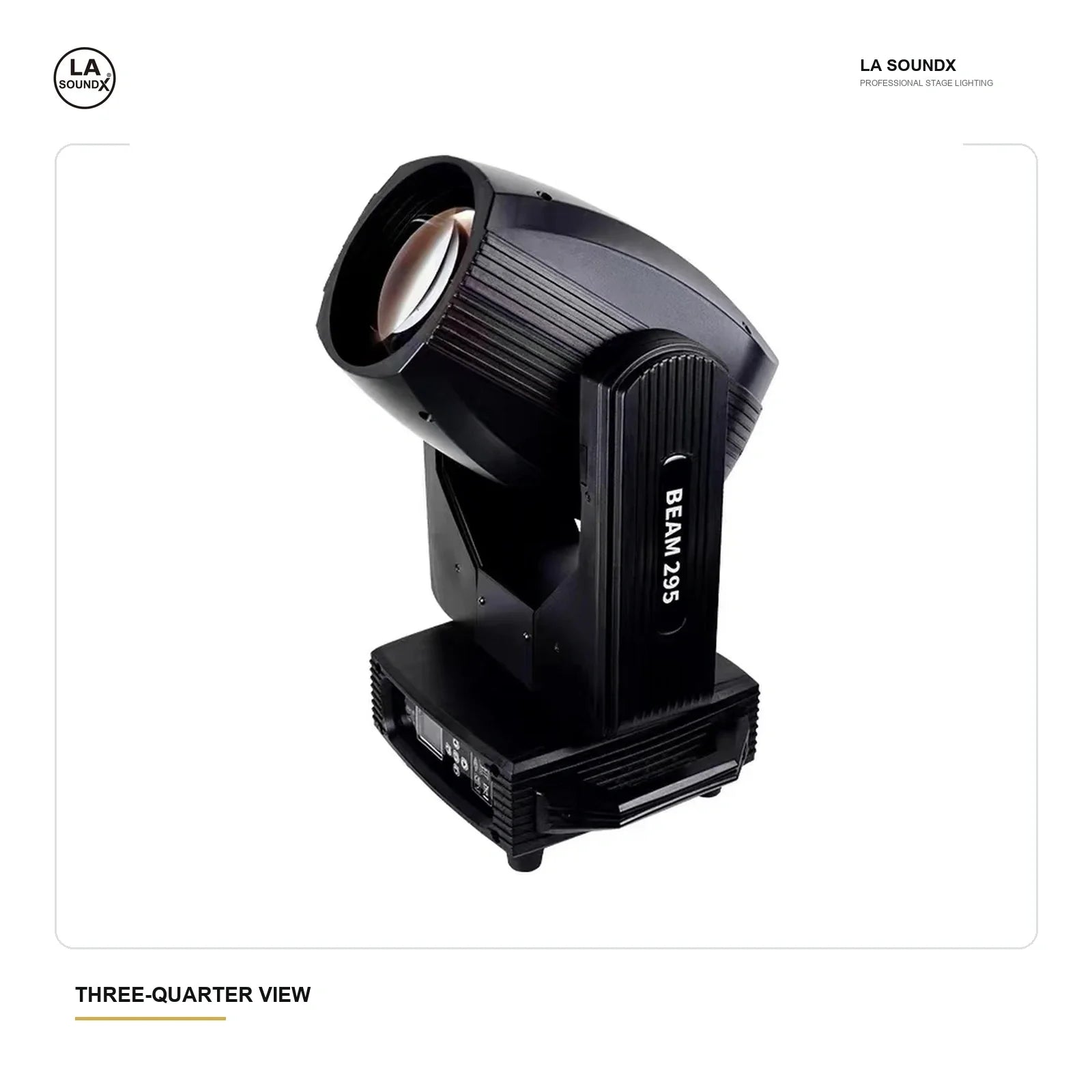

LA SOUNDX 295W Beam Moving Head product image 03 enlarged

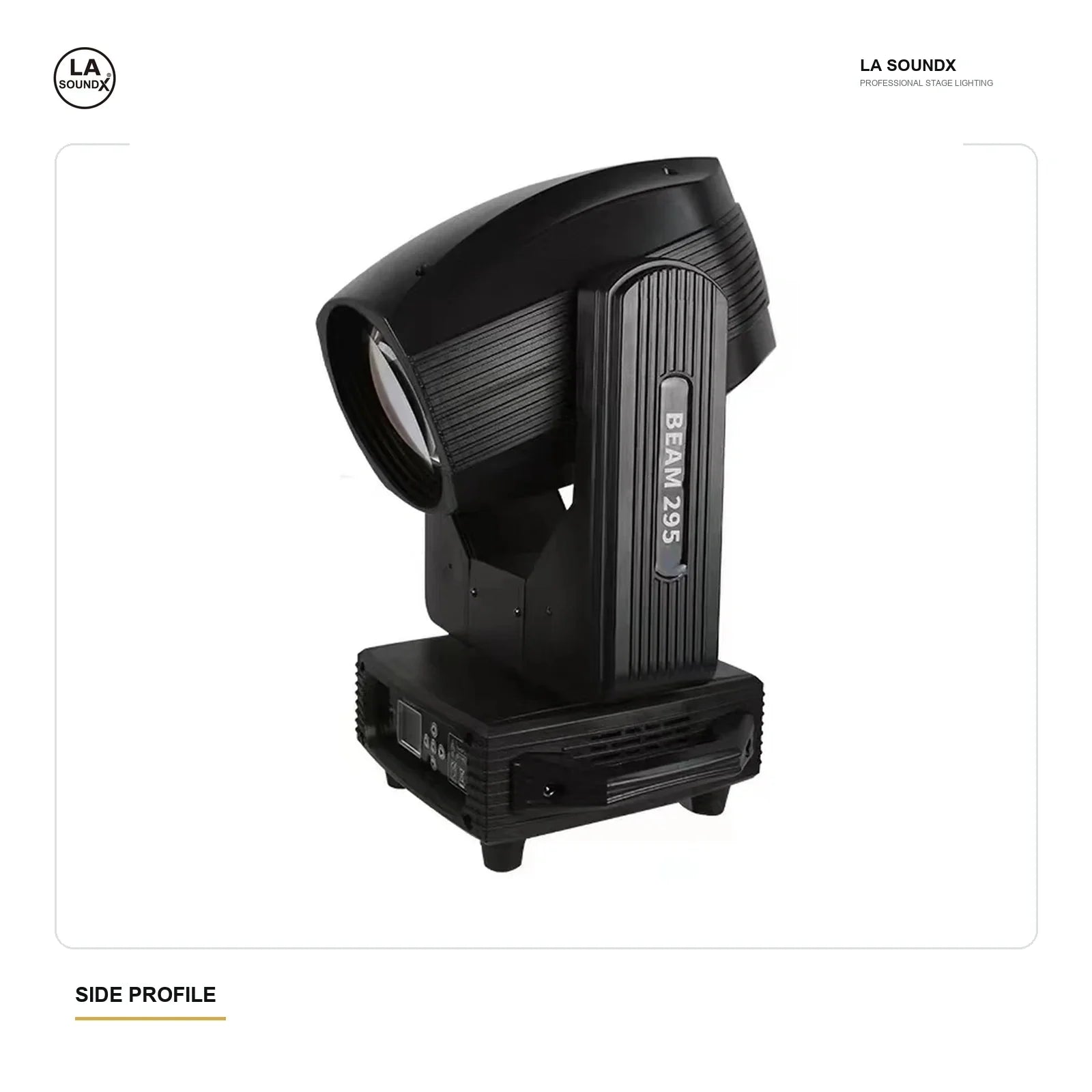

LA SOUNDX 295W Beam Moving Head product image 04 enlarged

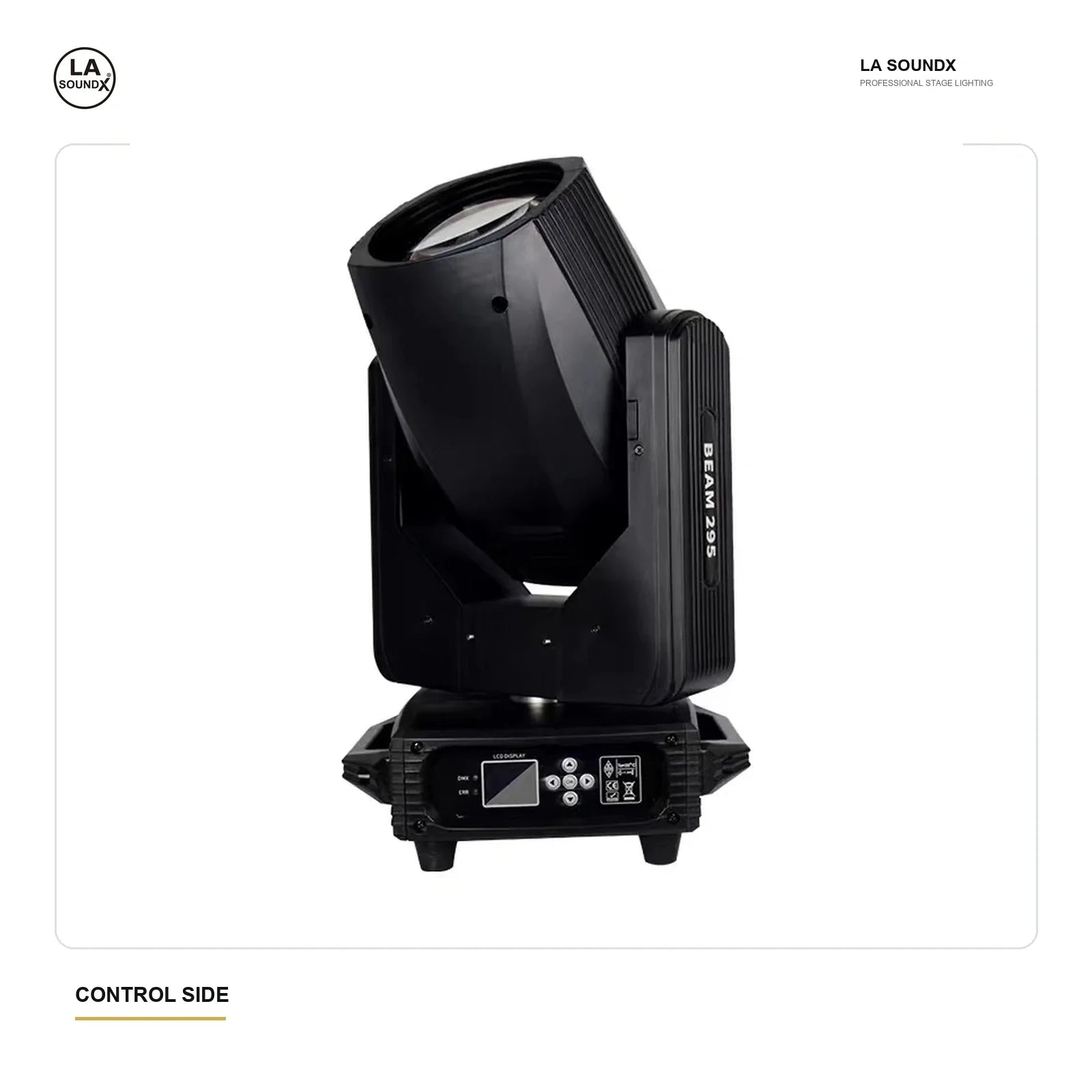

LA SOUNDX 295W Beam Moving Head product image 05 enlarged

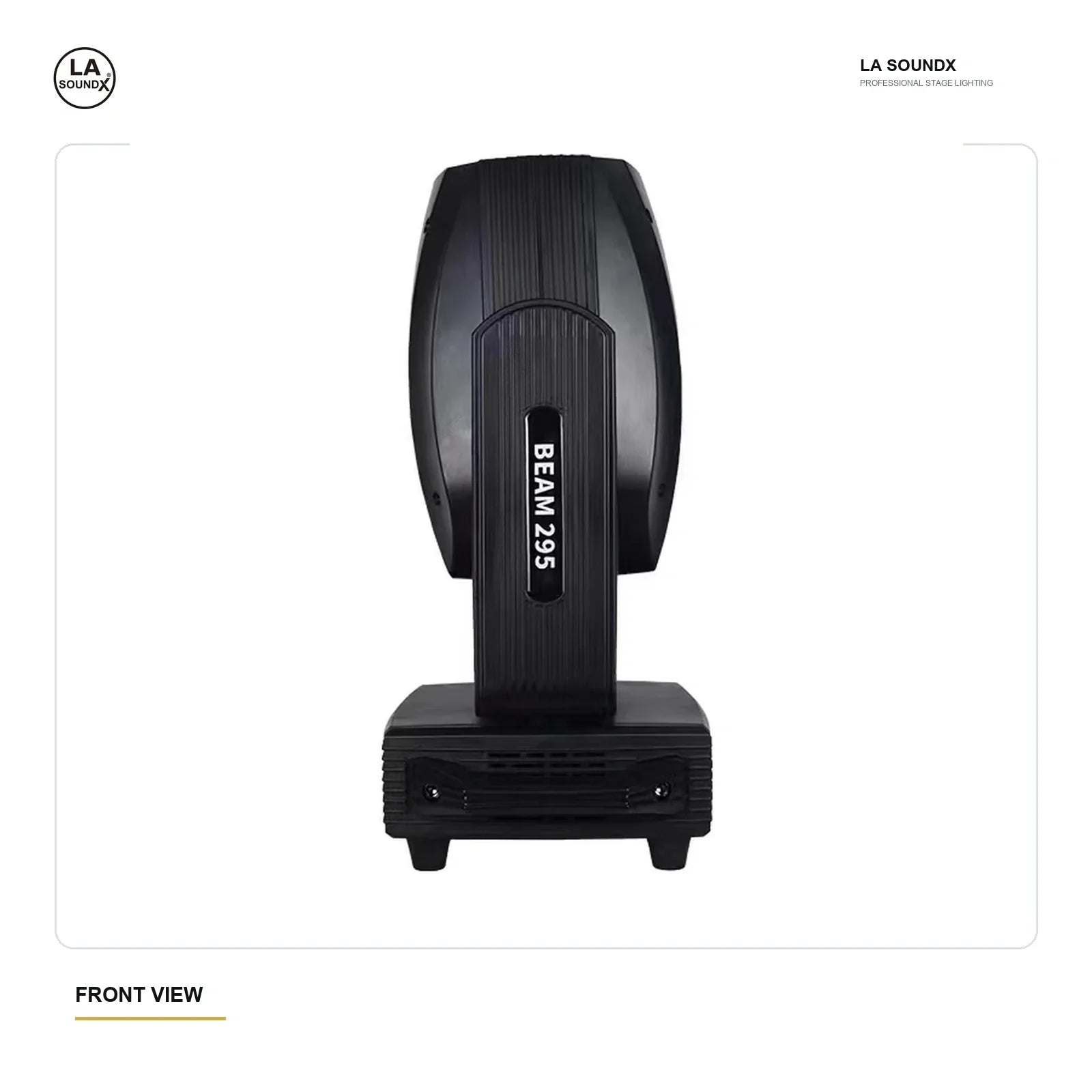

LA SOUNDX 295W Beam Moving Head product image 06 enlarged

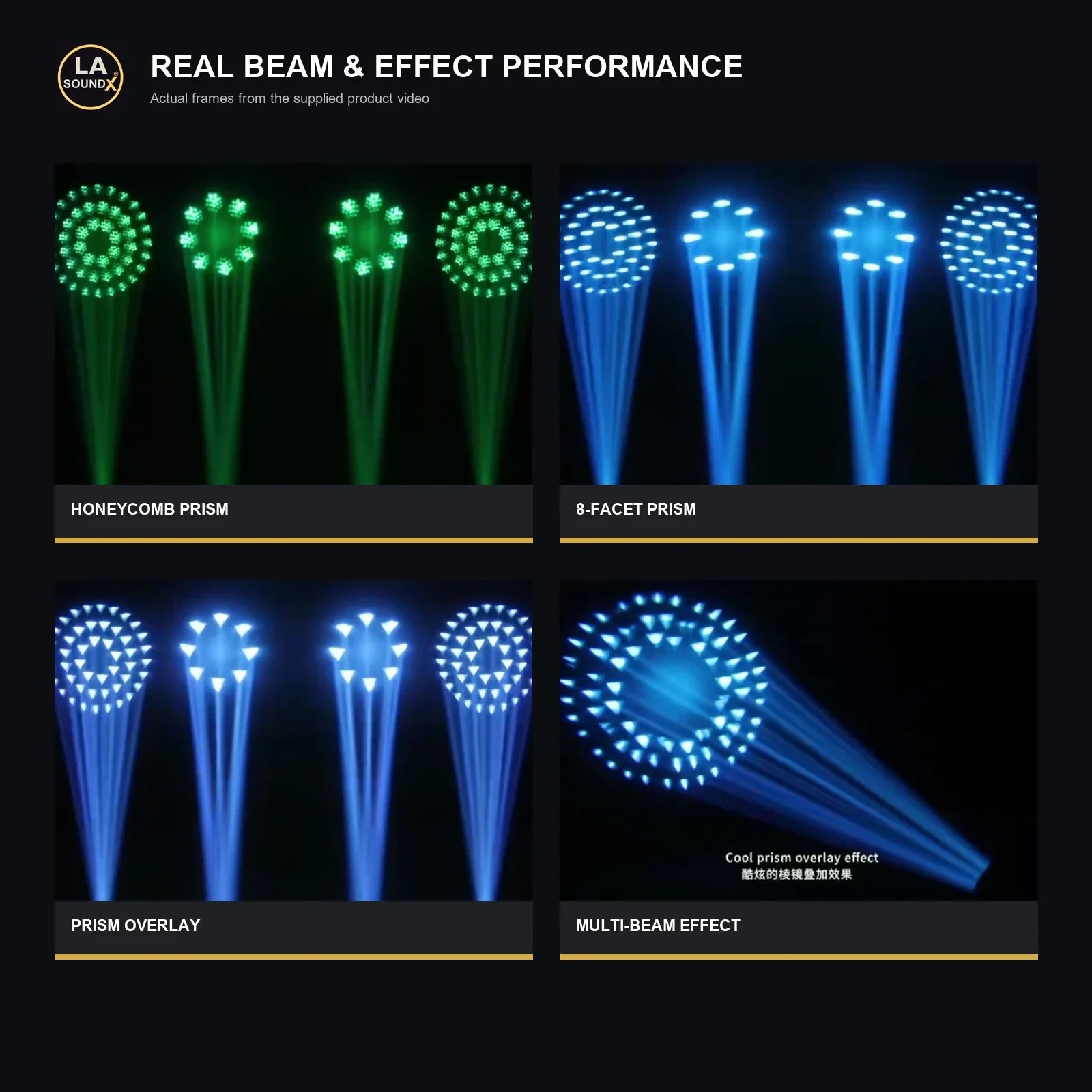

LA SOUNDX 295W Beam Moving Head product image 07

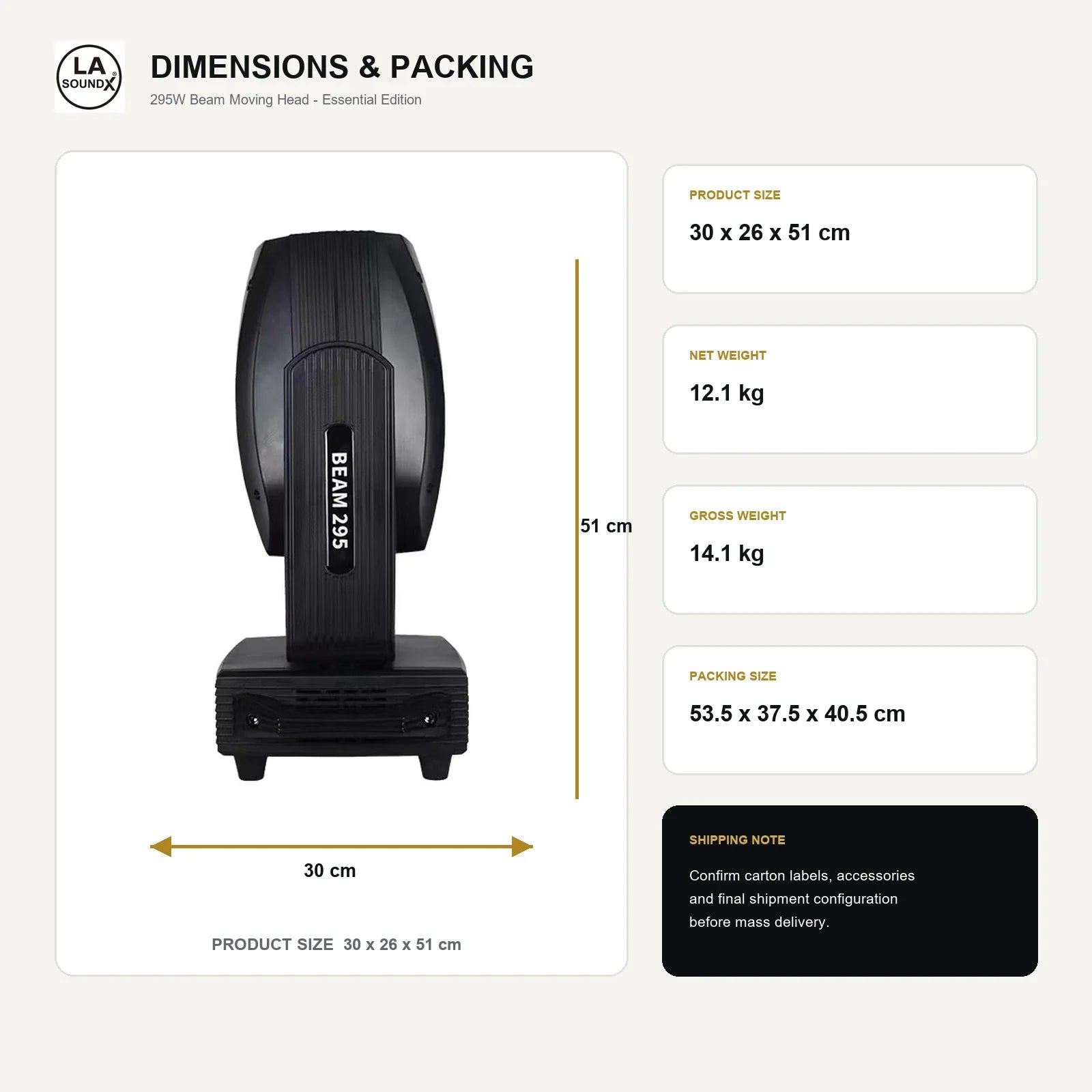

LA SOUNDX 295W Beam Moving Head product image 08
The Price Displayed On The Product Does Not Include Tax And Shipping. The Shipping Cost Shown On The Page Is Not The Final Shipping Cost. Please Consult Customer Service For Shipping Costs Or Tax Rates Before Placing An Order.
LA SOUNDX

295W Beam Moving Head – Essential Edition

Sale price

A compact professional beam moving head for clubs, live stages, rental productions and entertainment venues.

Compact power. Sharp beam.

The LA SOUNDX 295W Beam Moving Head combines a concentrated aerial beam with color, fixed pattern, frost, six-color and dual-prism effects for dynamic professional show programming.

Beam source
295W discharge lamp
Rated power
450W
DMX control
16CH
Movement
540° pan / 270° tilt

Layered beam effects

Fourteen colors plus white, thirteen fixed patterns plus open, frost, six-color effects and independently controlled prism layers support varied aerial looks.

Dual-prism engine

An 8-facet prism and honeycomb prism can be used independently or overlaid for wide multi-beam projection and energetic mid-air effects.

Professional control

DMX512, sound, automatic and master/slave modes combine with fine pan/tilt positioning, dual-motor focus and a reversible color display.

Technical specification

Verified from the supplied product brochure, operating manuals and fixture library.

Input voltage
AC 100-240V, 50/60Hz
Rated power
450W
Light source
295W discharge lamp
DMX channels
16CH
Operating modes
DMX512 / sound / auto / master-slave
Color wheel
14 colors + open white
Fixed patterns
13 patterns + open
Prism system
8-facet + honeycomb (8+16+24), overlay
Focus
Dual-motor high-definition focus
Frost
Integrated frost effect
Dimming
0-100% linear dimming
Pan / Tilt
540° / 270°, 1.2° fine adjustment
Display
1.8-inch color screen, 180° reversible
Protection
IP20, professional indoor use
Product size
30 x 26 x 51cm
Net / gross weight
12.1 / 14.1kg
Packing size
53.5 x 37.5 x 40.5cm
Housing
High-temperature plastic + alloy
LA SOUNDX 295W Beam Moving Head product detail 01 LA SOUNDX 295W Beam Moving Head product detail 02 LA SOUNDX 295W Beam Moving Head product detail 03 LA SOUNDX 295W Beam Moving Head product detail 04 LA SOUNDX 295W Beam Moving Head product detail 05 LA SOUNDX 295W Beam Moving Head product detail 06 LA SOUNDX 295W Beam Moving Head product detail 07 LA SOUNDX 295W Beam Moving Head product detail 08 LA SOUNDX 295W Beam Moving Head product detail 09 LA SOUNDX 295W Beam Moving Head product detail 10 LA SOUNDX 295W Beam Moving Head product detail 11 LA SOUNDX 295W Beam Moving Head product detail 12 LA SOUNDX 295W Beam Moving Head product detail 13 LA SOUNDX 295W Beam Moving Head product detail 14 LA SOUNDX 295W Beam Moving Head product detail 15 LA SOUNDX 295W Beam Moving Head product detail 16

Videos / Product Video

    标题

    overview

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.

    Recommended products

    Technical Parameter

    PRODUCT SPECIFICATIONS

    Power supply:320

    Power:AC100v-240V, 50/60Hz

    Light Source:295W

    source:295W

    Dimmer:0-100% mechanical step

    Color wheel:14colors and half color + white

    Gobo wheel:13gobos and shake + white

    Prism: 8+16+24 double Prism double stack

    Other Effect:Frost and 6in1 rainbow effect

    Beam Angle:0-10 degrees

    Channel Mode:16CH

    Feature:Auto mode,Sound mode,Mater&Slave,RDM

    Movement:Pan:540 °, Tilt: 270°

    Protocols:DMX512

    Housing:High temperature resistant plastic shell

    Protective Class:IP 20

    Display:Lcd Screen

    Product Size:39*27*60 CM

    Package Size:46*46*58 CM

    Product Weight:12.1KG

    Package Weight:14.1KG
