The Price Displayed On The Product Does Not Include Tax And Shipping. The Shipping Cost Shown On The Page Is Not The Final Shipping Cost. Please Consult Customer Service For Shipping Costs Or Tax Rates Before Placing An Order.

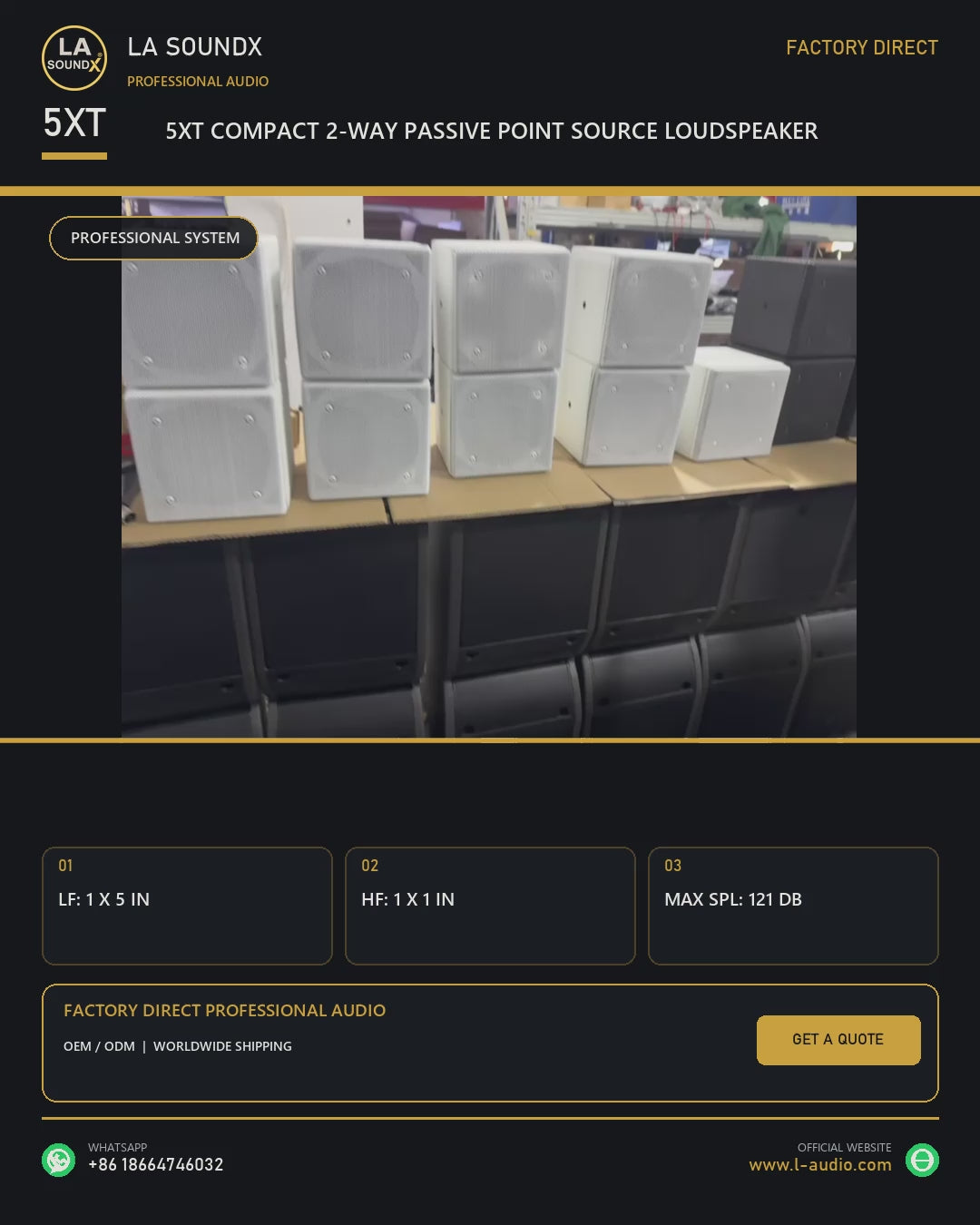

5XT Compact 2-Way Passive Point Source Loudspeaker
5XT Good Things In Small Packages 2-Way Passive, 5" is a professional point source loudspeaker for front fill, distributed sound, compact PA, stage side fill and fixed installation projects.
Key specifications
- Max SPL: 121 dB
- Bandwidth: 95 Hz- 20 KHz
- Transducers: LF : 1 x 5"
- HF: 1 x 1"
- Weight: 3.5 kg / 7.7 lb
- Directivity: H: 110° V: 110°
Applications
- front fill and distributed sound
- compact main PA and side fill
- fixed installation and portable event systems
POINT SOURCE
COAXIAL
标题
Electroacoustic specs
2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([X15])
Maximum SPL1 138 dB ([X15])
Nominal directivity (-6 dB) Vertical: 60° symmetric
horizontal: 40° symmetric
Monitor angle Without risers: 35°
with risers: 55°
Transducers LF: 1 × 15″ cone driver
HF: 1 × 3″ diaphragm compression driver, neodymium
Acoustical load Load bass-reflex, L-Vents, ellipsoidal
waveguide
Nominal impedance LF: 8 Ω
HF: 8 Ω
1 Peak level measured at 1 m under free field
conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling 2 handles
1 DIN580-compatible M8 threaded insert
4 M10 threaded inserts
2 × 35 mm pole sockets
Weight (net) 21 kg / 46.3 lb
Cabinet Premium grade Baltic beech and birch plywood
Front Steel with anti-corrosion coating
acoustically neutral 3D fabric
Finish Dark grey brown Pantone 426 C
custom RAL code on special order
IP IP43
