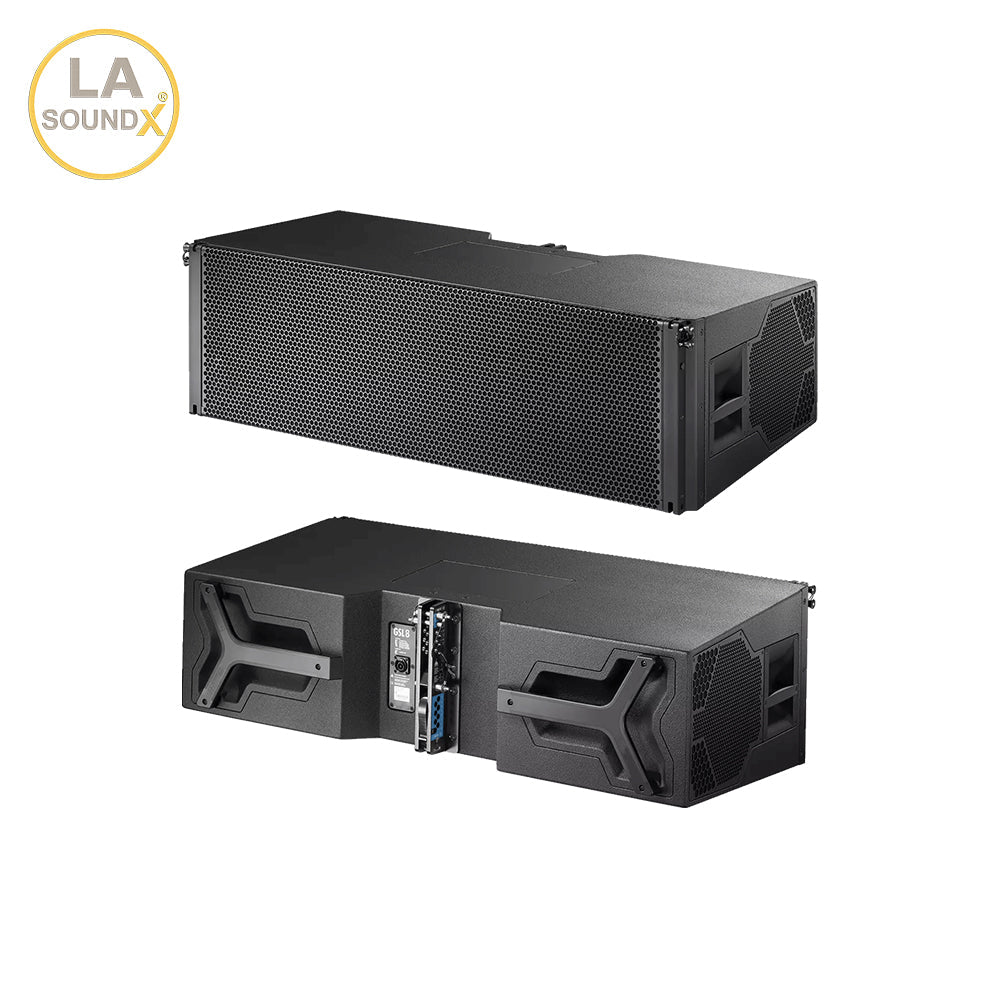

GSL8-G214F Large-Format 3-Way Dual 14-Inch Line Array
A high-output large-format 3-way line array loudspeaker for touring, arenas, festivals and permanent large-venue sound systems. G214F combines controlled 80° horizontal dispersion, cardioid low-frequency directivity and scalable 2-Way Active array deployment.
- Product Model: GSL8 / G214F
- Type: Large format 3-way line array loudspeaker

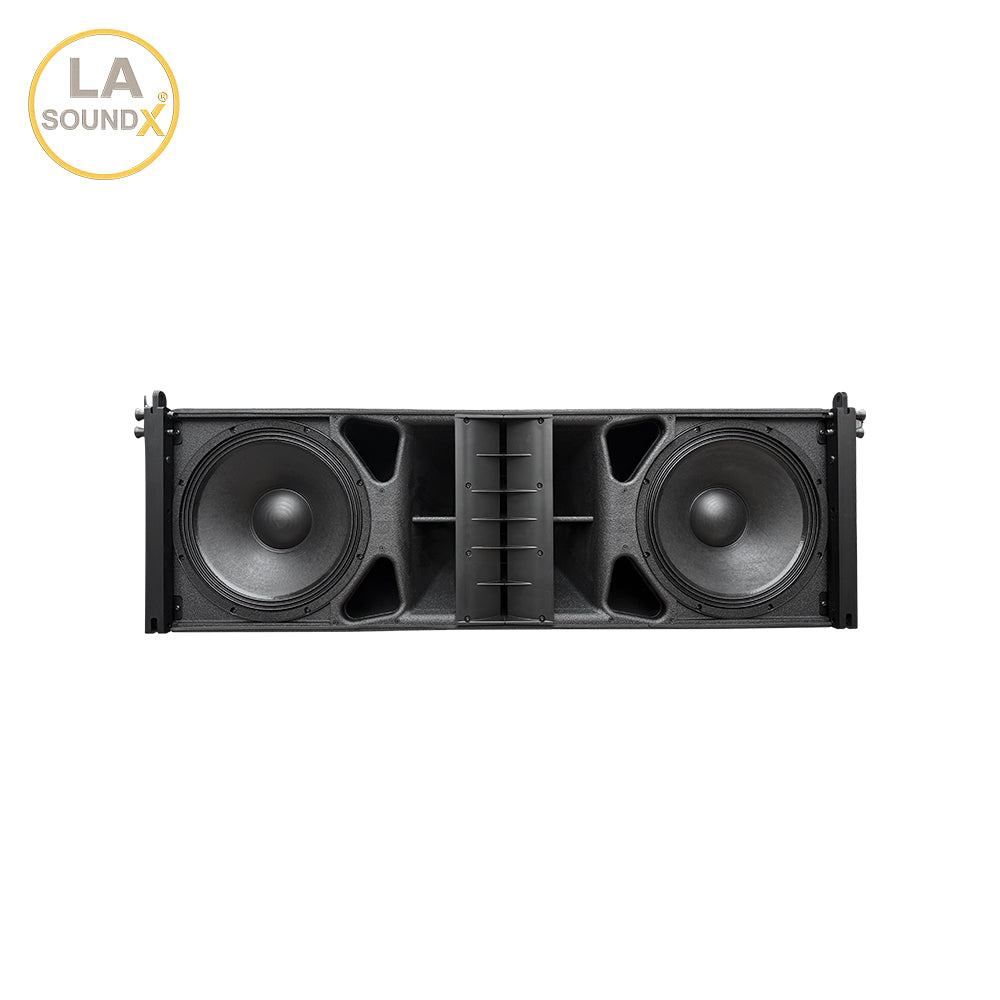

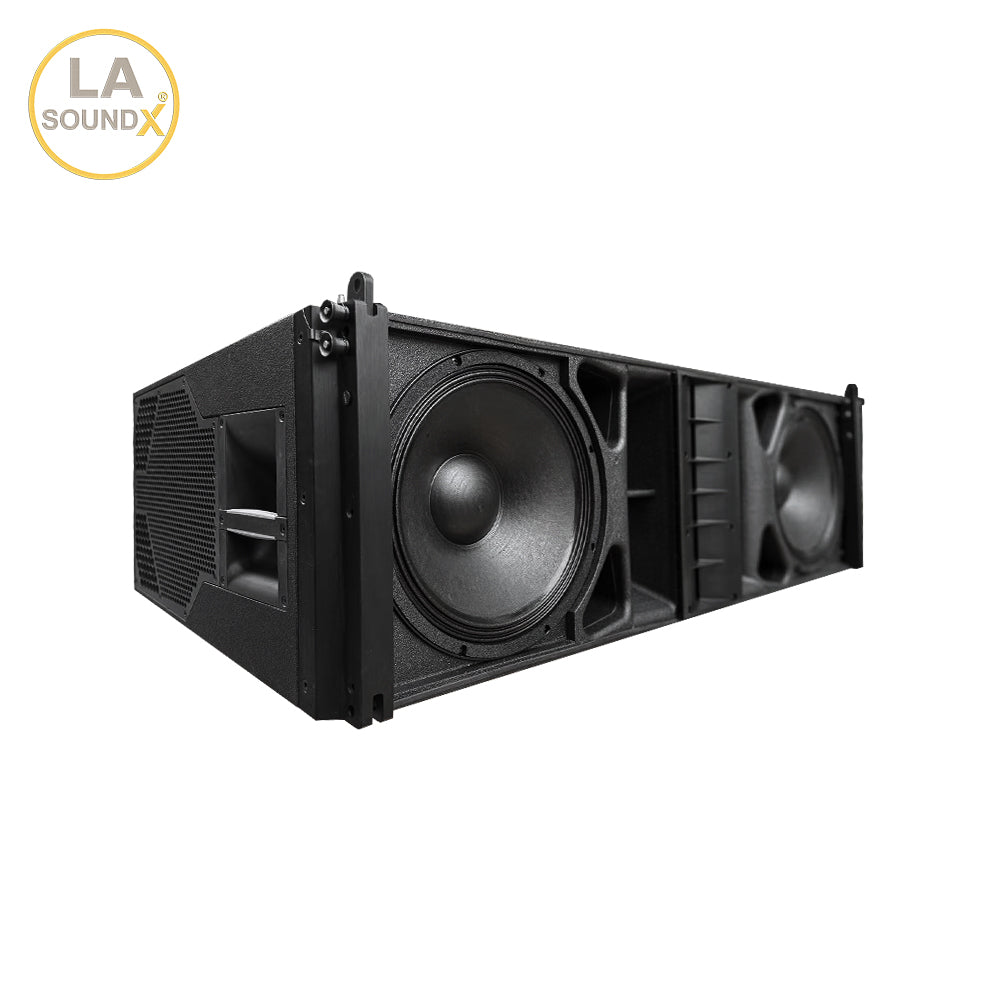

- Drivers: 2 x 14-inch front LF; 2 x 10-inch side LF; 1 x 10-inch MF; 3 x 1.4-inch exit HF compression drivers with 3.4-inch coil; passive crossover network
- Frequency Response: 45 Hz - 18 kHz (-5 dB standard); 70 Hz - 18 kHz (-5 dB CUT); 41 Hz - 20 kHz (-10 dB standard); 54 Hz - 20 kHz (-10 dB CUT)
- Rated Power: 800 W RMS front LF; 800 W RMS side LF/MF/HF
- Peak Power: 3200 W peak, 10 ms front LF; 3200 W peak, 10 ms side LF/MF/HF
- Sensitivity: Not specified in the product PDF
- Maximum SPL: 150 dB single cabinet; 162 dB for 4 cabinets, far field scaled to 1 m
- Nominal Impedance: 4 ohms front LF; 4 ohms side LF/MF/HF
- Coverage / Dispersion: 80° horizontal; splay angle 0° - 7° in 1° increments
- Enclosure: Marine plywood enclosure
- Finish: Impact and weather protected PCP (Polyurea Cabinet Protection) finish
- Protective Grille: Rigid metal grilles with acoustically transparent and water repellent fabric

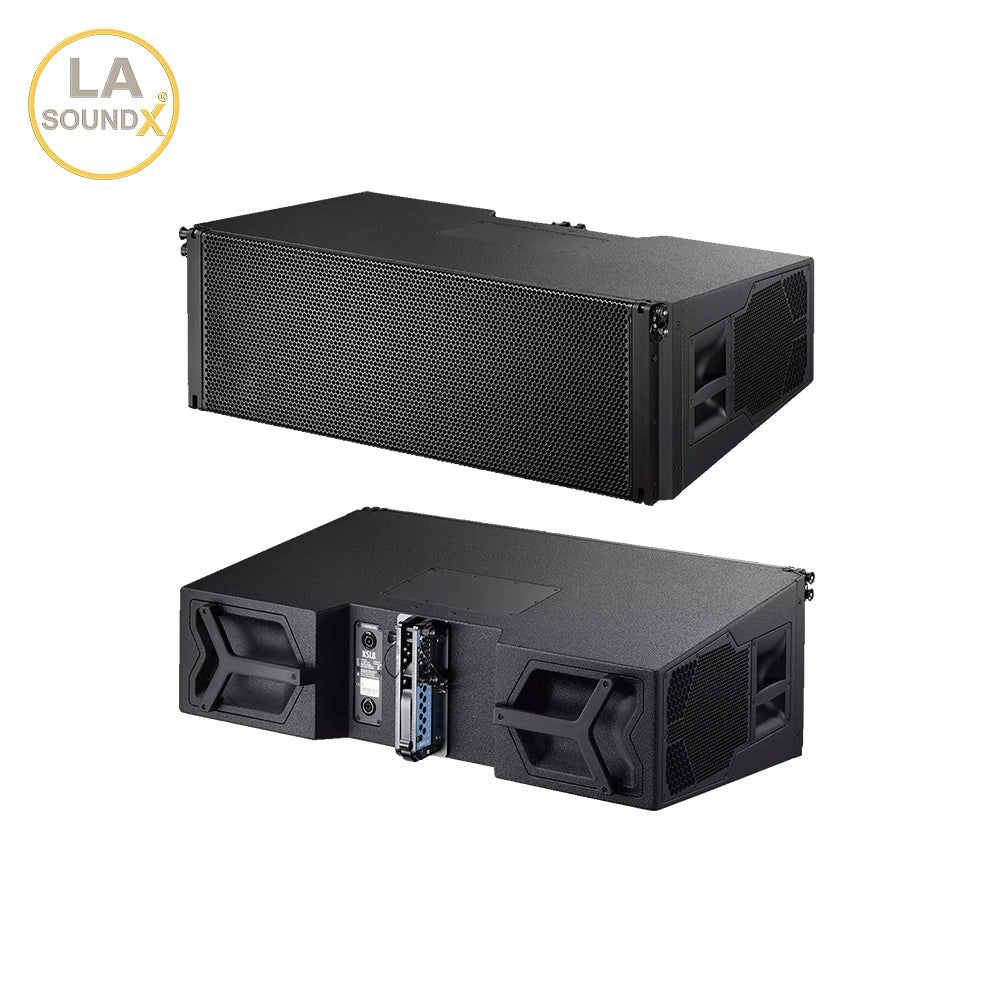

- Connectors: 1 x NLT4 F; 1+/1- front LF; 2+/2- side LF/MF/HF
- Dimensions (H x W x D): 391 x 1300 x 627 mm (15.4 x 51.2 x 24.7 inches)
- Weight: 80 kg (176 lb)

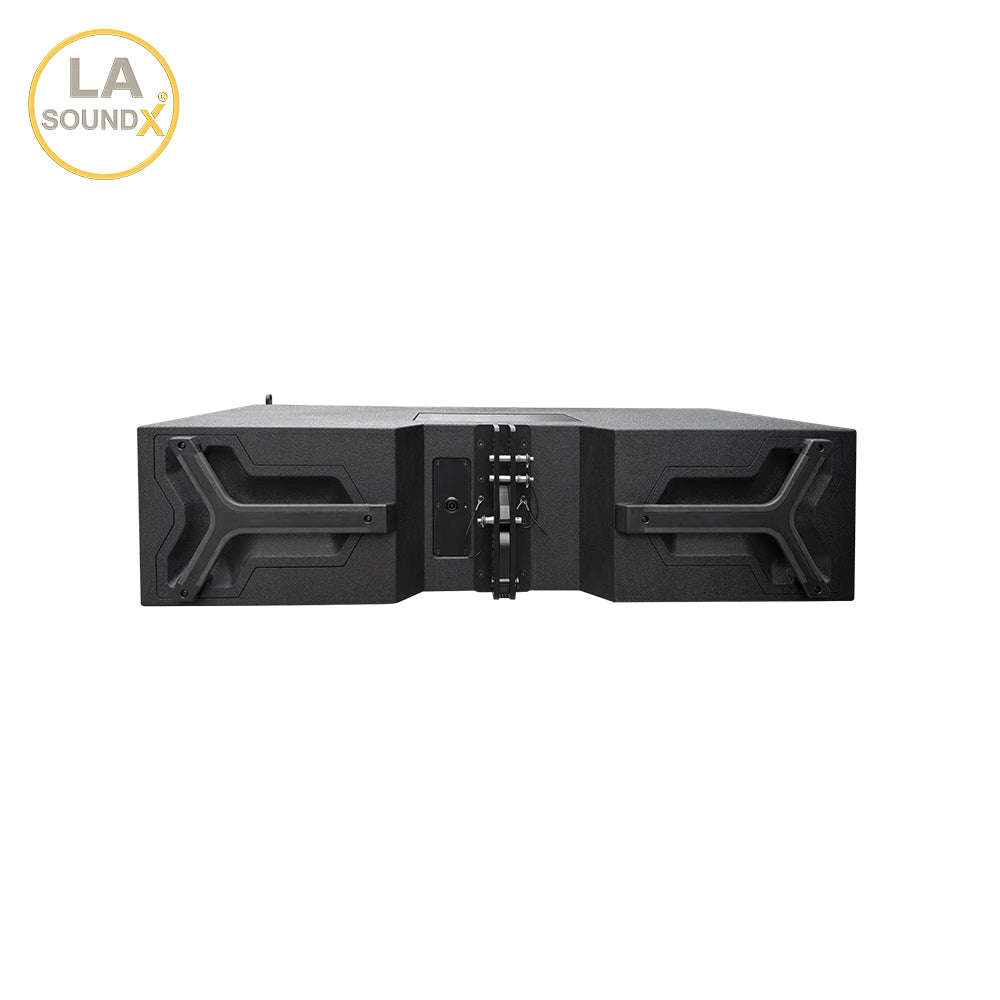

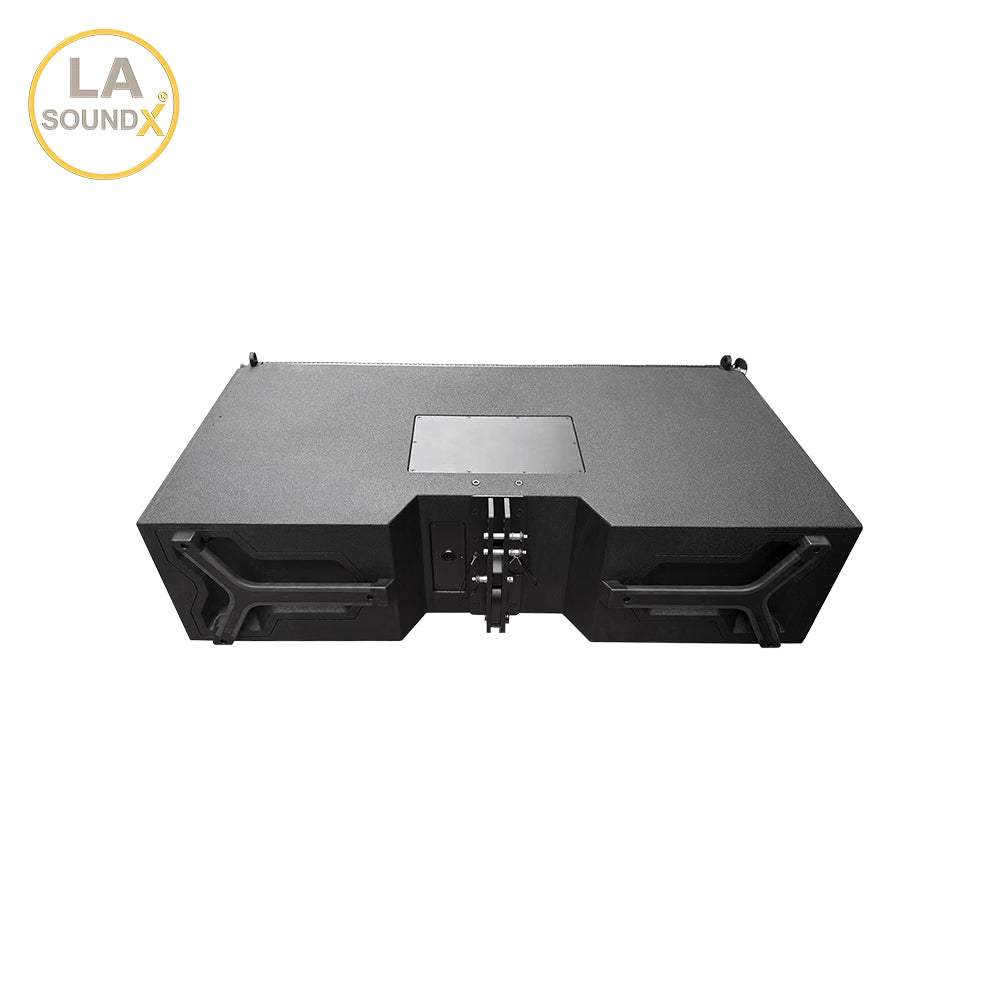

- Supplied Fittings: Integrated three-point rigging hardware; front links and central splay/rear link mounted on cabinet
- Recommended Amplifier: Compatible two-channel active system amplifier; output mode: 2-Way Active

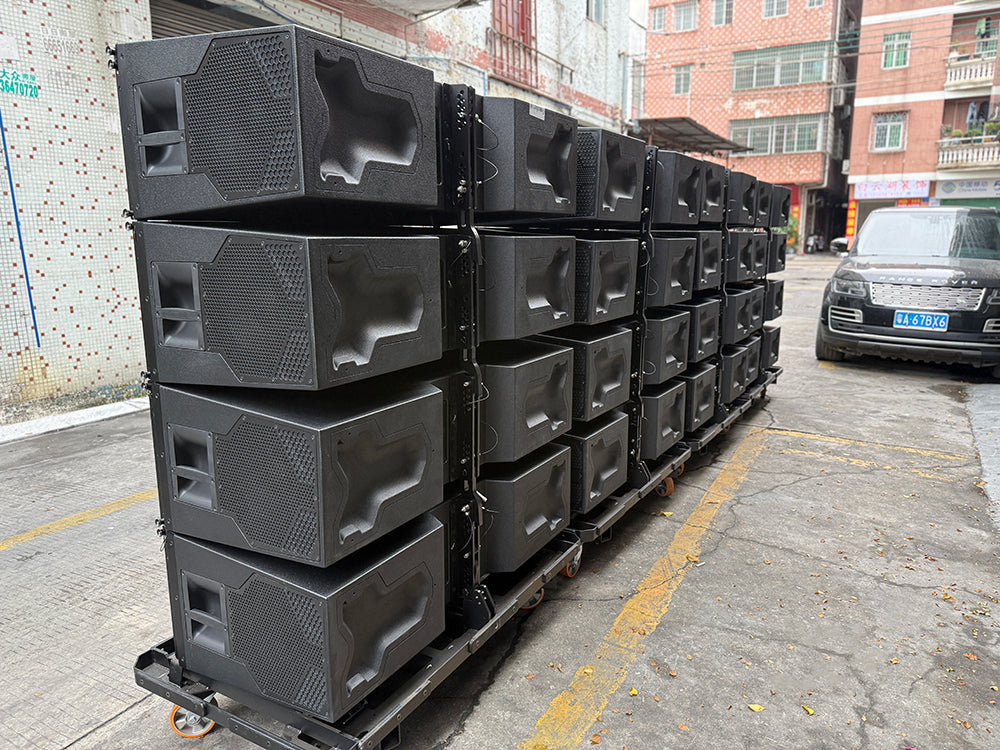

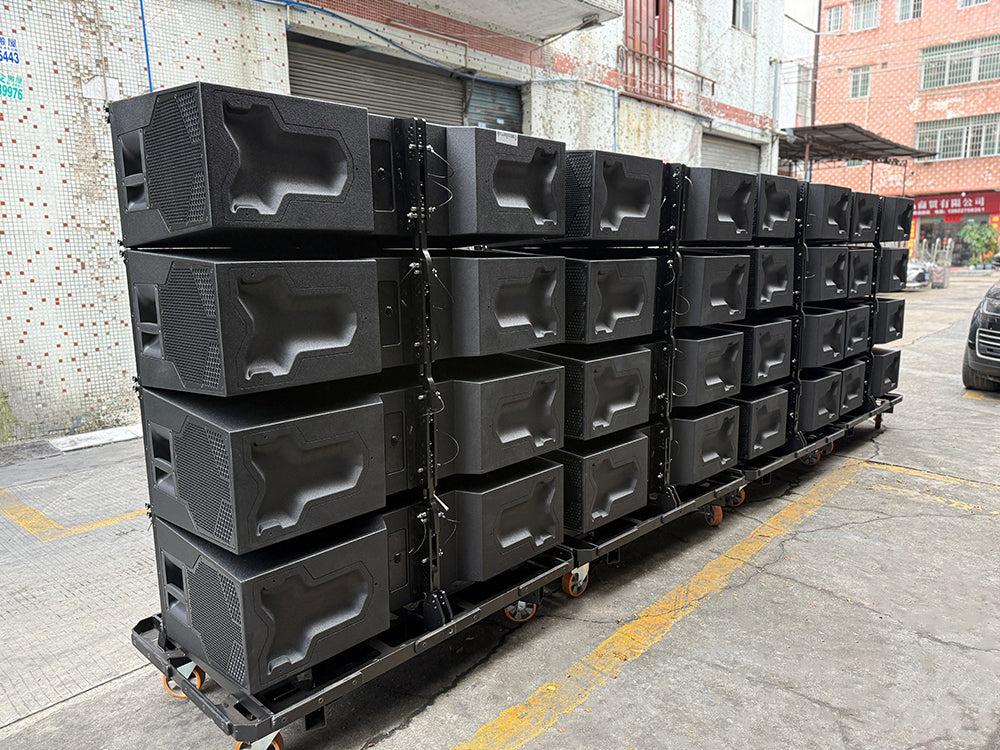

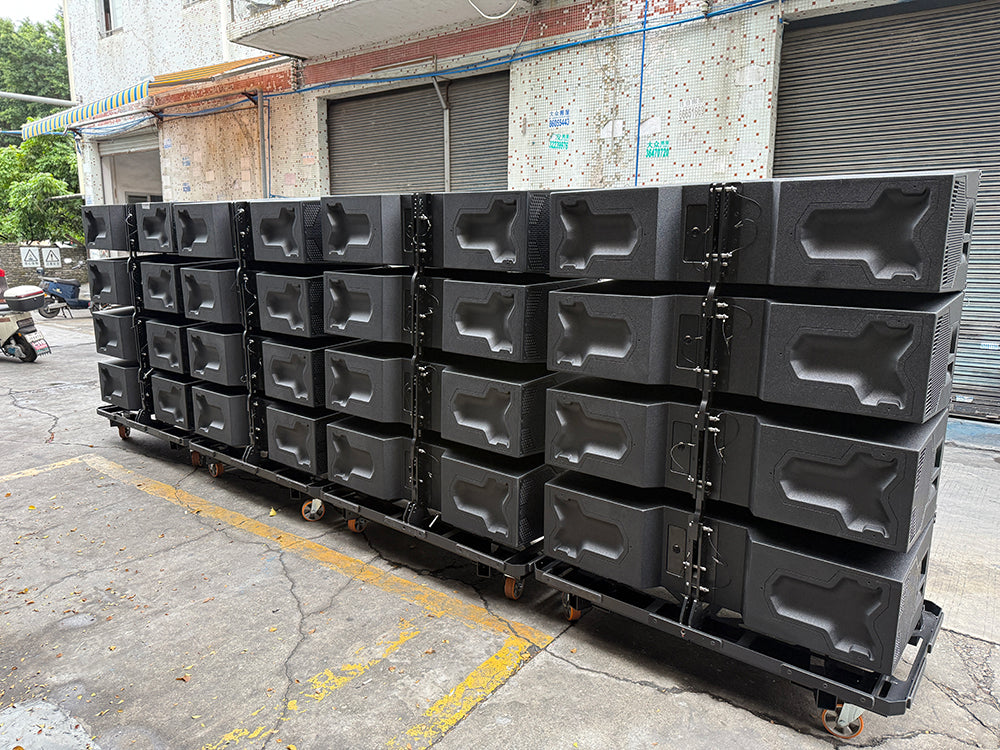

- Array Scale: Up to 24 cabinets per vertical column
标题
GSL8 / G214F is a large-format 3-way line array loudspeaker for large-scale sound reinforcement. It combines dual 14" front LF, dual 10" side LF, a 10" MF driver and three 1.4" exit compression drivers with D90/D80 2-Way Active operation.
Applications
Designed for stadiums, arenas, festivals, touring PA, rental systems and installed large-venue sound reinforcement where high SPL, controlled 80° horizontal directivity and scalable line-array deployment are required.
Recommended products
Technical parameters
Model: GSL8 / G214F
Type: Large format 3-way line array loudspeaker
Drivers: 2 x 14" front LF; 2 x 10" side LF; 1 x 10" MF; 3 x 1.4" exit compression drivers with 3.4" coil; passive crossover network
Frequency response: 45 Hz - 18 kHz (-5 dB standard); 70 Hz - 18 kHz (-5 dB CUT); 41 Hz - 20 kHz (-10 dB standard, IEC60268); 54 Hz - 20 kHz (-10 dB CUT, IEC60268)
Rated power: 800 W RMS front LF; 800 W RMS side LF/MF/HF
Peak power: 3200 W peak 10 ms front LF; 3200 W peak 10 ms side LF/MF/HF
Maximum SPL: 150 dB with D90/D80; 162 dB for 4 x GSL8 far field
Nominal impedance: 4 ohms front LF; 4 ohms side LF/MF/HF
Coverage: 80° horizontal; splay 0 ... 7° in 1° increments
Enclosure: Marine plywood with PCP (Polyurea Cabinet Protection) finish
Connectors: 1 x NLT4 F; 1+/1- Front LF; 2+/2- Side LF/MF/HF
Dimensions: 1000 x 330 x 597 mm (39.4" x 13" x 23.5")
Weight: 80 kg / 176 lb
Recommended amplifier: D90/D80; 2-Way Active
