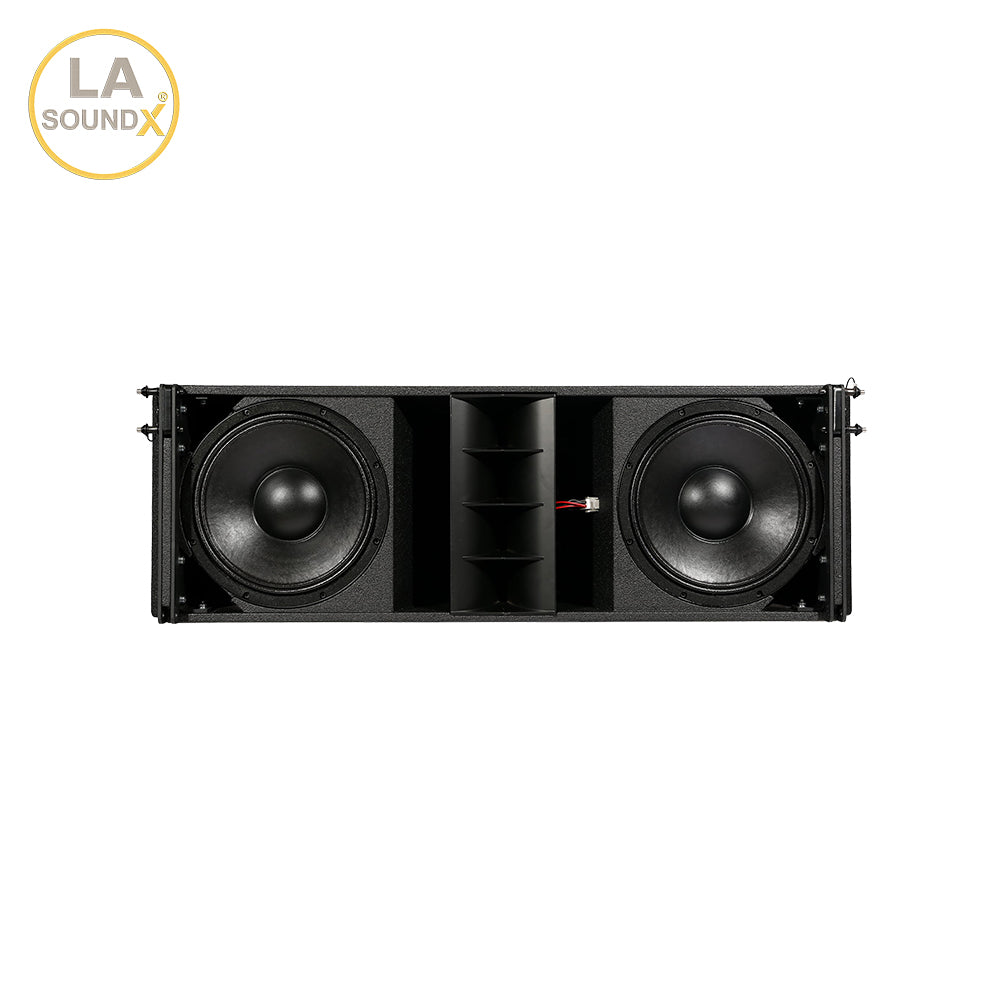

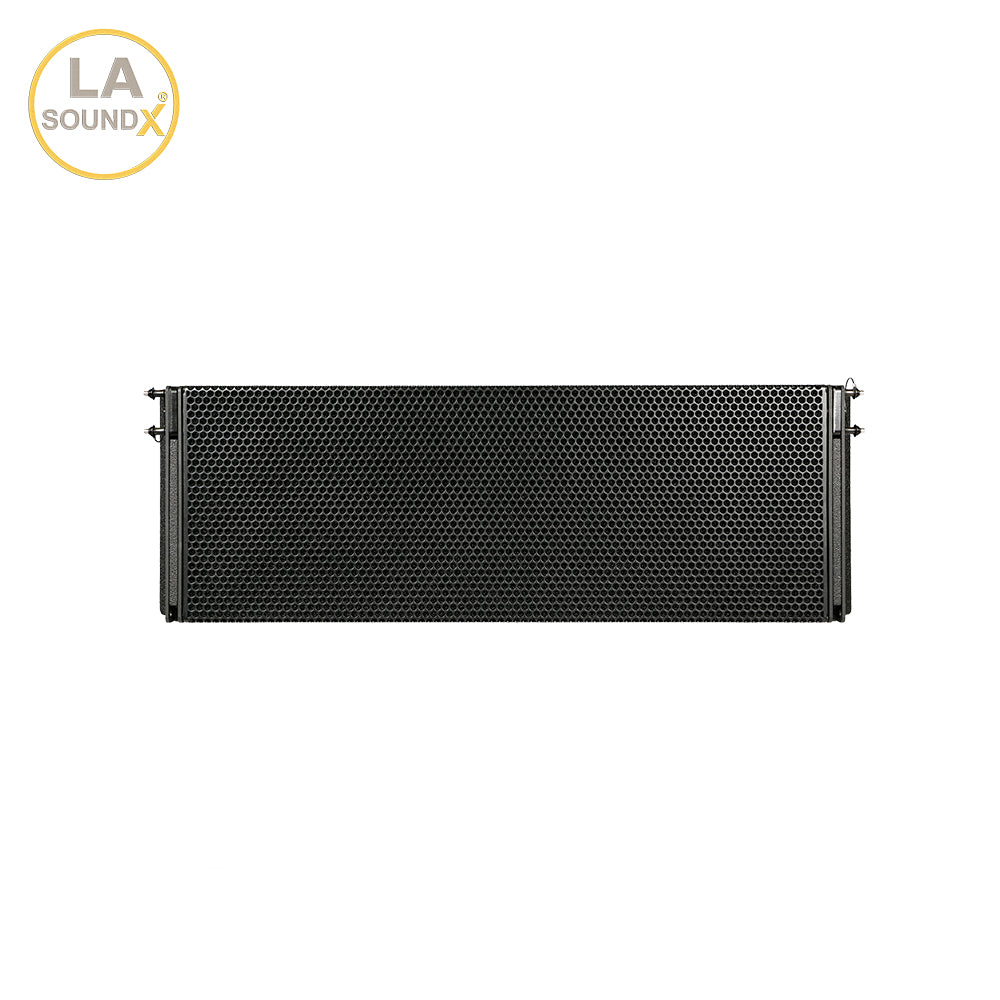

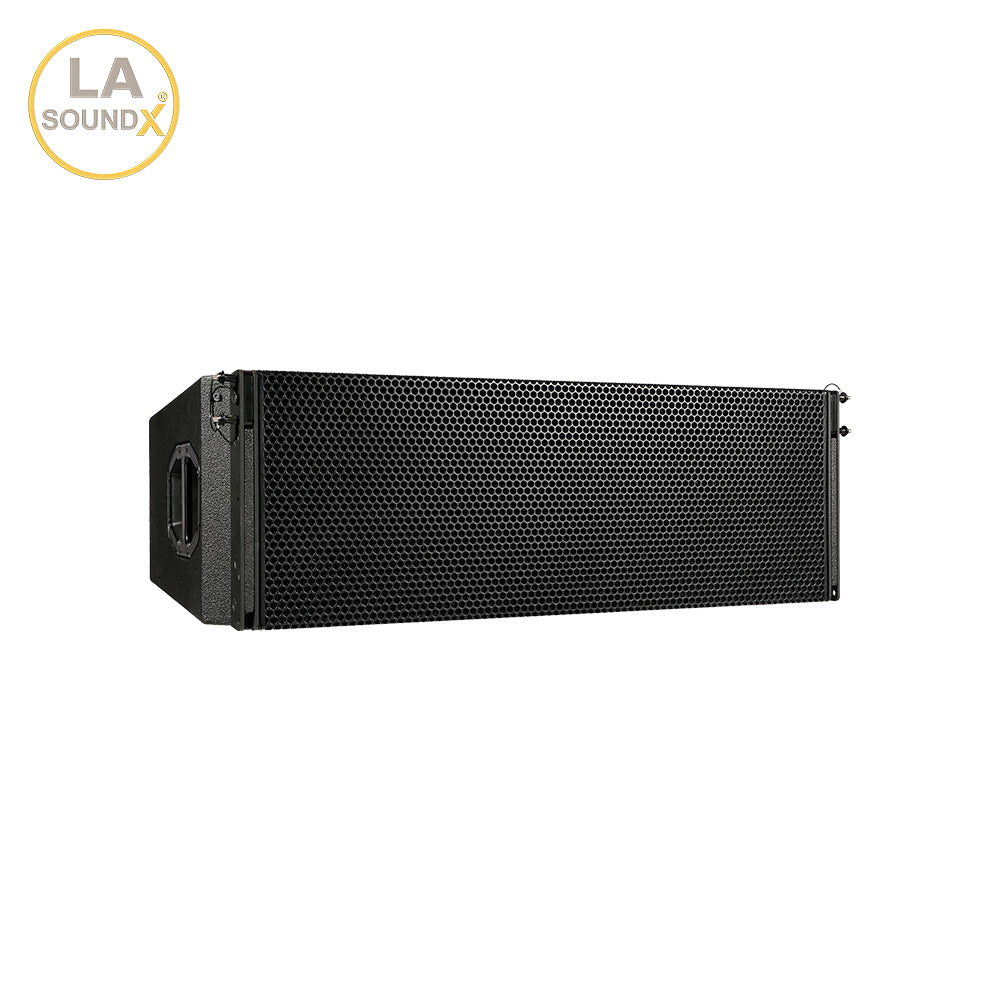

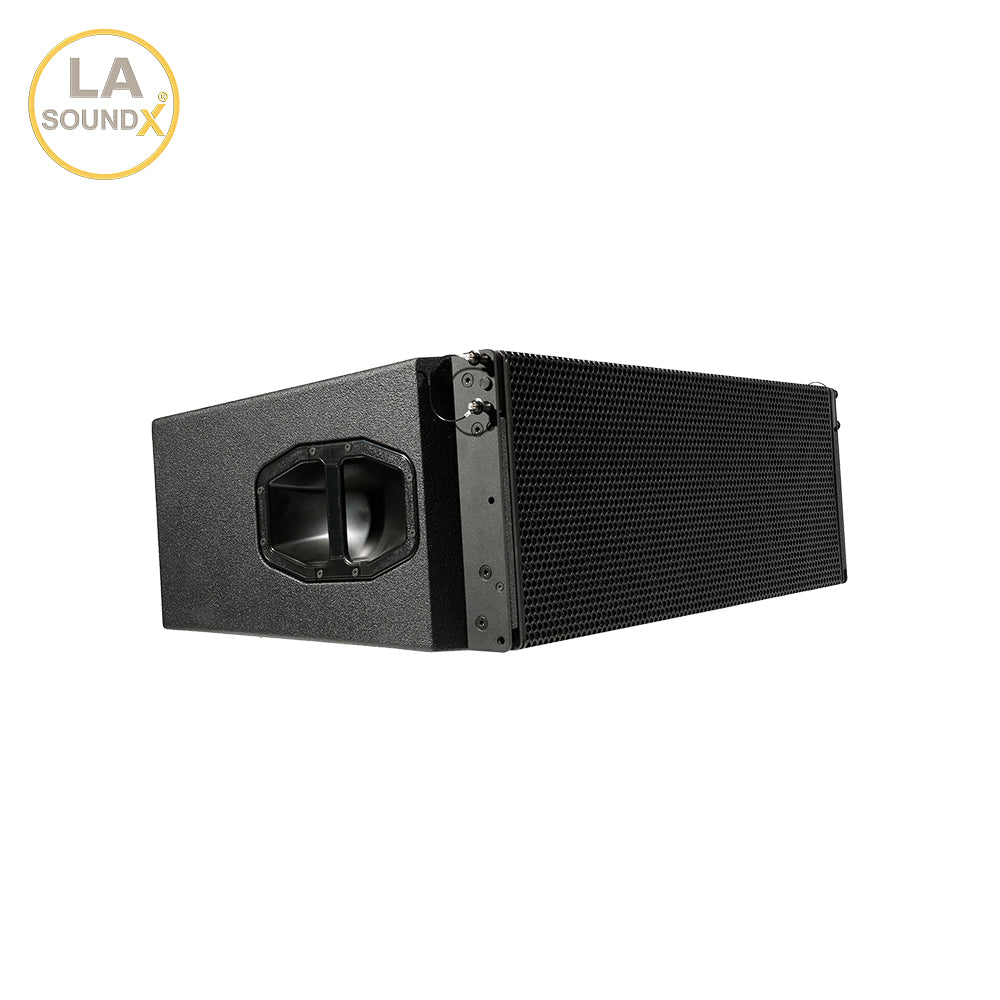

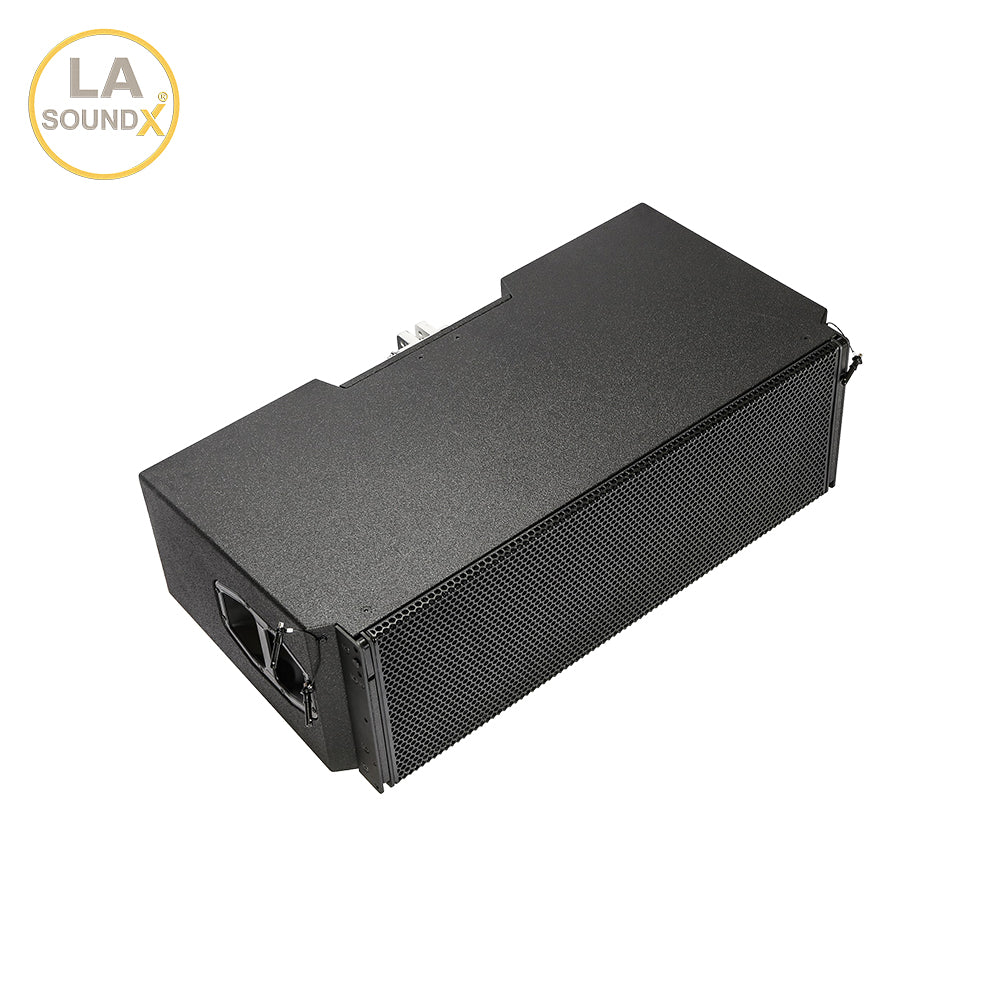

LA SOUNDX J212F Dual 12 Inch 3-Way Line Array Speaker 145dB Max SPL 80° Coverage for Concert Touring Pro Audio

J212F is a large-format, 3-way line array loudspeaker in the B&B Series. Its symmetrical design combines dual 12-inch LF drivers, a horn-loaded midrange section and a dedicated HF waveguide, delivering up to 145 dB peak SPL with controlled 80° horizontal coverage.

Key advantages

Low-frequency output: two 12-inch neodymium LF drivers.
Dedicated midrange: one 10-inch horn-loaded MF driver.
High-frequency section: two compression drivers with 1.4-inch exits and 3-inch coils.
Three-way crossover design: active LF/MHF crossover and passive MF/HF crossover.

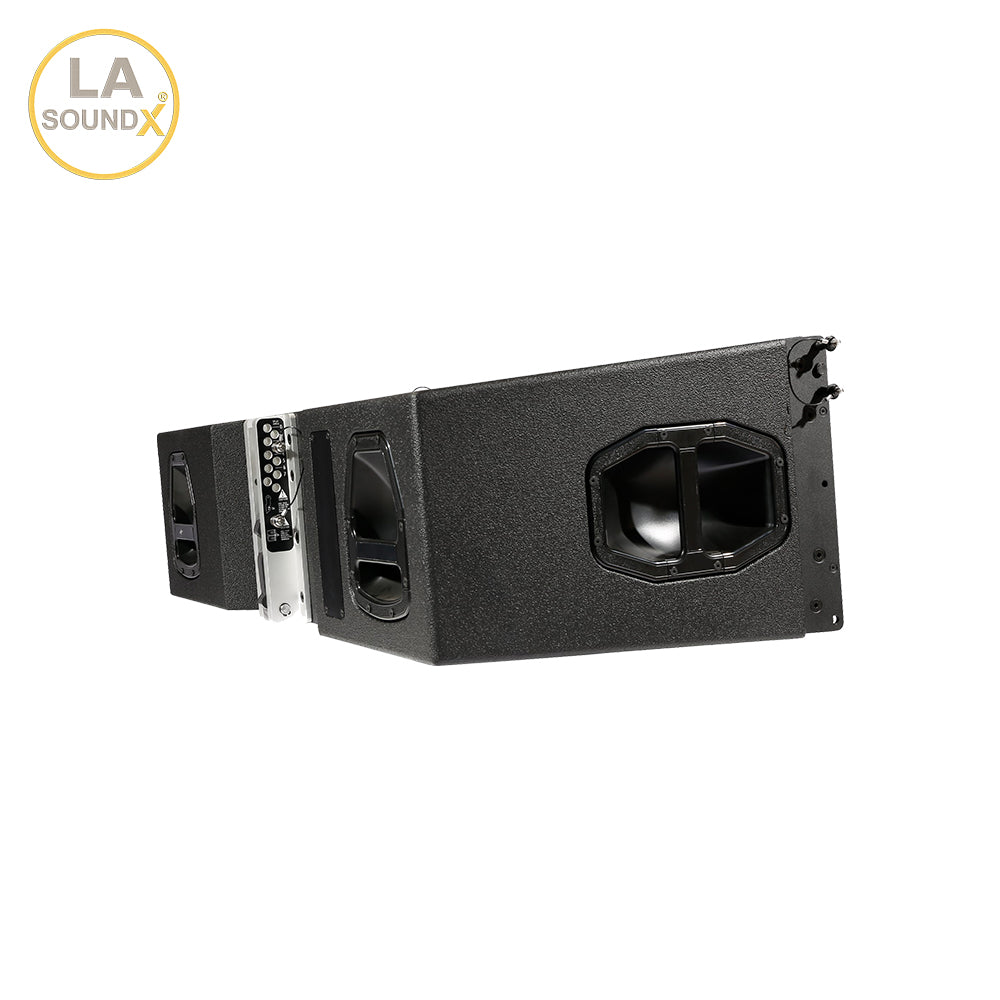

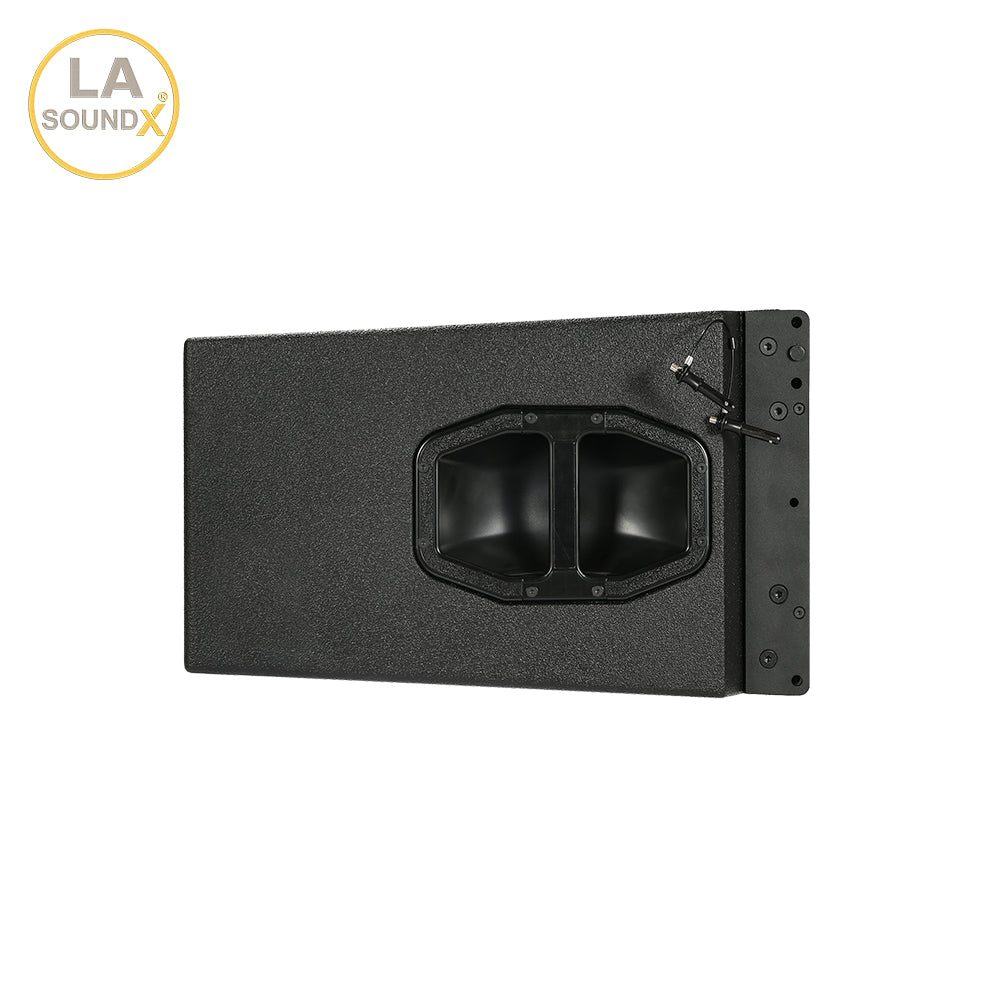

Flexible array deployment: integrated 3-point rigging, 0°–7° splay settings in 1° increments and arrays of up to 24 cabinets.

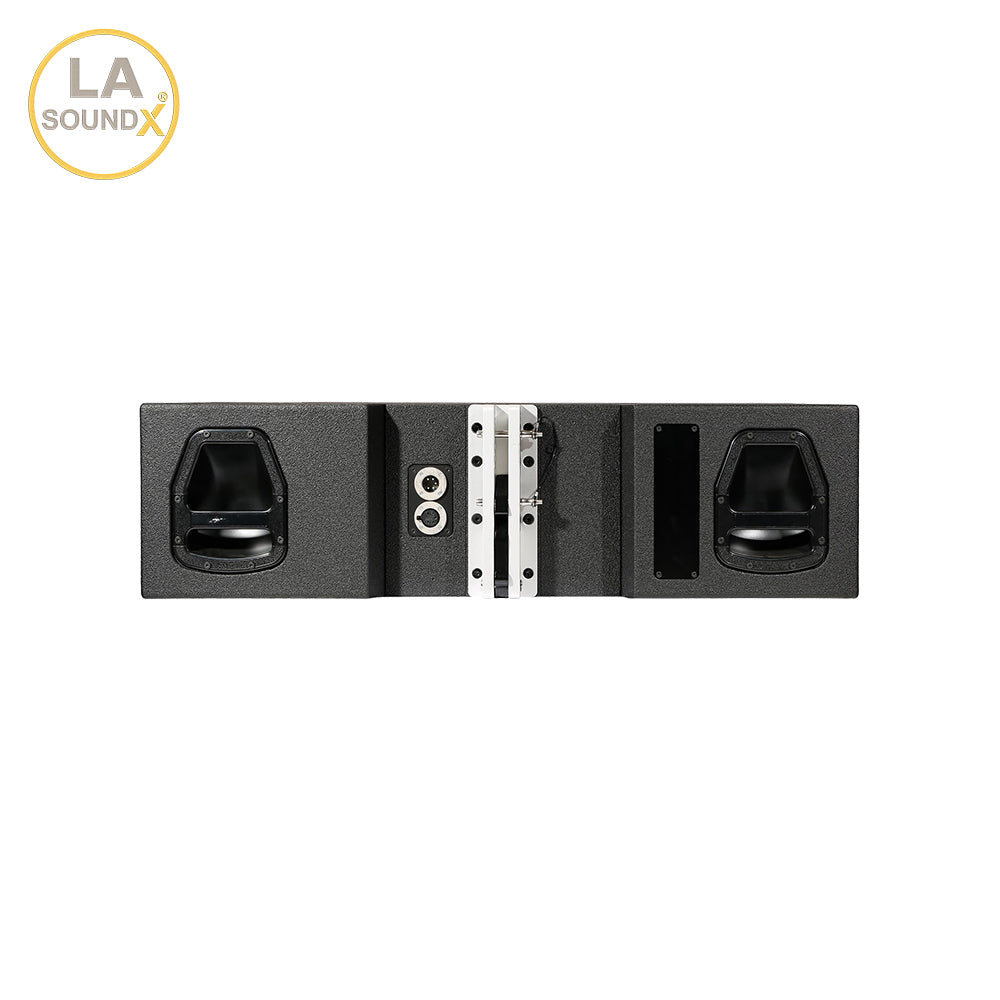

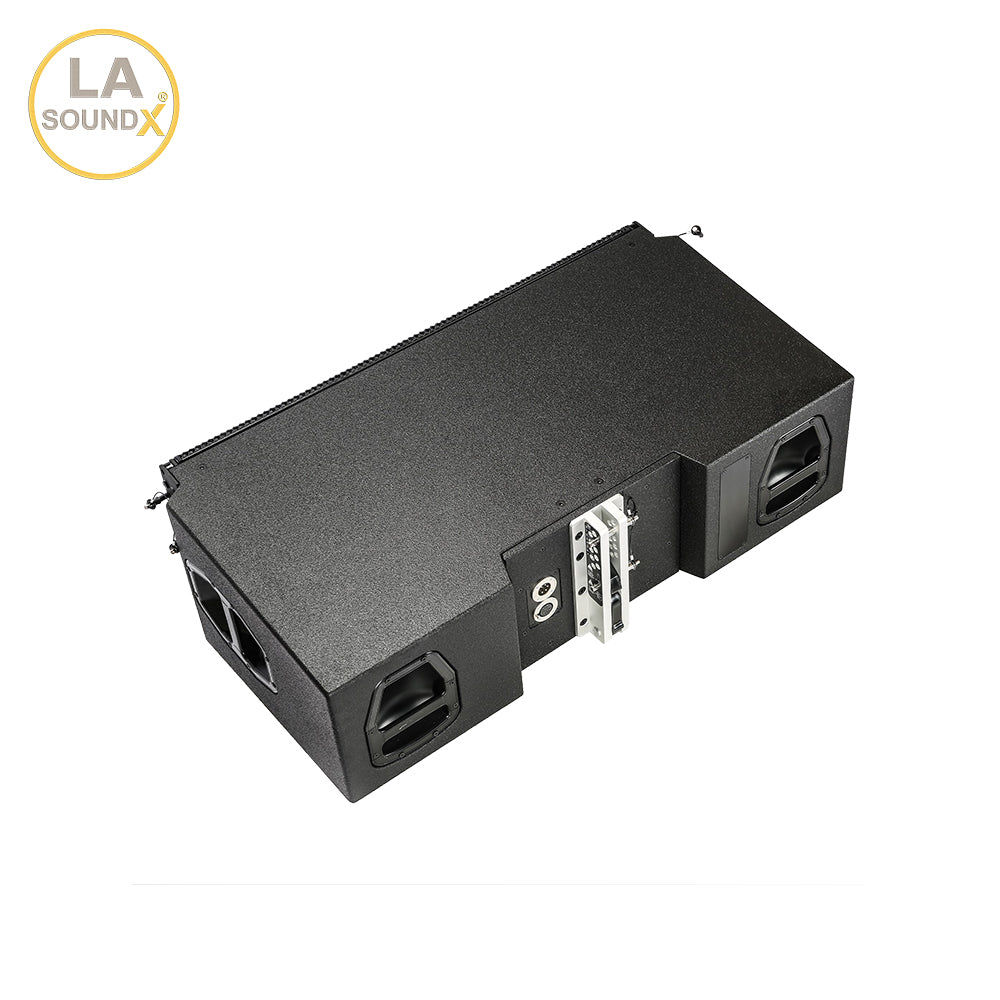

Touring cabinet: marine plywood with an impact- and weather-resistant coating, plus four side/rear handles.

Core specifications

Frequency response: 48 Hz–17 kHz (-5 dB); CUT mode: 85 Hz–17 kHz (-5 dB).
Maximum SPL: 145 dB peak.
Horizontal dispersion: 80°.
Nominal impedance: LF 6 Ω; MHF 12 Ω.
Power handling (RMS / peak): LF 500 / 2000 W; MHF 200 / 800 W.
Connections: two 4-pin parallel connectors; optional 5-pin or 8-pin connectors.
Dimensions (H × W × D): 360 × 1100 × 570 mm.
Net weight: 60 kg / 132 lb.
