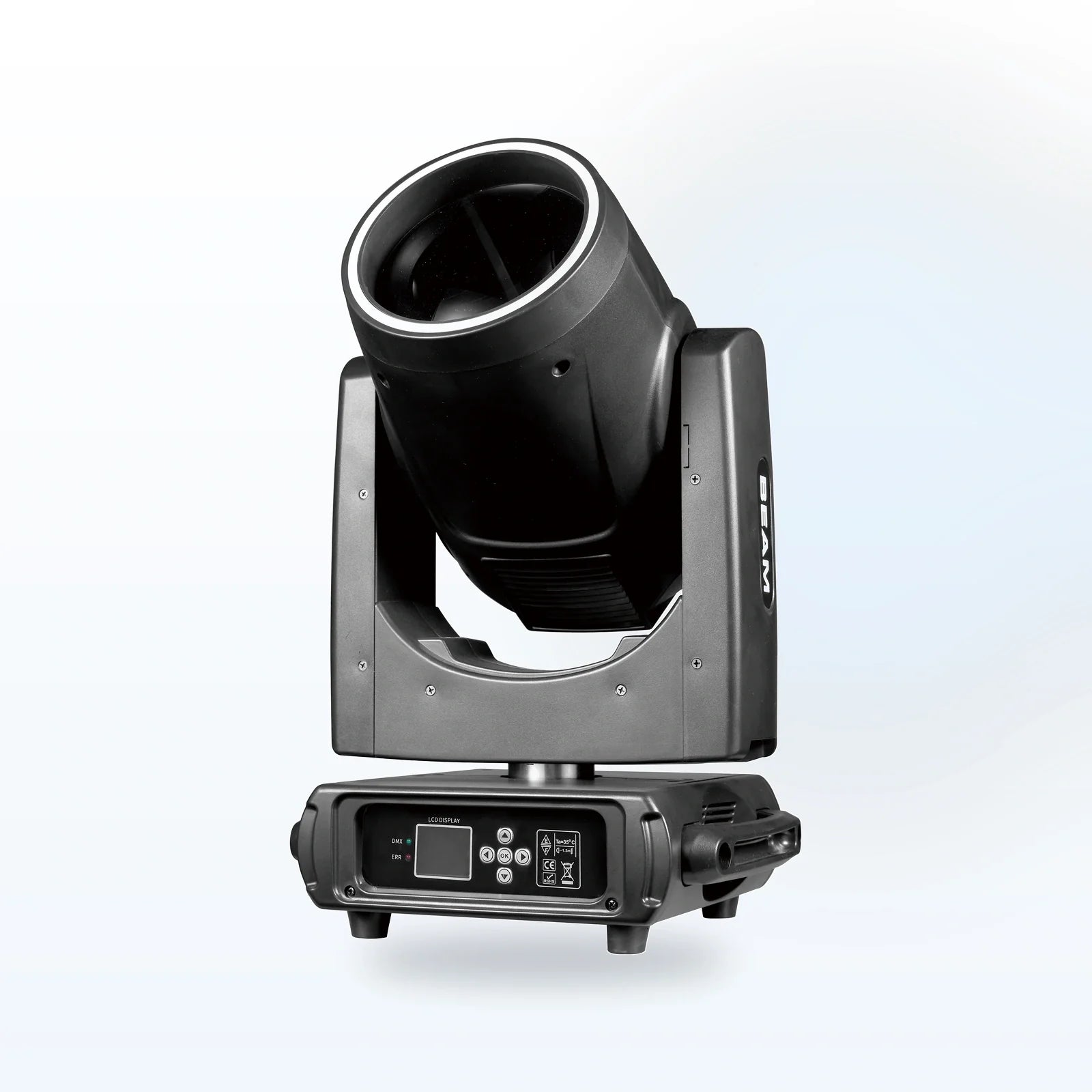

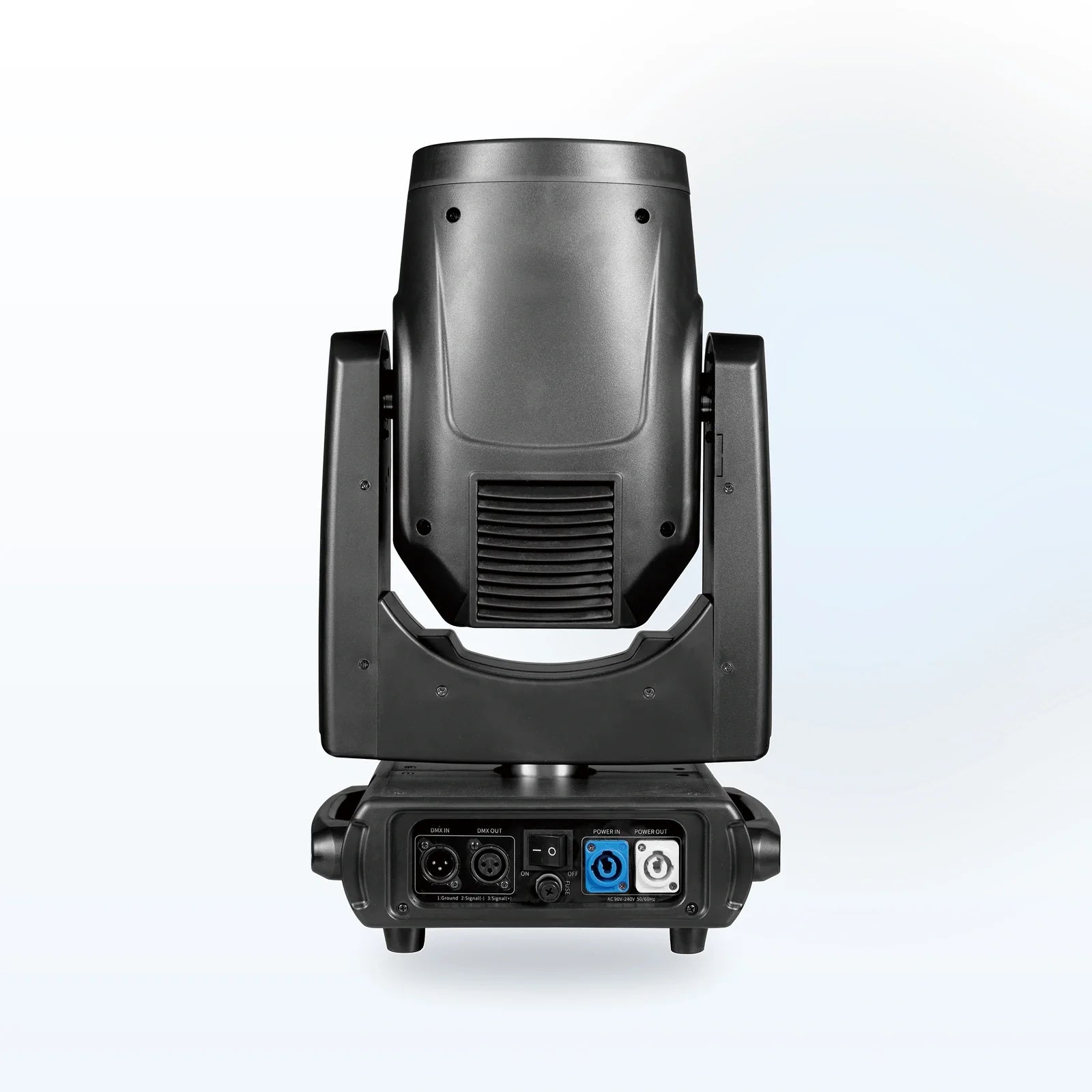

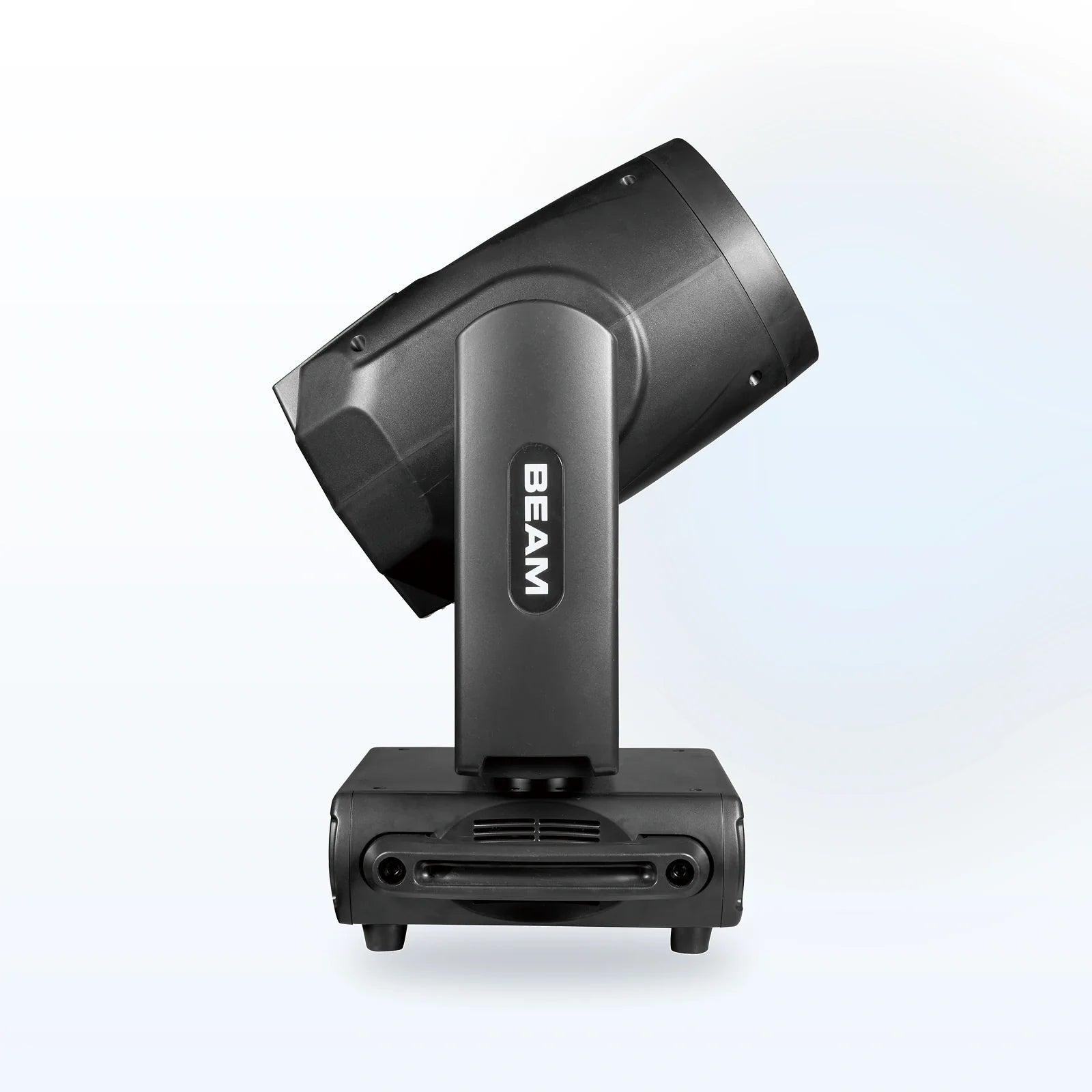

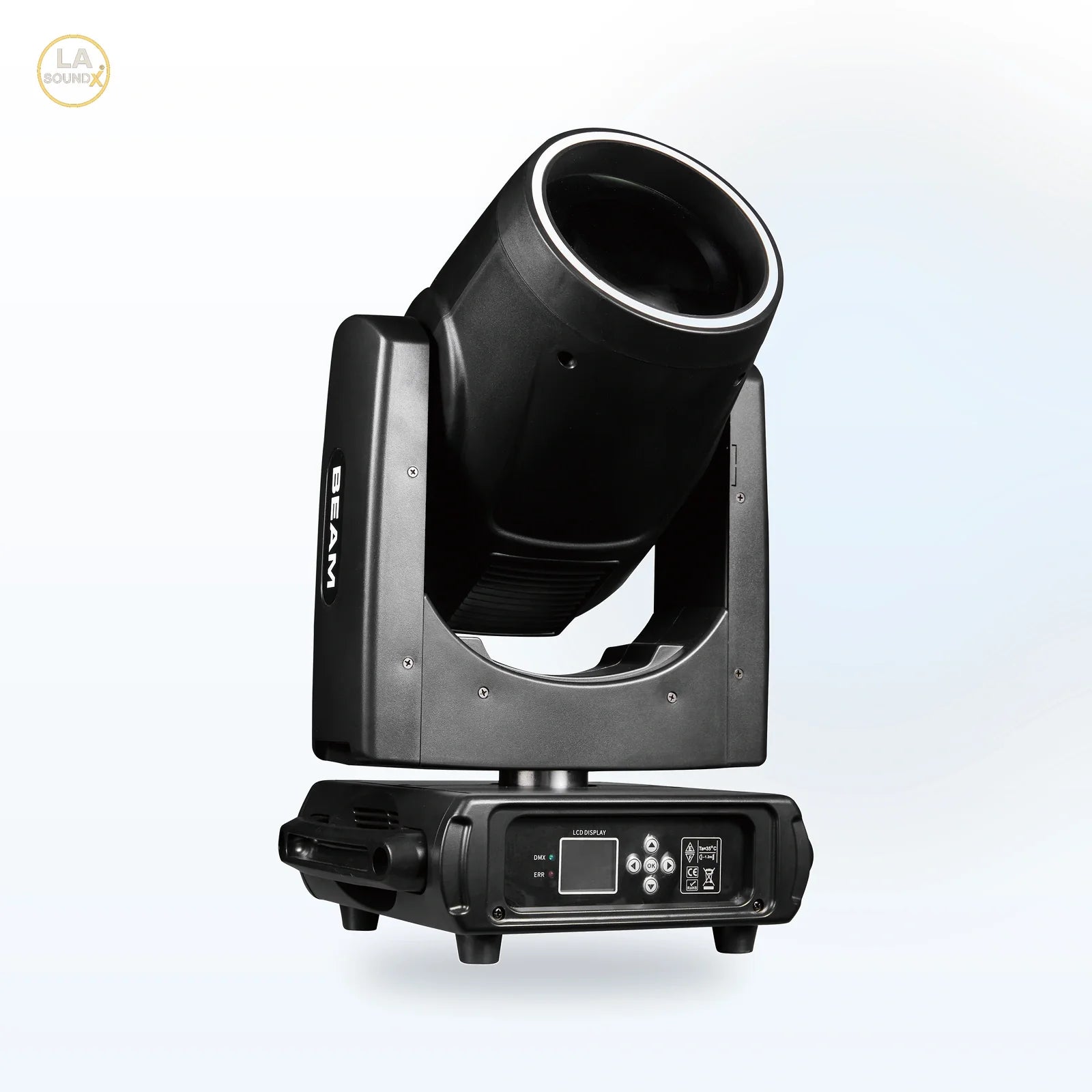

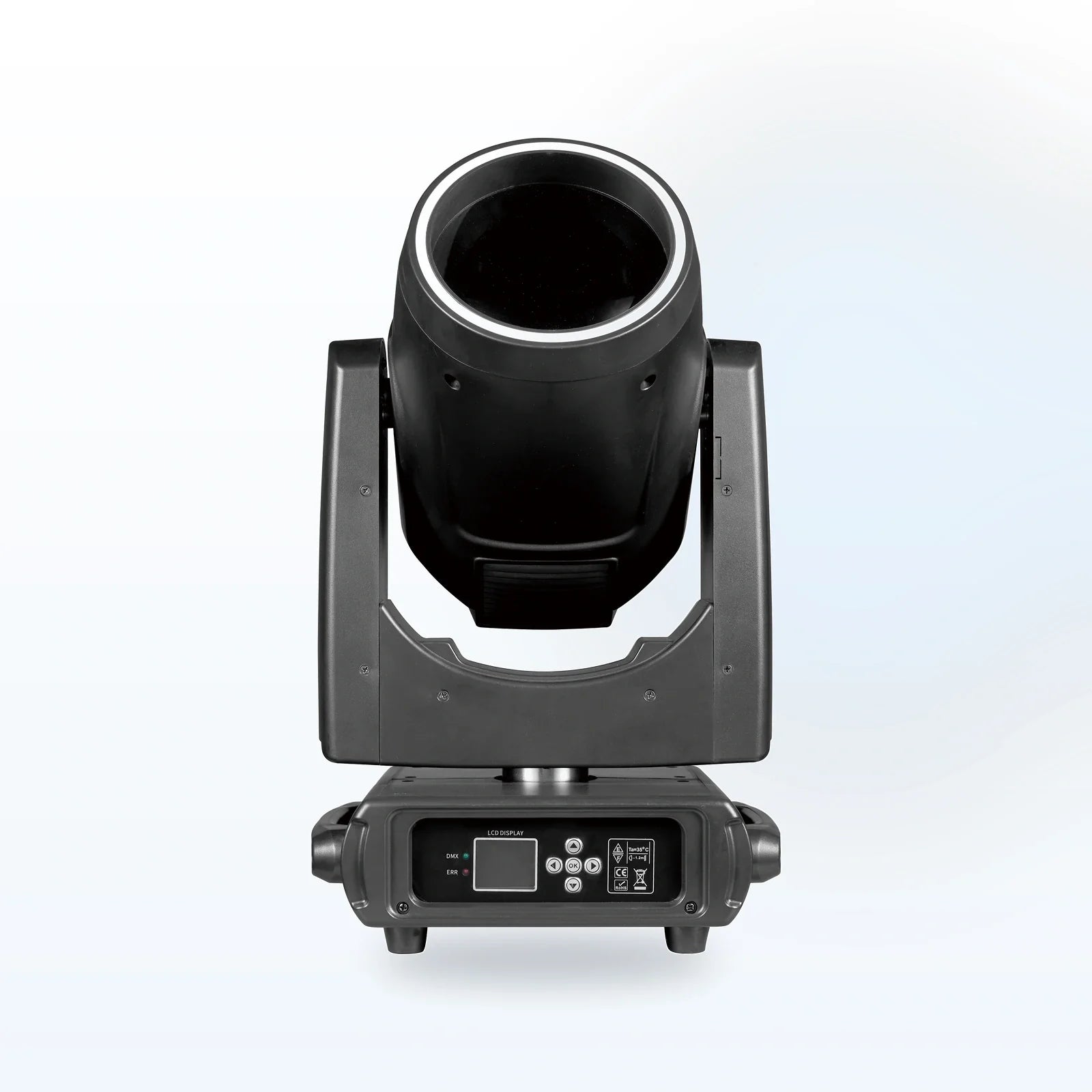

LED300W Module Beam Moving Head with RGB Aperture

Product: LED300W Module Beam Moving Head with RGB Aperture
Input voltage: 50/60Hz; lower bound TO BE CONFIRMED; upper bound AC240V
Rated power: 350W
Light source: LED module; source wattage TO BE CONFIRMED (200W / 220W / 300W conflict); 8000K;
DMX channels: 24CH / 28CH DMX512; 16CH XML compatibility file retained separately
Control modes: DMX512 / RDM / sound / auto / master-slave
Color wheel: 14 colors + white
Fixed gobos: COUNT TO BE CONFIRMED (17 / 18 source conflict)
Prism system: Dual independent prisms with independent rotation; facet structure TO BE CONFIRMED
Frost / colorful: Independent frost / colorful effect channel
Focus: Motorized focus verified by current fixture mapping
Dimming / strobe: 0-100% dimming; independent body and aperture shutter controls
Movement: Pan 540 degrees / tilt 270 degrees / fine channels
Size / weight: 30 x 26 x 52 cm / net 12.1 kg / gross 14.1 kg
Environment: IP20 indoor
Packing: 55 x 39 x 39 cm

Focused LED beam

A beam platform for stages, events, clubs, venues and rental systems.

Rated power

350W

Light source

LED module; source wattage TO BE CONFIRMED (200W / 220W / 300W conflict); 8000K;

DMX channels

24CH / 28CH DMX512; 16CH XML compatibility file retained separately

Movement

Pan 540 degrees / tilt 270 degrees / fine channels

Focused LED beam

A beam platform for stages, events, clubs, venues and rental systems.

350W rated platform

Rated total power is verified at 350W; the LED source wattage remains to be confirmed because source records conflict.

Dual-prism effect engine

Two independently inserted and rotated prisms combine with gobo, frost and motorized focus.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

LED300W Module Beam Moving Head with RGB Aperture

Input voltage

50/60Hz; lower bound TO BE CONFIRMED; upper bound AC240V

Rated power

350W

Light source

LED module; source wattage TO BE CONFIRMED (200W / 220W / 300W conflict); 8000K;

DMX channels

24CH / 28CH DMX512; 16CH XML compatibility file retained separately

Control modes

DMX512 / RDM / sound / auto / master-slave

Color wheel

14 colors + white

Fixed gobos

COUNT TO BE CONFIRMED (17 / 18 source conflict)

Prism system

Dual independent prisms with independent rotation; facet structure TO BE CONFIRMED

Frost / colorful

Independent frost / colorful effect channel

Focus

Motorized focus verified by current fixture mapping

Dimming / strobe

0-100% dimming; independent body and aperture shutter controls

Movement

Pan 540 degrees / tilt 270 degrees / fine channels

Size / weight

30 x 26 x 52 cm / net 12.1 kg / gross 14.1 kg

Environment

IP20 indoor

Packing

55 x 39 x 39 cm
