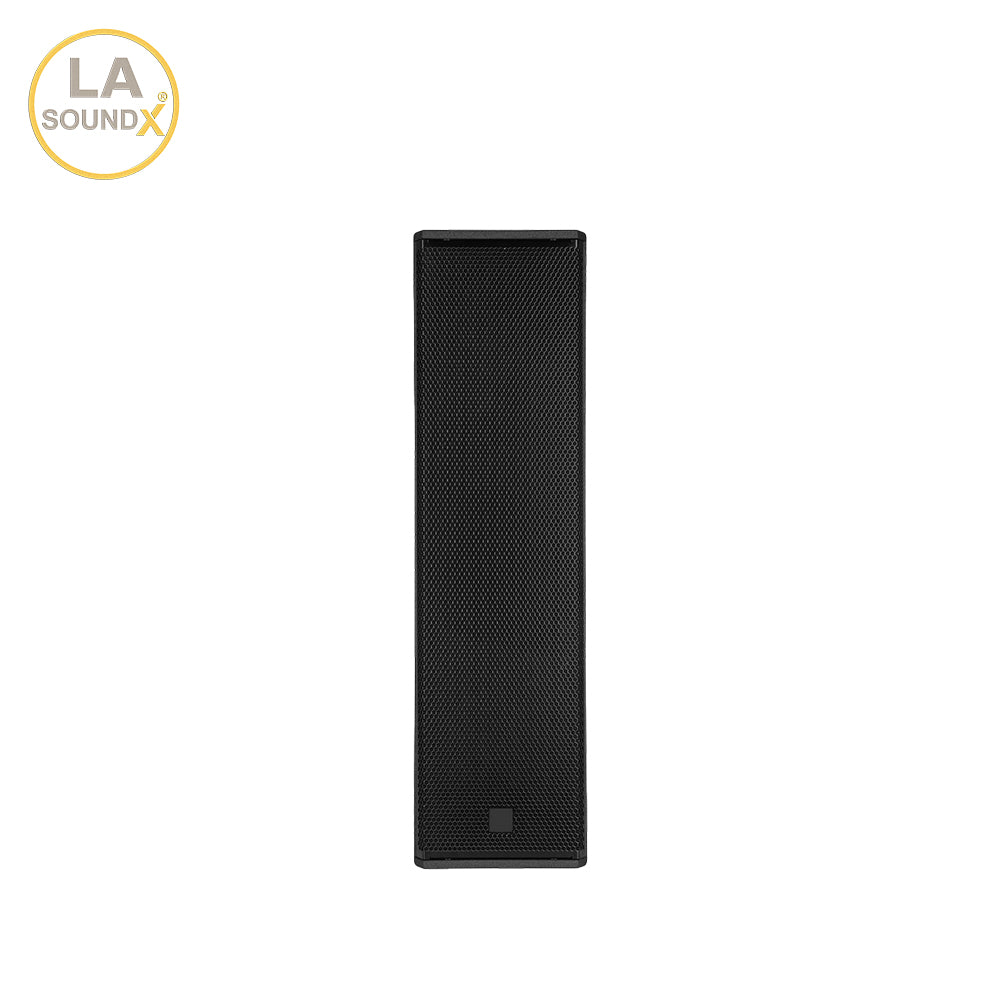

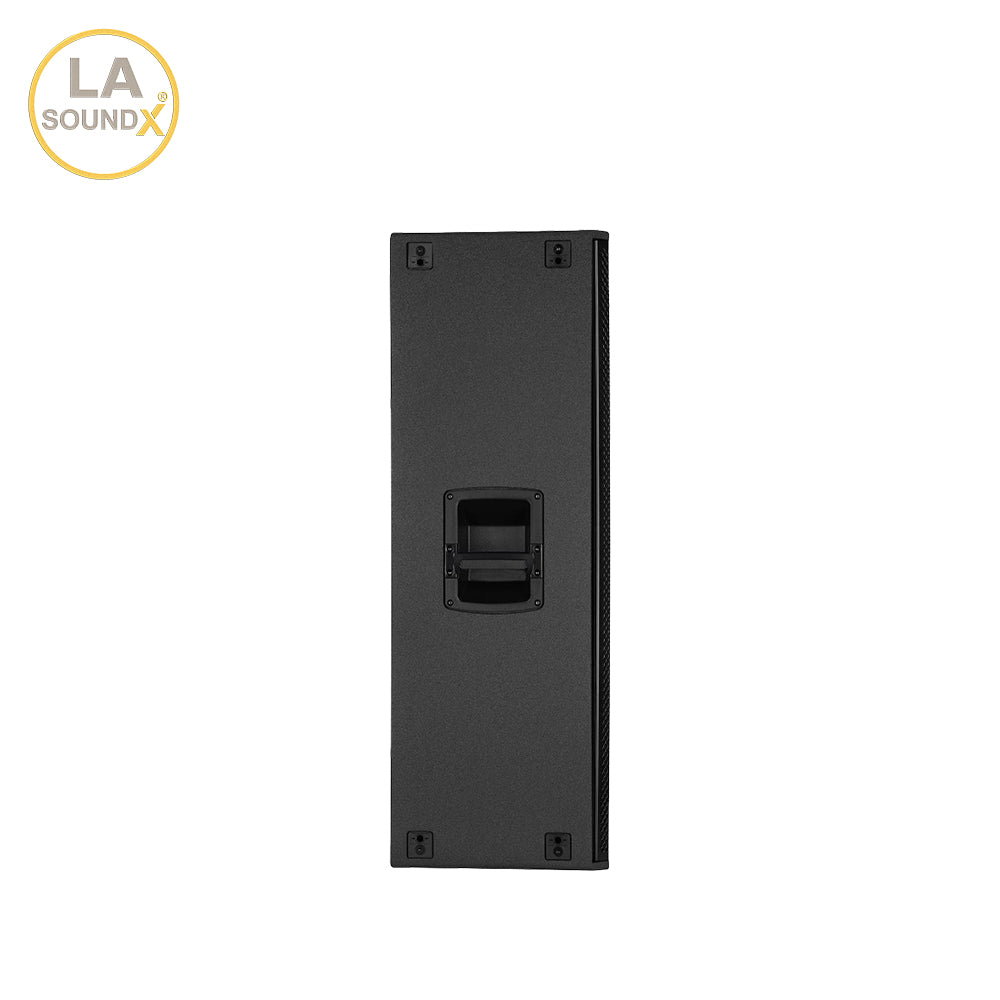

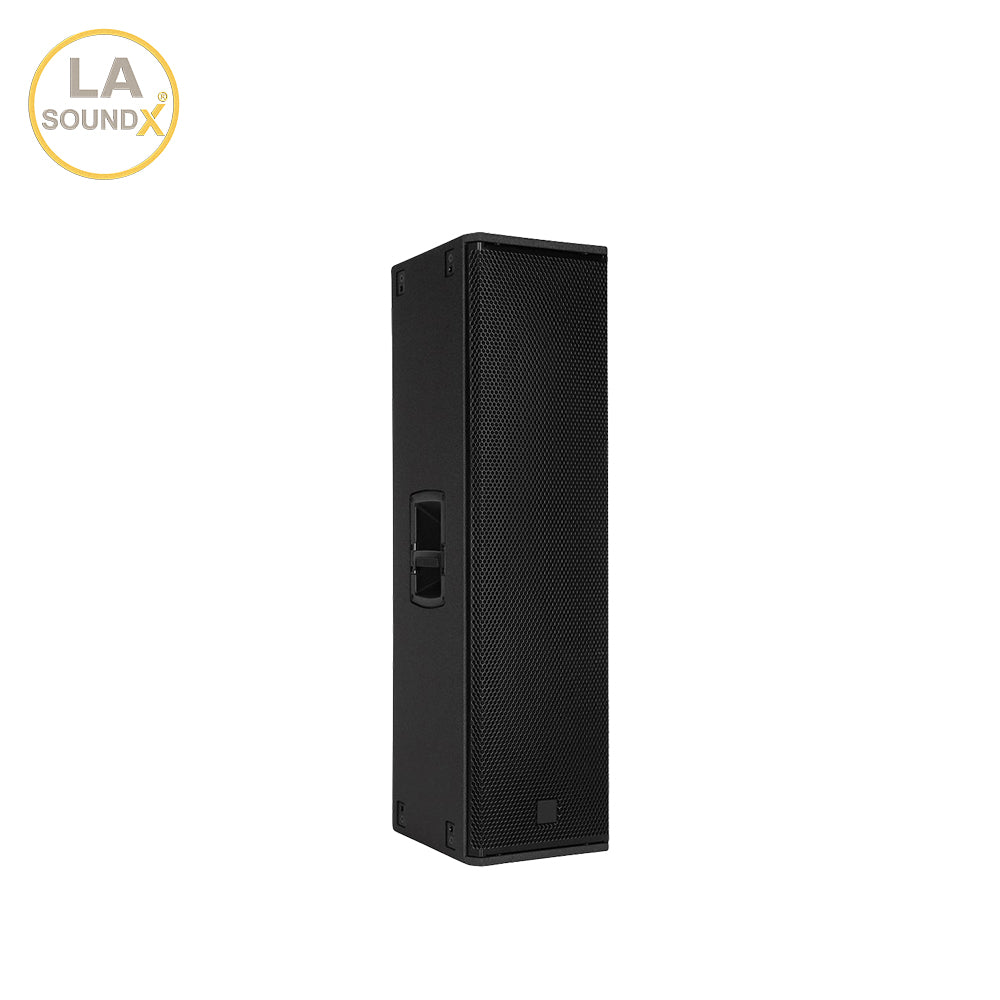

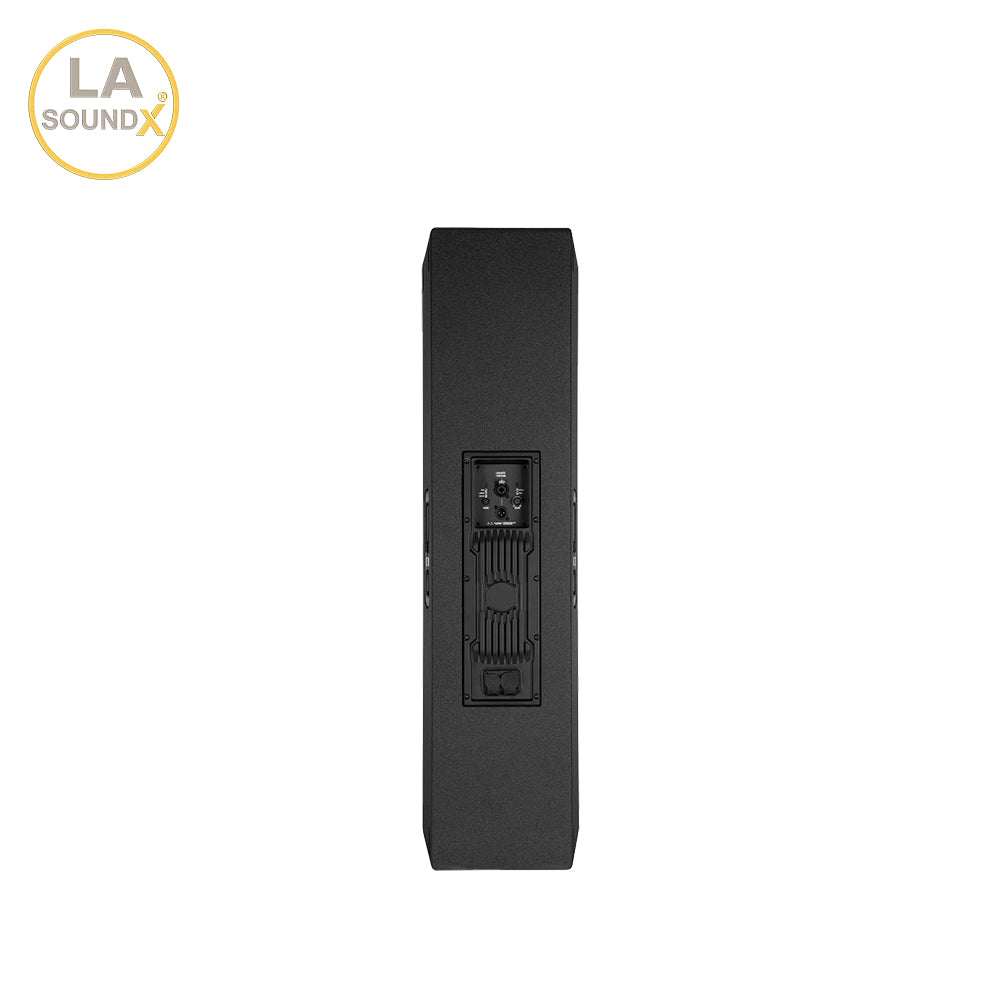

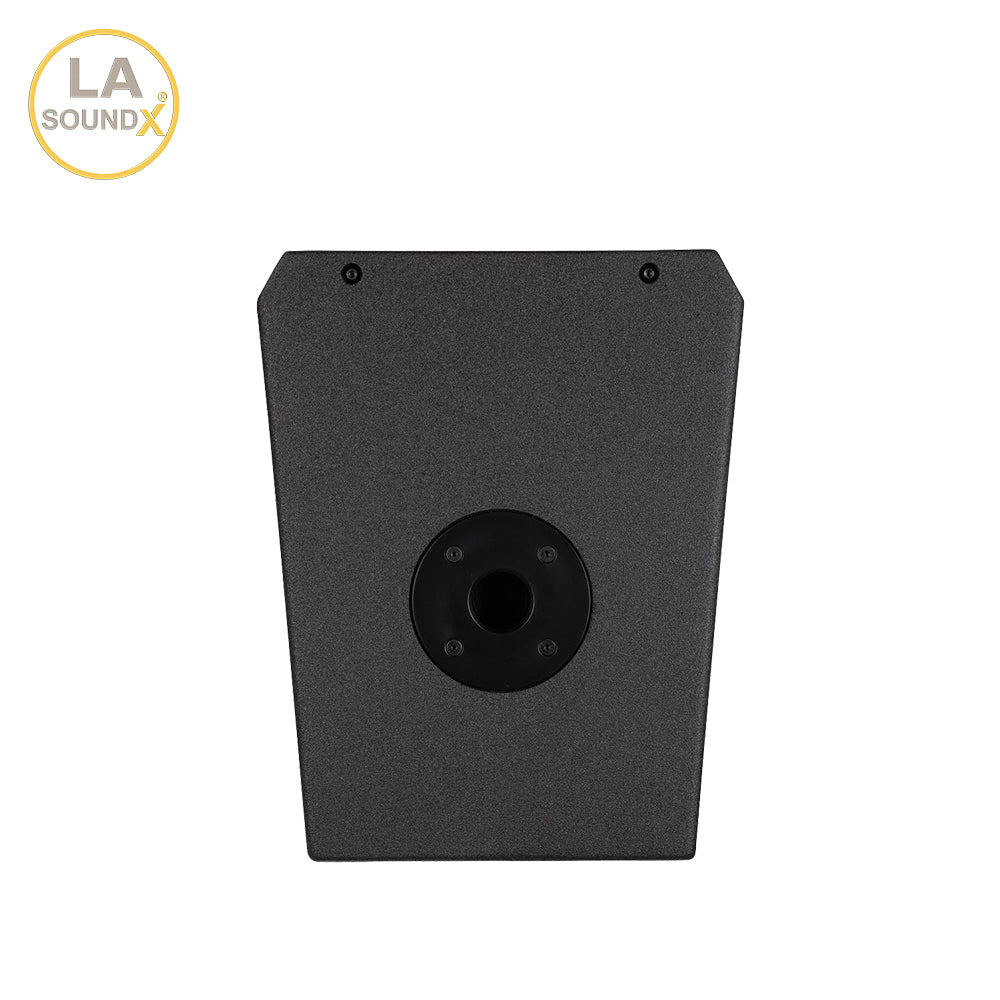

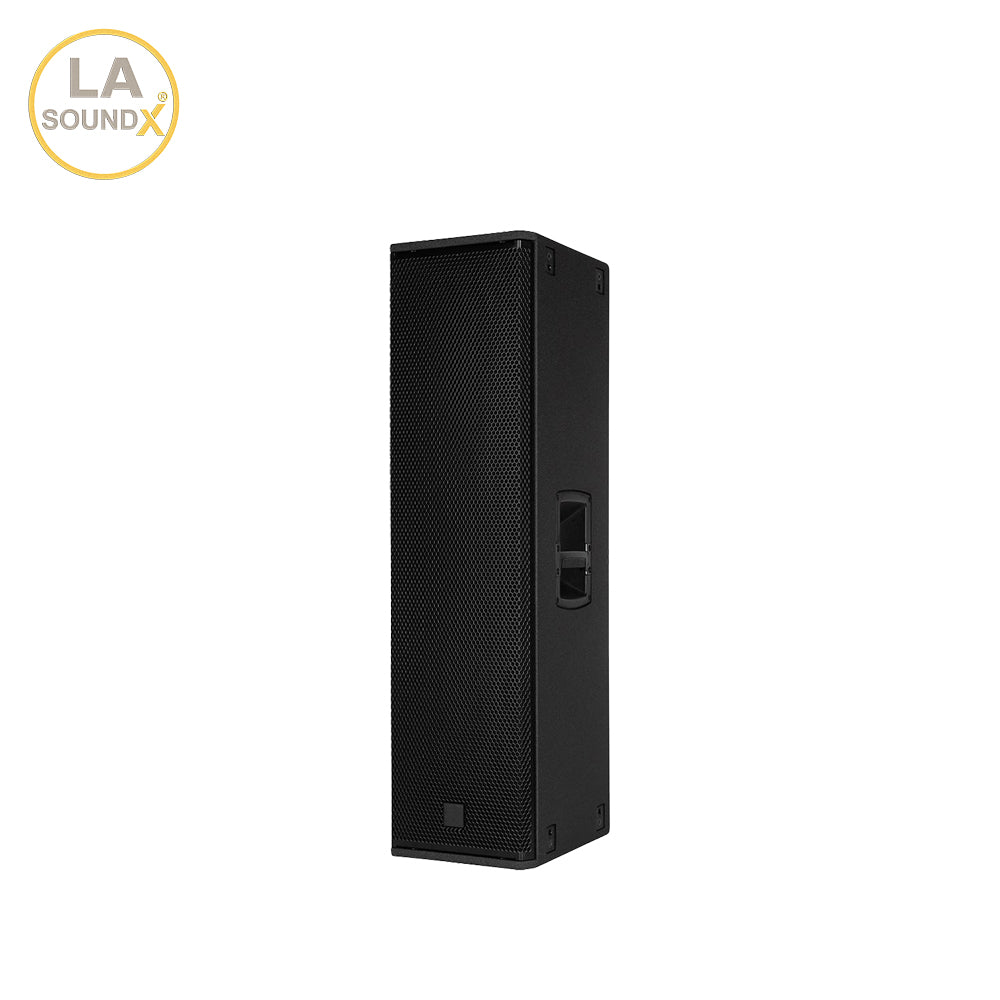

NXL 44-A MK2 Active AKTIVES 2-WEGE-SÄULENSYSTEM

Sale price

Model: NXL 44-A MK2
Name: Active two-way array
Configuration: Active line array speaker, 3×10"
Max SPL: 135 dB
Bandwidth (-5 dB): 45 Hz – 20 kHz

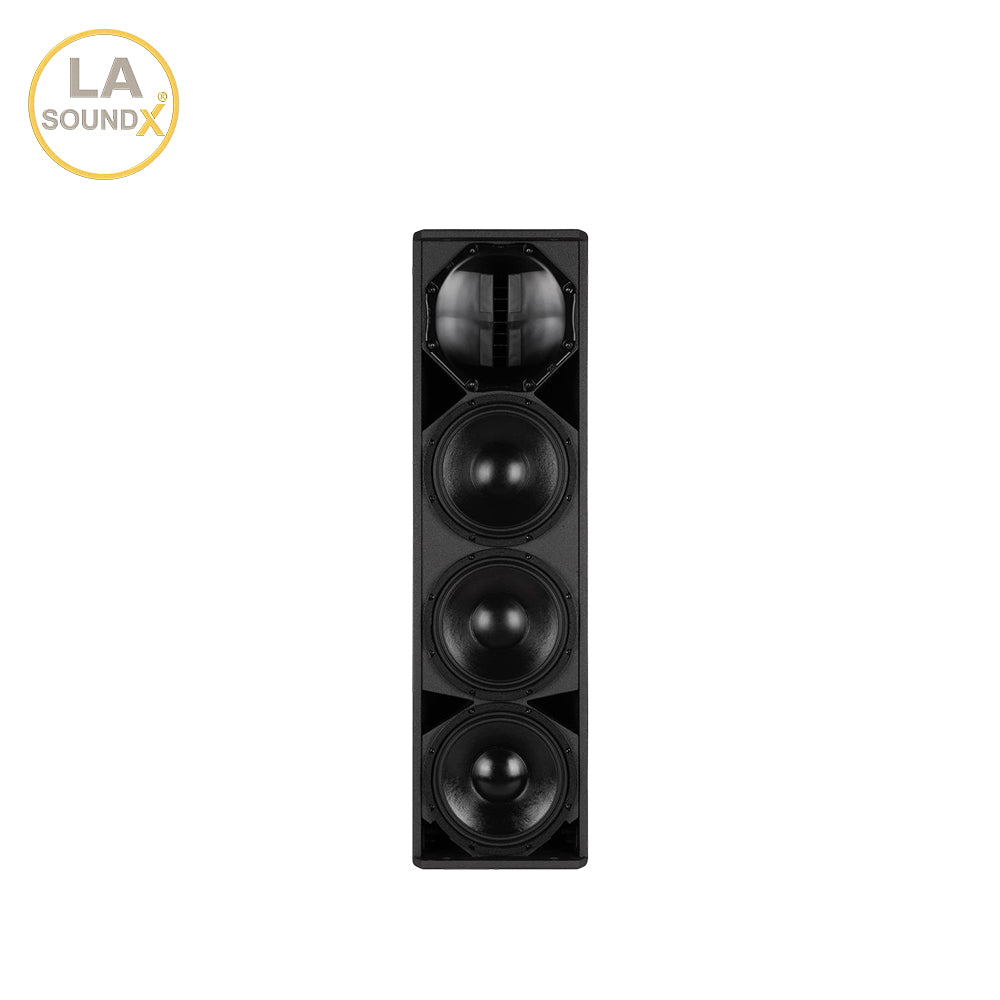

Transducers: LF: 3 × 10" Neodymium | HF: 1 × 1.4" Neo Compression Driver (3" voice coil)
Weight: 33.4 kg / 73.63 lbs
Directivity: 100° × 25° Constant Coverage
Dimensions (H × W × D): 1080 × 297.5 × 373 mm
Amplifier Module: 2100 W Class-D (High frequencies: 700 W Peak / Low frequencies: 1400 W Peak)

    标题

    DESCRIPTION L90 is an enhanced array speaker for medium scale sound reinforcement systems. Using AL When hanging

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.
