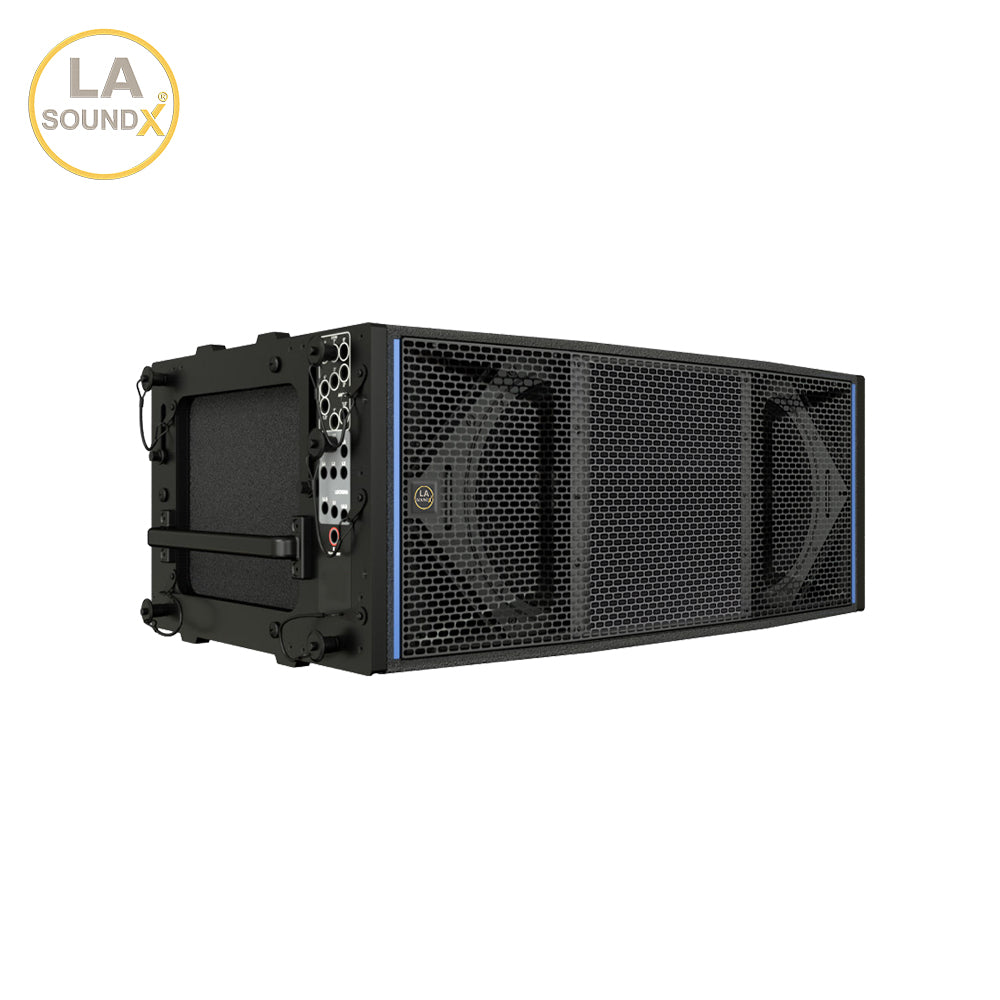

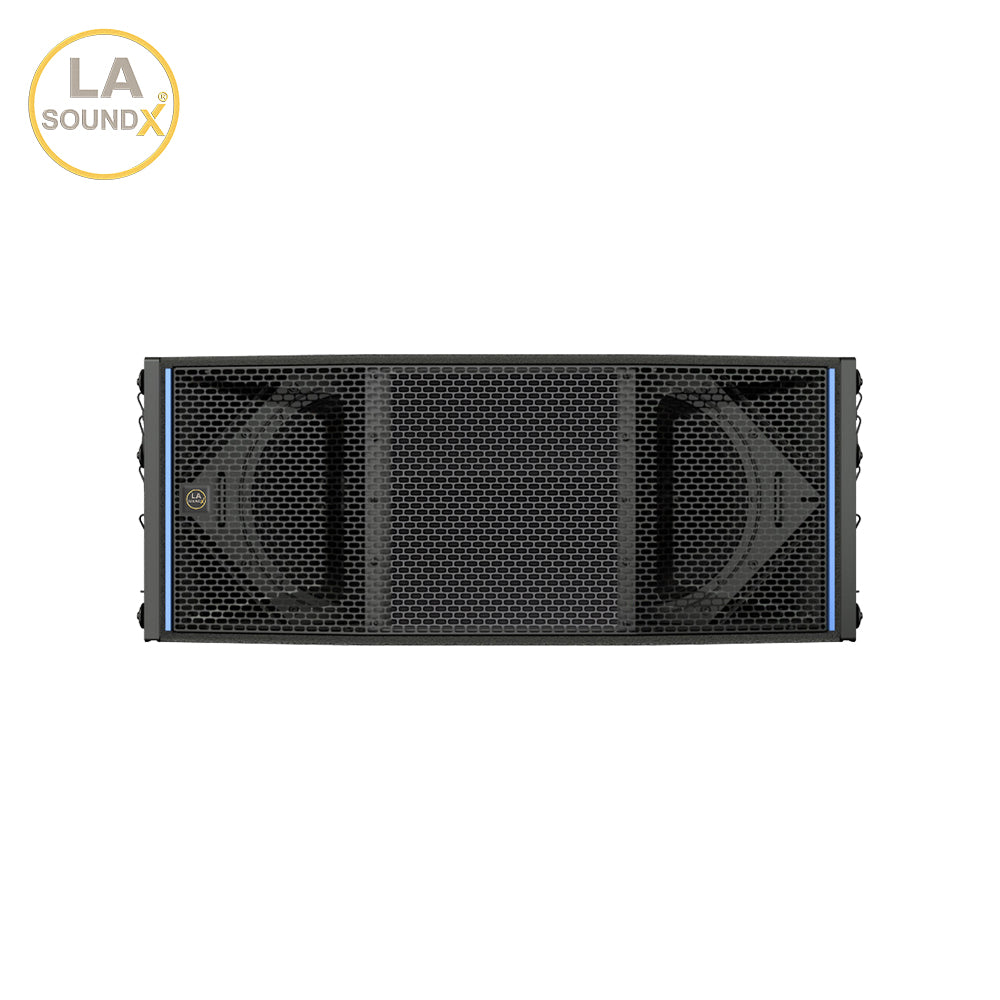

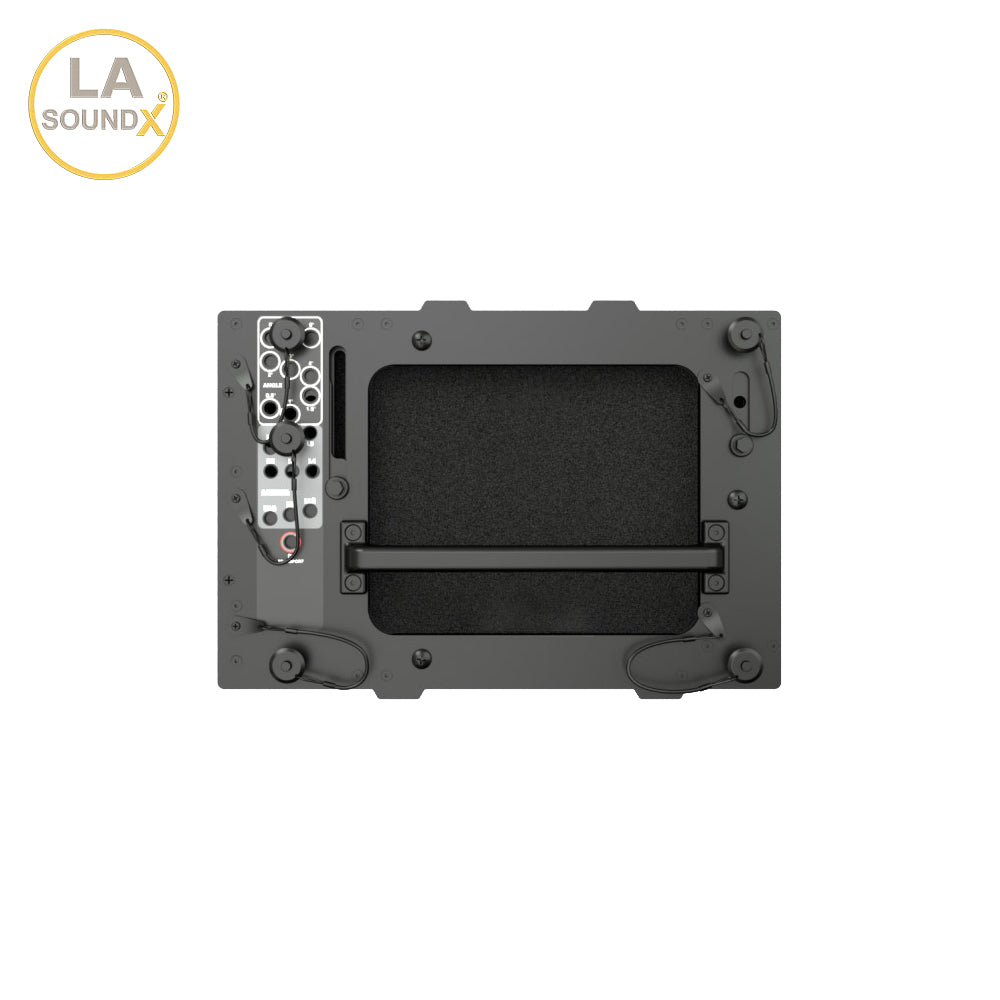

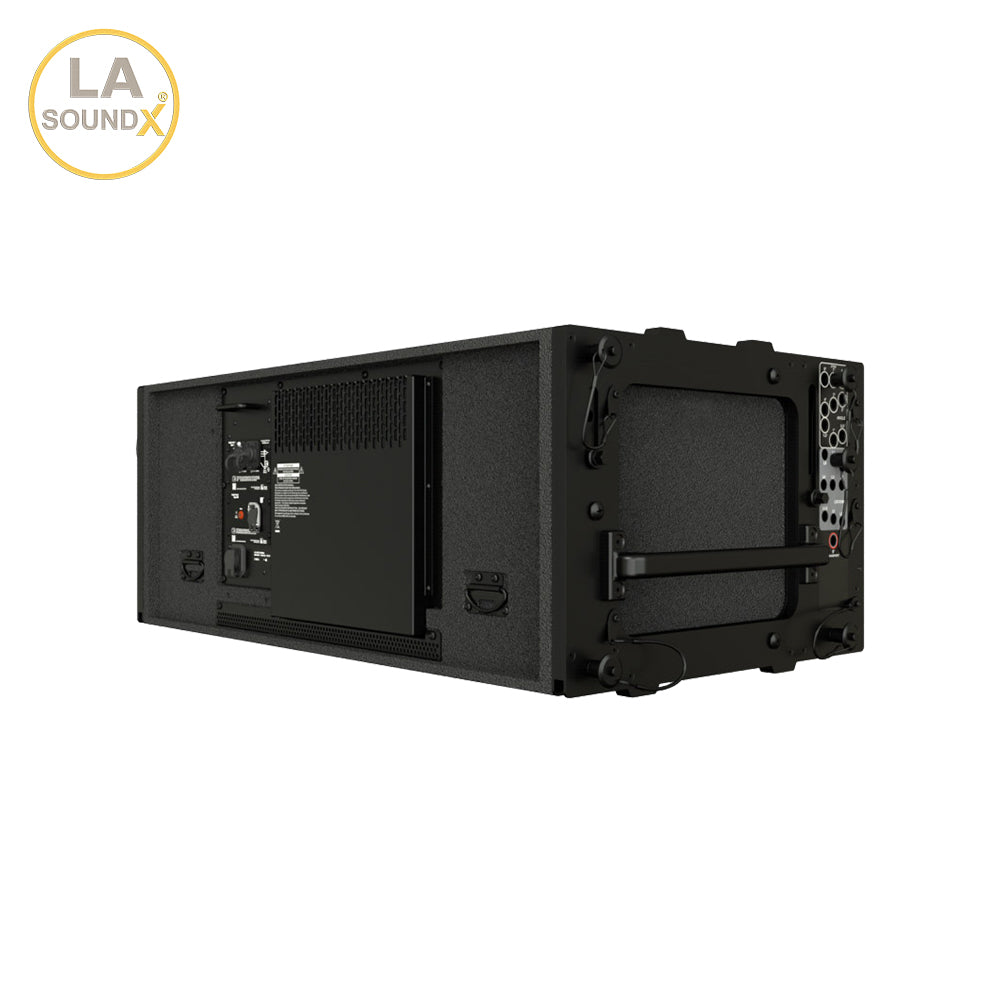

PANTHER_M - P212_F LASOUNDX P212 — Dual 12” Active Line Array
Model: P212-F
Official model: PANTHER-M
Name: Large-format linear line array loudspeaker
Configuration: Self-powered dual 12" active line array loudspeaker
Maximum sound level: 150.5 dB burst noise
Operating frequency range: 55 Hz - 16 kHz
Coverage: 95° horizontal; vertical depends on array configuration
Drivers: LF 2 x 12" long-excursion cone drivers; HF 2 x 3" diaphragm compression drivers
Dimensions (W x H x D): 38.15 x 14.85 x 22.25 in / 969 x 377 x 565 mm
Weight: 150 lb / 68 kg
Power: 200-240 V AC, 50/60 Hz; 1100 W max long-term; 2200 W burst power consumption
Ingress protection: IP55 with properly terminated Neutrik TOP cables
标题
P212-F / PANTHER-M is a self-powered dual 12-inch active line array loudspeaker for large-format professional sound reinforcement. It combines 150.5 dB maximum sound level, 95° horizontal coverage, Milan AVB connectivity, integrated amplification and IP55-ready touring construction for festivals, arenas, stadiums, theatres and corporate productions.
Applications
Designed for festivals, arenas, stadiums, theatres, large performance venues and corporate productions where broad coverage, high output, reduced transport mass and weather-ready deployment are required.
Recommended products
Electroacoustic specs
Configuration: Large-format self-powered dual 12" line array loudspeaker
Performance: 150.5 dB maximum sound level; 55 Hz - 16 kHz operating range; 95° horizontal coverage

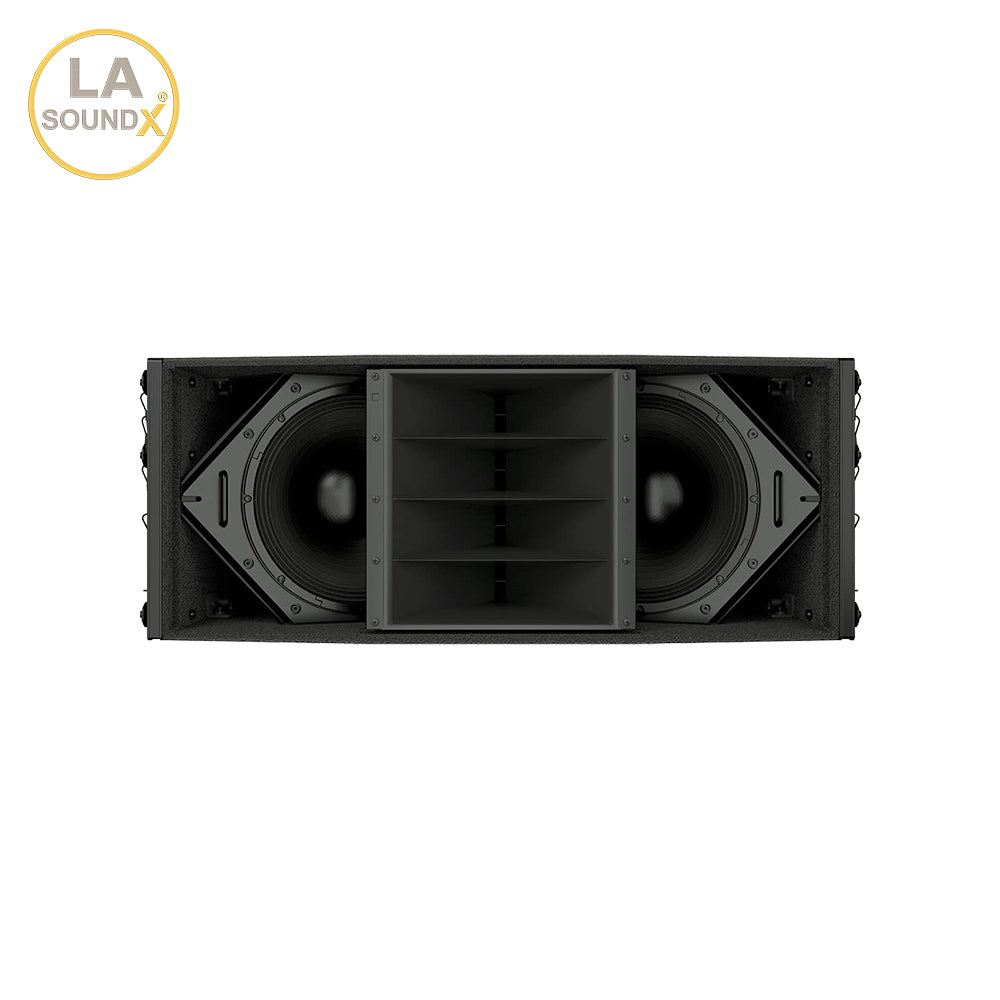

Drivers: LF 2 x 12" long-excursion cone drivers; HF 2 x 3" diaphragm compression drivers
Dimensions / weight: 38.15 x 14.85 x 22.25 in / 969 x 377 x 565 mm; 150 lb / 68 kg
Power / protection: 200-240 V AC, 50/60 Hz; 1100 W max long-term; 2200 W burst; IP55 with terminated Neutrik TOP cables

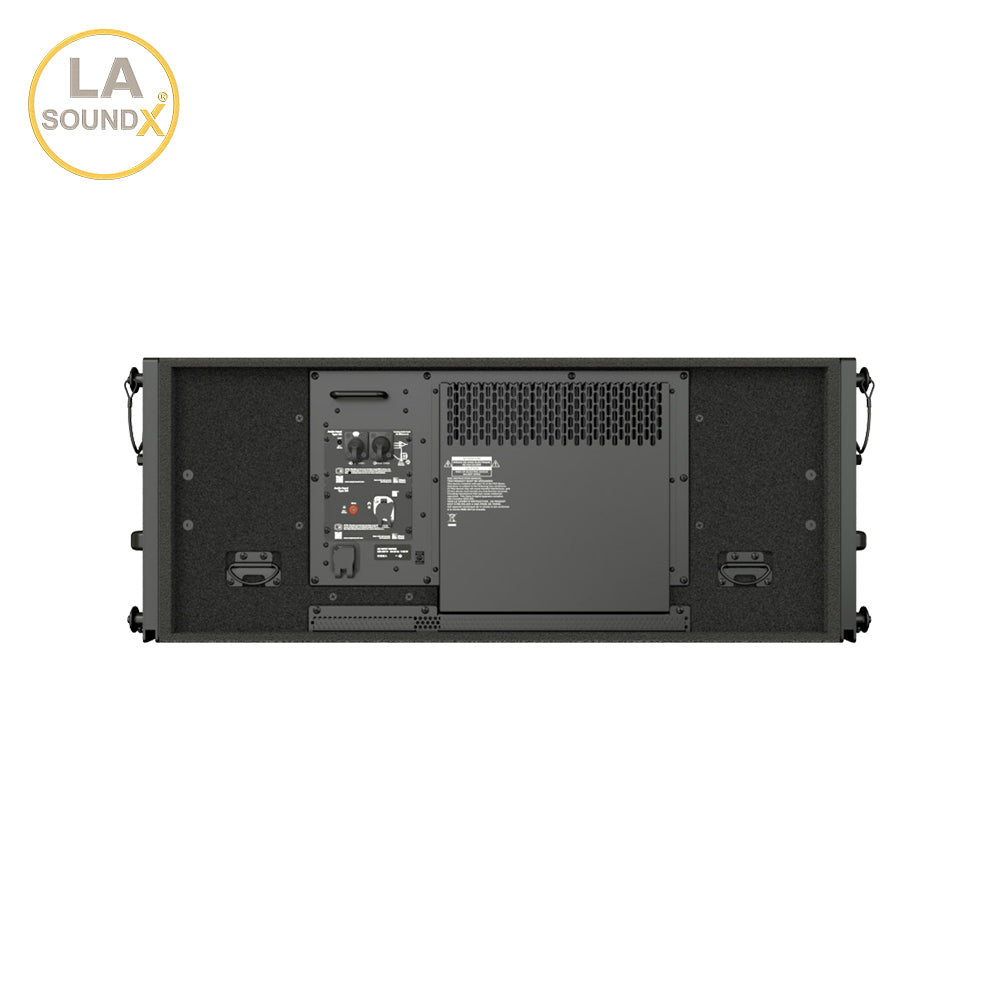

Connectors / enclosure: XLR 3-pin TOP in/loop, etherCON TOP AVB, powerCON TRUE1 TOP; premium multi-ply birch cabinet
