Ten-cell dual-white output Ten 50W two-in-one COB sources combine warm and cool white output across a linear bar.

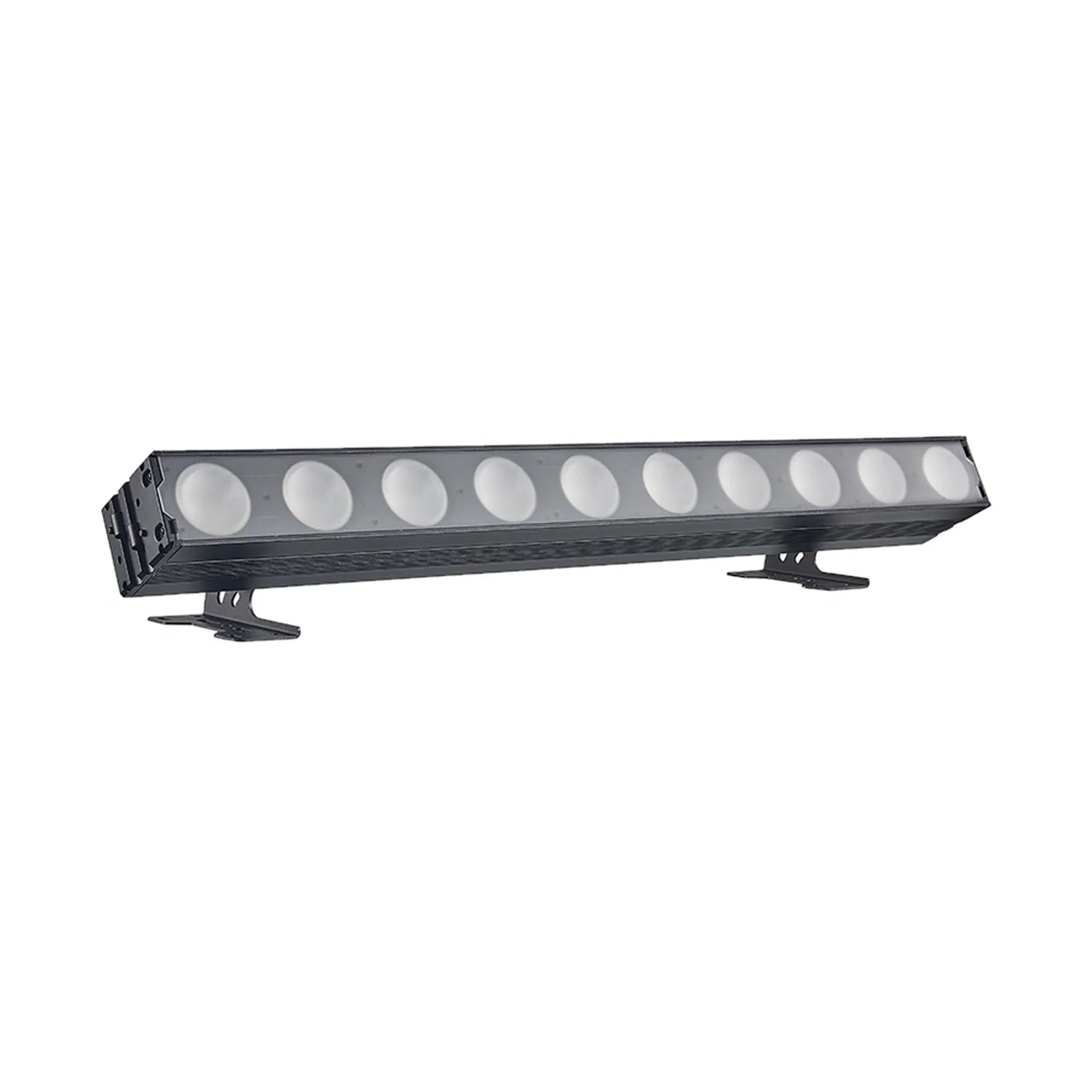

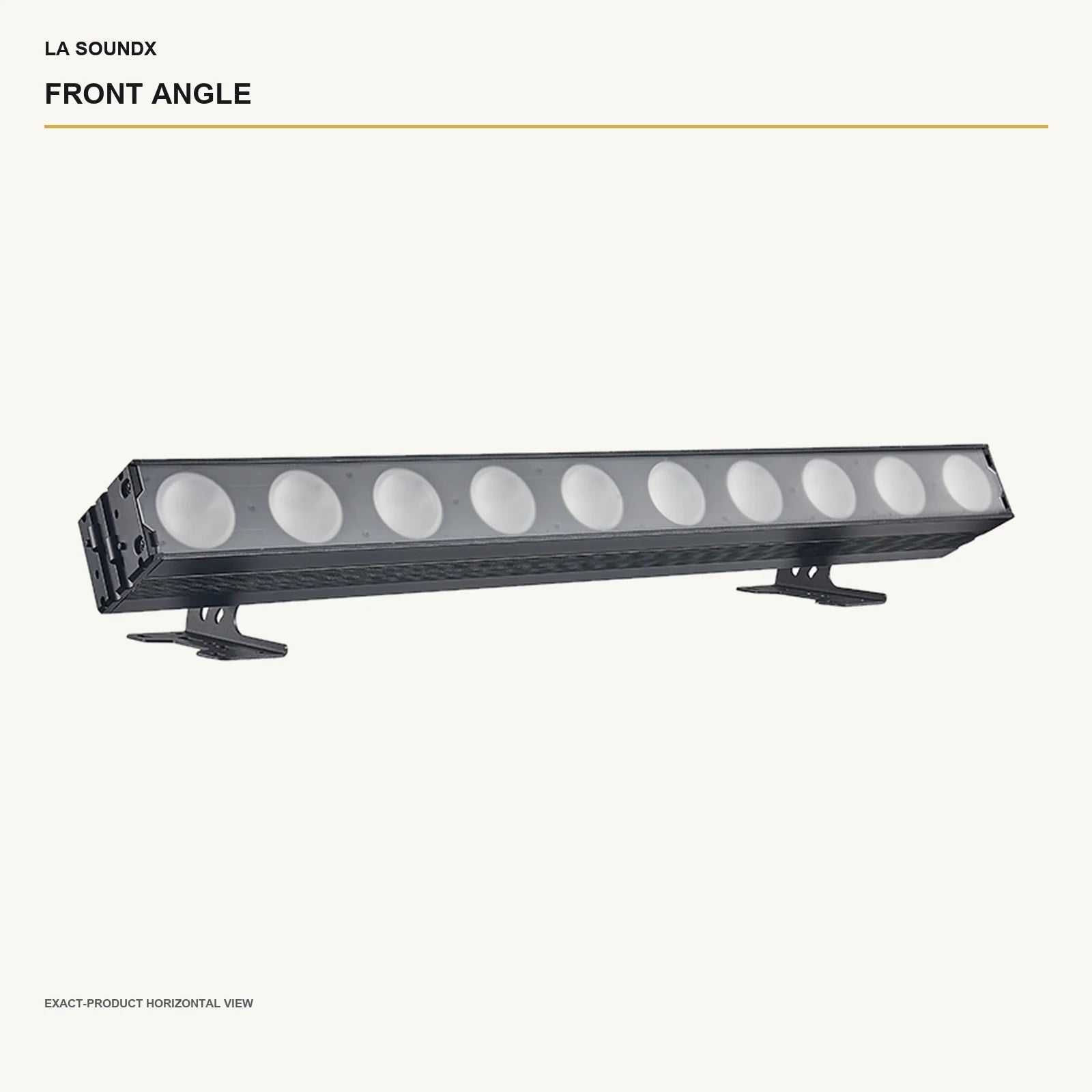

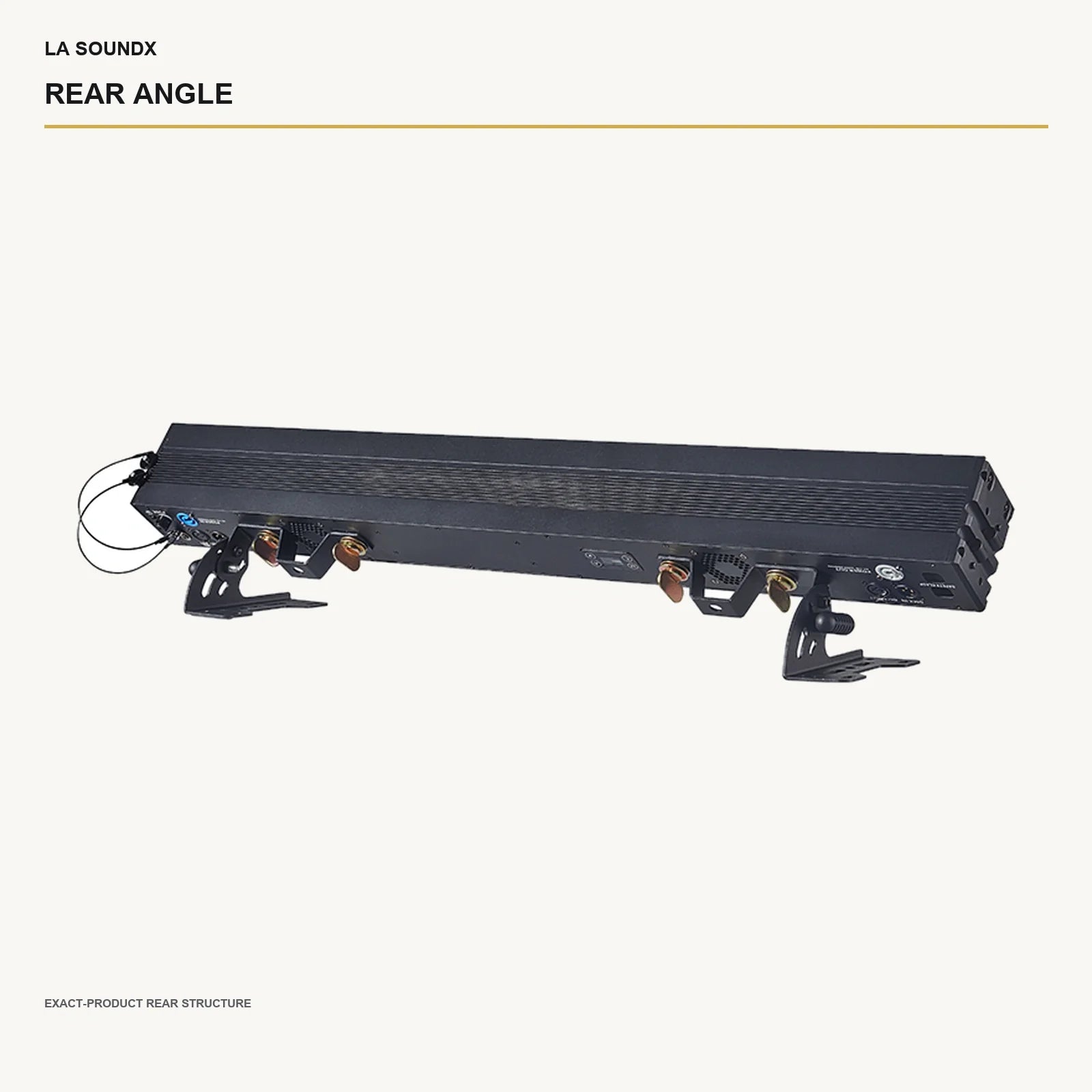

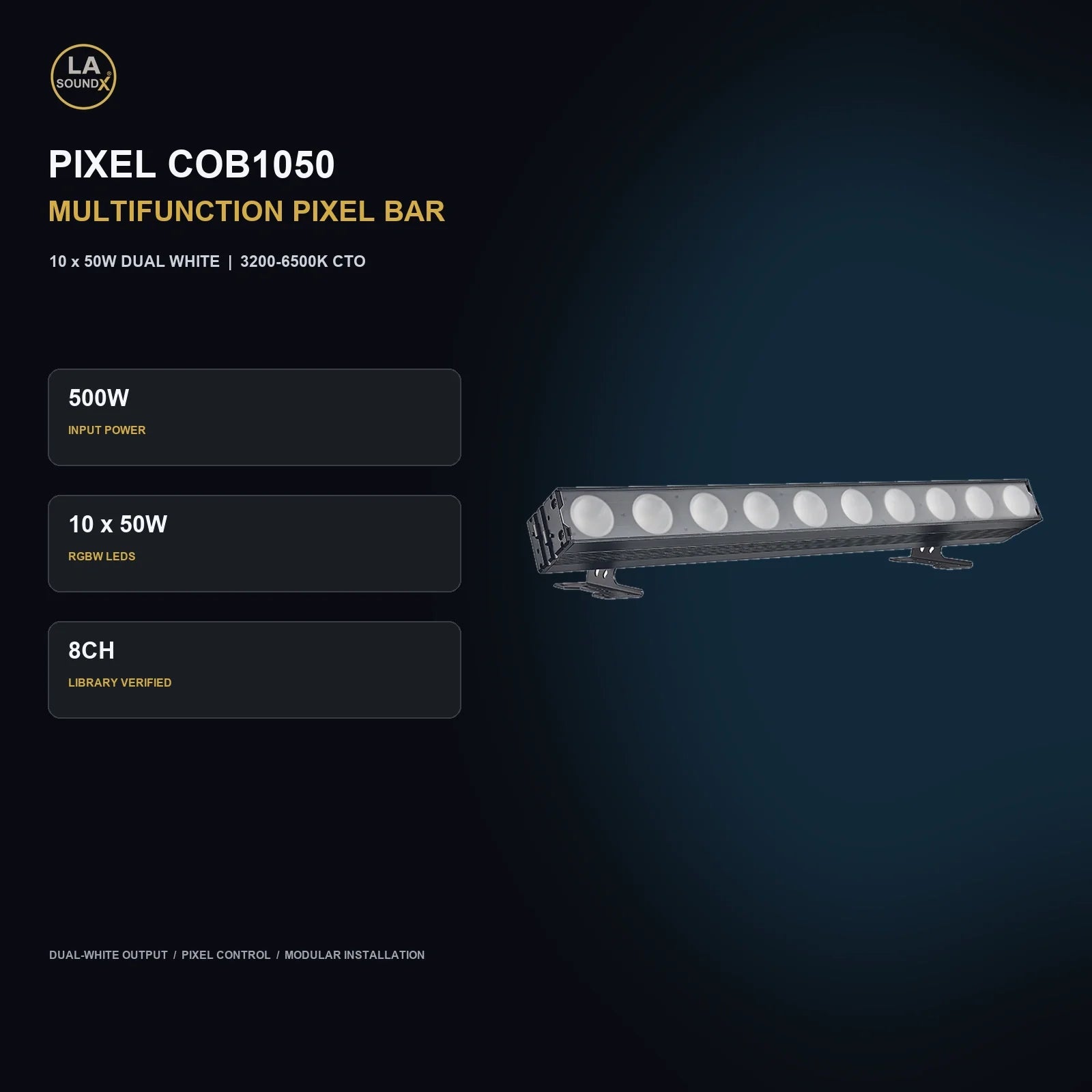

Product: PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar
Input voltage: AC90-240V, 50/60Hz
Light source: 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
DMX channels: 8CH fixture-library verified; 23CH manual-documented
Control modes: DMX512 / RDM
Color system: Dual-white mixing and CTO control; RGBW optional configuration claim
Strobe: 0.3-25 flashes/second; synchronized, asynchronous and random modes
Dimming: 0-100% linear dimming
Movement: Static linear fixture; horizontal, floor-tilt and vertical mounting documented
Size / weight: 952 x 80 x 106MM; 9.95 KG NET
Environment: IP22
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
01
Ten-cell dual-white output Ten 50W two-in-one COB sources combine warm and cool white output across a linear bar.
- Light source
- 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
- DMX channels
- 8CH fixture-library verified; 23CH manual-documented
- Movement
- Static linear fixture; horizontal, floor-tilt and vertical mounting documented
- Input voltage
- AC90-240V, 50/60Hz
01
Ten-cell dual-white output Ten 50W two-in-one COB sources combine warm and cool white output across a linear bar.

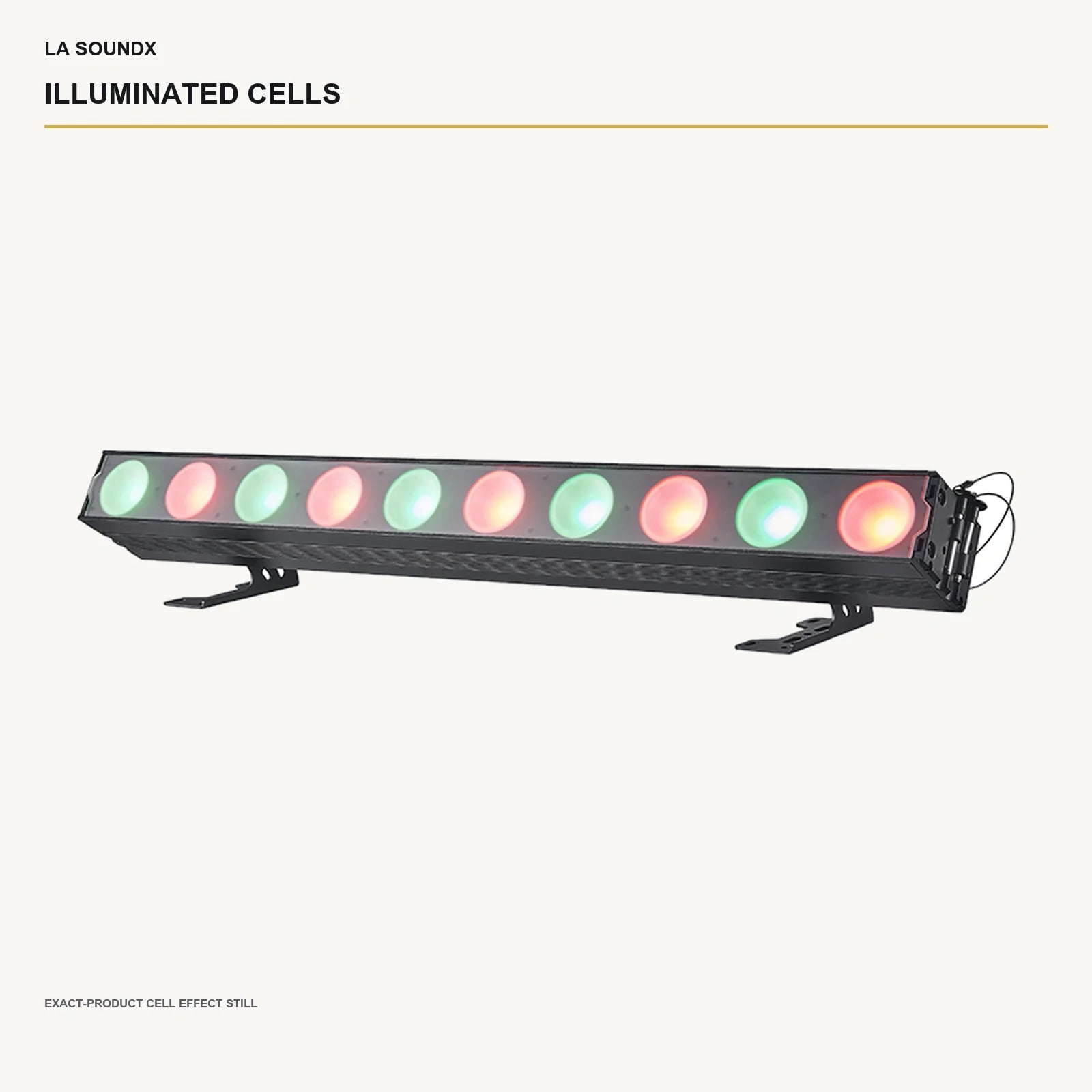

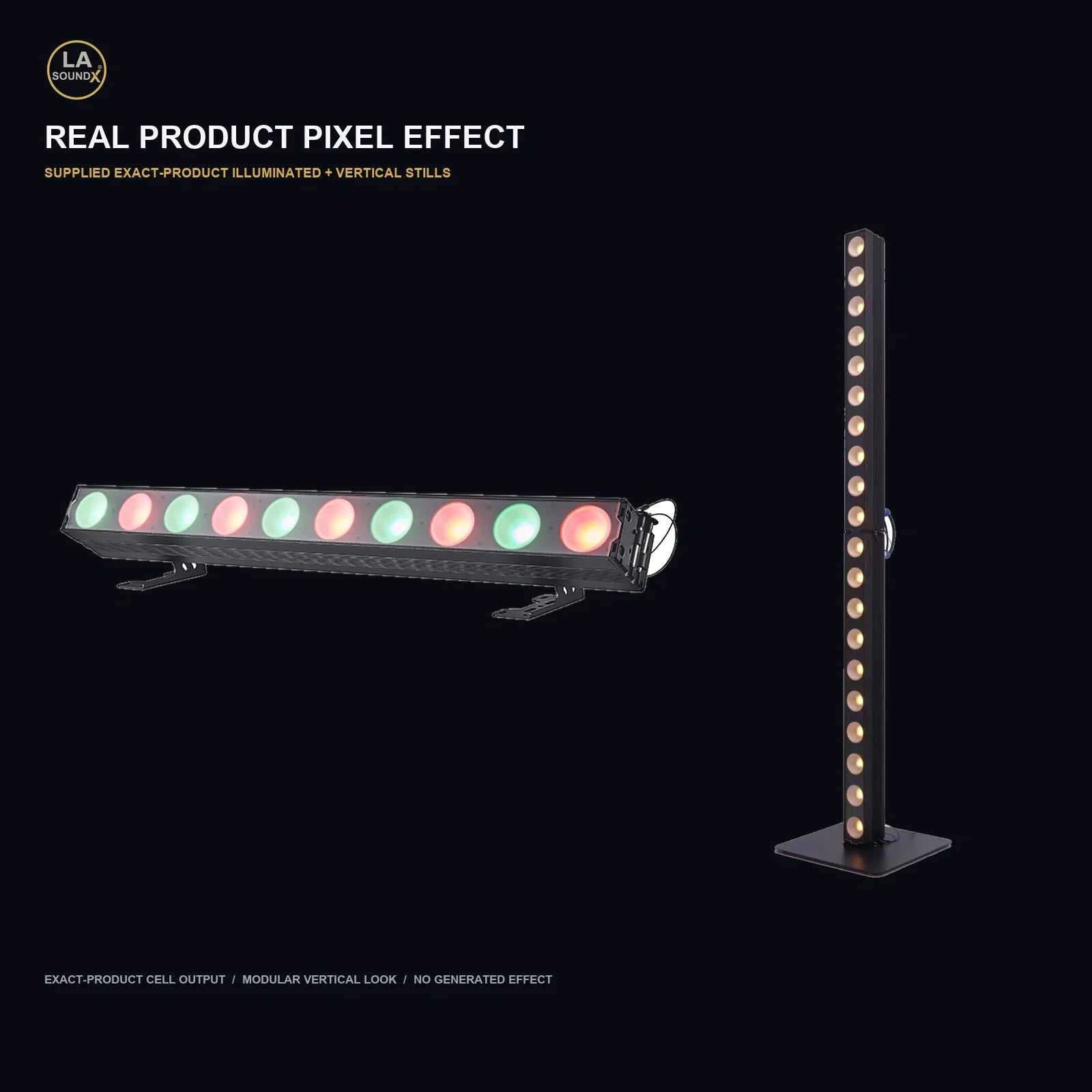

Pixel-oriented control
The manual documents individual warm/cool cell control in a 23CH expanded mode.

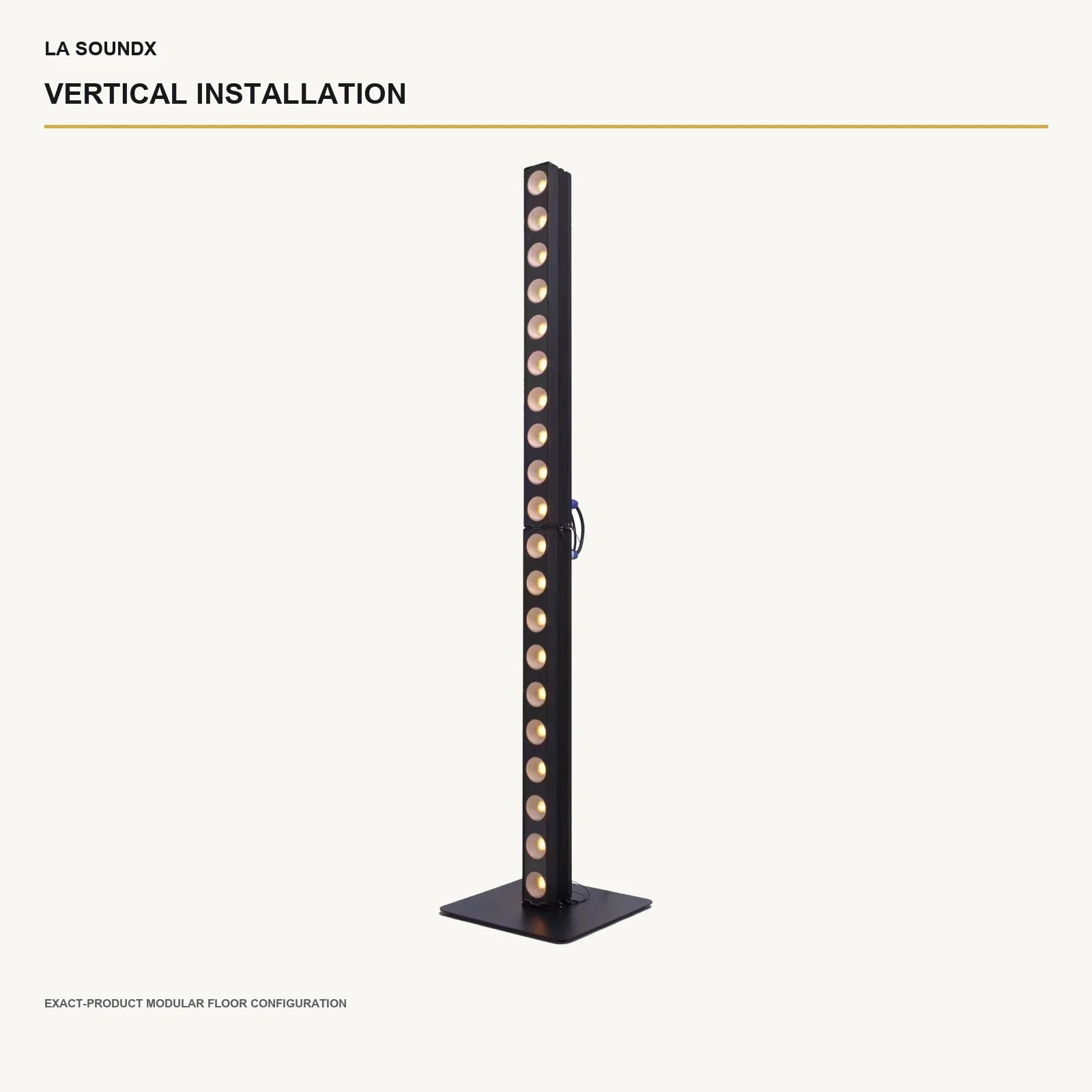

Flexible installation
Horizontal hanging, floor tilt, vertical floor and vertical hanging configurations are documented.
Technical specification
Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.
- Product
- PIXEL COB1050 10 x 50W Dual-White Multifunction Pixel Bar
- Input voltage
- AC90-240V, 50/60Hz
- Light source
- 10 x 50W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
- DMX channels
- 8CH fixture-library verified; 23CH manual-documented
- Control modes
- DMX512 / RDM
- Color system
- Dual-white mixing and CTO control; RGBW optional configuration claim
- Strobe
- 0.3-25 flashes/second; synchronized, asynchronous and random modes
- Dimming
- 0-100% linear dimming
- Movement
- Static linear fixture; horizontal, floor-tilt and vertical mounting documented
- Size / weight
- 952 x 80 x 106MM; 9.95 KG NET
- Environment
- IP22
- Electrical protection
- Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
