Q2 Full Color Professional Laser

Name: Q2 Full Color Professional Laser
Brand: LA SOUNDX
SKU: LSX-LIGHT-142
Price: 126.84 USD
Availability: InStock

The parameter workbook lists 3W, 4W and 5W RGB configurations; final fitted output must be confirmed from production hardware.

01 Selectable RGB family

The parameter workbook lists 3W, 4W and 5W RGB configurations; final fitted output must be confirmed from production hardware.

DMX channels: 16CH supplied libraries; 11/20/21/26CH source conflicts
Input voltage: Rear label AC110-240V, 50/60Hz; parameter workbook AC90-250V claim
Control modes: DMX512 / auto / sound / master-slave; ILDA compatibility appears only in generic

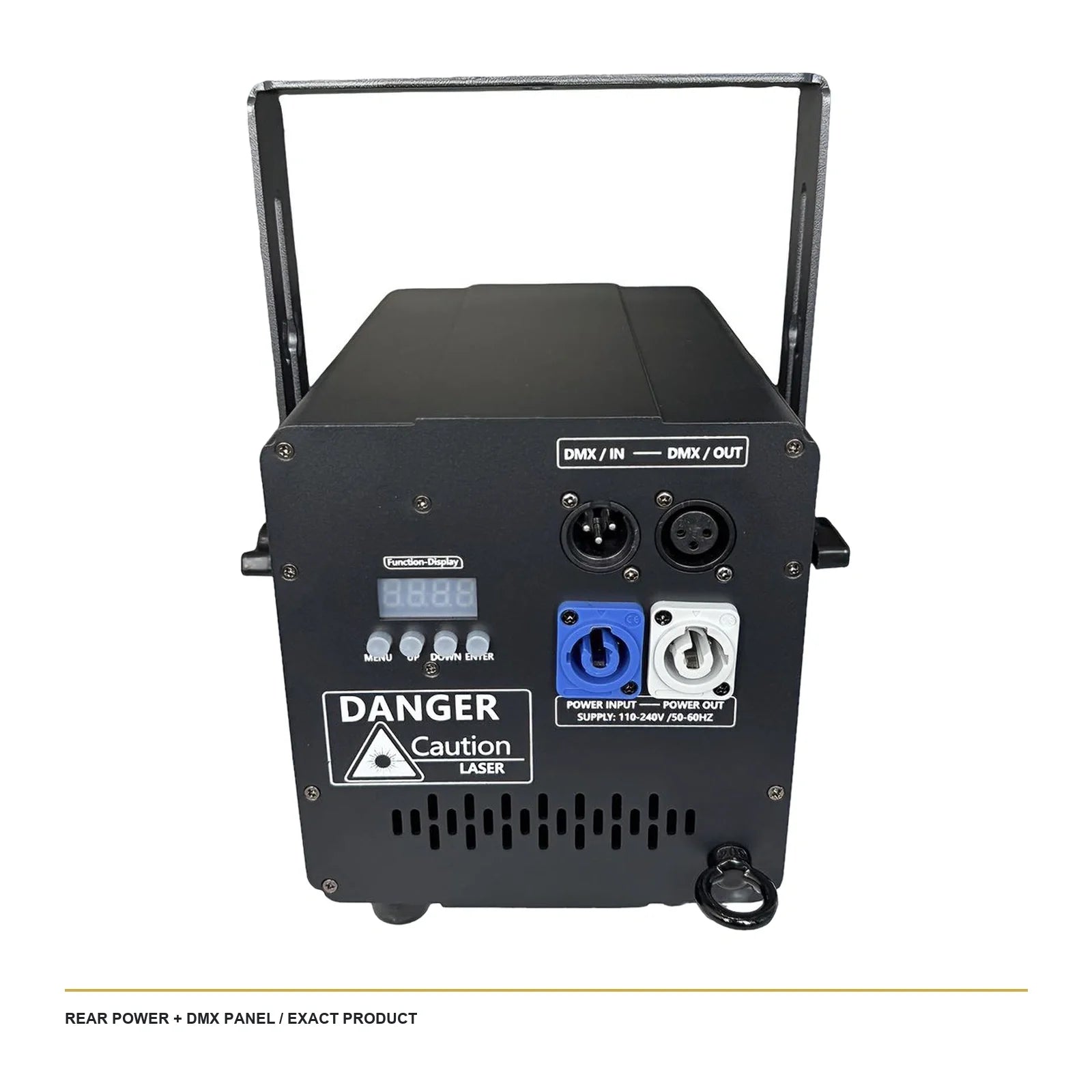

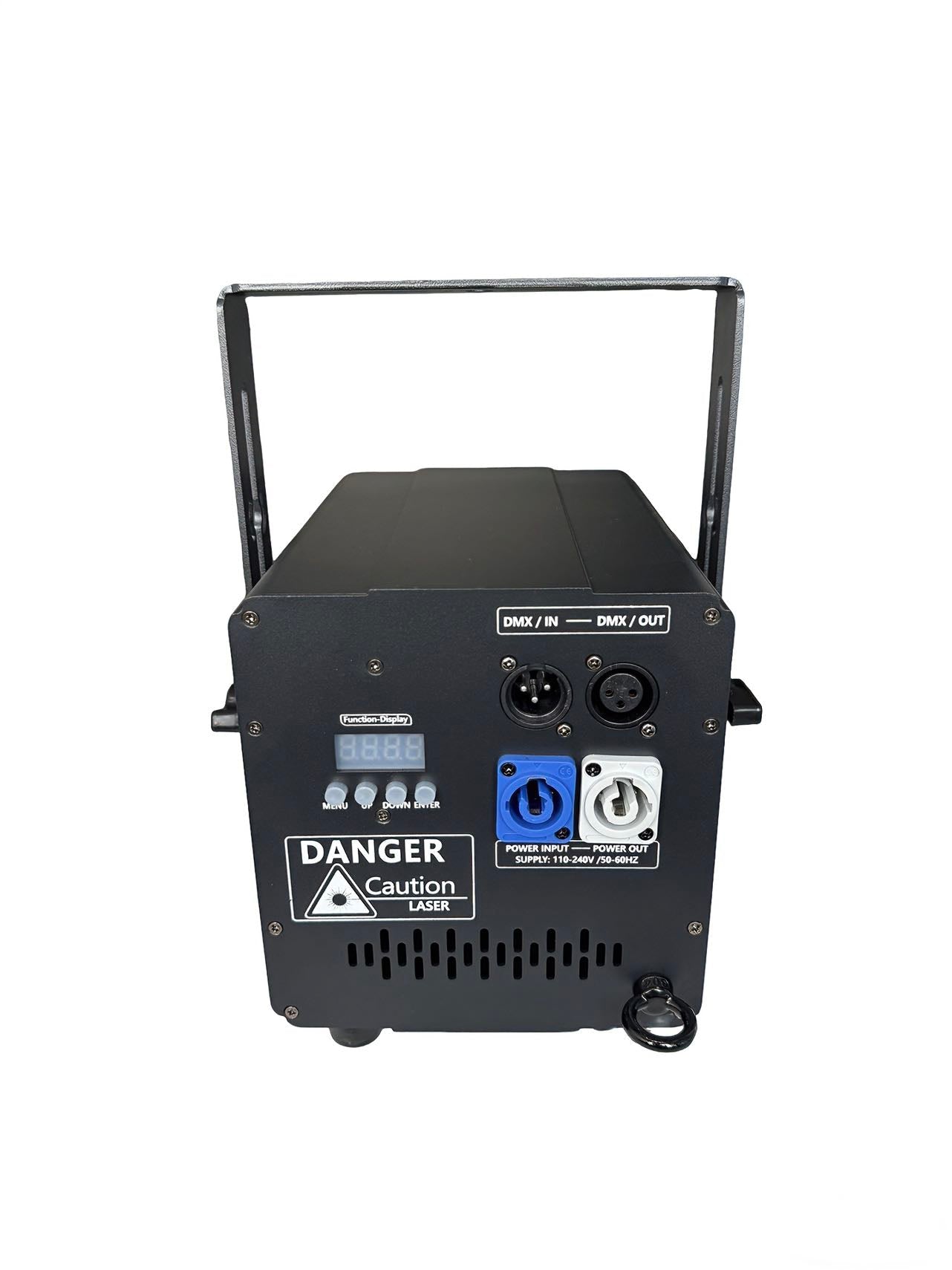

Connections: Power input/output and DMX input/output visible; function display and four buttons

The parameter workbook lists 3W, 4W and 5W RGB configurations; final fitted output must be confirmed from production hardware.

Color macros, pattern groups, zoom, rotations, X/Y positioning, wave and visible-point effects are documented in the supplied 16CH libraries.

A compact bracketed metal enclosure, 3.15kg net claim and visible power/DMX links support controlled venue and rental deployment.

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product: Q2 compact full-color RGB animation laser
Input voltage: Rear label AC110-240V, 50/60Hz; parameter workbook AC90-250V claim
DMX channels: 16CH supplied libraries; 11/20/21/26CH source conflicts
Control modes: DMX512 / auto / sound / master-slave; ILDA compatibility appears only in generic
Connections: Power input/output and DMX input/output visible; function display and four buttons
Environment: IP33 parameter claim conflicts with indoor-only keep-dry manual wording - final IP TBC
Packing: Carton dimensions and gross weight not supplied
