R1 15W Full Color Professional Laser

Product: R1 15W Full-Color Professional Laser
Input voltage: AC90-250V claim; manual variants AC110-240V / AC100-240V - final range TBC
DMX channels: 21CH primary; D4, XML and manual complete; R20 lacks named CH16/17 rows
Control modes: DMX512 / auto / sound / master-slave / SD / ILDA / Pangolin workflow claim
Environment: IP65/outdoor claim conflicts with indoor-only manual wording; final IP TBC

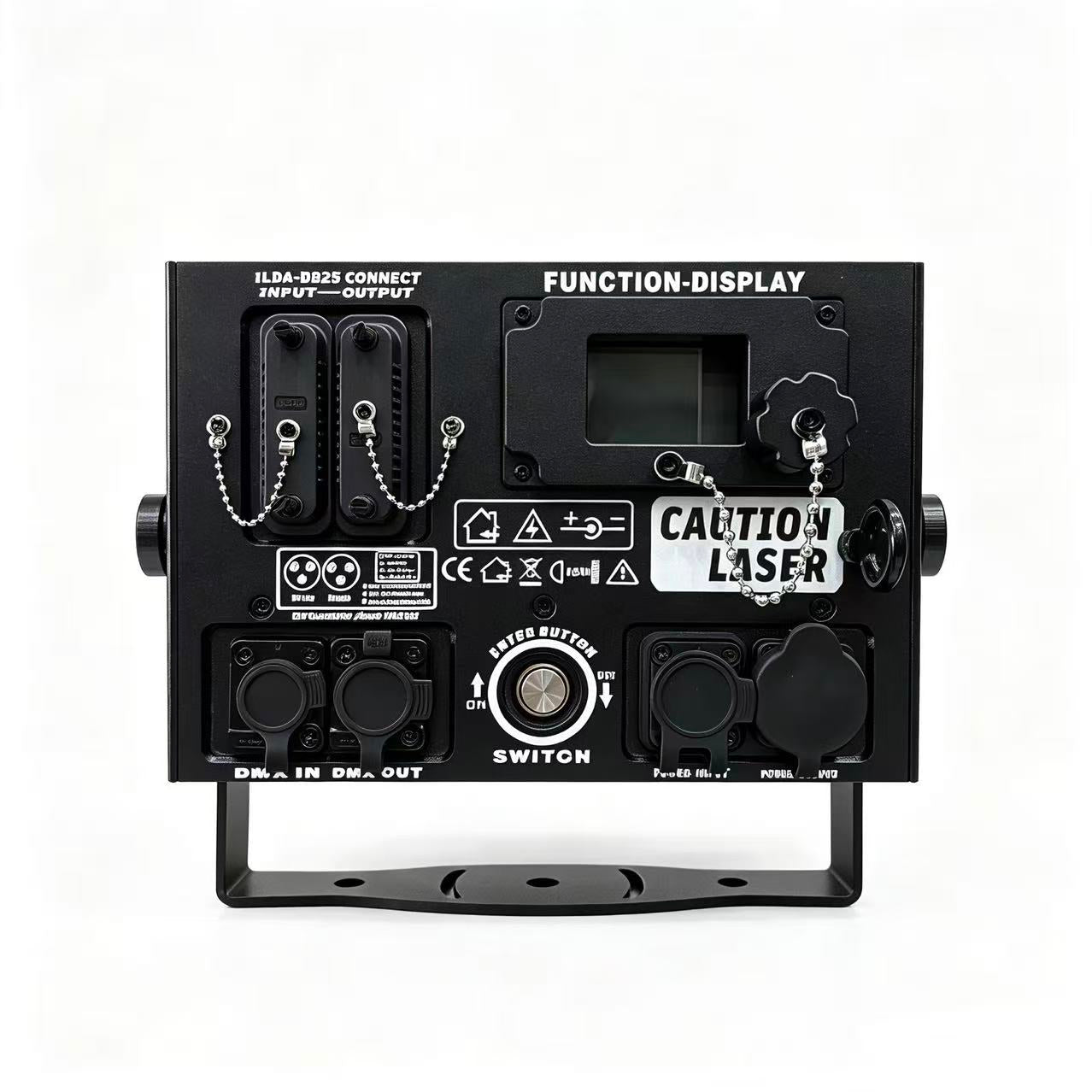

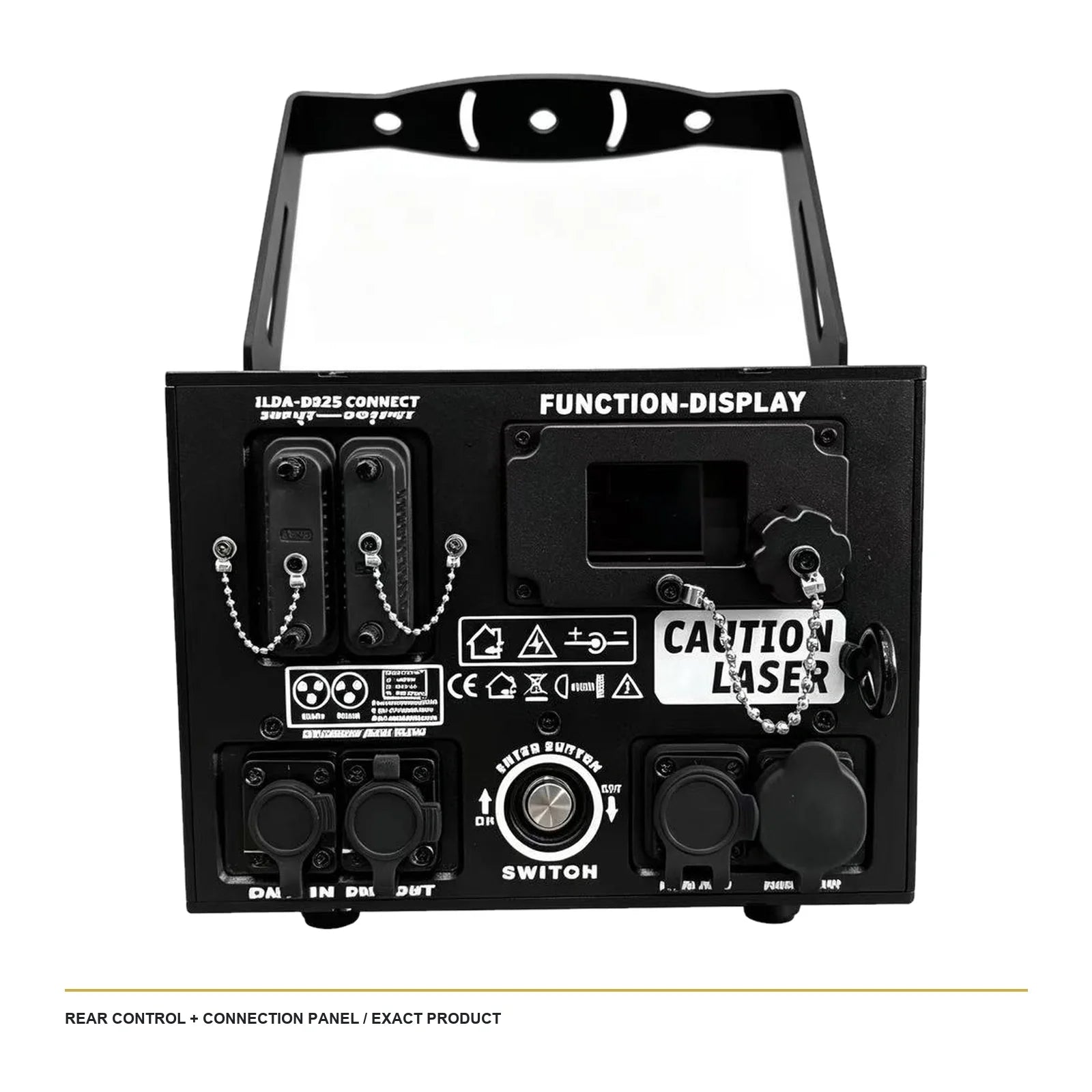

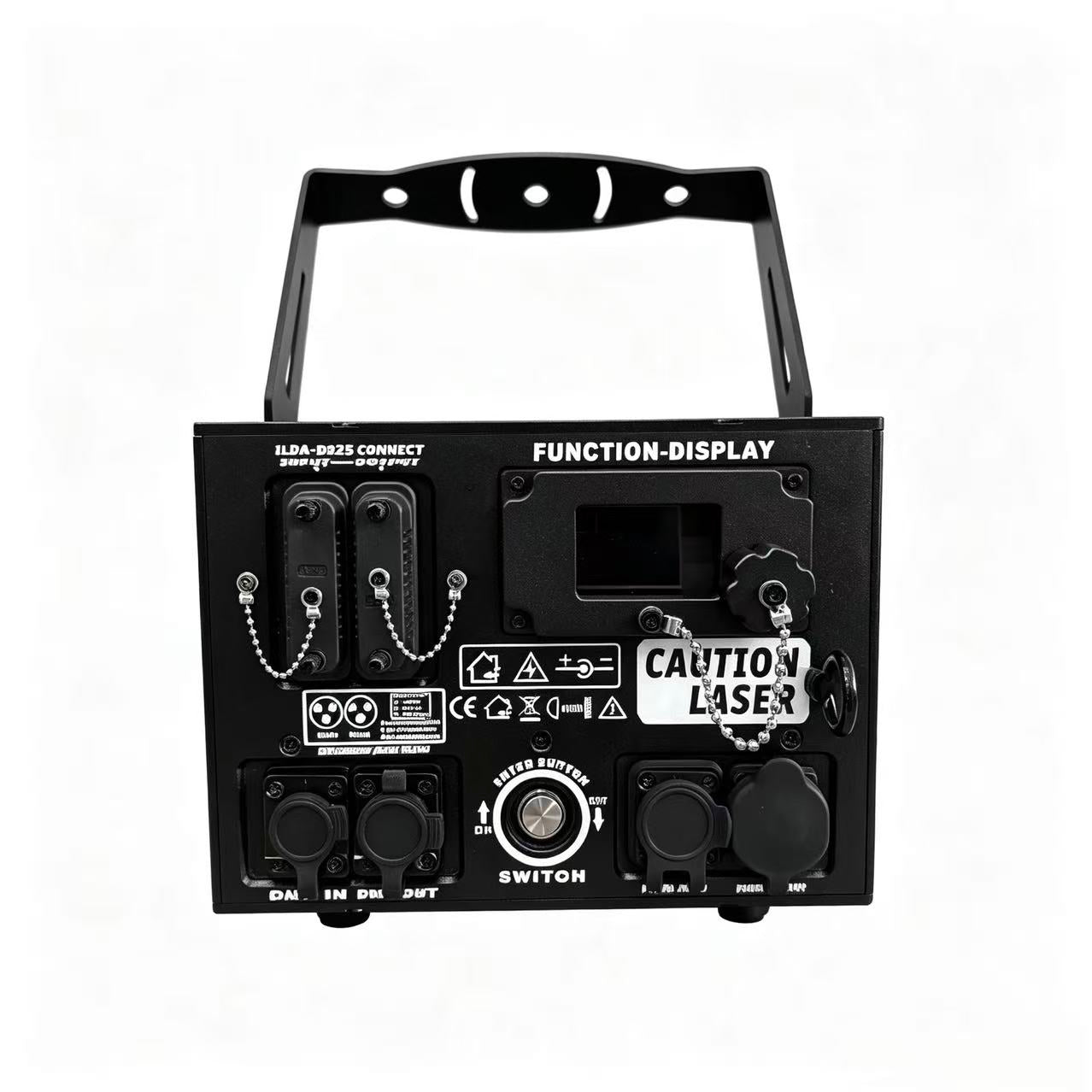

Connections: ILDA DB25 / DMX In-Out / display / key switch / covered connectors visible

Documented RGB output

The parameter workbook specifies 4W red at 638nm, 5W green at 520nm and 6W blue at 445nm, totaling 15W.

DMX channels

21CH primary; D4, XML and manual complete; R20 lacks named CH16/17 rows

Input voltage

AC90-250V claim; manual variants AC110-240V / AC100-240V - final range TBC

Control modes

DMX512 / auto / sound / master-slave / SD / ILDA / Pangolin workflow claim

Environment

IP65/outdoor claim conflicts with indoor-only manual wording; final IP TBC

Documented RGB output

The parameter workbook specifies 4W red at 638nm, 5W green at 520nm and 6W blue at 445nm, totaling 15W.

Graphics and animation control

SD playback, built-in programs, sound, auto, DMX512, master-slave and ILDA workflows support text, line and animation content.

Professional safety boundary

High-power laser use requires controlled access, qualified commissioning and a site-specific laser safety assessment.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

R1 15W Full-Color Professional Laser

Input voltage

AC90-250V claim; manual variants AC110-240V / AC100-240V - final range TBC

DMX channels

21CH primary; D4, XML and manual complete; R20 lacks named CH16/17 rows

Control modes

DMX512 / auto / sound / master-slave / SD / ILDA / Pangolin workflow claim

Environment

IP65/outdoor claim conflicts with indoor-only manual wording; final IP TBC

Connections

ILDA DB25 / DMX In-Out / display / key switch / covered connectors visible

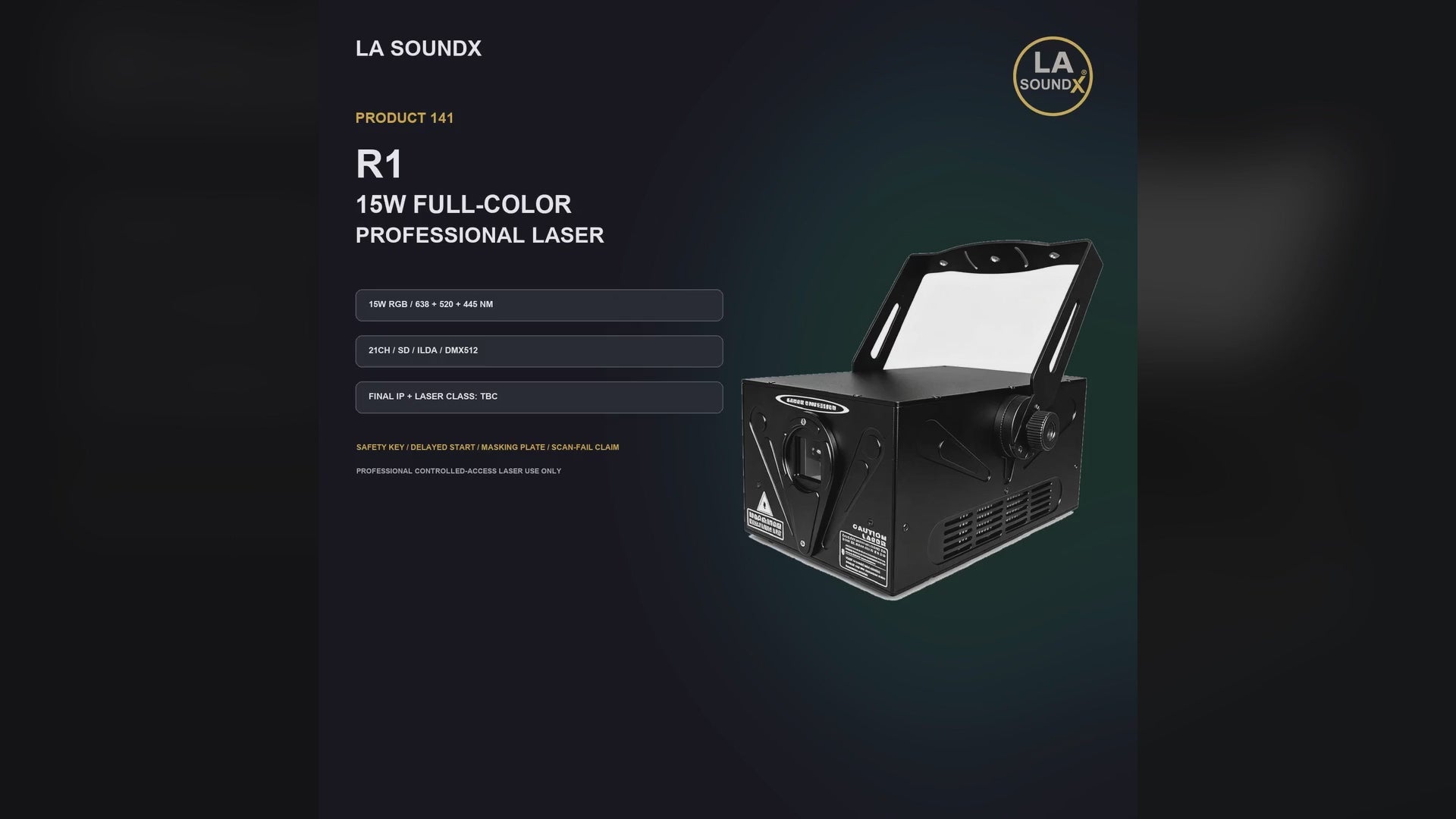

Videos / Product video
