Center beam engine The embedded product note specifies a 200W center LED, 3-degree beam, 7000K and 5000lm claims.

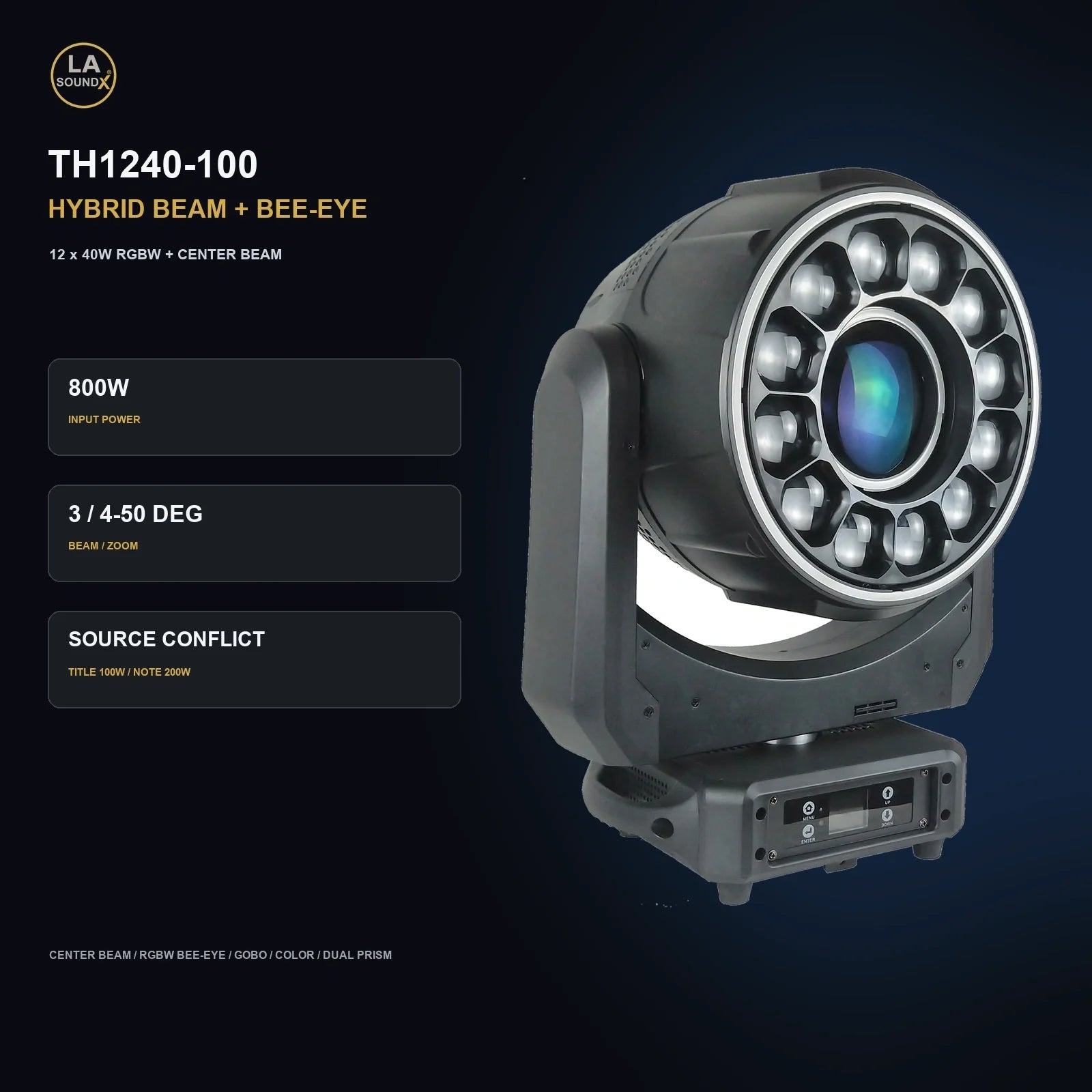

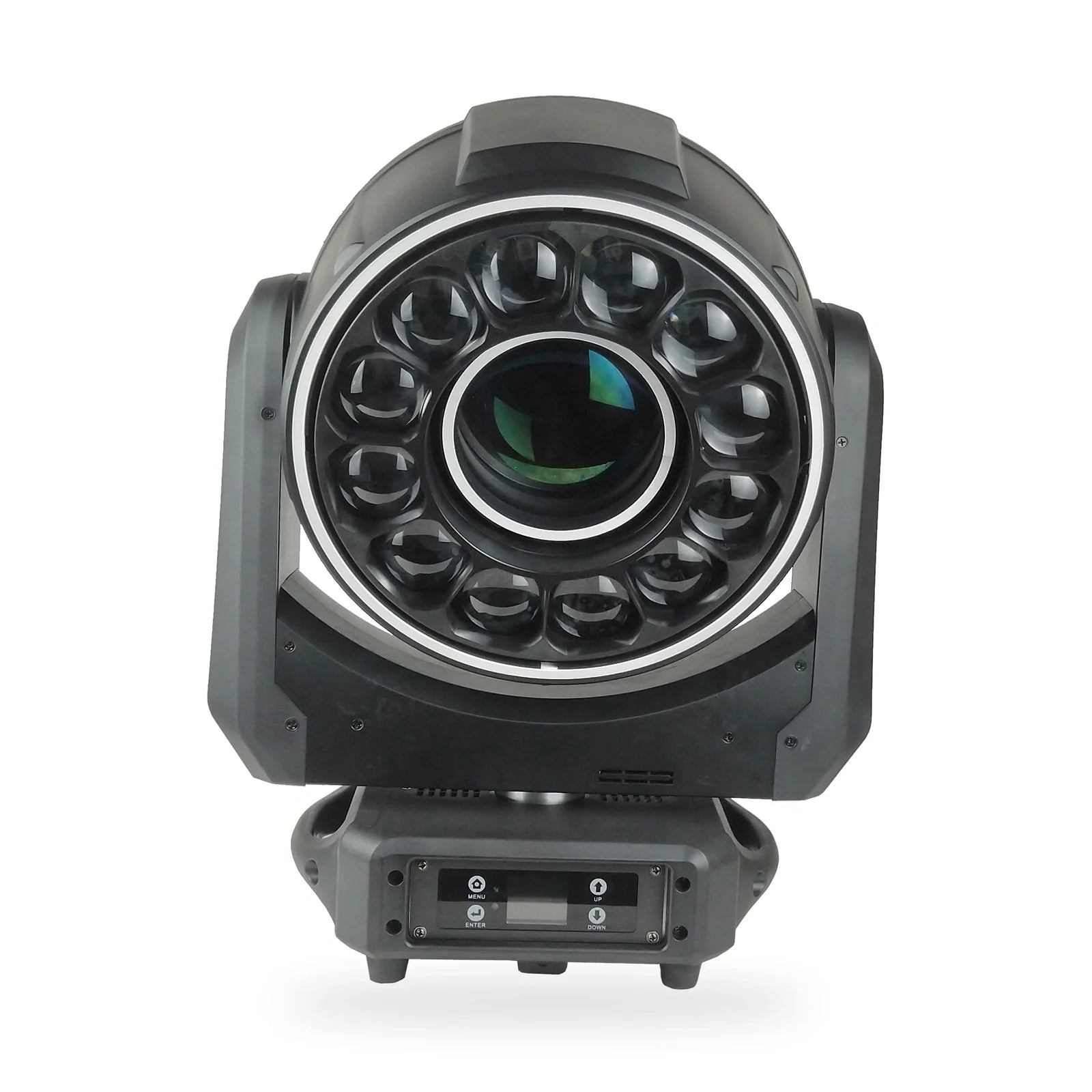

Product: TH1240-100 Hybrid Beam + Bee-Eye Moving Head
Input voltage: AC100-240V, 50/60Hz
DMX channels: 28 / 140 / 20CH note-claimed; no table or standalone fixture library supplied
Strobe: 0.3-25 flashes/second; synchronous and asynchronous/random claims
Dimming: 0-100% linear; 1.2-25kHz adjustable-frequency claim
Movement: 540-degree pan / 270-degree tilt / 16-bit fine positioning
Size / weight: Product size, net weight and gross weight: TBC
Environment: IP20 base fixture; optional rain-cover claim up to IP44
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
01
Center beam engine The embedded product note specifies a 200W center LED, 3-degree beam, 7000K and 5000lm claims.
- DMX channels
- 28 / 140 / 20CH note-claimed; no table or standalone fixture library supplied
- Movement
- 540-degree pan / 270-degree tilt / 16-bit fine positioning
- Input voltage
- AC100-240V, 50/60Hz
- Strobe
- 0.3-25 flashes/second; synchronous and asynchronous/random claims
01
Center beam engine The embedded product note specifies a 200W center LED, 3-degree beam, 7000K and 5000lm claims.

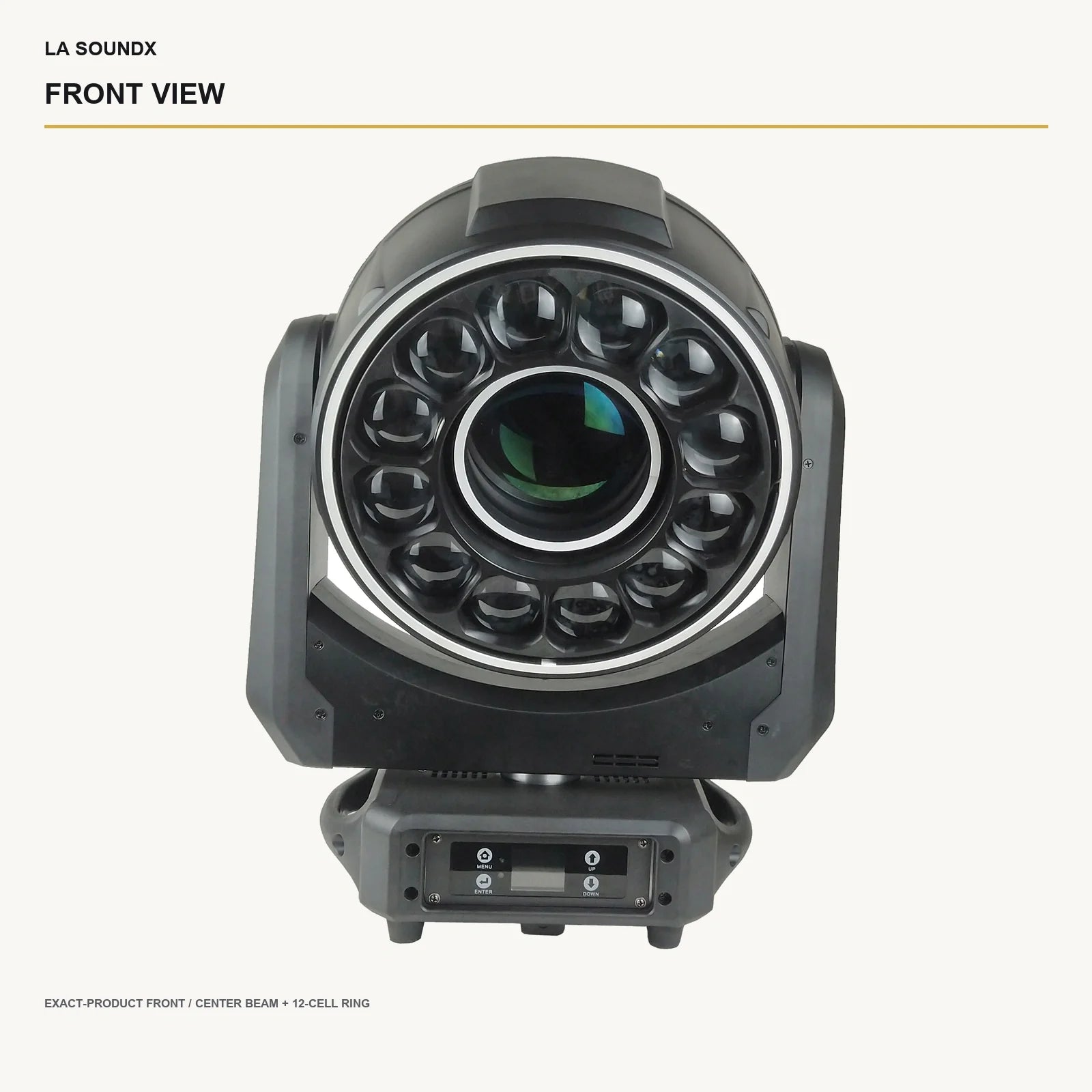

Twelve-cell RGBW ring
Twelve 40W RGBW cells provide 4-50-degree zoom and rotating bee-eye effects.
Beam effects package
Gobos, thirteen colors plus white, 8-facet and 16-facet prisms, frost and motorized focus expand the beam layer.
Technical specification
Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.
- Product
- TH1240-100 Hybrid Beam + Bee-Eye Moving Head
- Input voltage
- AC100-240V, 50/60Hz
- DMX channels
- 28 / 140 / 20CH note-claimed; no table or standalone fixture library supplied
- Strobe
- 0.3-25 flashes/second; synchronous and asynchronous/random claims
- Dimming
- 0-100% linear; 1.2-25kHz adjustable-frequency claim
- Movement
- 540-degree pan / 270-degree tilt / 16-bit fine positioning
- Size / weight
- Product size, net weight and gross weight: TBC
- Environment
- IP20 base fixture; optional rain-cover claim up to IP44
- Electrical protection
- Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
