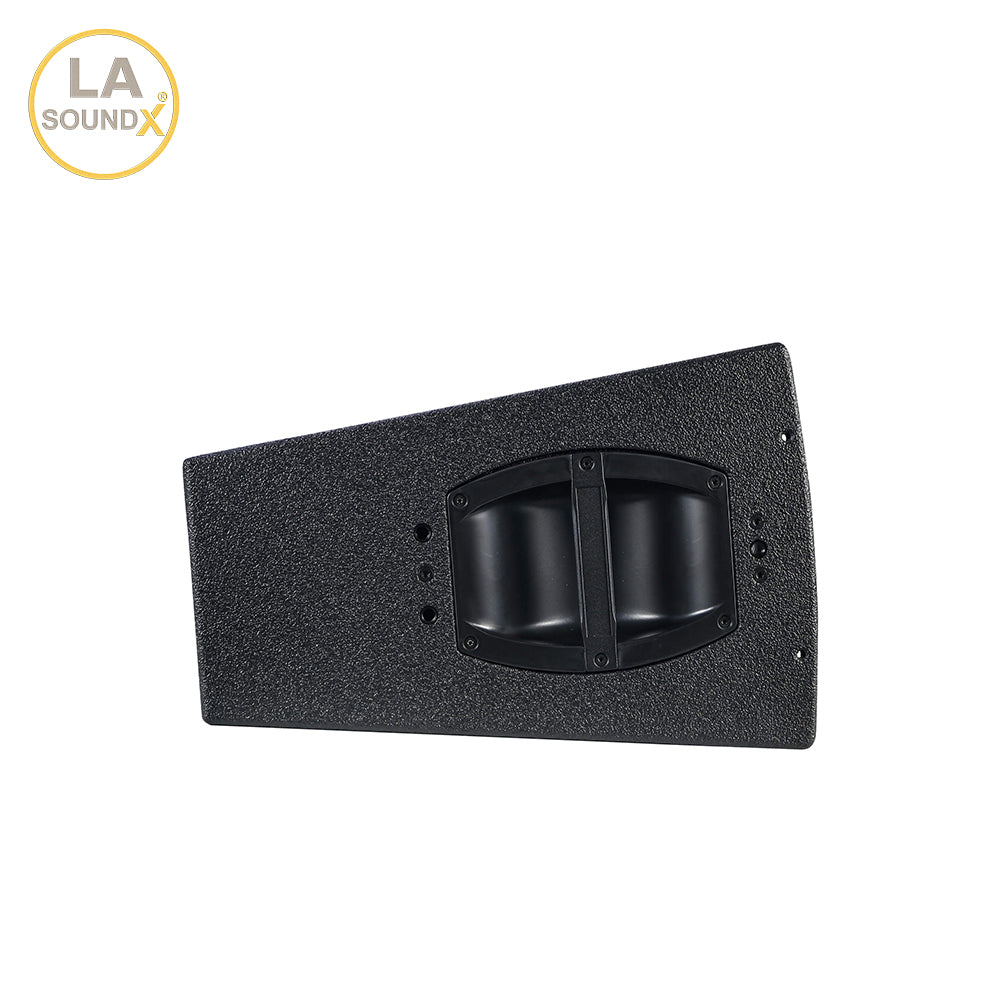

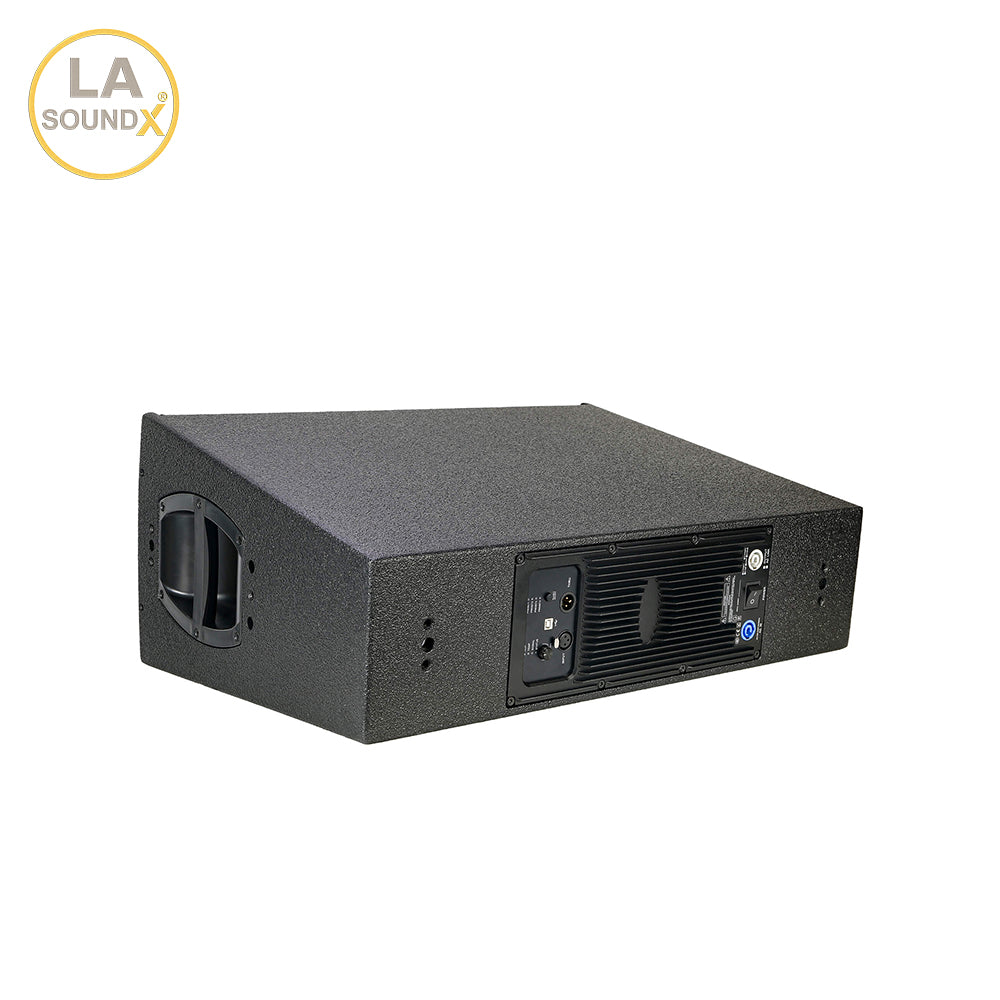

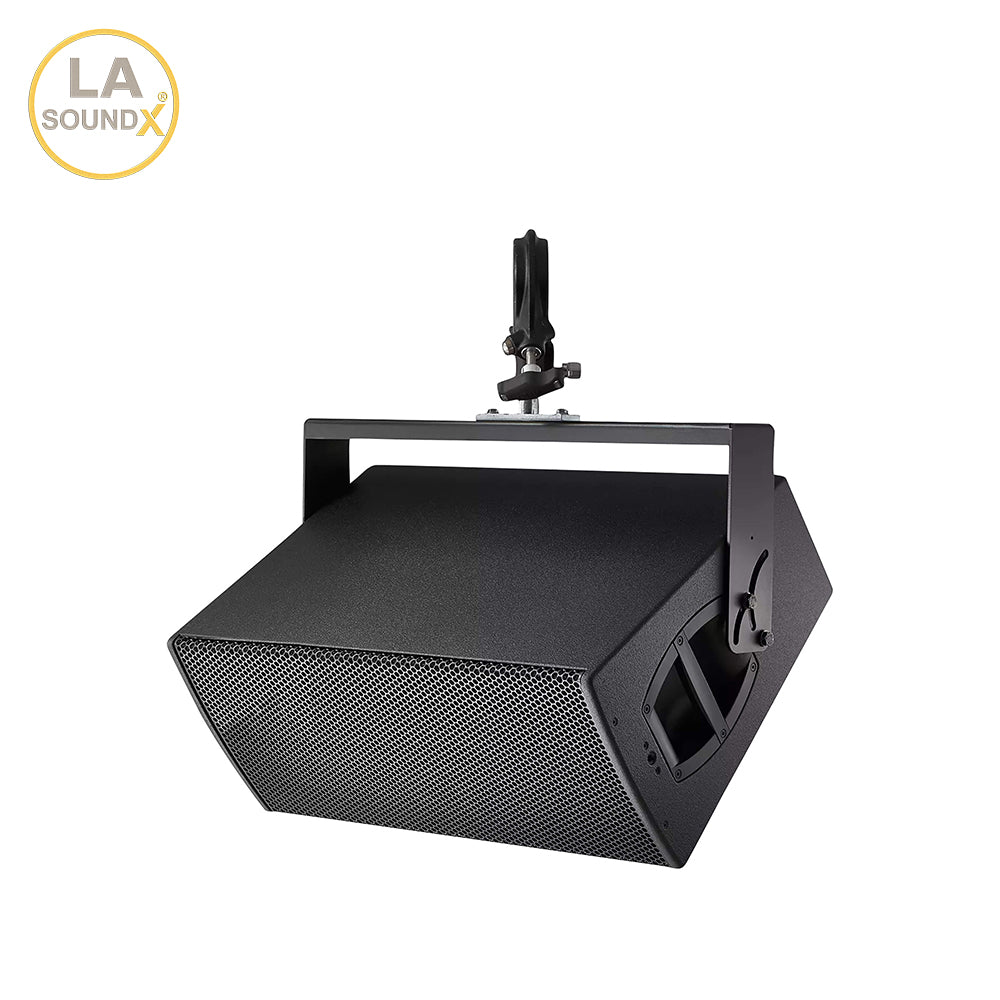

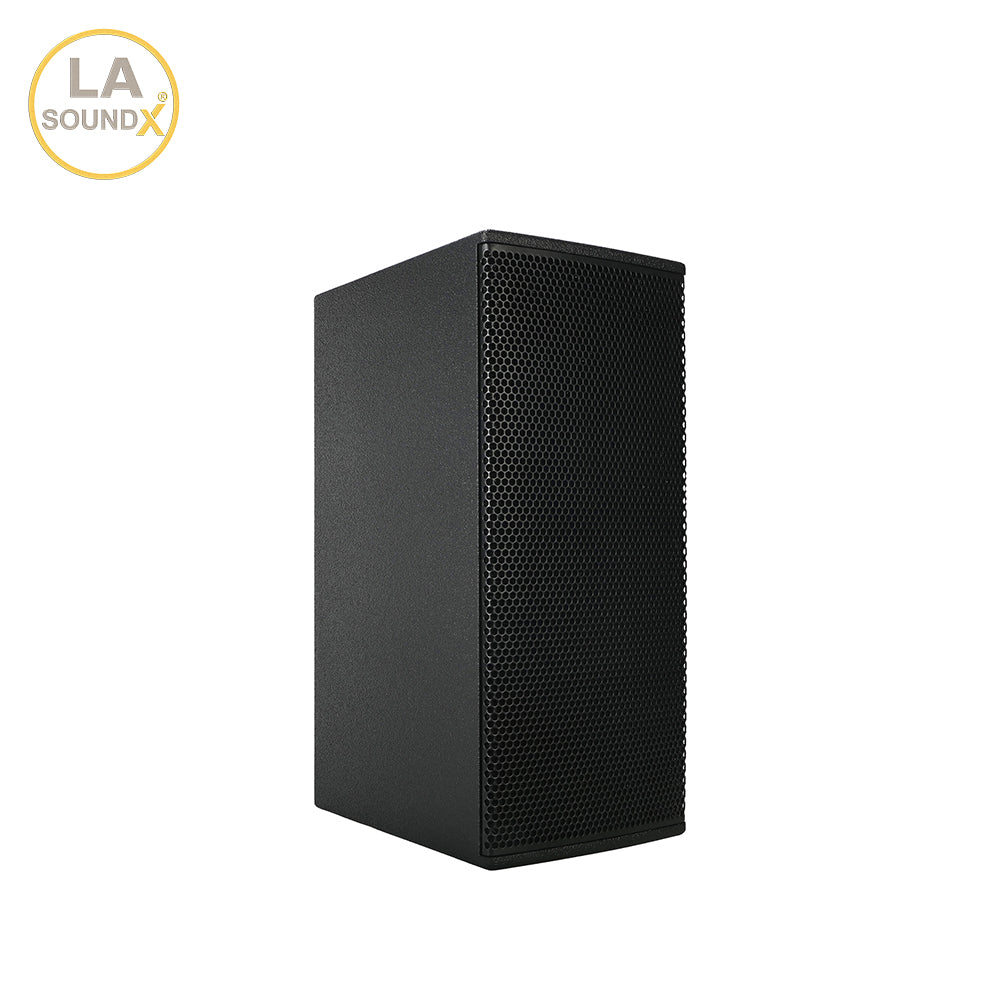

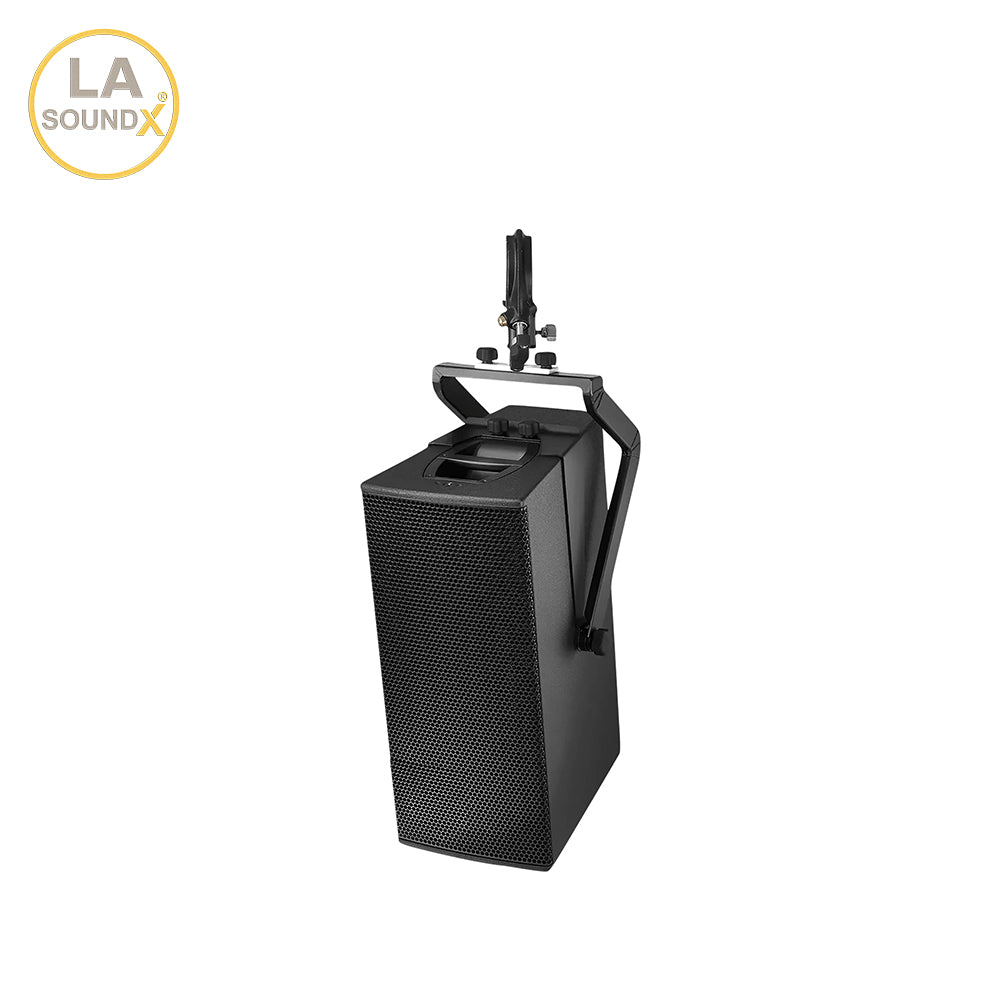

LA SOUNDX V210PF Active Dual 10-Inch 3-Way Powered Point Source Loudspeaker 75° Coverage for Touring & Installed PA Audio

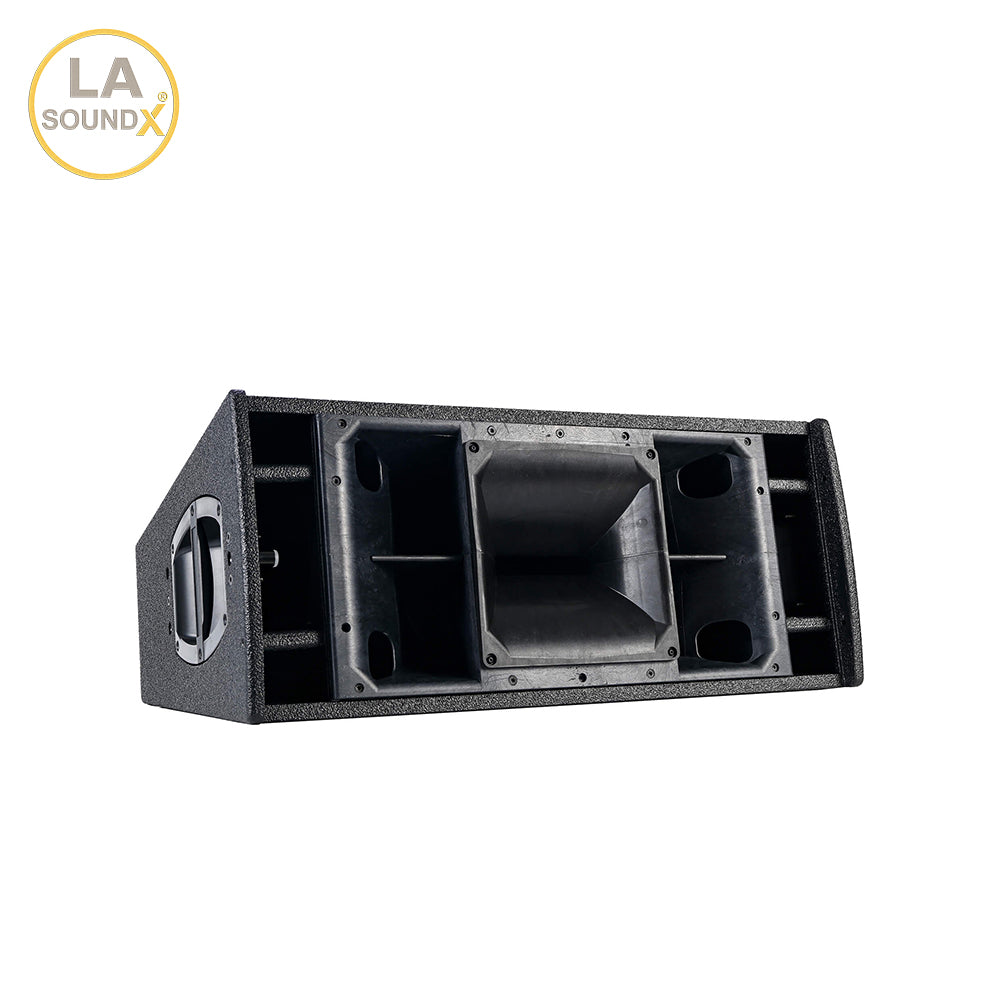

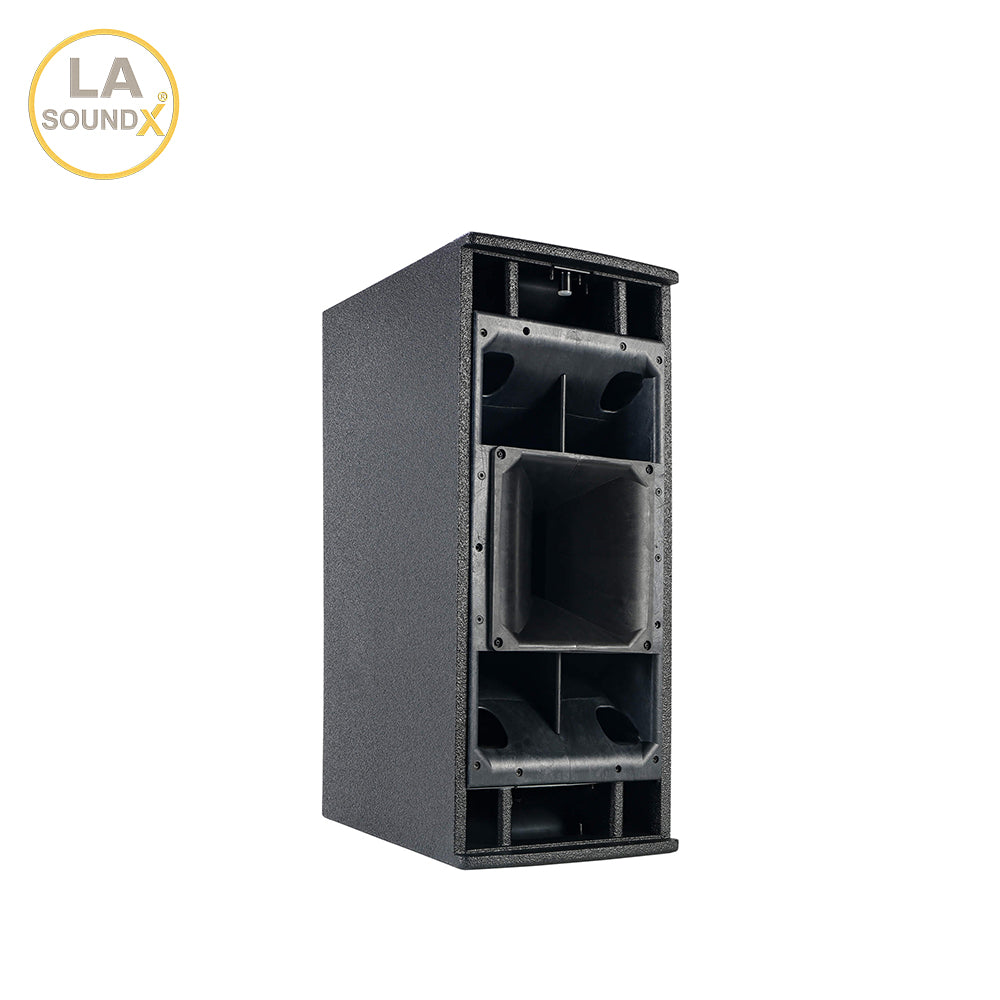

The LA SOUNDX V210PF Active is a dual 10-inch, 3-way powered point source loudspeaker for touring and installed PA applications. Its acoustic platform combines two 10-inch LF drivers, a horn-loaded 8-inch midrange and a 1.4-inch-exit HF compression driver, with 75° × 40° nominal coverage and a 90° rotatable HF horn.
Designed for theatres, houses of worship, live music venues and side-fill applications. The downloadable product document includes acoustic-platform reference data, dimensions and mounting information.
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):59 Hz - 18kHz
Frequency response (-5 dB CUT mode):100 Hz - 18 kHz
Max. sound pressure1with D20/30D:137 dB with D40/D80/40D:140 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:Highperformance 3-way passive point source loudspeaker
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):500/2000 W
Nominal dispersion angle (h x v):75° x 40°
Components:2 x 10" LF driver with neodymium magnet 1 x 8" MF driver with neodymium magnet 1 x 3” exit compression driverPassive crossover network
Connections:2 x NLT4 F/Moptional 2 x NL4 M
Dimensions / weight
Dimensions (H x W x D):700 x 308 x 466 mm 27.5 x 12 x 18.3"
Weight:33 kg 75 lb
