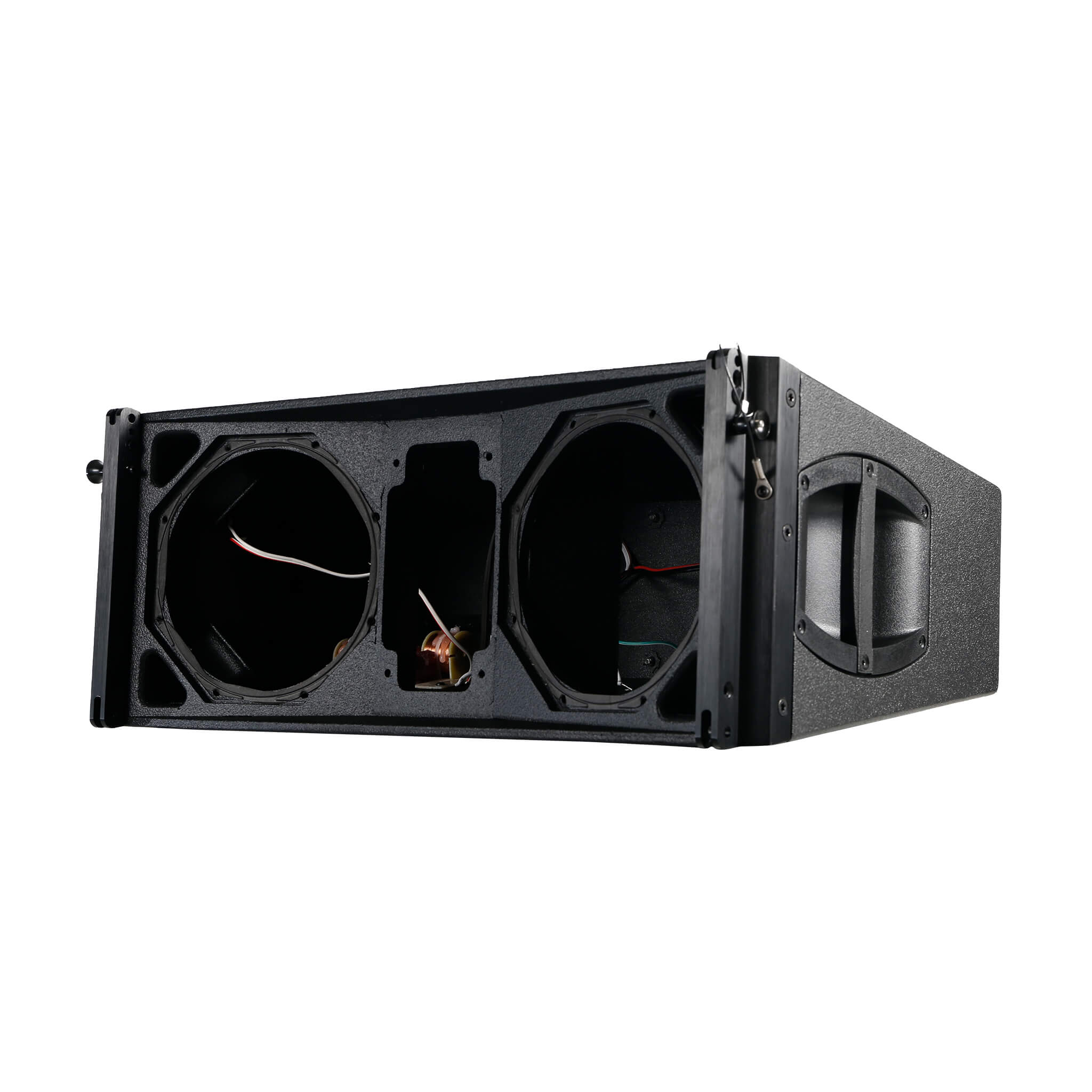

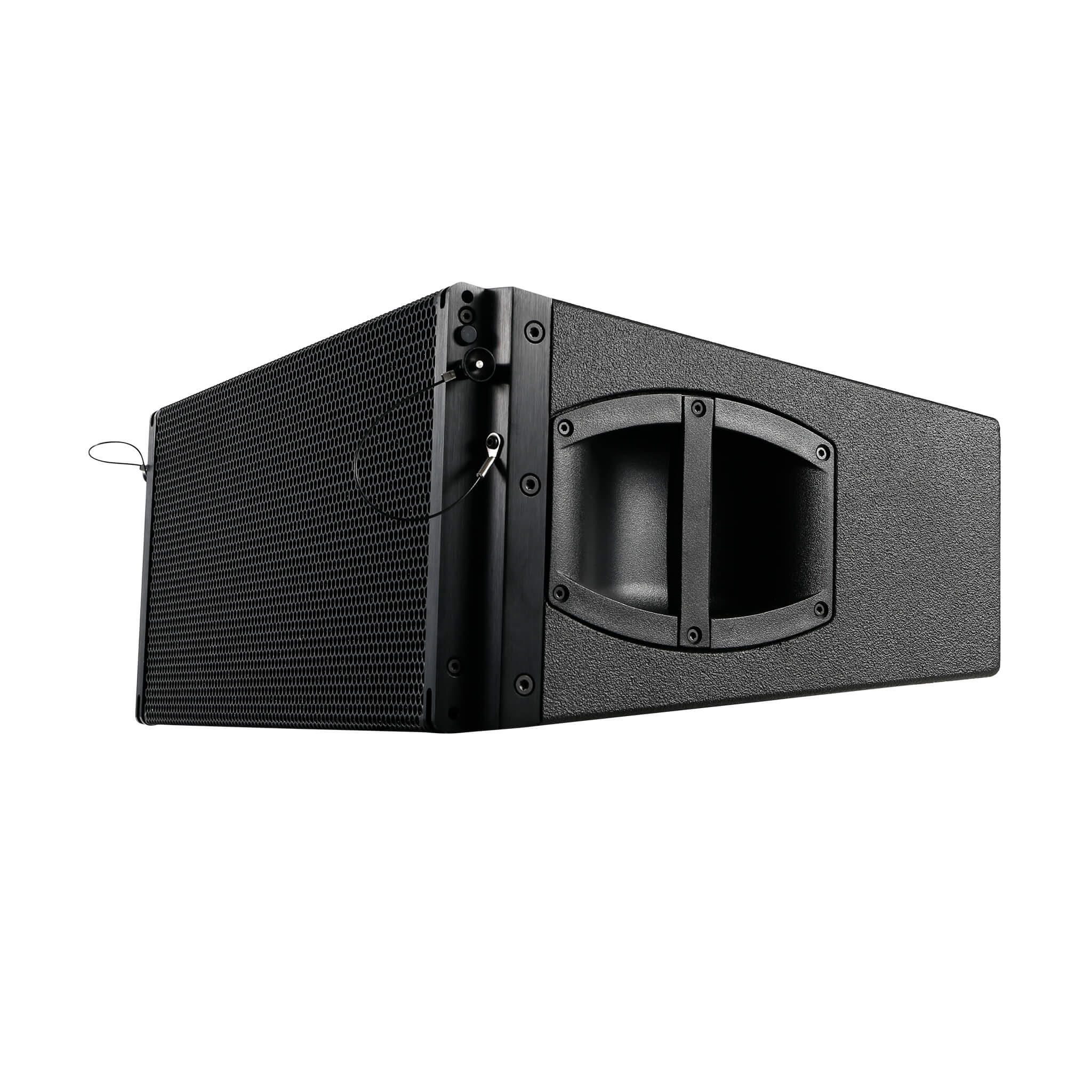

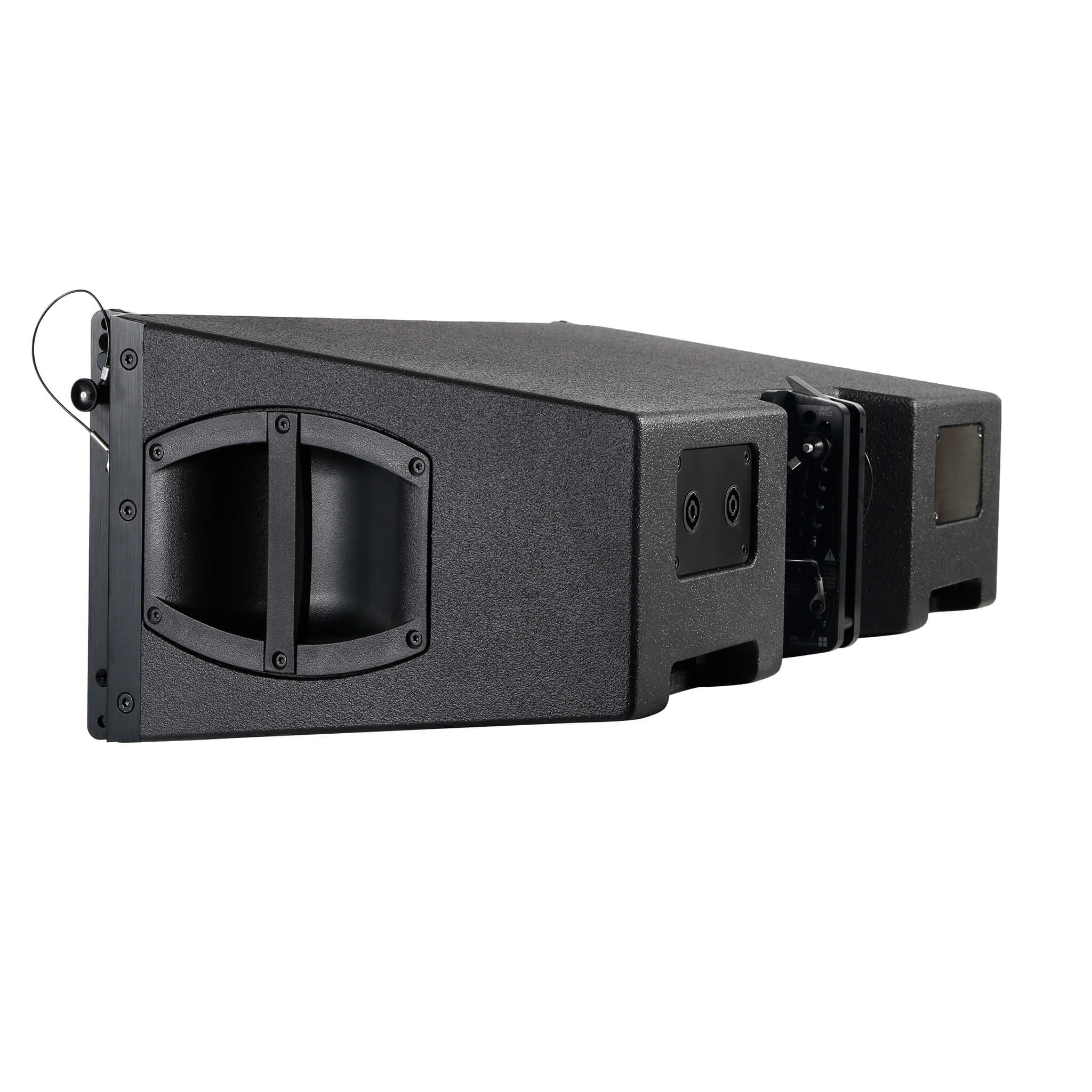

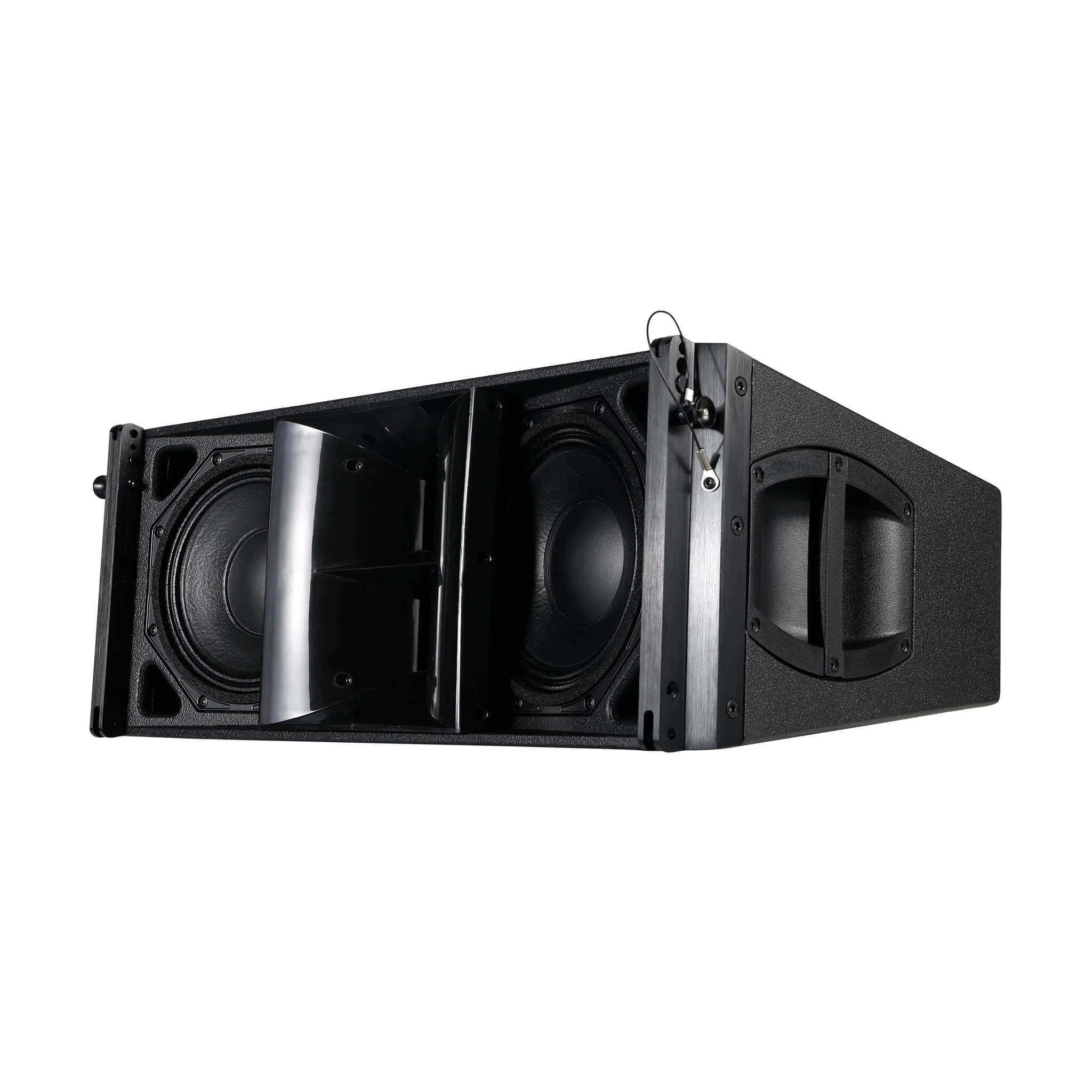

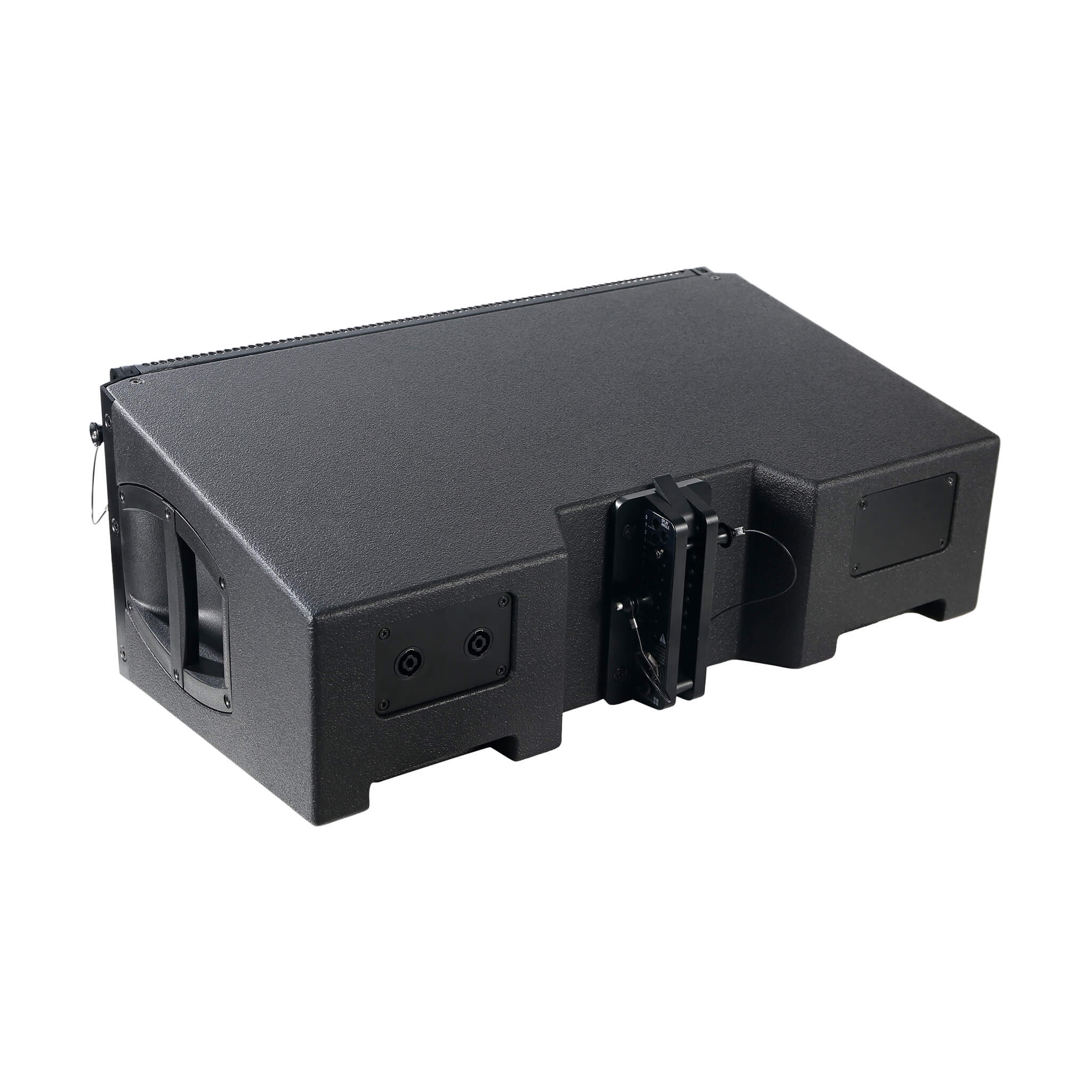

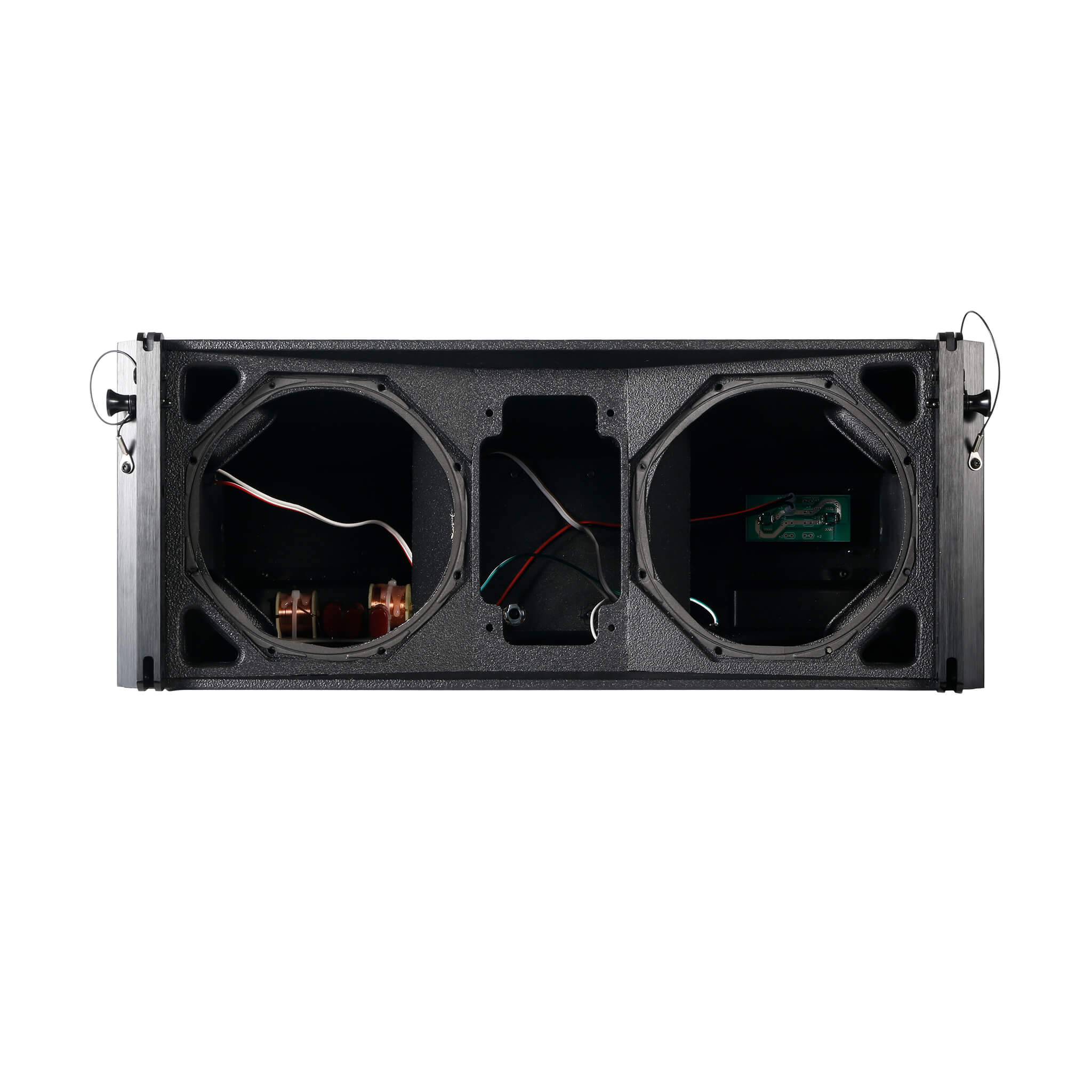

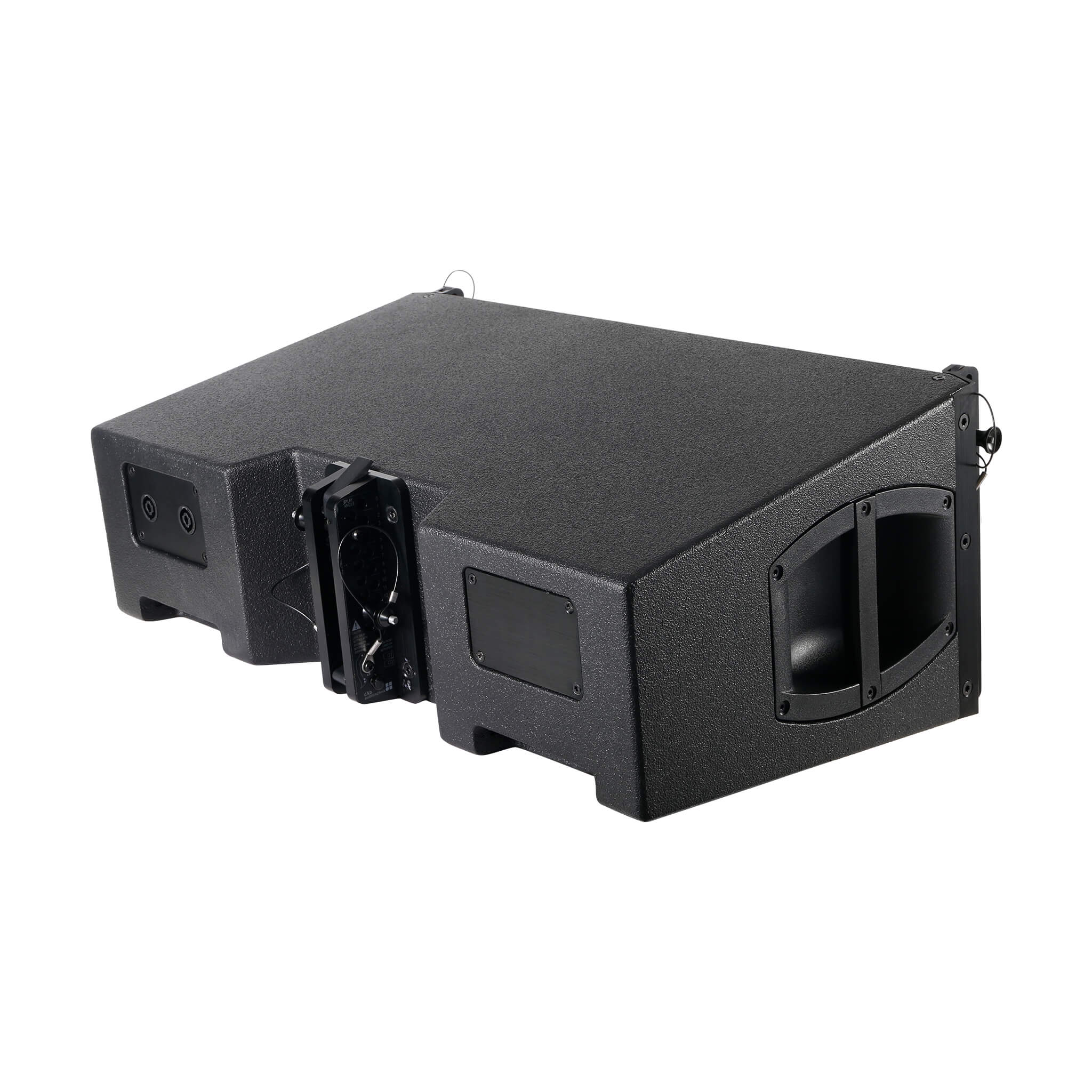

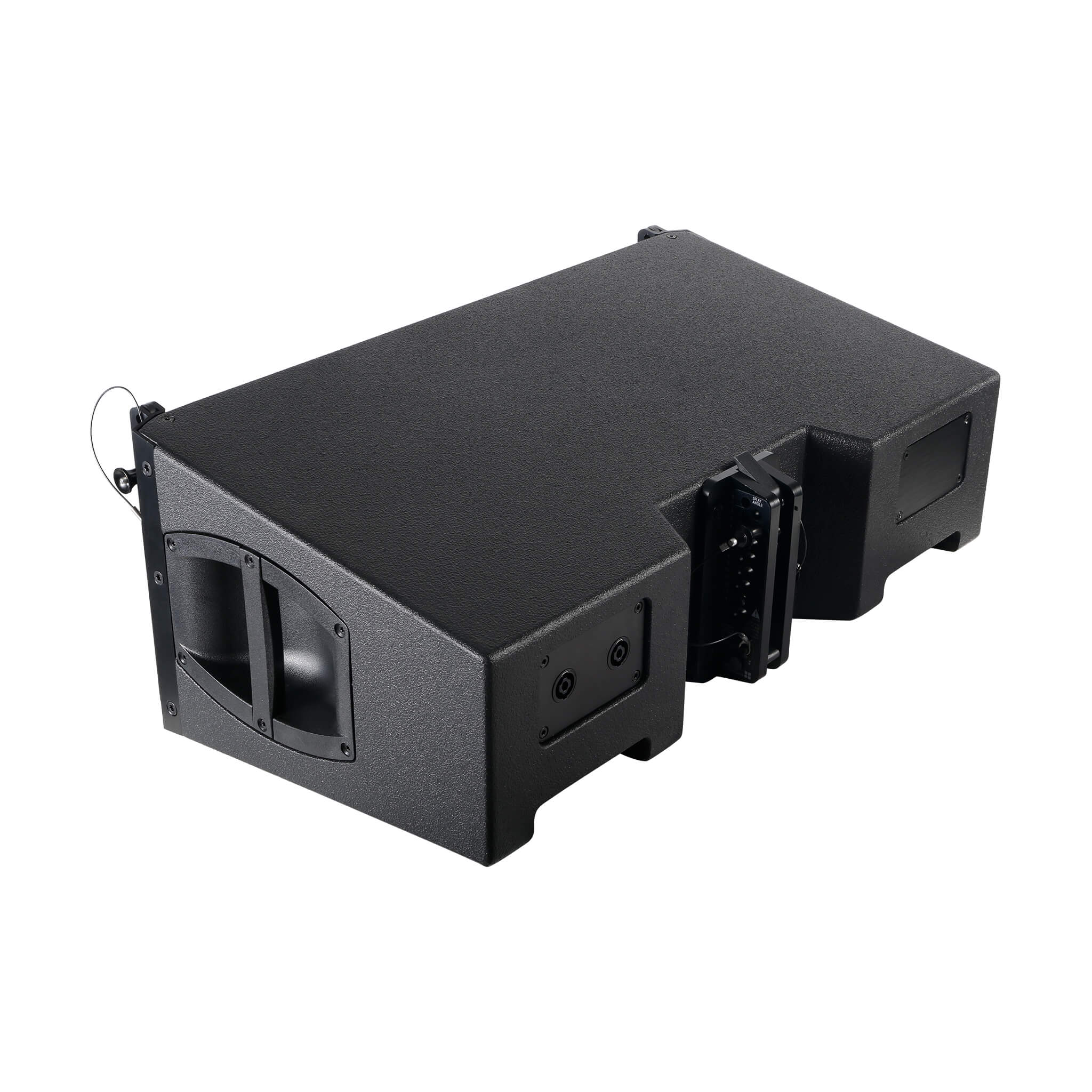

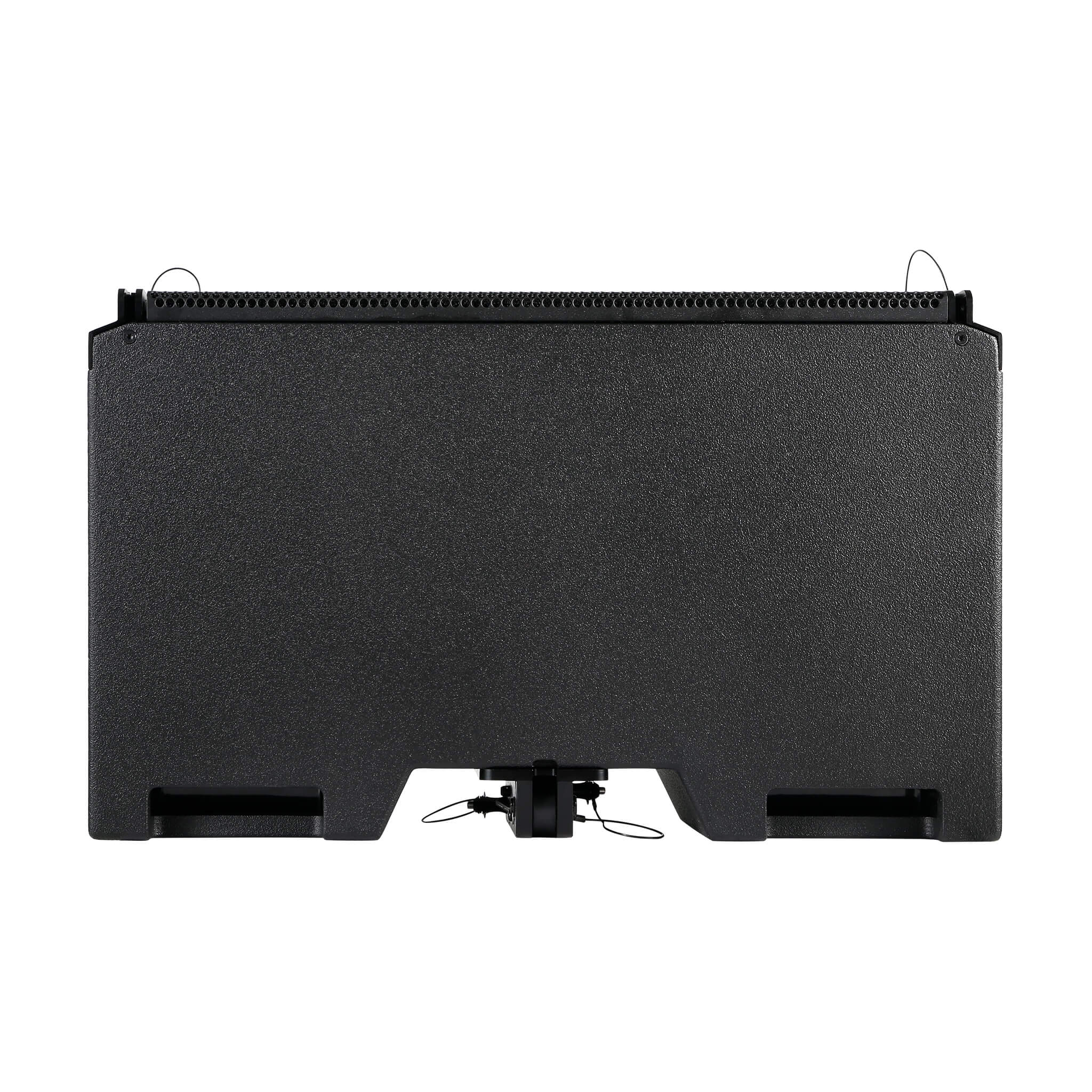

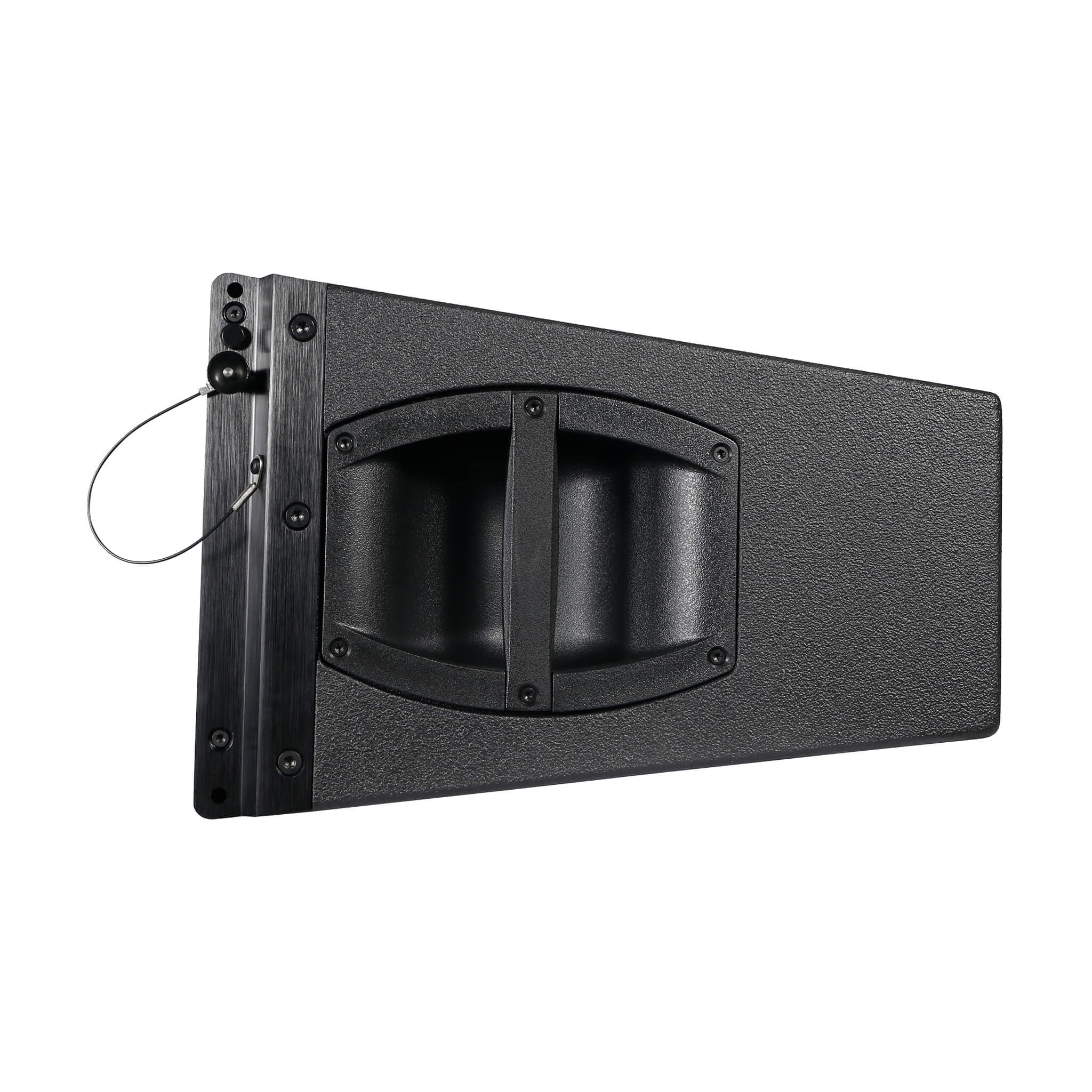

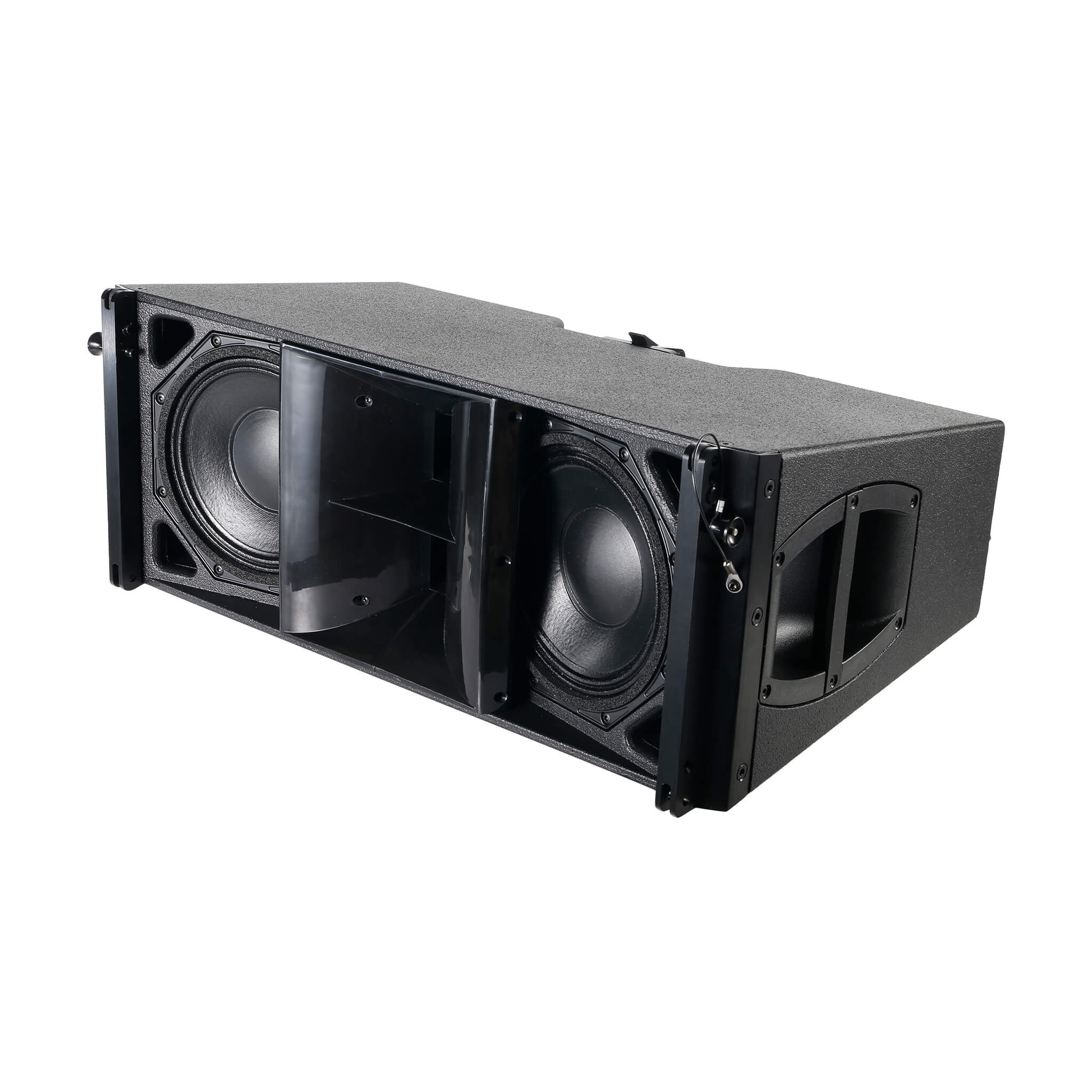

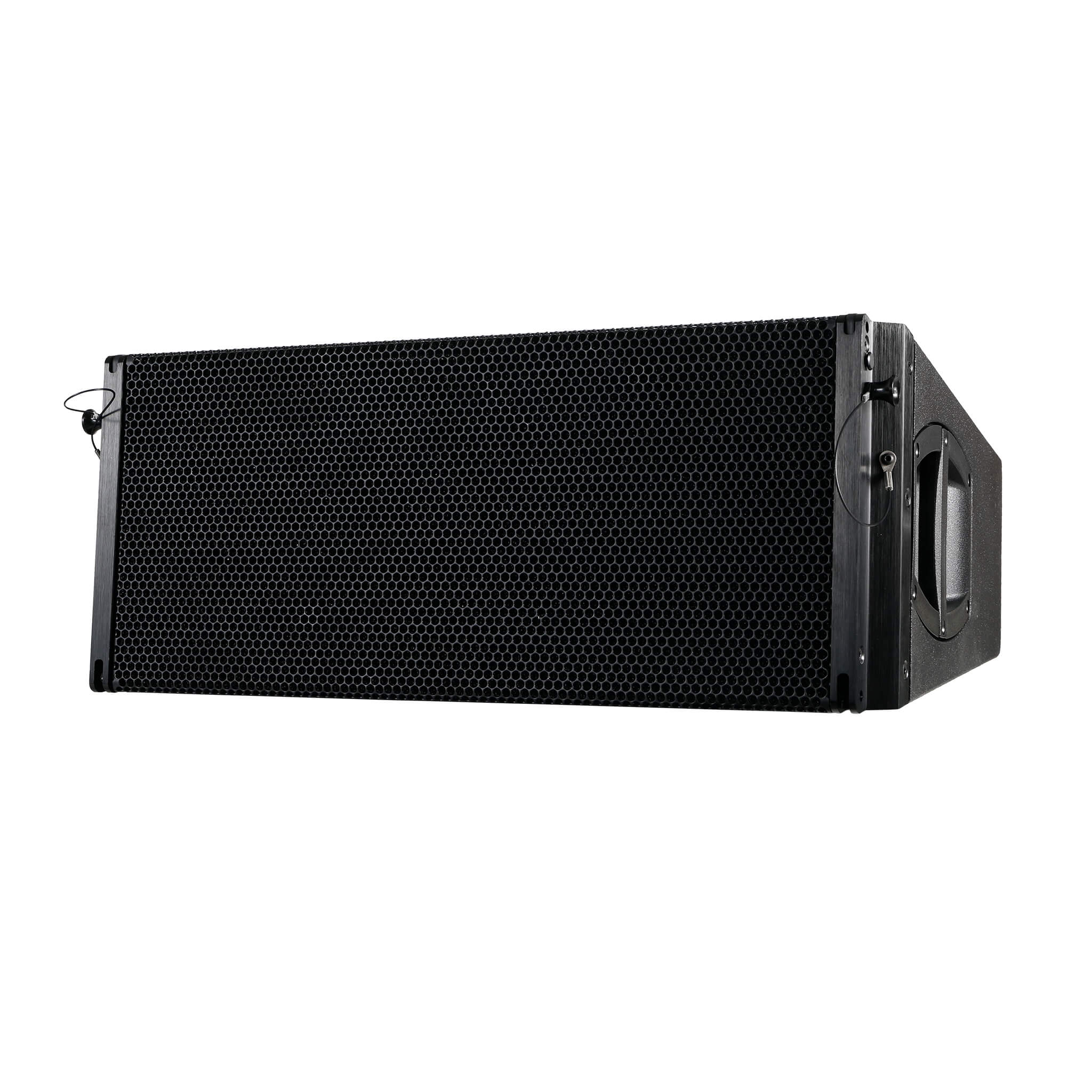

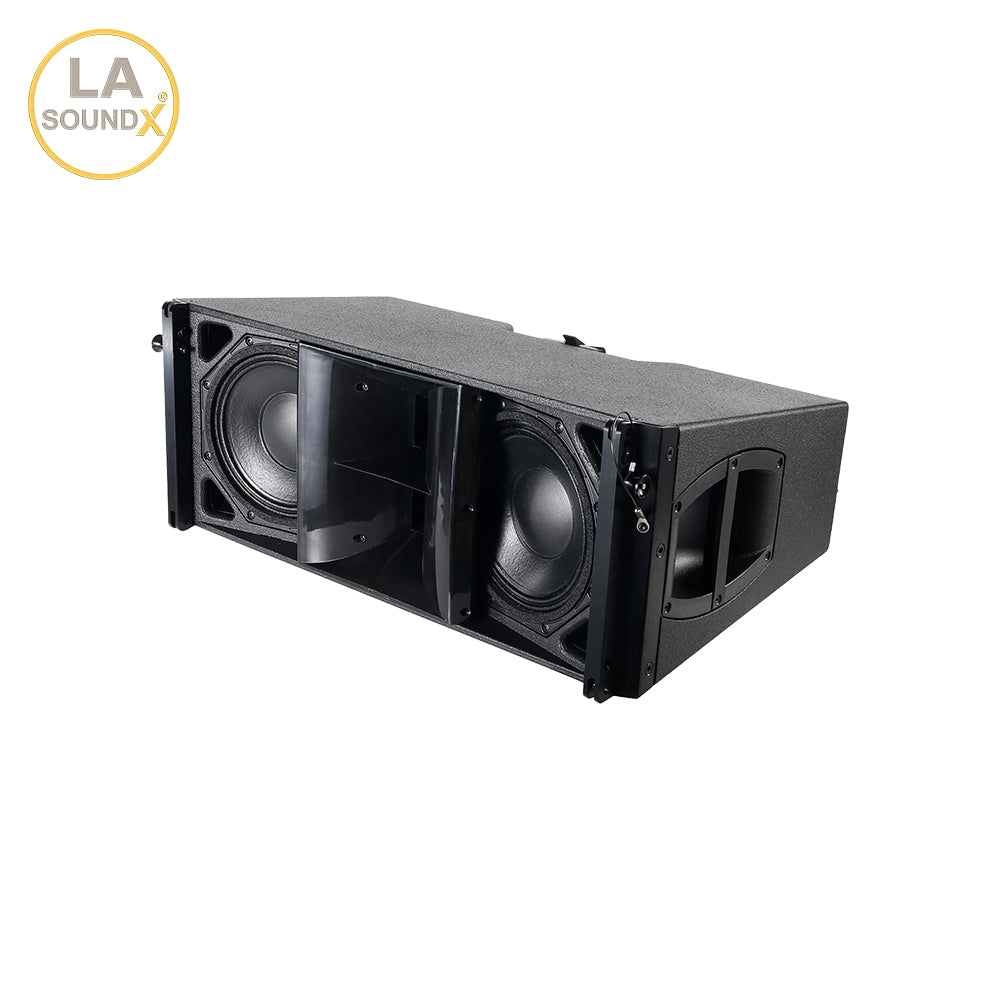

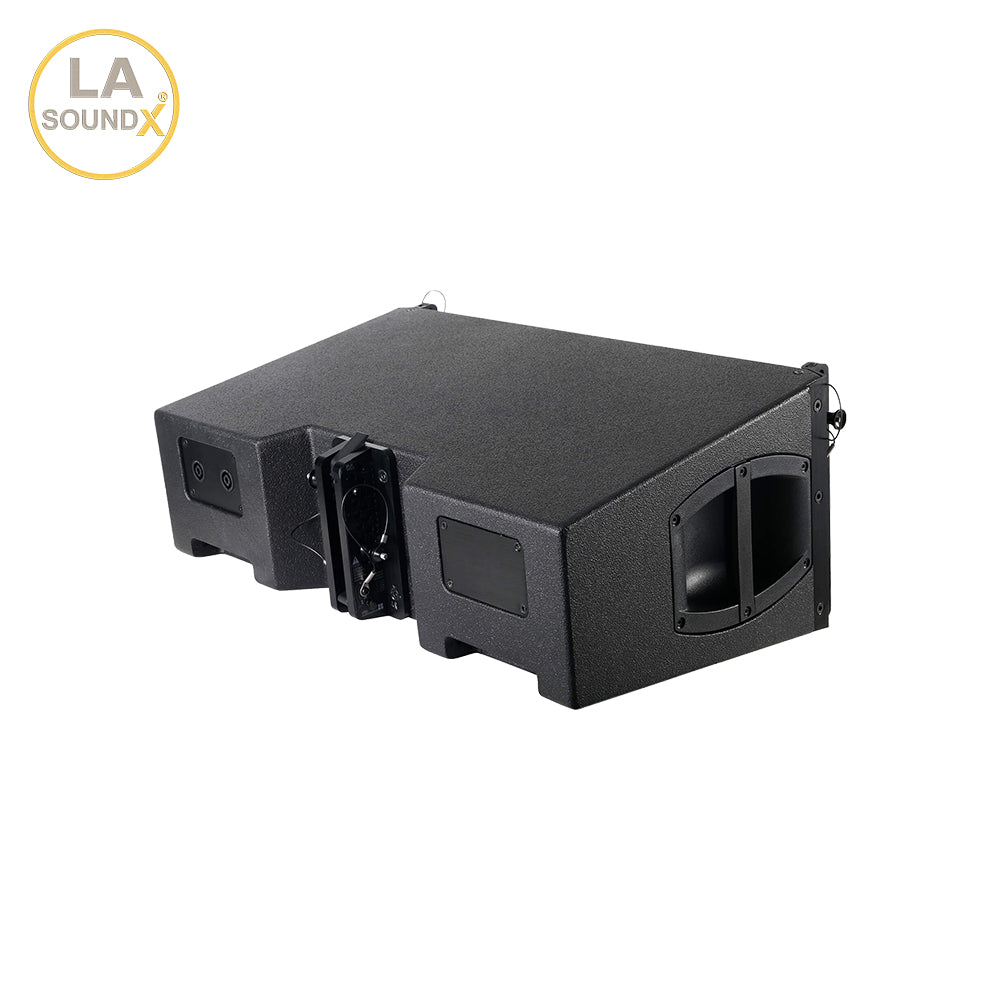

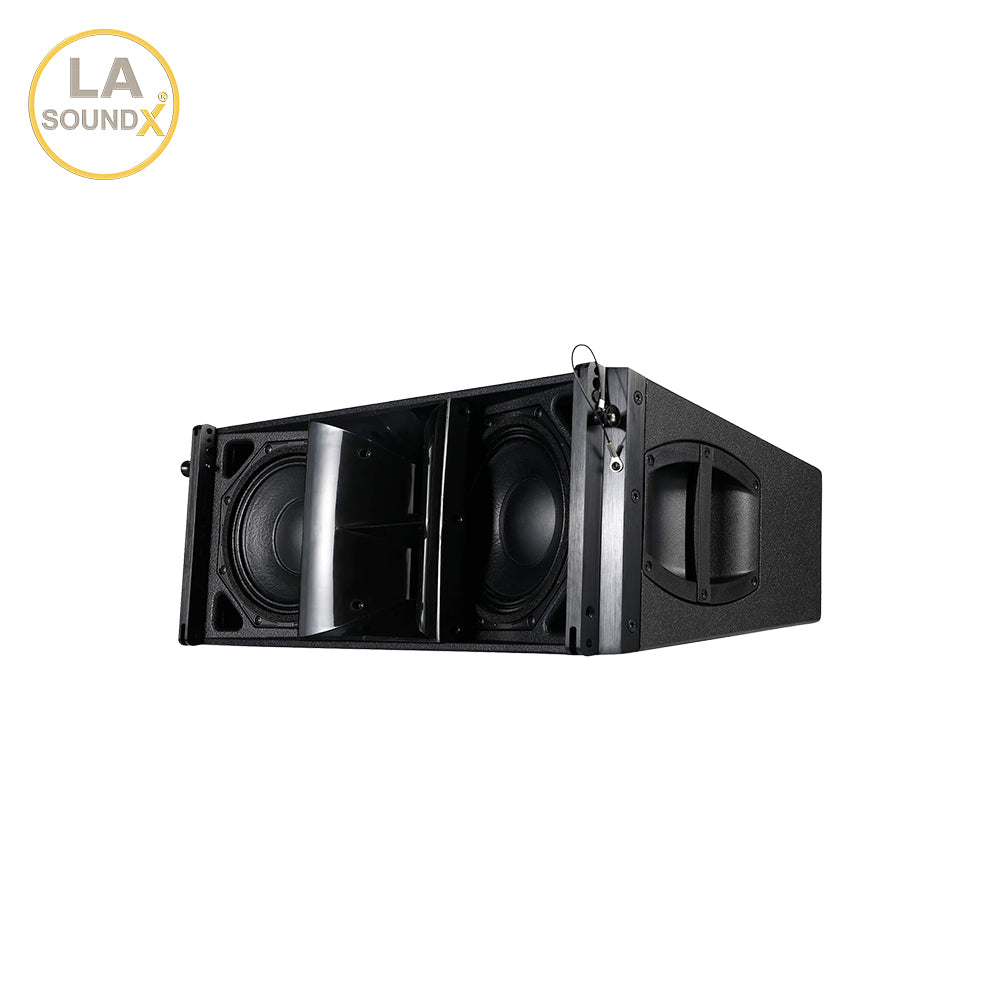

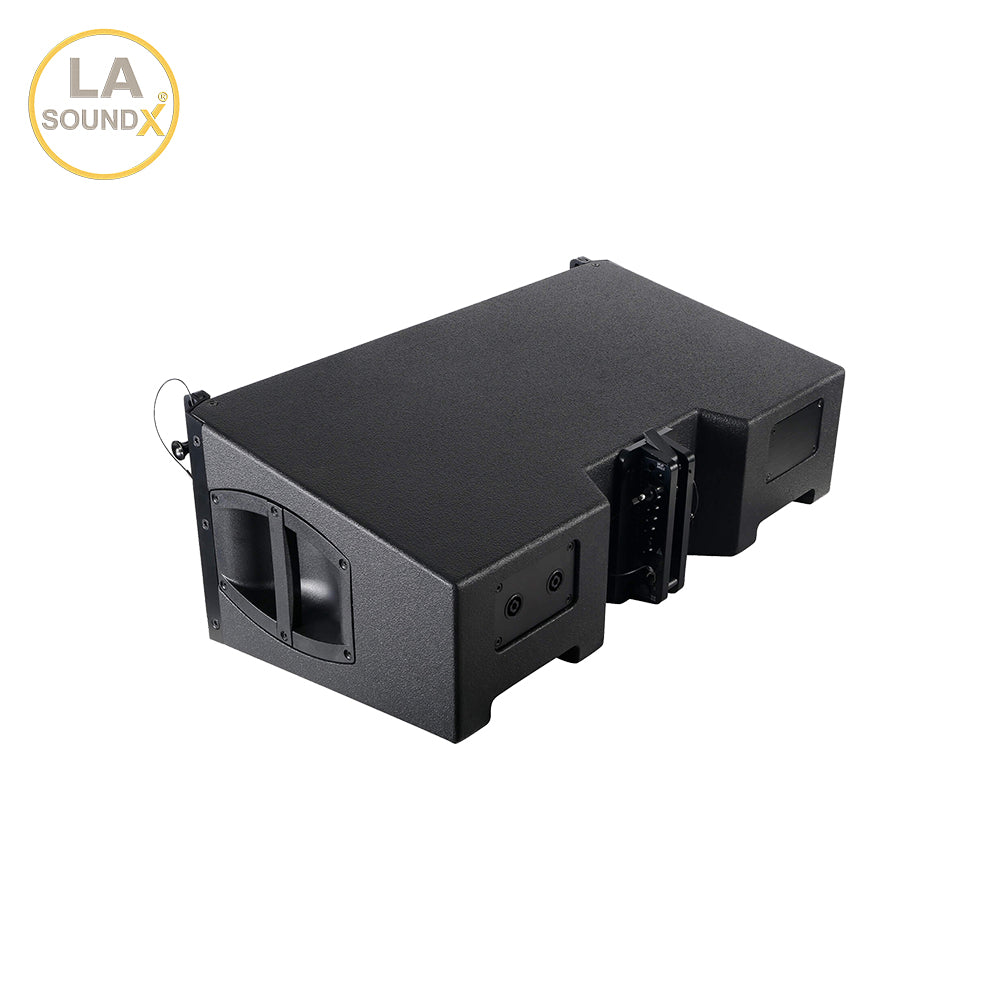

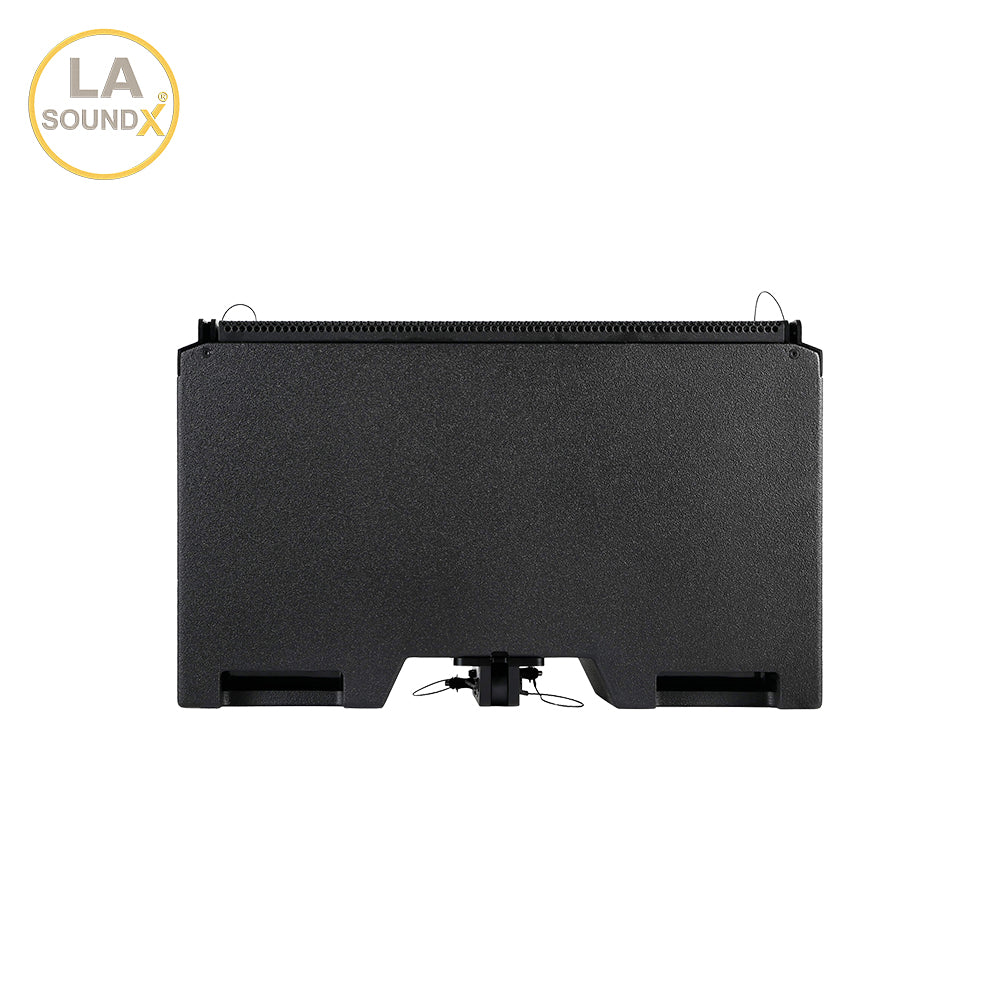

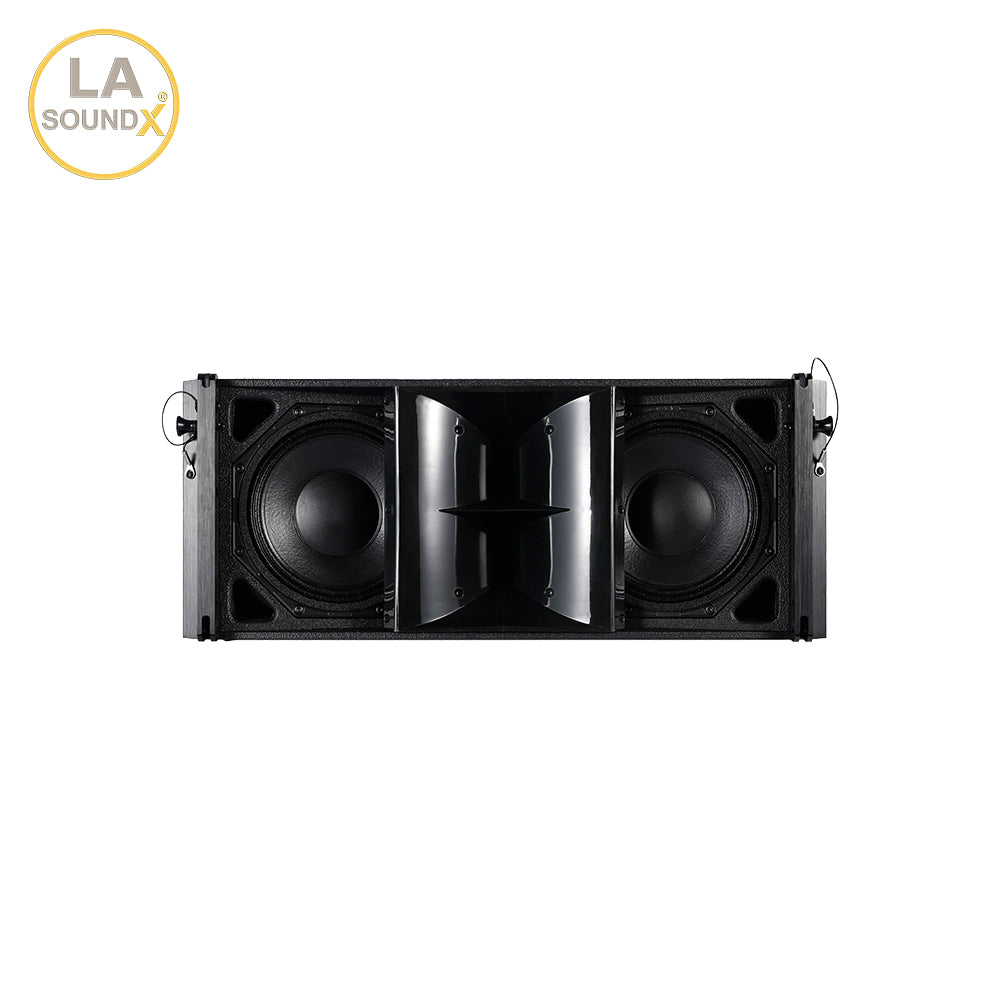

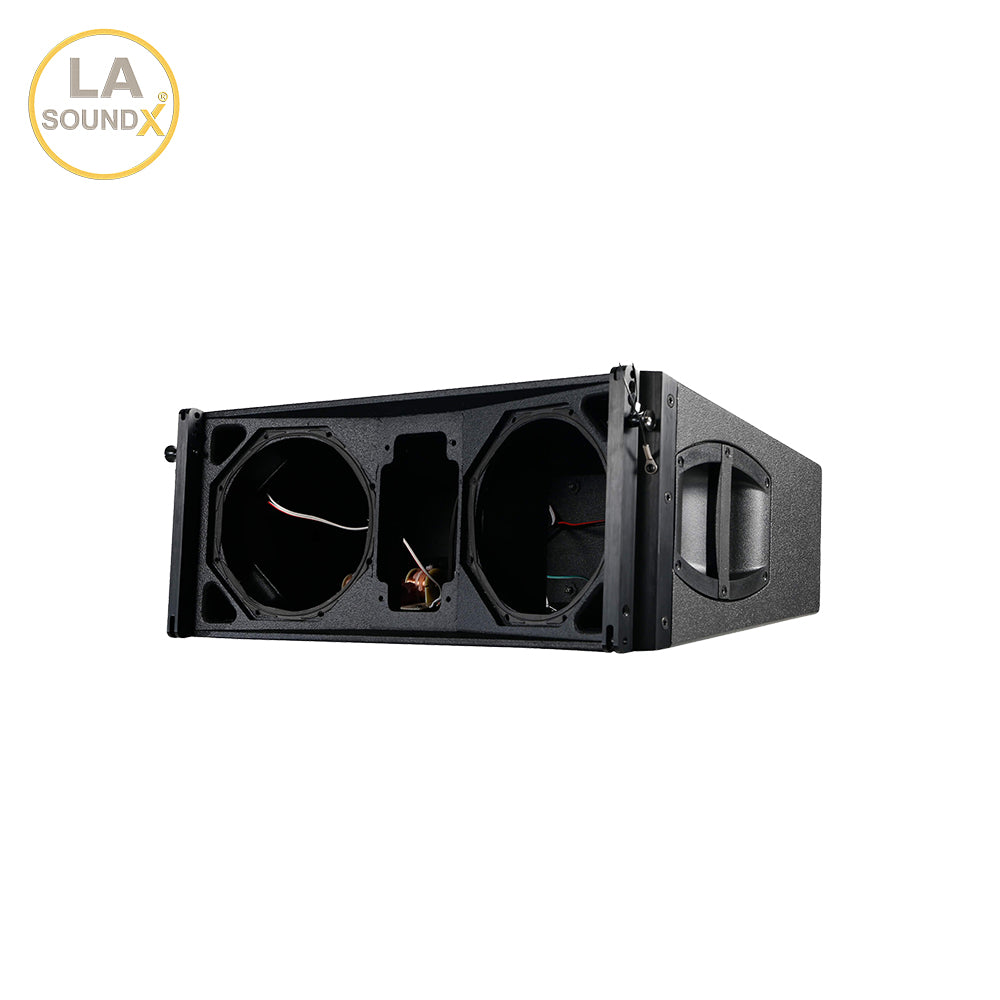

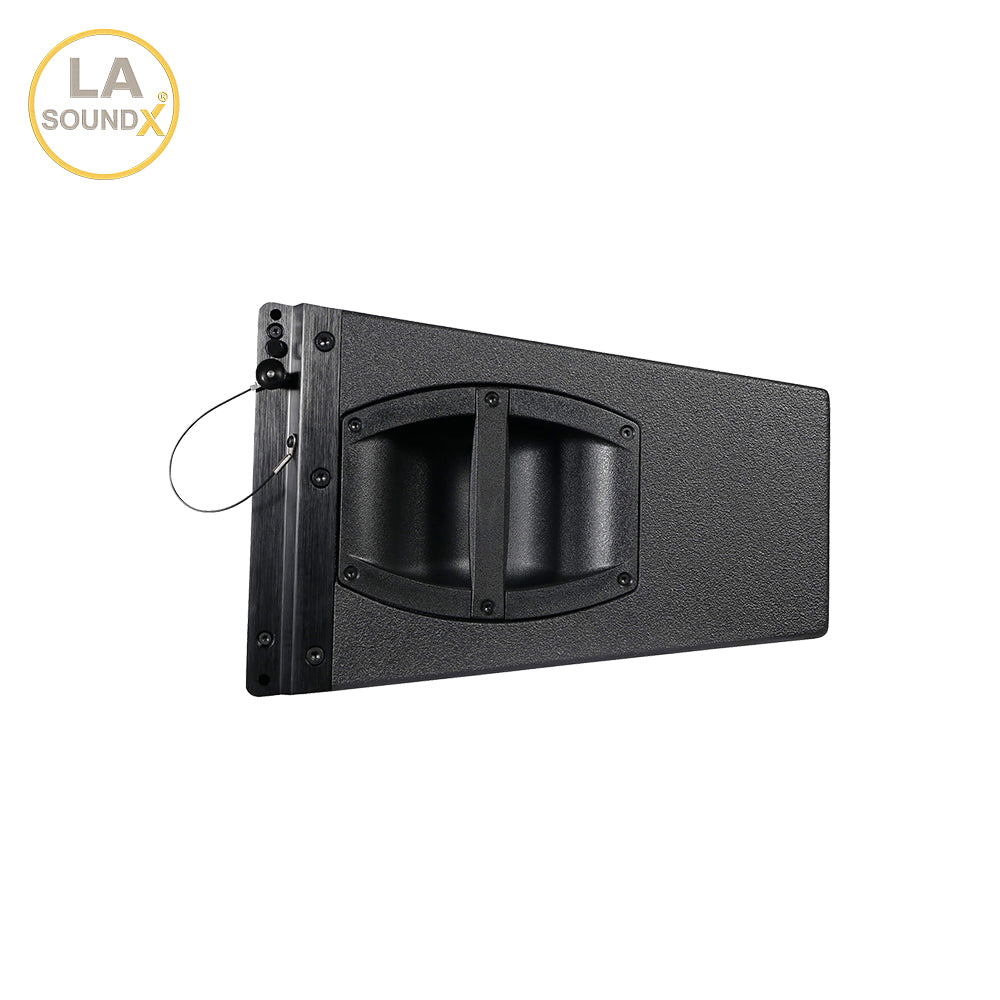

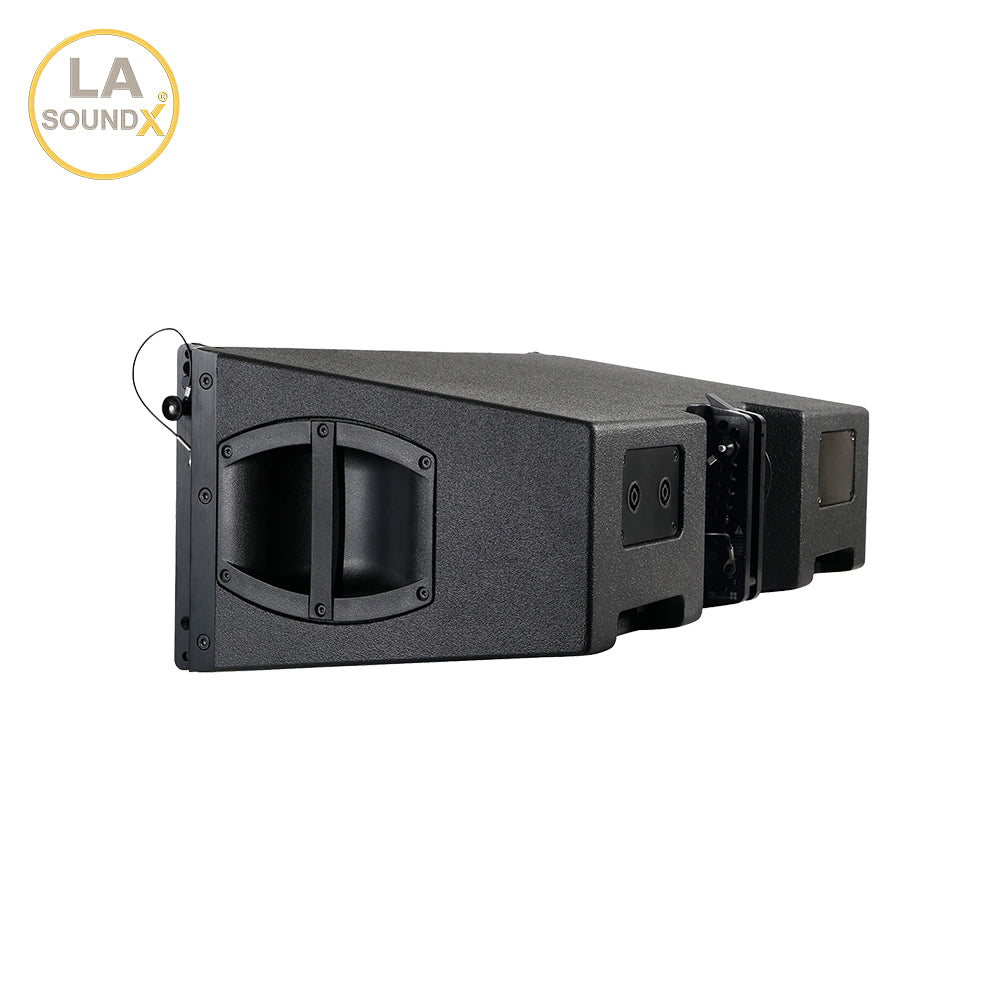

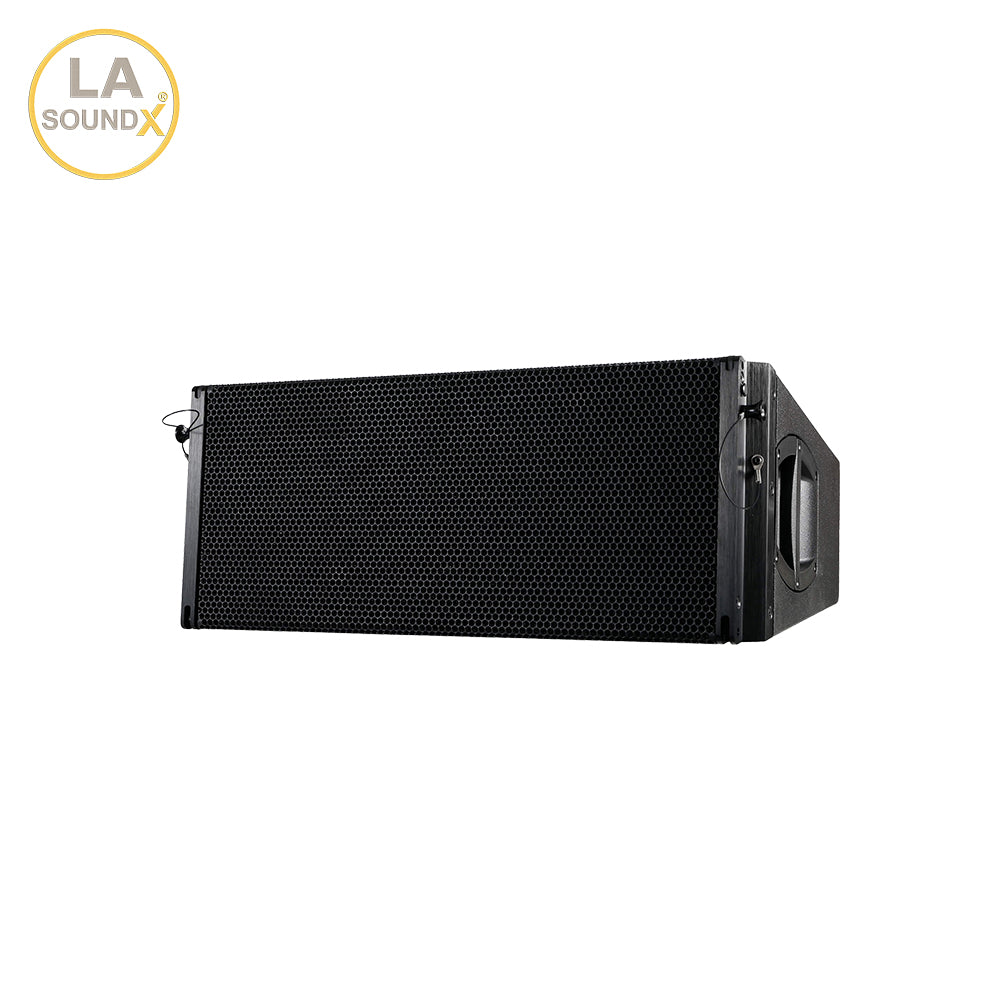

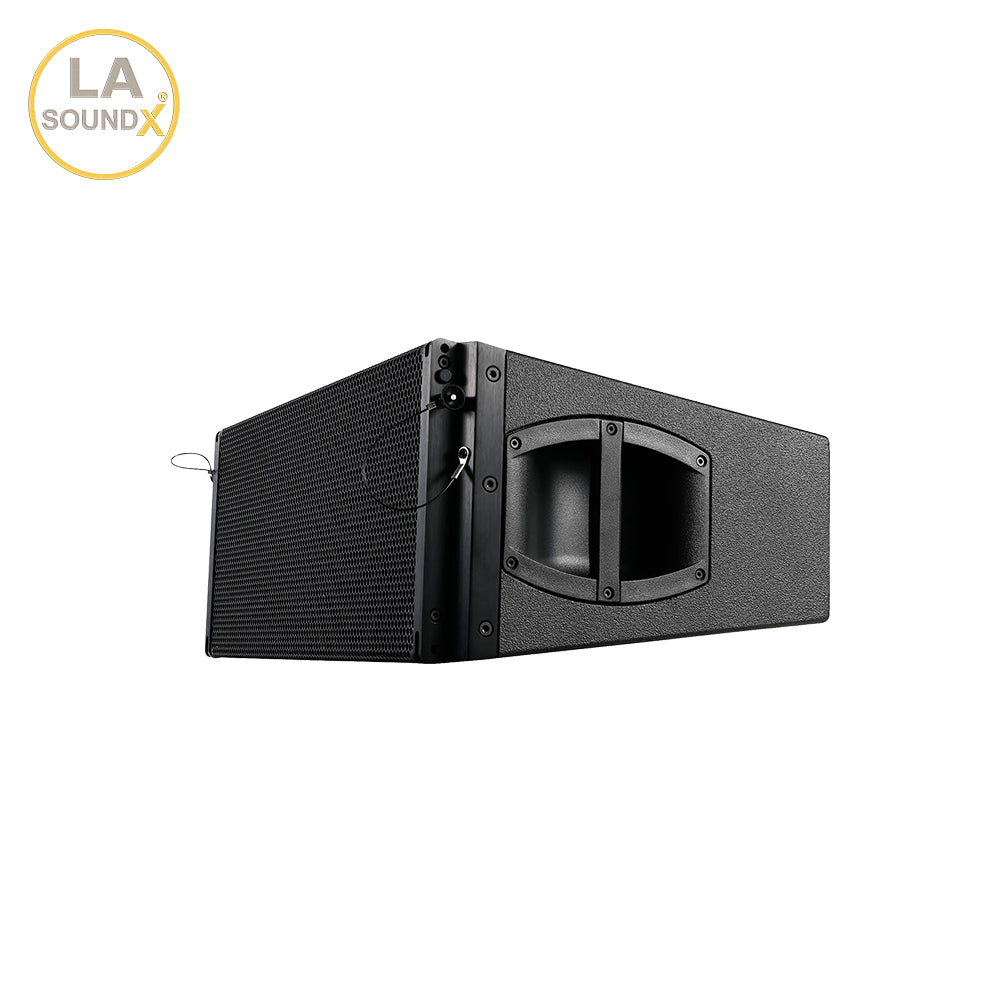

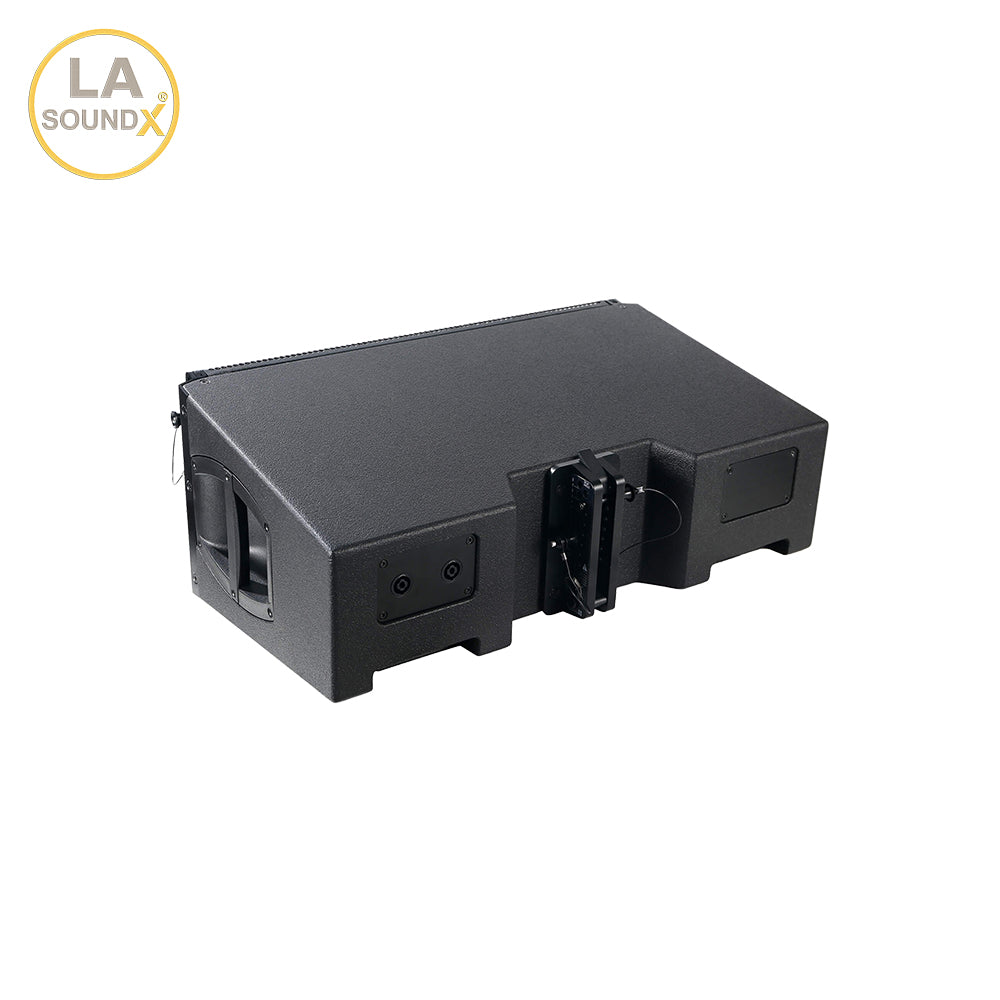

Y8-Y28F Compact line array, 2-way dual 8″ LF
• Configuration: Compact line array, 2-way
• Max SPL: 139 dB
• Bandwidth (-5 dB): 54 Hz – 19 kHz
• Transducers:
• LF: 2 × 8″
• MF/HF: 1 × 8″ + 1 × 1.4″ compression driver
• Weight: 20 kg / 44 lb
• Directivity: H: 80° | V: 10°
• Dimensions (H × W × D): 235 × 700 × 380 mm
• Nominal Impedance: 8 Ω
• Power Handling: 400 W AES / 800 W Program / 1600 W Peak
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):54 Hz - 19 kHz
Frequency response (-5 dB CUT mode):100 Hz - 19 kHz
Max. sound pressure1 with 10D:134 dB with D20/30D:137 dB with D40/D80/40D:139 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance 2-way passive line array loudspeaker
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):400/1600 W
Nominal dispersion angle (horizontal):80°
Splay angle settings:0° - 14° (1° increment)

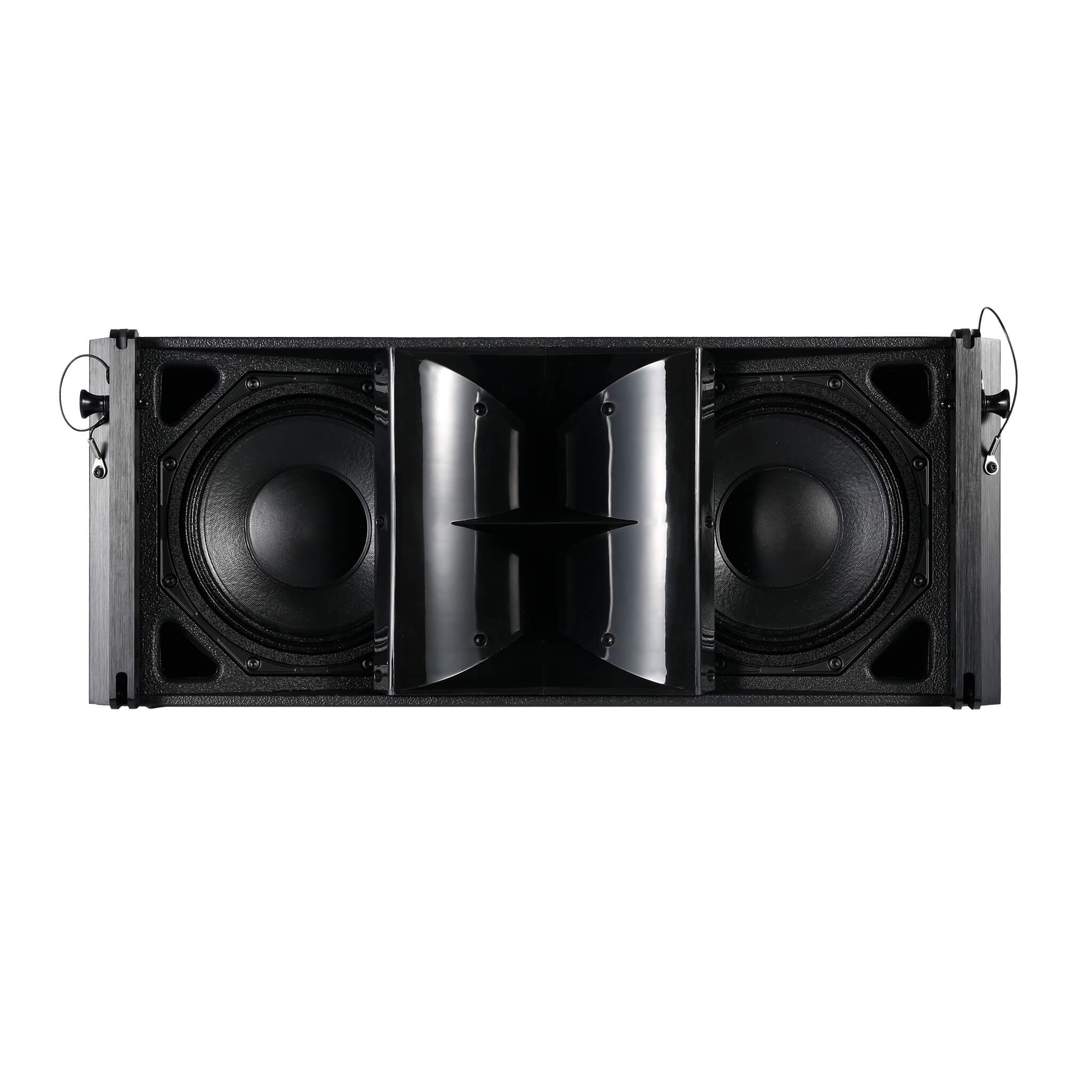

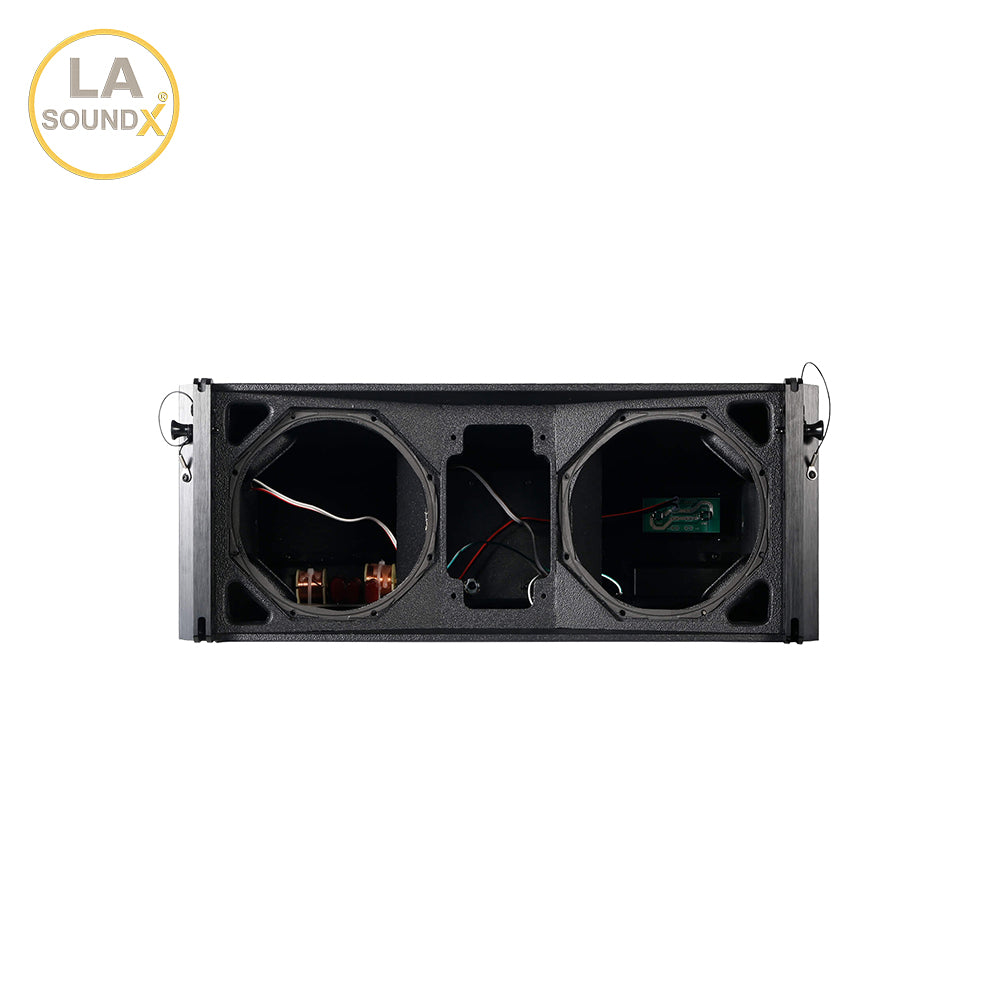

Components:2 x 8" driver with neodymium magnet 1.4" exit compression driverpassive crossover network

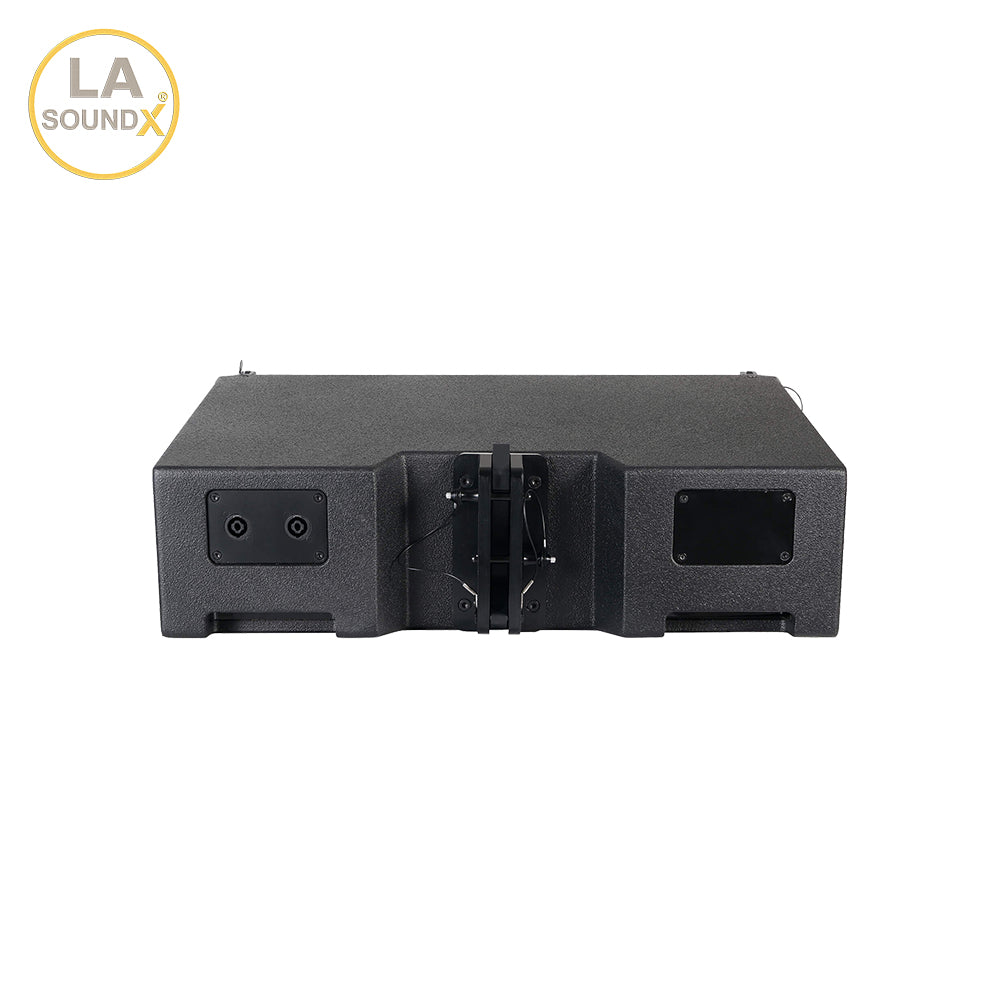

Connections:2 x NLT4 F/M optional 2 x NL4
Dimensions (H x W x D):257 x 630 x 375 mm10 x 24.8 x 14.8"
Weight:20 kg44 lb
