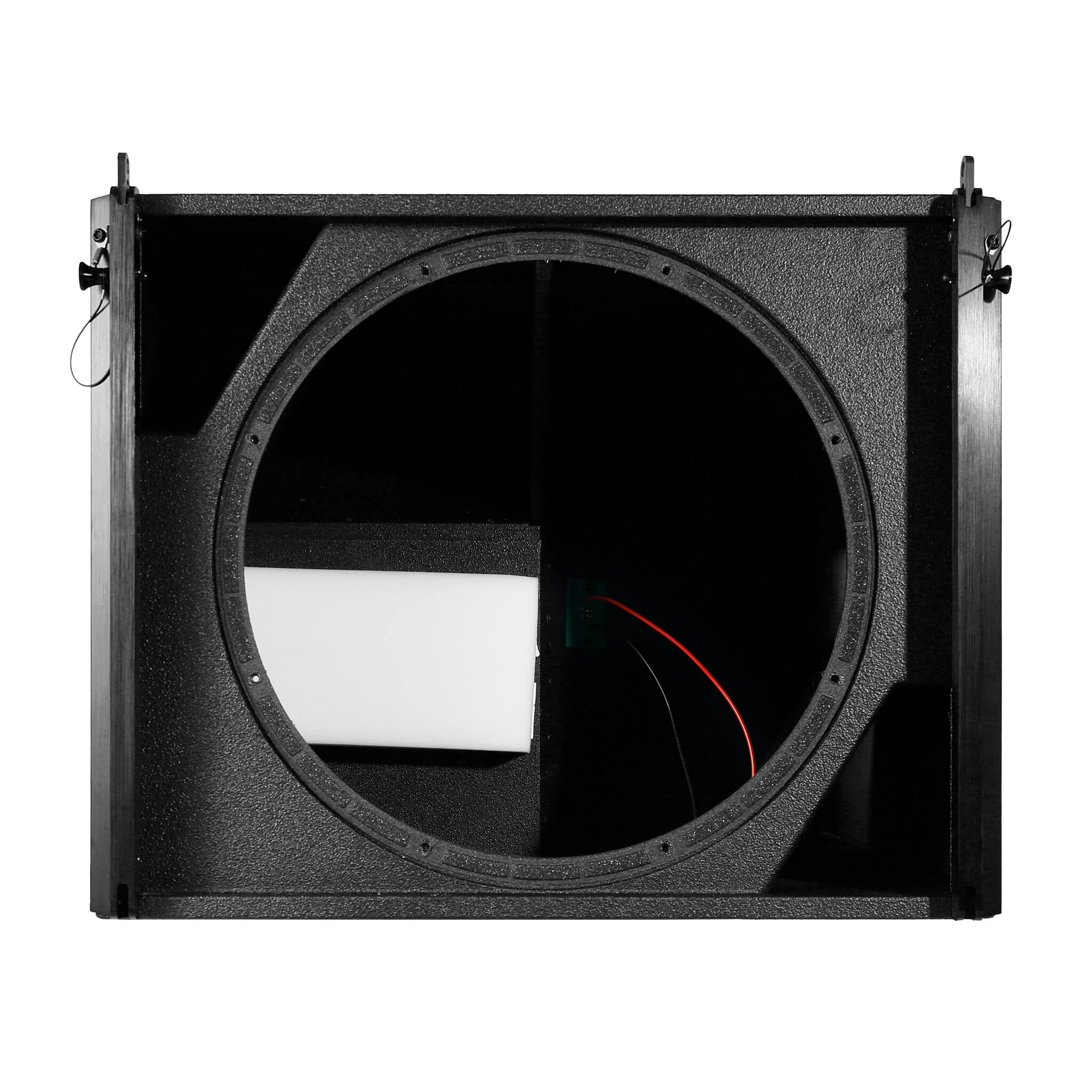

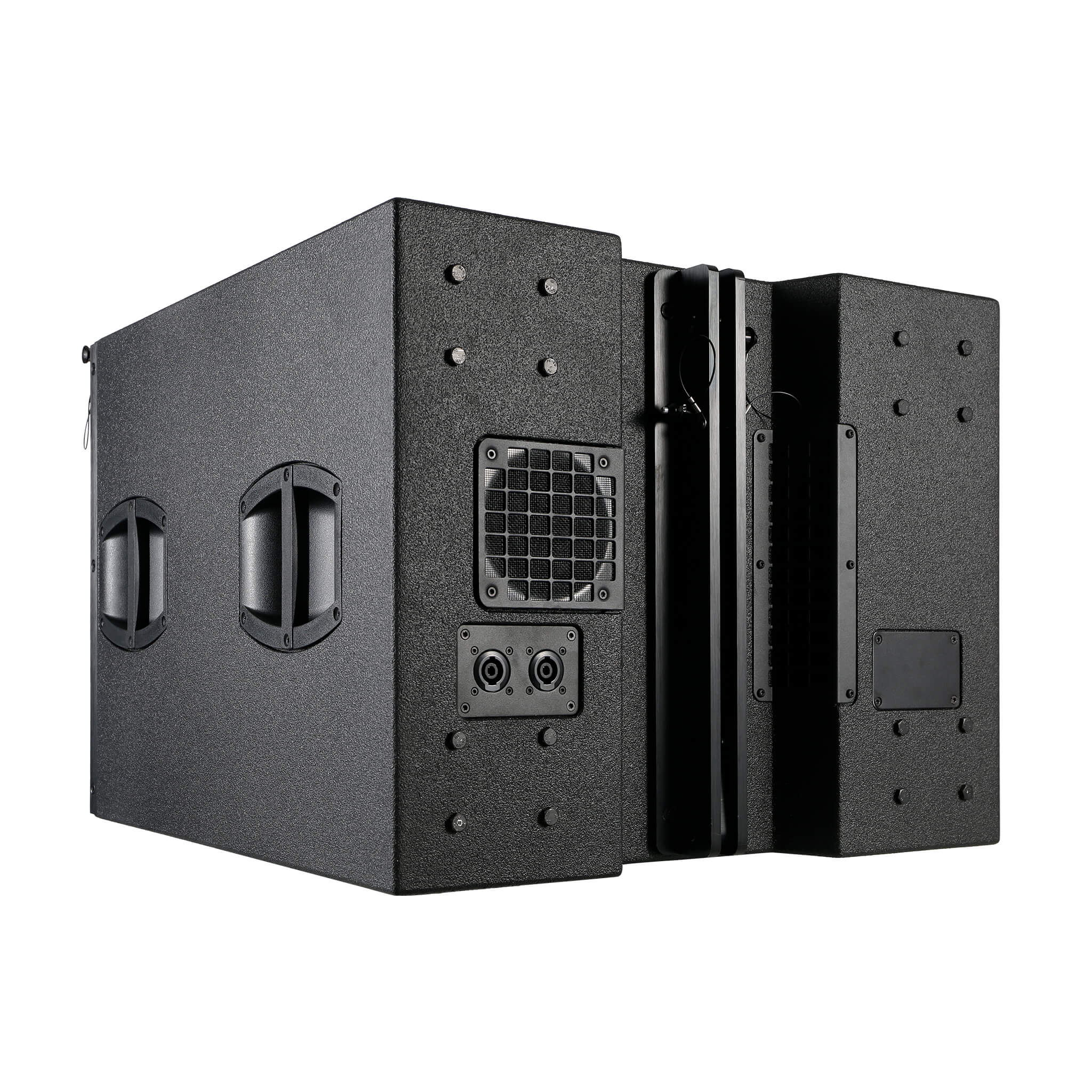

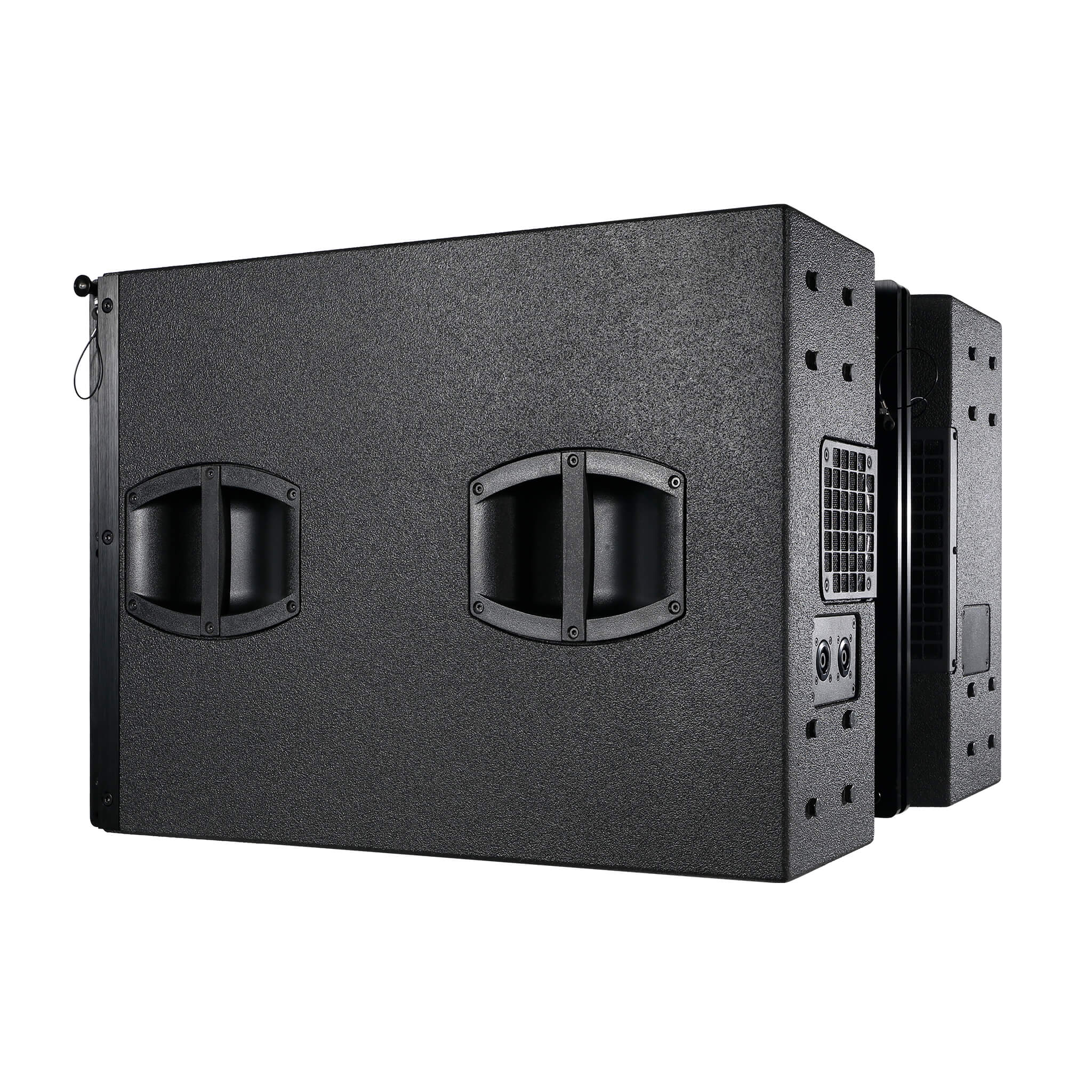

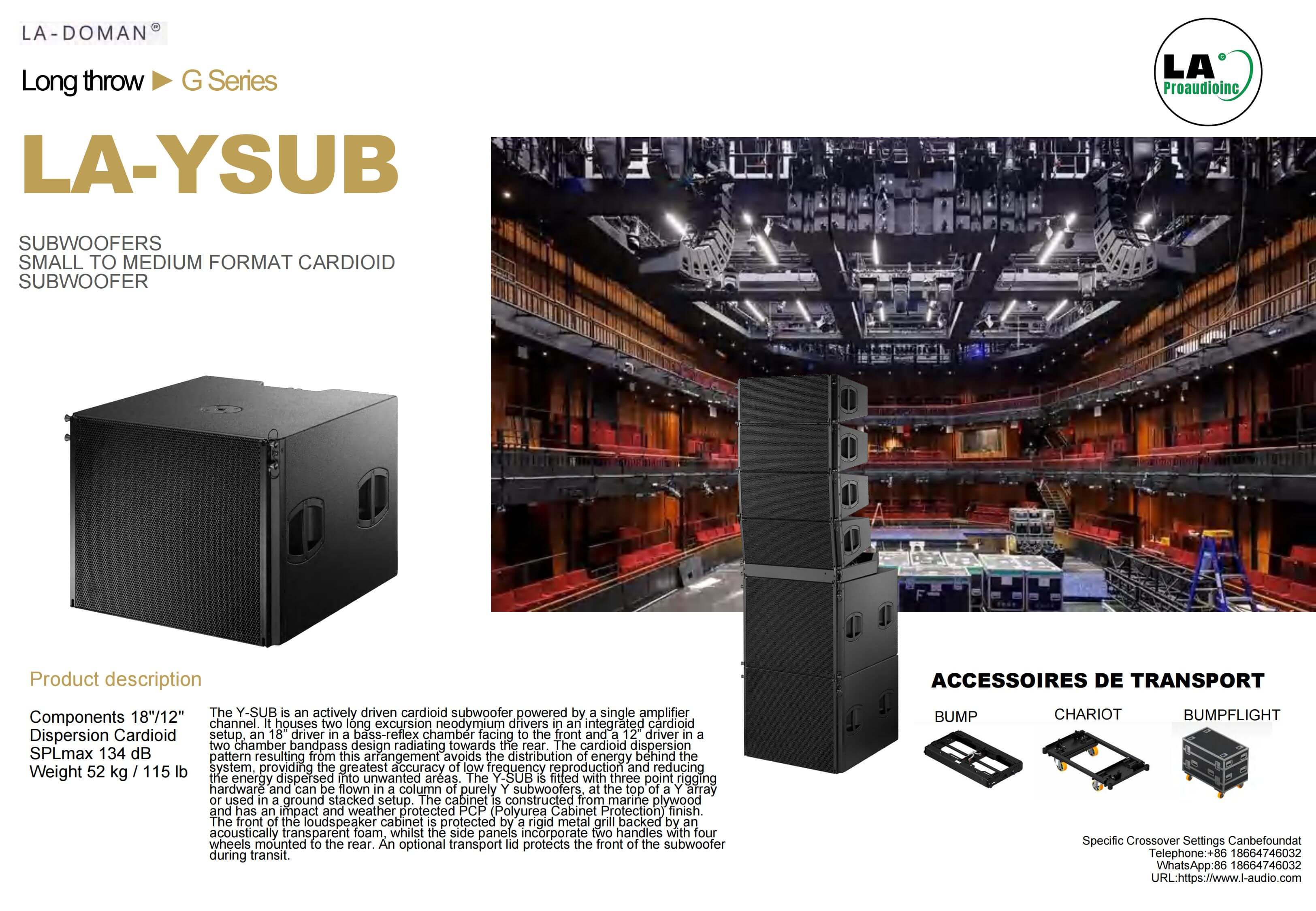

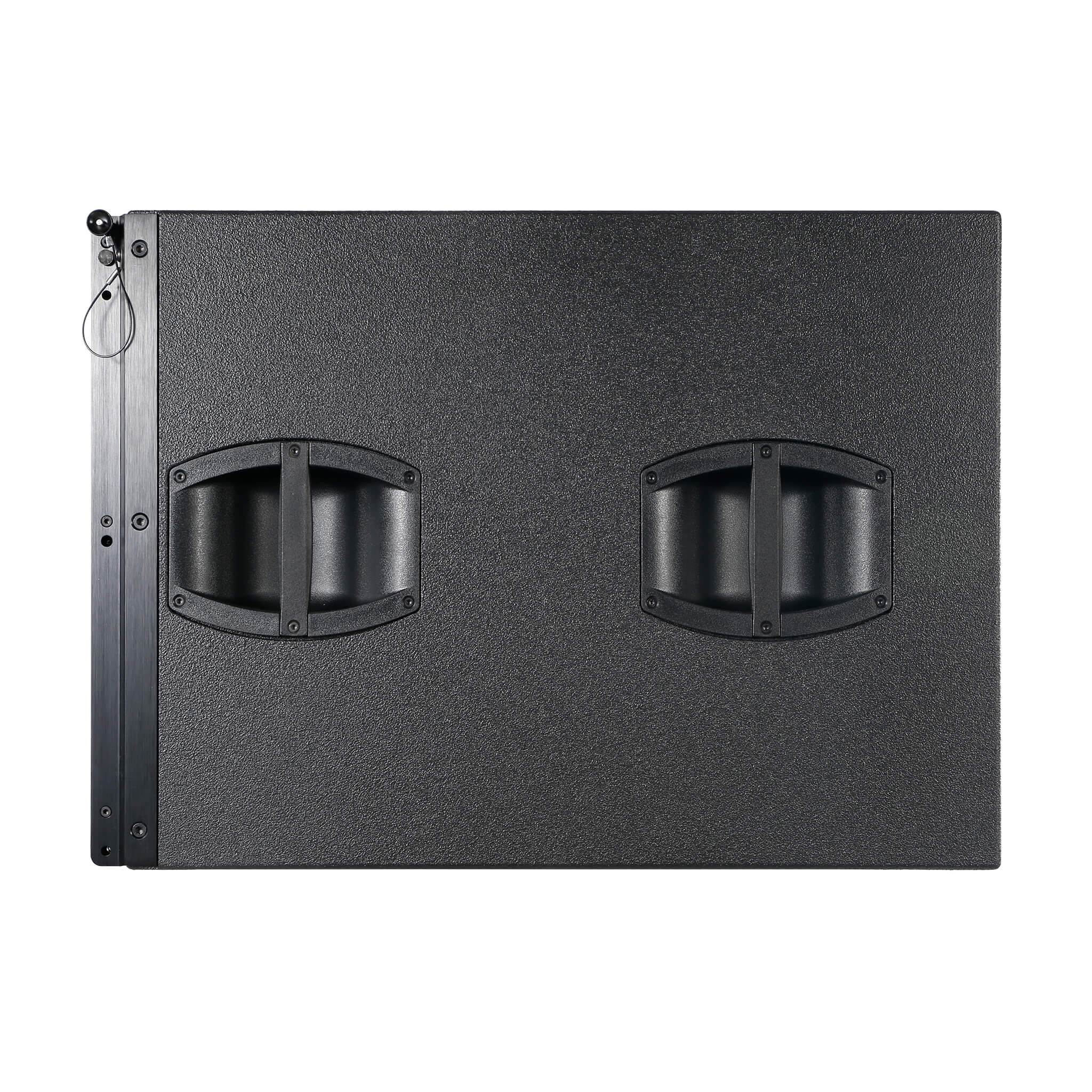

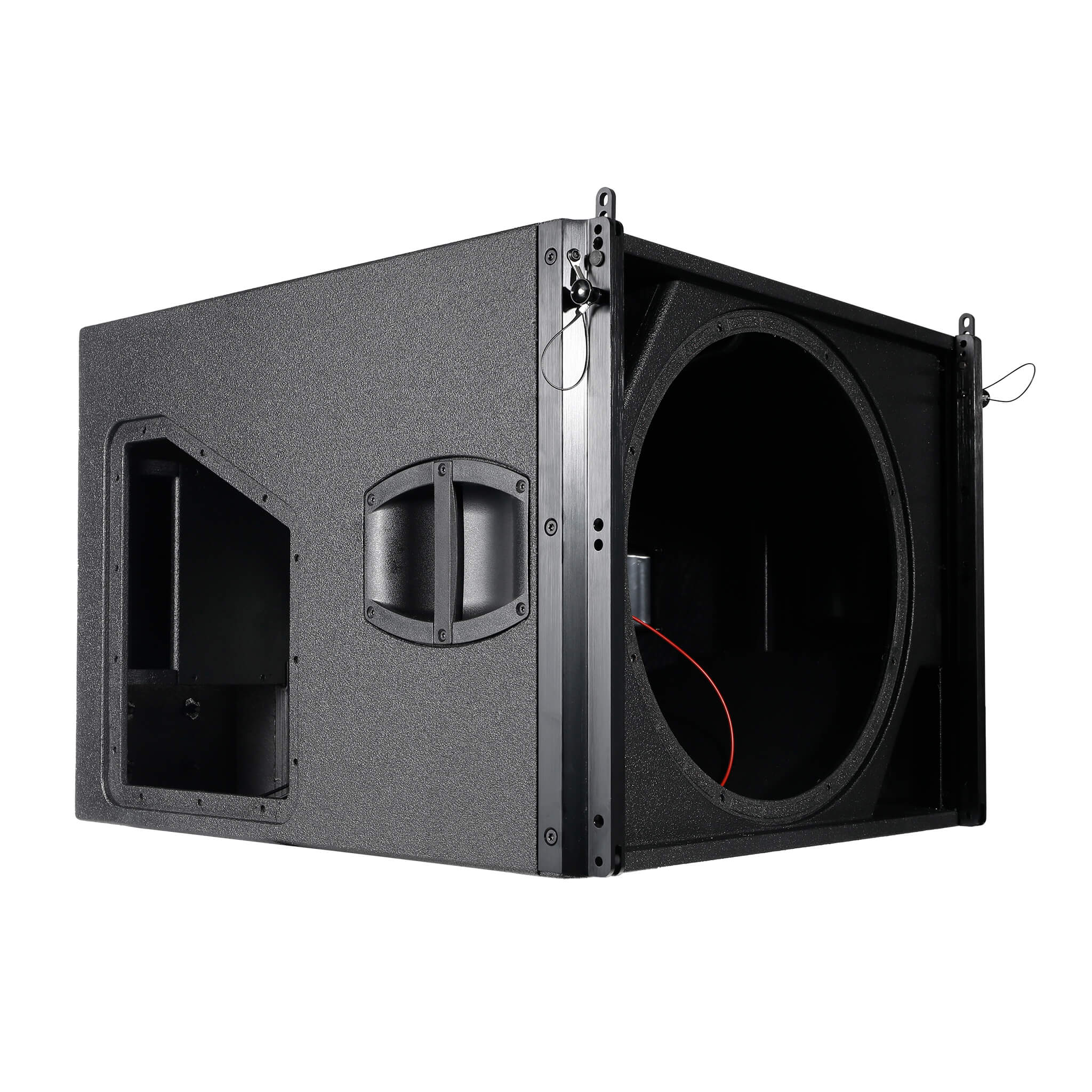

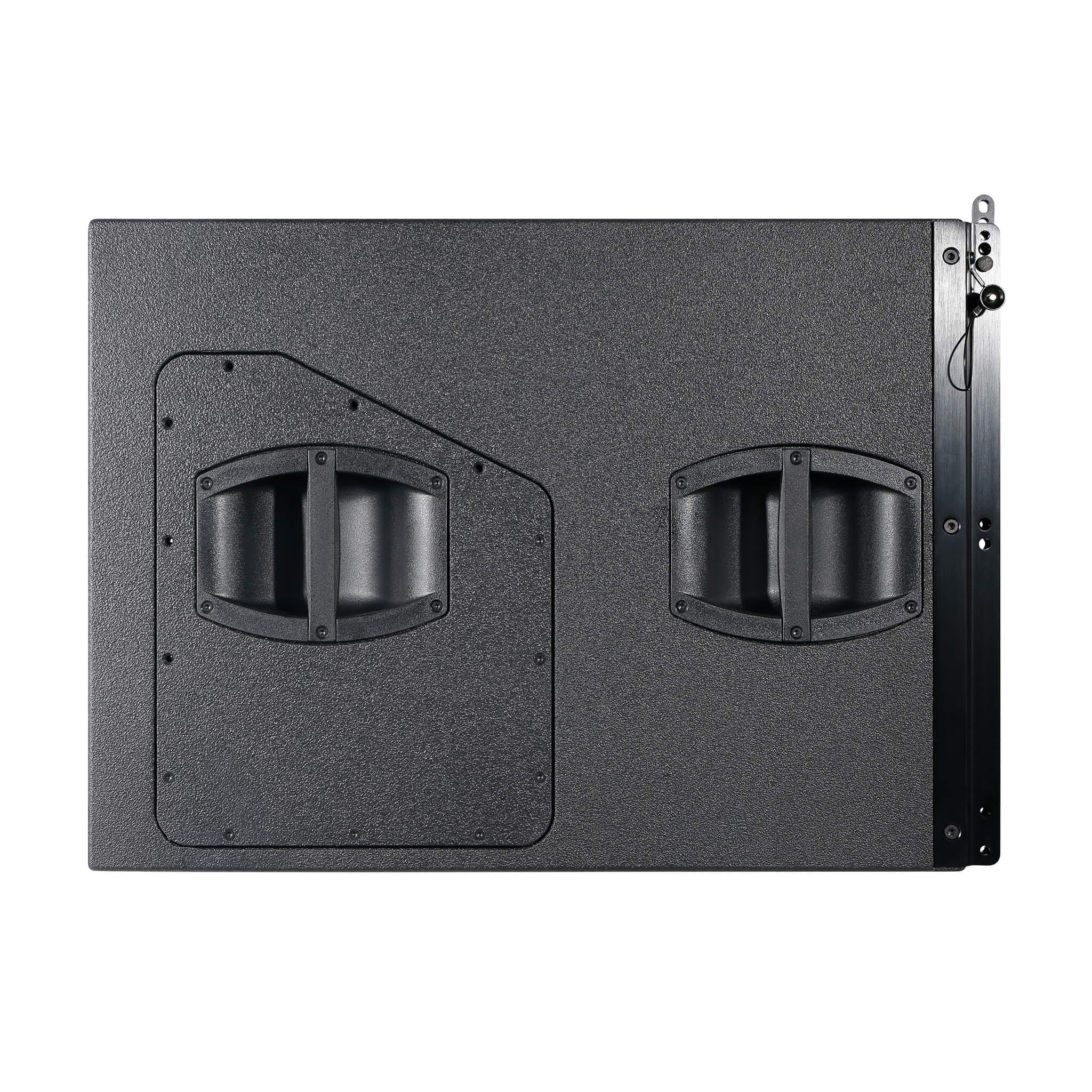

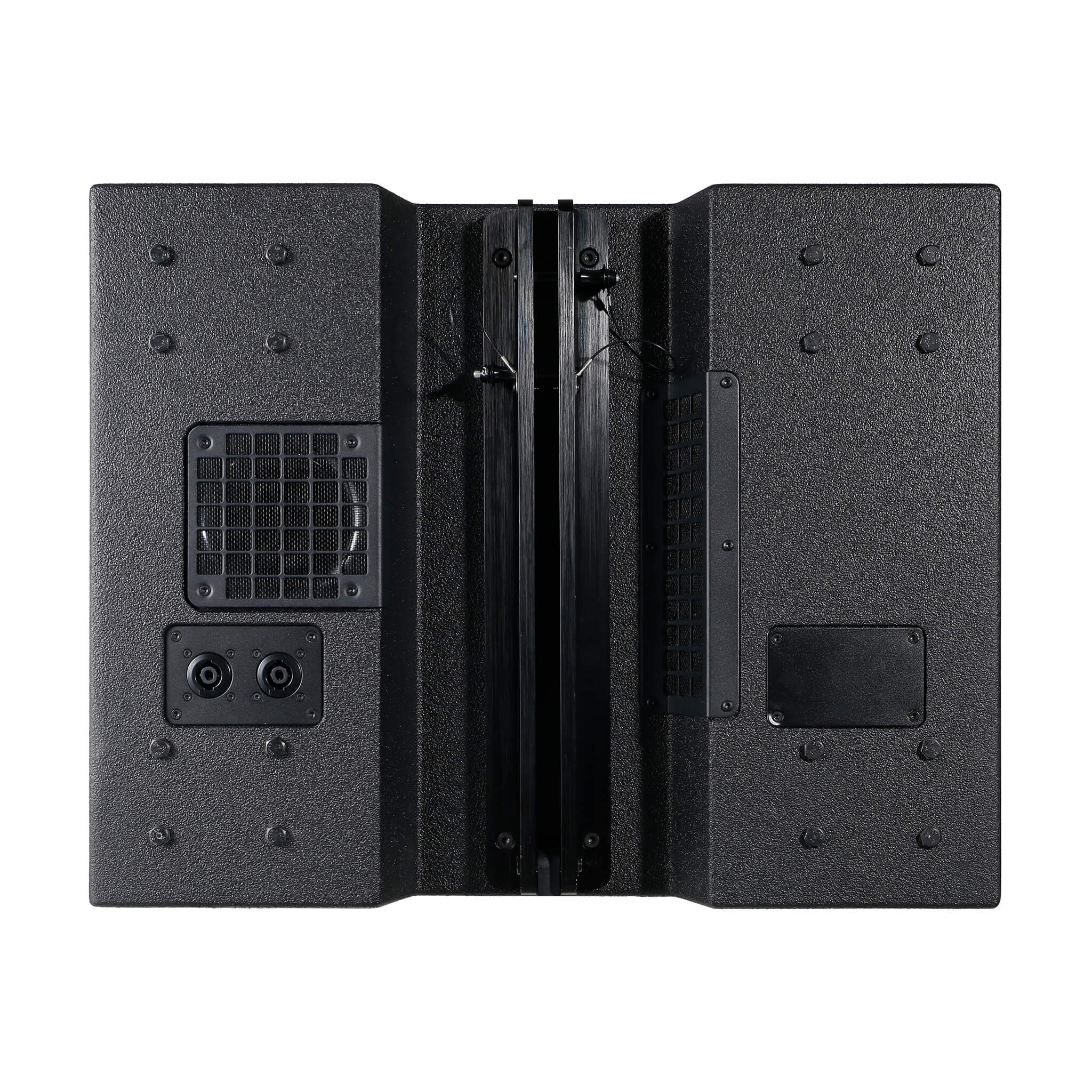

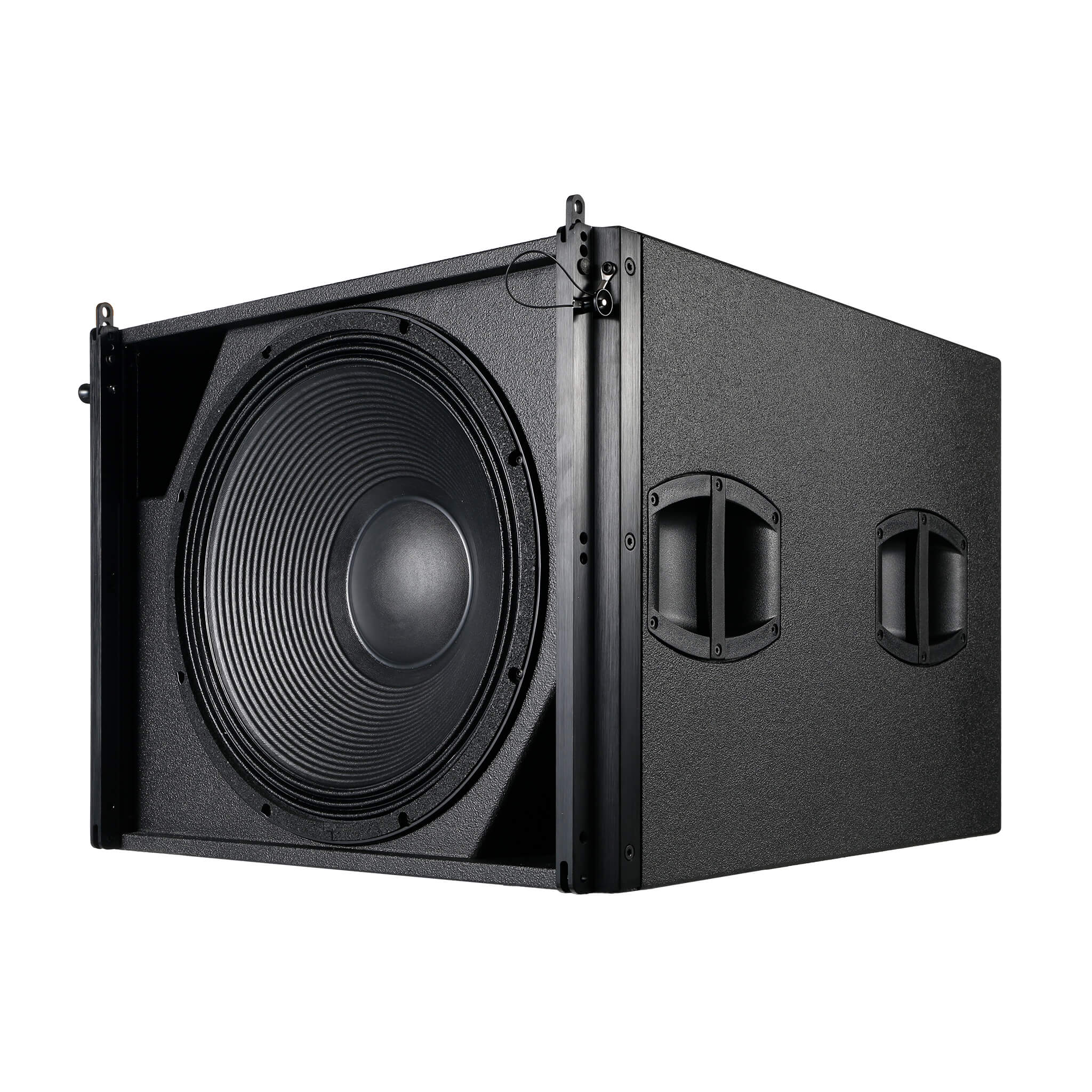

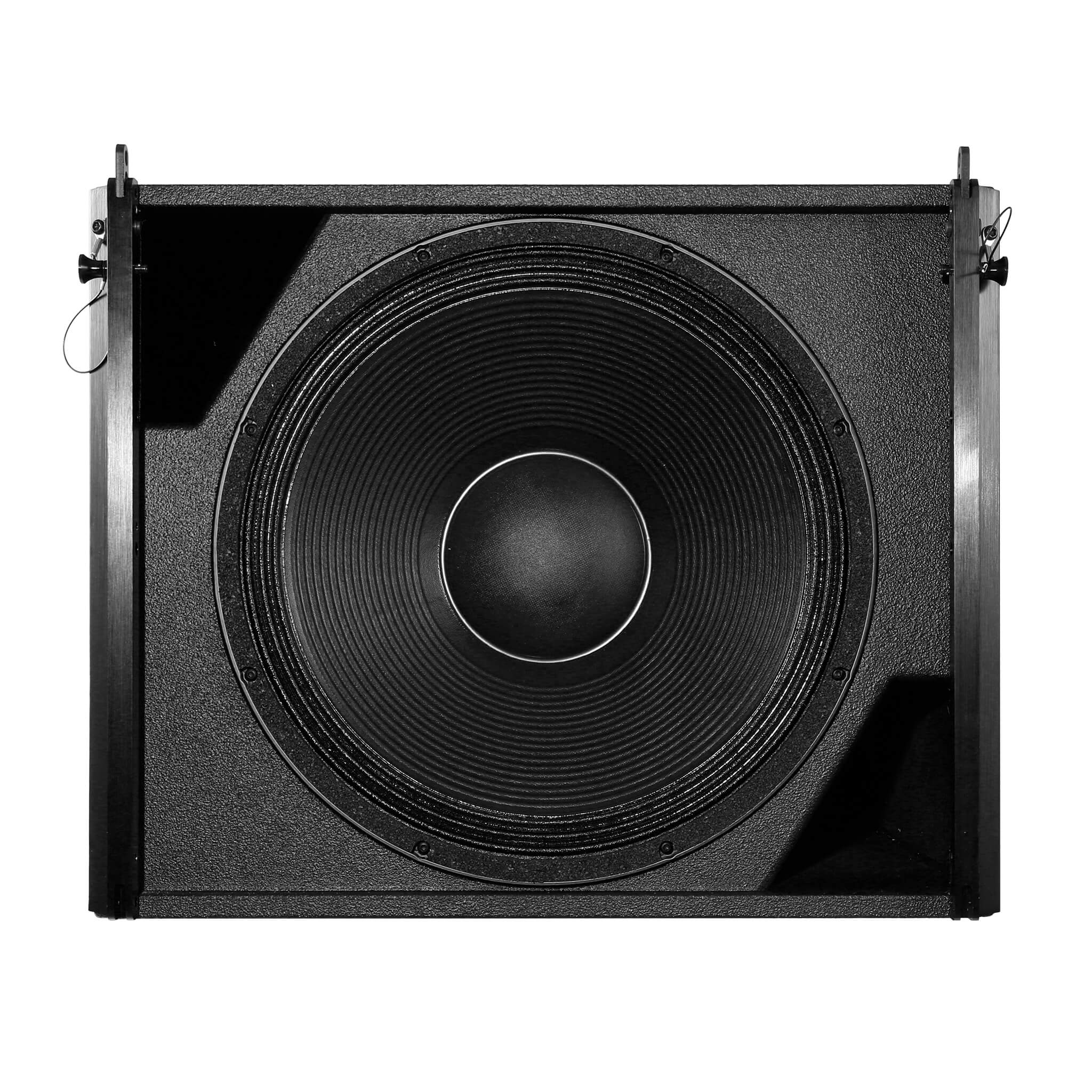

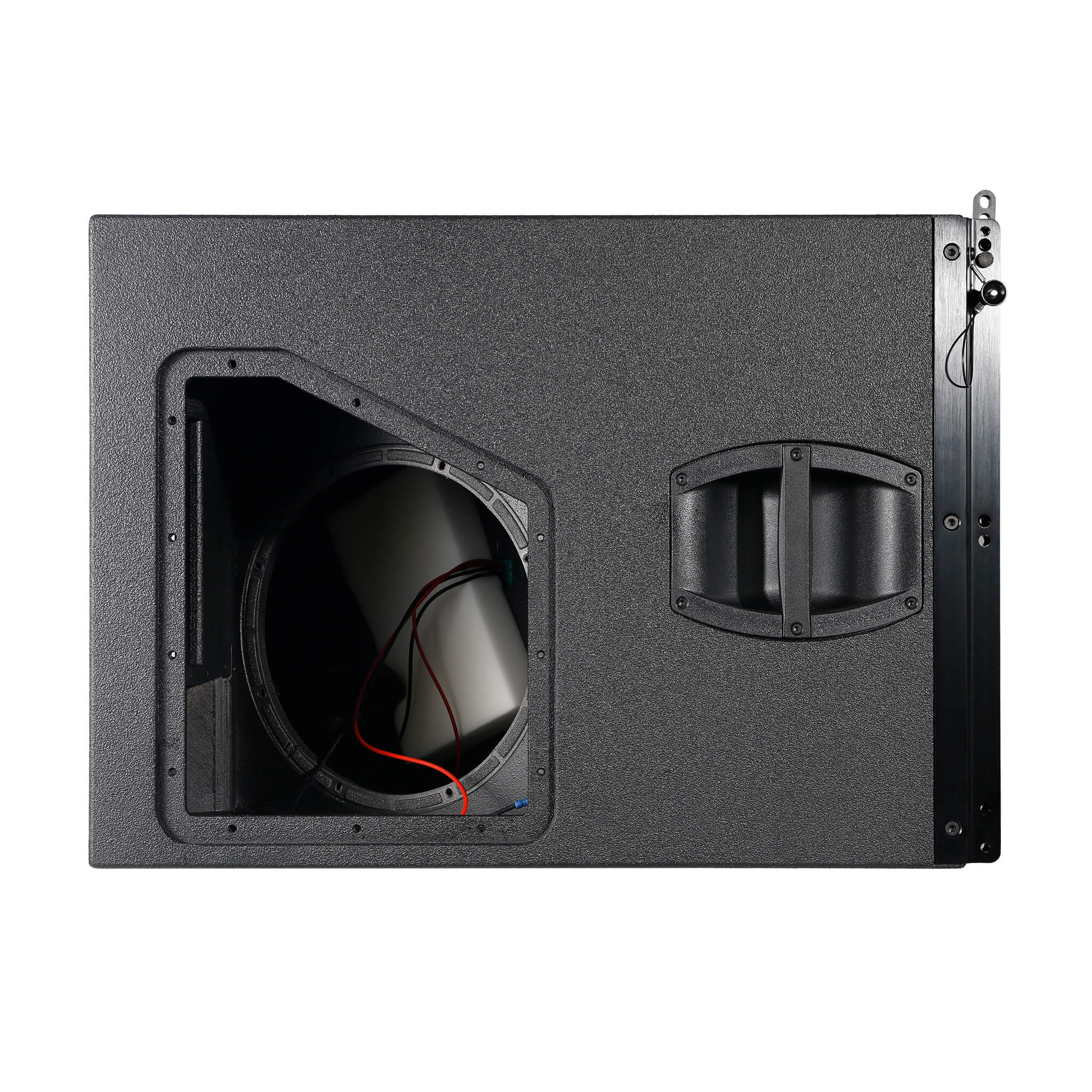

YSUB-Y118SUB Compact cardioid subwoofer, 18″ front + 12″ rear
• Configuration: Compact cardioid subwoofer, 18″ front + 12″ rear
• Max SPL: 134 dB
• Bandwidth (-5 dB): 37 Hz – 140 Hz
• Transducers:
• LF: 1 × 18″ (front) + 1 × 12″ (rear)
• Weight: 52 kg / 115 lb
• Directivity: Cardioid (front + rear drivers)
• Dimensions (H × W × D): 515 × 700 × 720 mm
• Nominal Impedance: 8 Ω
• Power Handling: 800 W AES / 1600 W Program / 3200 W Peak
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):39 Hz - 140 Hz
Frequency response (-5 dB 100 Hz mode):39 Hz - 110 Hz
Max. sound pressure1 with 10D:128 dB with D20/30D:131 dB with D40/D80/40D2:134 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance flyable cardioid subwoofer
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):600/2400 W
Splay angle settings:0° and 2.5°
Components:1 x 18" driver with neodymium magnet 1 x 12" driver with neodymium magnet
Connections:2 x NLT4 F/M
Dimensions (H x W x D):500 x 630 x 700 / 804 mm19.7 x 24.8 x 27.6 / 31.6"
Weight:52 kg115 lb
