- 1000W IP65 50 x 20W RGBW Moving Floodlight
- Published technical data

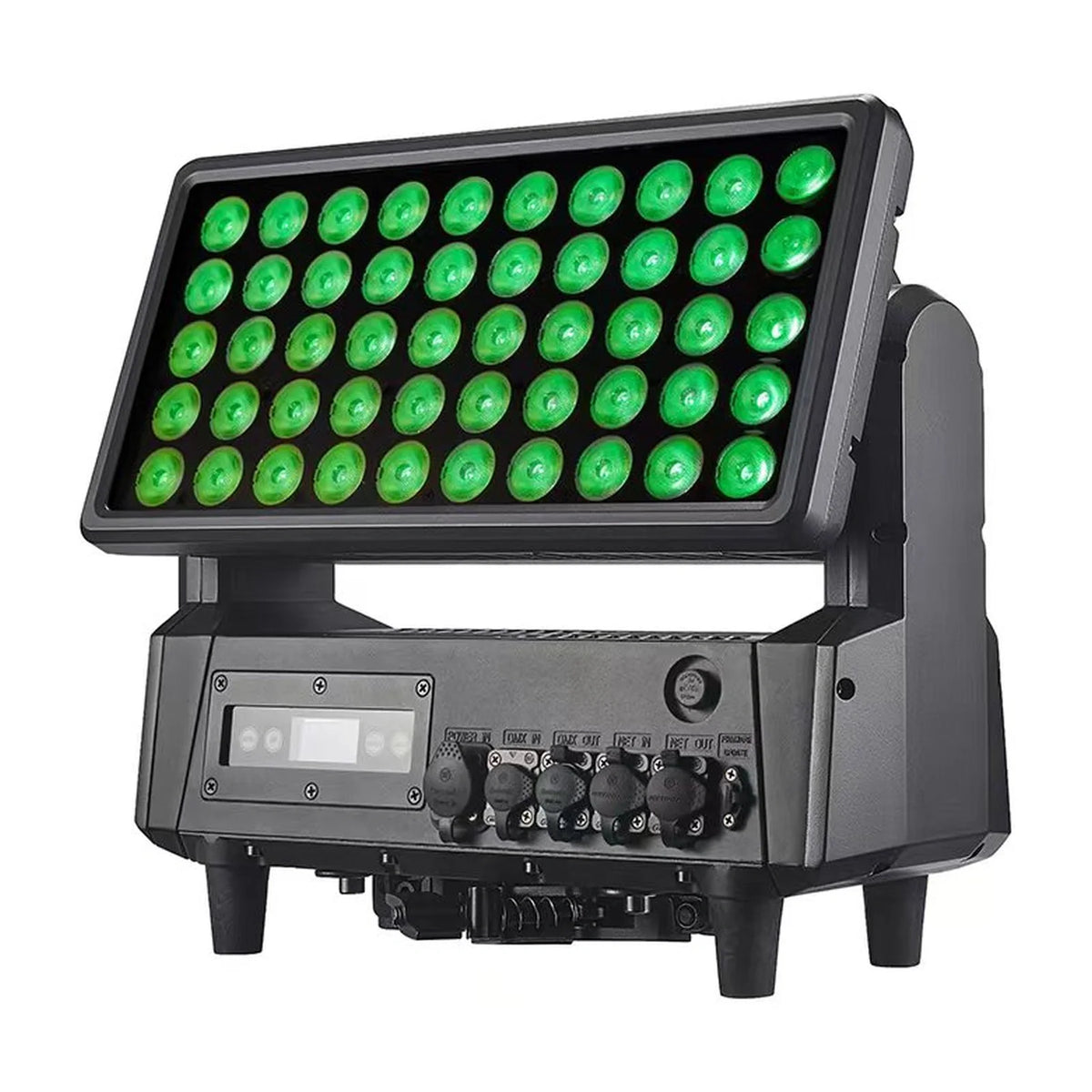

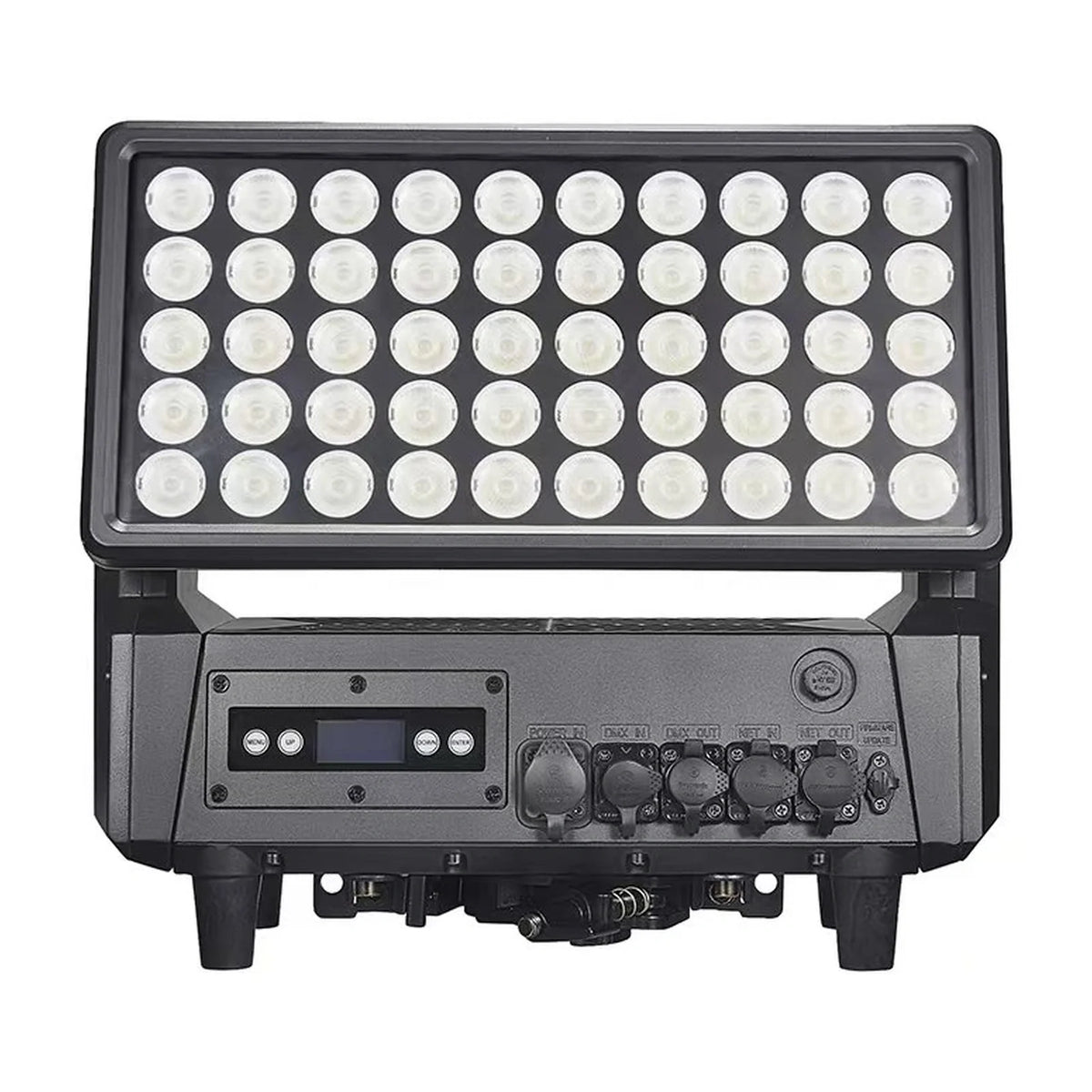

- LA SOUNDX RGBW output moves from saturated color to camera-ready white Supplied lit states show the same fifty-cell optical matrix in green and red 9000000605] LR & QQaa 5000000 | ll€eeaqee (HHH 1 EH 500 | jl lleecccecacs [0666008609 [{|eceseaccss | L I | LT iL A Po SF ye le | a EO Ii GE ERG, 26 226 615) Lo oH | bo WSDOT Ta aa A aed. a. ol 4 1 SE : = : J = ~ - be J i | CRE =m oA GREEN OUTPUT RED OUTPUT Photographs verify emitted color appearance; no measured lumen, lux or beam-distance data is supplied LA SOUNDX ‘www.l-audio.com 05
- Control and source data

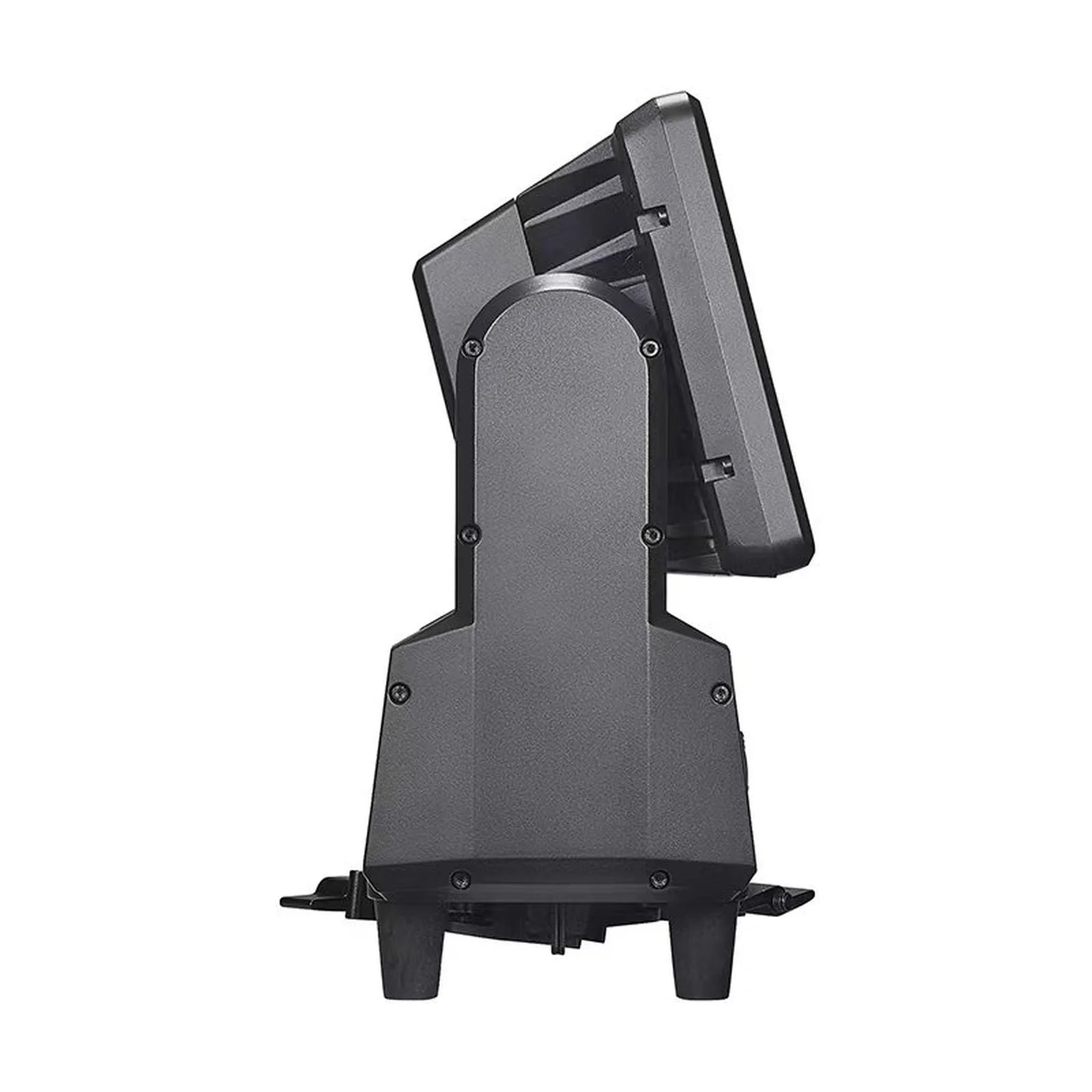

- A 220-degree moving axis redirects the complete color field The manuals specify 16-bit vertical precision, speed control, reversal and automatic position recovery Ph eT fi a <<" of il alo | 16-BIT PRECISION EF wl Coarse and fine Y-axis control are present in both documented profiles [ ; POSITION RECOVERY 4 | The manual describes photoelectricimagnetic positioning and automatic return after misposition. (@ 9) REVERSAL + SPEED 5 Y-axis reverse and adjustable movement speed are available in the menu www.l-audio.com 06
- Connections and installation
- LA SOUNDX Two DMX modes serve global and segmented color control The profiles are manual documented; no console fixture-library payload is supplied 12CH - GLOBAL CONTROL 32CH - SEGMENT ACCESS Y-axis coarse/fine, dimmer, strobe, RGBW, CCT, macro/auto, effect speed and reset The first twelve channels match the global profile, followed by five RGBW cell groups. are documented. The manual abbreviates the middle group rows. LIBRARY STATUS No D4, R20 or other fixture file is supplied. Confirm the production firmware and console personality before show use. LA SOUNDX ‘www.|-audio.com 07
- Dimensions and packing
- LA SOUNDX The 12CH profile concentrates the complete operating layer The English manual provides a full coarse/fine movement and global-color table 1-2 Y-axis coarse / fine 3 Master dimmer 4 Strobe + random strobe 5-8 Red / Green / Blue / White 9 2400K-10000K CCT macro 10 Color blend + auto effects 1 Effect speed 12 Motor reset Channel names and value bands are manual documented; library firmware match remains TBC LA SOUNDX ‘www.|-audio.com [1
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
