19 x 15W LED Zoom Wash Moving Head

Product: 19 x 15W LED Zoom Wash Moving Head
Input voltage: AC90-240V, 50/60Hz
Light source: 19 x 15W RGBW four-in-one LEDs; nominal LED load 285W
DMX modes: 16CH fixture-verified; 24CH manual-only and unverified
Dimming / strobe: 0-100% linear dimming / 1-30Hz in manuals
Movement: Pan 540 degrees; note tilt 250 degrees, manuals tilt 270 degrees
Protection: IP20 indoor
Product size: 31 x 21 x 37 cm
Packing: 46 x 29 x 37 cm / 8.3 kg gross, product note
Housing: Black high-temperature plastic plus die-cast alloy, per manuals

01

Nineteen RGBW LEDs Nineteen 15W RGBW four-in-one cells provide saturated wash color and white mixing.

Light source

19 x 15W RGBW four-in-one LEDs; nominal LED load 285W

DMX modes

16CH fixture-verified; 24CH manual-only and unverified

Movement

Pan 540 degrees; note tilt 250 degrees, manuals tilt 270 degrees

Input voltage

AC90-240V, 50/60Hz

01

Nineteen RGBW LEDs Nineteen 15W RGBW four-in-one cells provide saturated wash color and white mixing.

Motorized zoom

A dedicated focus/zoom channel changes the beam for broad wash or tighter coverage.

16-bit movement

Pan and tilt fine channels support accurate positioning in the verified 16CH profile.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

19 x 15W LED Zoom Wash Moving Head

Input voltage

AC90-240V, 50/60Hz

Light source

19 x 15W RGBW four-in-one LEDs; nominal LED load 285W

DMX modes

16CH fixture-verified; 24CH manual-only and unverified

Dimming / strobe

0-100% linear dimming / 1-30Hz in manuals

Movement

Pan 540 degrees; note tilt 250 degrees, manuals tilt 270 degrees

Protection

IP20 indoor

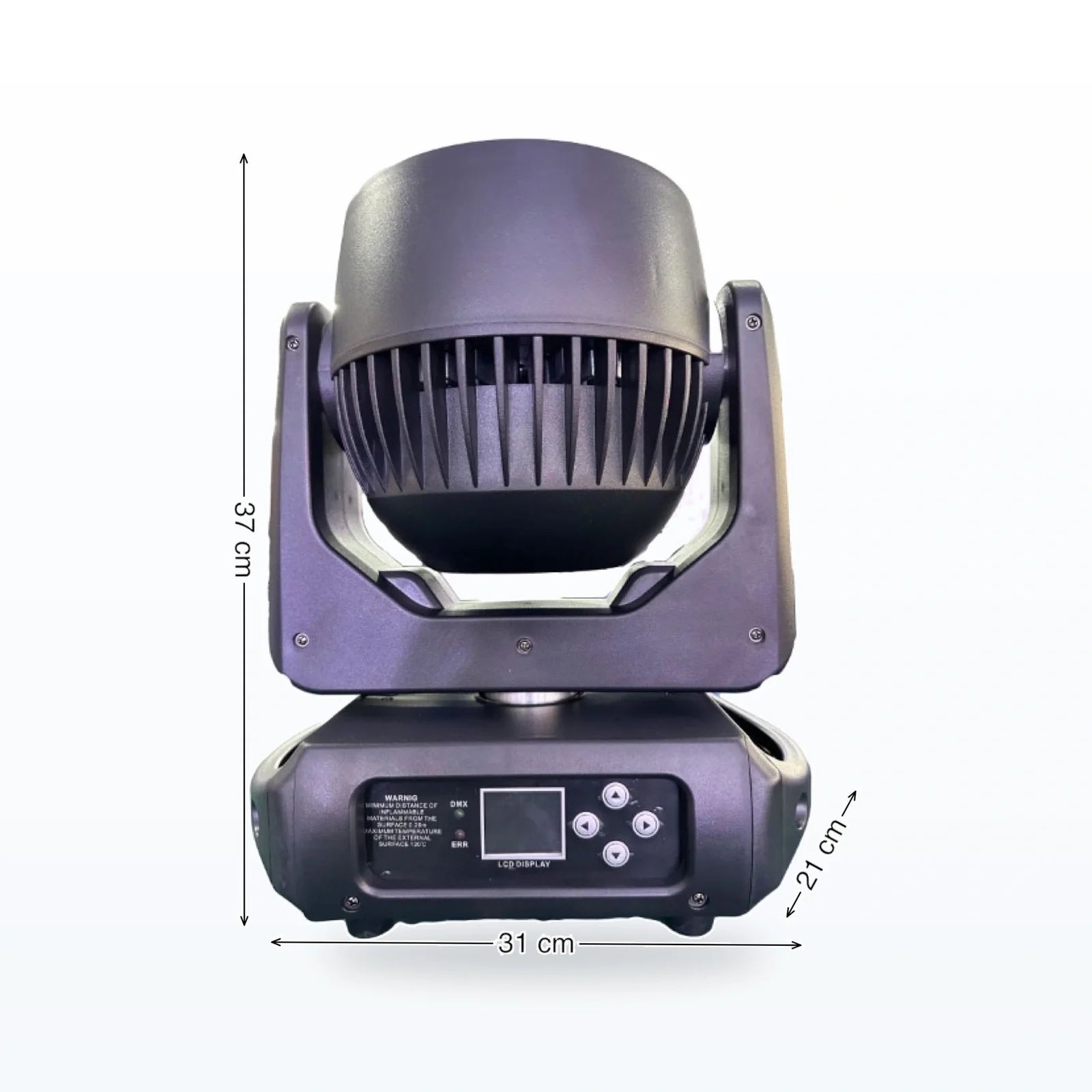

Product size

31 x 21 x 37 cm

Packing

46 x 29 x 37 cm / 8.3 kg gross, product note

Housing

Black high-temperature plastic plus die-cast alloy, per manuals
