36-Cell RGBW Diamond Matrix - Youth Edition

Name: 36-Cell RGBW Diamond Matrix - Youth Edition
Brand: LA SOUNDX
SKU: LSX-LIGHT-027
Price: 64.26 USD
Availability: InStock

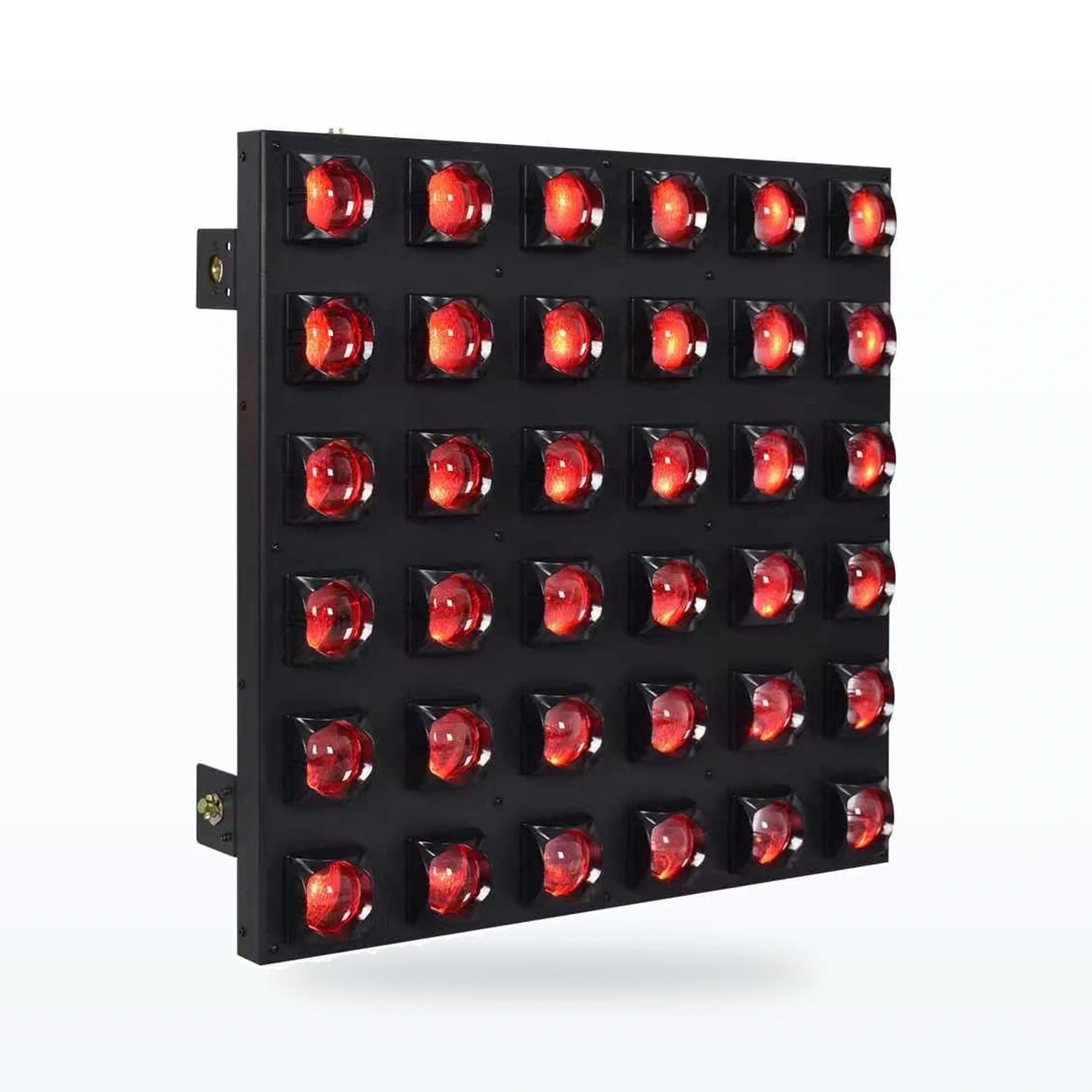

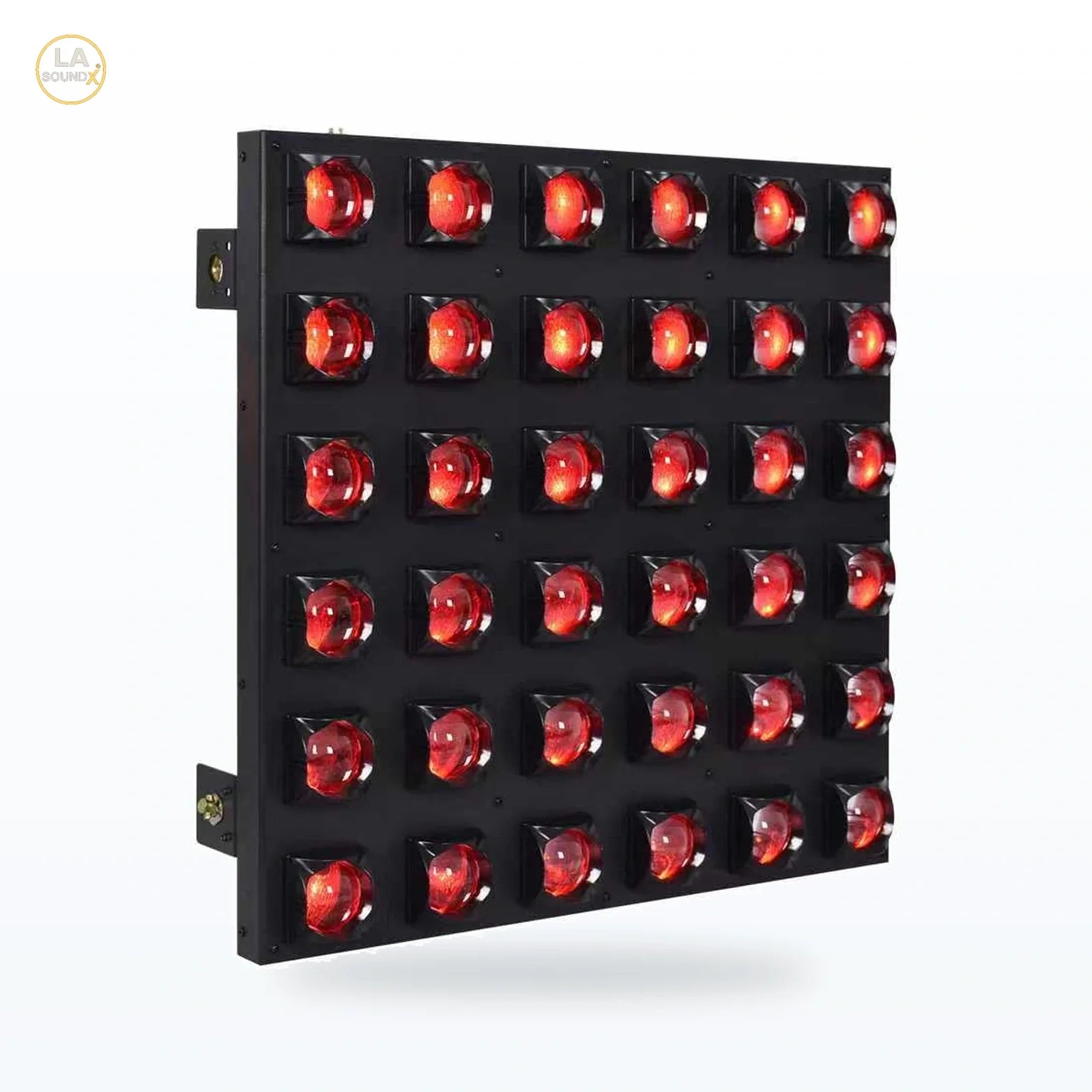

Six-by-six RGBW matrix Thirty-six diamond-style RGBW cells form a square pixel canvas for color, strobe and chase effects.

01

Six-by-six RGBW matrix Thirty-six diamond-style RGBW cells form a square pixel canvas for color, strobe and chase effects.

Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / automatic / master-slave / sound-active; RDM documented
Dimming / strobe: 32-bit 0-100% linear dimming / 1-30Hz
Environment: -30 to 50 degrees C / IP20 indoor

Six-by-six RGBW matrix Thirty-six diamond-style RGBW cells form a square pixel canvas for color, strobe and chase effects.

Dedicated current-product fixture files verify 4CH, 12CH and 144CH control footprints.

Automatic, master/slave and sound-active modes support operation without a console.

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product: 36-Cell RGBW Diamond Matrix - Youth Edition
Input voltage: AC100-240V, 50/60Hz
Product: note: 36 x 4W RGBW Cree; both manuals: 36 x 8W RGBW Cree - TO BE CONFIRMED
Control modes: DMX512 / automatic / master-slave / sound-active; RDM documented
Dimming / strobe: 32-bit 0-100% linear dimming / 1-30Hz
Environment: -30 to 50 degrees C / IP20 indoor

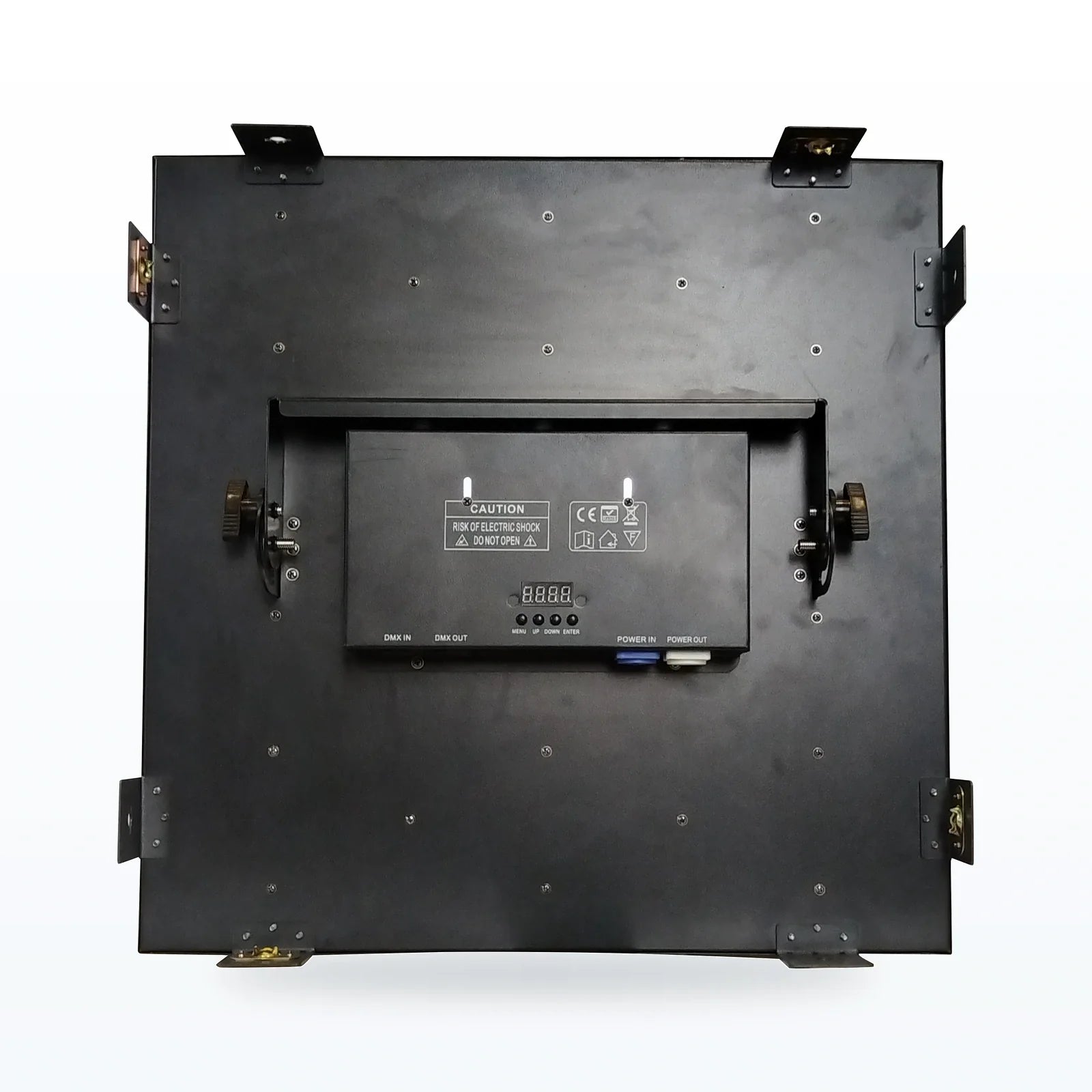

Connections: DMX input/output and power input/output
Packing size: / gross weight
Housing: Metal, black
