Three-in-one optical platform Beam, spot and wash functions are combined with motorized focus and a stated 4-35-degree linear zoom range.
Product: 400W LED BSW CMY+CTO Moving Head
Input voltage: AC110-240V, 50/60Hz
Light source: 400W LED module; 8000K; 50,000-hour and CRI >95 claims
DMX channels: 23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict
Control modes: DMX512 / RDM / self-running / master-slave
Color system: 8 colors + open; linear CMY + CTO color mixing
Strobe: 0-30 flashes/second with variable-speed and macro effects
Dimming: 0-100%; linear dimming
Movement: 540-degree pan / 270-degree tilt / 16-bit positioning
Size / weight: Manual: 38 x 27 x 65cm / 22.5kg; source dimension evidence conflicts at 67cm / 22.9kg
Environment: IP20; stated operating environment -20 to 40 degrees C

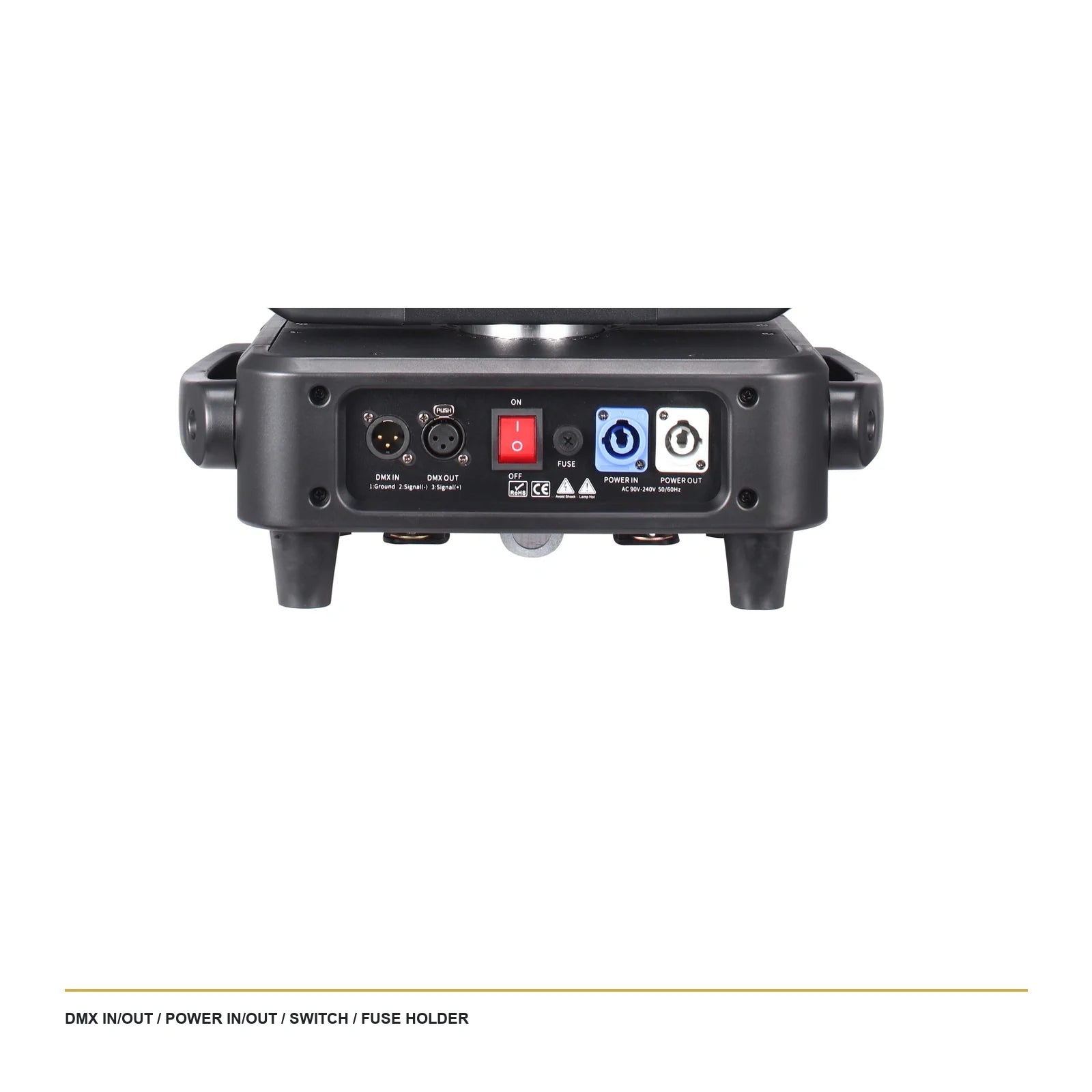

Electrical protection: Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
01
Three-in-one optical platform Beam, spot and wash functions are combined with motorized focus and a stated 4-35-degree linear zoom range.
- Light source
- 400W LED module; 8000K; 50,000-hour and CRI >95 claims
- DMX channels
- 23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict
- Movement
- 540-degree pan / 270-degree tilt / 16-bit positioning
- Input voltage
- AC110-240V, 50/60Hz
01
Three-in-one optical platform Beam, spot and wash functions are combined with motorized focus and a stated 4-35-degree linear zoom range.
Layered effect system
Linear CMY+CTO, fixed and rotating gobos, frost, and independently rotating 3-facet and 8-facet prisms support varied cues.
Professional movement
540-degree pan, 270-degree tilt and 16-bit positioning support accurate stage coverage.
Technical specification
Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.
- Product
- 400W LED BSW CMY+CTO Moving Head
- Input voltage
- AC110-240V, 50/60Hz
- Light source
- 400W LED module; 8000K; 50,000-hour and CRI >95 claims
- DMX channels
- 23CH: manuals, D4 and R20 agree; XML offsets 18-21 conflict
- Control modes
- DMX512 / RDM / self-running / master-slave
- Color system
- 8 colors + open; linear CMY + CTO color mixing
- Strobe
- 0-30 flashes/second with variable-speed and macro effects
- Dimming
- 0-100%; linear dimming
- Movement
- 540-degree pan / 270-degree tilt / 16-bit positioning
- Size / weight
- Manual: 38 x 27 x 65cm / 22.5kg; source dimension evidence conflicts at 67cm / 22.9kg
- Environment
- IP20; stated operating environment -20 to 40 degrees C
- Electrical protection
- Grounded Class I supply required. Fuse holder is visible; fuse value and rated current: TBC.
