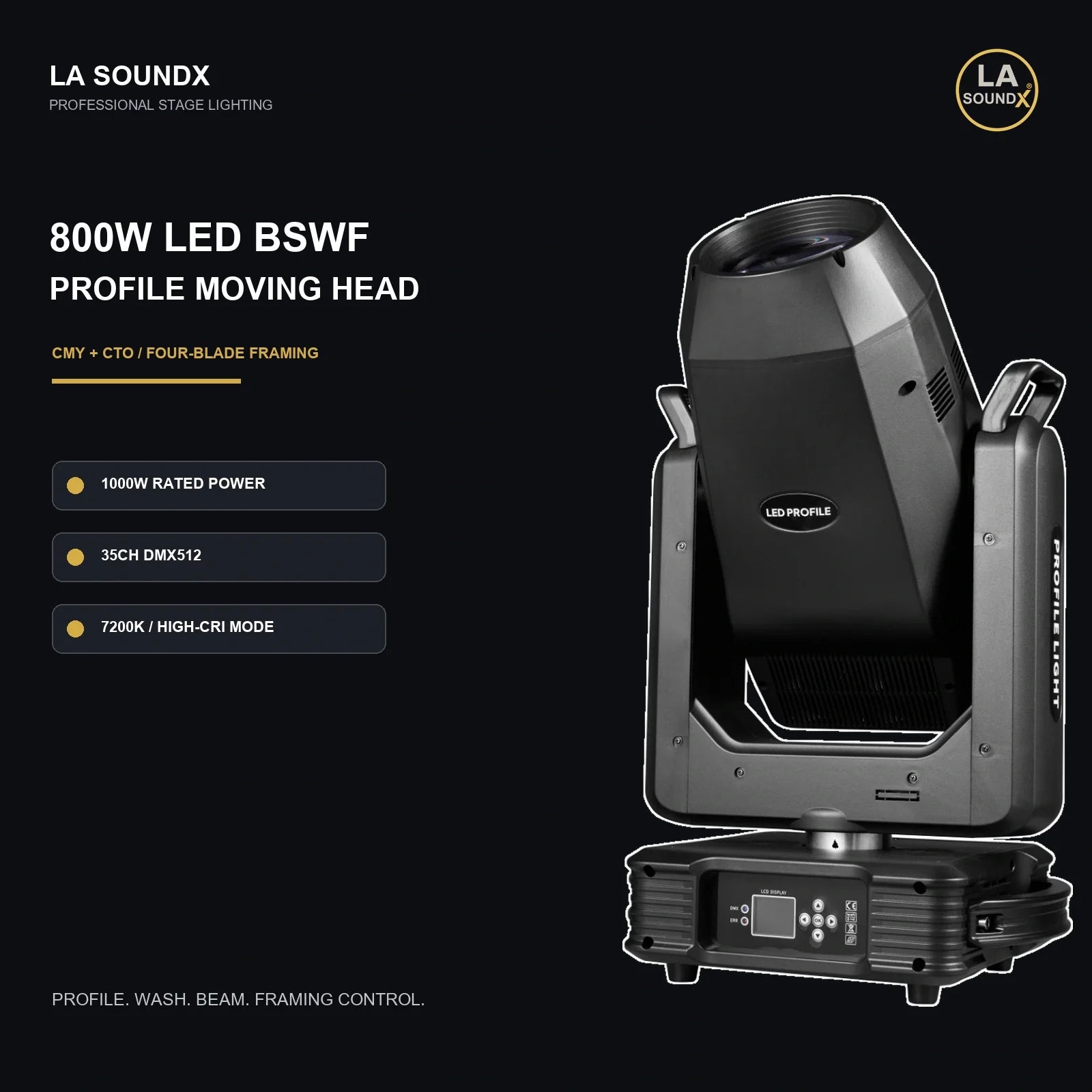

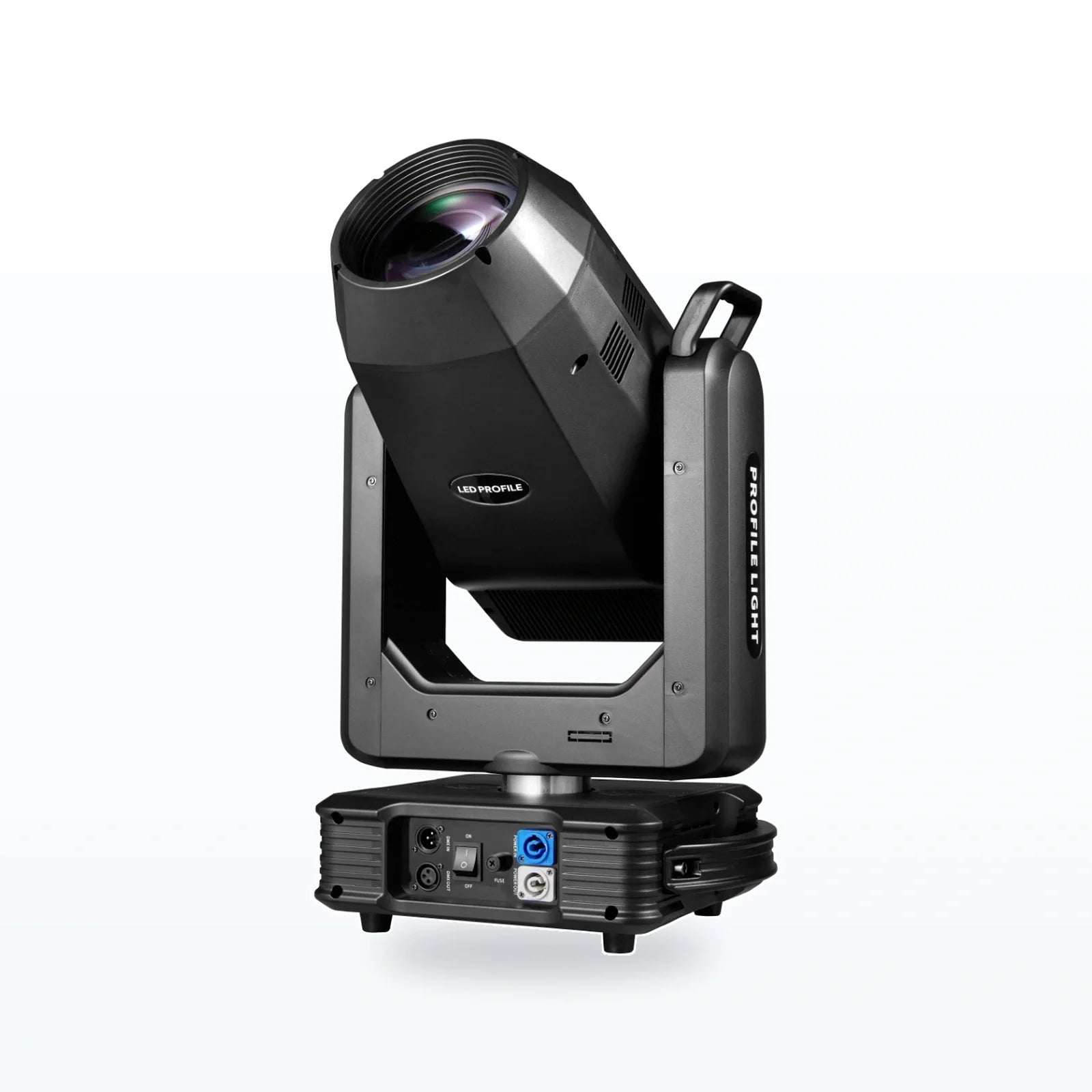

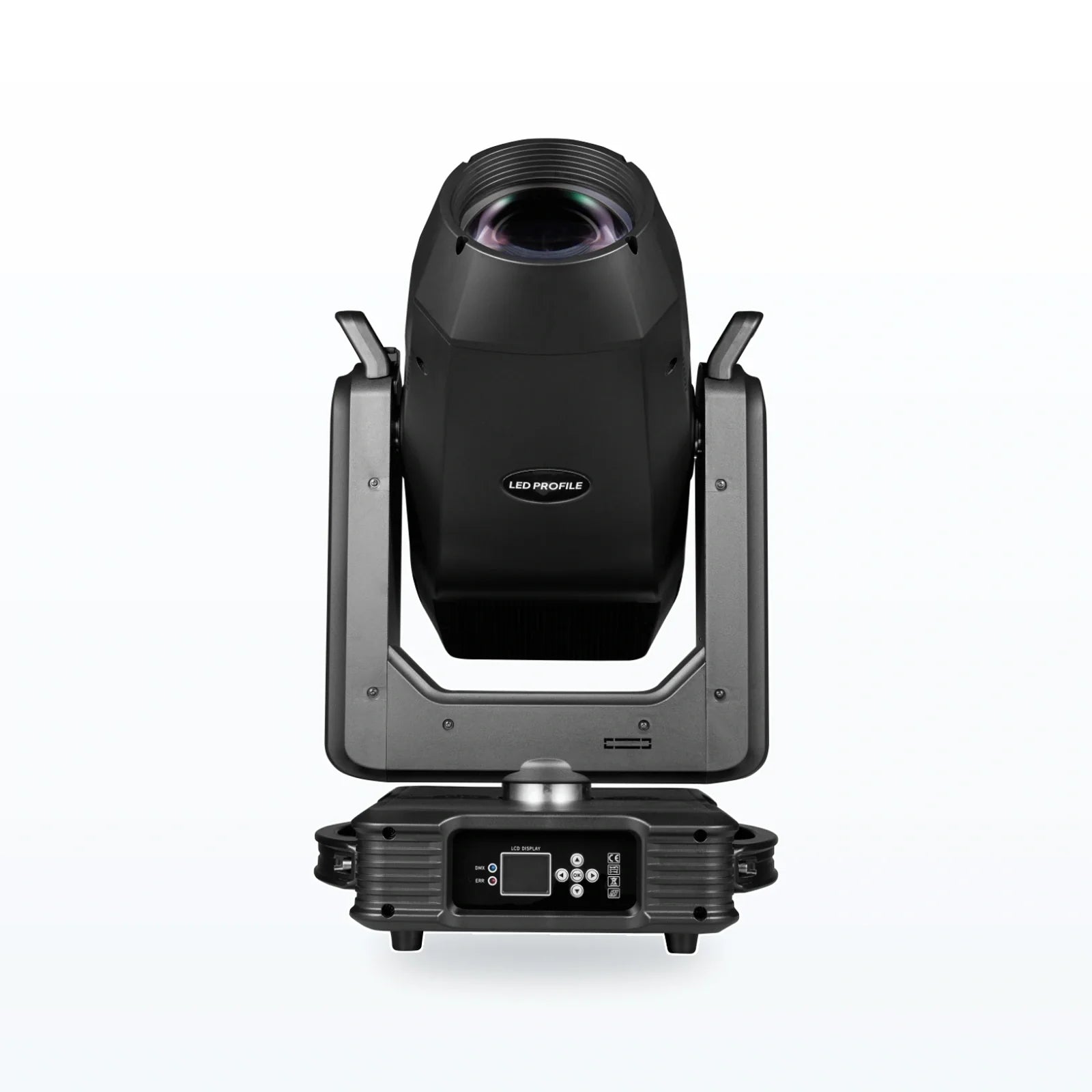

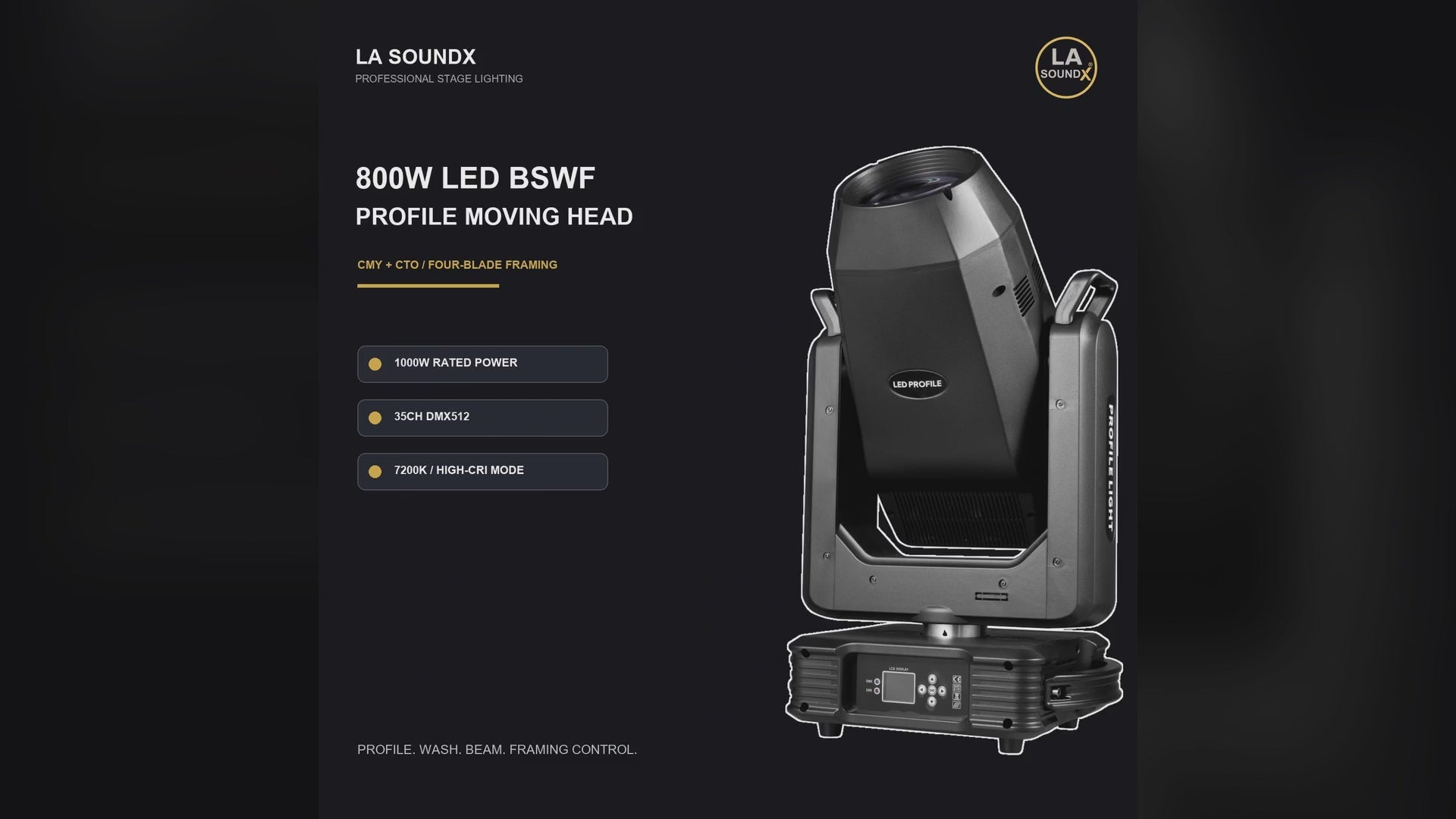

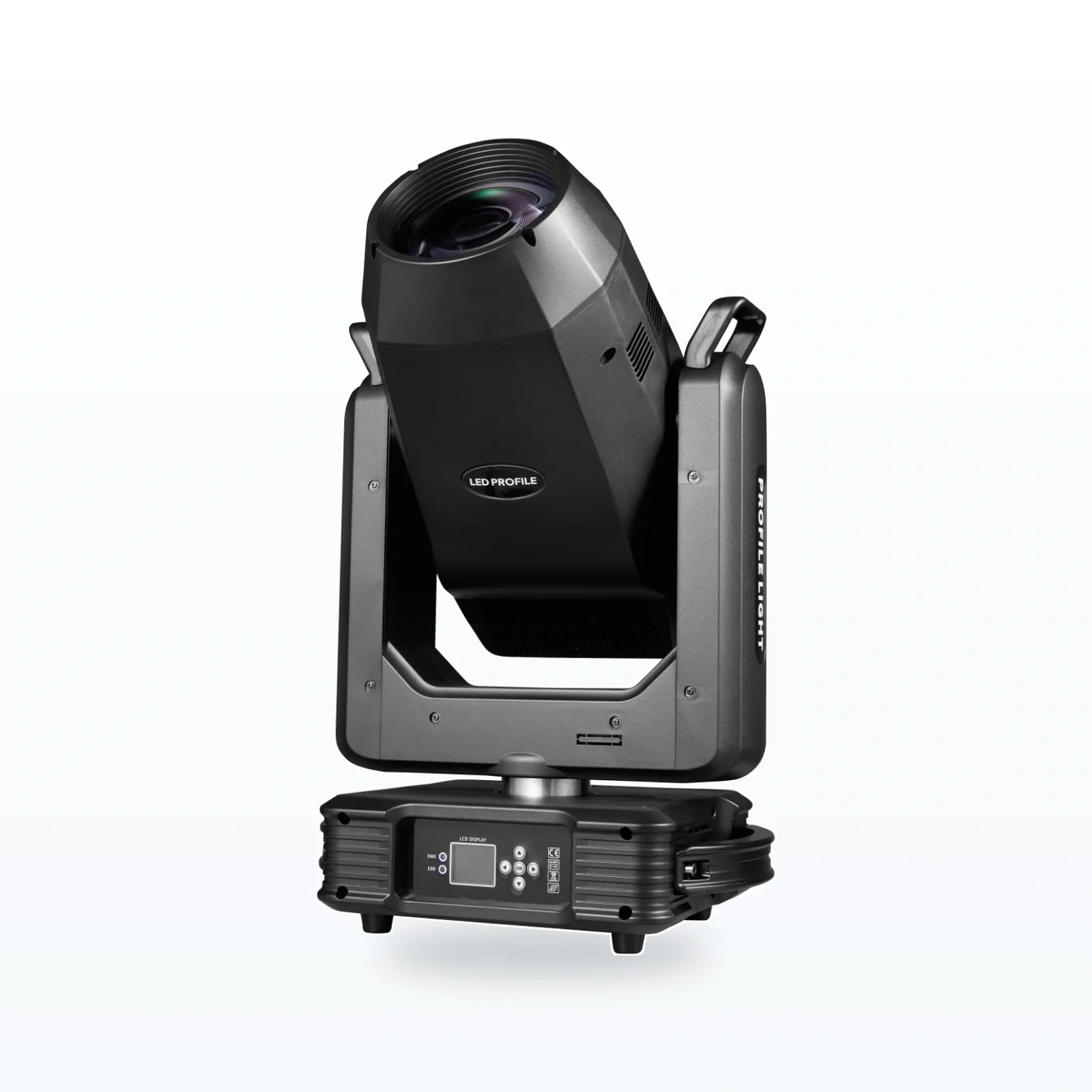

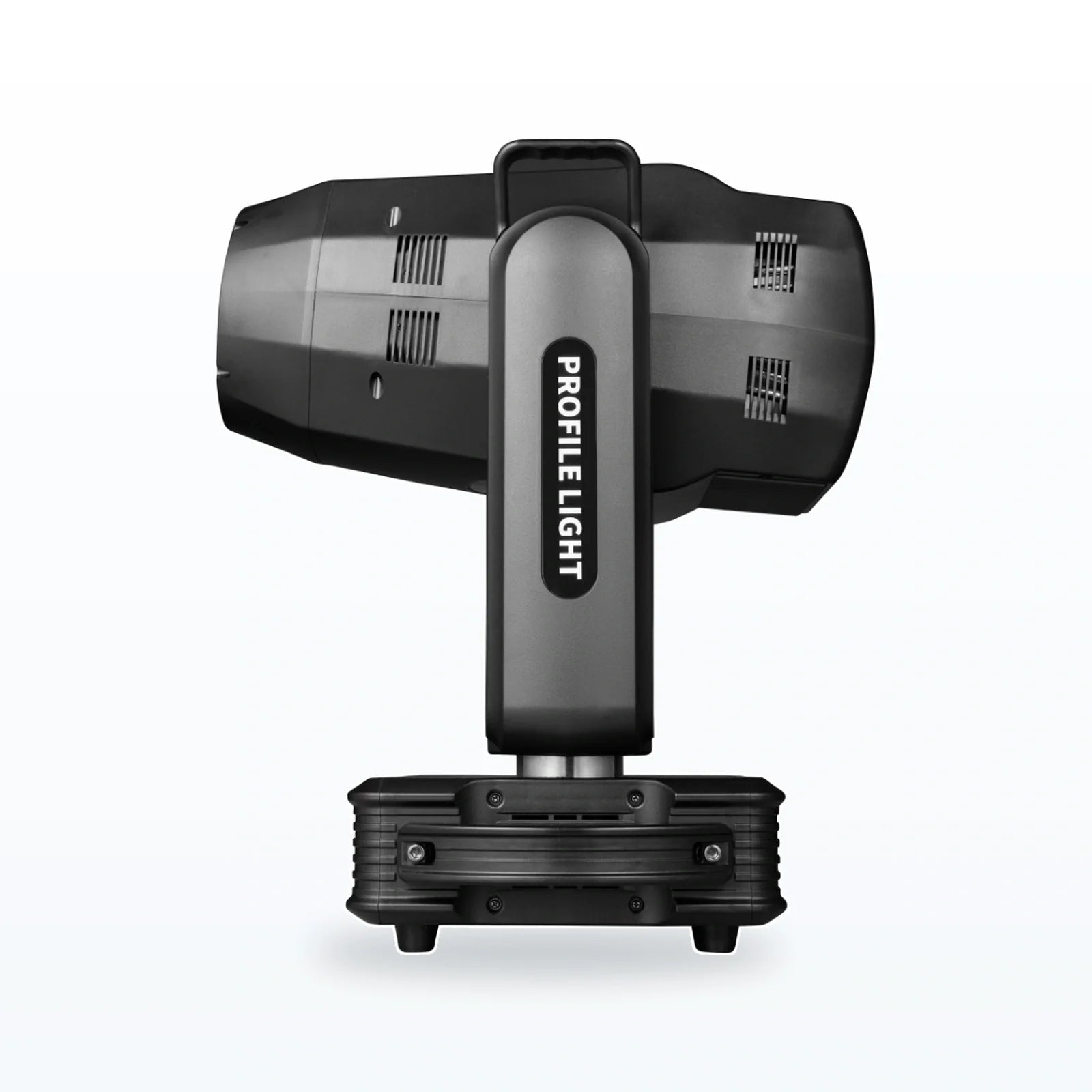

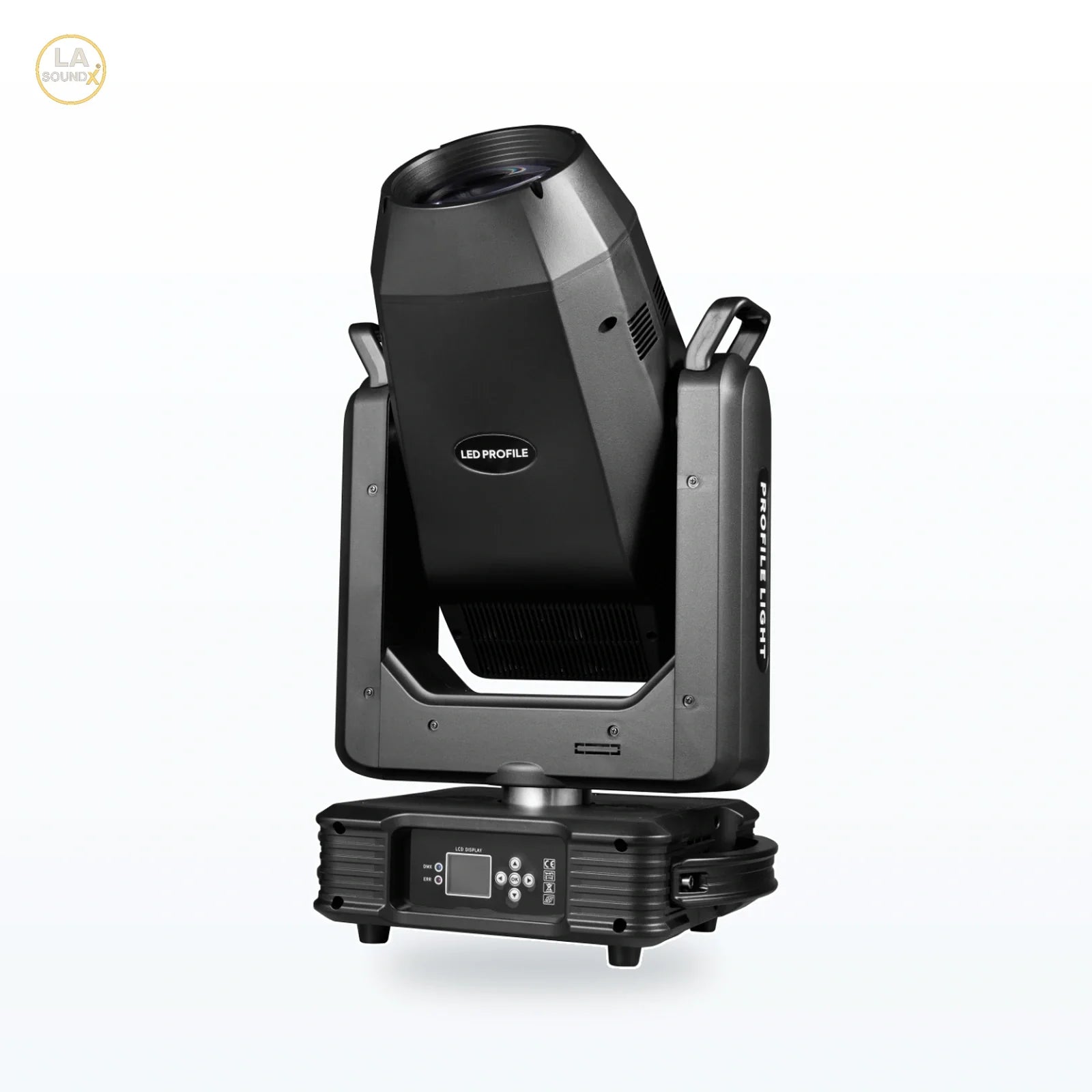

800W LED BSWF Profile Moving Head with CMY + CTO

Name: 800W LED BSWF Profile Moving Head with CMY + CTO
Brand: LA SOUNDX
SKU: LSX-LIGHT-020
Price: 566.54 USD
Availability: InStock

800W LED module The current product note identifies an 800W LED module with 20,000-hour source life.

01

800W LED module The current product note identifies an 800W LED module with 20,000-hour source life.

Rated power: 1000W
Light source: 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours
DMX channels: 35CH DMX512; XML, D4 and R20 agree
Movement: Pan 540 degrees / tilt 270 degrees / 16-bit fine channels

01

800W LED module The current product note identifies an 800W LED module with 20,000-hour source life.

CMY + CTO color system

Independent cyan, magenta, yellow and CTO channels support continuous color and temperature control.

Four-blade framing

A macro channel, eight blade-control channels and framing rotation shape precise projection areas.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product: 800W LED BSWF Profile Moving Head with CMY + CTO
Input voltage: TO BE CONFIRMED: note AC100-240V; manuals AC200-240V
Rated power: 1000W
Light source: 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours
DMX channels: 35CH DMX512; XML, D4 and R20 agree
Control modes: DMX512 / master-slave / automatic; menu lists sound-active
Color system: CMY + CTO plus color wheel; channel 13 labeling conflict
Focus: / zoom
Movement: Pan 540 degrees / tilt 270 degrees / 16-bit fine channels
Product size: 37 x 27 x 67 cm
Packing: Gross weight and packing size TO BE CONFIRMED
Protection: IP20 indoor; verify actual voltage and protective earth before connection.
