LA SOUNDX J212W Dual 12-Inch 3-Way Line Array Speaker, 143 dB Max SPL, 120° Wide Coverage for Concert Touring

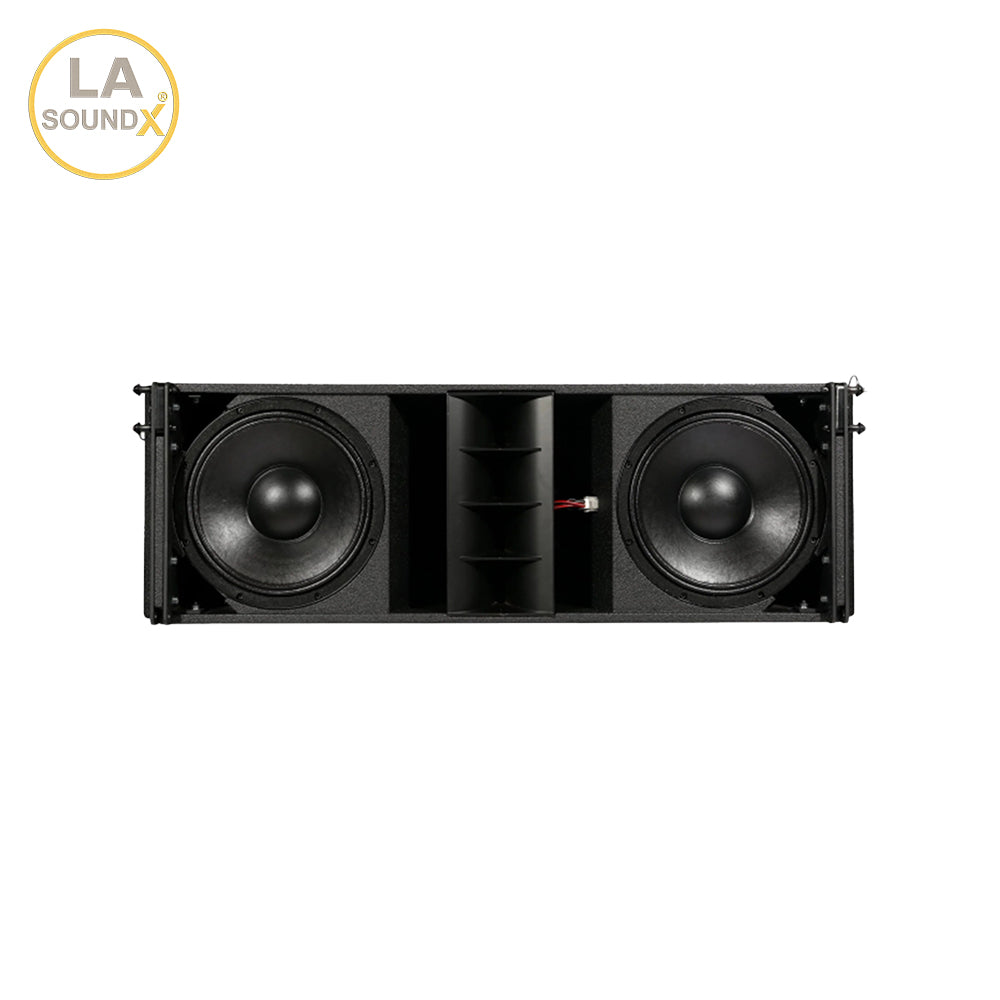

The LA SOUNDX J212W is a large-format, 3-way line array loudspeaker in the B&B Series, designed for concert touring, arenas, stadium events and large-scale sound reinforcement. Its symmetrical acoustic design combines dual 12-inch neodymium LF drivers, a horn-loaded 10-inch midrange driver and dual 1.4-inch HF exits with 3-inch voice coils.

Key Features

• 143 dB peak maximum SPL and wide 120° horizontal coverage.
• 48 Hz–17 kHz frequency response (-5 dB); 85 Hz–17 kHz in CUT mode.
• Two-way active LF/MHF operation with an internal passive MF/HF crossover; two amplifier channels per cabinet.
• LF power handling: 500 W RMS / 2000 W peak; MHF: 200 W RMS / 800 W peak (10 ms).

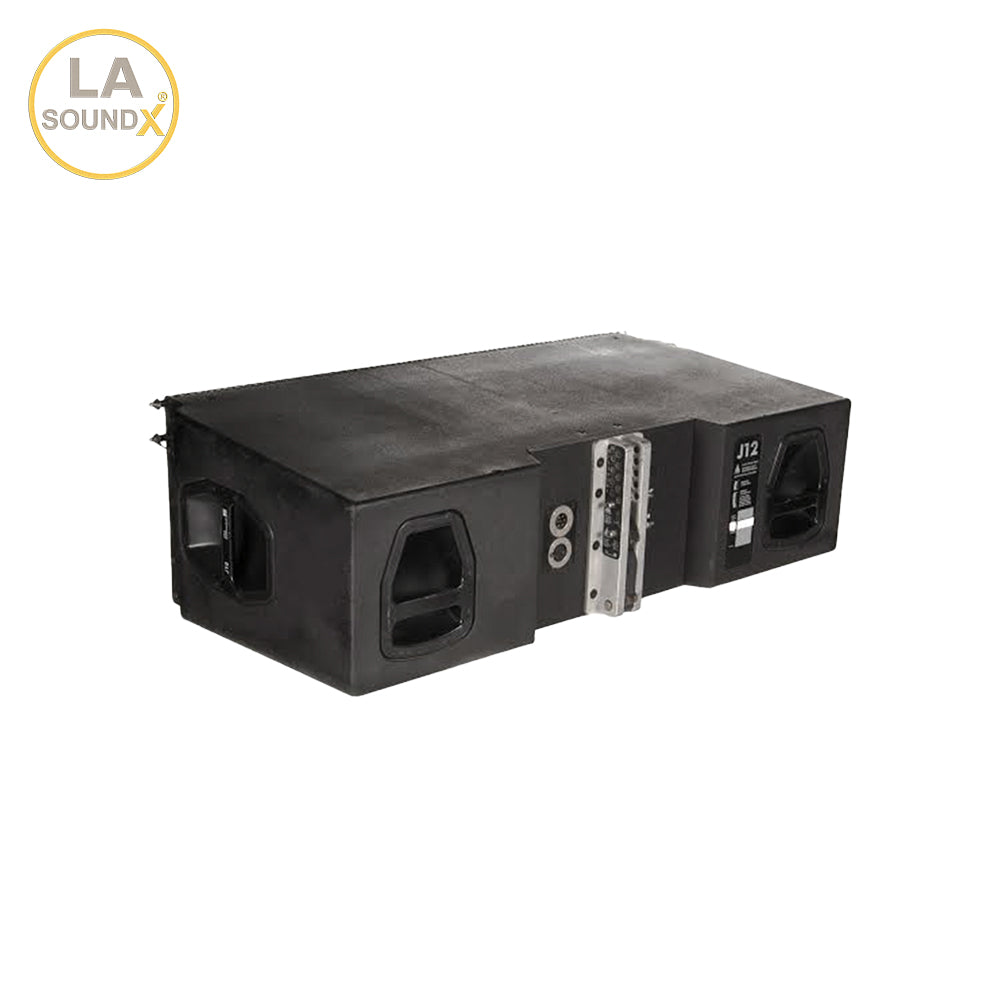

• Integrated 3-point rigging with 0°–7° inter-cabinet splay in 1° increments.

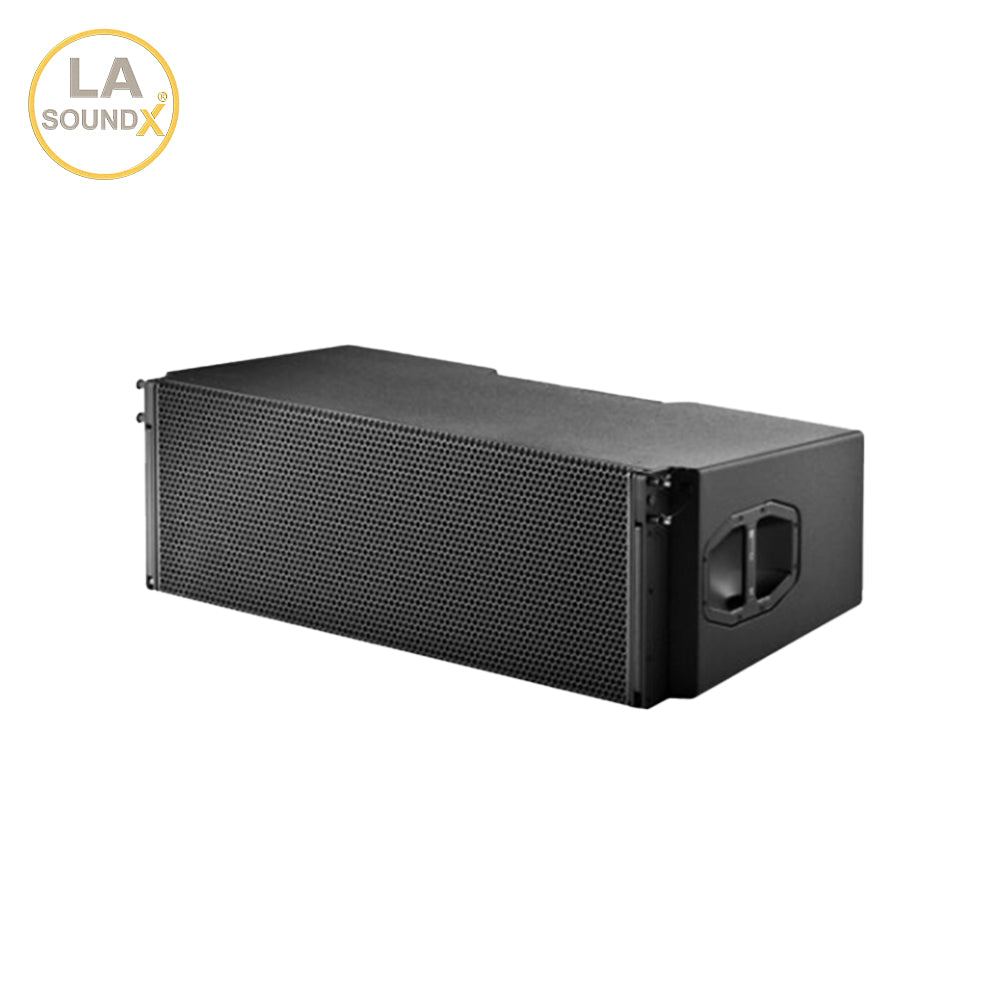

• Marine plywood cabinet with protective polyurea coating and four side/rear handles.

Core Specifications

• Model: J212W | Series: B&B | Brand: LA SOUNDX.
• LF impedance: 6 Ω | MHF impedance: 12 Ω.
• Connections: two parallel 4-pin connectors; optional 5-pin or 8-pin versions.
• Dimensions (H × W × D): 360 × 1100 × 570 mm.
• Net weight: 60 kg / 132 lb.

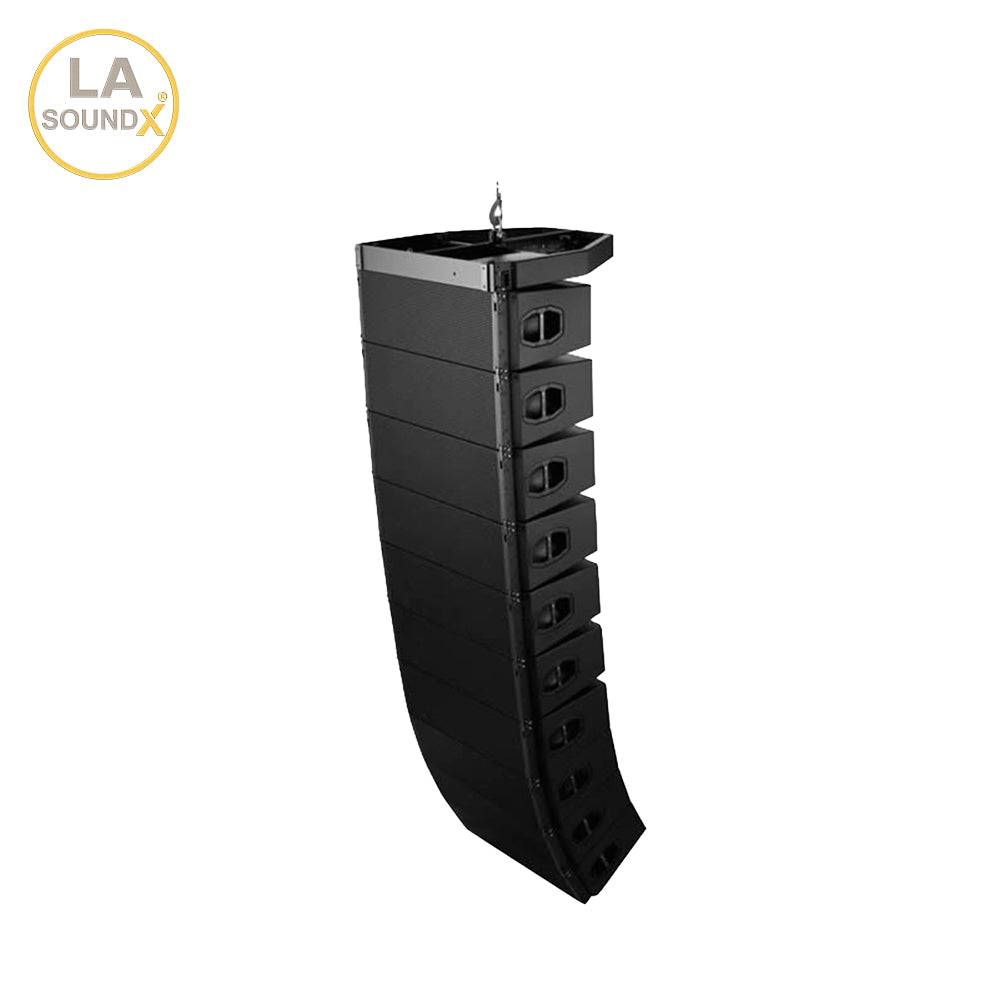

• Configured arrays of up to 24 cabinets, subject to the flying frame, suspension geometry and load limits.

Vertical coverage depends on array length and inter-cabinet splay. Peak SPL is measured at 1 m, free field, with pink noise crest factor 4. Refer to the product detail and PDF below for full specifications, dimensions, connections and deployment information.
