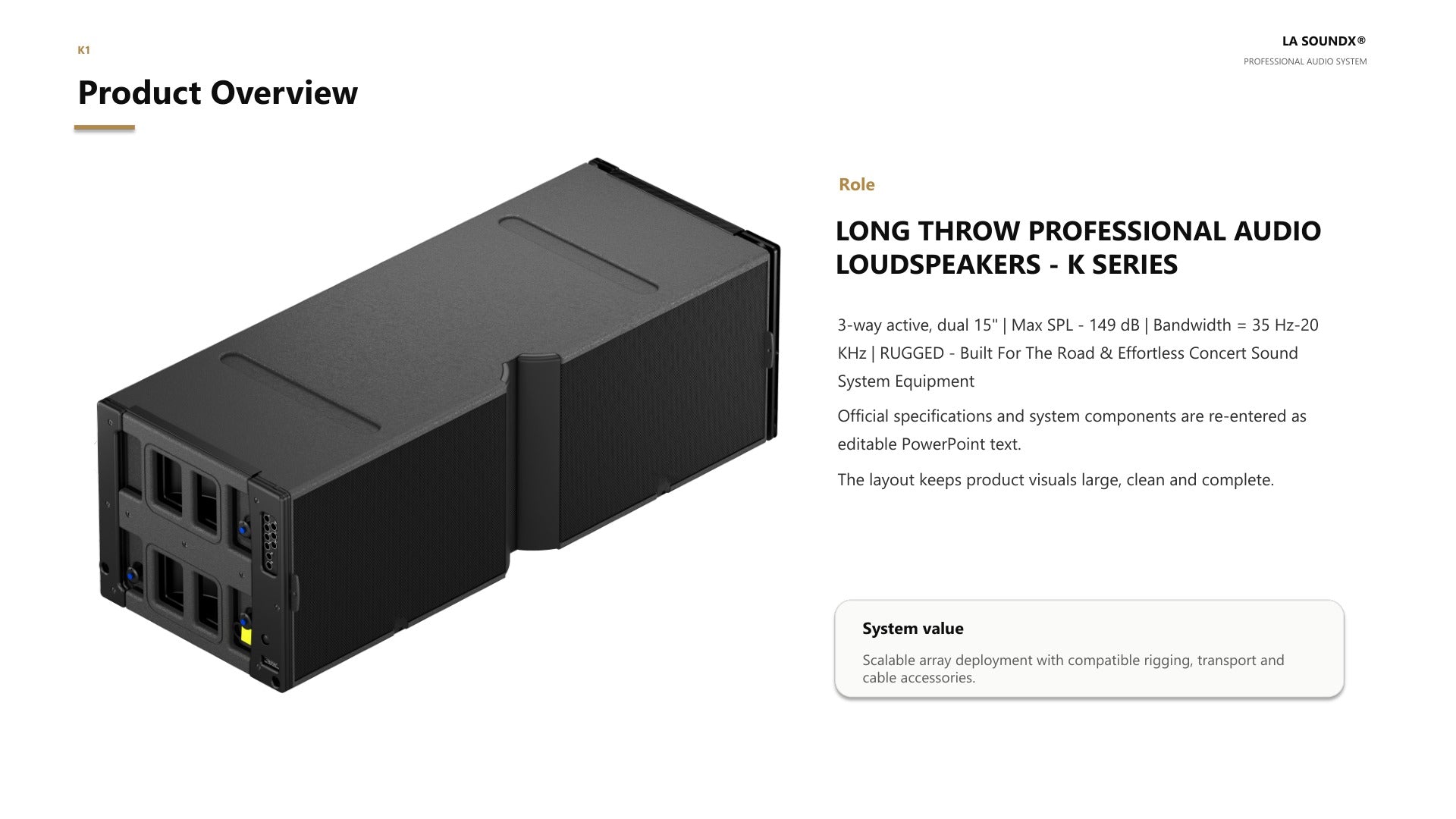

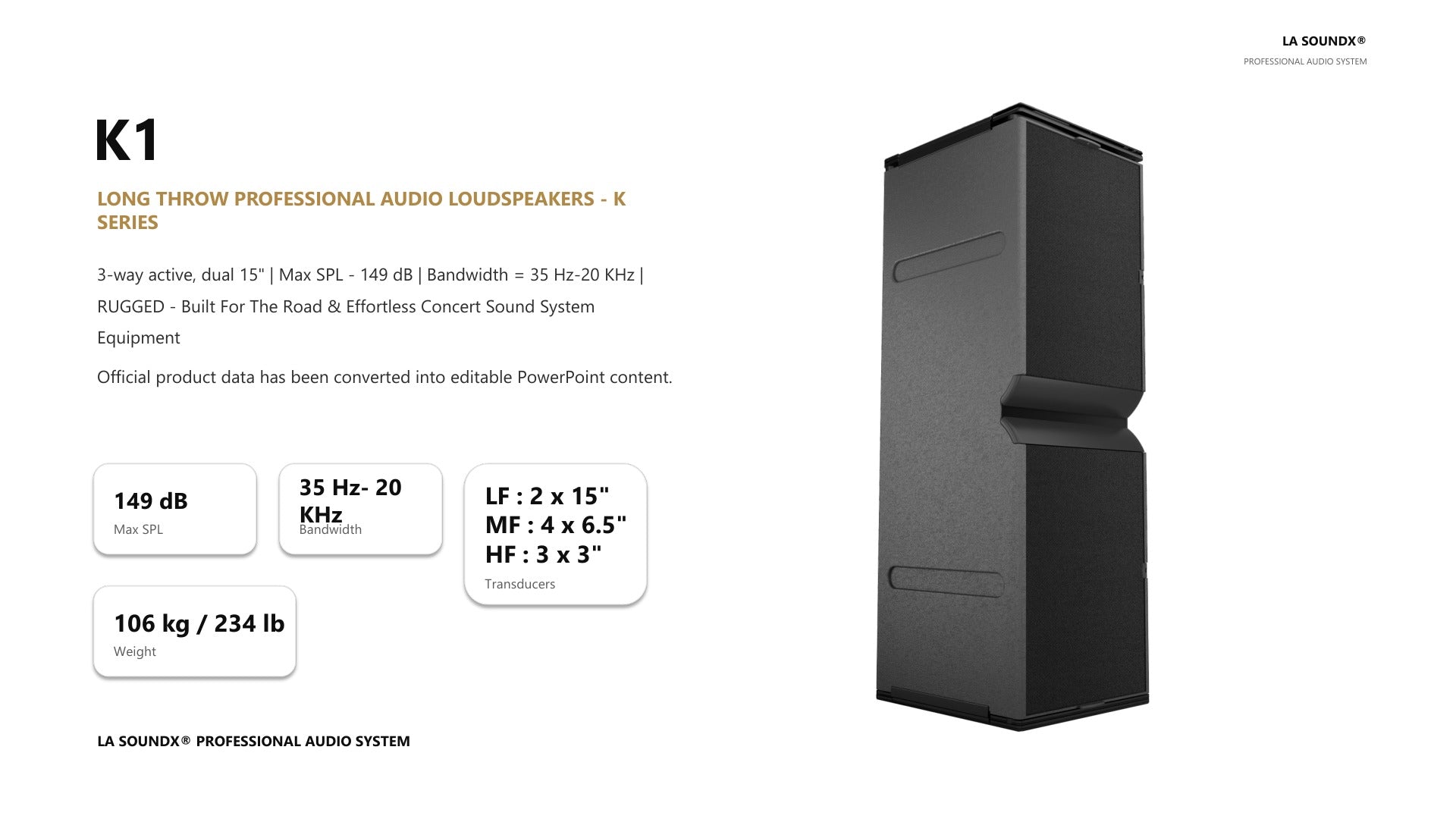

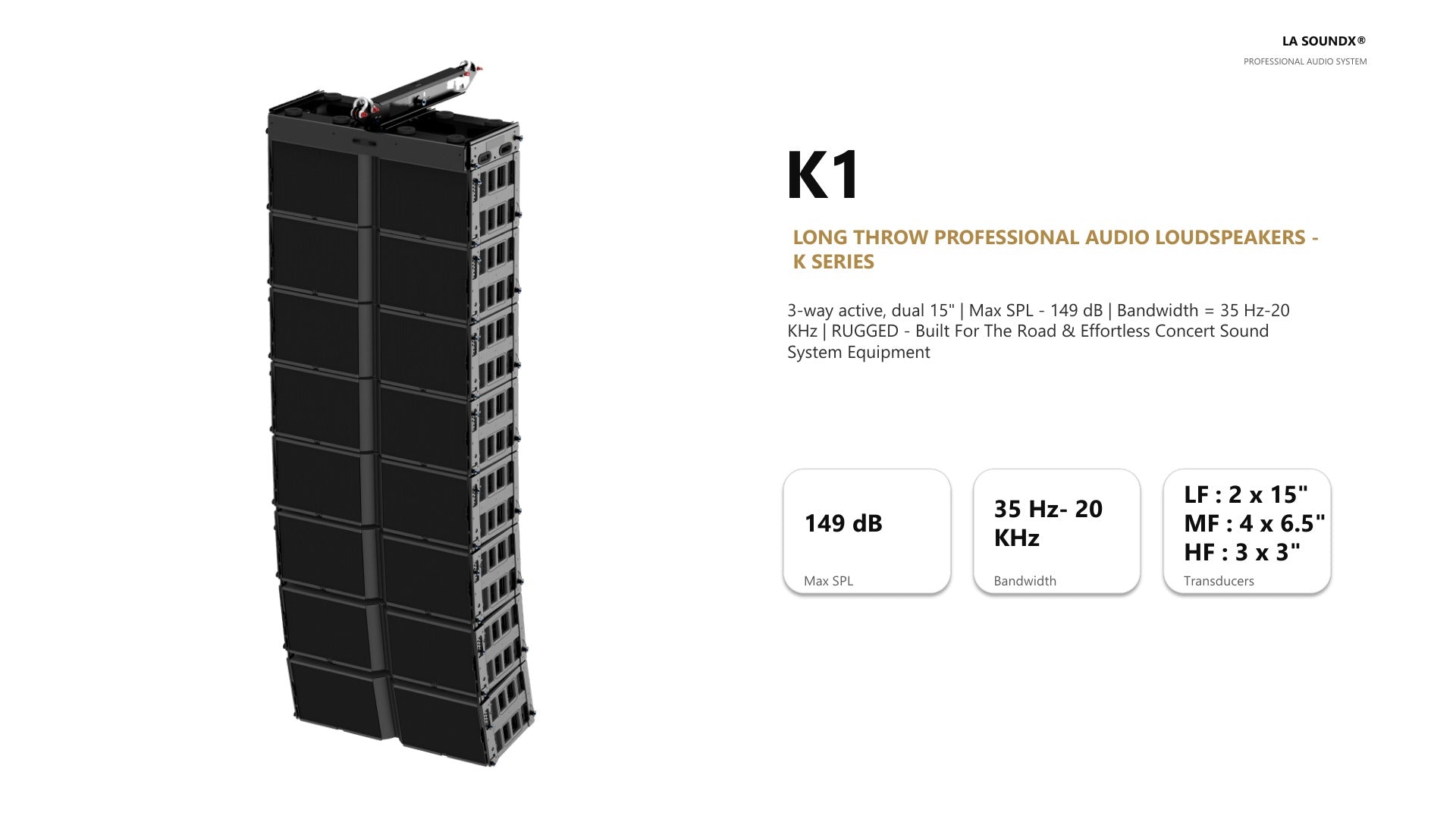

K1 El punto de referencia de la industria Activo de 3 vías, doble de 15"

3-way active
full-range WST® enclosure quad-amplified by
LA12X

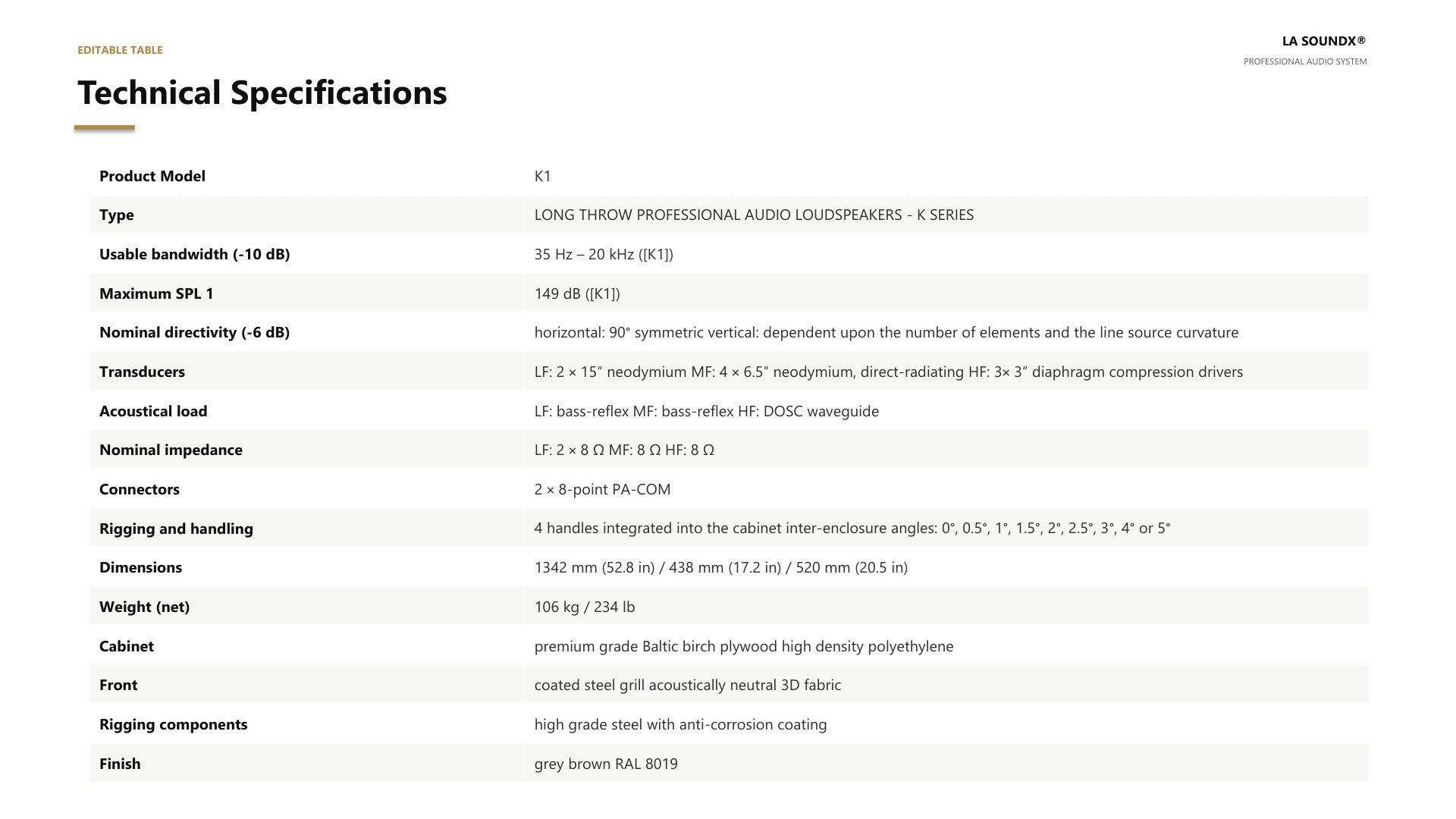

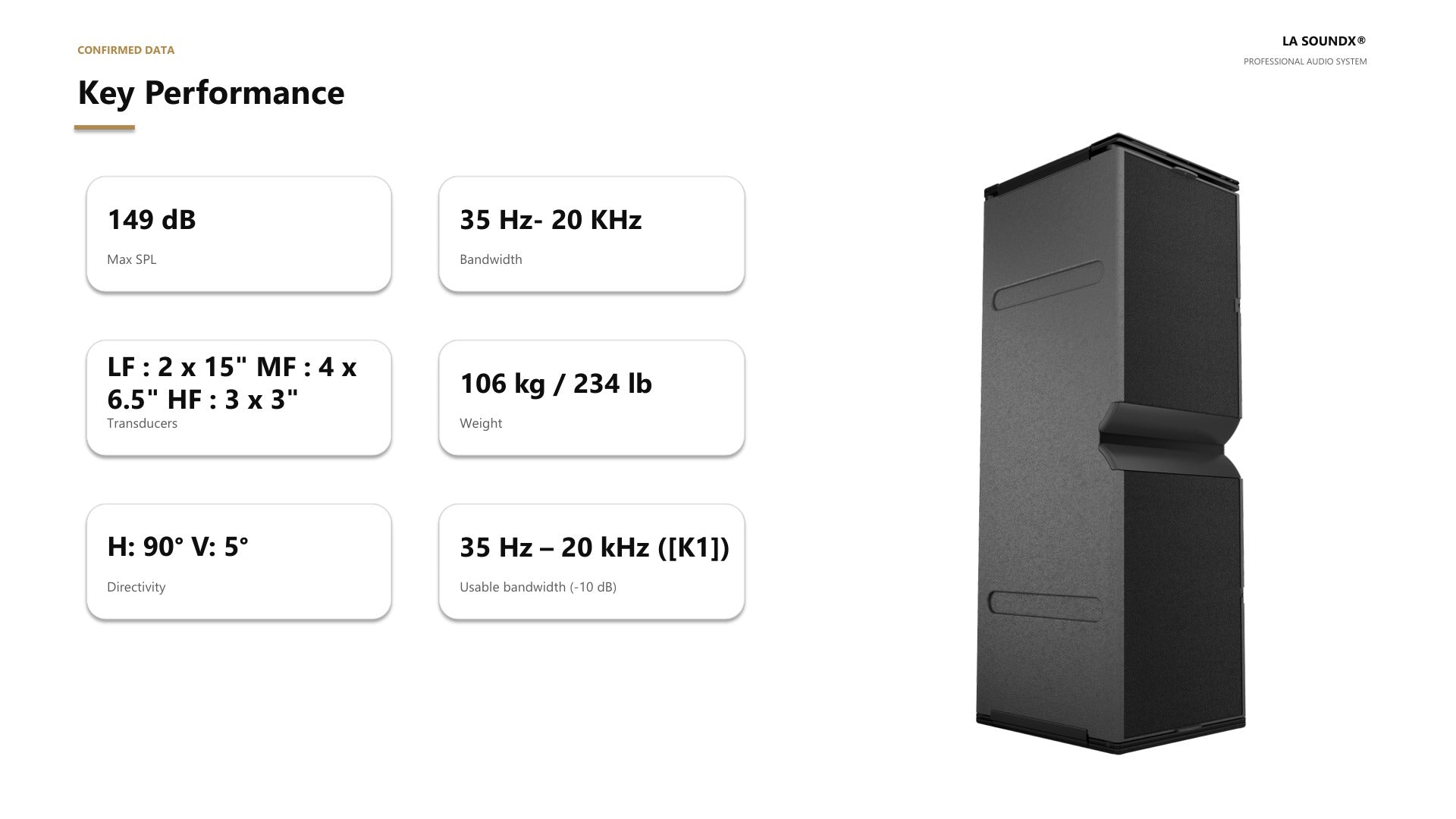

Usable bandwidth
(-10 dB) :35 Hz – 20 kHz ([K1])

Maximum SPL1 :149 dB
([K1])

Nominal directivity
(-6 dB)

Horizontal: 90° symmetric vertical: dependent
upon the number of elements and the line source curvature

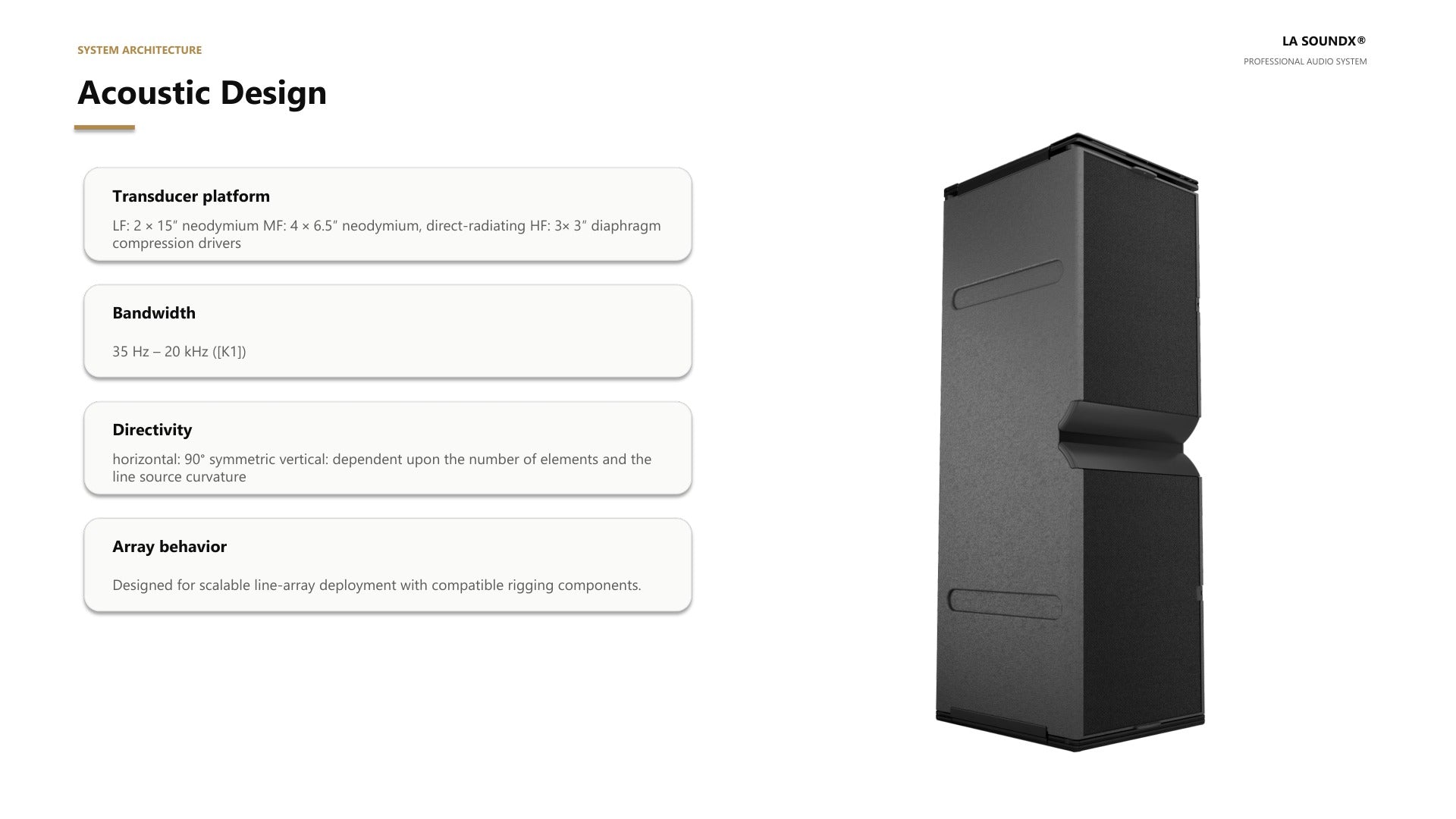

Transducers

LF: 2 ×15″ neodymium MF: 4 × 6.5″ neodymium, direct-radiating

HF: 3× 3″ diaphragm
compression drivers

Acoustical load

LF:bass-reflex MF: bass-reflex HF: DOSC waveguide

Nominal impedance
LF: 2 × 8 Ω MF: 8 Ω HF: 8 Ω

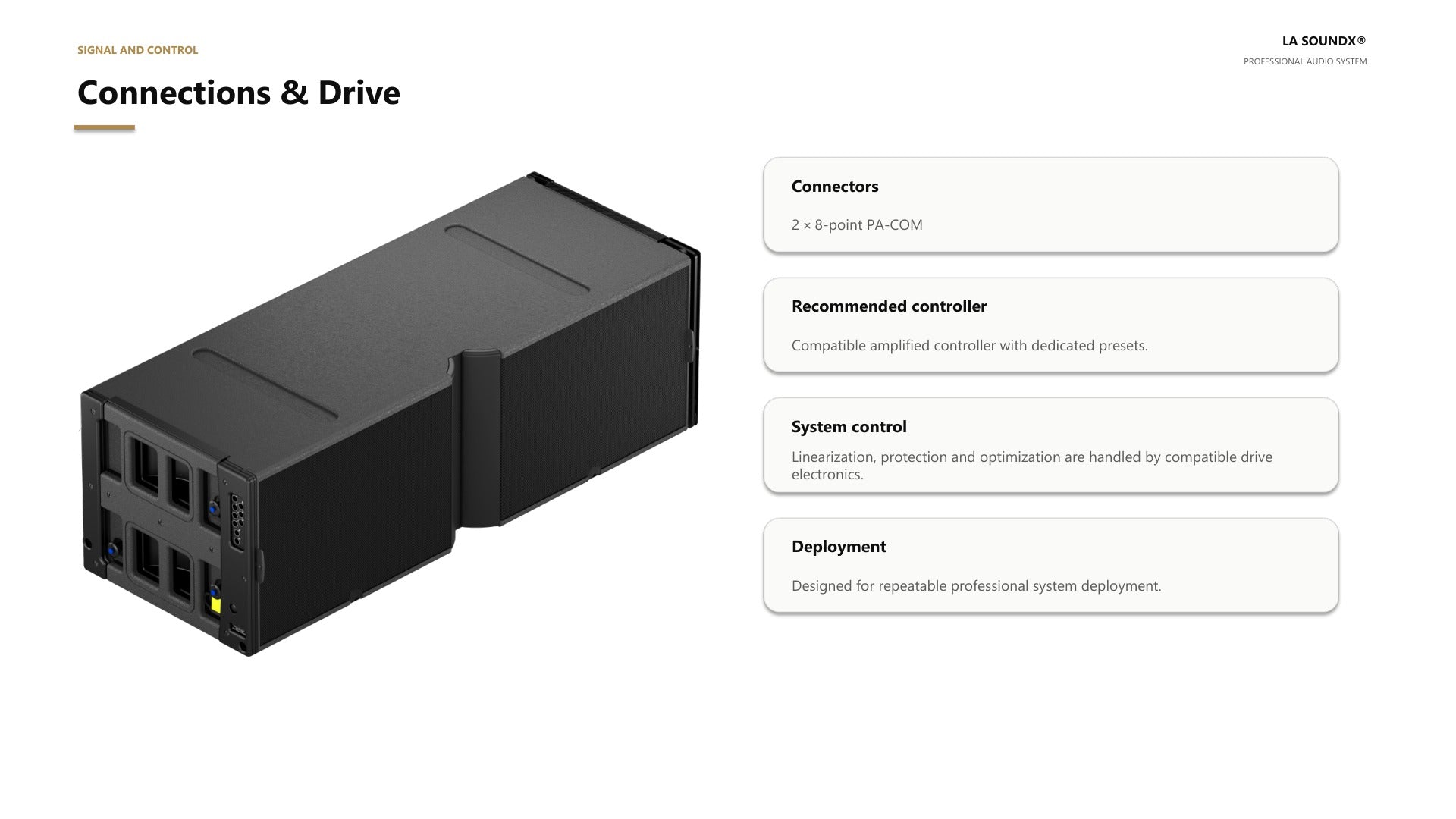

Connectors :2 ×
8-point PA-COM

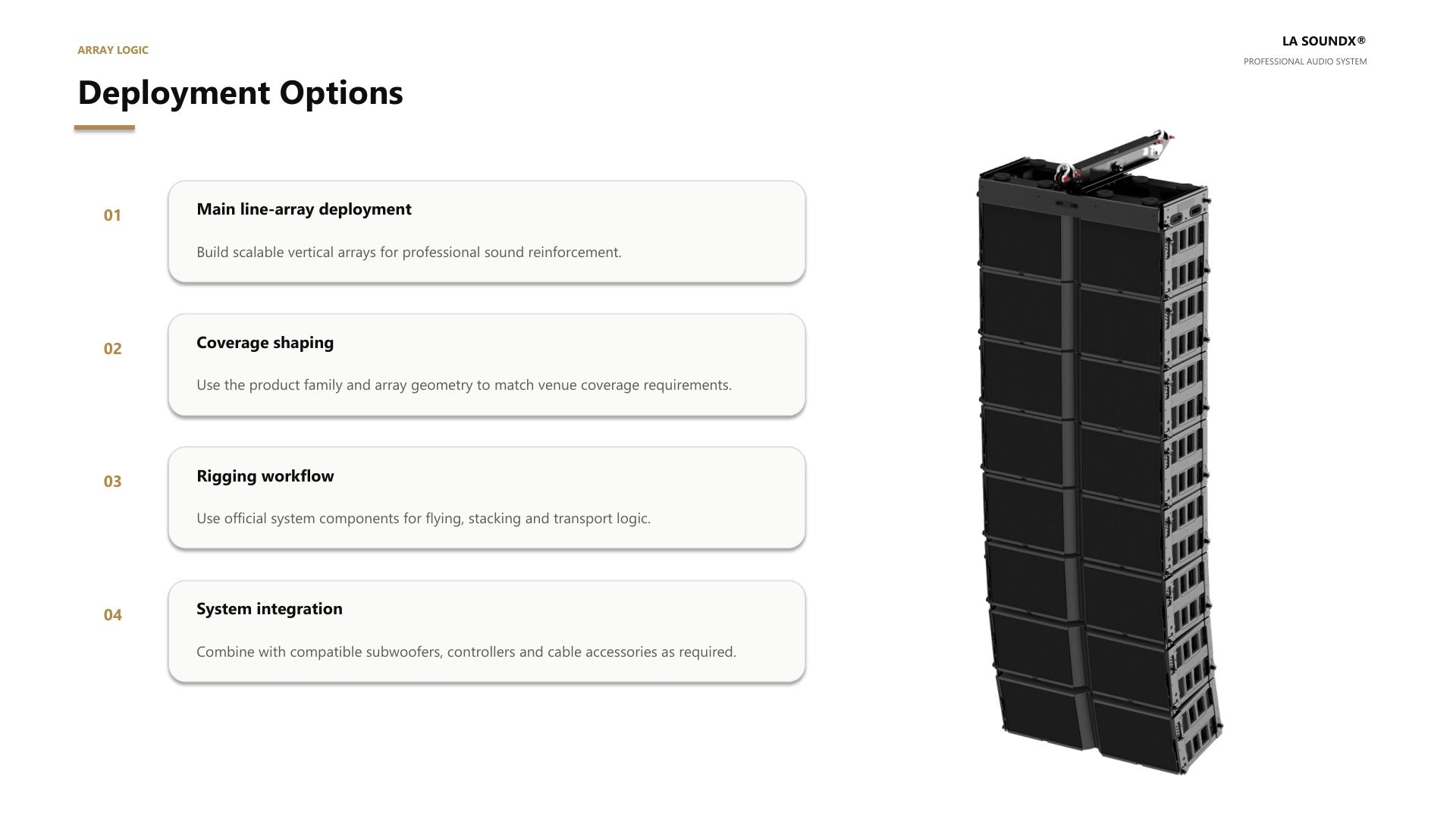

Rigging and
handling :4 handles integrated into the cabinet inter-enclosure
angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5°

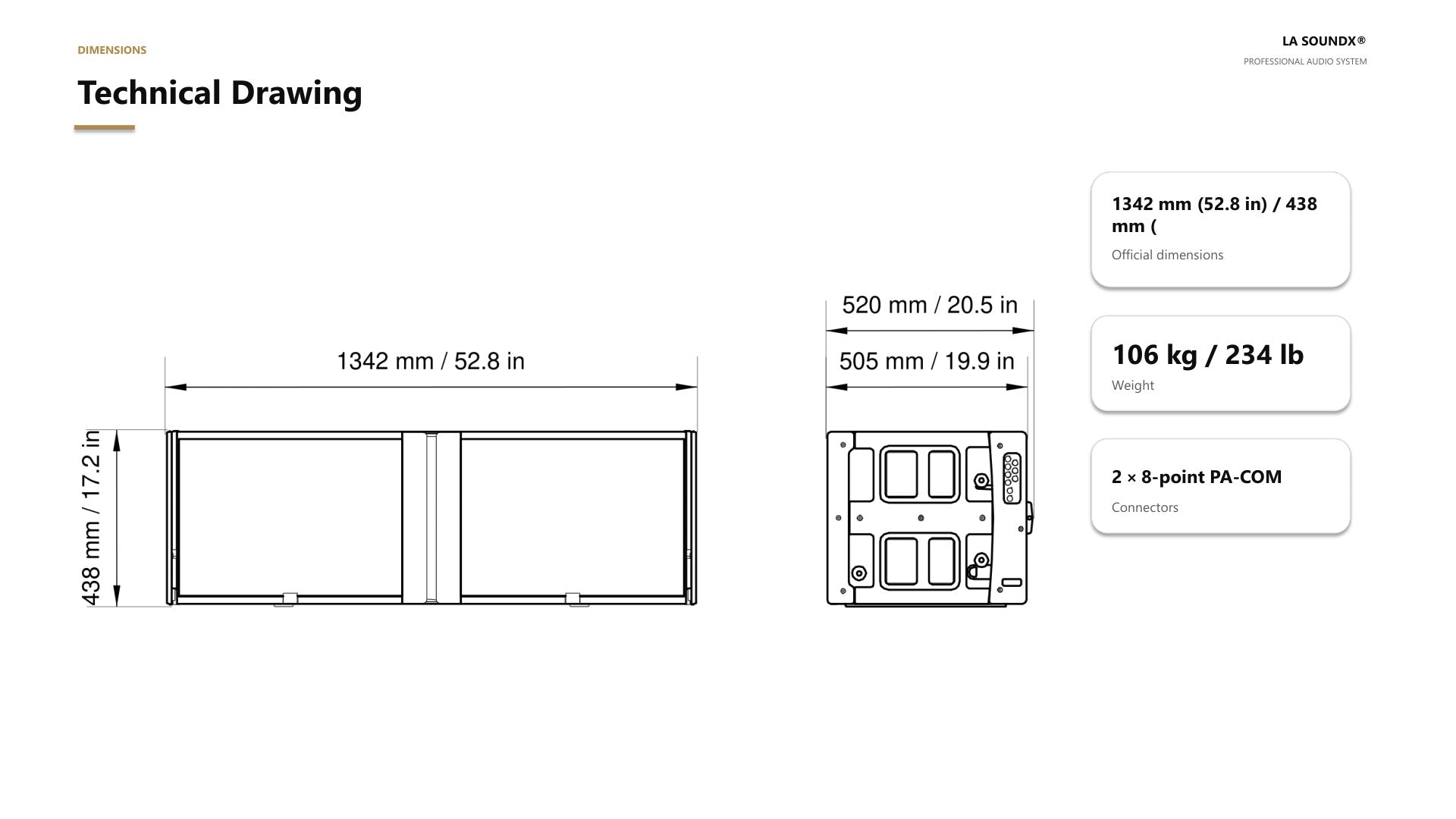

Weight (net) :106 kg/ 234 lb

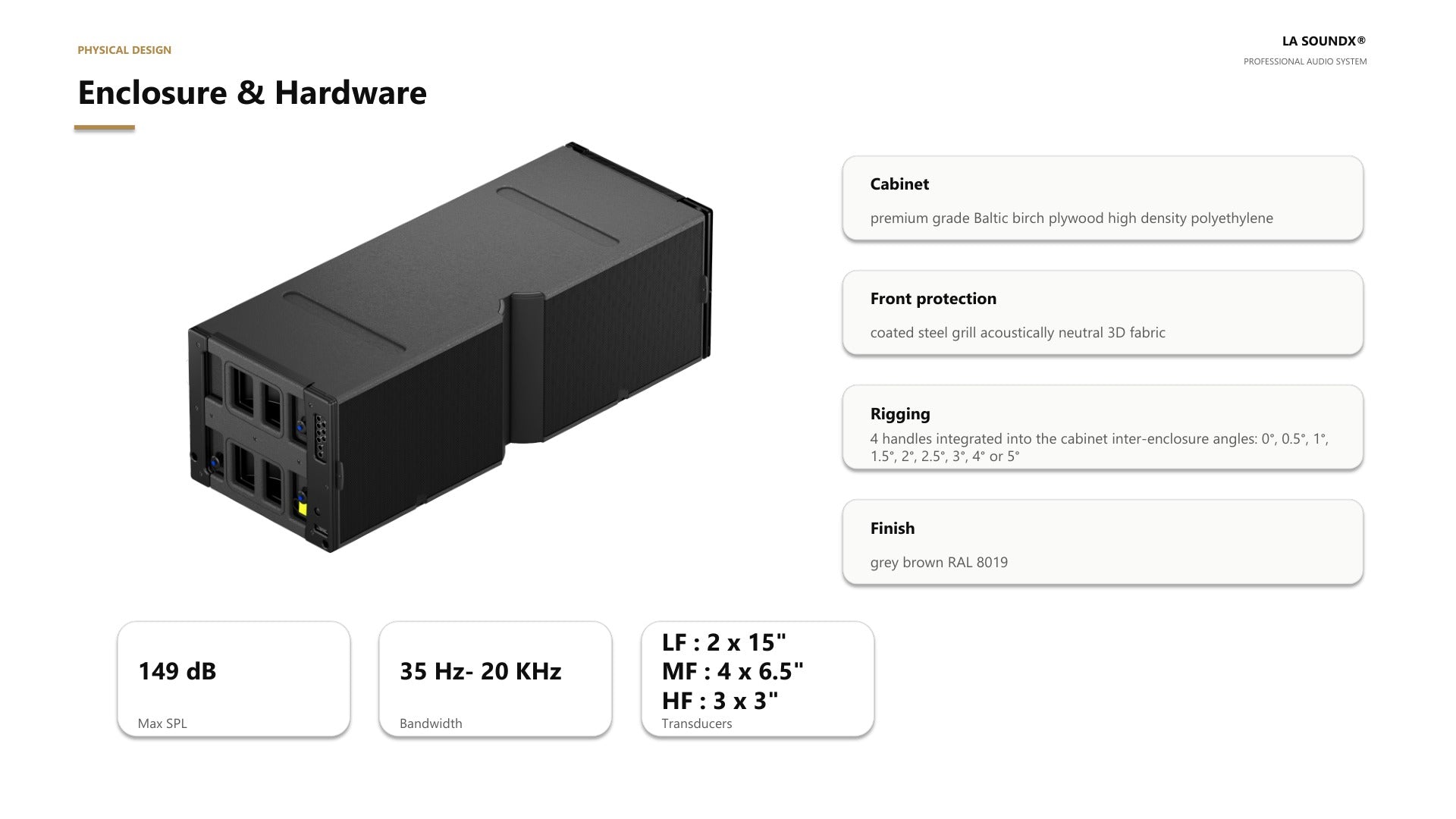

Cabinet : Premium grade Baltic birch plywood high density polyethylene

Front :Coated steel grill acoustically
neutral 3D fabric

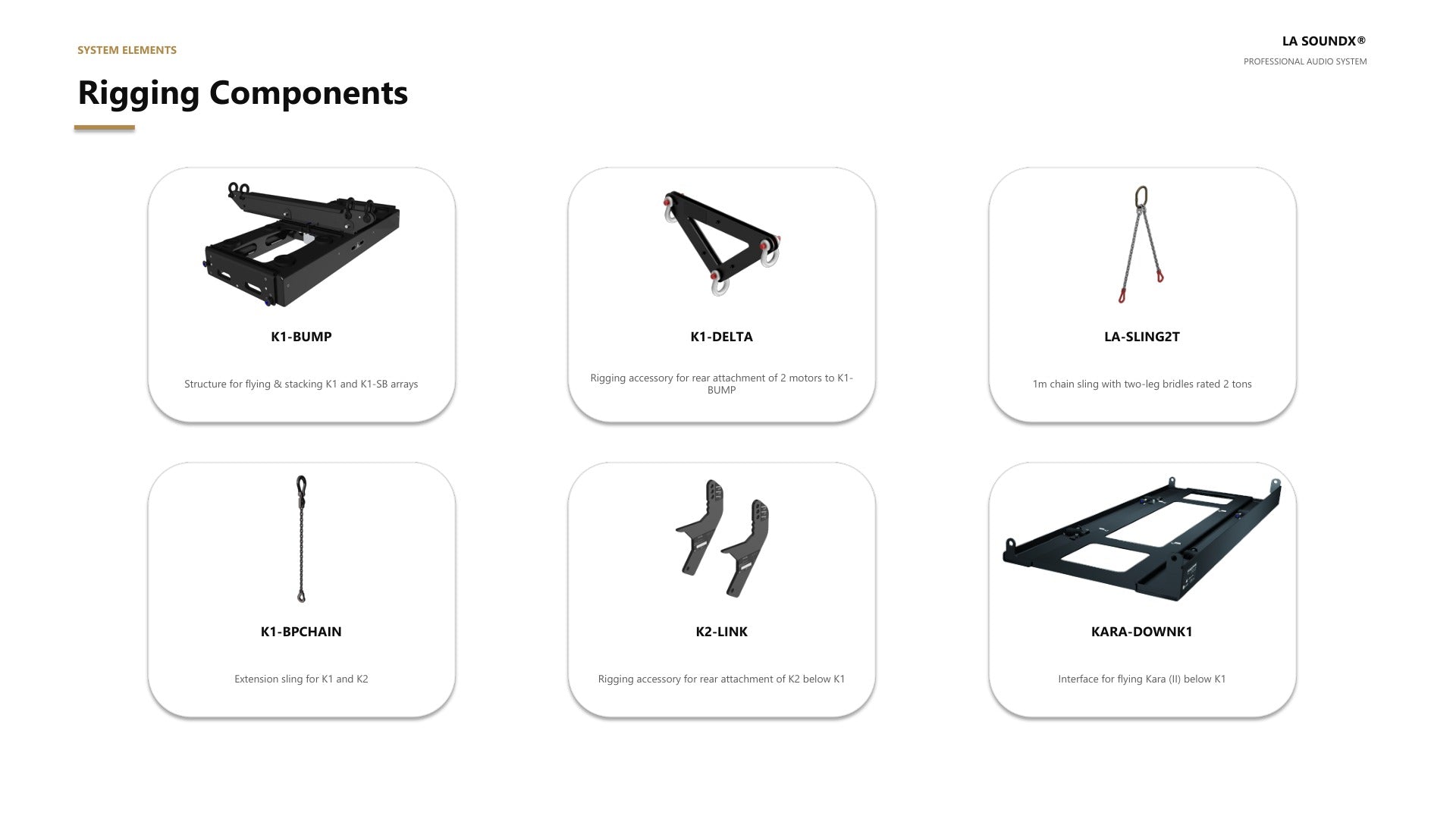

Rigging components: High grade steel with anti-corrosion coating

Finish : Grey brown RAL 8019

IP : IP43
