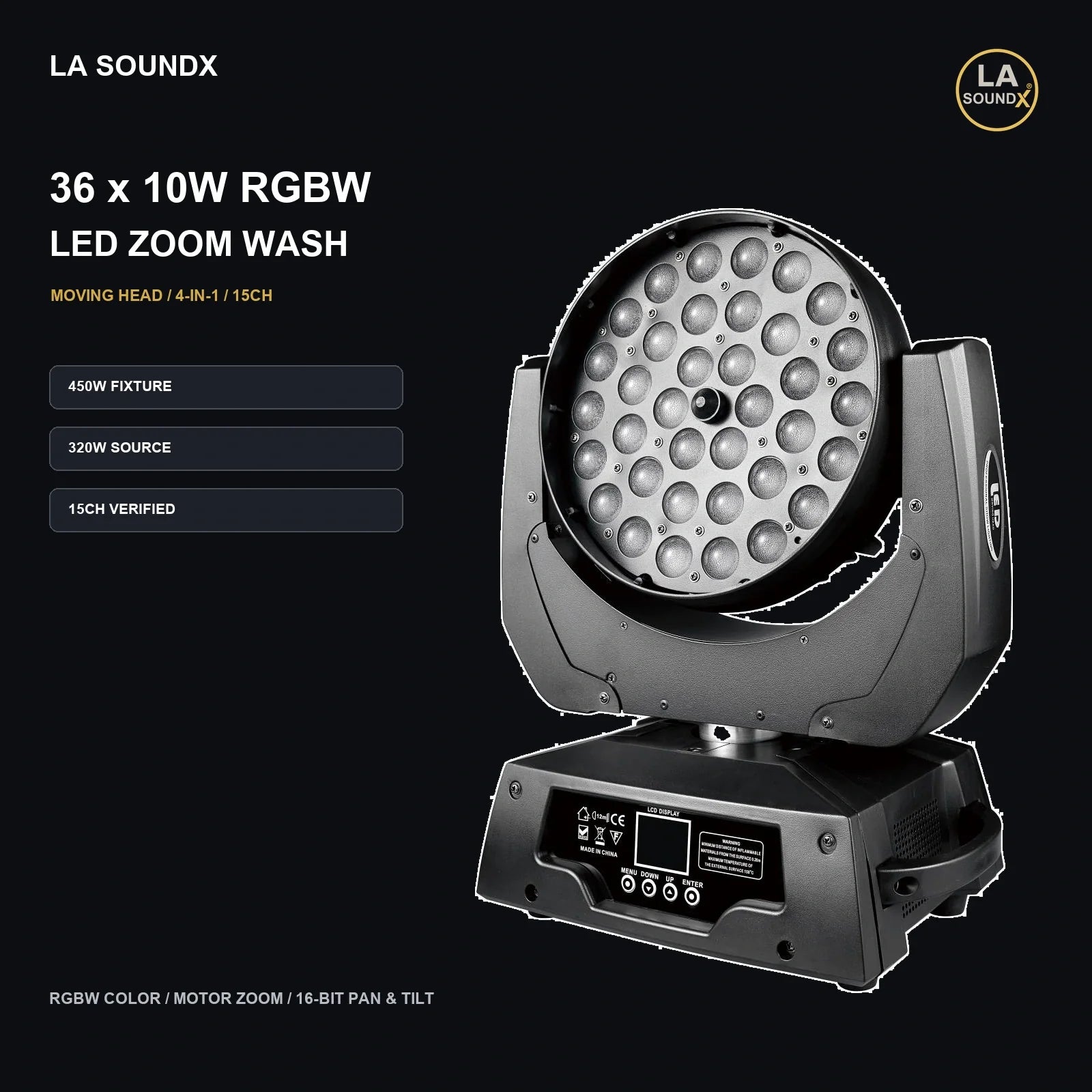

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 02 delivery 045

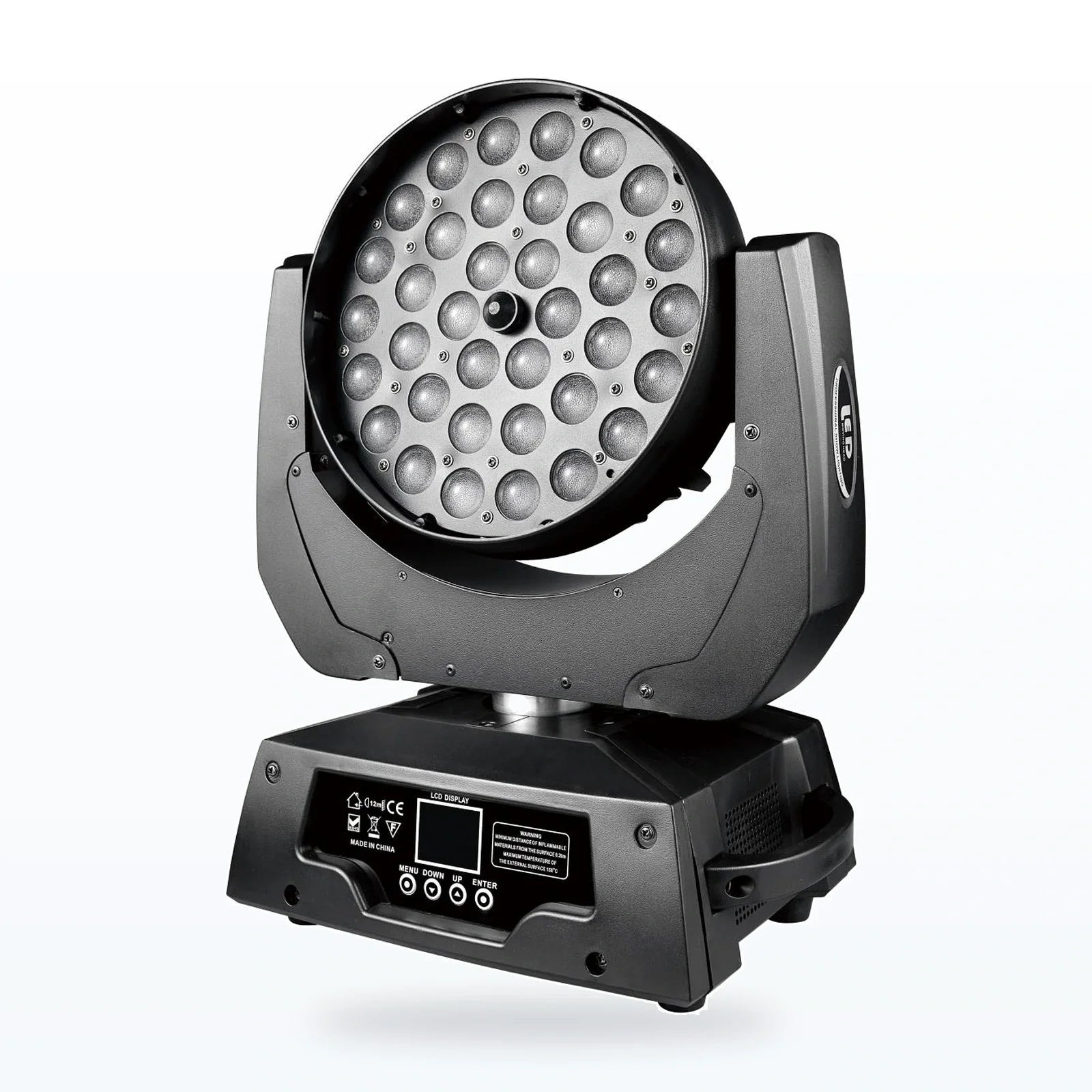

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 03 delivery 045

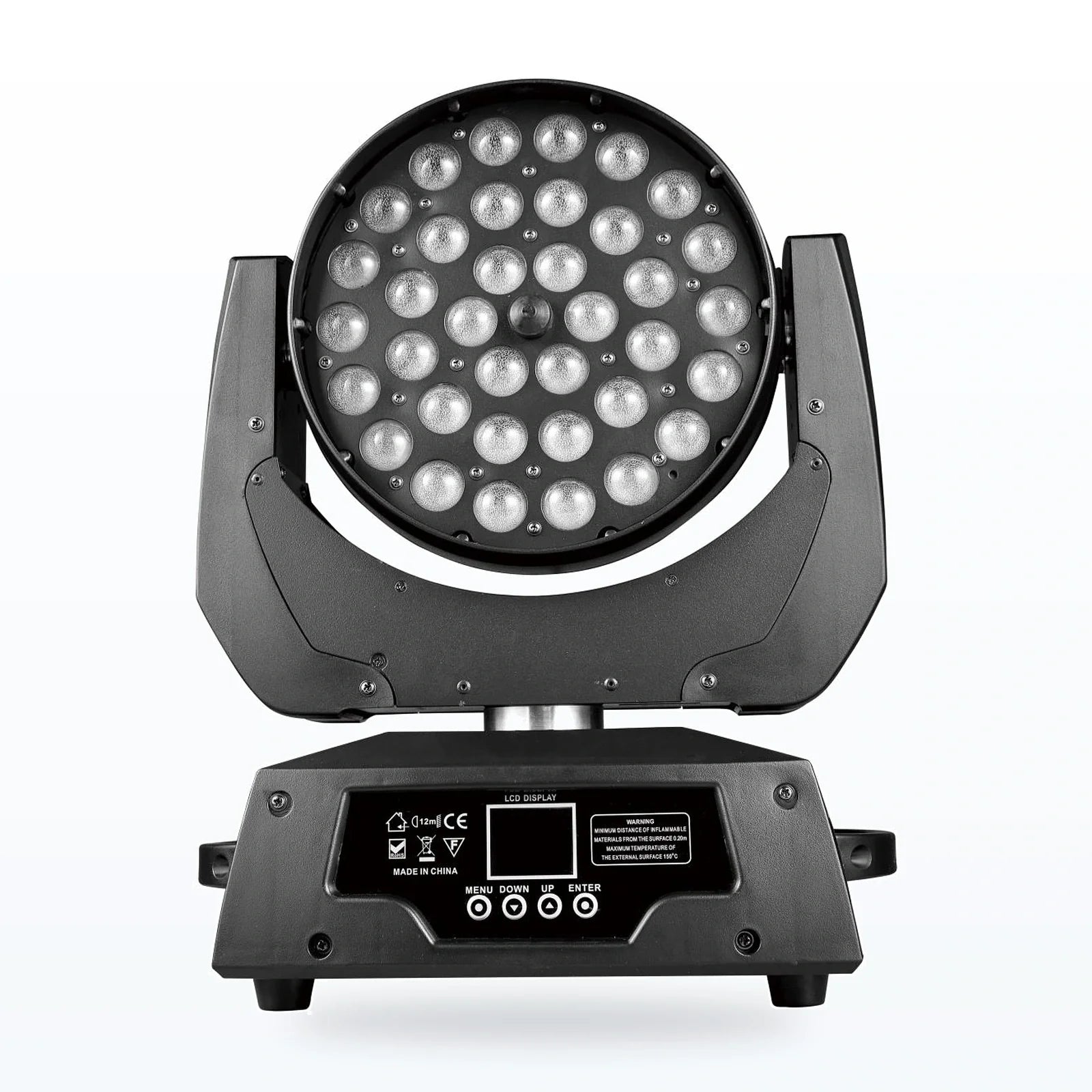

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 04 delivery 045

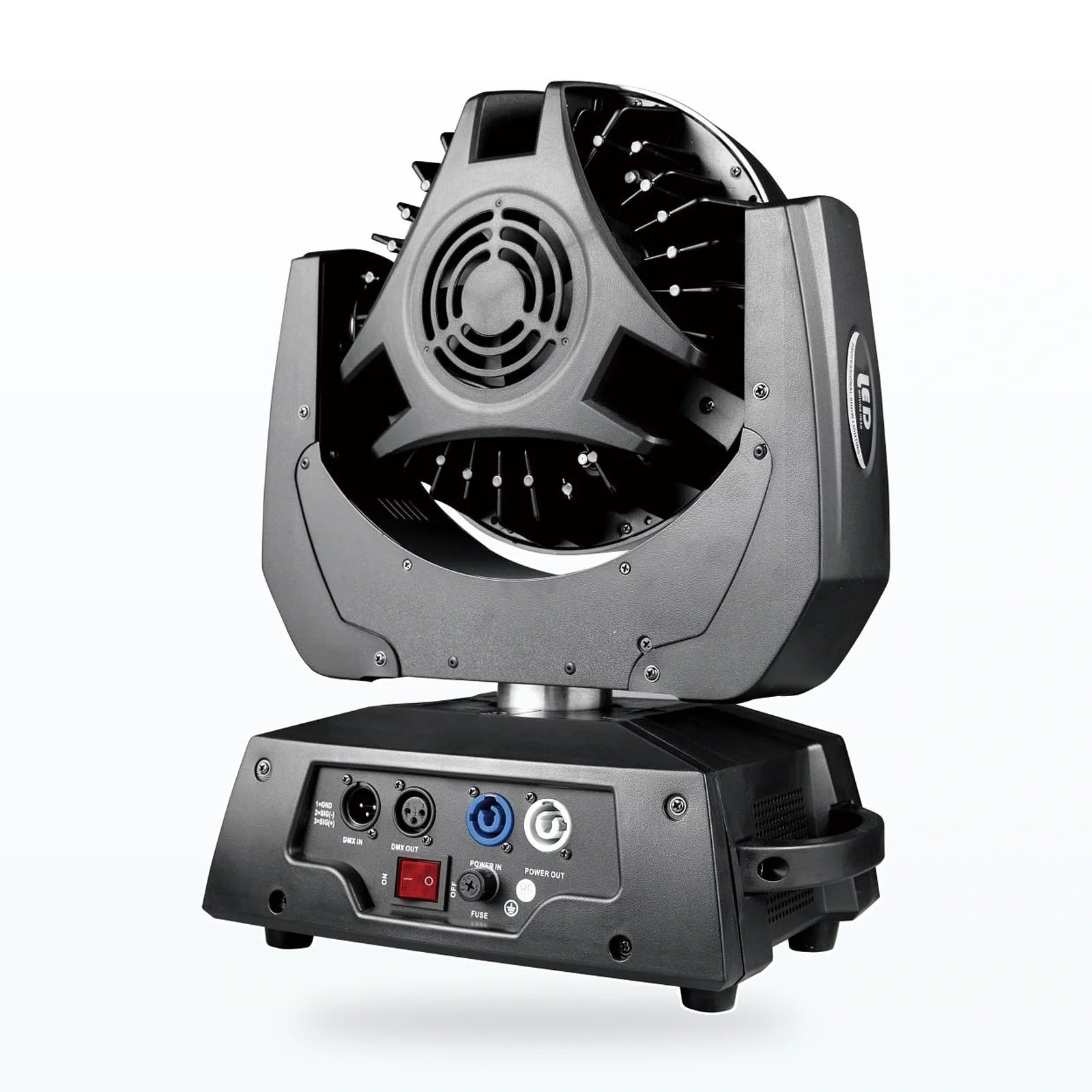

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 05 delivery 045

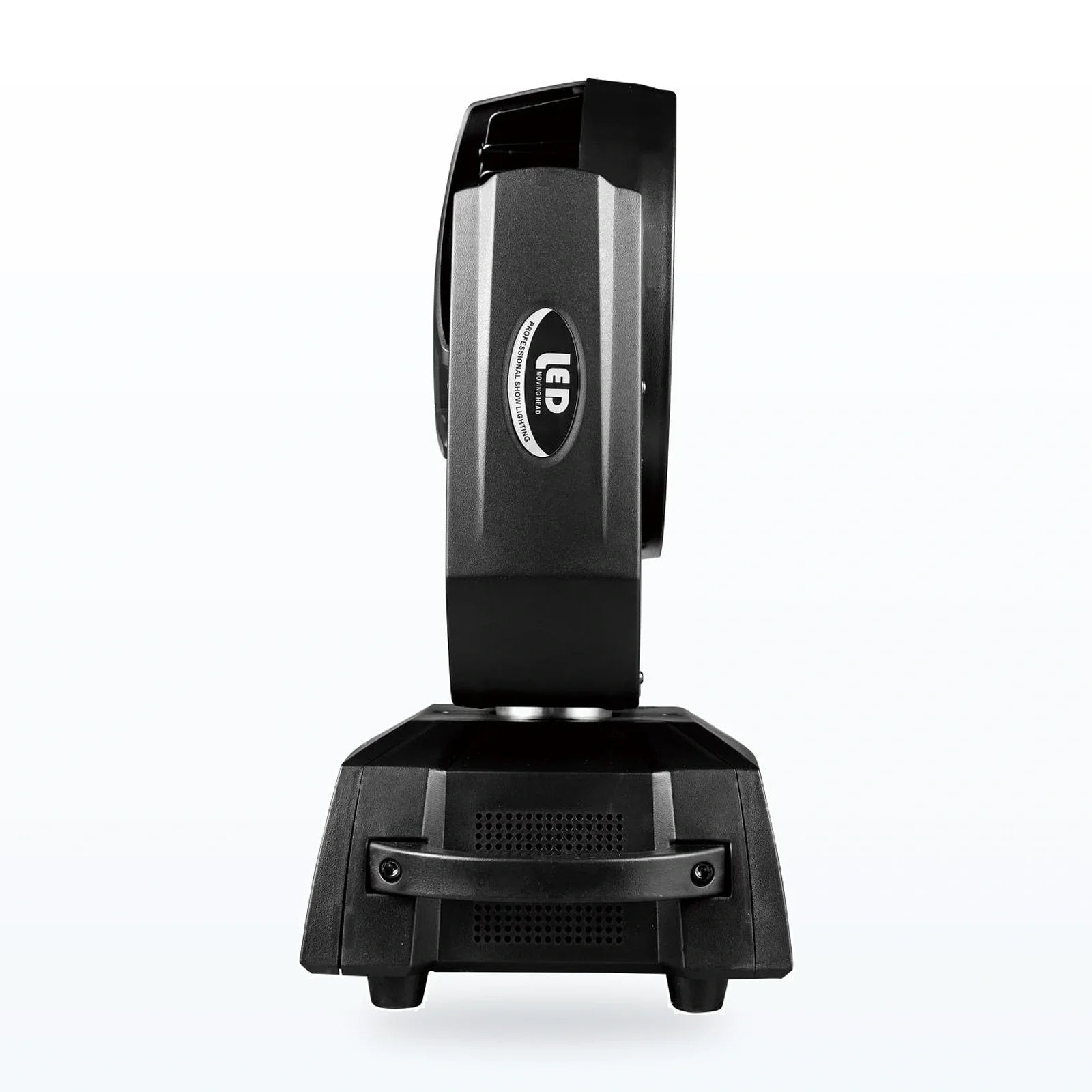

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 06 delivery 045

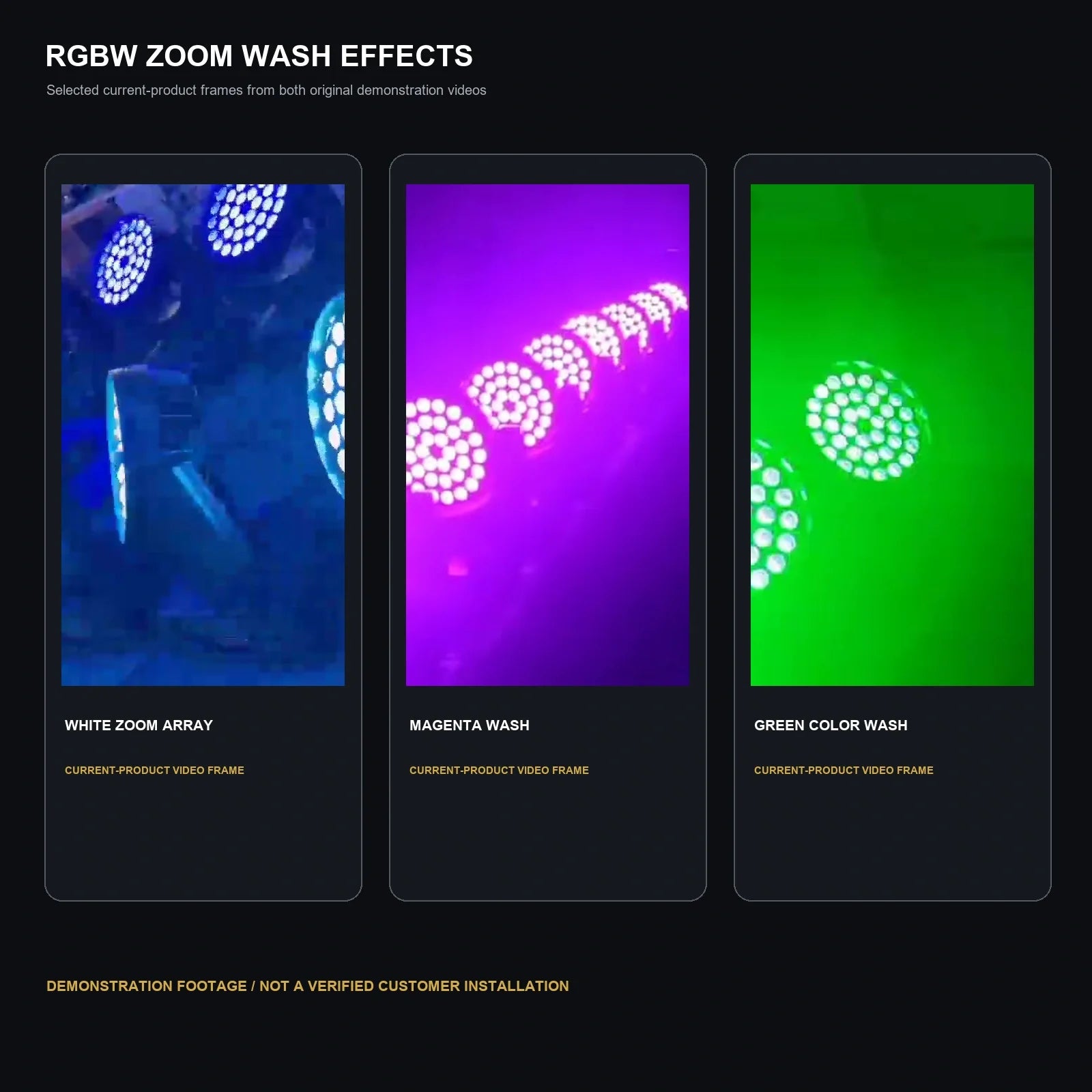

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product image 07 delivery 045

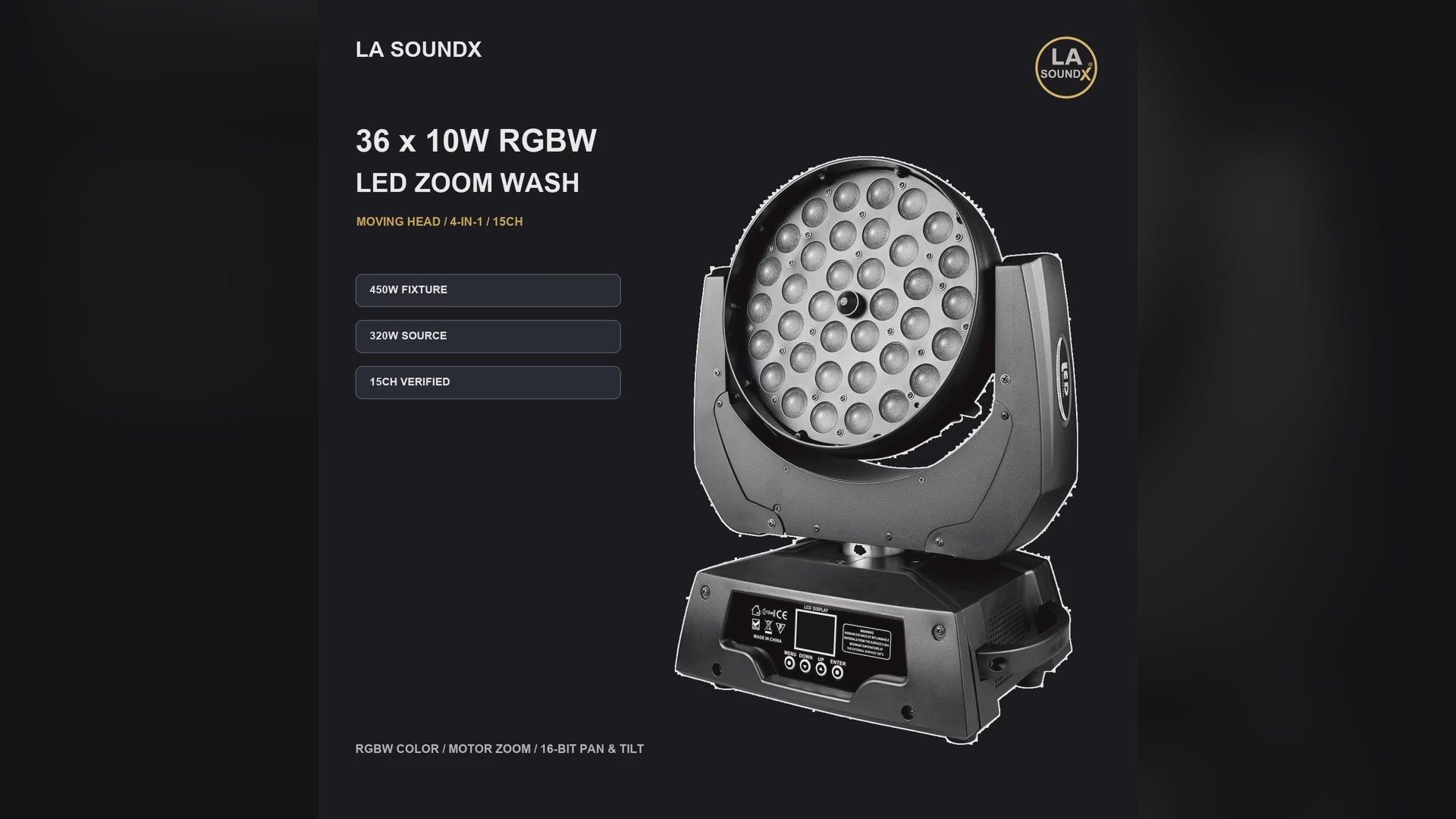

LA SOUNDX 36 x 10W RGBW LED Zoom Wash Moving Head product video delivery 045
The Price Displayed On The Product Does Not Include Tax And Shipping. The Shipping Cost Shown On The Page Is Not The Final Shipping Cost. Please Consult Customer Service For Shipping Costs Or Tax Rates Before Placing An Order.
LA SOUNDX

36 x 10W RGBW LED Zoom Wash Moving Head

36 RGBW cells Thirty-six 10W four-in-one cells provide saturated color, white mixing and broad stage coverage.

01

36 RGBW cells Thirty-six 10W four-in-one cells provide saturated color, white mixing and broad stage coverage.

Light source
36 x 10W RGBW four-in-one LEDs; source-power field 320W
Movement
Pan 540 degrees / tilt 270 degrees in source manual; 16-bit fine control
Input voltage
AC100-240V, 50/60Hz
Product size
33 x 22 x 45 cm

01

36 RGBW cells Thirty-six 10W four-in-one cells provide saturated color, white mixing and broad stage coverage.

Motorized zoom

The verified focus channel changes coverage from tighter output to wide wash.

16-bit movement

Pan and tilt fine channels support accurate positioning in the verified 15CH profile.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product
36 x 10W RGBW LED Zoom Wash Moving Head
Input voltage
AC100-240V, 50/60Hz
Light source
36 x 10W RGBW four-in-one LEDs; source-power field 320W
Movement
Pan 540 degrees / tilt 270 degrees in source manual; 16-bit fine control
Product size
33 x 22 x 45 cm
Protection
IP20 indoor
Housing
Black heat-resistant plastic plus moulded alloy
Source authority
Current note, manuals, photographs, two original videos and matched 15CH D4/R20
36 x 10W RGBW LED Zoom Wash Moving Head product detail 01 36 x 10W RGBW LED Zoom Wash Moving Head product detail 02 36 x 10W RGBW LED Zoom Wash Moving Head product detail 03 36 x 10W RGBW LED Zoom Wash Moving Head product detail 04 36 x 10W RGBW LED Zoom Wash Moving Head product detail 05 36 x 10W RGBW LED Zoom Wash Moving Head product detail 06 36 x 10W RGBW LED Zoom Wash Moving Head product detail 07 36 x 10W RGBW LED Zoom Wash Moving Head product detail 08 36 x 10W RGBW LED Zoom Wash Moving Head product detail 09 36 x 10W RGBW LED Zoom Wash Moving Head product detail 10 36 x 10W RGBW LED Zoom Wash Moving Head product detail 11 36 x 10W RGBW LED Zoom Wash Moving Head product detail 12 36 x 10W RGBW LED Zoom Wash Moving Head product detail 13 36 x 10W RGBW LED Zoom Wash Moving Head product detail 14 36 x 10W RGBW LED Zoom Wash Moving Head product detail 15 36 x 10W RGBW LED Zoom Wash Moving Head product detail 16
