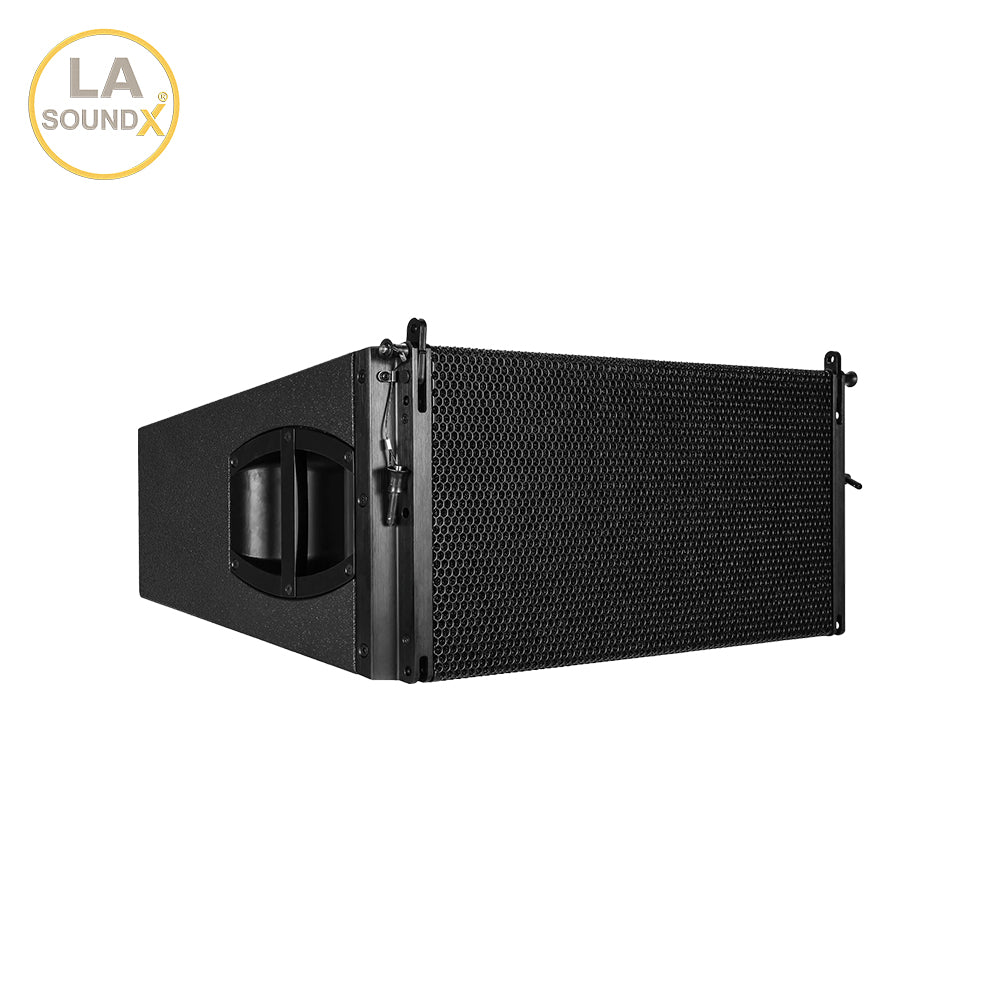

LA SOUNDX V28P Compact 3-Way Dual 10-Inch Passive Line Array Speaker 142dB Max SPL 500W RMS/2000W Peak for Touring & Installed Sound
V28P Compact 3-Way Passive Line Array

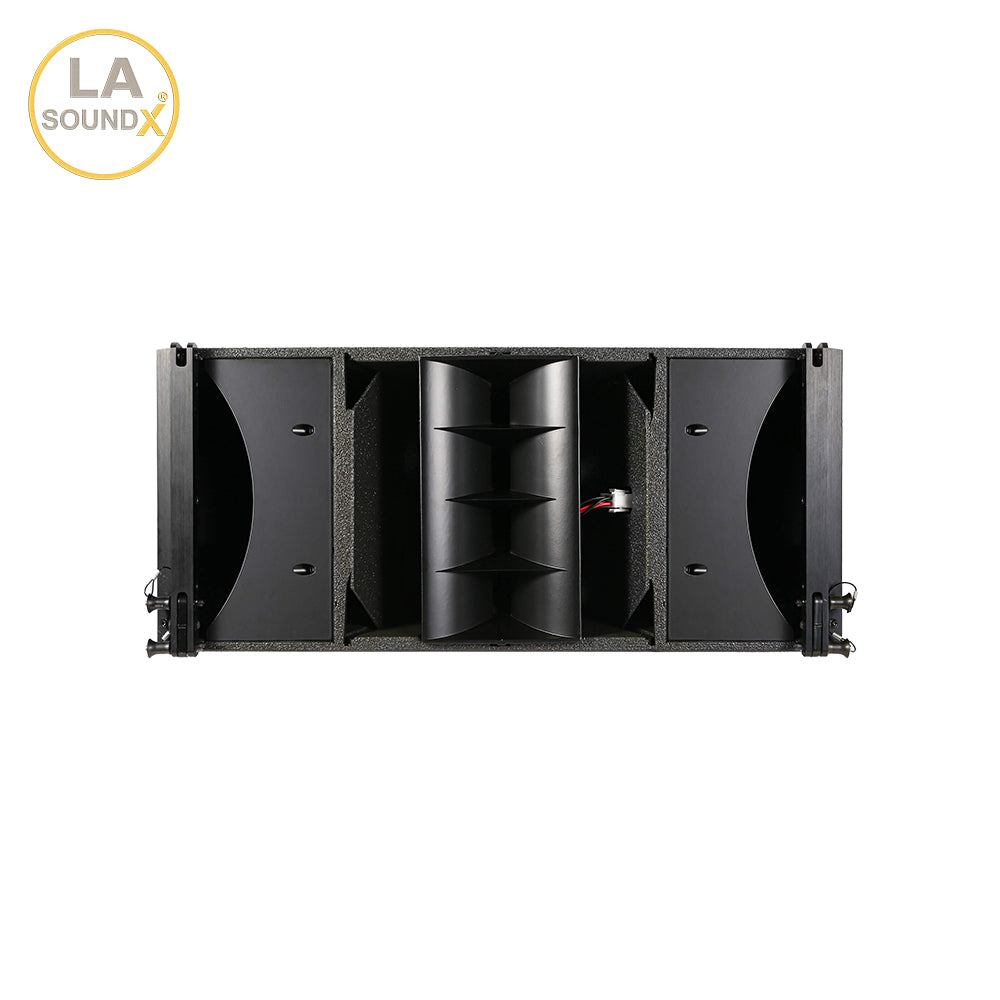

The LA SOUNDX V28P is a compact dual 10-inch passive line array loudspeaker for touring and installed sound. Two neodymium LF drivers flank a horn-loaded 8-inch midrange and a coaxial HF section with two 1.4-inch exits, 2.5-inch voice coils and a dedicated waveguide. An internal passive crossover enables single-channel amplification.
Key Features
- 142 dB peak SPL with 500 W RMS / 2000 W peak power handling.
- 67 Hz–18 kHz operating bandwidth (-5 dB); CUT mode: 100 Hz–18 kHz (-5 dB).
- 80° horizontal coverage, with LF dispersion control down to 250 Hz.

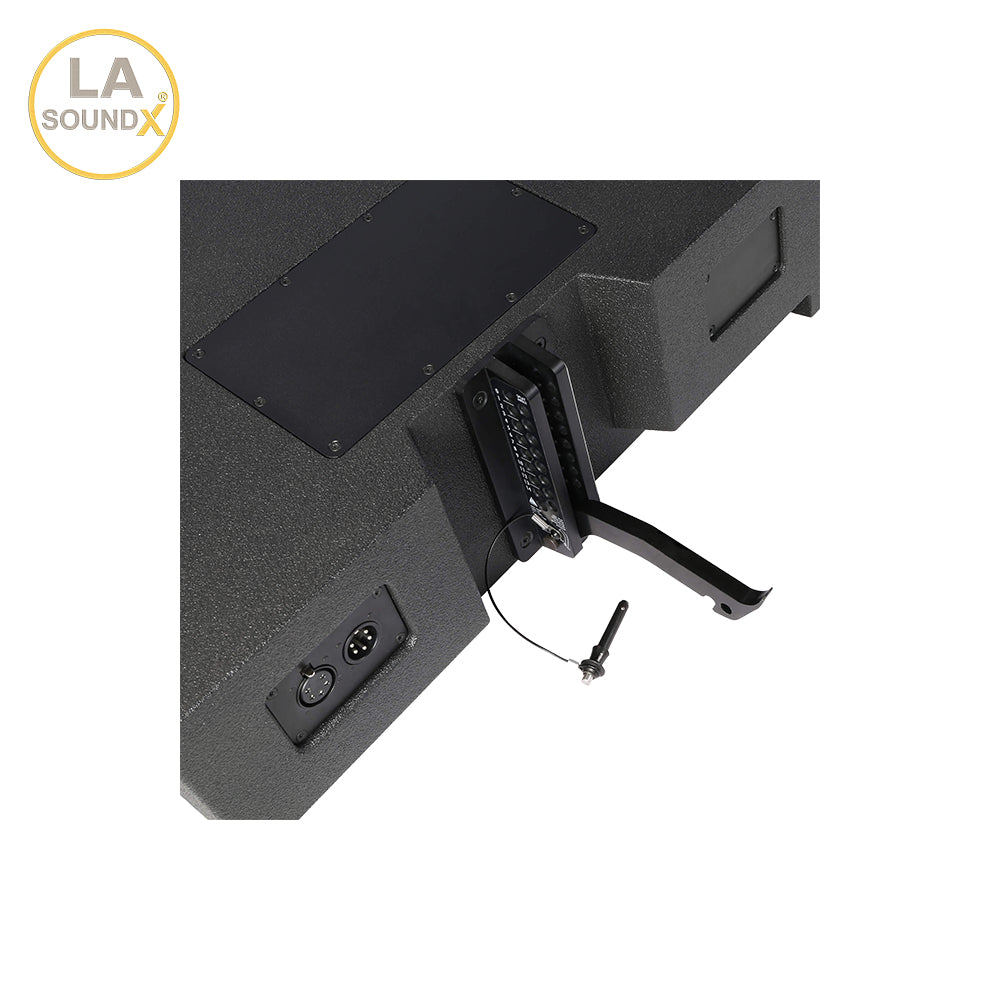

- 8 Ω nominal impedance and two parallel 4-pin rear connectors.

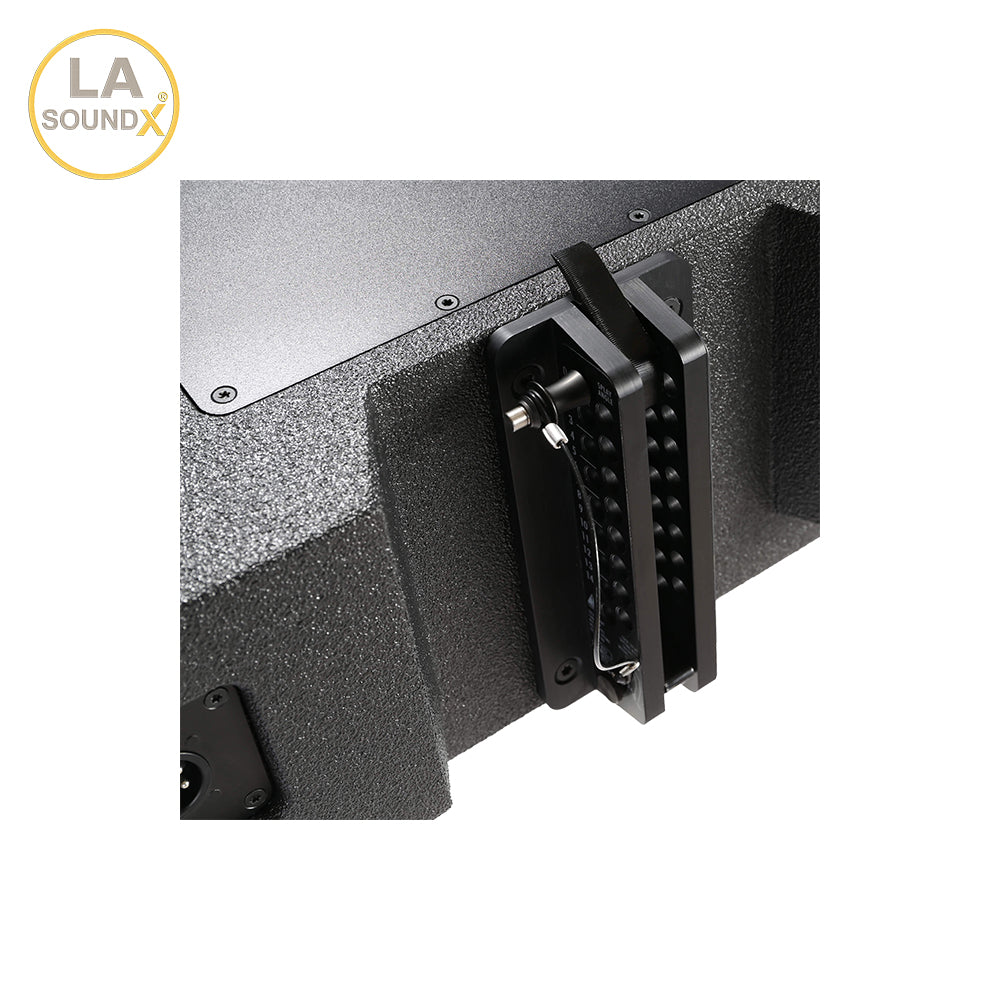

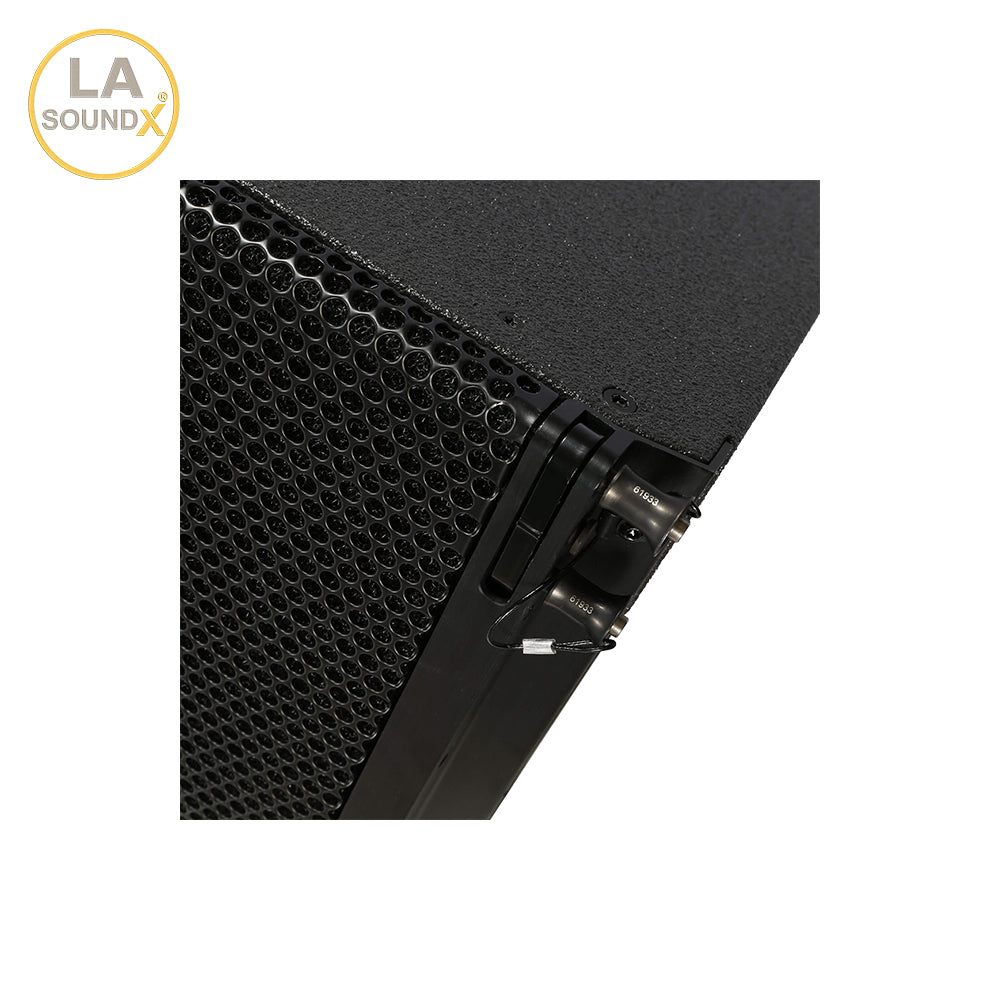

- Integrated 3-point rigging with 0°–14° splay in 1° increments.

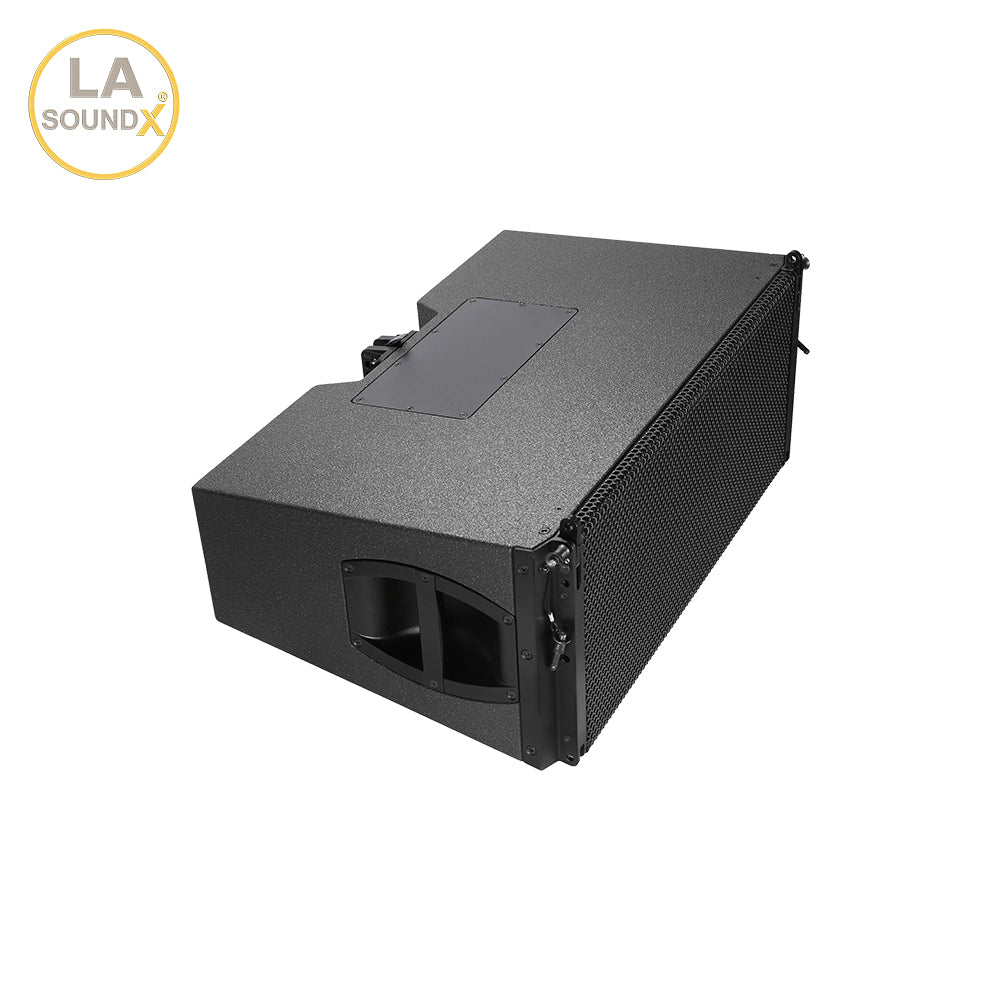

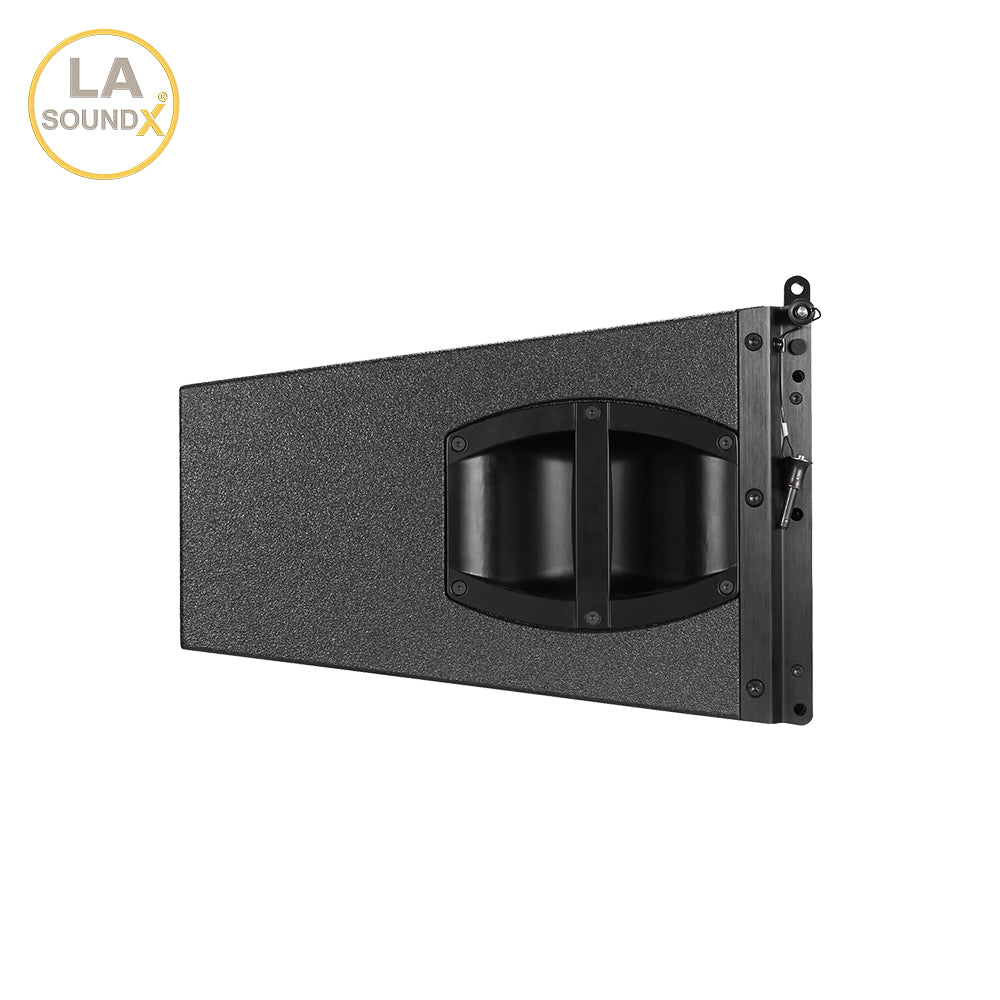

- Marine plywood enclosure with protective polyurea coating, two side handles and two rear grips.
Technical Specifications
| Model | V28P |
|---|---|
| System type | 3-way passive line array |
| LF drivers | 2 × 10-inch neodymium |
| MF driver | 1 × 8-inch, horn-loaded |
| HF drivers | 2 × 1.4-inch exits; 2.5-inch voice coils |
| Frequency response | 67 Hz–18 kHz (-5 dB) |
| CUT mode | 100 Hz–18 kHz (-5 dB) |
| Maximum SPL | 142 dB peak |
| Power handling | 500 W RMS / 2000 W peak (10 ms) |
| Horizontal dispersion | 80° |
| Nominal impedance | 8 Ω |
| Crossover | Internal passive network |
| Connections | 2 × 4-pin, parallel; 4-pin or 5-pin variants available |
| Connector assignment | TOP: 1+ / 1−; second pin pair links through for a separate low-frequency circuit |
| Splay settings | 0°–14° in 1° increments |
| Array capacity | Up to 24 cabinets, subject to frame configuration, suspension geometry and load limits |
| Cabinets per channel | Up to 2 in standard Line/Arc operation |
| Dimensions (H × W × D) | 310 × 700 × 460 mm |
| Net weight | 34 kg / 75 lb |
| Cabinet / finish | Marine plywood / protective polyurea coating |
| Rigging / handling | Integrated 3-point system; 2 side handles, 2 rear grips |
Maximum SPL measured at 1 m, free field, peak, with pink noise crest factor 4 and a compatible system controller. Vertical coverage depends on array length and inter-cabinet splay. Matching flying frame, flying adapter and touring cart support deployment and transport.
