- 5 x 120W IP65 Moving Tornado Bar
- Published technical data

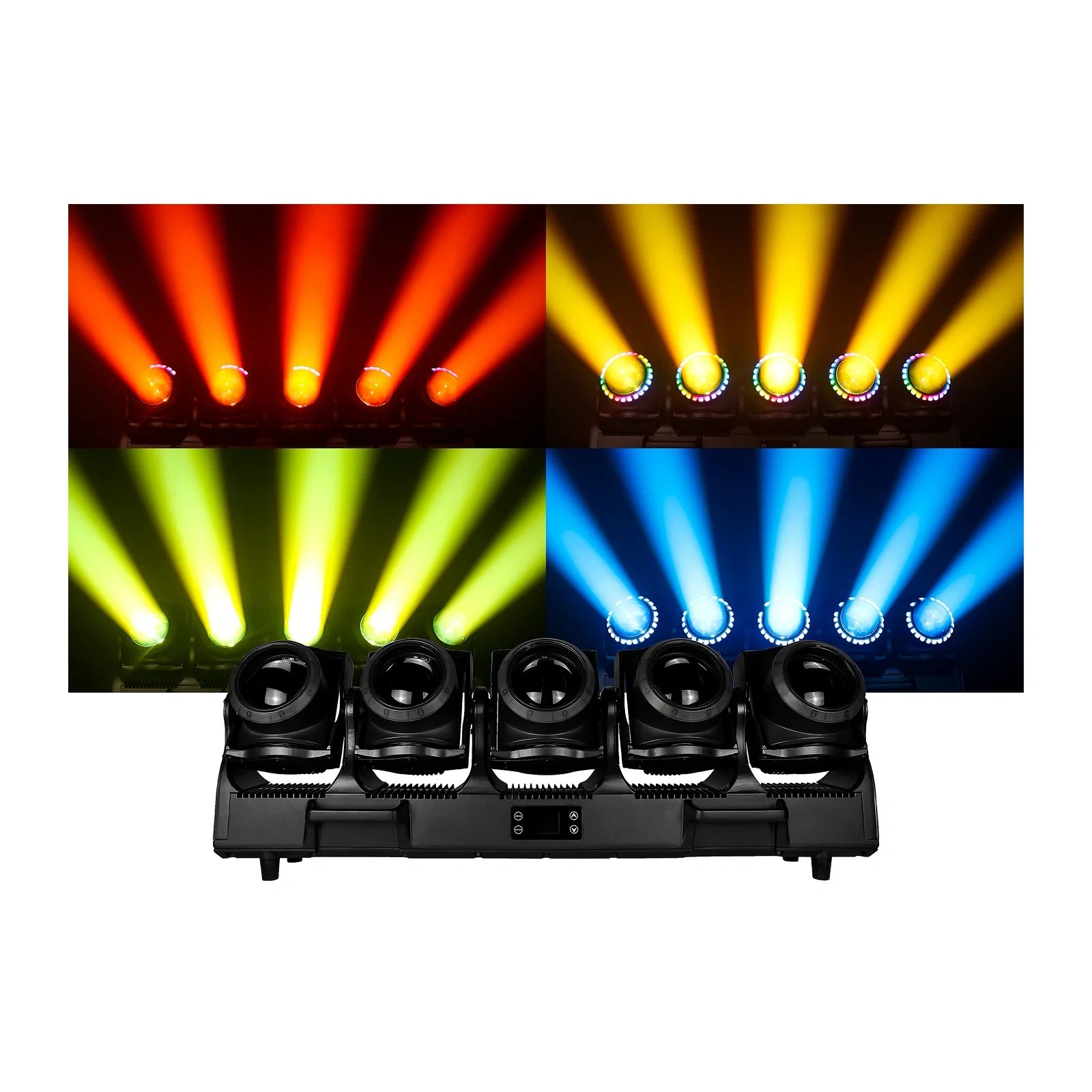

- UAGEITER Pe - Four-color main light and RGB rings create layered beam and halo looks The supplied effect photographs demonstrate red, yellow, green and blue beam examples with ring accents » Js - [Hi | NZ i sa == T=] IE--Sl[|E-- Y-
- Control and source data
- LA SOUNDX PRODUCT 087106 Professional control supports DMX, RDM, network and stand-alone operation The manual lists DMX512, RDM, Art-Net, master-slave, sound-active and auto programs DMX512 + RDM ART-NET Console control and remote device management are documented. Network protocol support is listed in the technical section. MASTER-SLAVE AUTO + SOUND Multiple fixtures can reproduce coordinated stand-alone programs. Two auto programs and sound-active playback are documented. LA SOUNDX PROFESSIONAL STAGE LIGHTING eww Laudio.com
- Connections and installation
- LA SOUNDX PRODUCT 087/07 41CH and 71CH personalities are documented only by the supplied manual No fixture-library file is supplied, so production-firmware compatibility remains TBC 41CH / DEFAULT 71CH / EXTENDED The manual identifies 41CH as the default mode and provides a detailed table The 71CH table expands per-head movement, RGB + lemon-cyan main color, for shared and individual functions. zoom and RGB ring effects for five heads. SOURCE BOUNDARY Both modes are manual-documented. Confirm the installed firmware before building a console profile, and do not treat the manual as an authoritative fixture-library file. LA SOUNDX PROFESSIONAL STAGE LIGHTING wewrw Laudio.com
- Dimensions and packing
- LA SOUNDX PRODUCT 087/08 The 71CH table allocates repeated control blocks to five physical heads The visible product count and channel sequence agree on five independently addressed modules 06-13 Head 1 main color, zoom and RGB ring effects 14-26 Head 2 movement + light block 27-39 Head 3 movement + light block 40-52 Head 4 movement + light block 66-71 Master dimmer, strobes, XY speed and function LA SOUNIDX PROFESSIONAL STAGE LIGHTING www -audio.com
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
