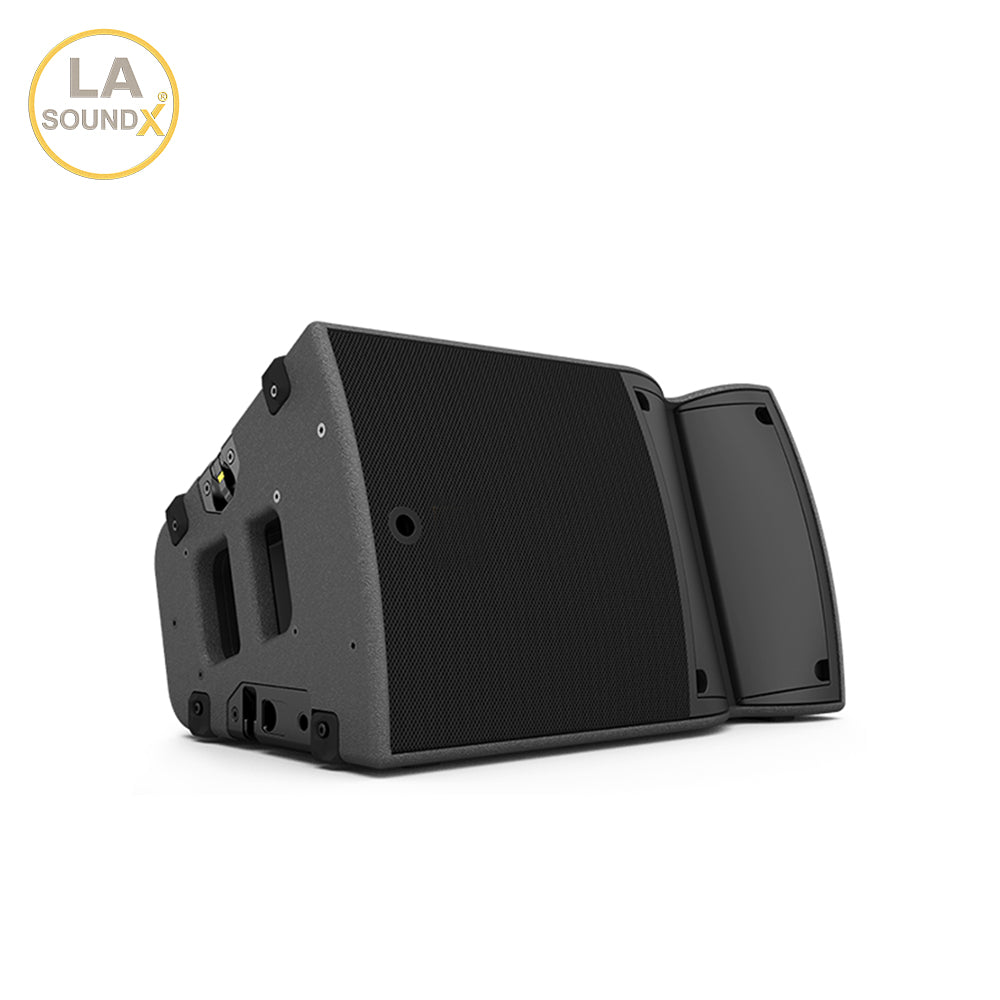

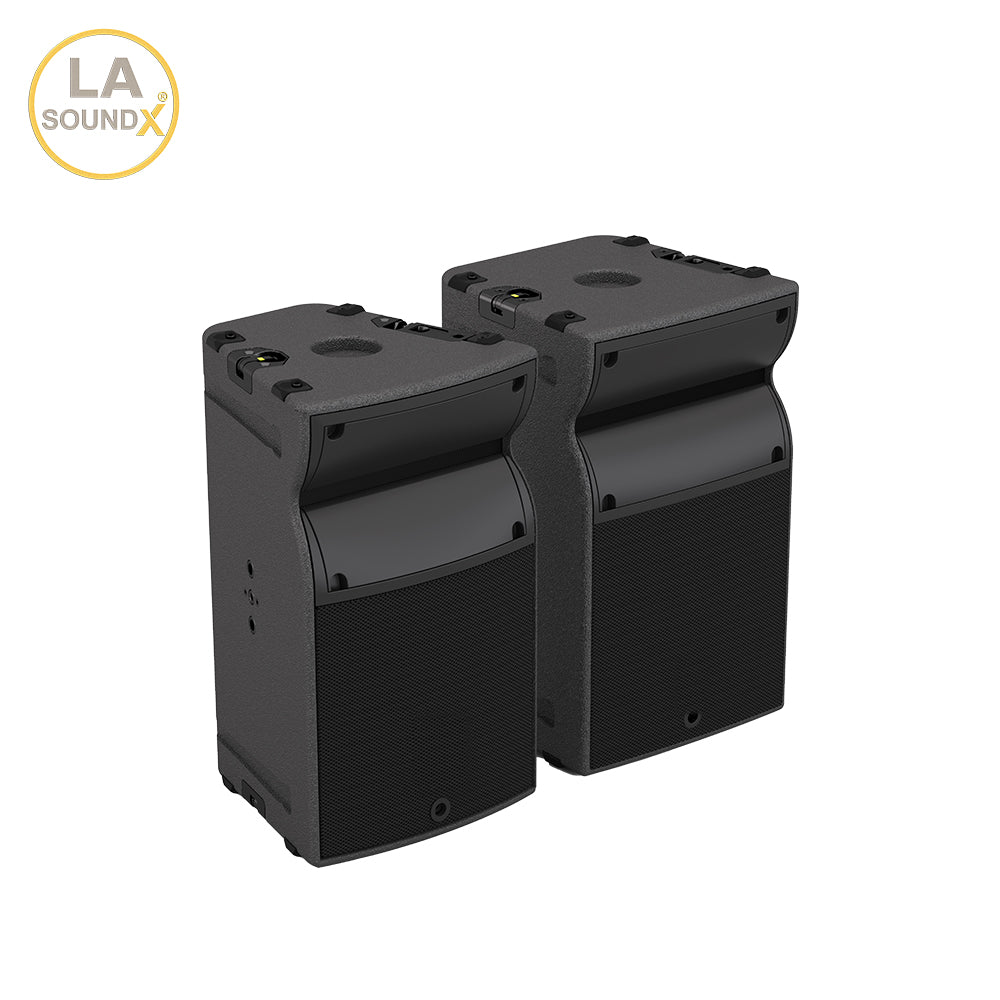

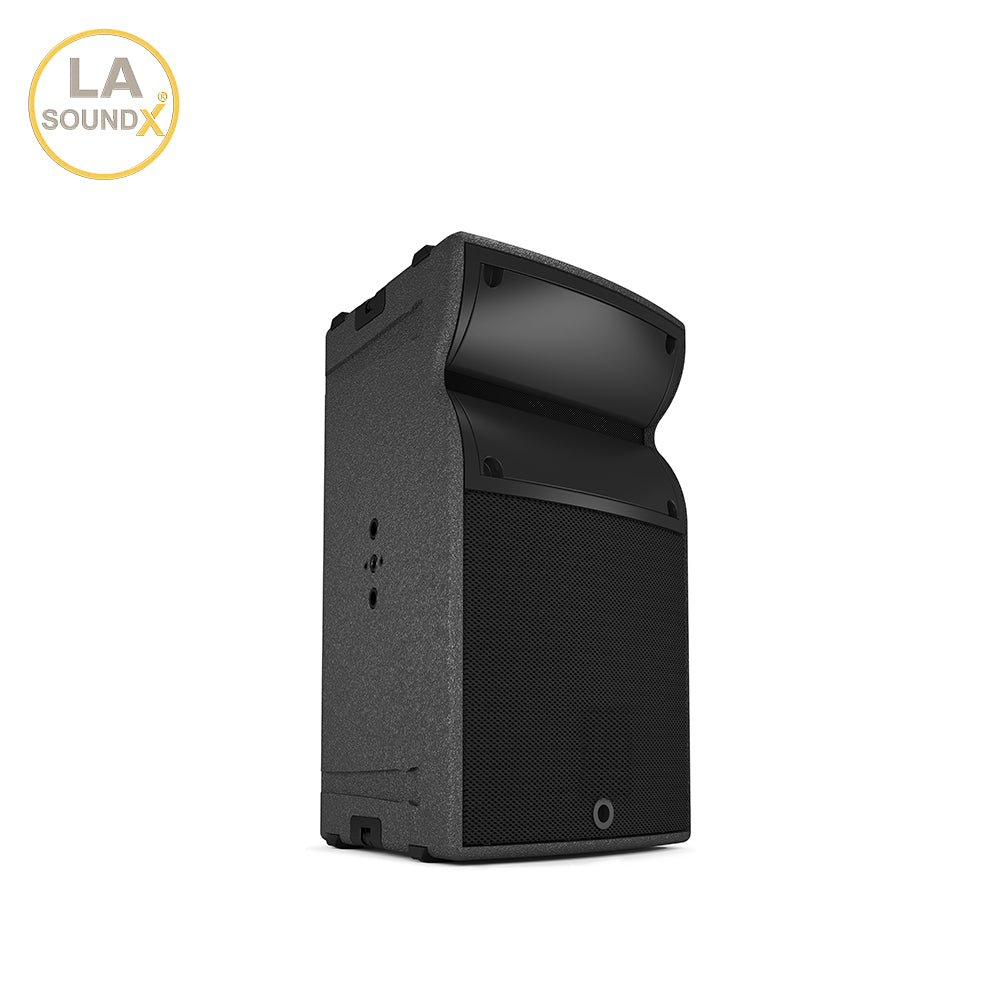

A210W / A10 Wide 10-Inch 2-Way Passive Medium-Throw Line Array Loudspeaker

A210W / A10 Wide is a compact, high-output 10-inch two-way passive medium-throw line array loudspeaker designed for professional productions requiring broad, consistent coverage and a discreet cabinet profile. Its 30-degree vertical enclosure coverage and adjustable horizontal directivity support compact arrays as well as individual main, fill and delay applications.

Key advantages

• Broad medium-throw coverage: the 30-degree enclosure enables compact radial arrays with expansive audience coverage.
• High output from a compact cabinet: up to 137 dB maximum SPL from a single 10-inch passive enclosure.
• Adaptable directivity: selectable 70-degree or 110-degree symmetric coverage and 90-degree asymmetric coverage.

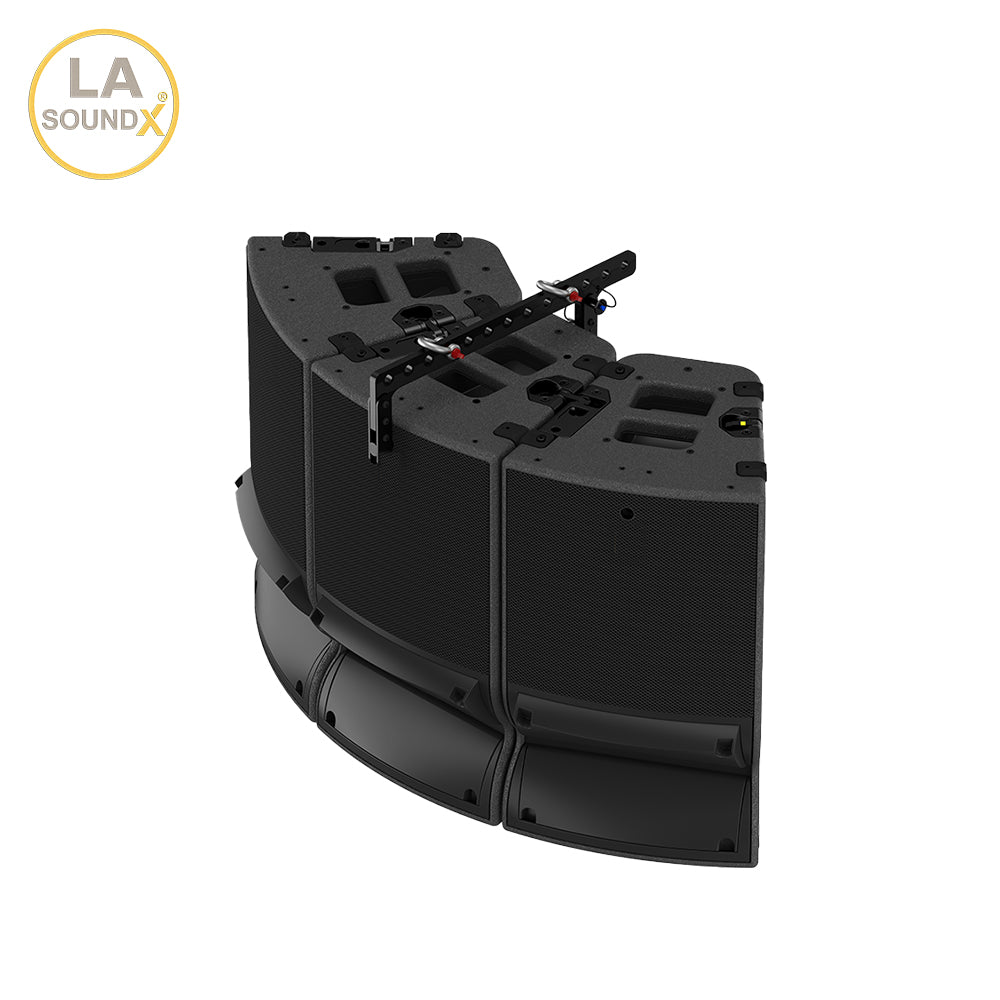

• Flexible deployment: fly or stack in vertical and horizontal arrays, or deploy individually for pole-mounted, fill and delay duties.
• Touring-ready construction: integral two-point rigging, robust plywood cabinet and IP55 weather protection.

Core specifications

• System type: 2-way passive constant-curvature line source
• Usable bandwidth: 67 Hz - 20 kHz (-10 dB)
• Maximum SPL: 137 dB peak at 1 m, free field
• Nominal directivity: 30-degree vertical enclosure coverage; 70 / 110-degree symmetric or 90-degree asymmetric horizontal coverage
• Transducers: 1 x 10-inch neodymium LF driver and 1 x 2.5-inch diaphragm neodymium HF compression driver
• Nominal impedance: 8 ohms
• Connectors: 2 x 4-point speaker connectors, IN / LINK
• Dimensions: 581 x 347 x 367 mm
• Net weight: 20 kg / 44 lb
• Protection rating: IP55

Recommended for theatres, clubs, houses of worship, sports venues, corporate productions, distributed reinforcement, touring systems, front-fill and delay applications. Use a compatible amplified controller with the approved A10 preset for system optimization and protection.
