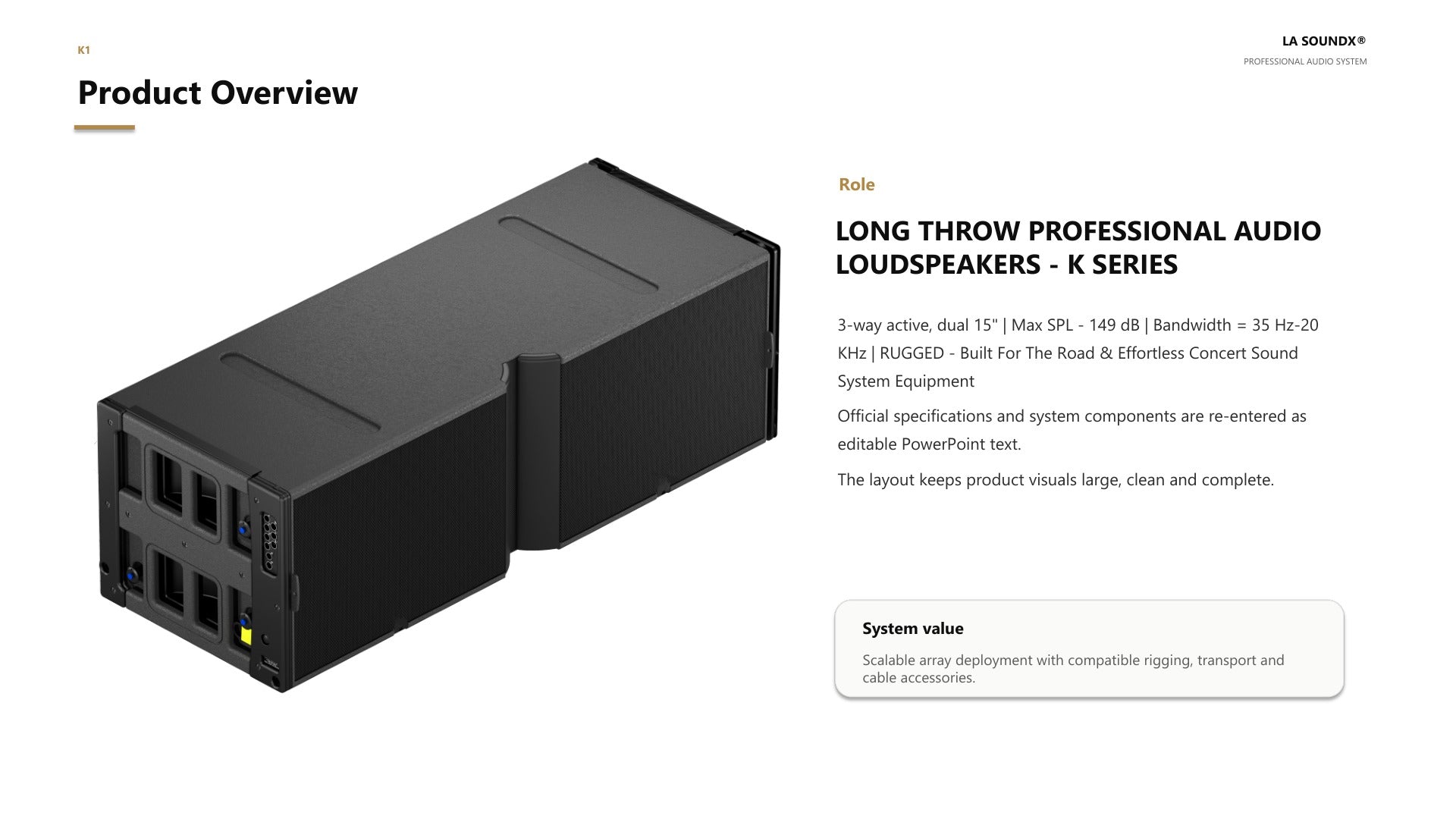

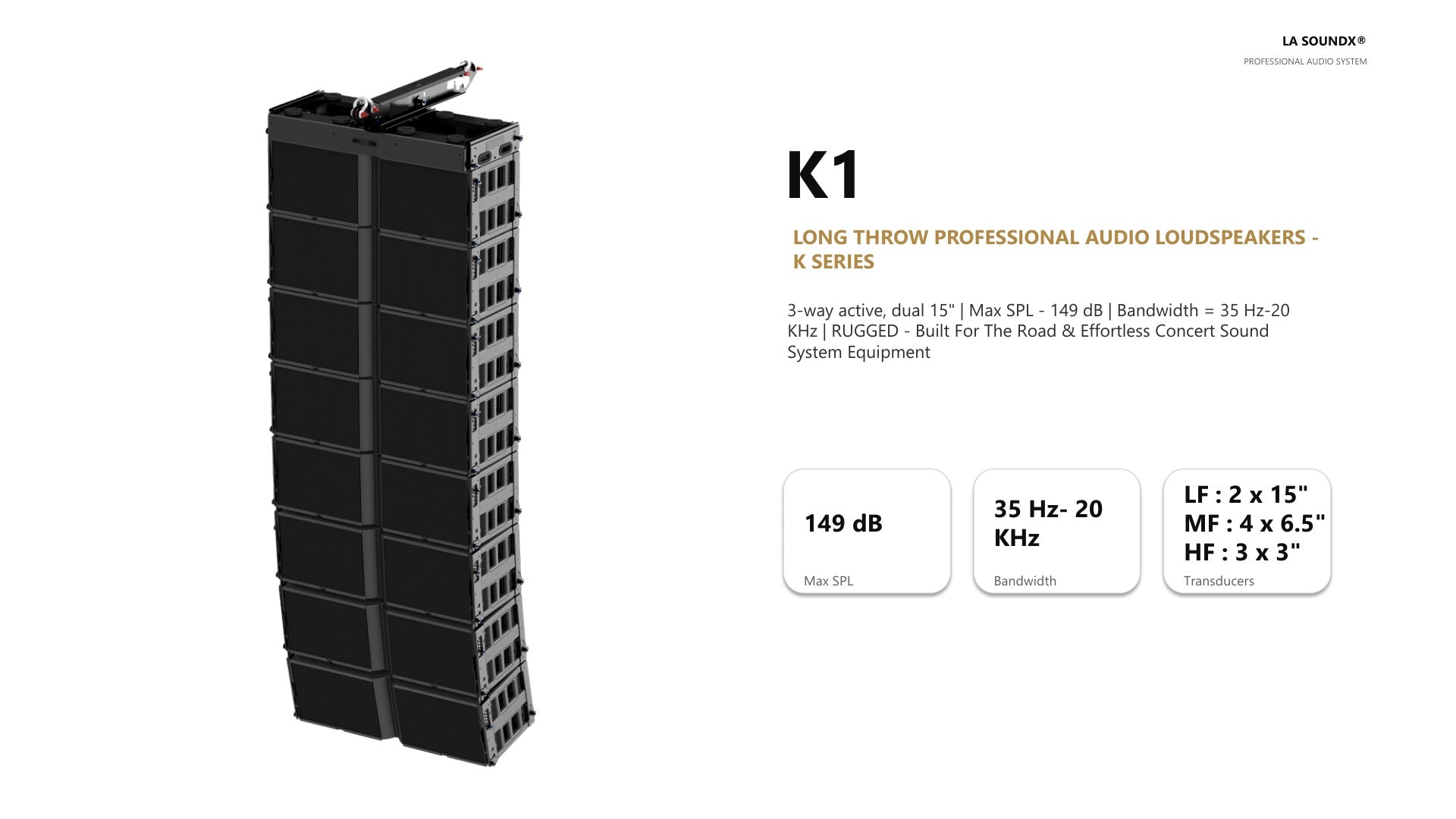

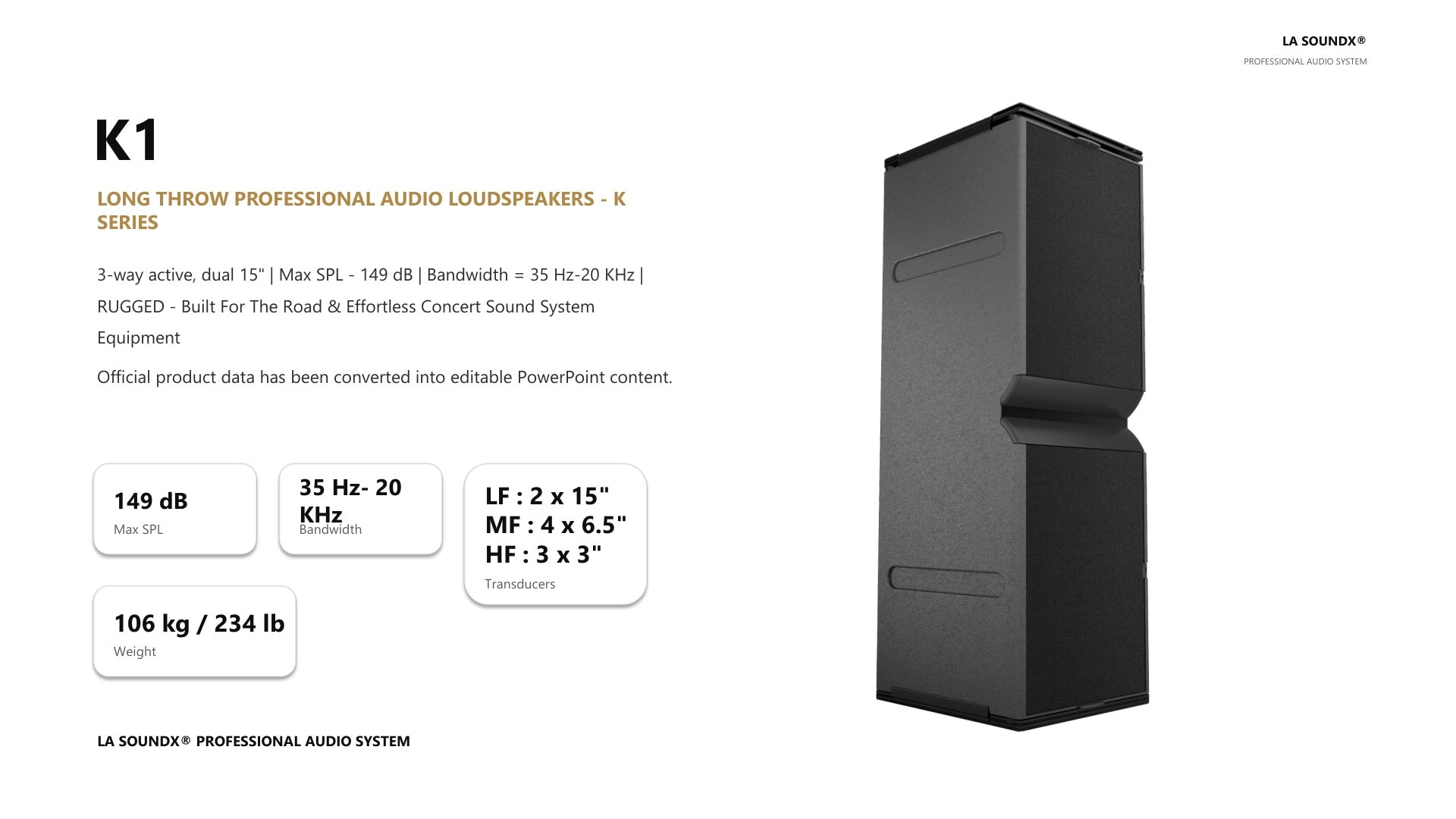

K1-K215-Large-format line array, 3-way active, dual 15'' LF

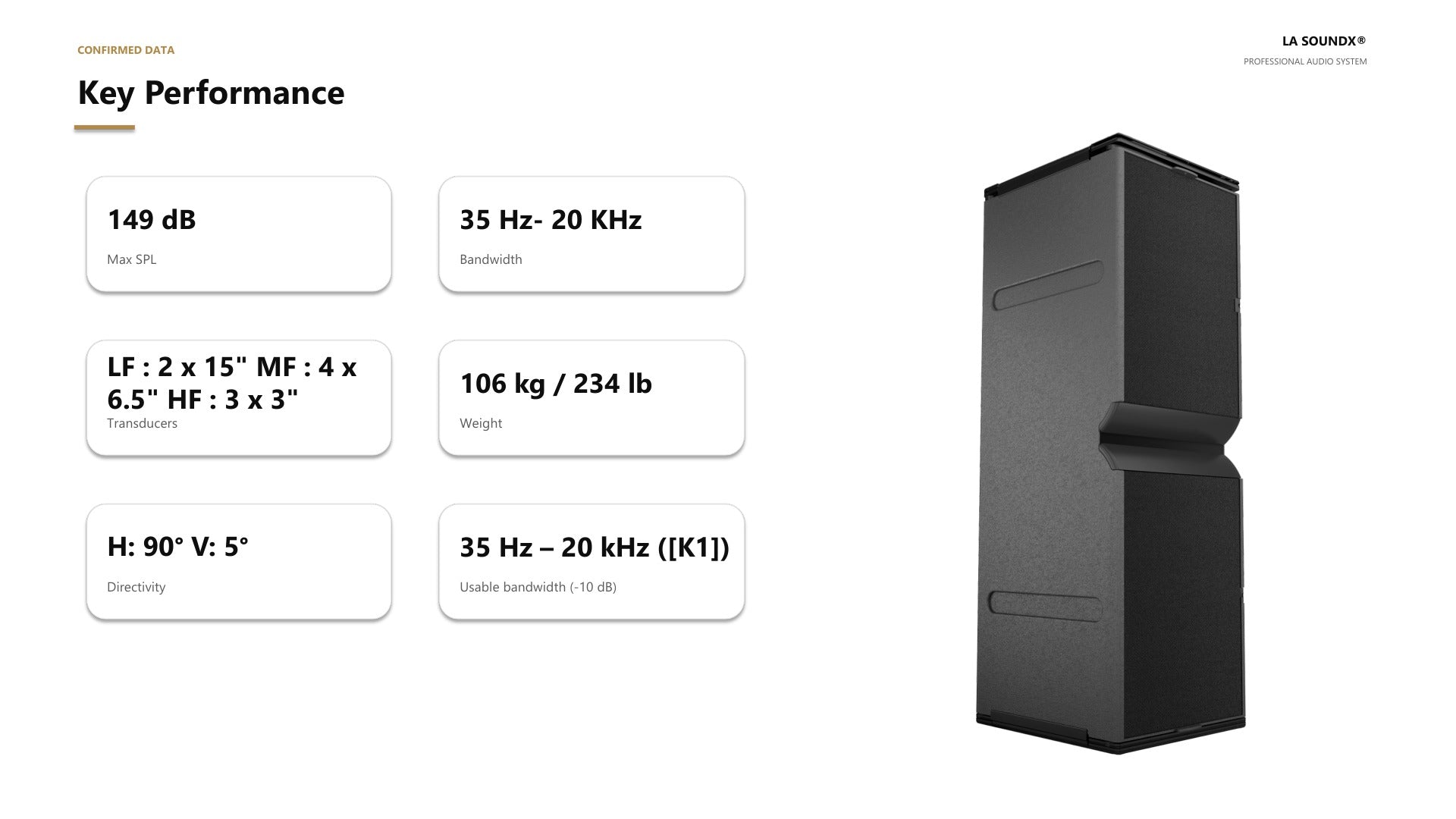

• Configuration: Large-format line array, 3-way active, dual 15″ LF
• Max SPL: 149 dB
• Bandwidth (-5 dB): 35 Hz – 20 kHz
• Transducers:
• LF: 2 × 15″
• MF: 4 × 6.5″
• HF: 3 × 3″
• Weight: 106 kg / 234 lb
• Directivity: H: 90° | V: 5°

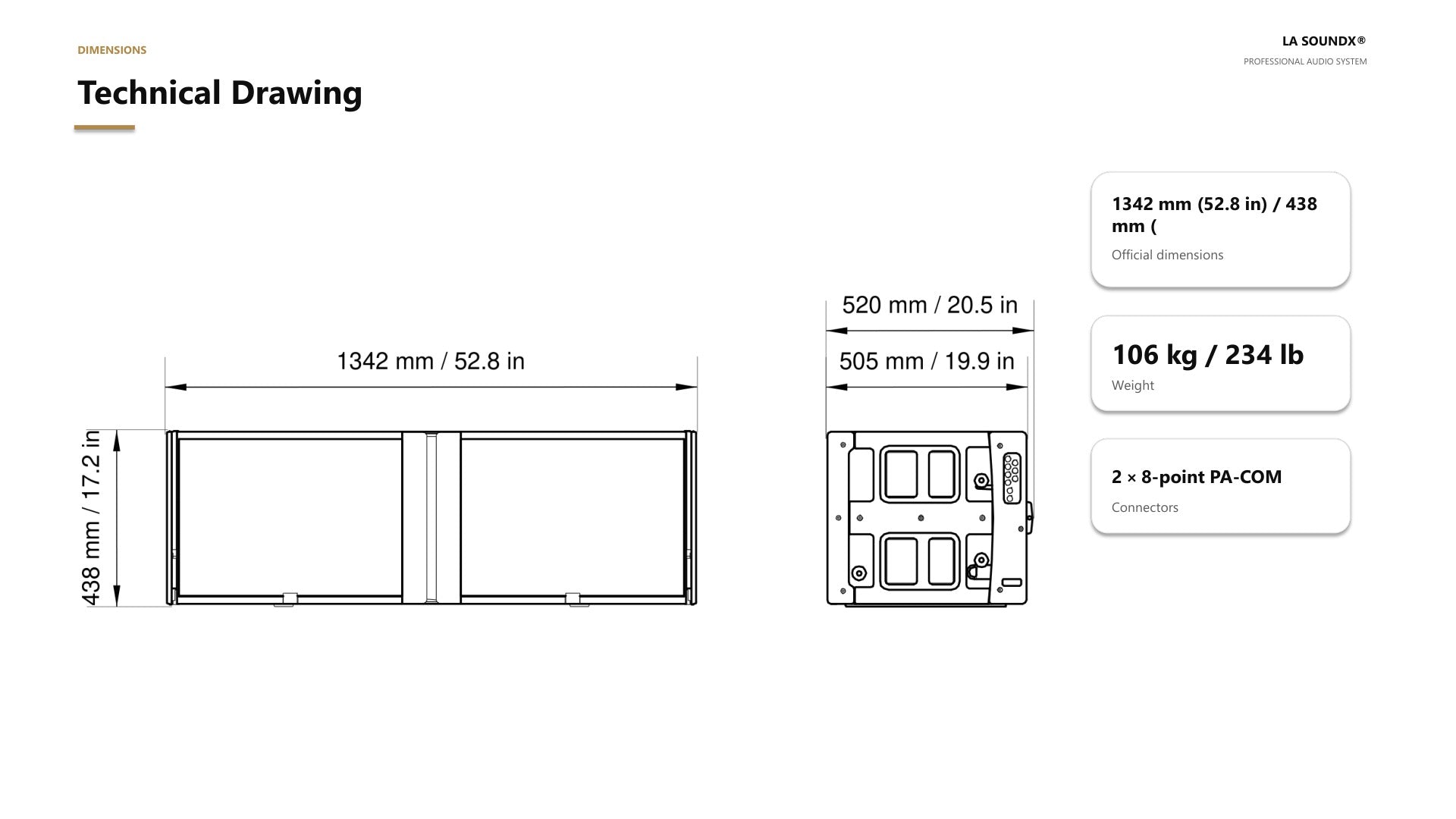

• Dimensions (H × W × D): 1350 × 520 × 720 mm
• Nominal Impedance: 8 Ω
• Power Handling: 1500 W AES / 3000 W Program / 6000 W Peak
标题

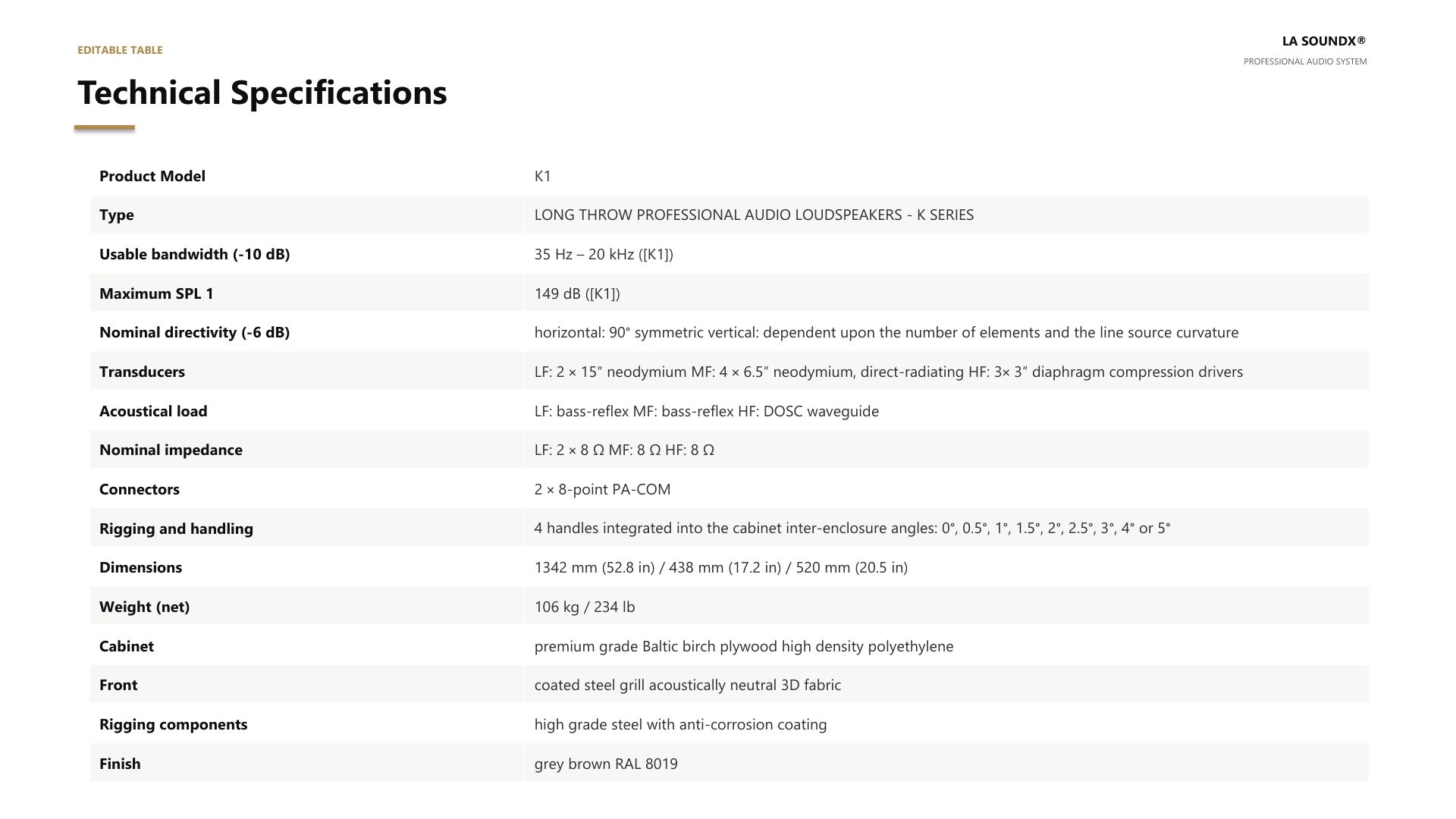

Electroacoustic specs
3-way active
full-range WST® enclosure quad-amplified by
LA12X
Usable bandwidth
(-10 dB) :35 Hz – 20 kHz ([K1])
Maximum SPL1 :149 dB
([K1])
Nominal directivity
(-6 dB)

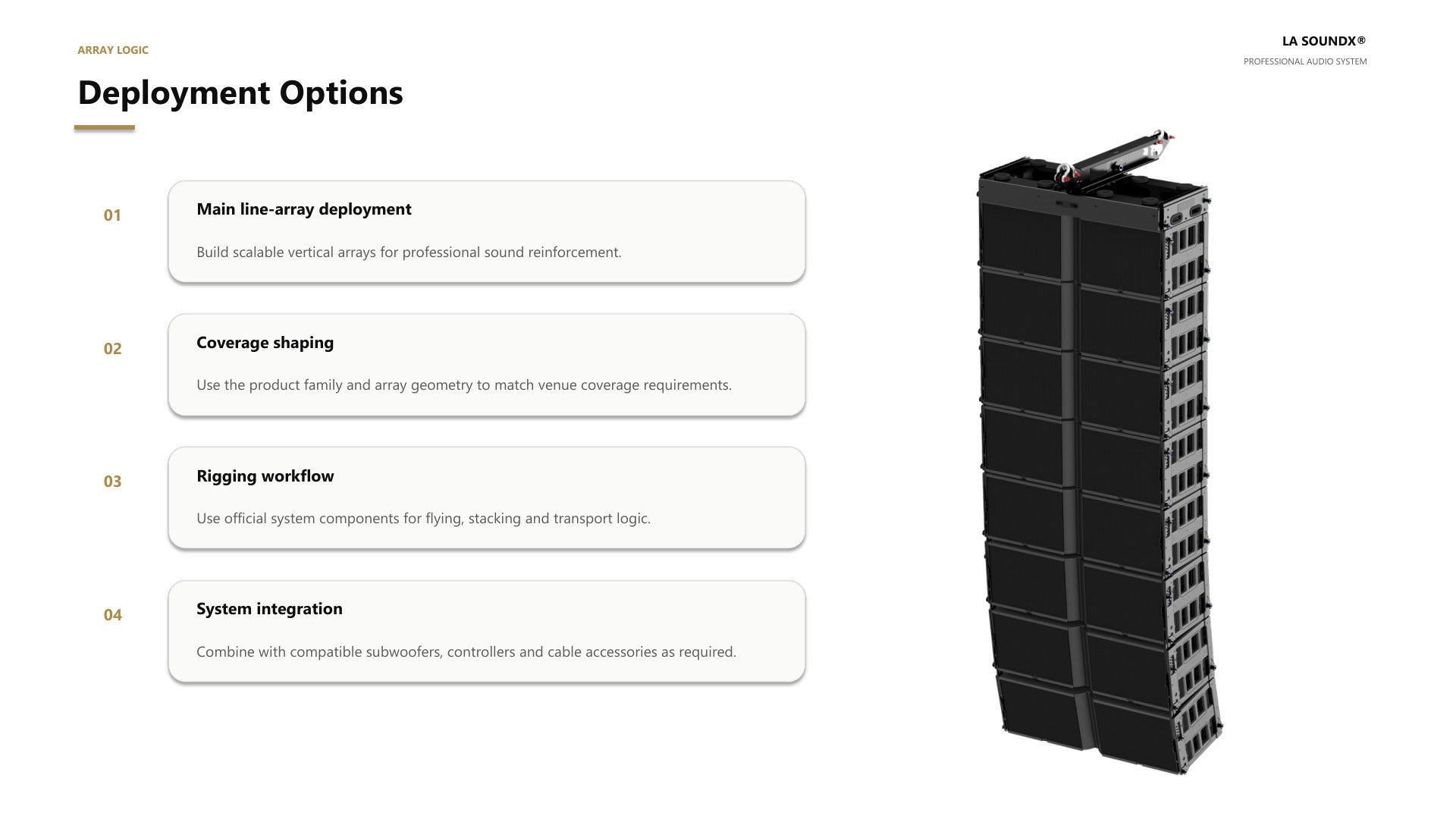

Horizontal: 90° symmetric vertical: dependent
upon the number of elements and the line source curvature

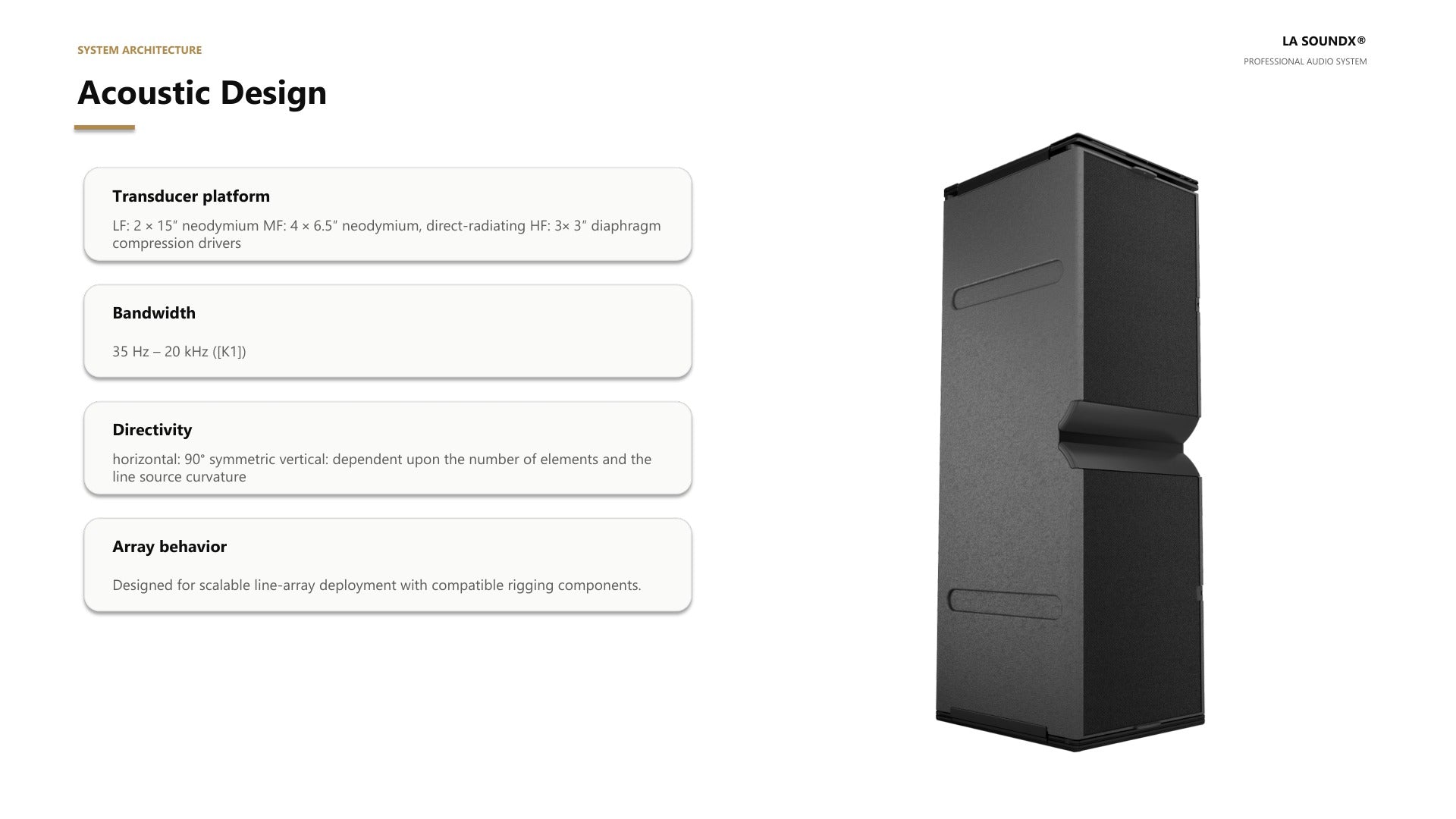

Transducers
LF: 2 ×15″ neodymium MF: 4 × 6.5″ neodymium, direct-radiating
HF: 3× 3″ diaphragm
compression drivers
Acoustical load
LF:bass-reflex MF: bass-reflex HF: DOSC waveguide
Nominal impedance
LF: 2 × 8 Ω MF: 8 Ω HF: 8 Ω
Physical specs

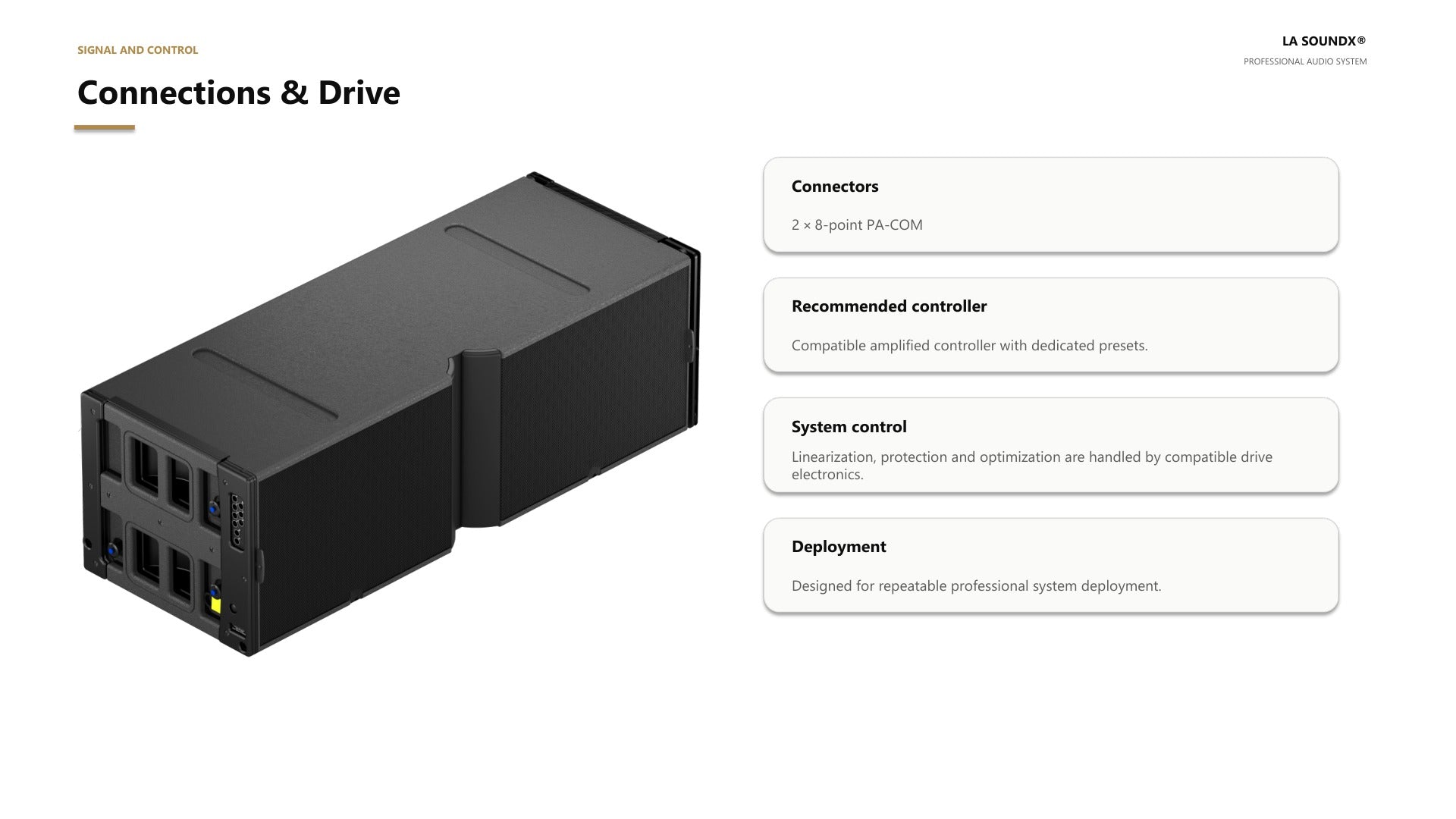

Connectors :2 ×
8-point PA-COM
Rigging and
handling :4 handles integrated into the cabinet inter-enclosure
angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5°
Weight (net) :106 kg/ 234 lb

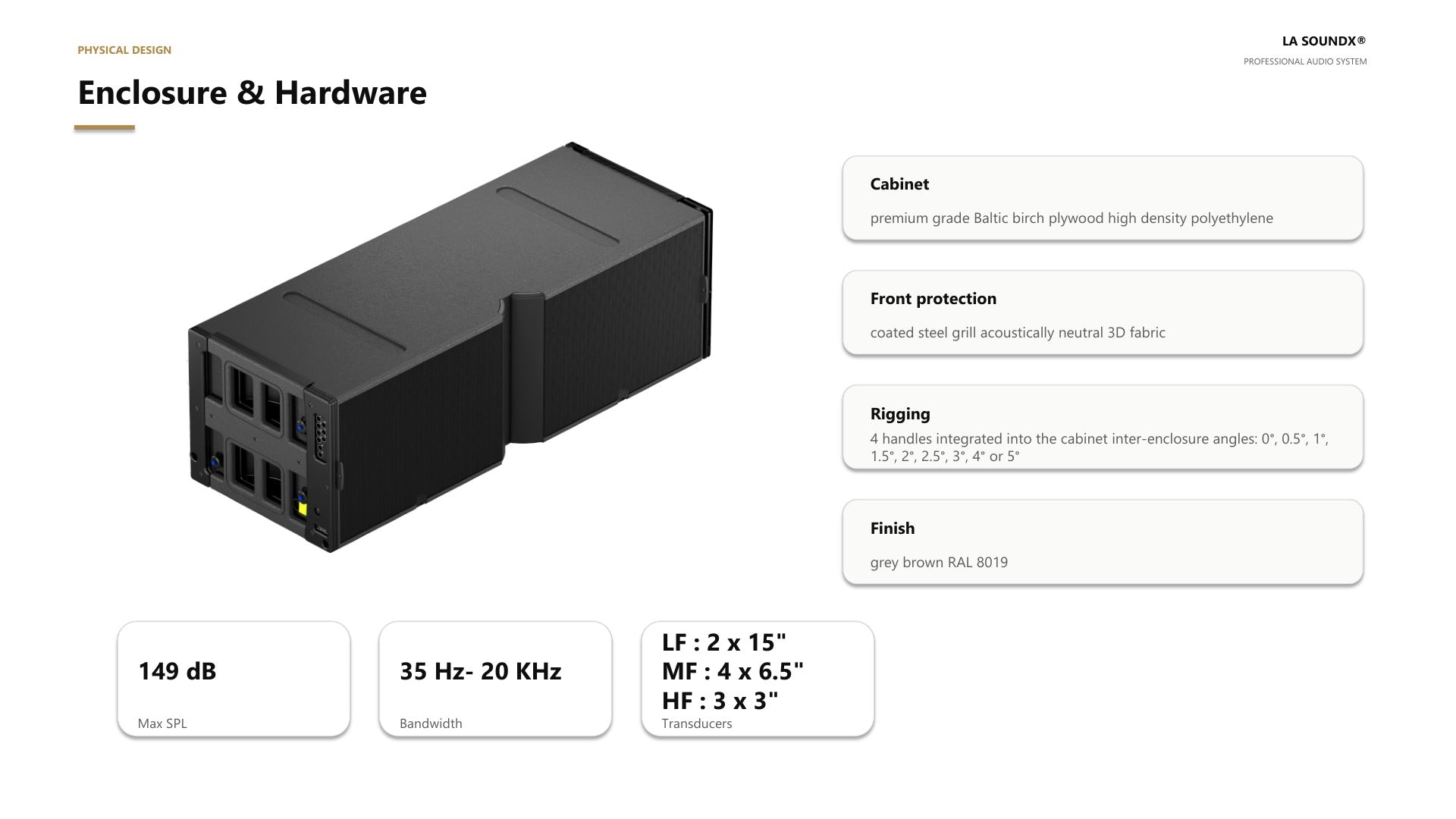

Cabinet : Premium grade Baltic birch plywood high density polyethylene
Front :Coated steel grill acoustically
neutral 3D fabric
Rigging components: High grade steel with anti-corrosion coating
Finish : Grey brown RAL 8019
IP : IP43
