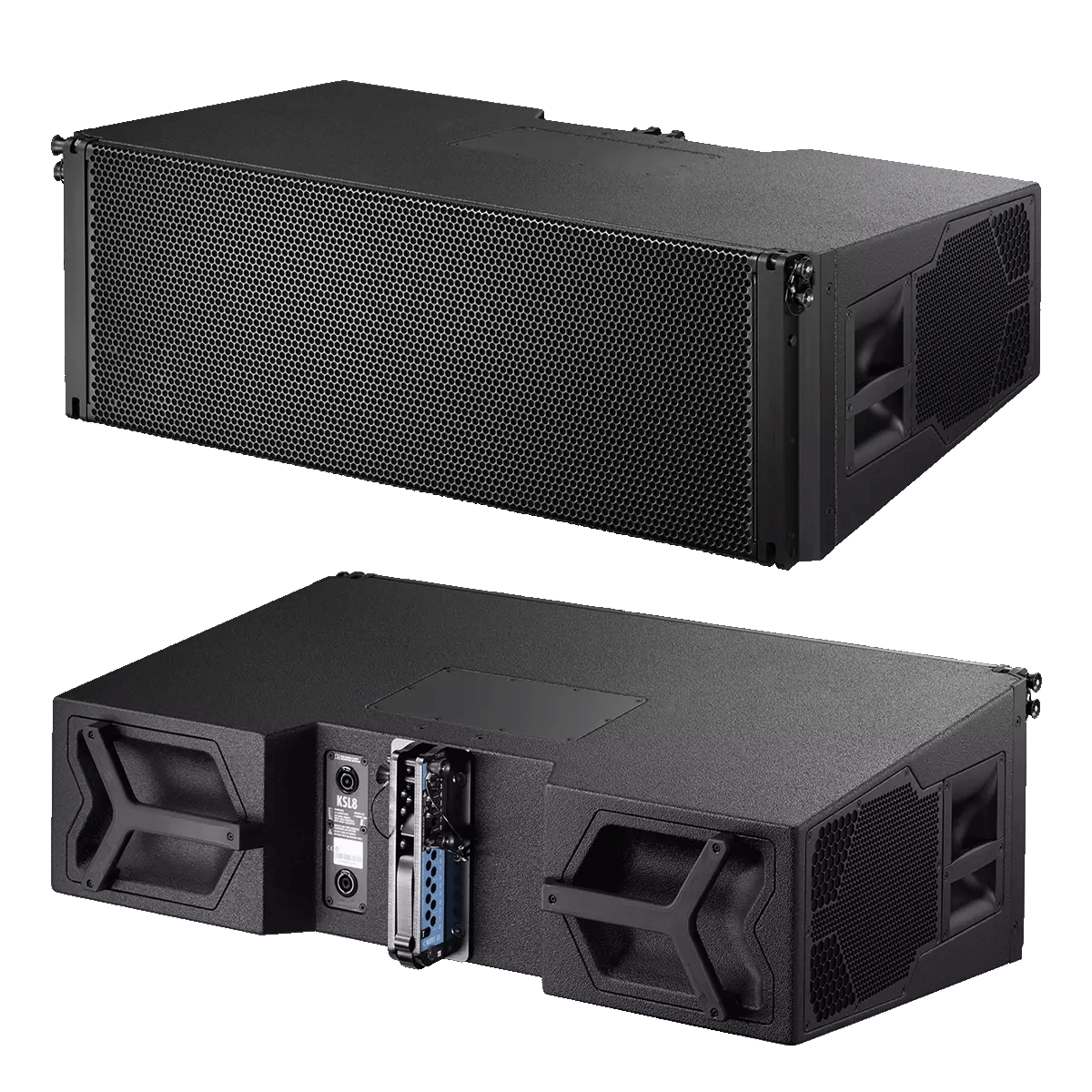

LA-KSL8 PRO loudspeaker Line arrays Medium to large format 3-way line array loudspeaker
- Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
- Dispersion 80°
- SPLmax 145 dB
- Weight 58 kg / 128 lbs
LA-KSL8 PRO loudspeaker Line arrays Medium to large format 3-way line array loudspeaker
Sale price $0.00
Regular price (/)
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):54 Hz - 19 kHz
Frequency response (-5 dB CUT mode):100 Hz - 19 kHz
Max. sound pressure1 withD80:139 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance 2-way passive line array loudspeaker
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):400/1600 W
Nominal dispersion angle (horizontal):80°
Splay angle settings:0° - 14° (1° increment)
Components:2 x 8" driver with neodymium magnet 1.4" exit compression driverpassive crossover network
Connections:2 x NLT4 F/M optional 2 x NL4
Dimensions (H x W x D):257 x 630 x 375 mm10 x 24.8 x 14.8"
Weight:20 kg44 lb
