LEDT12 / ZN1240A 12 x 40W RGBW Moving Pixel Bar

Product: LEDT12 / ZN1240A 12 x 40W RGBW Moving Pixel Bar
Input voltage: AC100-240V 50/60Hz English manual; AC90-240V Chinese manual - final nameplate required
Rated power: 500W max English manual; 600W max Chinese manual - source conflict
Light source: 12 x 40W RGBW 4-in-1 main LEDs; auxiliary pixel quantity TBC
DMX channels: 27CH library-verified; 28/67CH manual-documented; separate M1204A 18CH profile TBC
Strobe: 1-20Hz English channel table; 1-25Hz Chinese parameter block
Movement: 220-degree vertical tilt; 16-bit; tilt reverse and feedback settings
Dimming: 0-100%; linear, square, inverse-square and S-curve
Protection: IP20; indoor use
Size / weight: Product dimensions TBC; 15kg net
Packing: 107 x 36 x 19cm; 16kg gross; one unit
Auxiliary LEDs: English and Chinese source descriptions conflict; final production BOM required
Electrical protection: Rated current, fuse value and fuse-holder location: TBC.

01

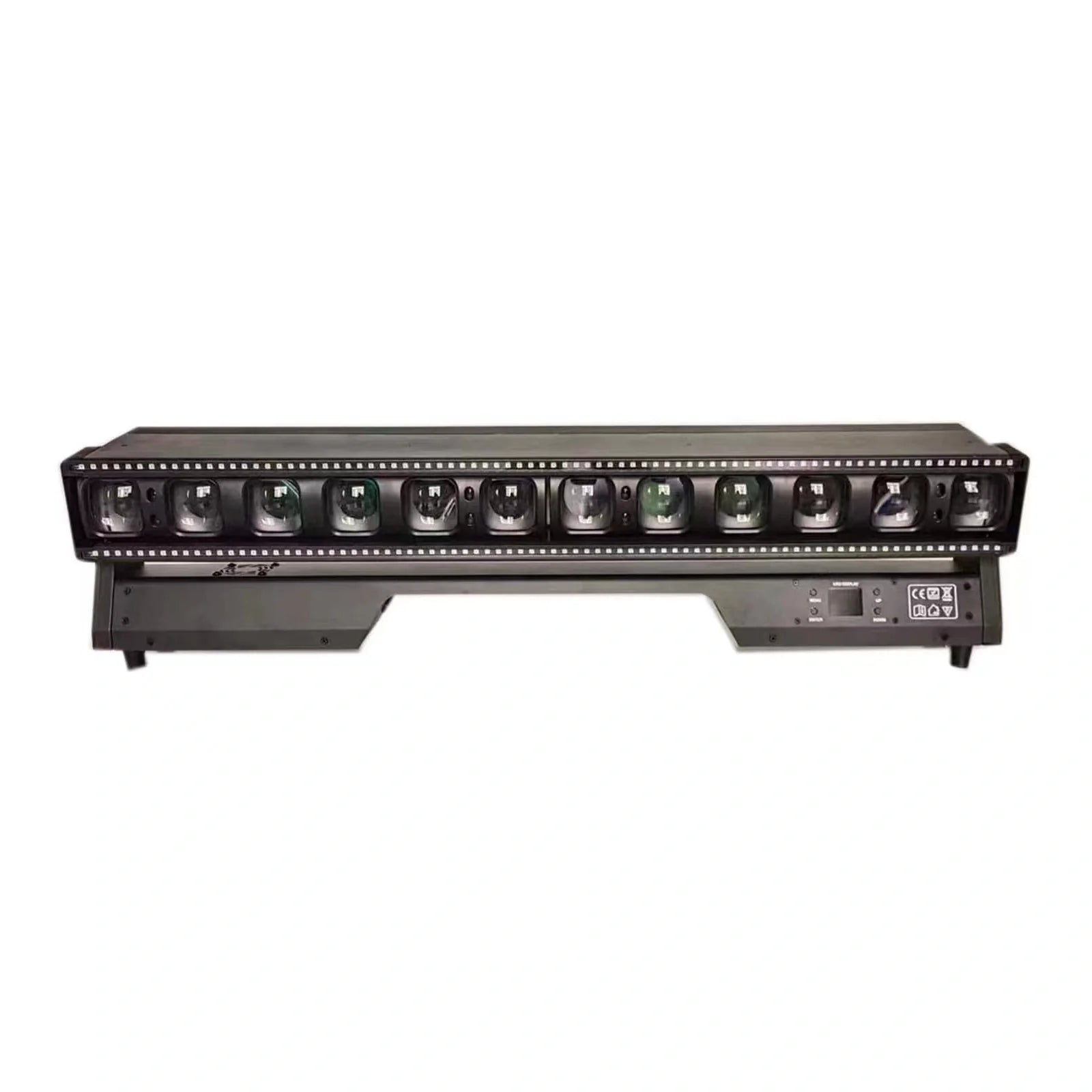

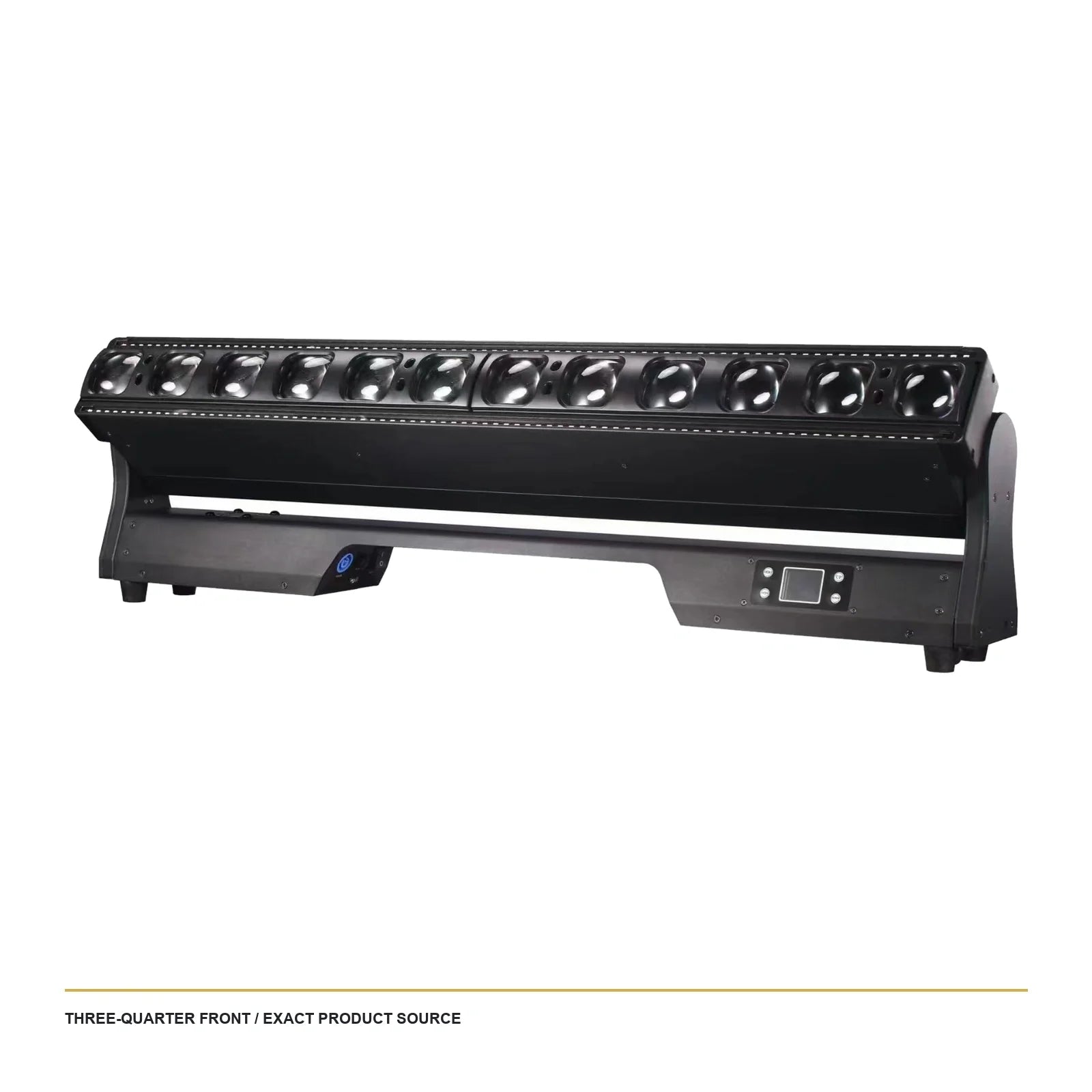

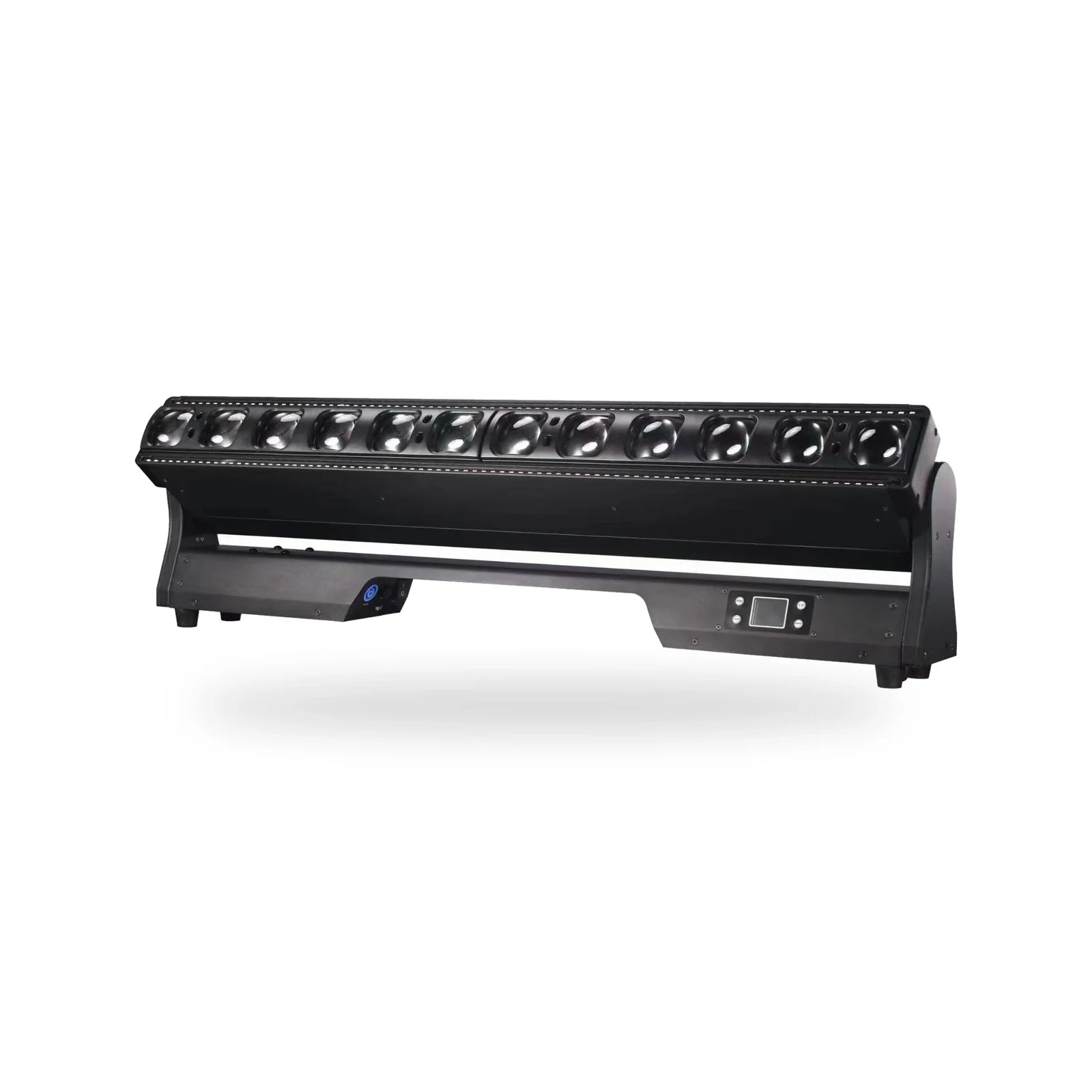

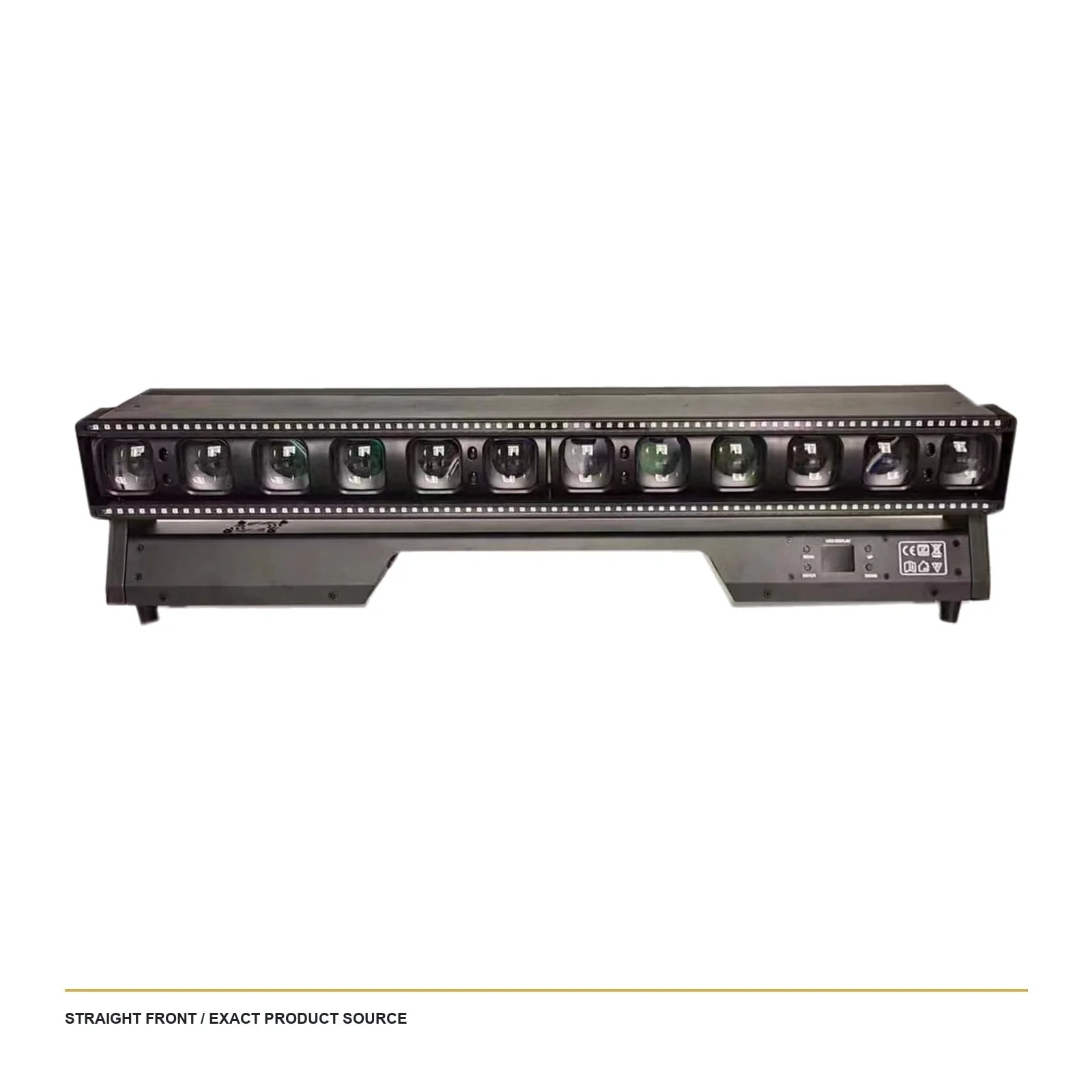

Twelve optical cells The exact-product photographs show twelve large front lenses arranged across one continuous moving bar.

Rated power

500W max English manual; 600W max Chinese manual - source conflict

Light source

12 x 40W RGBW 4-in-1 main LEDs; auxiliary pixel quantity TBC

DMX channels

27CH library-verified; 28/67CH manual-documented; separate M1204A 18CH profile TBC

Movement

220-degree vertical tilt; 16-bit; tilt reverse and feedback settings

01

Twelve optical cells The exact-product photographs show twelve large front lenses arranged across one continuous moving bar.

RGBW plus auxiliary pixels

The manuals document 12 x 40W RGBW main LEDs and auxiliary pixel strips; final auxiliary count remains TBC.

Dual zoom control

The manual channel table provides separate Zoom 1 and Zoom 2 functions; published angle ranges conflict and require final-unit confirmation.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

LEDT12 / ZN1240A 12 x 40W RGBW Moving Pixel Bar

Input voltage

AC100-240V 50/60Hz English manual; AC90-240V Chinese manual - final nameplate required

Rated power

500W max English manual; 600W max Chinese manual - source conflict

Light source

12 x 40W RGBW 4-in-1 main LEDs; auxiliary pixel quantity TBC

DMX channels

27CH library-verified; 28/67CH manual-documented; separate M1204A 18CH profile TBC

Strobe

1-20Hz English channel table; 1-25Hz Chinese parameter block

Movement

220-degree vertical tilt; 16-bit; tilt reverse and feedback settings

Dimming

0-100%; linear, square, inverse-square and S-curve

Protection

IP20; indoor use

Size / weight

Product dimensions TBC; 15kg net

Packing

107 x 36 x 19cm; 16kg gross; one unit

Auxiliary LEDs

English and Chinese source descriptions conflict; final production BOM required

Electrical protection

Rated current, fuse value and fuse-holder location: TBC.
