R1 20W Full Color Laser

Product: identity R1 fixed-yoke full-color animation laser claim; still labels do not prove R1/20W; final IP
Input voltage: AC90-250V note claim vs AC110-240V / AC100-240V manual tables - source conflict
DMX channels: 21CH manual-documented; exact R1 fixture library source-blocked; older 17CH note
Protection: are claims; remote interlock architecture TBC
Size / weight: 215 x 330 x 160mm vs 300 x 330 x 160mm length conflict; 340mm with handle; 12kg net
Packing: 450 x 380 x 290mm carton; 550 x 360 x 290mm / 16.5kg flight-case claim
Environment: Product name says outdoor; manual says indoor use and rear label shows indoor icon.
Connections: are visible

Fixed-yoke enclosure

Five note-linked product stills document the rectangular housing, adjustable mounting yoke, front aperture and ventilation structure; the visible labels do not prove the R1-20W variant.

DMX channels

21CH manual-documented; exact R1 fixture library source-blocked; older 17CH note

Protection

are claims; remote interlock architecture TBC

Input voltage

AC90-250V note claim vs AC110-240V / AC100-240V manual tables - source conflict

Size / weight

215 x 330 x 160mm vs 300 x 330 x 160mm length conflict; 340mm with handle; 12kg net

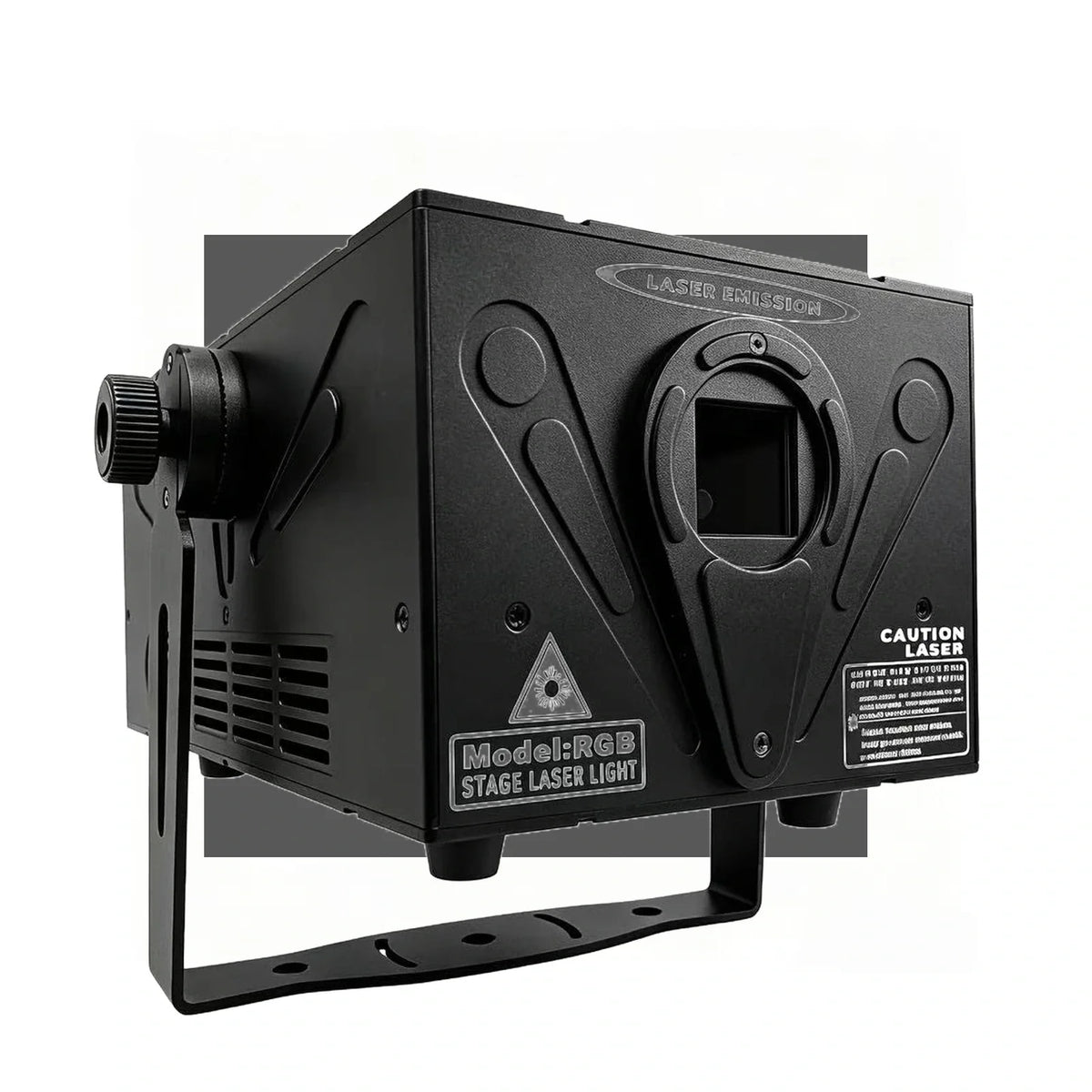

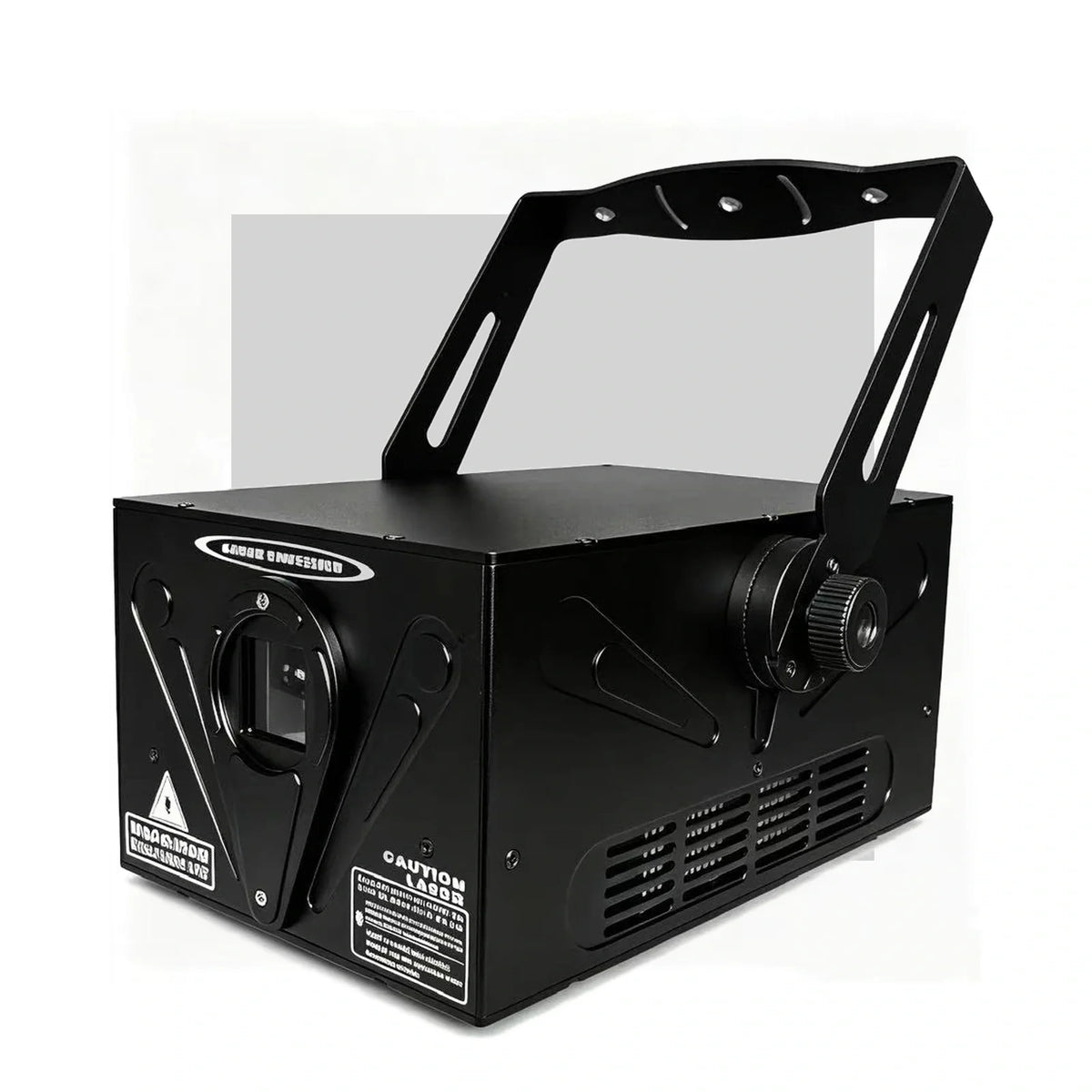

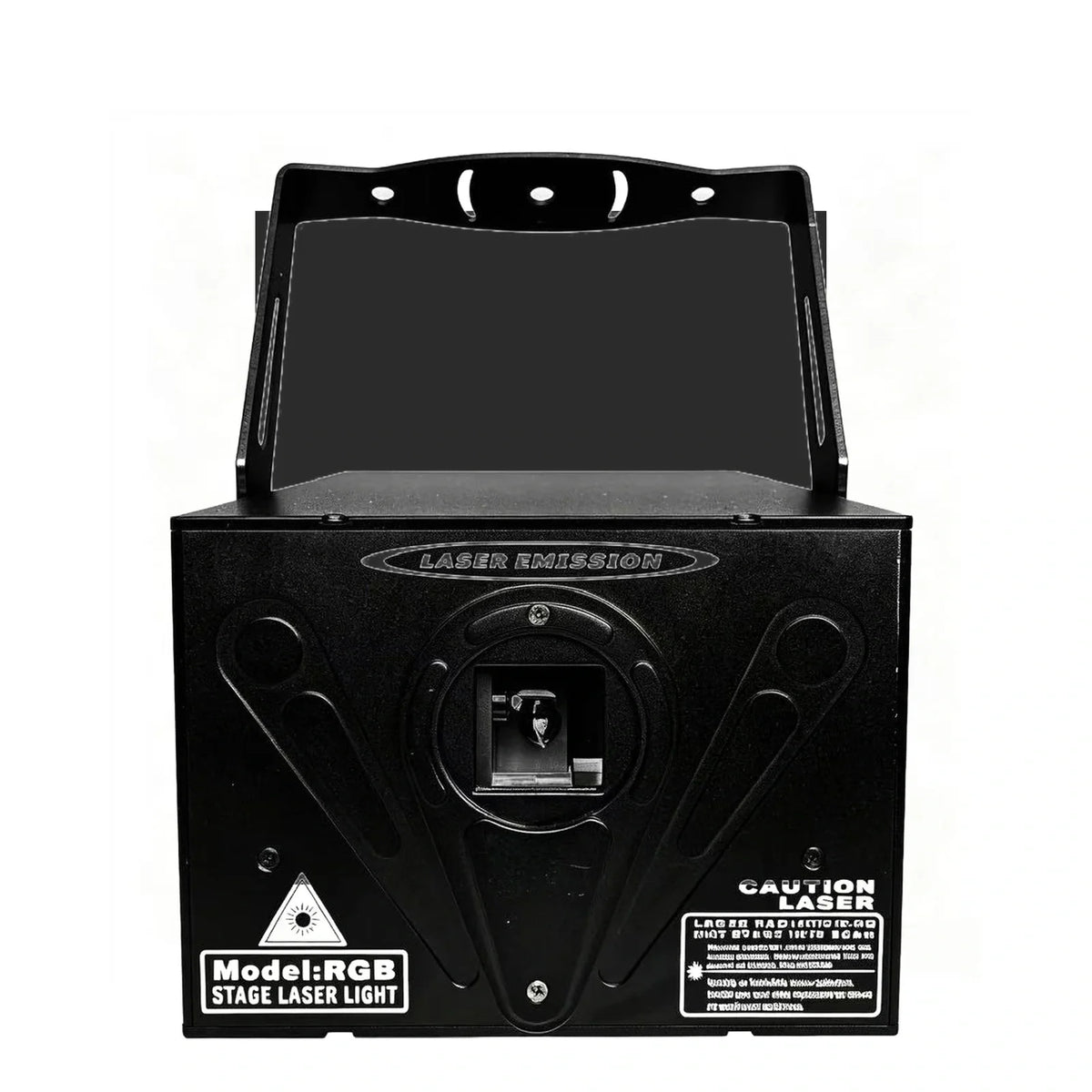

Fixed-yoke enclosure

Five note-linked product stills document the rectangular housing, adjustable mounting yoke, front aperture and ventilation structure; the visible labels do not prove the R1-20W variant.

Animation and pattern engine

The source set documents 128+ built-in beam programs, SD-card playback, text, line and animation material, plus ILDA computer control.

RGB optical claim

Source notes claim 638nm red at 6W, 520nm green at 6W and 445nm blue at 8W; final measured powers and wavelengths require production validation.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

identity R1 fixed-yoke full-color animation laser claim; still labels do not prove R1/20W; final IP

Input voltage

AC90-250V note claim vs AC110-240V / AC100-240V manual tables - source conflict

DMX channels

21CH manual-documented; exact R1 fixture library source-blocked; older 17CH note

Protection

are claims; remote interlock architecture TBC

Size / weight

215 x 330 x 160mm vs 300 x 330 x 160mm length conflict; 340mm with handle; 12kg net

Packing

450 x 380 x 290mm carton; 550 x 360 x 290mm / 16.5kg flight-case claim

Environment

Product name says outdoor; manual says indoor use and rear label shows indoor icon.

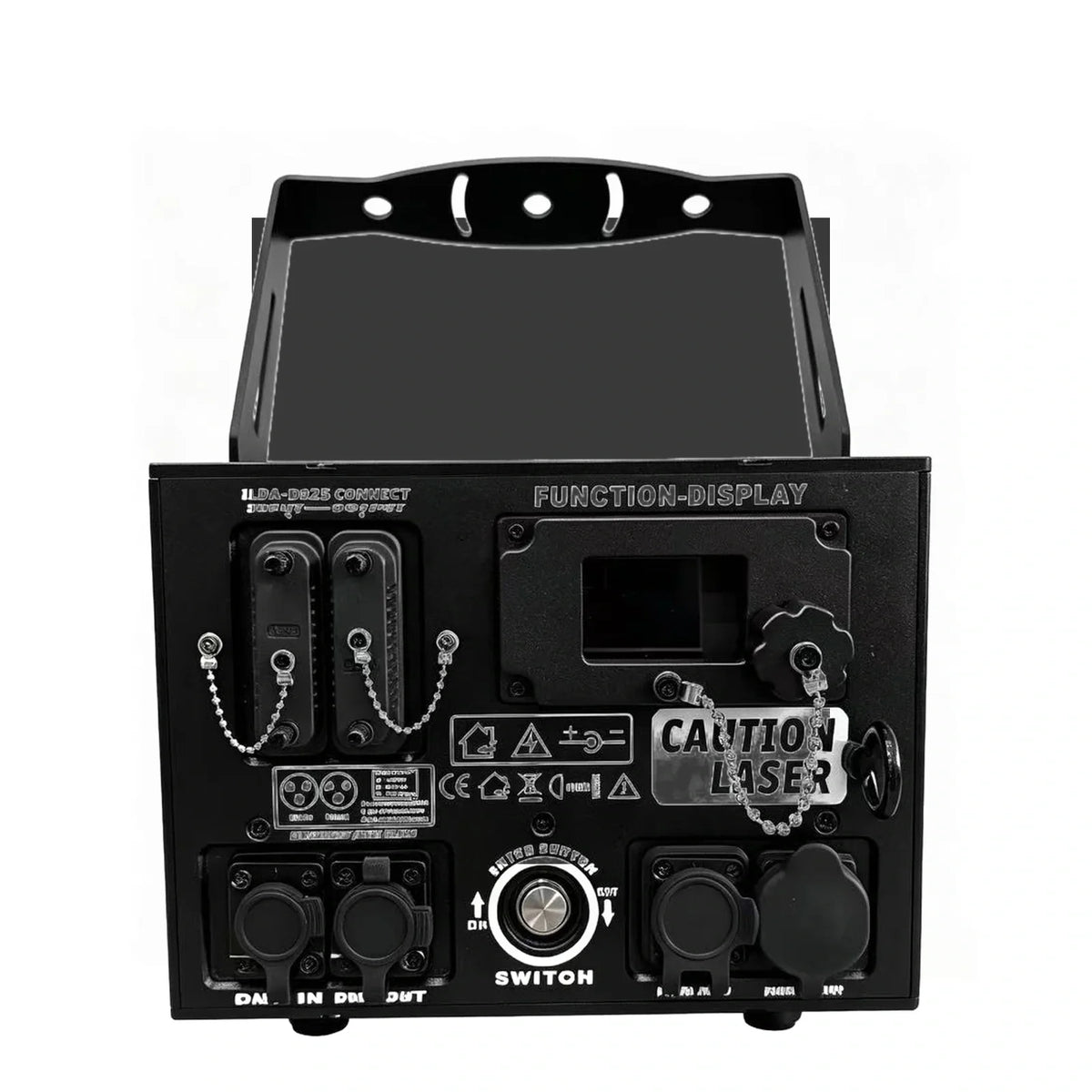

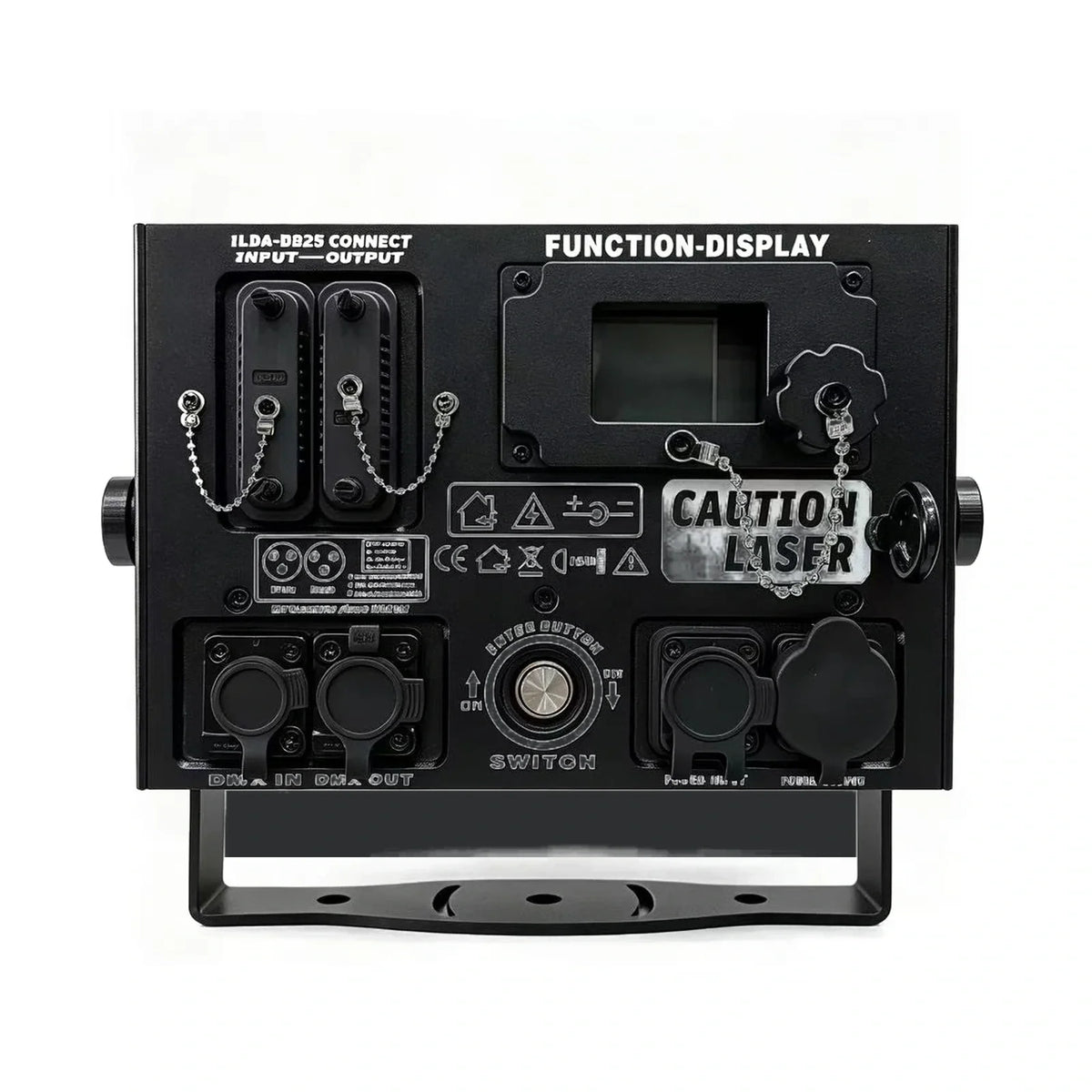

Connections

are visible
