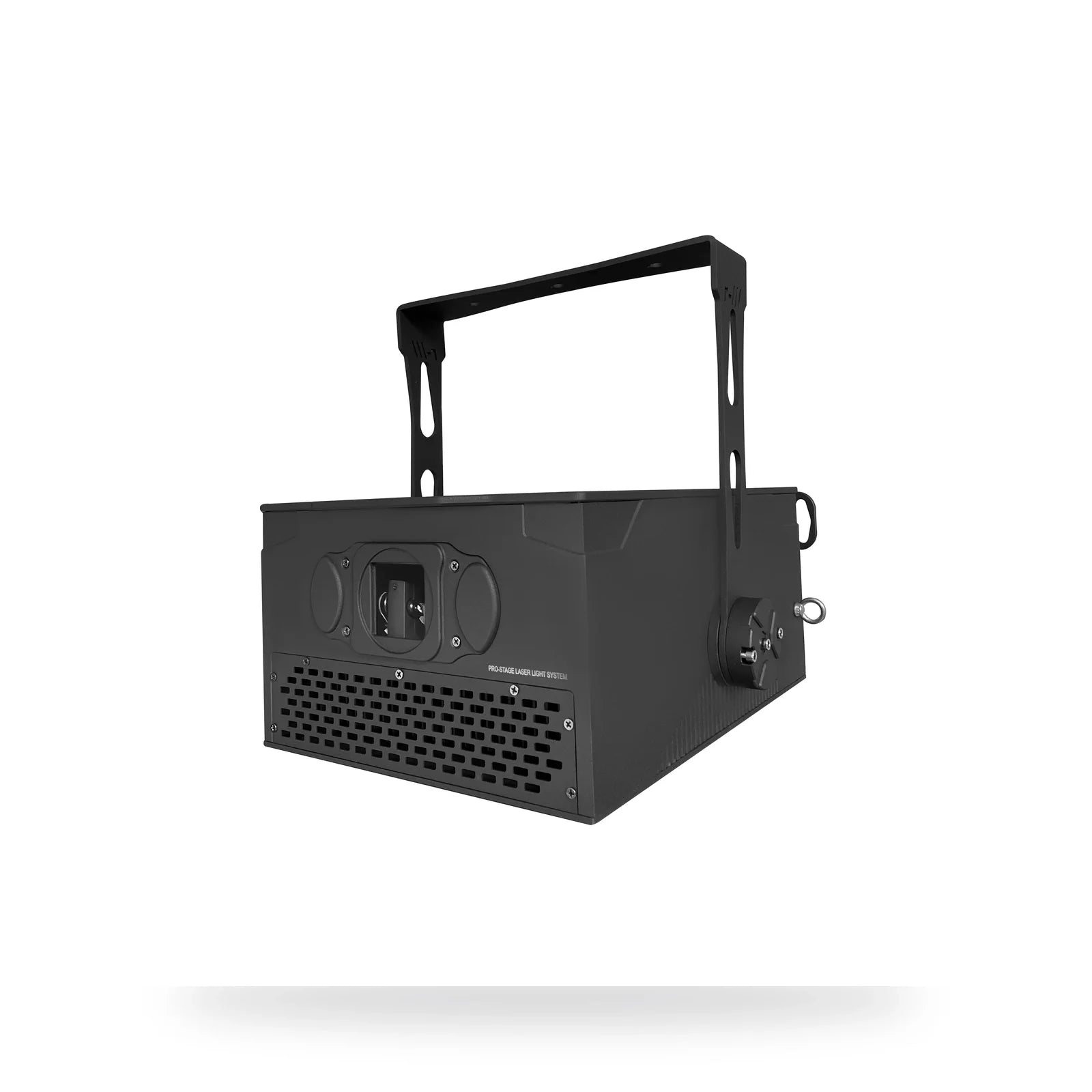

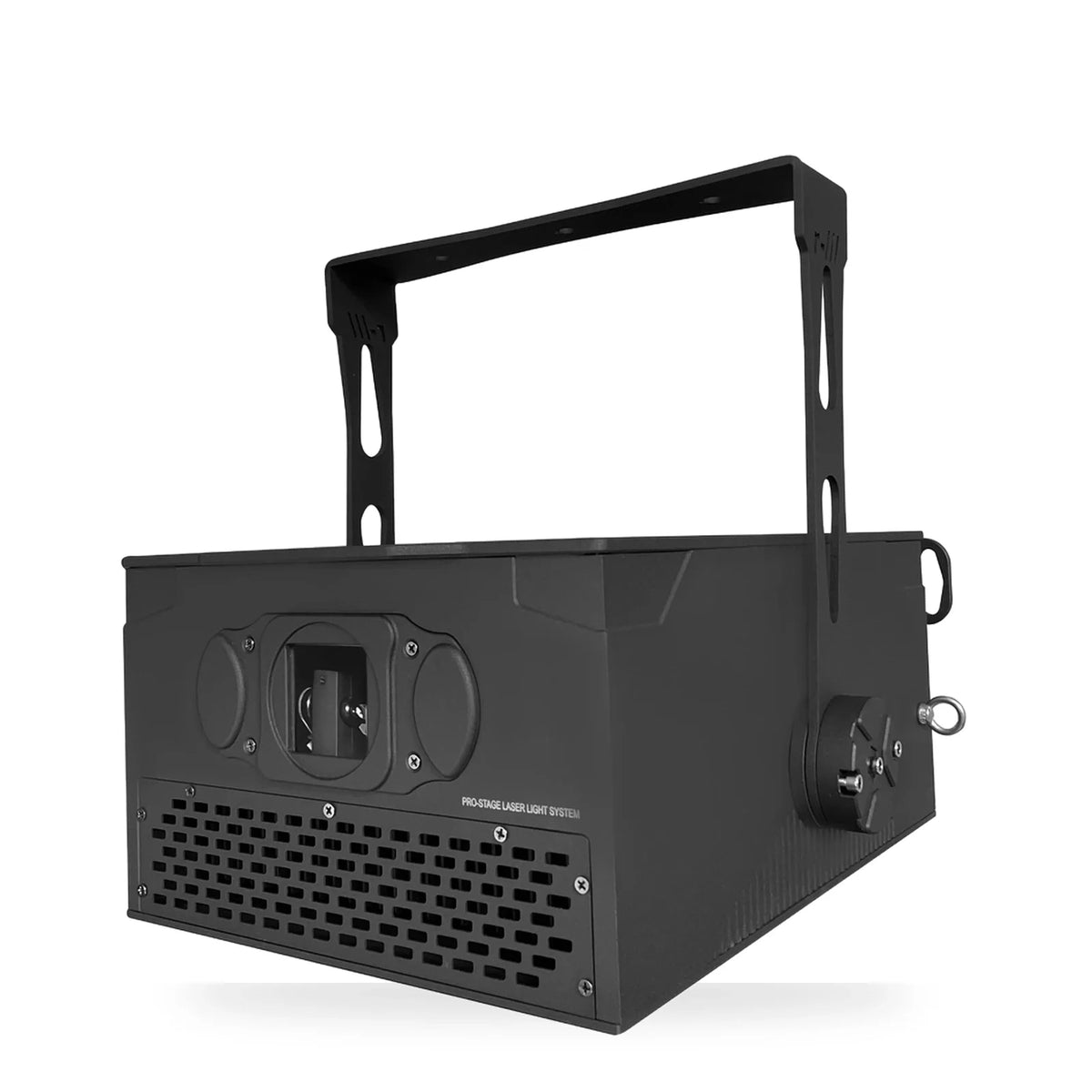

R3 40W RGB Outdoor Laser

Product: R3-40W
Input voltage: AC 110-250 V, 50/60 Hz
Rated power: <= 550 W
Light source: 40 W RGB
DMX channels: 21CH delivered library mode
Control modes: DMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC
RGB sources: R 638 nm / 10 W; G 520 nm / 15 W; B 445 nm / 15 W
Scanner: DT40K galvanometer
Scan angle: +/-30 degrees (60-degree total)

Professional laser effects

R3-40W RGB Outdoor Laser is designed for stages, venues, events and rental systems.

Rated power

<= 550 W

Light source

40 W RGB

DMX channels

21CH delivered library mode

Input voltage

AC 110-250 V, 50/60 Hz

Professional laser effects

R3-40W RGB Outdoor Laser is designed for stages, venues, events and rental systems.

Flexible output platform

40 W RGB.

Core effect engine

40 W RGB / DT40K galvanometer / RGB optical architecture.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

R3-40W

Input voltage

AC 110-250 V, 50/60 Hz

Rated power

<= 550 W

Light source

40 W RGB

DMX channels

21CH delivered library mode

Control modes

DMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC

RGB sources

R 638 nm / 10 W; G 520 nm / 15 W; B 445 nm / 15 W

Scanner

DT40K galvanometer

Scan angle

+/-30 degrees (60-degree total)
