- Product

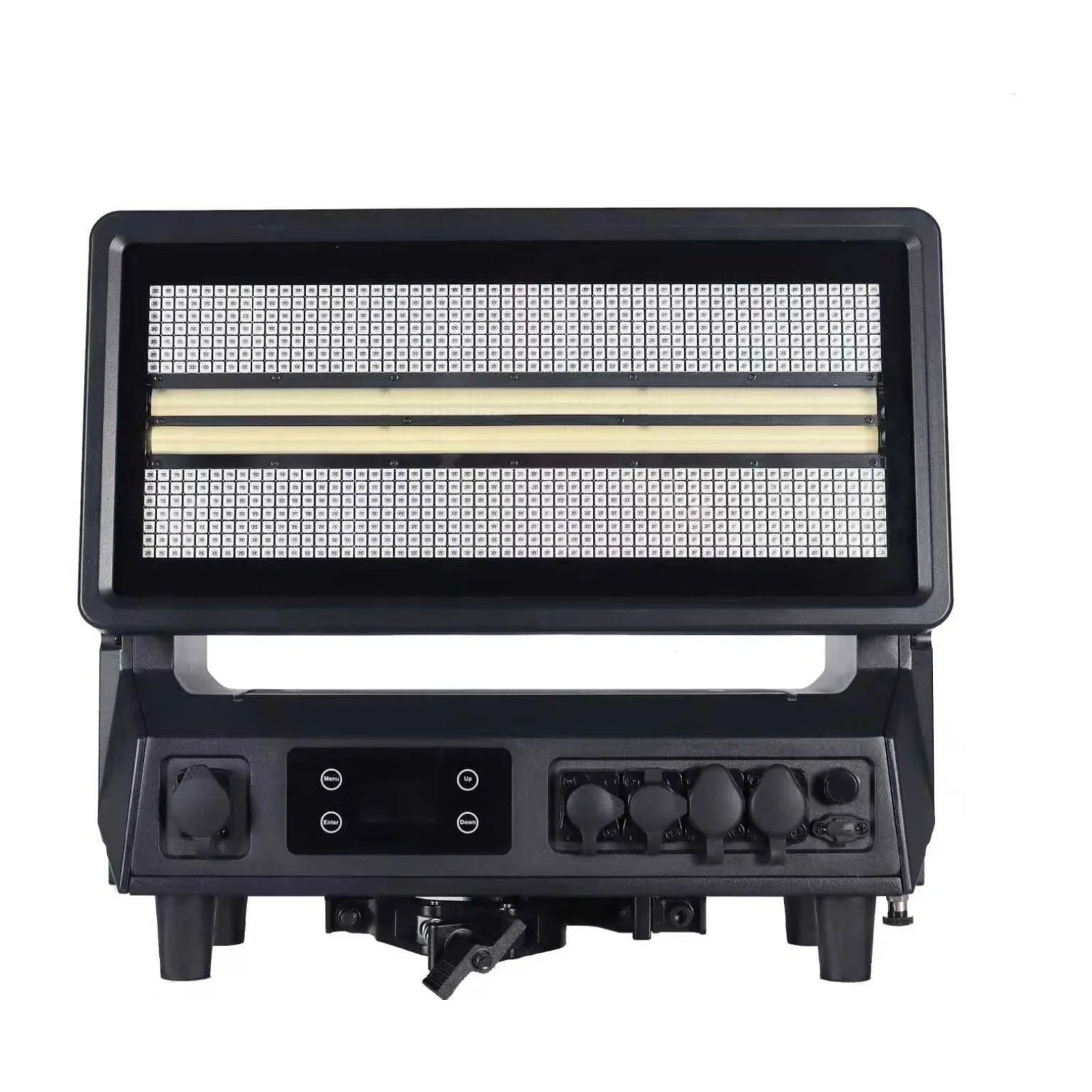

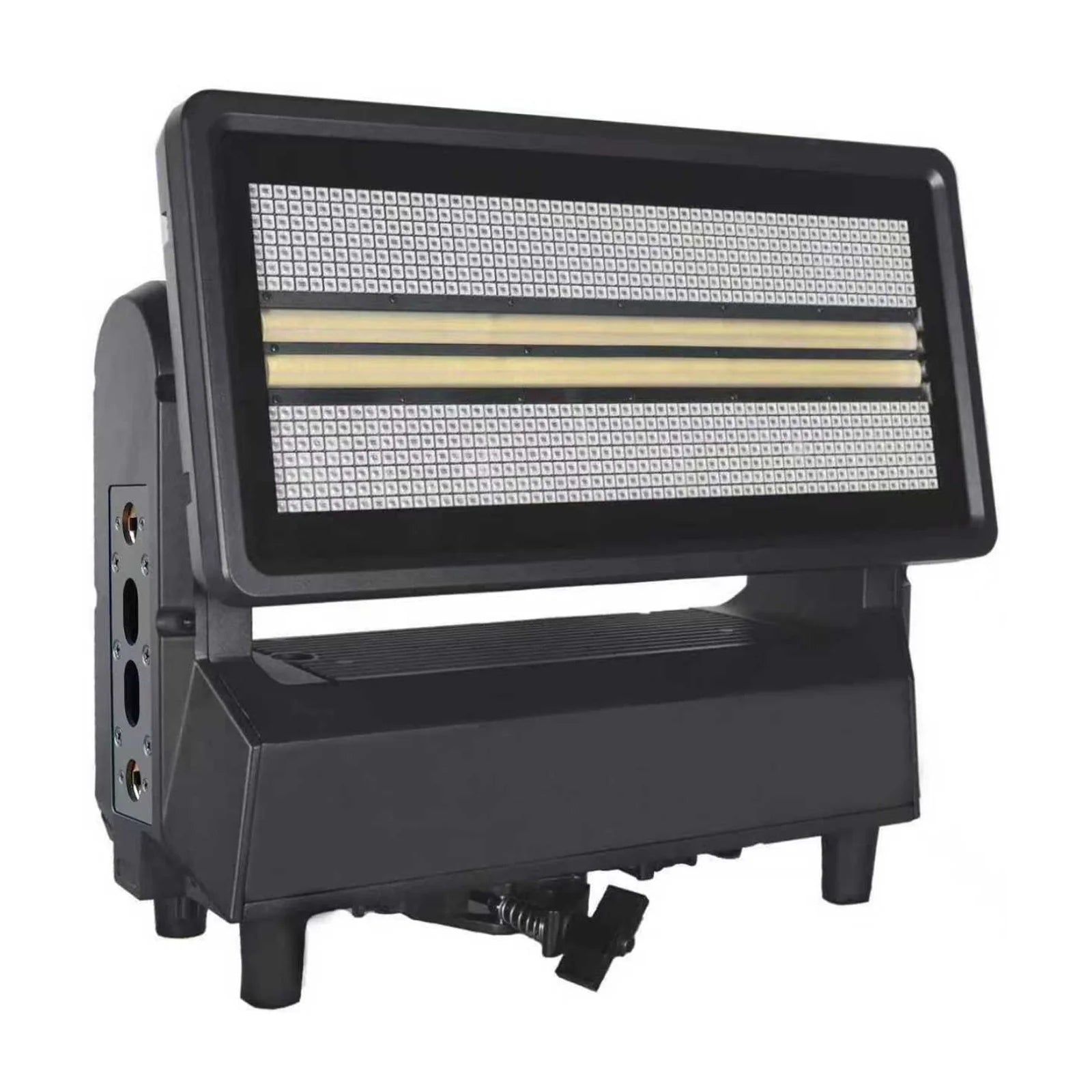

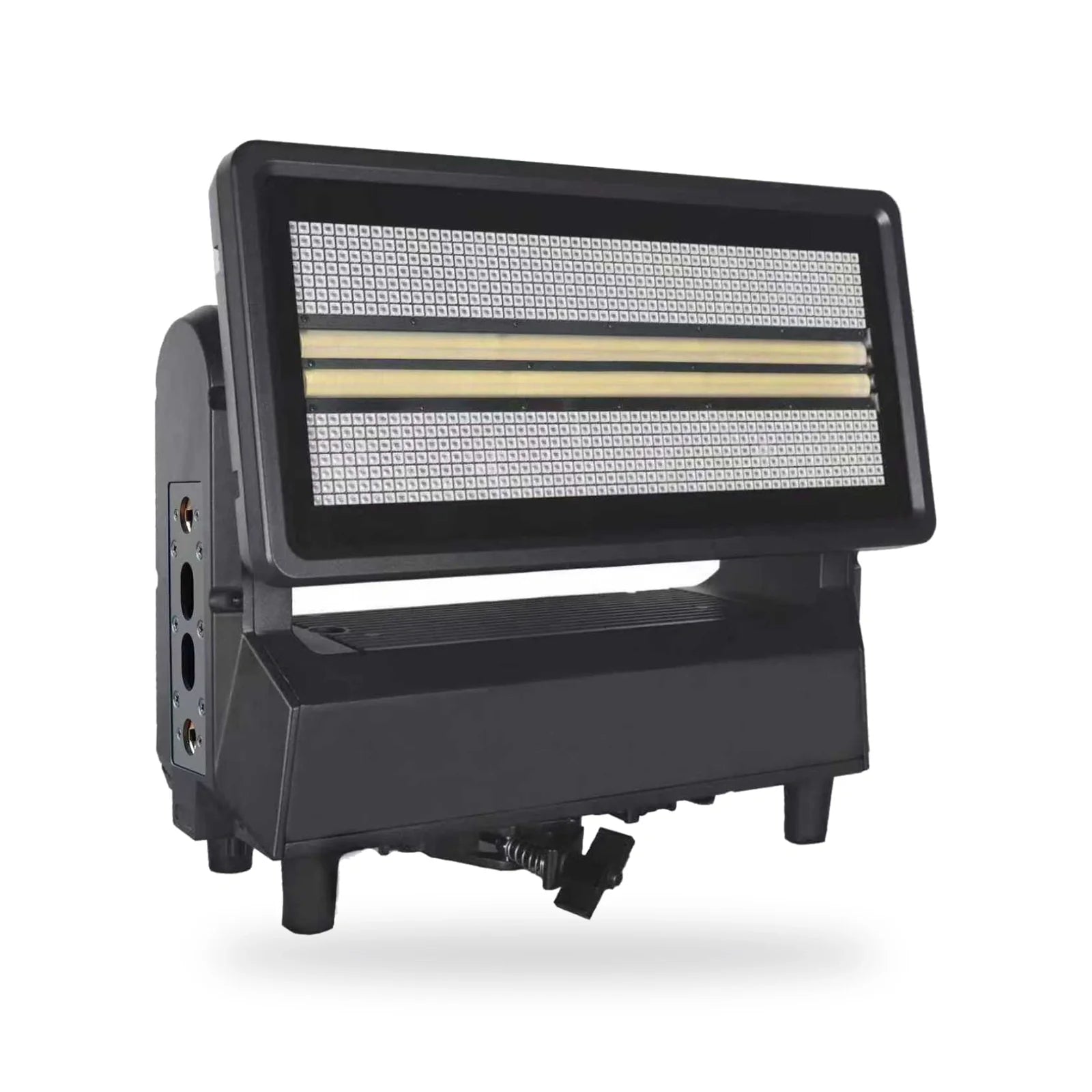

- STORM1400 Outdoor Moving Strobe
- Published technical data
- LA SOUNDX High-output white and RGB systems support multiple strobe layers Published functions include color panels, white beam pixels, macros, pulse effects and independent dimming RGB PANEL PIXELS WHITE BEAM PIXELS STROBE + FX 14 RGB pixels across two panel rows 28 white pixels across two beam rows Pulse, lightning, random and macro effects DOCUMENTED CONTROL LAYER DOCUMENTED CONTROL LAYER DOCUMENTED CONTROL LAYER The manuals list 0-20Hz strobe operation, four dimming curves and refresh rates from 600Hz to 25kHz. LA SOUNDX www.l-audio.com 05
- Control and source data
- LA SOUNDX Professional control supports network, console and stand-alone operation The menu publishes Art-Net, SACN, DMX512, RDM, auto and master-slave functions ART-NET + SACN DMX512 + RDM Waterproof network input/output supports IP-based lighting control. Waterproof 3/5-pin DMX input/output and RDM are documented. MASTER-SLAVE STATIC + SCENES Multiple fixtures can run linked stand-alone scenes. Manual color, nine scenes and fixture test functions support local operation. LA SOUNDX www.l-audio.com 06
- Connections and installation
- LA SOUNDX Nine supplied M1400pro fixture-library modes are confirmed Each XML file independently declares the M1400pro name and its channel mode 8CH CONFIRMED 11CH CONFIRMED 13CH CONFIRMED M1400pro XML fixture library supplied M1400pro XML fixture library supplied M1400pro XML fixture library supplied 24CH CONFIRMED 30CH CONFIRMED 47CH CONFIRMED M1400pro XML fixture library supplied M1400pro XML fixture library supplied M1400pro XML fixture library supplied 68CH CONFIRMED 74CH CONFIRMED 97CH CONFIRMED M1400pro XML fixture library supplied M1400pro XML fixture library supplied M1400pro XML fixture library supplied IDENTITY NOTE Commercial name STORM1400 / fixture-library name M1400pro - production relationship should be confirmed LA SOUNDX www.l-audio.com o7
- Dimensions and packing
- LA SOUNDX Tilt movement, pixel mapping and refresh control expand the programming vocabulary Published values describe the control envelope, not measured venue output MOTORIZED Y-AXIS 42 PIXEL ZONES The fixture provides motorized tilt plus calibration and reverse functions. The manual documents 14 RGB panel pixels and 28 white beam pixels. 0-20HZ STROBE 600HZ-25KHZ REFRESH Duration, speed, pulse, lightning and random effects are documented. Selectable refresh rates support camera-facing and live-event workflows. LA SOUNDX www.l-audio.com 08
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
