- STORM808 Outdoor Moving Strobe
- Published technical data
- LA SOUNDX Three programmable layers separate RGB, white and combined effects The manual publishes independent strobe, macro and speed controls for each layer RGB LAYER WHITE LAYER RGBW LAYER RGB strobe / 51 macro selections / forward-reverse White strobe / 28 macro selections / forward-reverse Combined strobe / 48 macro selections / effect speed / background color and dimmer effect speed / white dimmer forward-reverse effect speed These are control-layer functions from the supplied manual and 19-channel personality evidence; no measured photometric output is claimed. LA SOUNDX www.l-audio.com 05
- Control and source data
- LA SOUNDX The onboard menu supports calibration, macros and protected operation The manual documents address, current, thermal, fan, motor, encoder and display settings ADDRESS + MODE LIGHT SETTINGS DMX address 001-512 and 6/19/82/99CH selection. White balance, RGB / white / combined macros, speed, brightness and motor travel. THERMAL + FAN MOTOR + ENCODER Temperature display, controllable or continuous fan and error information. Travel, calibration, phase, encoder and screen-rotation settings. LA SOUNDX www.l-audio.com 06

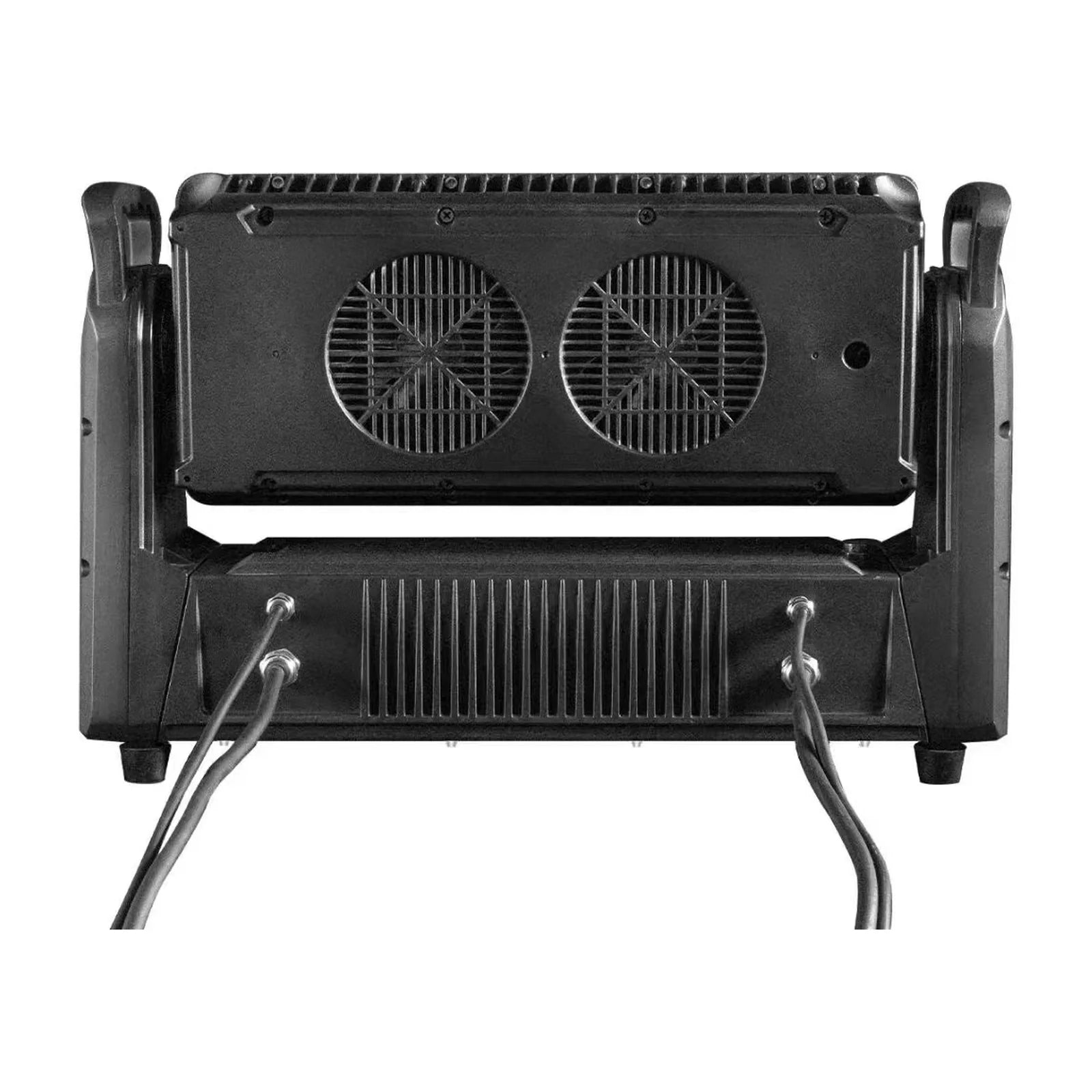

- Connections and installation
- LA SOUNDX Two supplied fixture-library files confirm the 19-channel order D4 and R20 agree on all 19 offsets and semantic functions, but their physical metadata conflicts 19CH D4 19CH R20 Offsets 1-19 are complete and match the manual order. Physical metadata Offsets 1-19 match the D4 order. The file identifies a moving fixture with incorrectly describes a fixed fixture with zero movement angles. 540/270-degree metadata but does not embed STORM808 identity. MANUAL FAMILY The manual also documents 6CH, 82CH and 99CH, but no matching fixture-library payloads for those modes are supplied. Their console compatibility remains TBC. LA SOUNDX ‘www.|-audio.com 07

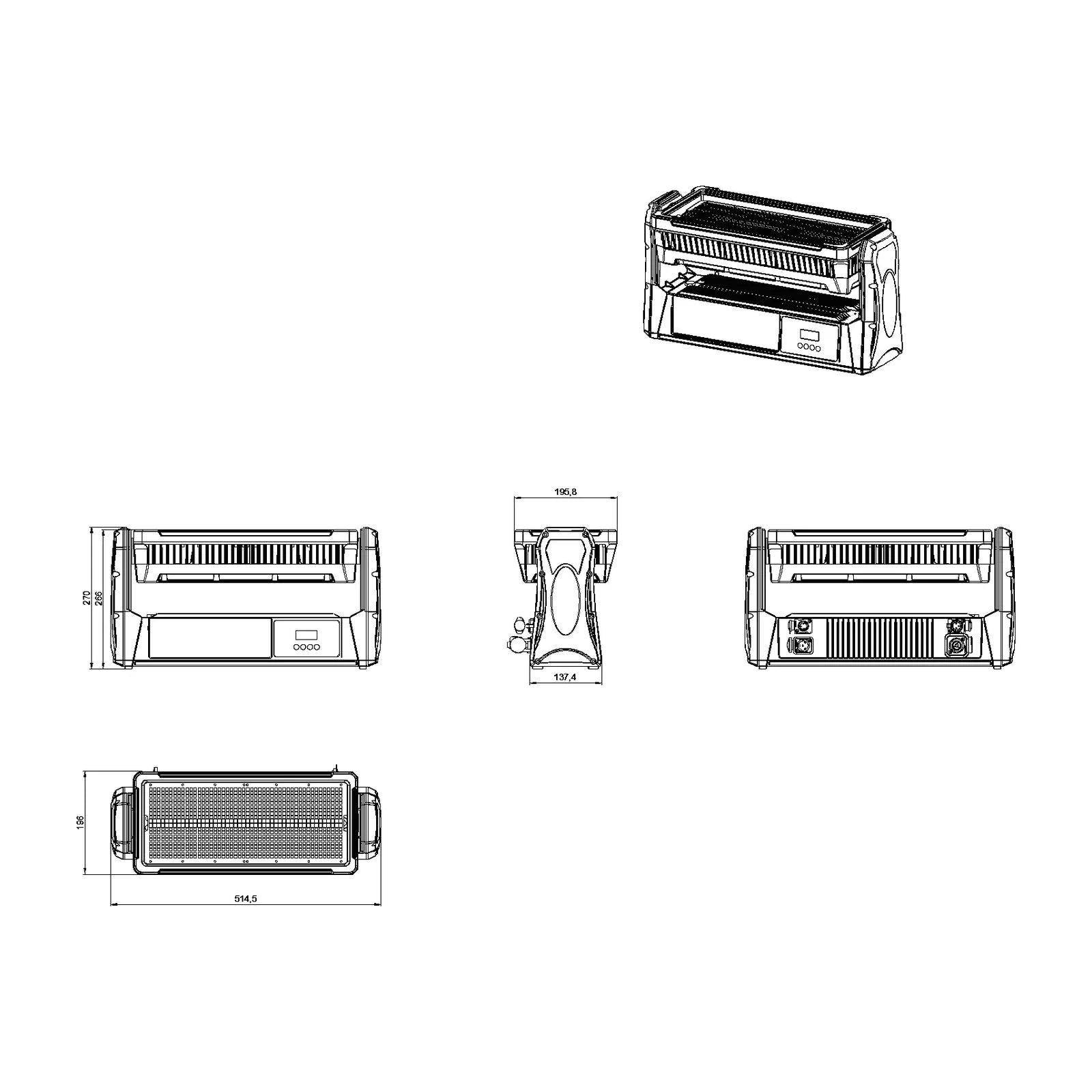

- Dimensions and packing
- LA SOUNDX The 19-channel profile groups movement, RGB, white and combined effects Channel order is reconciled against both fixture libraries and the manual table CHO01-04 CH05-12 Motor coarse / fine, automatic movement speed and master dimmer RGB strobe, macro, effect speed, background color / dimmer and RGB levels CH13-16 CH17-19 White strobe, macro, effect speed and white dimmer Combined RGBW strobe, macro and effect speed Source boundary: 19CH fixture libraries + manual table; other modes are not promoted as verified console personalities. LA SOUNDX www.l-audio.com 08
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
