- Product

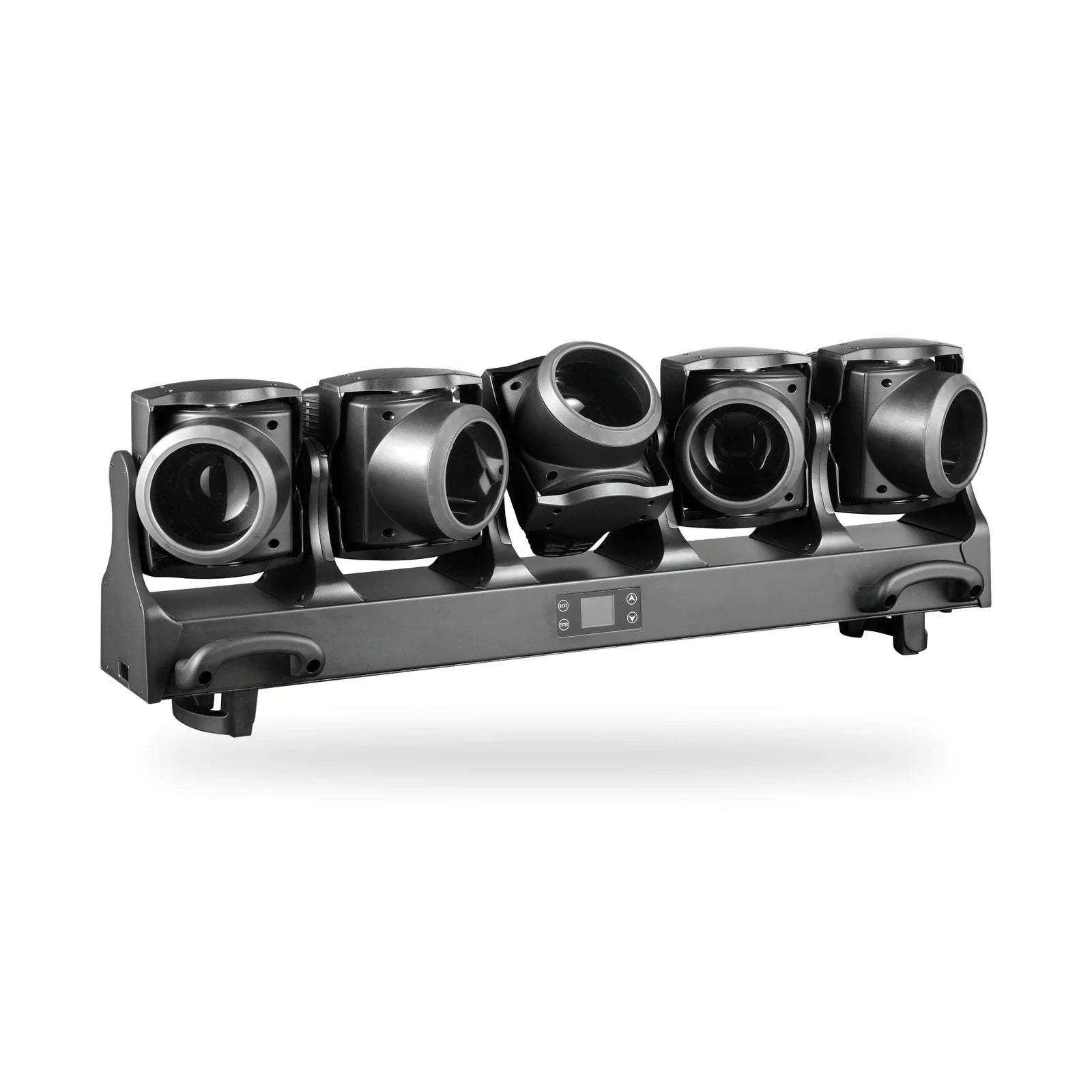

- TB5 5 x 120W RGBL Moving Tornado Bar
- Published technical data
- VAGSITTR PE - RGB plus lemon optics and RGB rings support layered beam and halo programming The supplied close views document the five optical modules; measured photometric distribution is not supplied @) BBD 1 - i= , if |e . a IN / a. hy - - p- J=E pr-
- Control and source data
- LA SOUNDX PRODUCT 096/06 Professional control supports DMX, RDM, network and stand-alone operation The manual lists DMX512, RDM, Art-Net, sound-active and two auto programs DMX512 + RDM ART-NET Console control and remote device management are documented. Network protocol support is listed in the technical section. MASTER-SLAVE AUTO + SOUND Multiple fixtures can reproduce coordinated stand-alone programs. Two auto programs and sound-active playback are documented. LA SOUNDX PROFESSIONAL STAGE LIGHTING wewrw Laudio.com

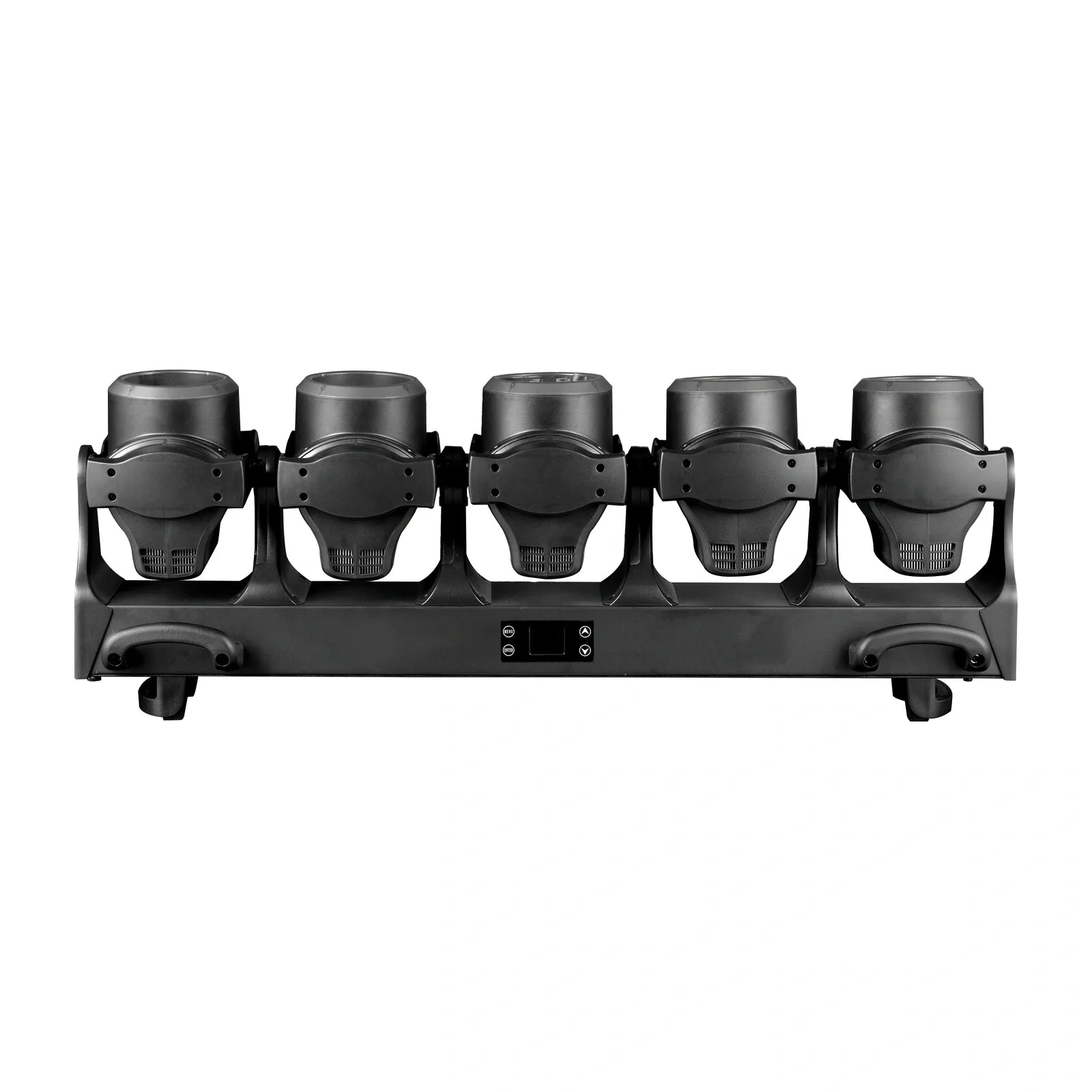

- Connections and installation
- LA SOUNDX PRODUCT 096/07 The supplied files verify 41CH and 71CH operating profiles R20 verifies 41CH; a dedicated grandMA XML is supplied for the extended 71CH mode 41CH / R20 VERIFIED 71CH / GRANDMA XML The current-product R20 file declares one complete 41-channel profile with The 71-channel grandMA profile expands five independently controlled every offset from 1 through 41. movement, color, zoom and auxiliary-ring blocks. AUTHORITY RULE Use the exact supplied library that matches the selected mode. Do not infer 71CH behavior from the 41CH R20 profile. LA SOUNDX PROFESSIONAL STAGE LIGHTING wewrw Laudio.com

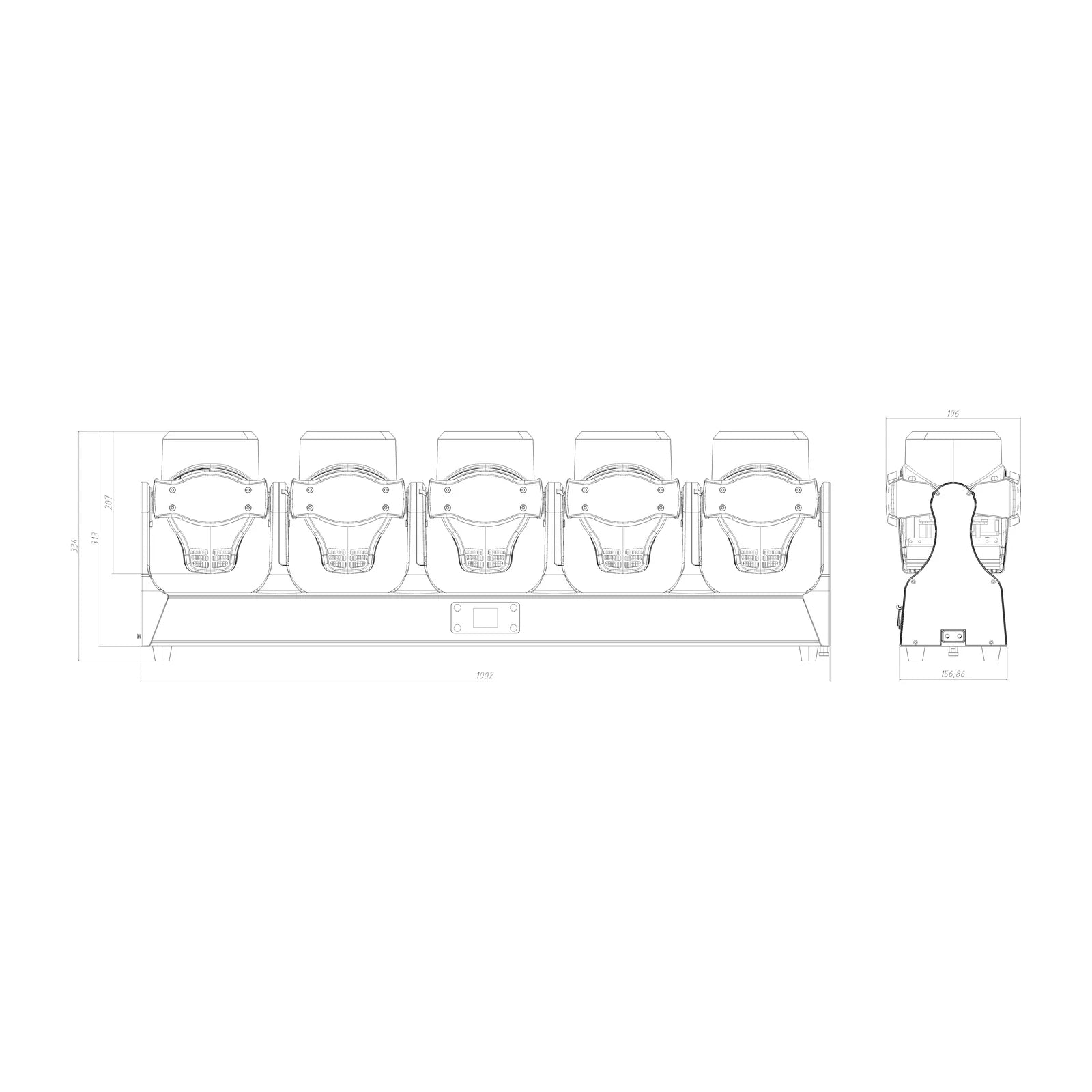

- Dimensions and packing
- LA SOUNDX PRODUCT 096/08 The supplied profiles separate compact and extended programming workflows The 41CH profile exposes shared functions; 71CH expands repeated per-head control blocks 41CH 06-35 Repeated main color, zoom and auxiliary-ring blocks 41CH 36-41 Master dimmer, strobes, XY speed and function 71CH 01-06 Master dimmer, strobes, distance and reset 71CH HEAD BLOCK Per-head panttilt, RGB+lemon, zoom, RGB ring and effect speed PATCH RULE Select the exact supplied library for the fixture's active mode LA SOUNIDX PROFESSIONAL STAGE LIGHTING www -audio.com
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
