- V1260 Waterproof 12 x 60W RGBW Moving Beam Bar
- Published technical data

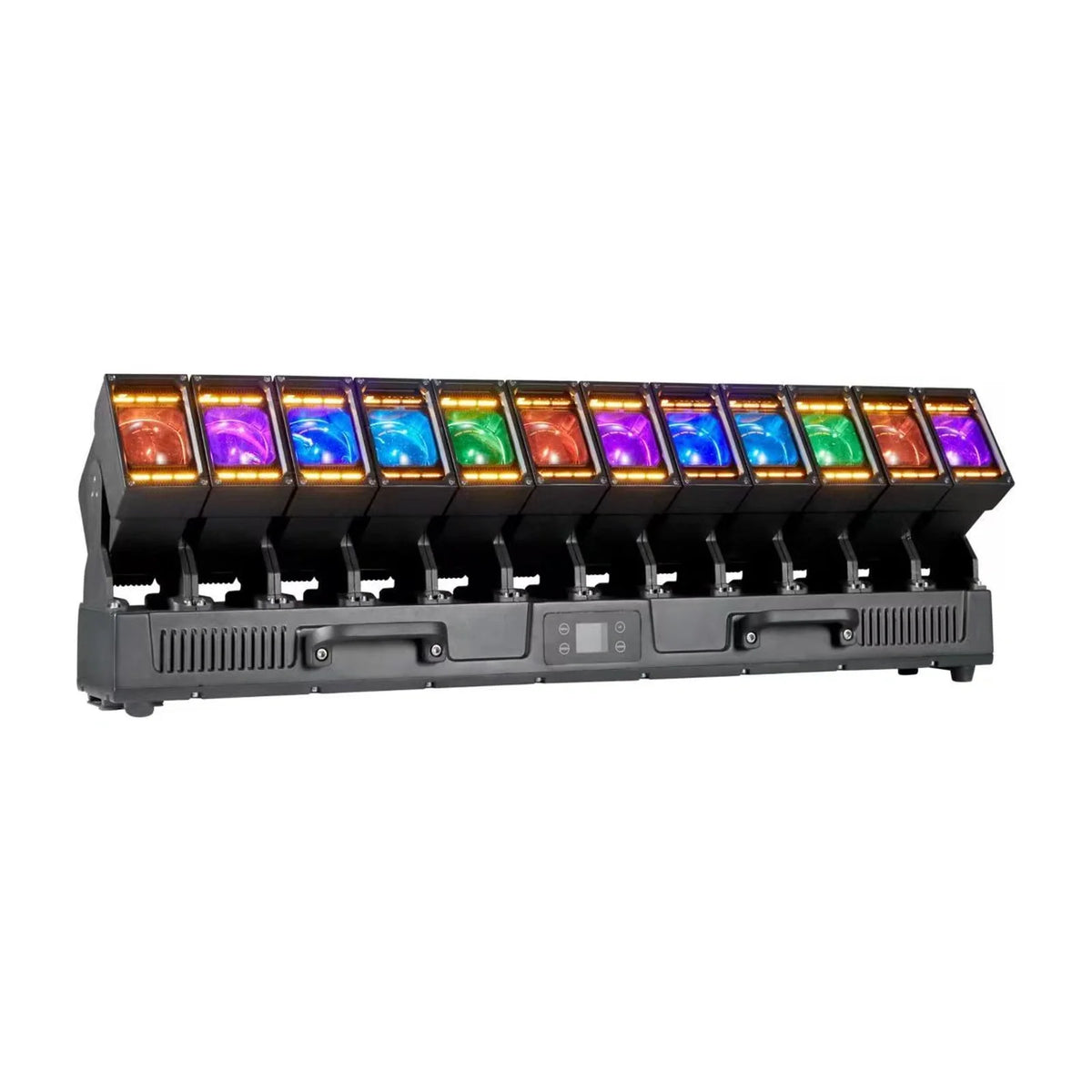

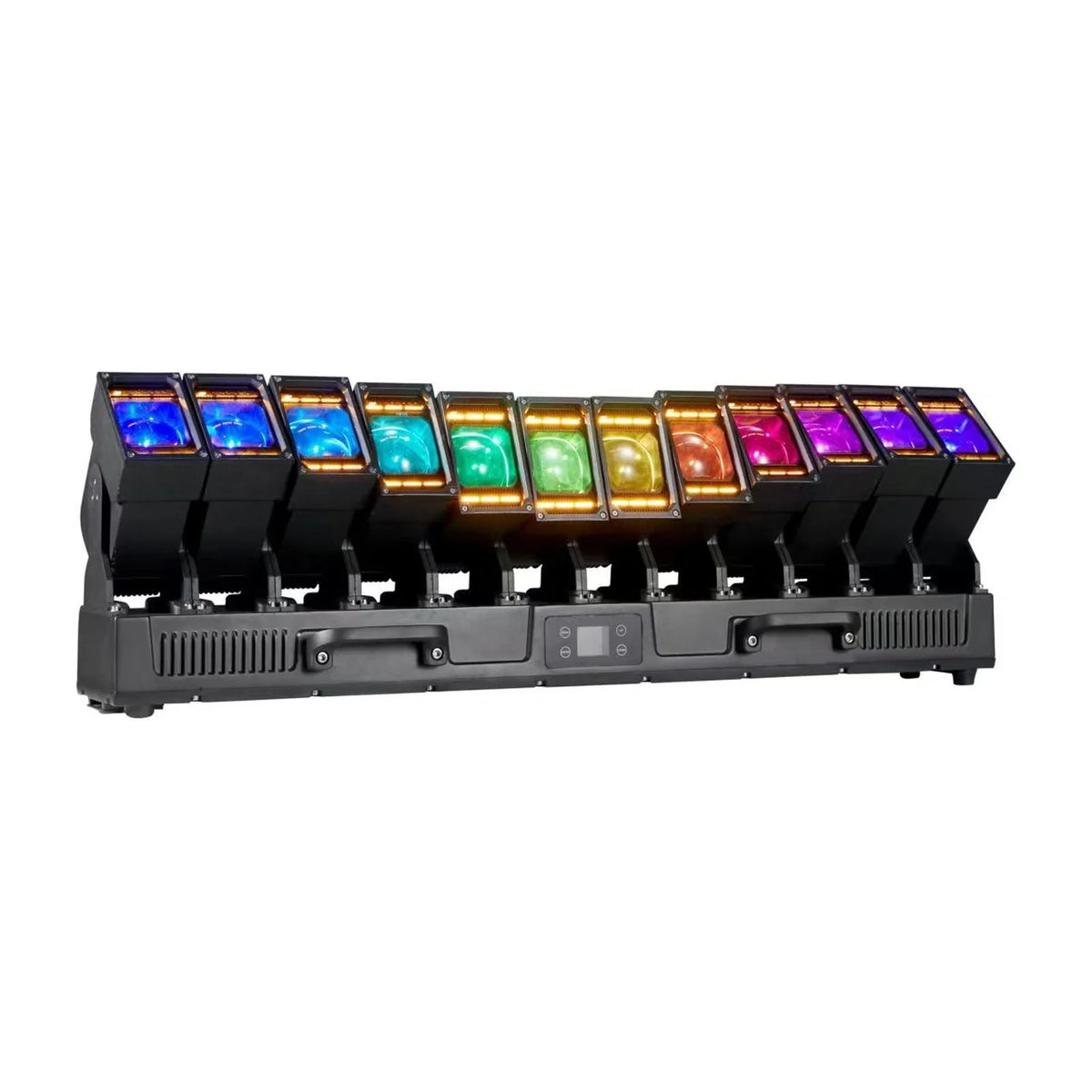

- LA SOUNDX White-and-gold auxiliary light frames the RGBW optics Supplied lit photographs show both the main cells and warm auxiliary strips ) _ Em a \ ee me me {= UE NE ---| -- - | | ts ee --_ SE wm \ bs \ \: ww \§ EERE RRERES © SEERA | )\ Cl) ea aw )\w\\e) .)\v ! * g-).| fp 0 me), en), sn). =), men), me), me), =), me} me), ee) -- h le ow Doe le Dm = = Del ol oA A iets j=-e__J Hl _JITx iE=-e__J Lf --aS- I dl © - ; A LEVEL HEAD POSITION Photographs verify color and auxiliary-light appearance; no measured lumen, lux or beam-distance data is supplied LA SOUNDX www.l-audio.com 05
- Control and source data

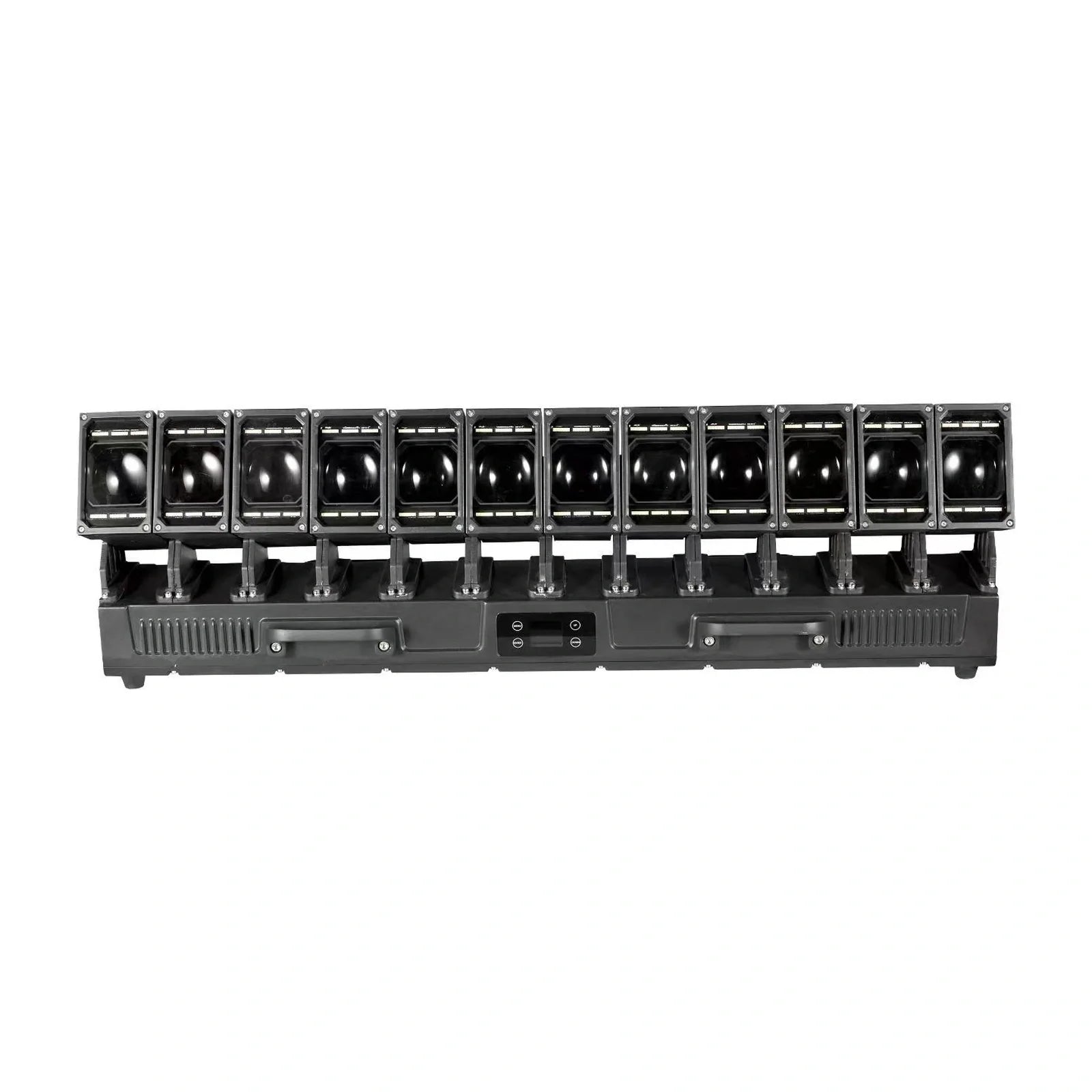

- LA SOUNDX Independent tilt and focus shape the twelve-head composition The old manual documents per-head vertical and focus control 220-DEGREE TILT The manual specifies 220-degree vertical movement with 16-bit precision \ me \ Vm TL (RSSSSOR--E - \ \ \ A Se NAR PER-HEAD CONTROL <2 a) T -- =) = 2 -A) The manual tables expose independent vertical movement and focus across twelve heads. 4 _ | A= a 1 i 2.8-31 DEGREE BEAM 1 1 [J I a ri Fi wp a ll all A + The manual final technical section documents the beam-angle range. a J e ] - 0 or mm A . . . i i 5-55 DEGREE SPOT The manual separately documents the spot-angle range. LA SOUNDX www.l-audio.com 06

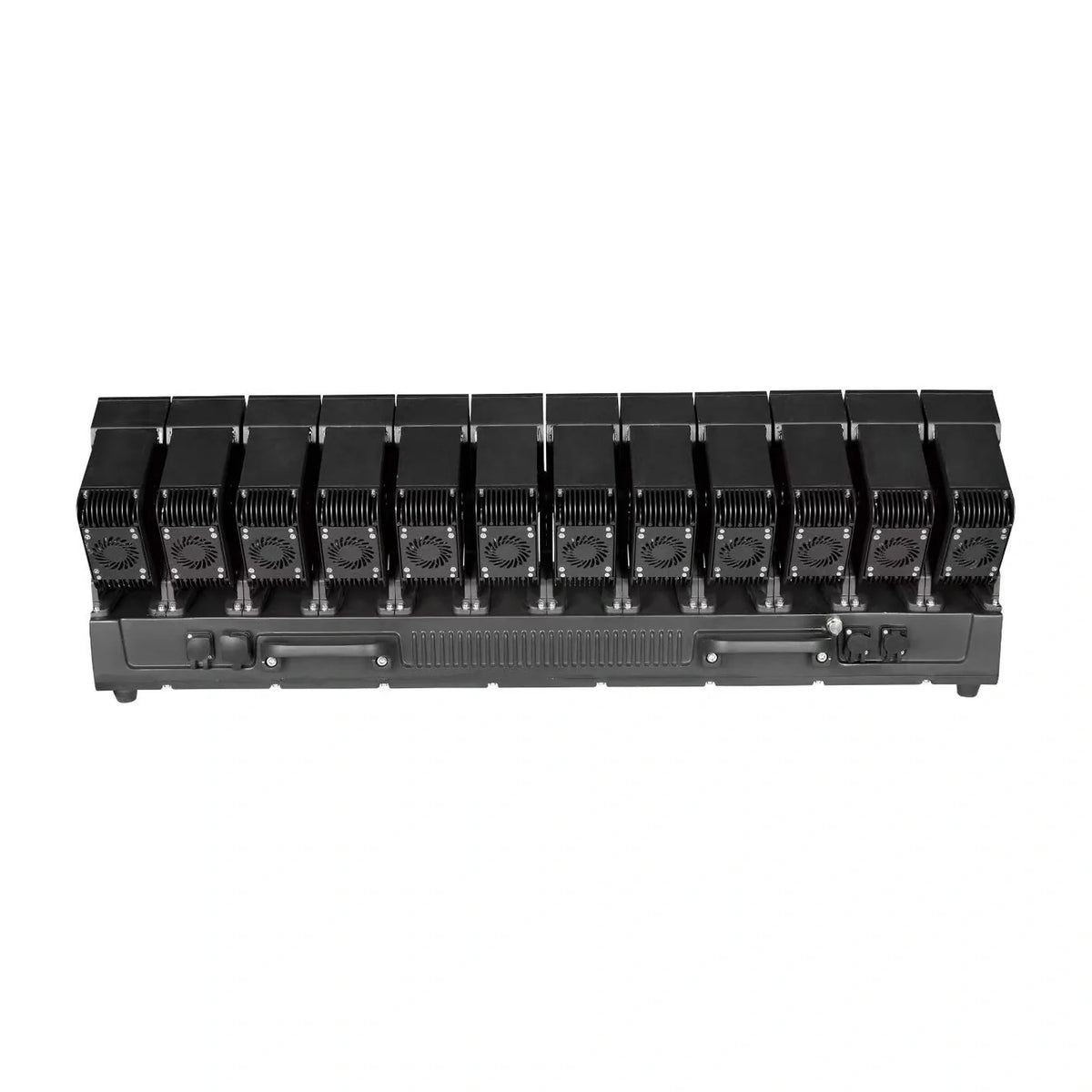

- Connections and installation
- LA SOUNDX The manual documents six DMX profiles No fixture-library payload is supplied for console verification 20CH 53CH 101CH MANUAL DOCUMENTED MANUAL DOCUMENTED MANUAL DOCUMENTED Fixture library absent Fixture library absent Fixture library absent 155CH 169CH 179CH MANUAL DOCUMENTED MANUAL DOCUMENTED MANUAL DOCUMENTED Fixture library absent Fixture library absent Fixture library absent 20CH is marked as the default mode in the old manual. Patch compatibility, channel order and firmware alignment remain TBC until a current D4/R20/XML personality or physical-unit validation is supplied. LA SOUNDX www.l-audio.com o7
- Dimensions and packing
- LA SOUNDX The manual-documented 20CH mode summarizes the control architecture This is not a fixture-library-verified console personality CHO01-04 CH05-10 All-head tilt coarseffine, tilt speed and tilt macro Color temperature, color macro, pattern, LED effect, effect speed and delay CH11-16 CH17-20 Background color/dimmer, master dimmer, strobe, focus 1-12 and control/reset Red/cyan, green/magenta, blue/yellow and white Source: old Chinese manual channel table. Fixture library: absent. Firmware compatibility: TBC LA SOUNDX www.l-audio.com 08
- Source authority
- OCR extracted from supplied product-brochure detail pages 05-08; the visual brochure pages remain authoritative.
