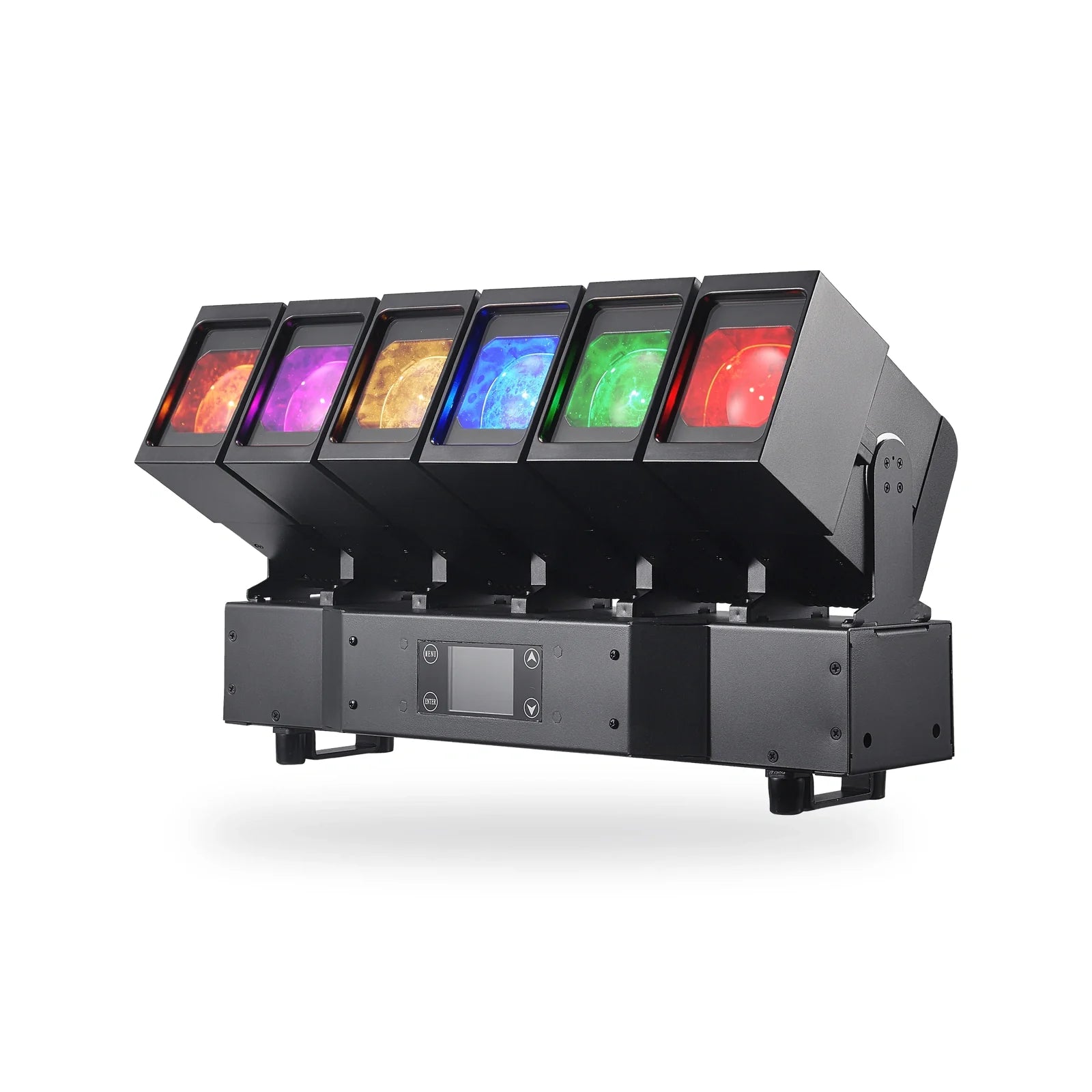

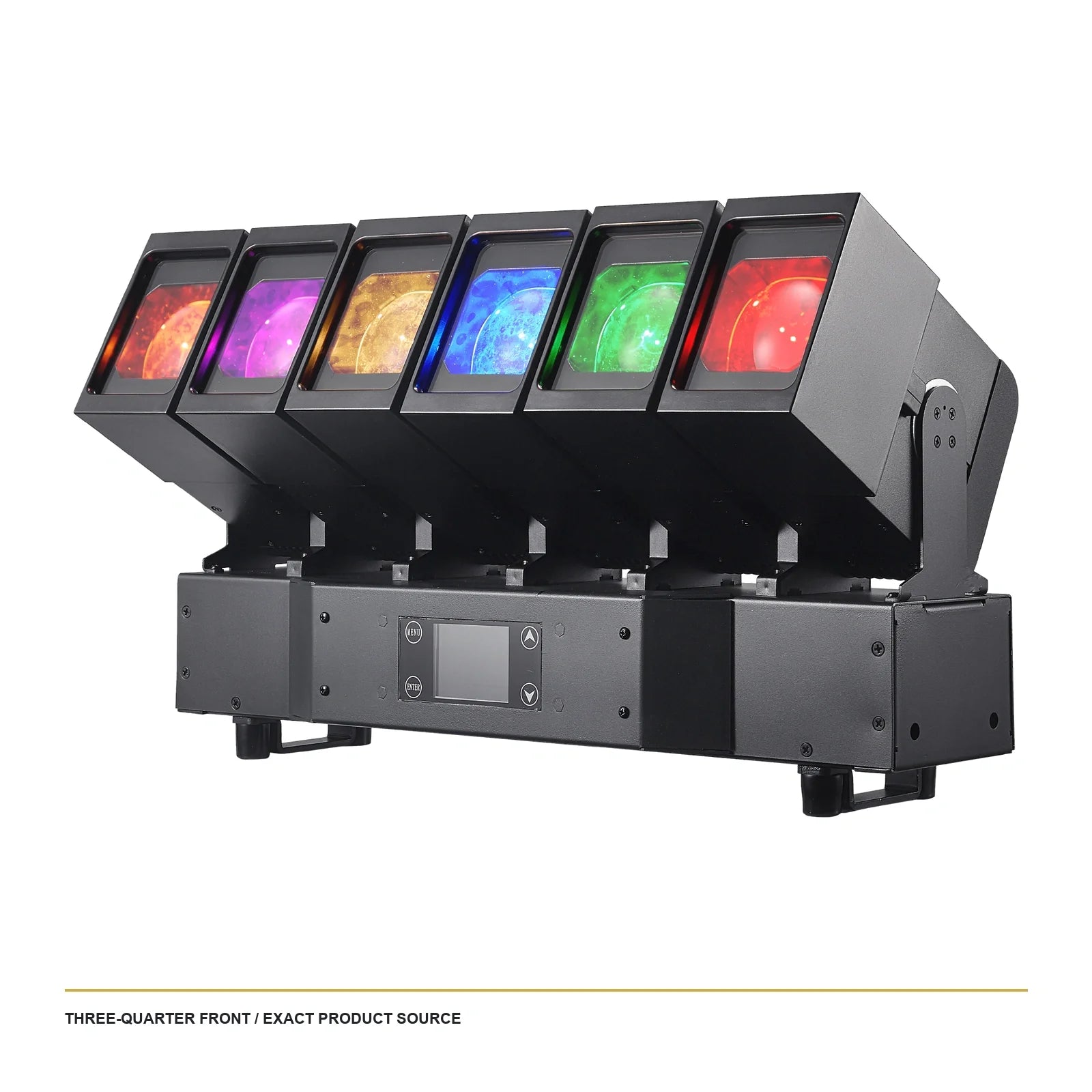

V660 6 x 60W RGBW Moving Beam Bar

Product: V660 6 x 60W RGBW Moving Beam Bar
Input voltage: AC100-240V, 50/60Hz technical table; safety text separately states 90-240V
Rated power: 400W
Light source: 6 x 60W LED, source notation 6065
DMX channels: 20 / 35 / 59 / 89 / 91 / 101CH - manual-documented only
Beam angle: 2.8-31 degrees

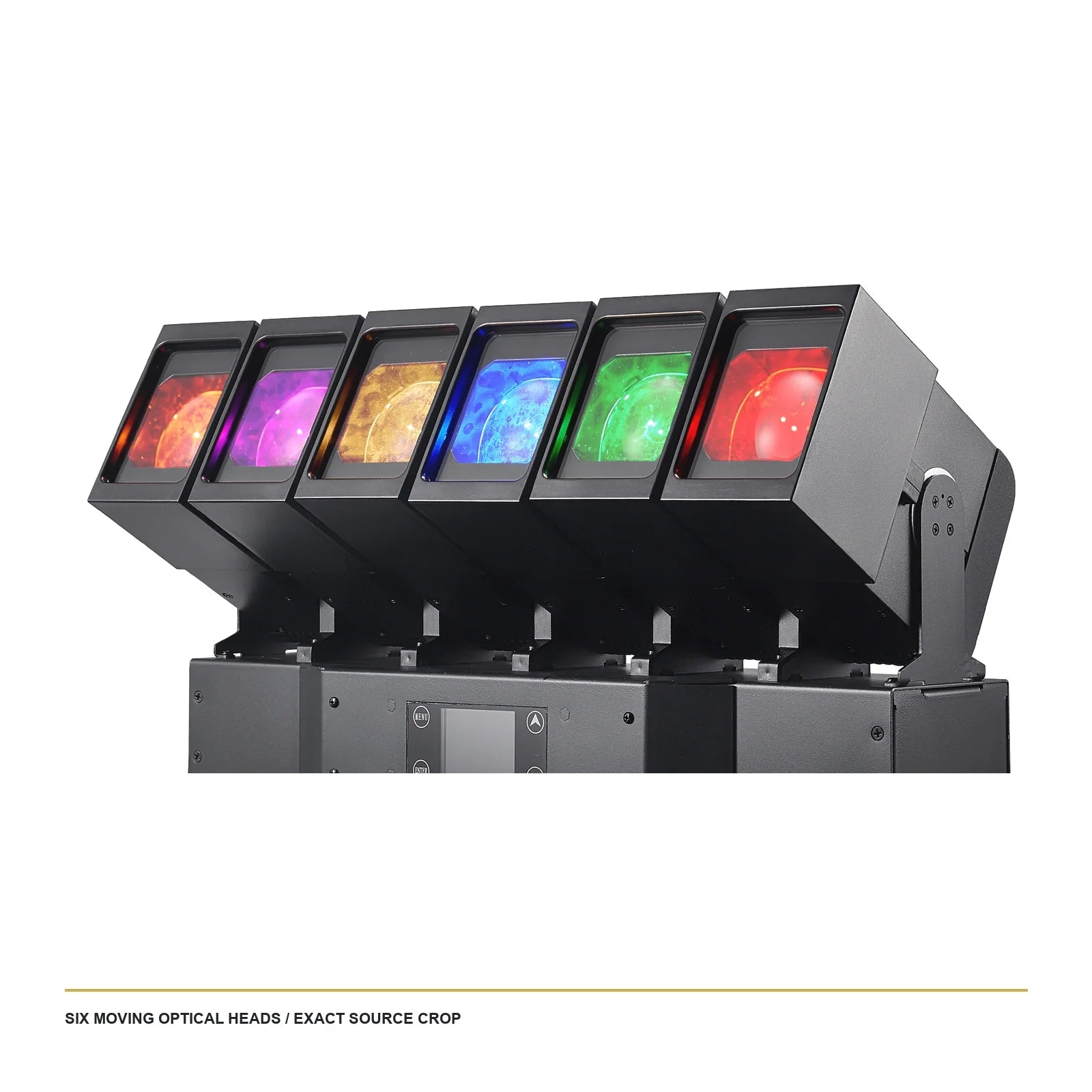

Movement: 6 independent tilt heads; 220 degrees; 16-bit
Strobe: 1-25Hz
Dimming: 0-100%; gamma curves; 1.2-25kHz adjustment
Protection: IP22
Size / weight: 500 x 139.76 x 295.5mm excluding feet; 13.05kg net
Packing: 51.3 x 34 x 19cm; 15kg gross; one unit
Electrical protection: Fuse-holder position shown in manual diagram; rated current and fuse value: TBC.

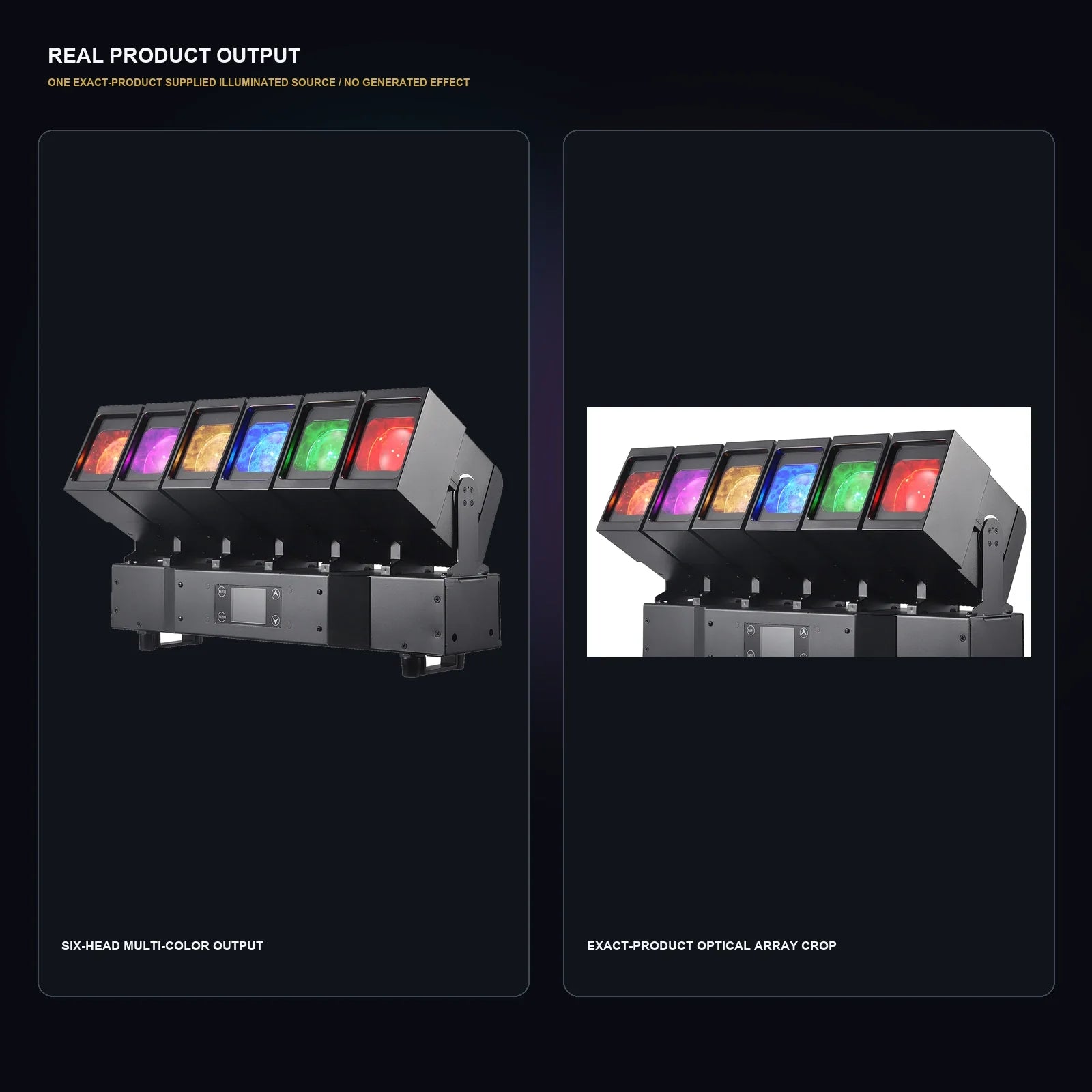

Professional light output

V660 6 x 60W RGBW Moving Beam Bar is prepared for professional stage, venue, event and rental applications.

Rated power

400W

Light source

6 x 60W LED, source notation 6065

DMX channels

20 / 35 / 59 / 89 / 91 / 101CH - manual-documented only

Movement

6 independent tilt heads; 220 degrees; 16-bit

Professional light output

V660 6 x 60W RGBW Moving Beam Bar is prepared for professional stage, venue, event and rental applications.

Verified control

Published control and effect data follow the supplied brochure, manuals and fixture library.

Complete product resources

Ordered presentation images, manuals, fixture profiles and product media are supplied for project use.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

V660 6 x 60W RGBW Moving Beam Bar

Input voltage

AC100-240V, 50/60Hz technical table; safety text separately states 90-240V

Rated power

400W

Light source

6 x 60W LED, source notation 6065

DMX channels

20 / 35 / 59 / 89 / 91 / 101CH - manual-documented only

Beam angle

2.8-31 degrees

Movement

6 independent tilt heads; 220 degrees; 16-bit

Strobe

1-25Hz

Dimming

0-100%; gamma curves; 1.2-25kHz adjustment

Protection

IP22

Size / weight

500 x 139.76 x 295.5mm excluding feet; 13.05kg net

Packing

51.3 x 34 x 19cm; 15kg gross; one unit

Electrical protection

Fuse-holder position shown in manual diagram; rated current and fuse value: TBC.

Videos / Product video
