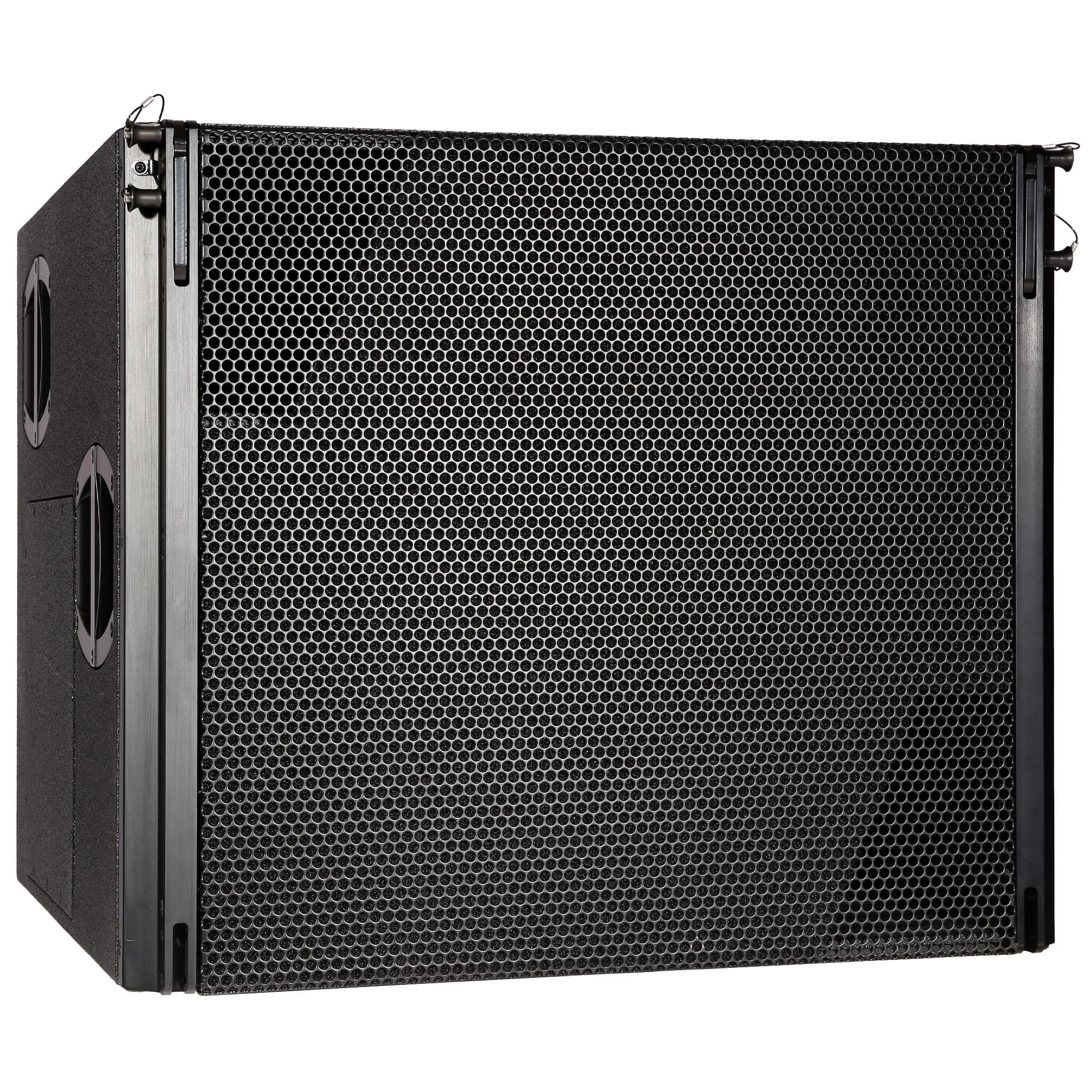

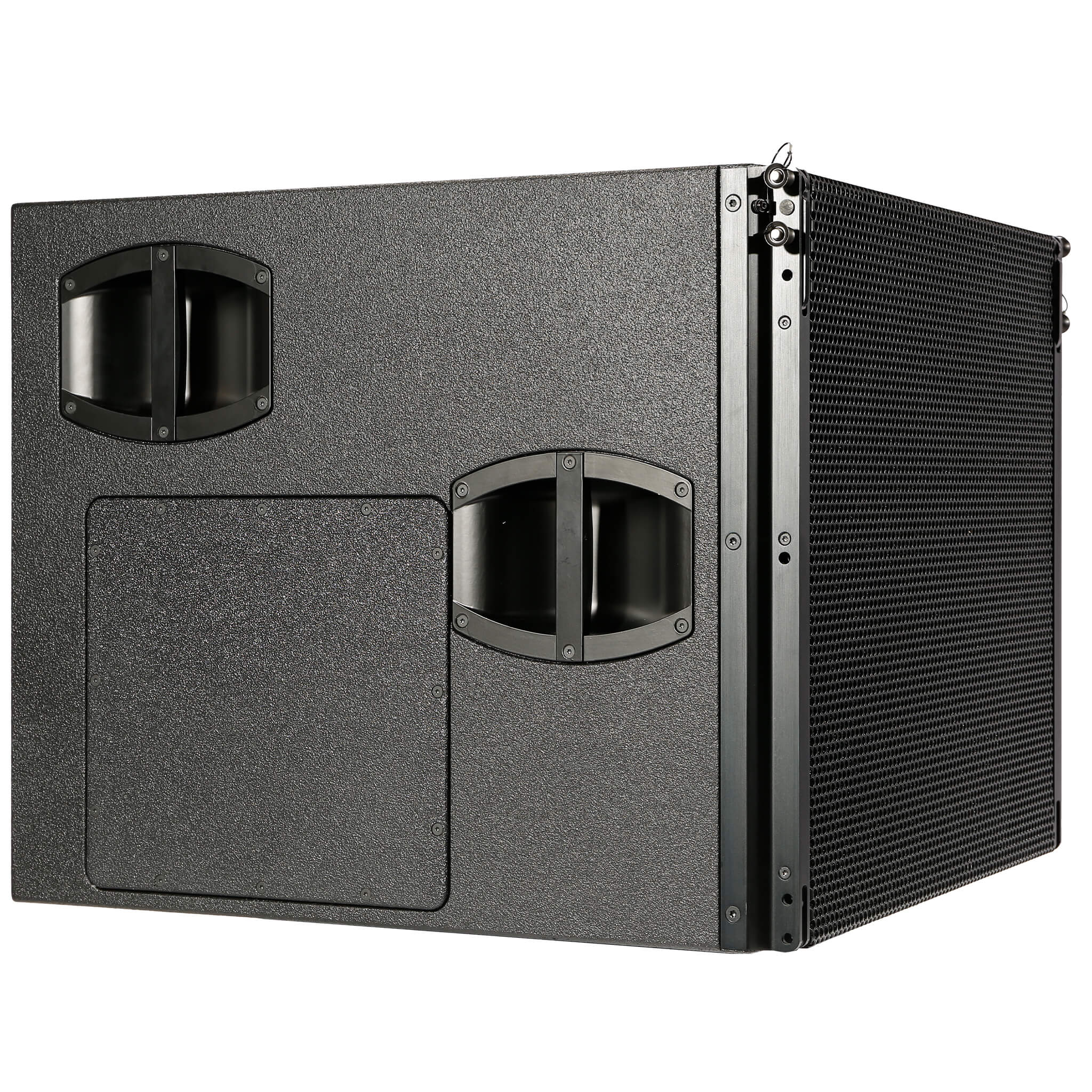

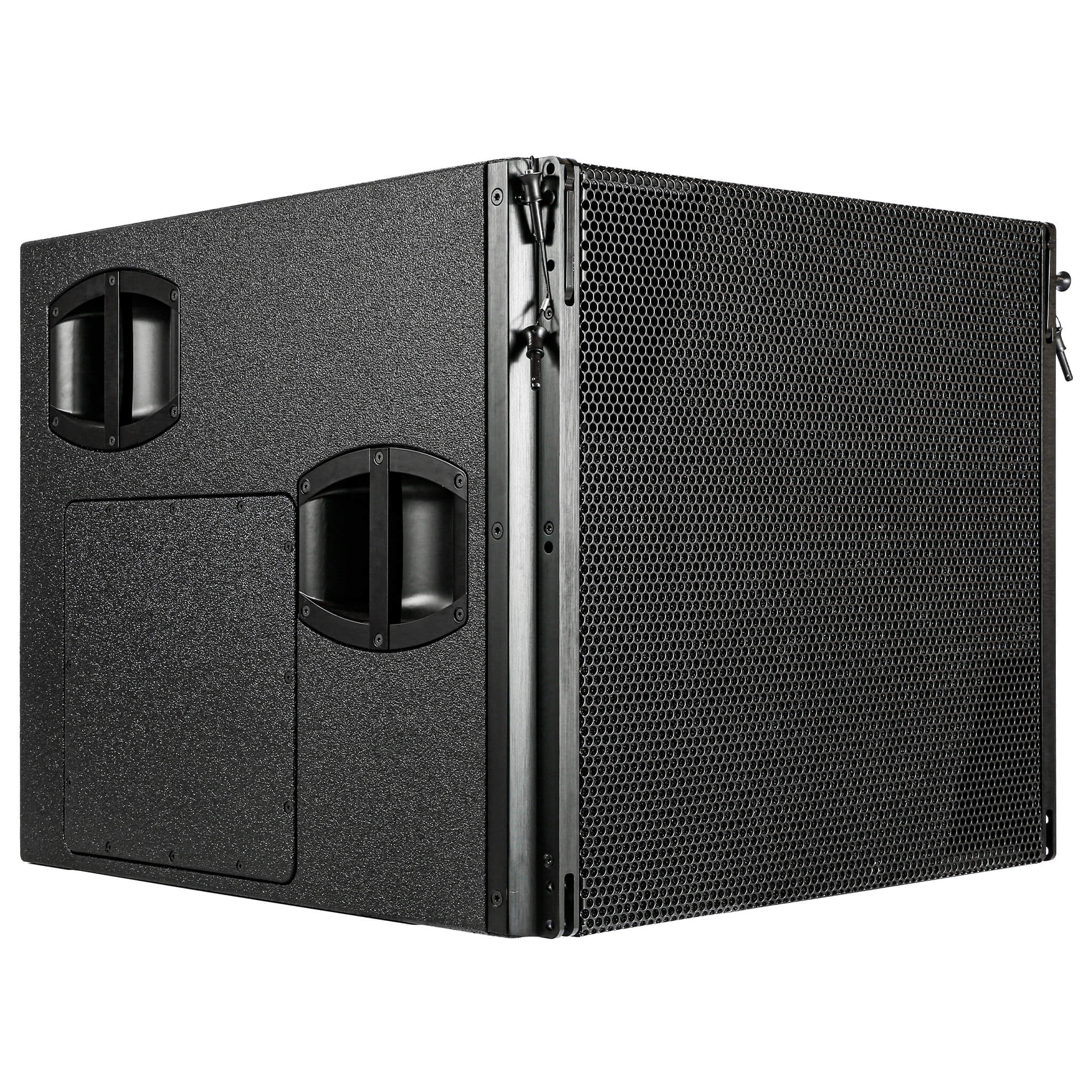

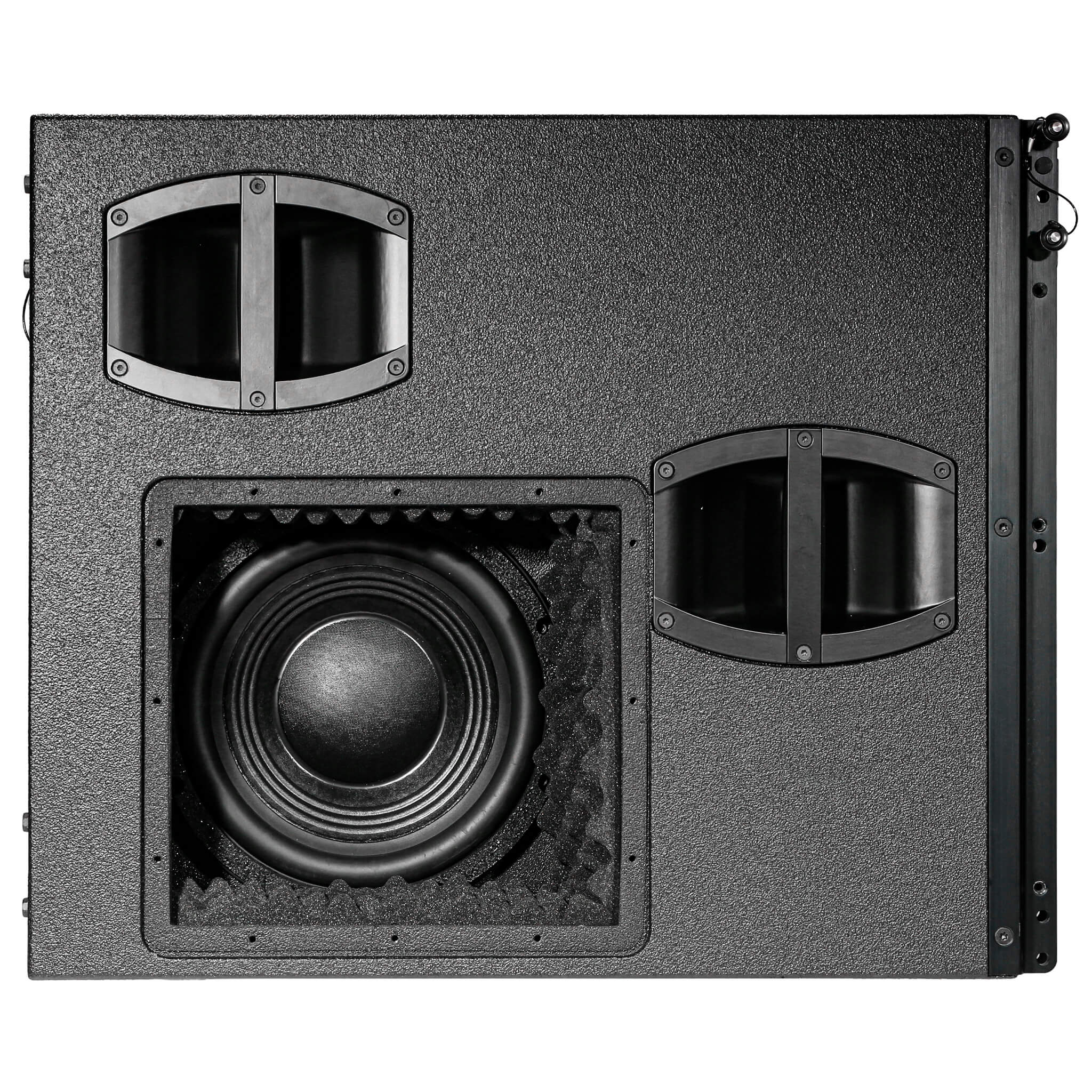

VSUB-V118SUB Cardioid subwoofer, 18″ front + 12″ rear
• Configuration: Cardioid subwoofer, 18″ front + 12″ rear
• Max SPL: 137 dB
• Bandwidth (-5 dB): 37 Hz – 115 Hz
• Transducers:
• LF: 1 × 18″ (front) + 1 × 12″ (rear)
• Weight: 55 kg / 121 lb
• Directivity: Cardioid (front + rear drivers)
• Dimensions (H × W × D): 580 × 700 × 720 mm
• Nominal Impedance: 8 Ω
• Power Handling: 800 W AES / 1600 W Program / 3200 W Peak
标题
DESCRIPTION L90 is an enhanced array speaker for medium scale sound reinforcement systems. Using AL When hanging
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):37 - 115 Hz
Frequency response (-5 dB 100 Hz mode):37 - 95 Hz
Max. sound pressure1
with D20/30D:133 dB
with D40/D80/40D2:137 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance flyable cardioid subwoofer
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):800/3200 W
Splay angle settings:0° and 2.5°

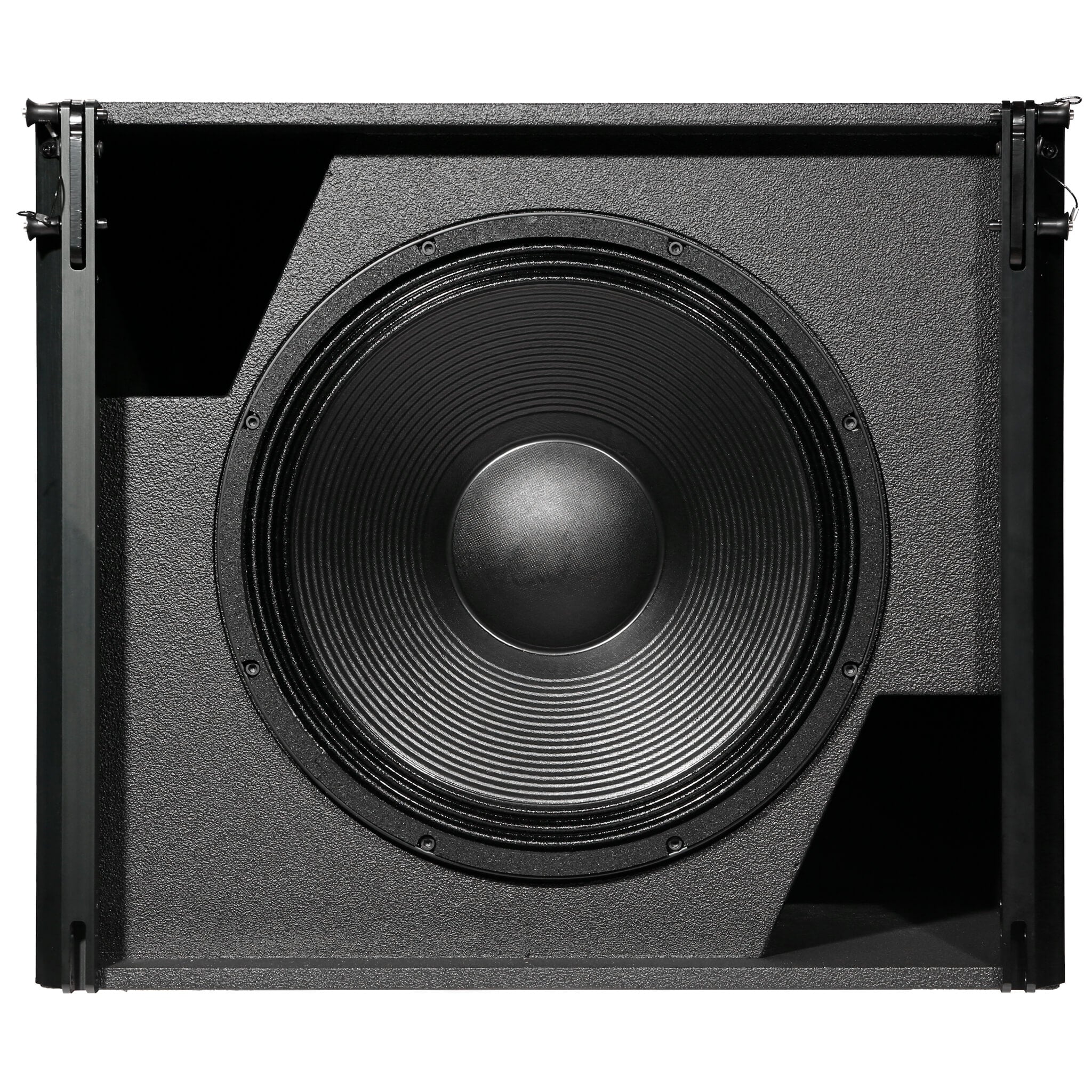

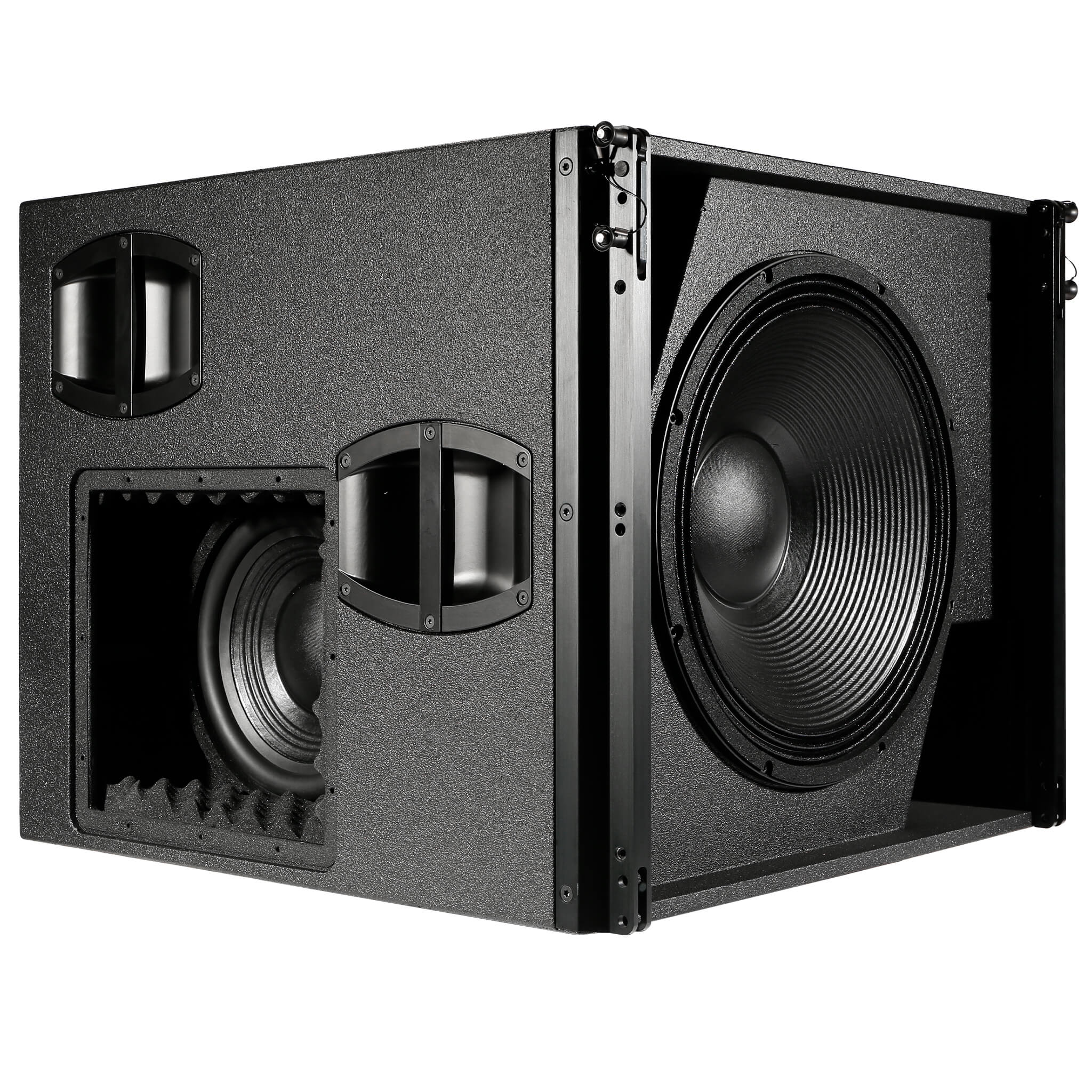

Components:1 x 18" driver 1 x 12" driver

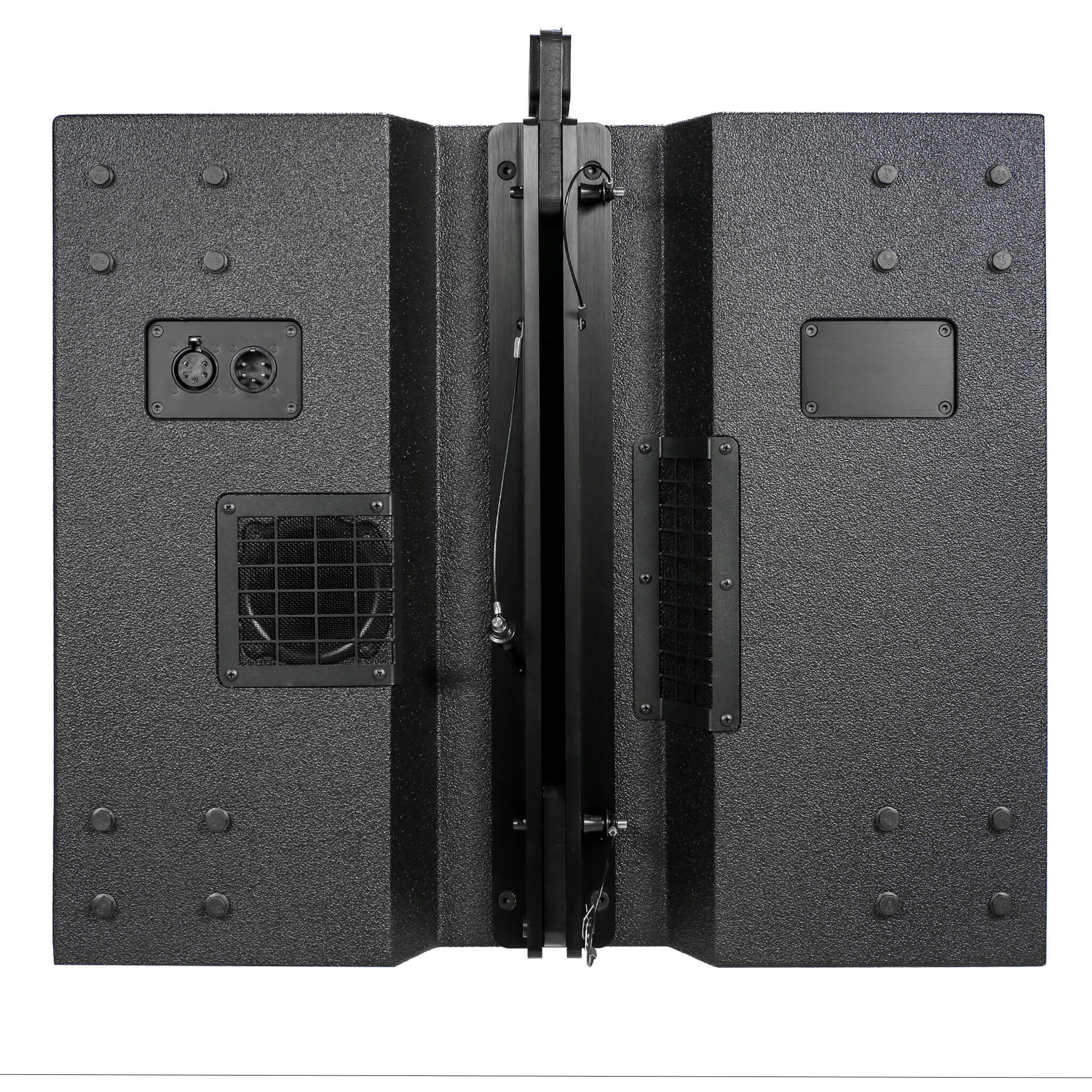

Connections:2 x NLT4 F/M optional 2 x NL4
Dimensions / weight
Dimensions (H x W x D):606 x 700 x 7283 / 830 mm 23.8 x 27.5 x 28.63 / 32.6"
Weight:64 kg 141 lb
