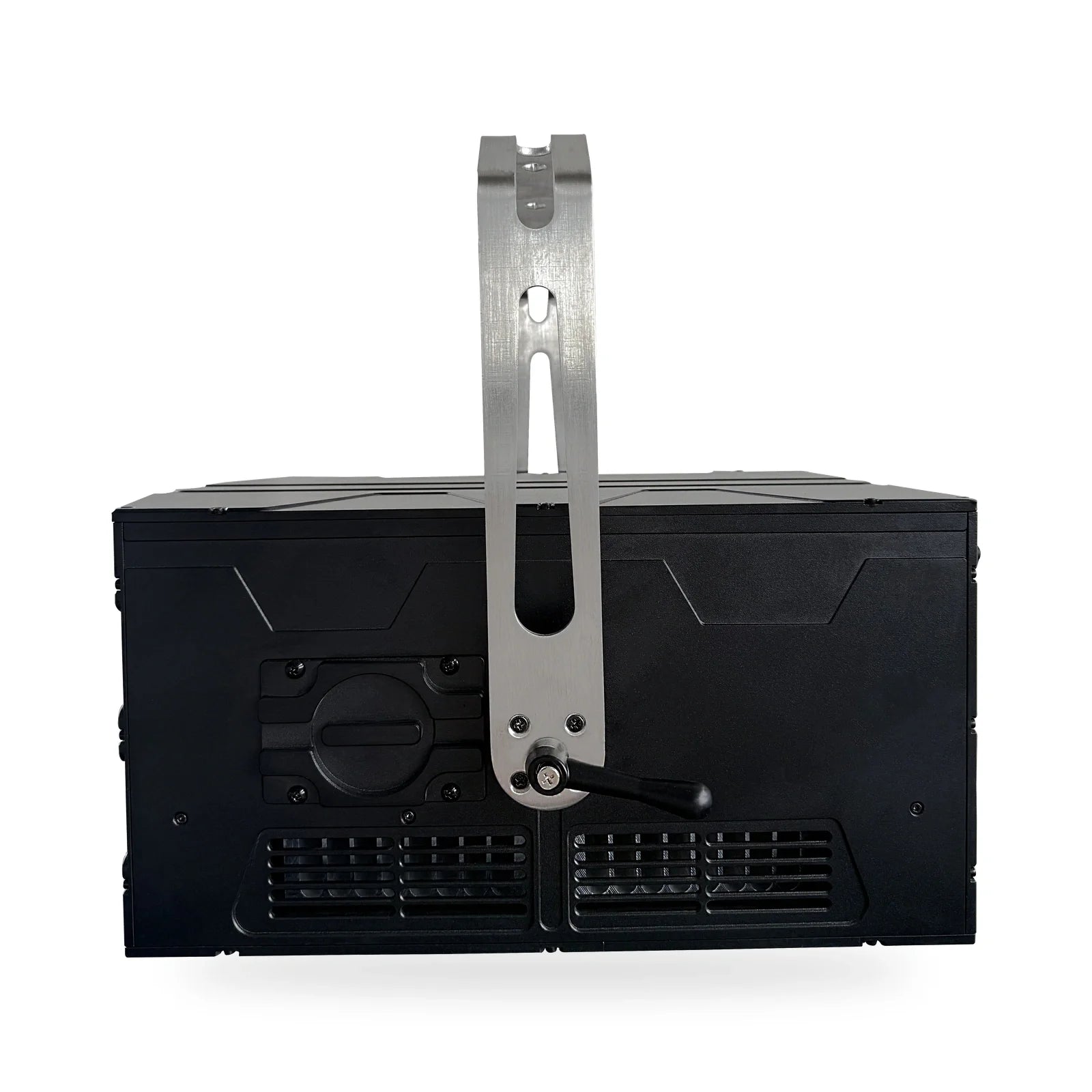

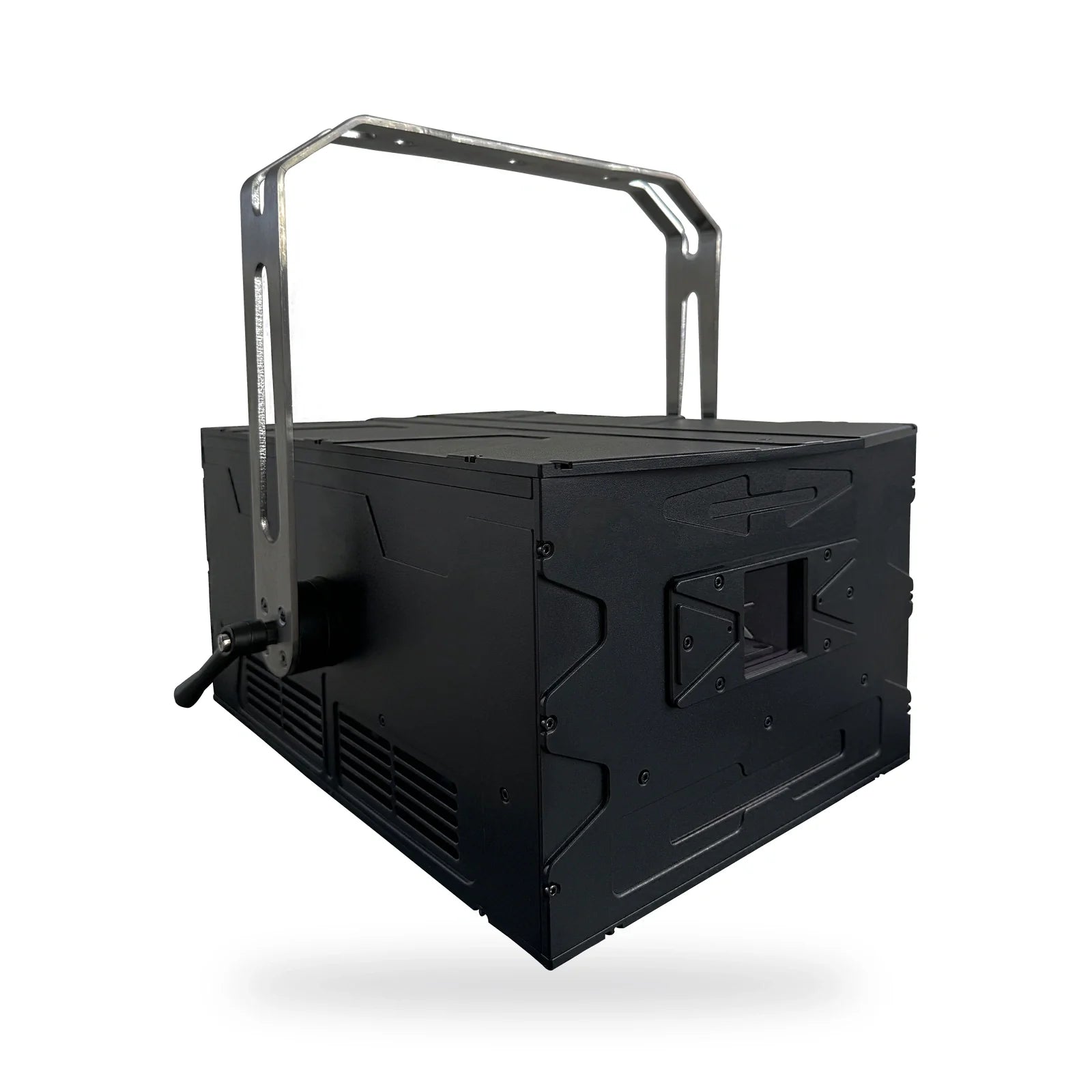

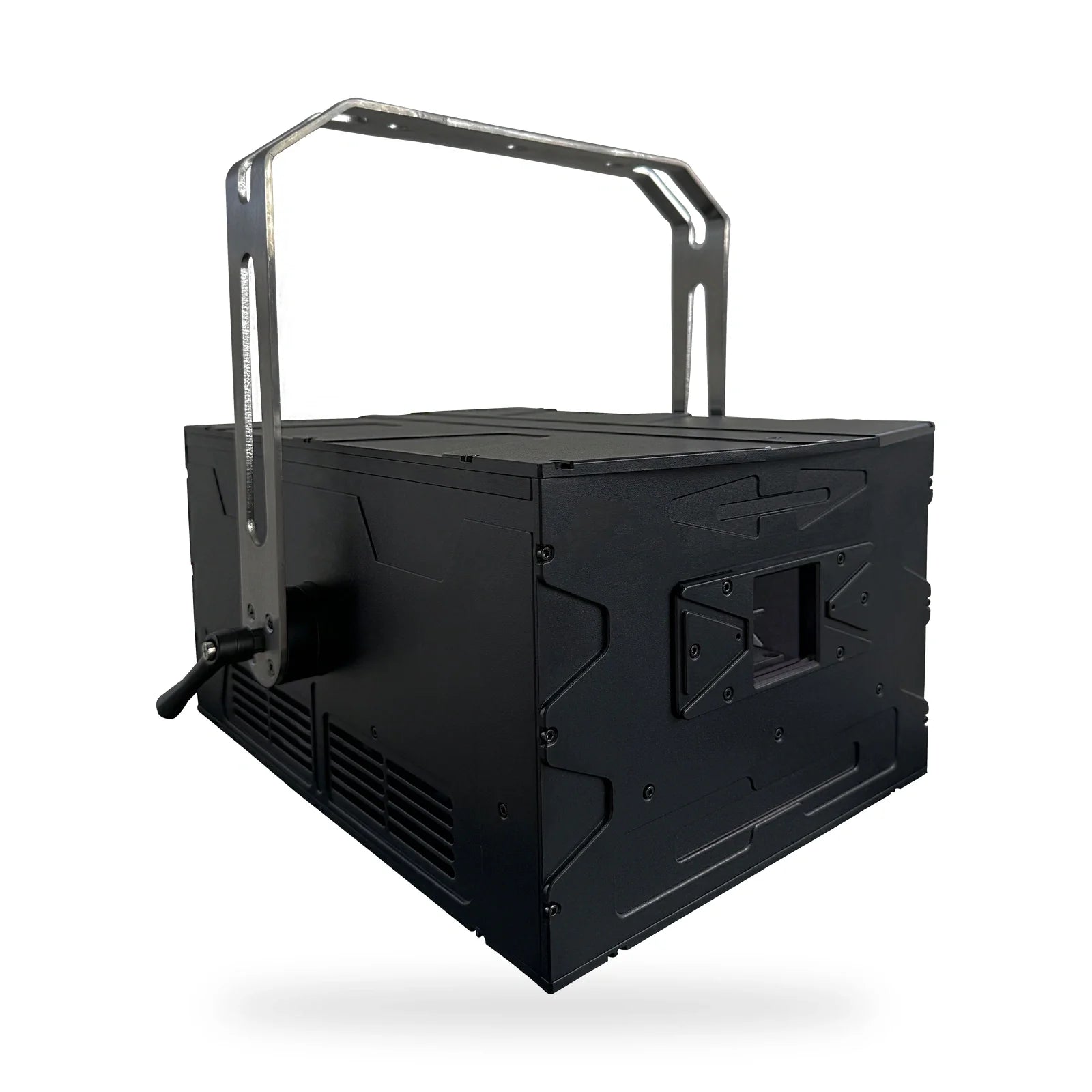

Y 40W RGB Laser Light

Product: Y-40W
Input voltage: AC 110-250 V, 50/60 Hz
Rated power: <= 800 W
Light source: 40 W RGB
DMX channels: 21CH delivered library mode

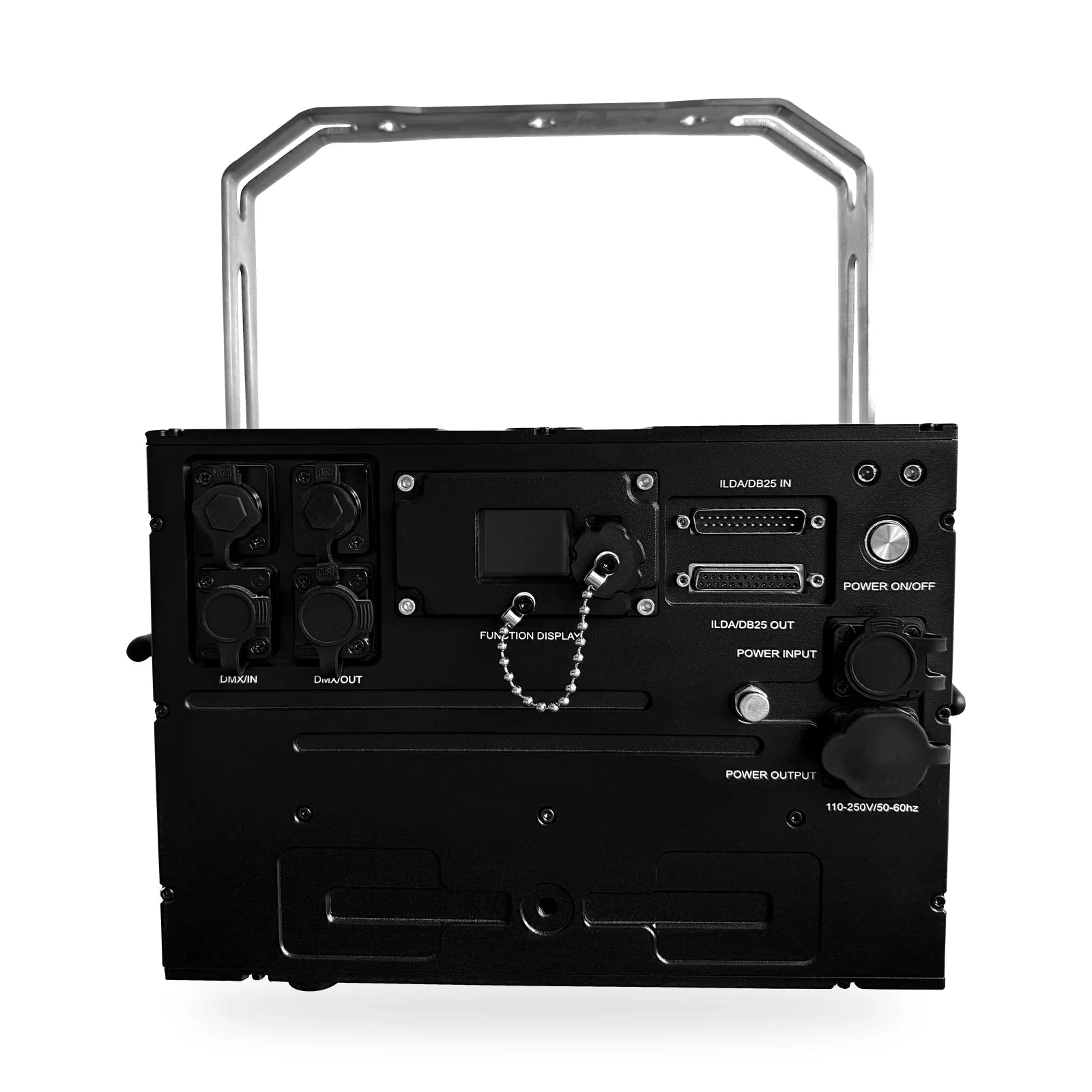

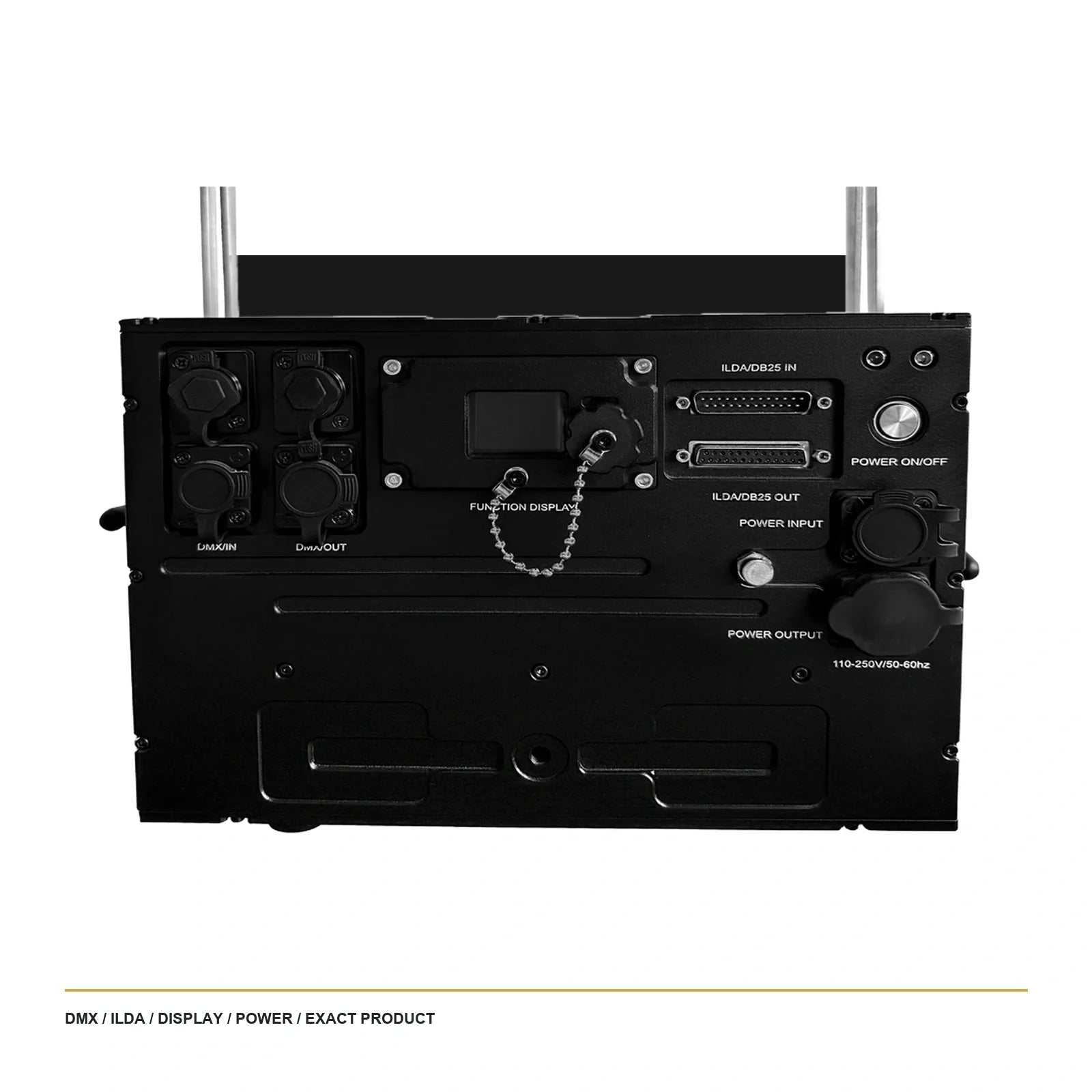

Control modes: DMX512 / auto / sound active / master/slave / ILDA / SD-card playback
Product size: 450 mm chassis dimension; 250 mm body height; 520 mm overall height including
Size / weight: 22.5 kg
Protection: SYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled
Scanner: AT40K galvanometer
Scan angle: +/-30 degrees (60-degree total)

Professional laser effects

Y-40W RGB Laser Light is designed for stages, venues, events and rental systems.

Rated power

<= 800 W

Light source

40 W RGB

DMX channels

21CH delivered library mode

Product size

450 mm chassis dimension; 250 mm body height; 520 mm overall height including

Professional laser effects

Y-40W RGB Laser Light is designed for stages, venues, events and rental systems.

Flexible output platform

40 W RGB.

Core effect engine

40 W RGB / AT40K galvanometer / SD-card program editing with more than 128 beam/animation programs.

Technical specification

Verified from the supplied product brochure, operation manuals and fixture library. Unconfirmed source values remain clearly marked.

Product

Y-40W

Input voltage

AC 110-250 V, 50/60 Hz

Rated power

<= 800 W

Light source

40 W RGB

DMX channels

21CH delivered library mode

Control modes

DMX512 / auto / sound active / master/slave / ILDA / SD-card playback

Product size

450 mm chassis dimension; 250 mm body height; 520 mm overall height including

Size / weight

22.5 kg

Protection

SYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled

Scanner

AT40K galvanometer

Scan angle

+/-30 degrees (60-degree total)
