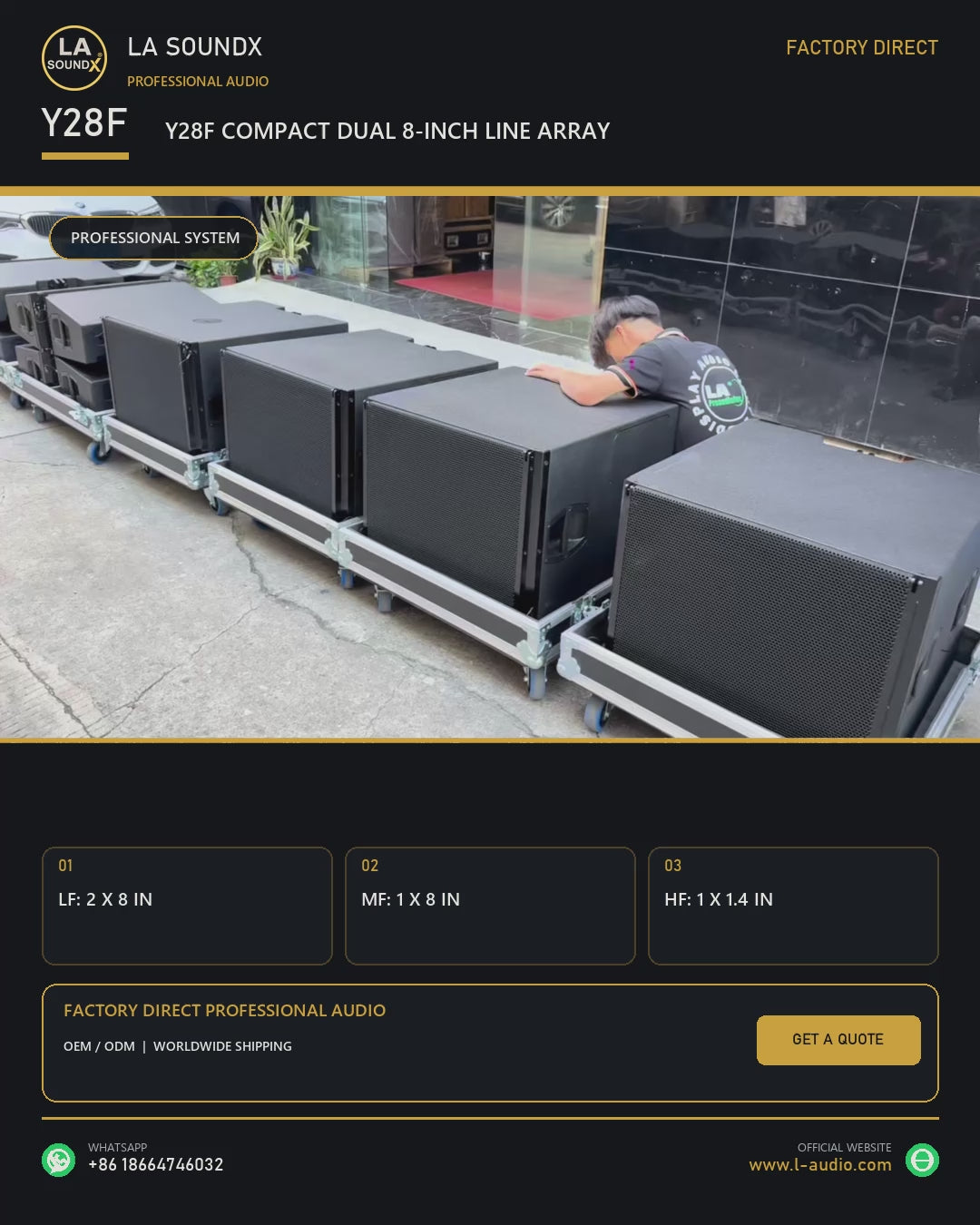

Y28F Compact Dual 8-Inch Line Array
Y8-Y28F Compact line array, 2-way dual 8″ LF is a professional line array loudspeaker designed for large venues, event production, touring PA, rental systems and installed performance spaces. It supports LA SOUNDX system deployment with practical handling for touring, rental, event production and fixed installation workflows.
Key specifications
- Maximum SPL: 139 dB
- Bandwidth: 54 Hz – 19 kHz
- Transducers: • LF: 2 × 8″ • MF/HF: 1 × 8″ + 1 × 1.4″ compression driver
- Dimensions: 235 × 700 × 380 mm
- Weight: 20 kg / 44 lb
Applications
- large venues, event production, touring PA, rental systems and installed performance spaces
- professional touring and rental inventory
- fixed installation and system integration
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):54 Hz - 19 kHz
Frequency response (-5 dB CUT mode):100 Hz - 19 kHz
Max. sound pressure1 with 10D:134 dB with D20/30D:137 dB with D40/D80/40D:139 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance 2-way passive line array loudspeaker
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):400/1600 W
Nominal dispersion angle (horizontal):80°
Splay angle settings:0° - 14° (1° increment)
Components:2 x 8" driver with neodymium magnet 1.4" exit compression driverpassive crossover network
Connections:2 x NLT4 F/M optional 2 x NL4
Dimensions (H x W x D):257 x 630 x 375 mm10 x 24.8 x 14.8"
Weight:20 kg44 lb
