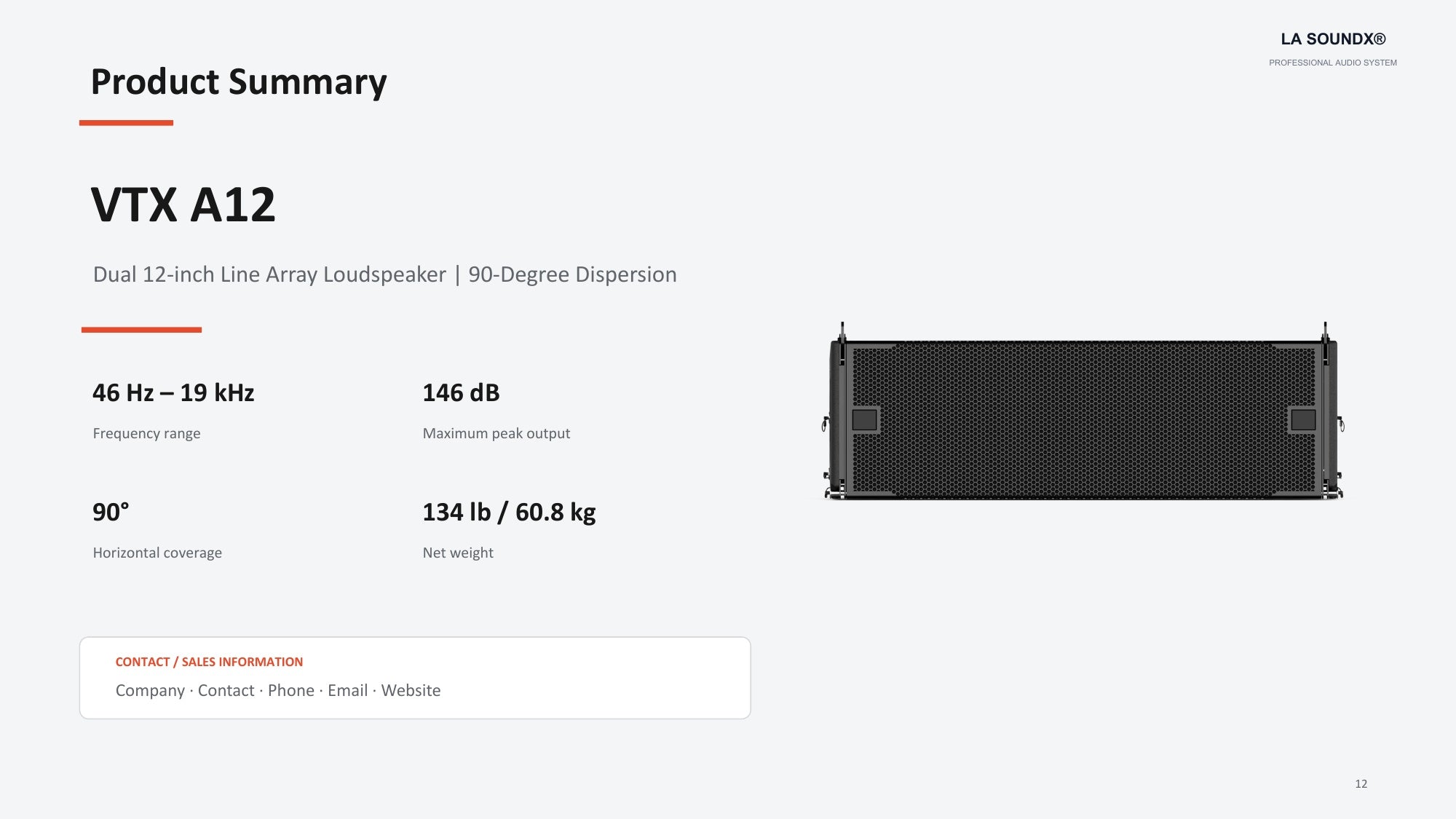

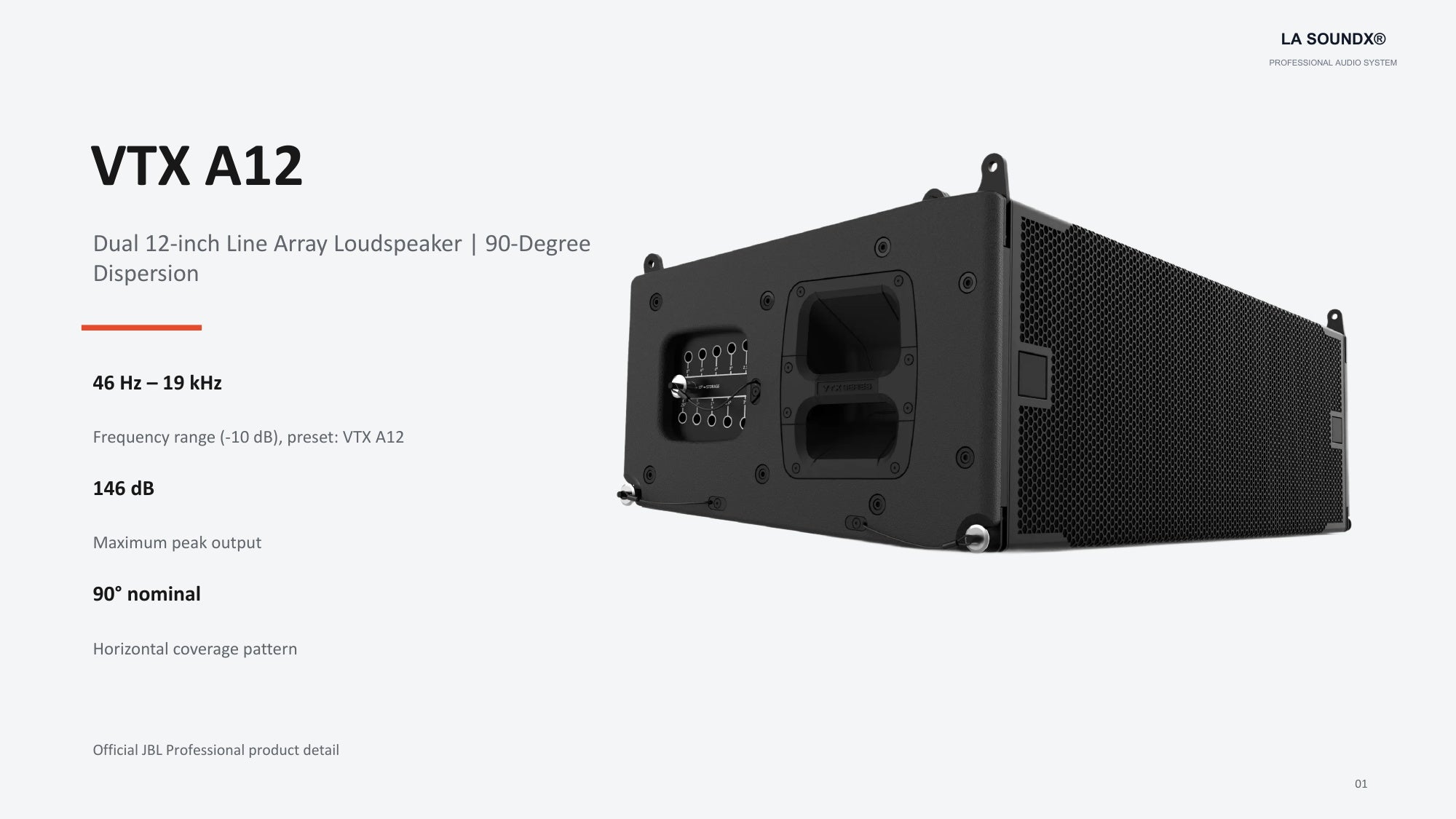

VTX A12 Dual 12-Inch Line Array Loudspeaker

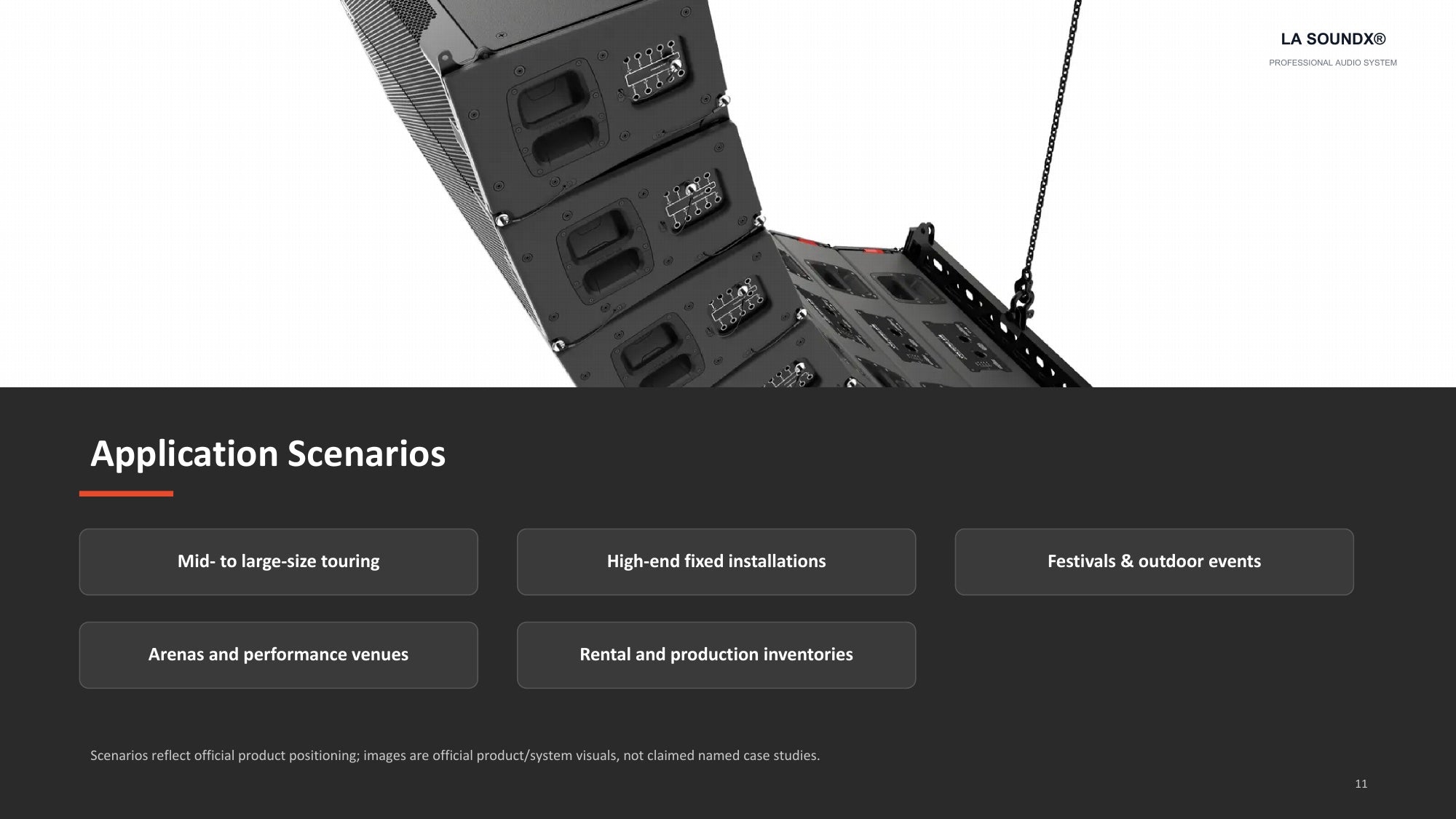

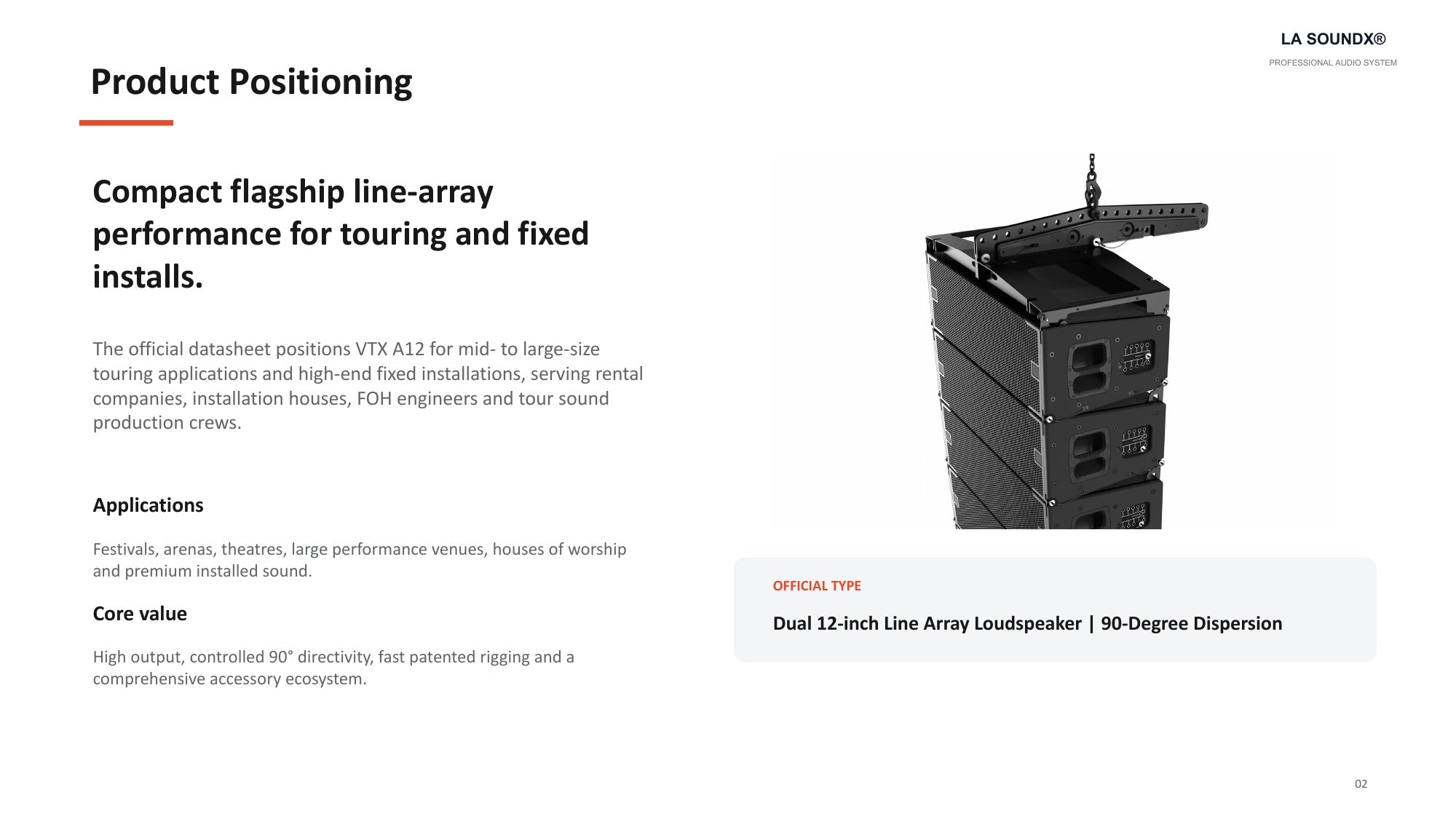

VTX A12 / XA12 is a dual 12-inch line array loudspeaker with 90-degree nominal horizontal dispersion, designed for mid- to large-size touring applications and high-end fixed installations including festivals, arenas, theatres, houses of worship and premium installed sound.

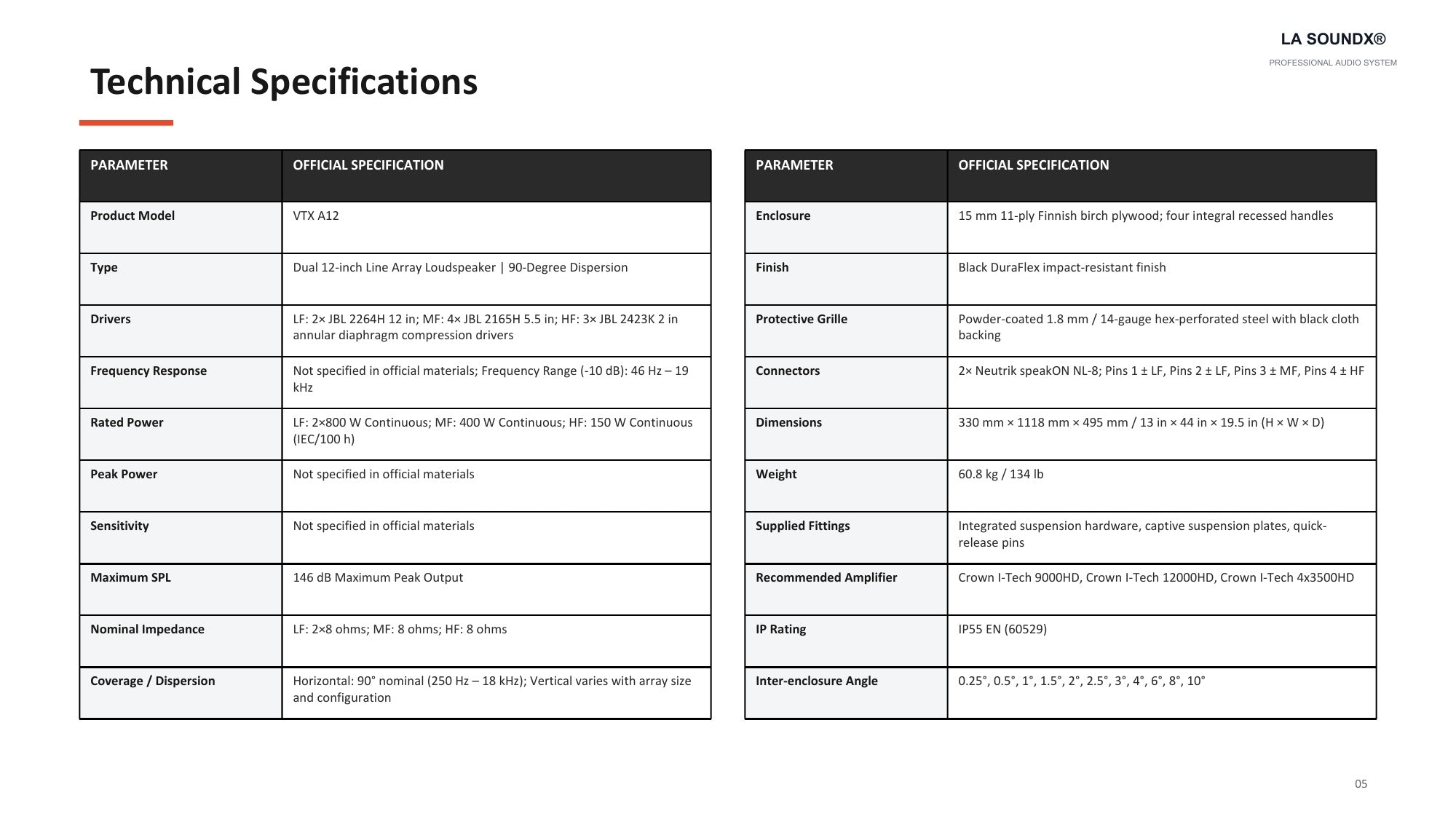

Product Model: VTX A12
Company Model: XA12
Type: Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

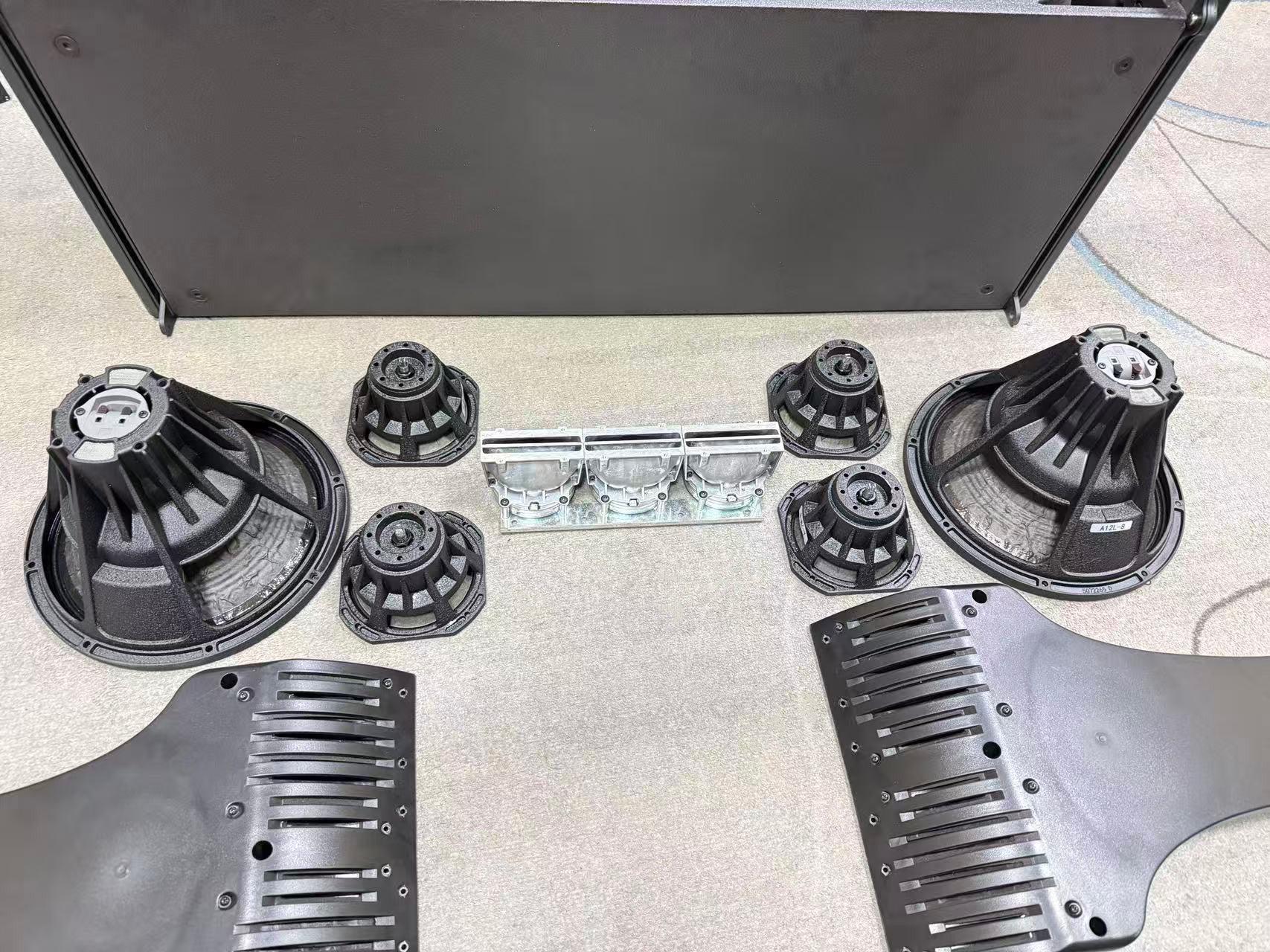

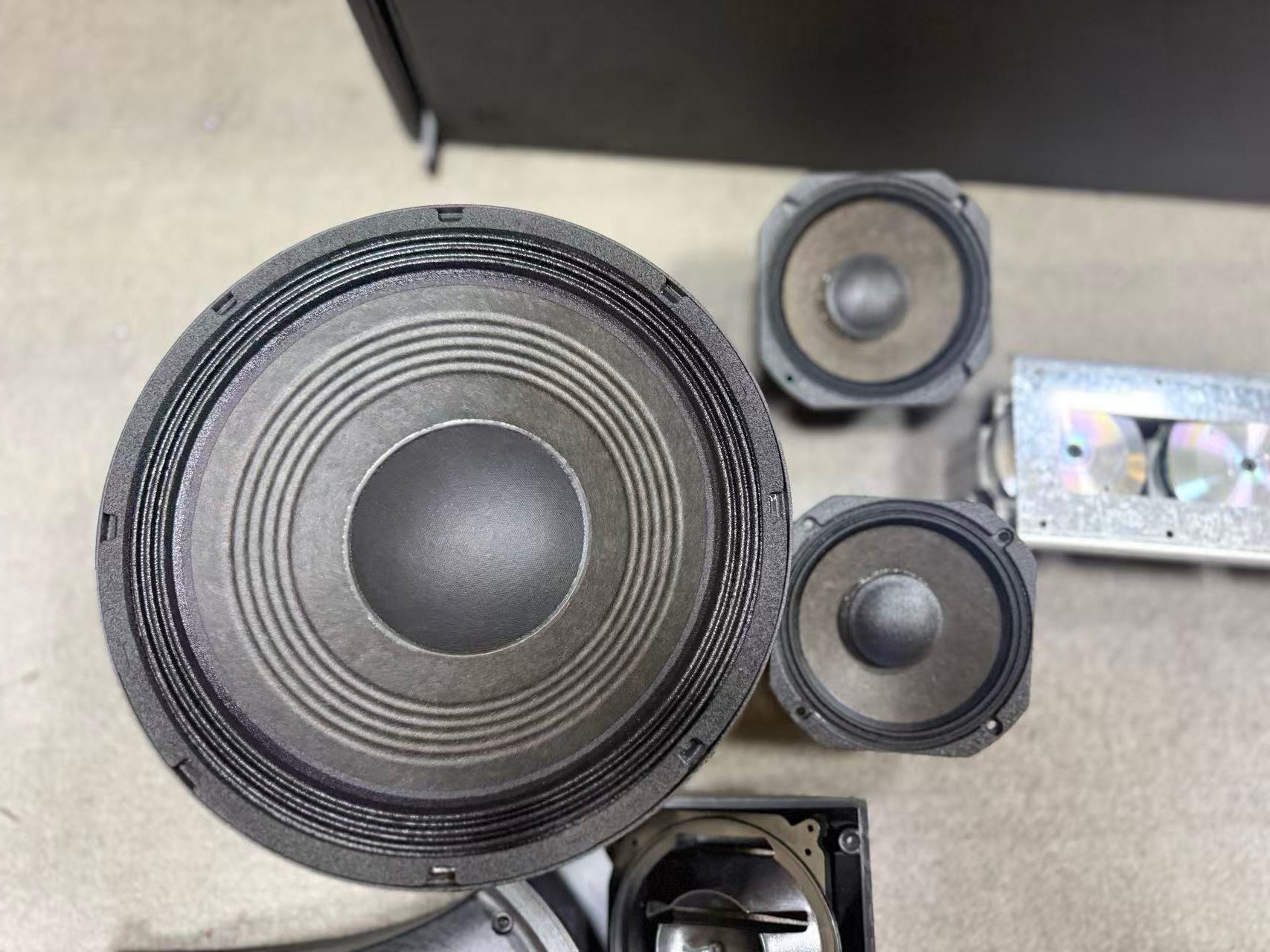

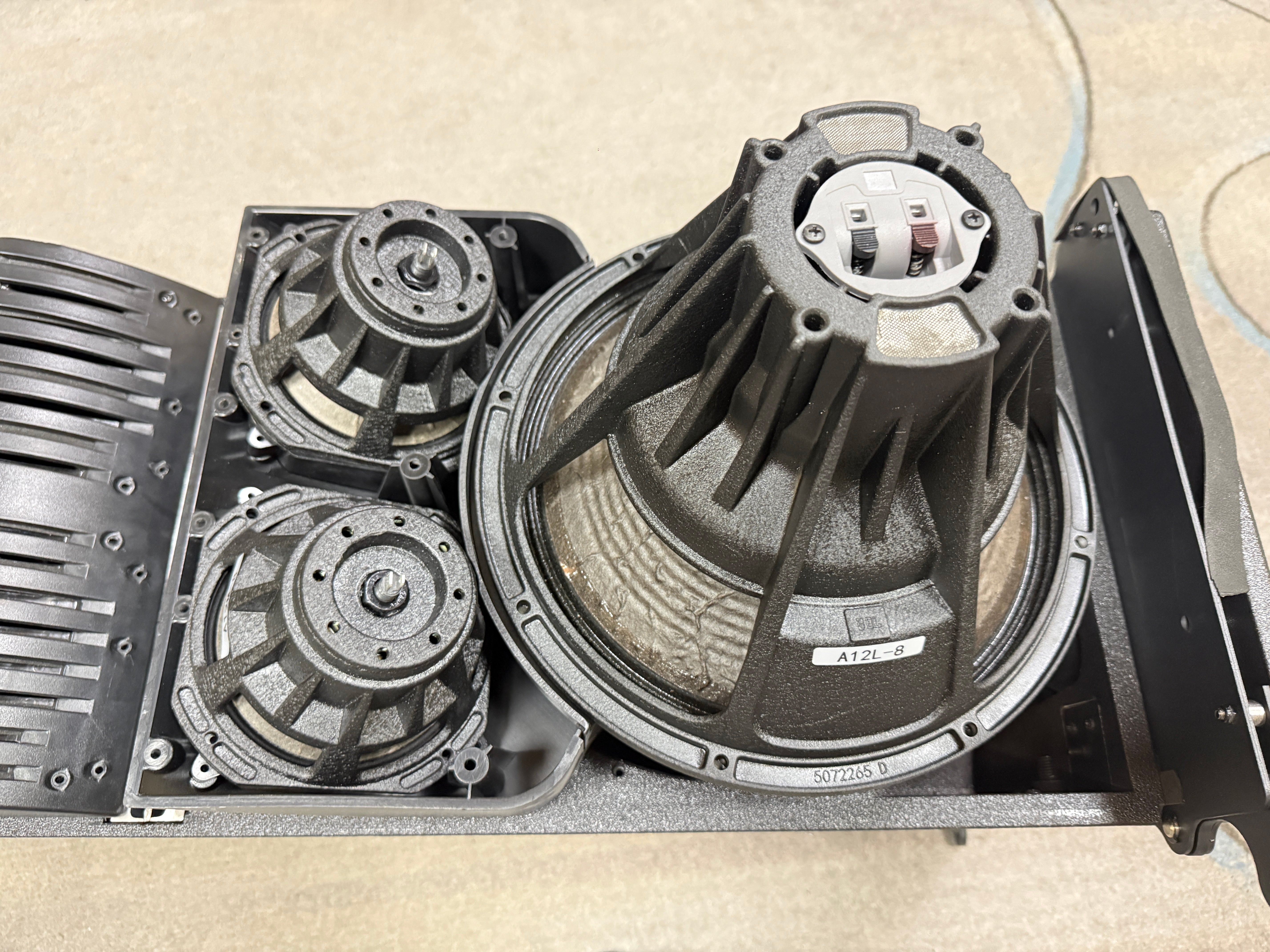

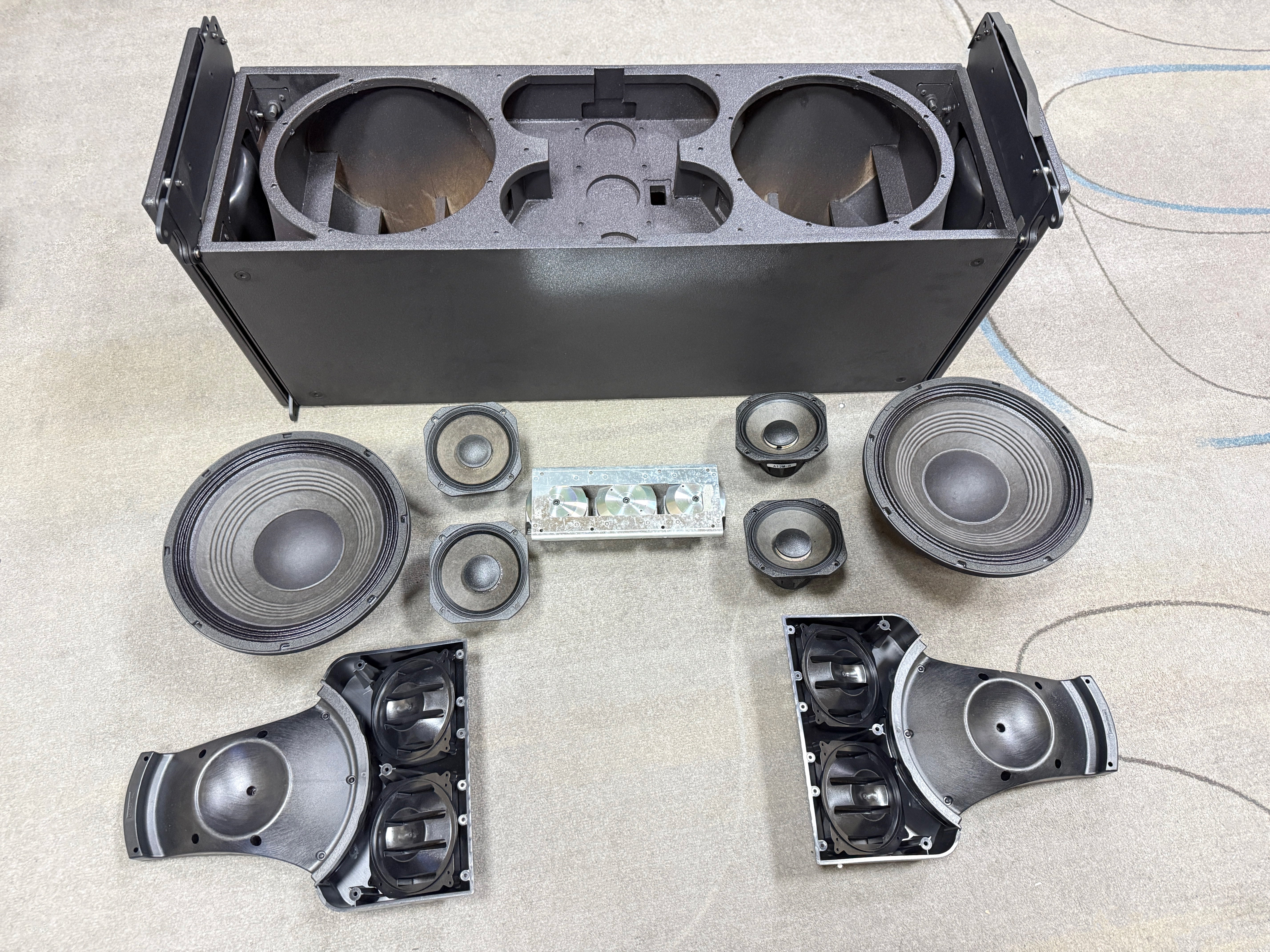

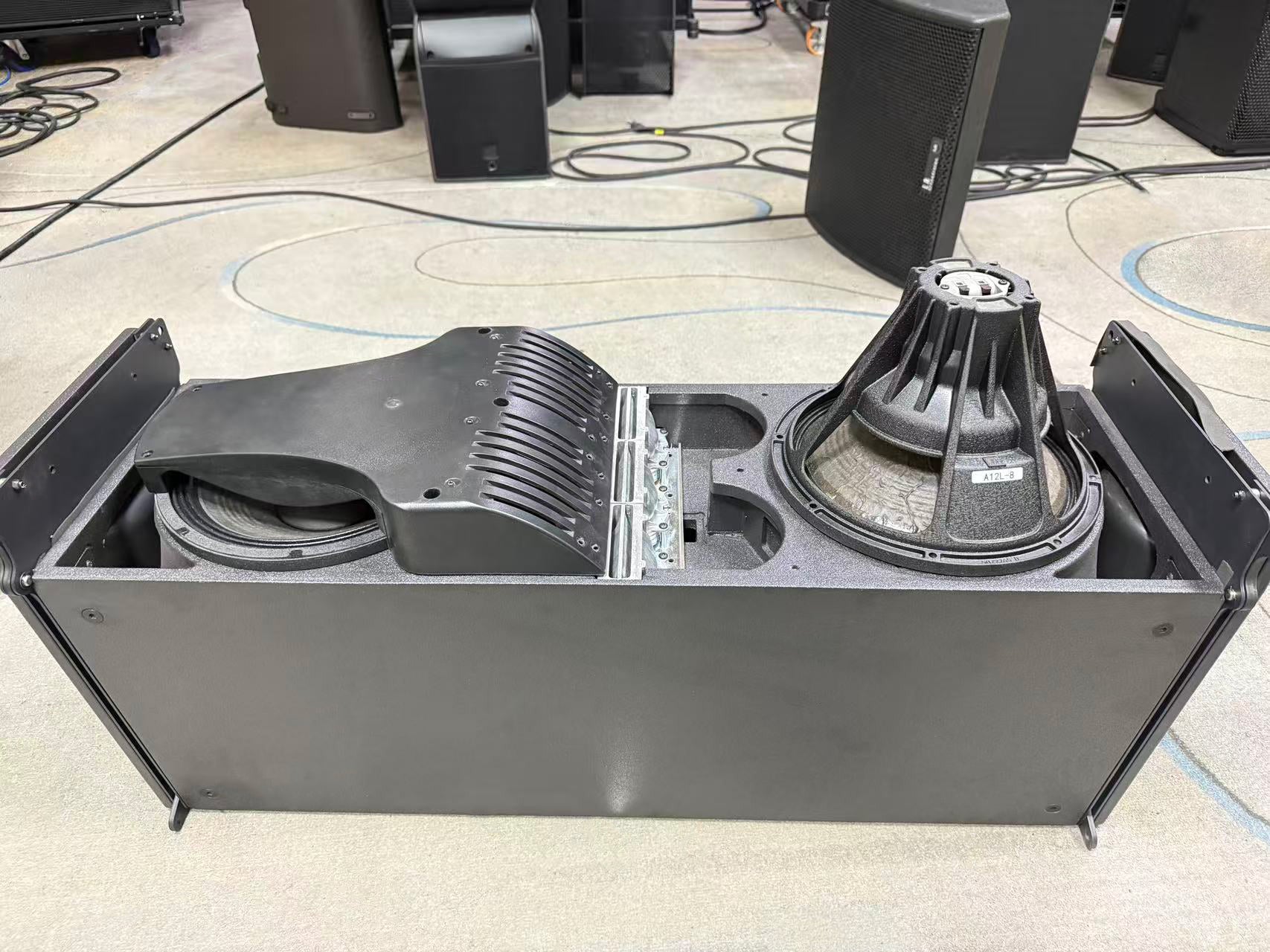

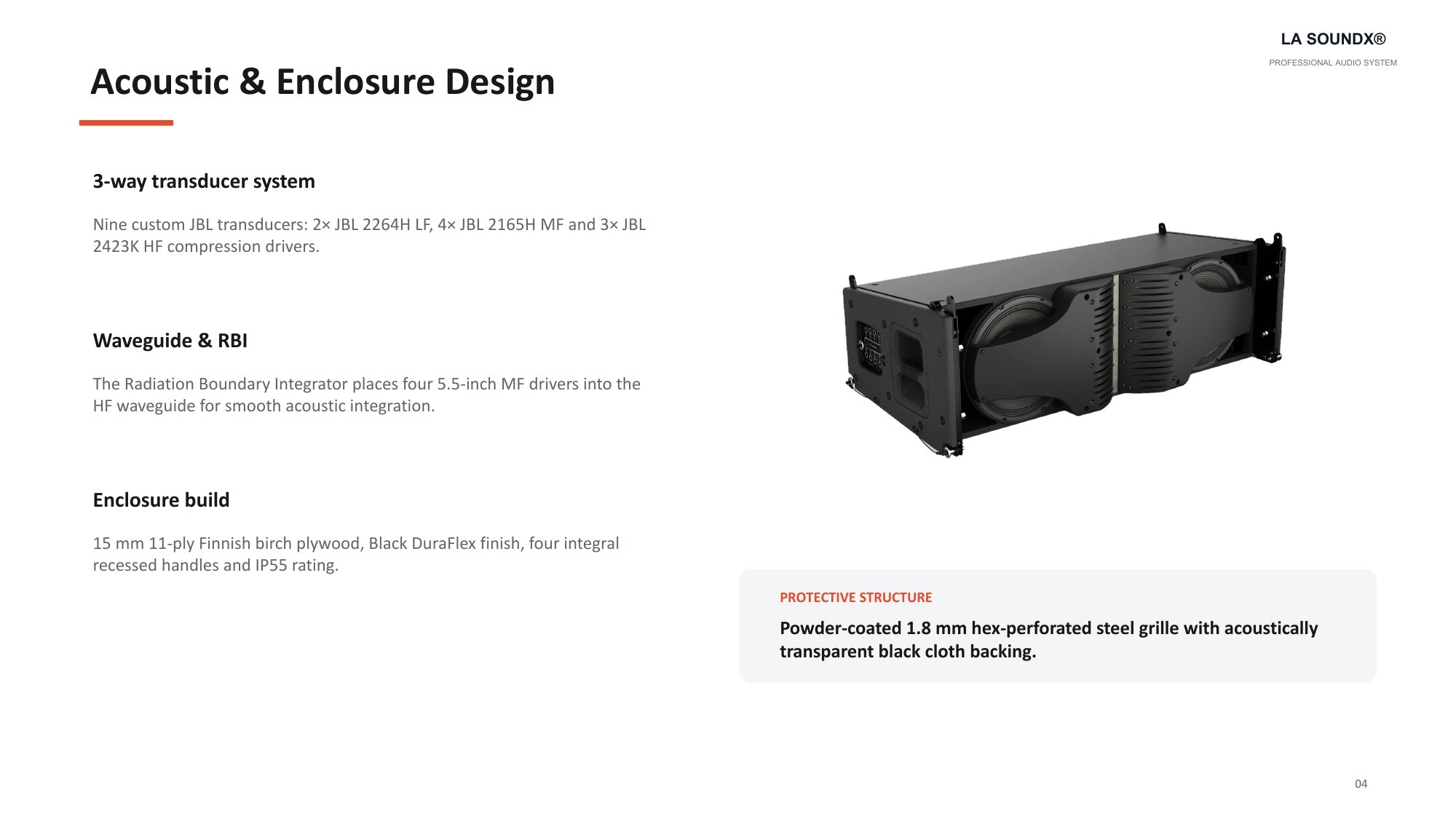

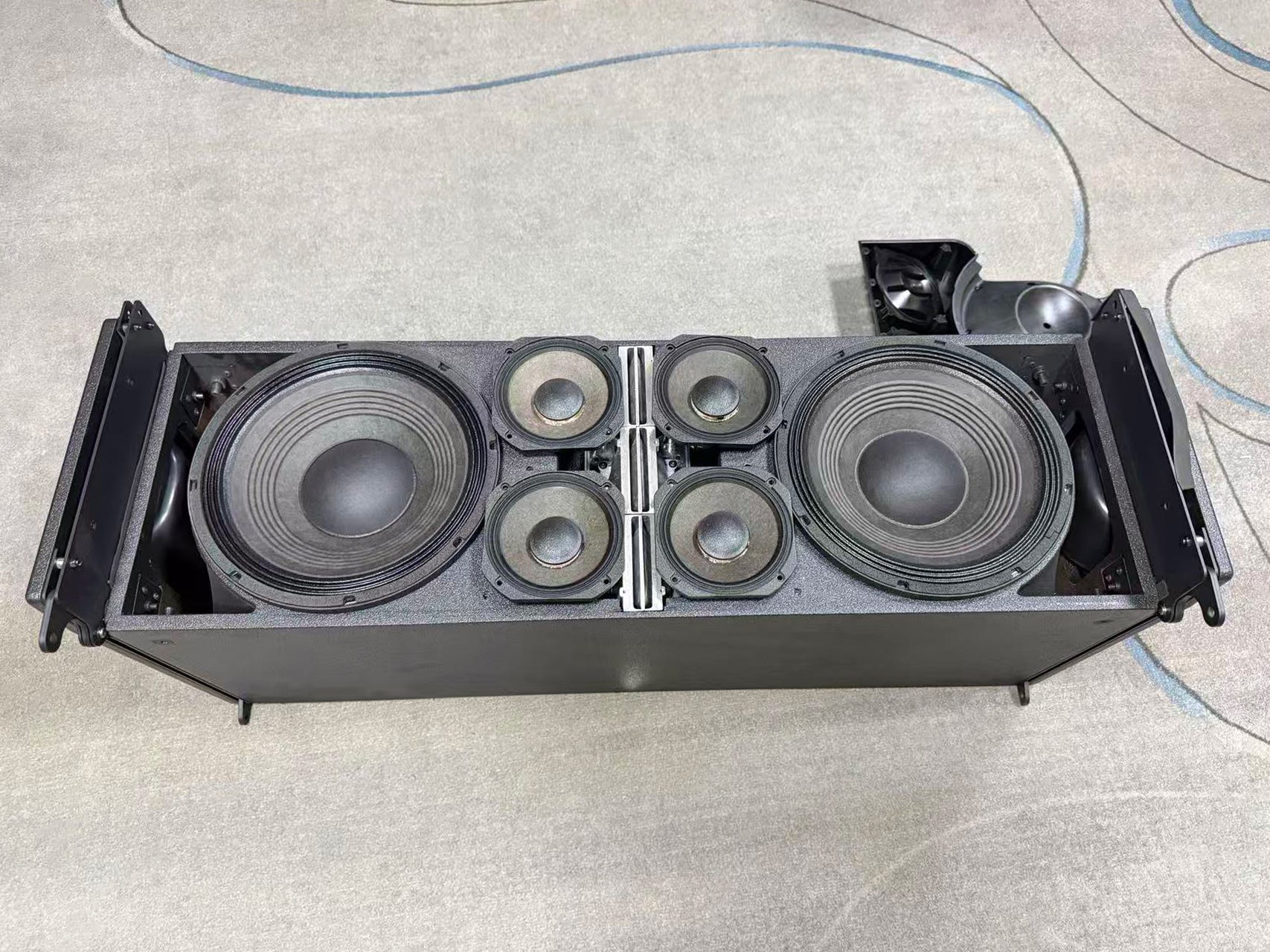

Drivers: LF 2 x JBL 2264H 12 in; MF 4 x JBL 2165H 5.5 in; HF 3 x JBL 2423K 2 in annular diaphragm compression drivers

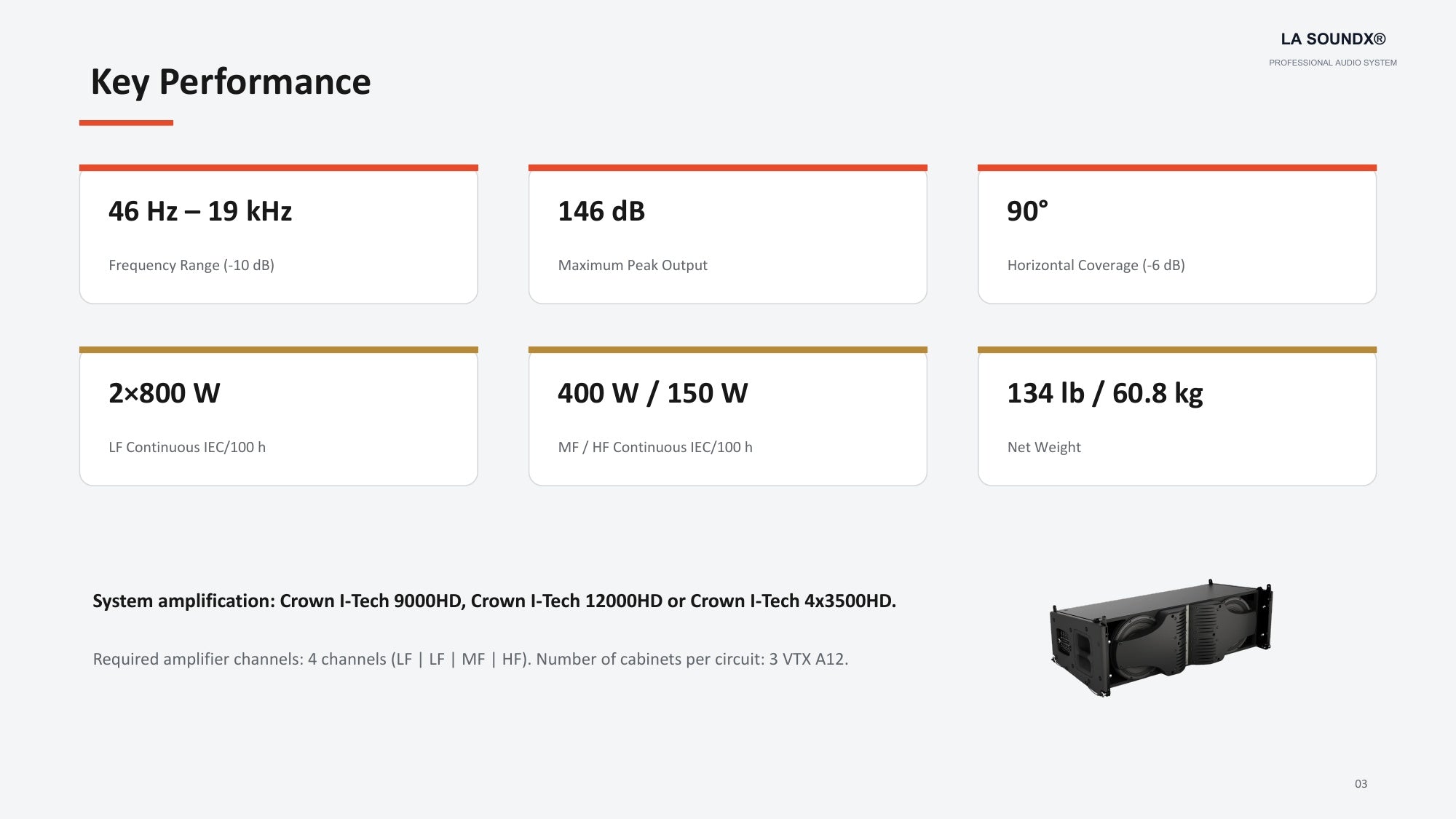

Frequency Range: 46 Hz - 19 kHz (-10 dB), preset VTX A12
Rated Power: LF 2 x 800 W Continuous; MF 400 W Continuous; HF 150 W Continuous (IEC/100 h)
Maximum SPL: 146 dB maximum peak output
Nominal Impedance: LF 2 x 8 ohms; MF 8 ohms; HF 8 ohms
Coverage / Dispersion: 90-degree nominal horizontal coverage (250 Hz - 18 kHz); vertical coverage varies with array size and configuration

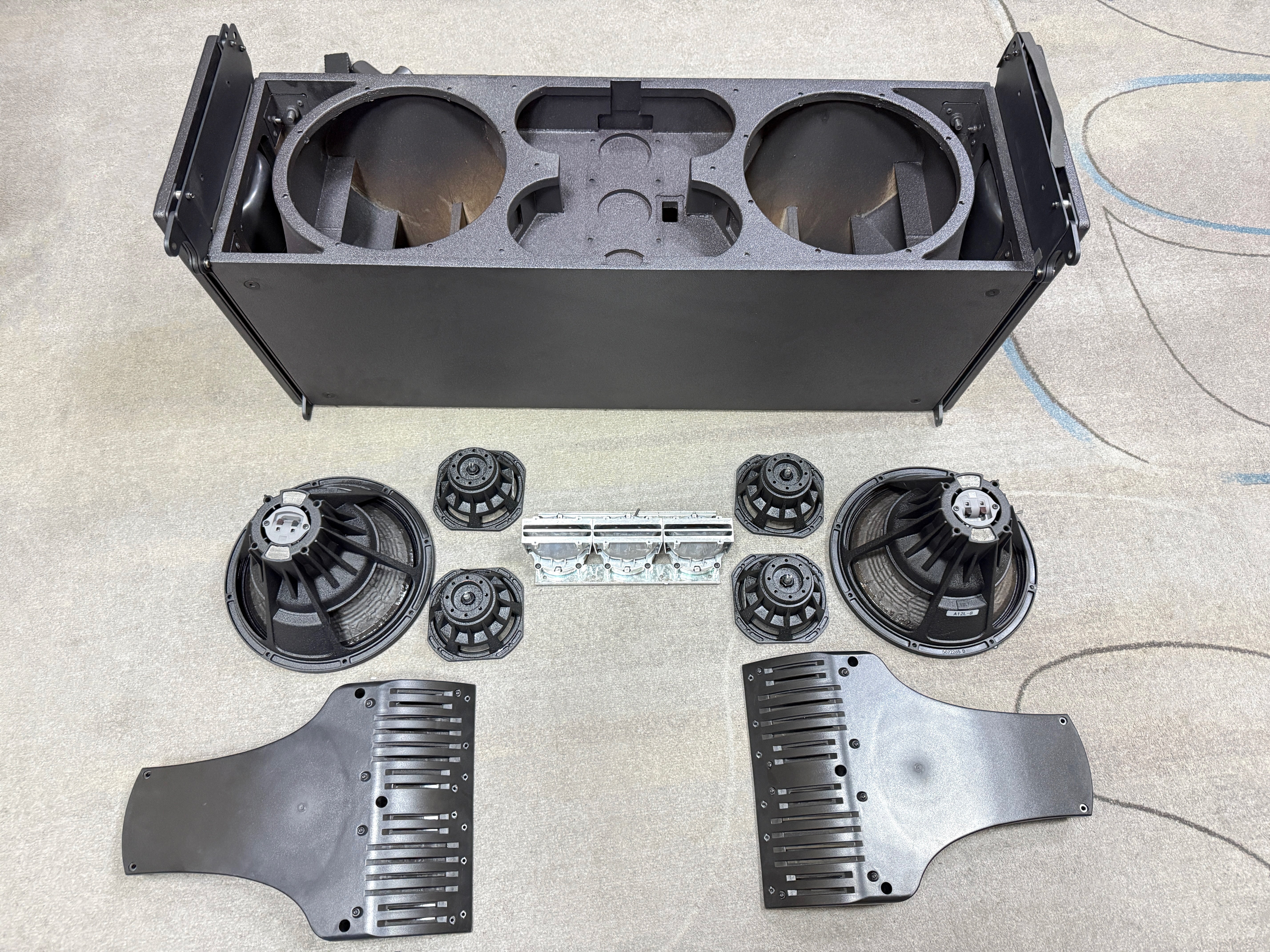

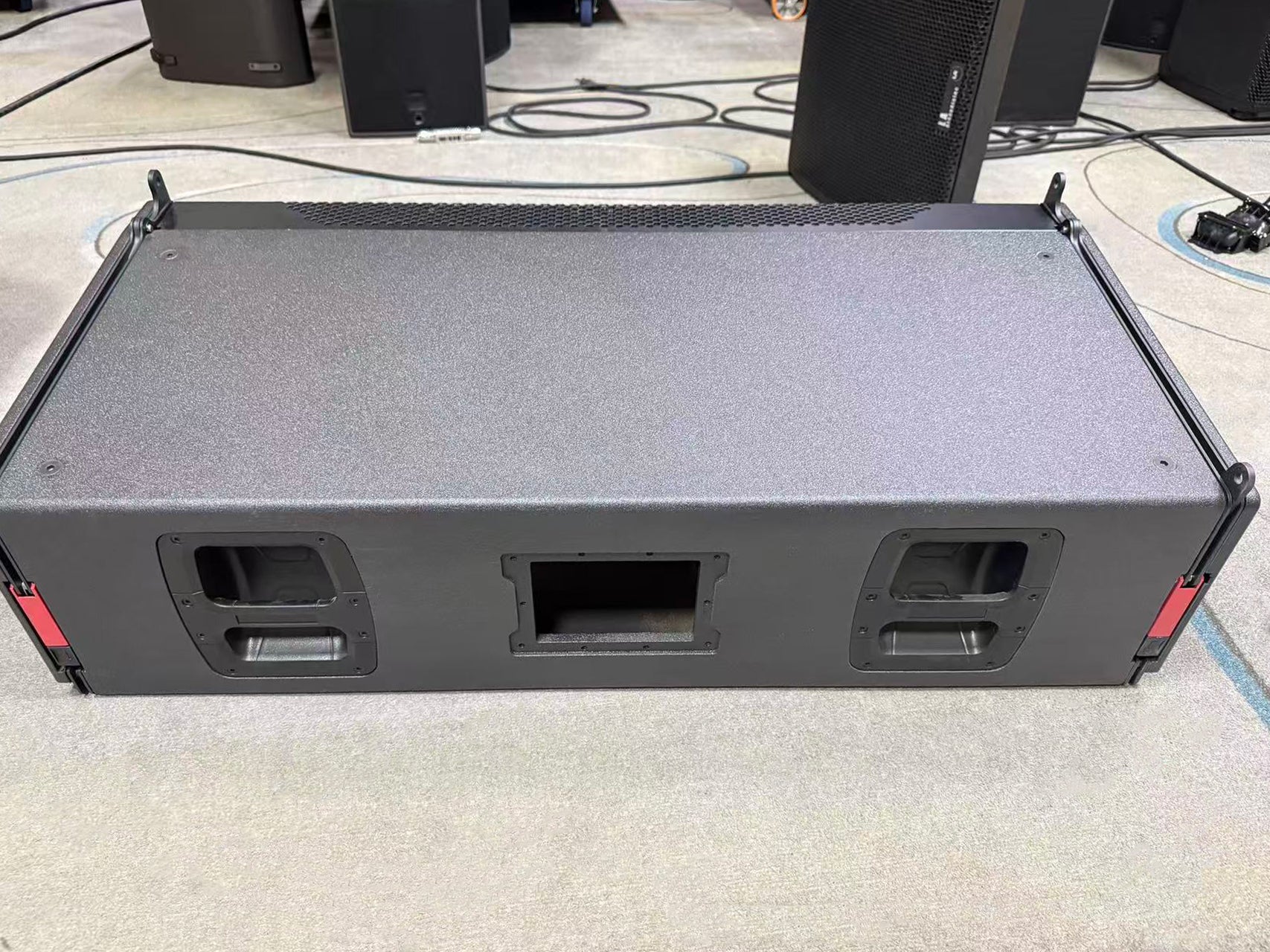

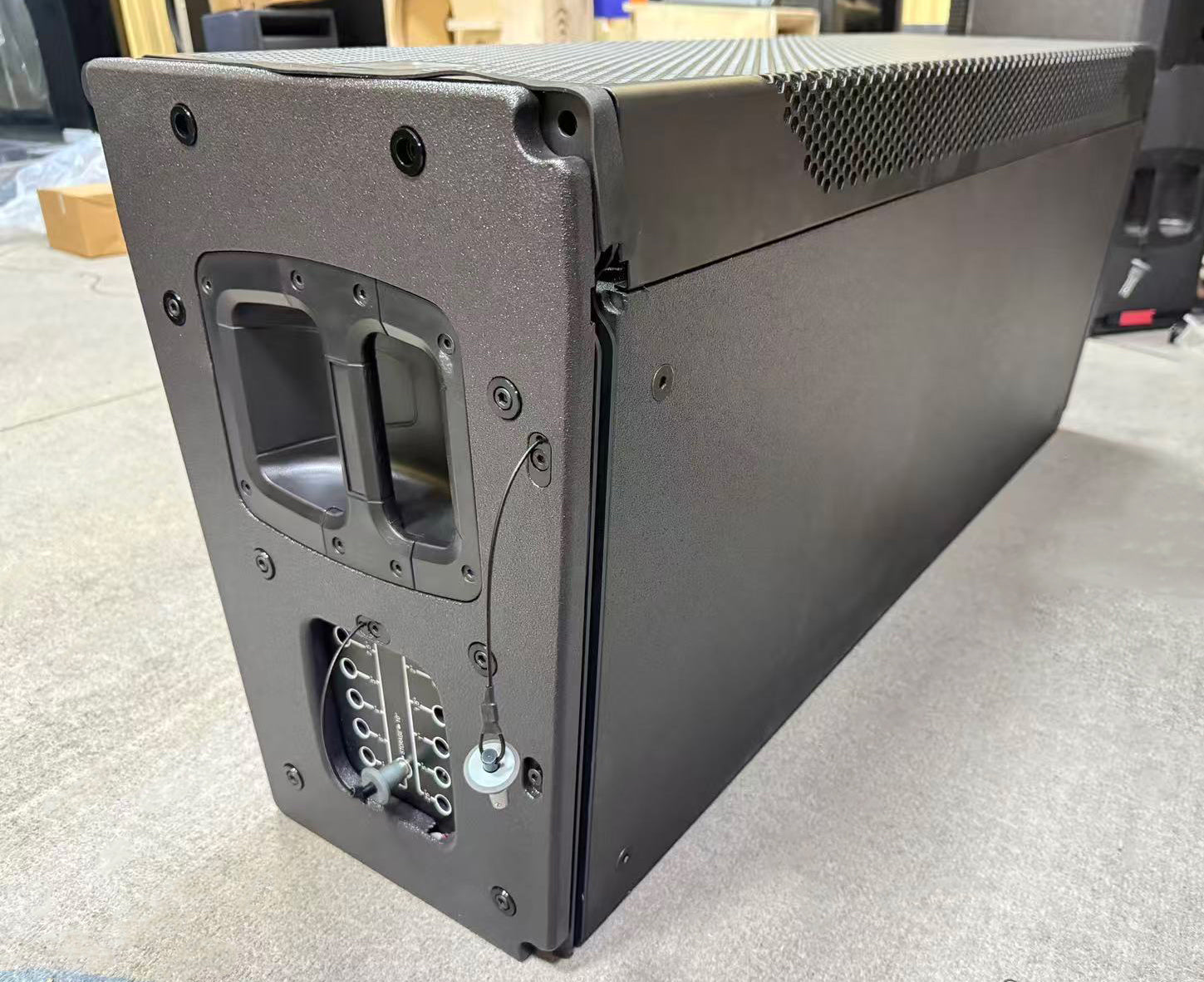

Enclosure: 15 mm 11-ply Finnish birch plywood with four integral recessed handles
Finish: Black DuraFlex impact-resistant finish

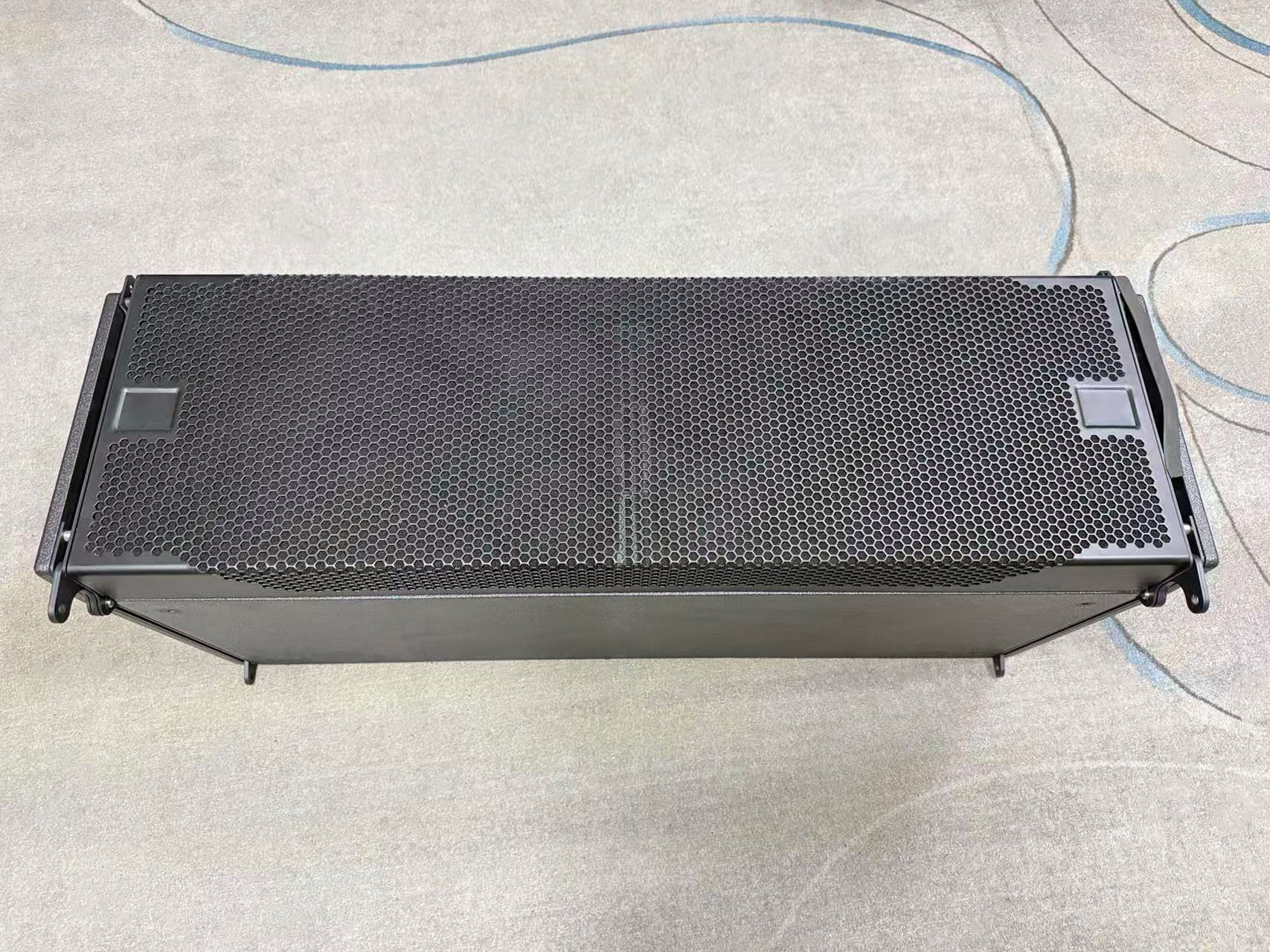

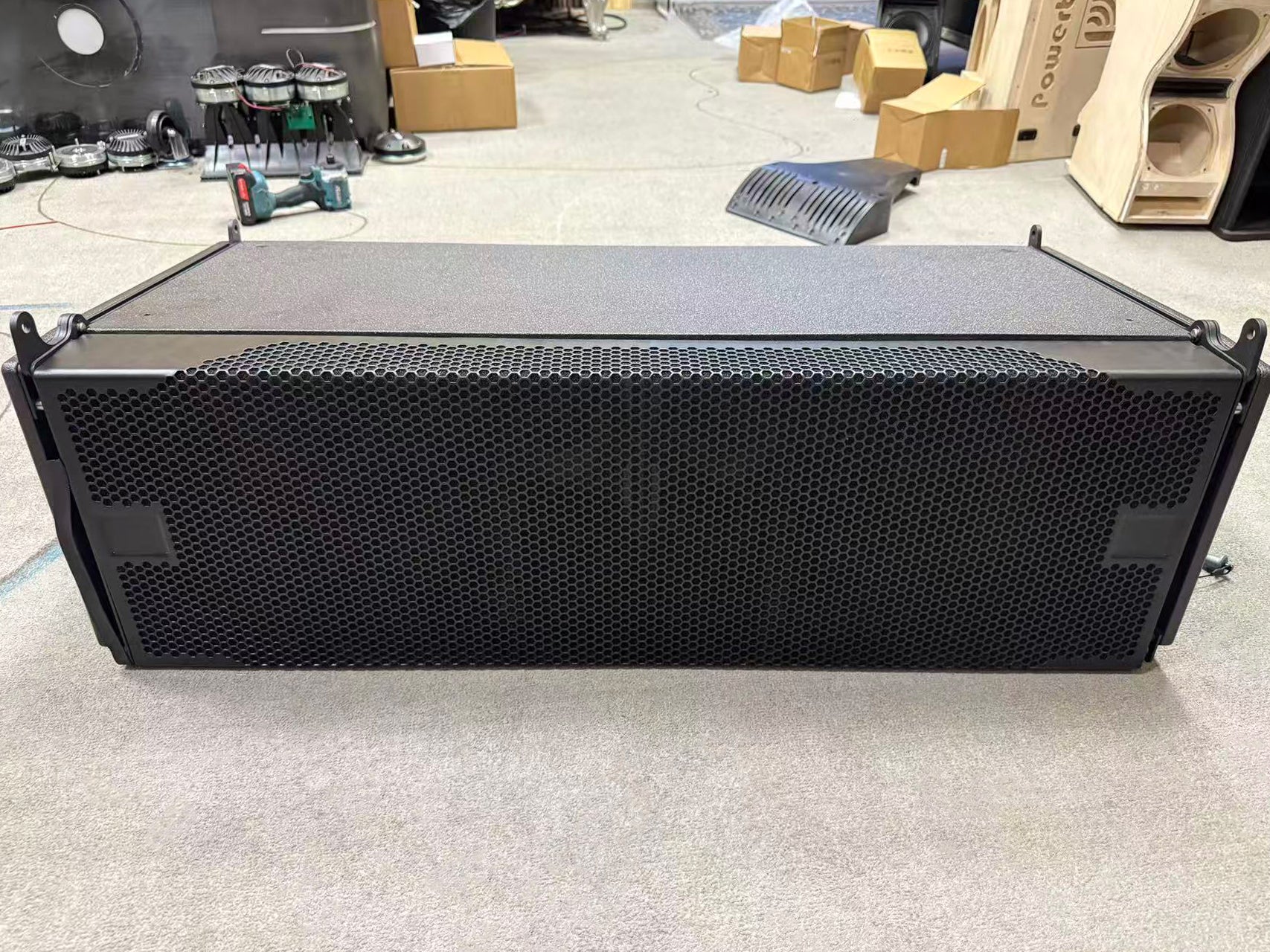

Protective Grille: Powder-coated 1.8 mm / 14-gauge hex-perforated steel grille with black cloth backing

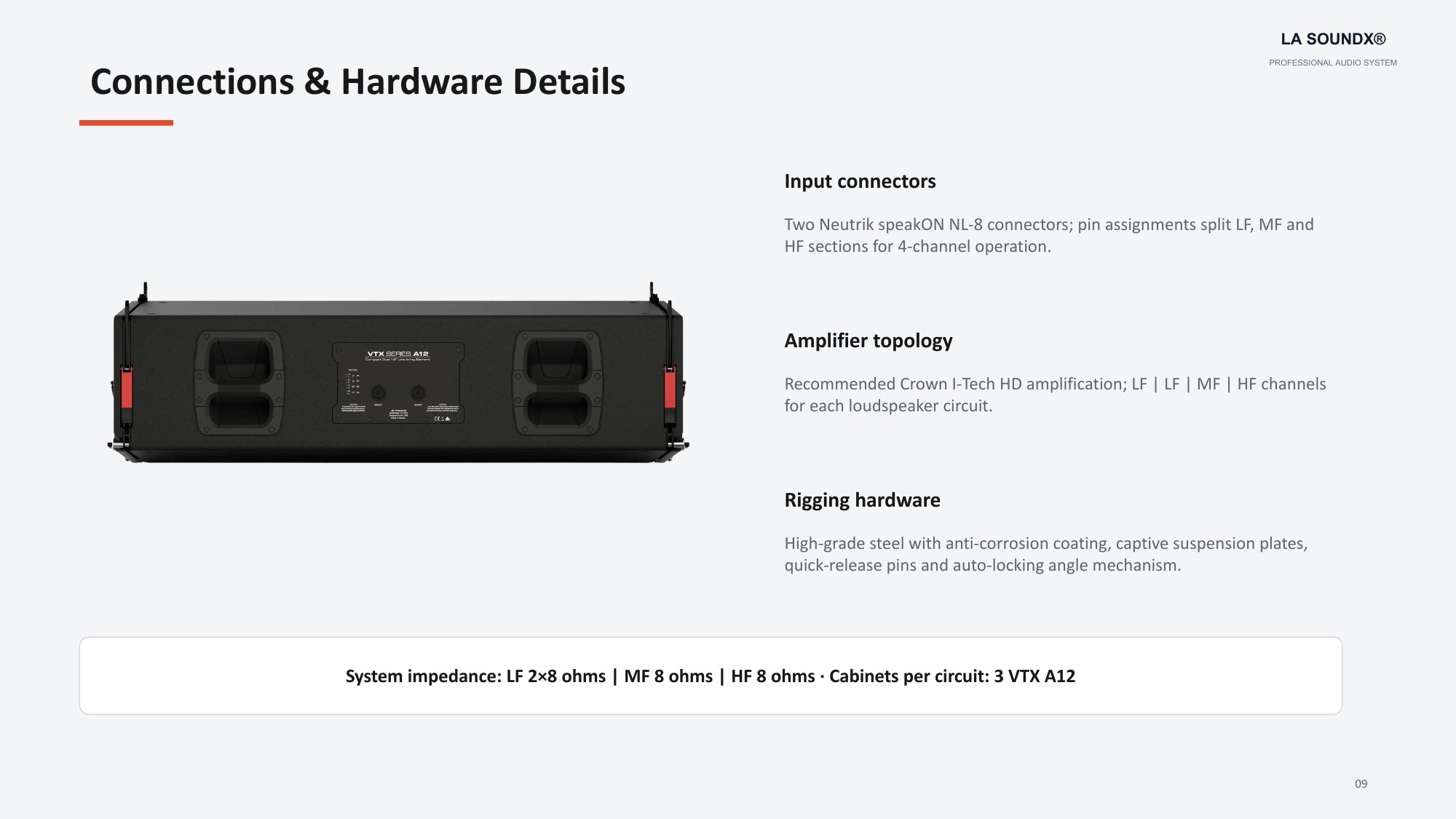

Connectors: 2 x Neutrik speakON NL-8; Pins 1 +/- LF, Pins 2 +/- LF, Pins 3 +/- MF, Pins 4 +/- HF

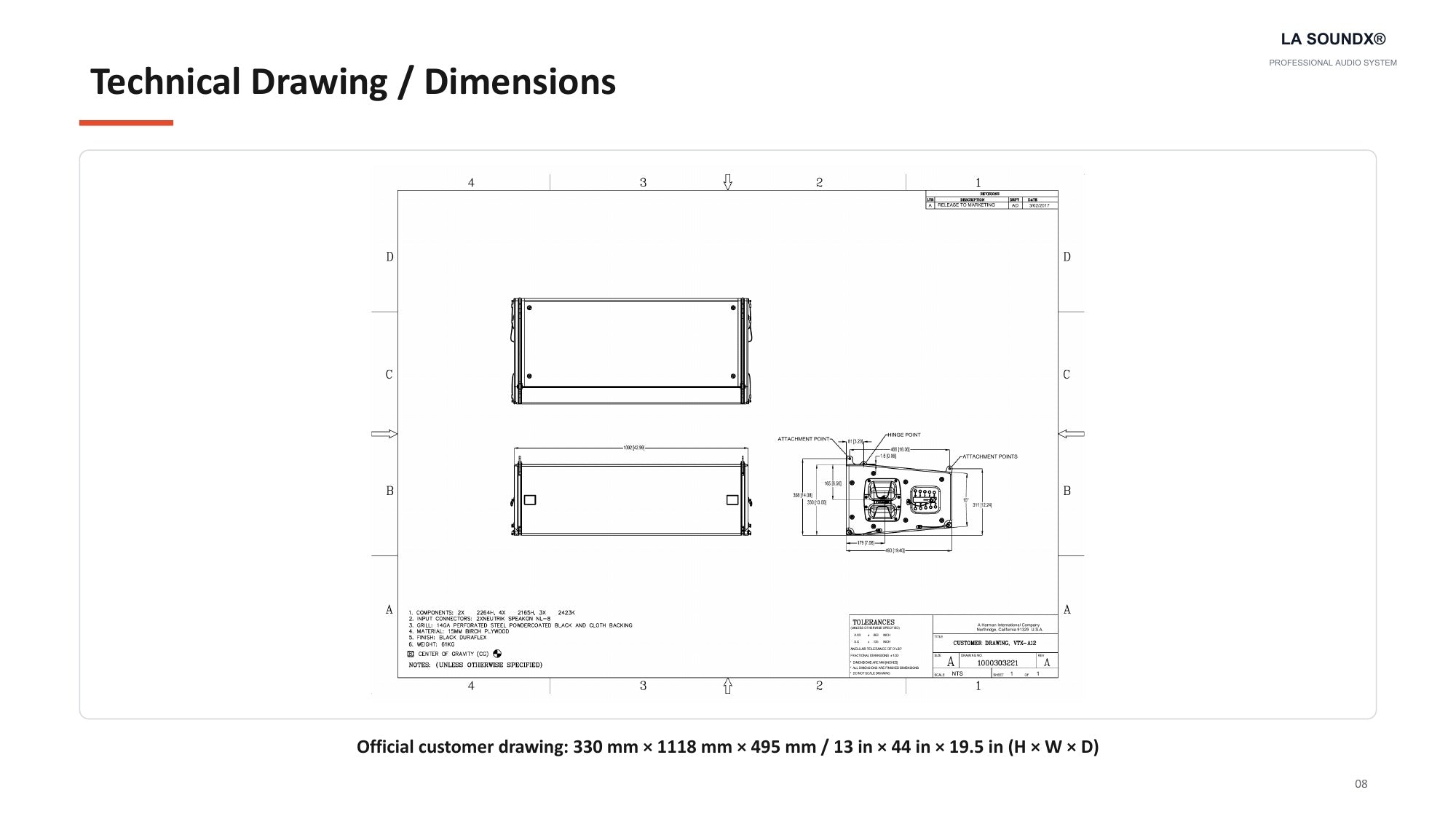

Dimensions: 330 x 1118 x 495 mm / 13 x 44 x 19.5 in (H x W x D)
Weight: 60.8 kg / 134 lb
Recommended Amplifier: Crown I-Tech 9000HD, Crown I-Tech 12000HD or Crown I-Tech 4x3500HD
IP Rating: IP55 EN (60529)

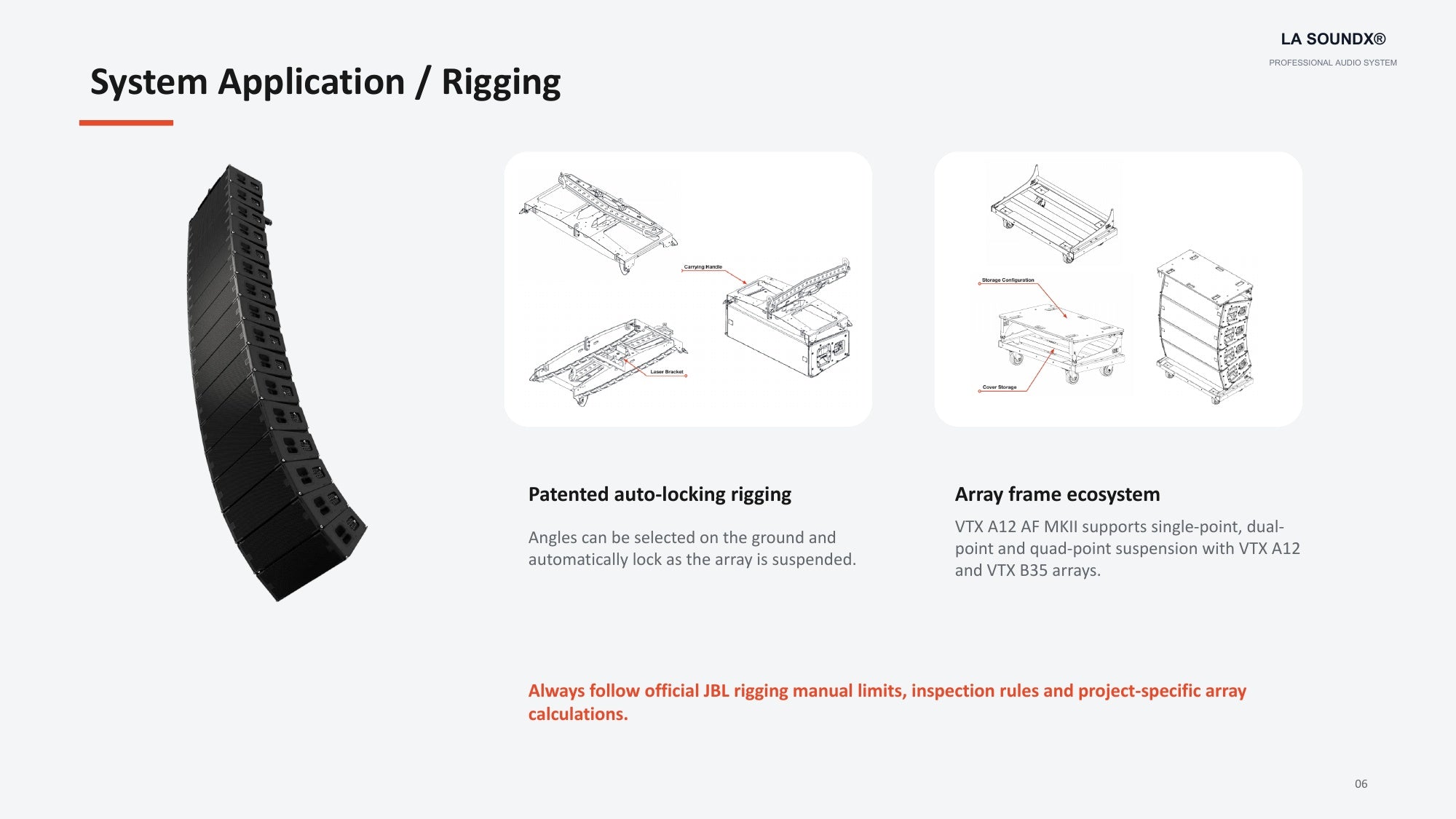

Inter-enclosure Angle: 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10 degrees
